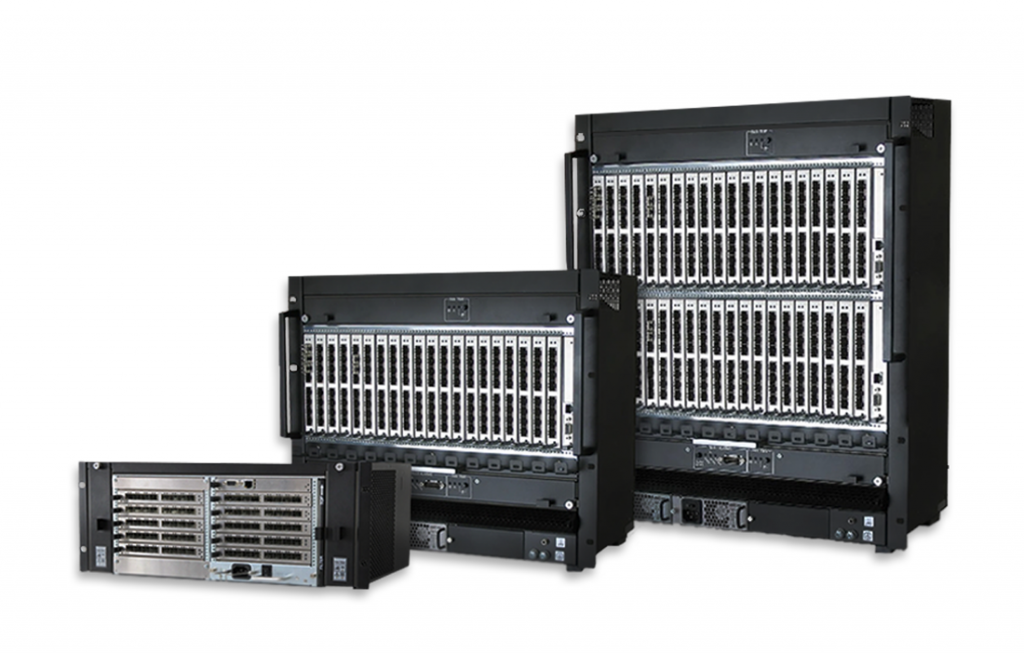

This chassis-based, modular cross point KVM matrix platform enables switching and extension of HD/4K video, USB 1/2/3, digital and analog bi-directional audio, and serial data over extremely long distances. Users can switch seamlessly and almost instantaneously (milliseconds) from one source to another. Use it in any application where many users have to interface with CPUs and other high-end AV equipment supporting high-quality video. Plus, it works as video scaler, converter and switcher.
Using a non-blocking switch technology, the DKM FX processes and routes DisplayPort 1.1 resolutions up to 4K at 60 fps, HDMI/Single Link DVI up to 1080p and Dual Link DVI up to 2560×1600 with little or no delay of video—even at screens far away from the switching chassis itself.
The platform not only supports digital video , but also SDI, VGA and many other analogue video formats and connections to a wide array of peripherals, including USB HID, USB 2.0 (up to 480 Mbps), RS-232, RS-422, audio and even legacy PS/2 keyboards and mice. For multi-head or demanding graphic applications, there are connections with multiple video ports and high-bandwidth throughput available.
DKM has been specifically designed for enterprise networks, mission-critical control rooms, as well as video production or broadcasting applications where fast, high-resolution video processing is crucial.
- A scalable, highly reliable KVM matrix switching and HD video routing system.
- Supports high-quality, full-frame digital video.
- Very flexible. Any port can be an input or an output.
- Holds up to 36 modular cards for up to 576 I/O ports (cascaded up to 4.096)
- Terabit-speed switching backplane.
- Nearly instantaneous video switching. Virtually no delay or blanking.
- Boasts digital resolutions up to 4K with 60fps (DP), 2560 x 1600 (DVI), 1080p (HDMI).
- Various interface cards available (digital/analogue video, USB, Audio, serial).
- Modular, no fixed ports. Moves, adds, and changes are quick and easy.
- Use it with DKM Extenders to connect users and computers over the distance.
- Choose from CATx and fibre SFP modular card interfaces.
- Enables mixing of media on inputs/outputs—CATx in and fibre out, or vice versa.
- Supports rich, digital audio for a full multimedia experience.
- Includes a control card, manage via KVM, network, or serial console.
