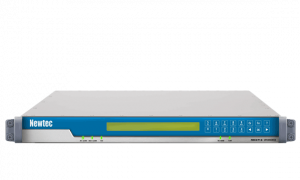

The FRC0710 offers advanced and unique features such as a calibrated high linearity over the entire bandwidth combined with a very high frequency stability. These features make the FRC0710 the perfect solution for a wide range of transmissions ranging from very small carriers to full transponder applications.

The FRC0710 is easy to operate and monitor. All control and monitoring parameters are available locally on the front panel and remotely through a web interface. It is also possible to control or monitor the FRC0710 via RMCP or SNMP.

Key features
Agile IF to L-band Upconverter
Optional up-conversion to C, Ku or DBS-band
Ultra fine L-band frequency resolution (48Hz)
IF input frequency switchable between 70 MHZ & 140 MHz
Switchable spectrum inversion
Very high frequency stability
Very low spurious characteristics
Phase noise compliant with Intelsat IBS/ Eutelsat SMS
High linearity over the entire bandwidth
Optional 10 MHz + DC power for BUC

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Main advantages
Highest signal quality
Extensive coverage of all transponder frequencies
High flexibility
The FRC0730 offers some advanced and unique features such as a calibrated high linearity over the entire bandwidth combined with a very high frequency stability. These features make the FRC0730 the perfect solution for a wide range of transmissions ranging from very small carriers to full transponder applications.

The FRC0730 is easy to operate and monitor. All control and monitoring parameters are available locally on the front panel and remotely through a web interface. It is also possible to control or monitor the FRC0730 via RMCP or SNMP.

Key features
Agile IF to L-band Up & Down Converter
Optional up-conversion to C, Ku or DBS-band
Ultra fine frequency resolution
IF frequency switchable between 70 MHZ & 140 MHz
Very high frequency stability
Very low spurious characteristics
Phase noise compliant to Intelsat IBS/ Eutelsat SMS
High linearity over the entire bandwidth
Optional10 MHz + DC power for BUC
Optional LNB power supply + 10 MHz

Connect » Provide Connectivity » Connectivity & Bandwidth » Satellite connectivity »

Universal and highly scalable

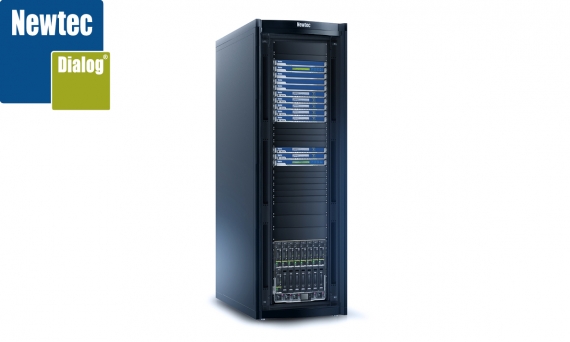

Hosting up-to 4 satellite networks in a single rack, the Newtec HUB6504 is the solution for satellite service providers. It enables any network configuration, from a single to multiple service areas, one or more satellites, different frequency bands, multiple transponders and High Throughput Satellites.

The modularity gives service providers agility to respond to their customer and market needs in a fast and cost effective way. Additional satellite networks can be added easily and rapidly. It only requires adding additional modulators, multicarrier demodulators and server blades into the preconfigured rack slots and activation in the Newtec Dialog Network Management System. High capacity multicarrier demodulator units can be added in function of the required capacity for SCPC, MF-TDMA and Newtec’s patented Mx-DMA return link technology.

Key features
Up to 4 satellite networks
Up to 60.000 terminals
Up to 800Mbps of satellite capacity, including all traffic processing
Support for SCPC, MF-TDMA and Mx-DMA® return links
Carrier grade reliability with built-in redundancy
Low initial cost, pay as you grow
60.000 terminals, 800Mbps satellite traffic, Carrier grade
The Hub Module can process up-to 60.000 terminals and 800 Mbps of satellite capacity. It includes all traffic processing, like Quality of Service and congestion management, acceleration, compression and encryption. The Hub Module easily integrates with the ‘IP backbone’ router and the RF gateway up/downlink. Built-in redundancy provides better than 99.99% platform availability.

Connect » Provide Connectivity » Connectivity & Bandwidth » Satellite connectivity »

Highly Flexible and Scalable

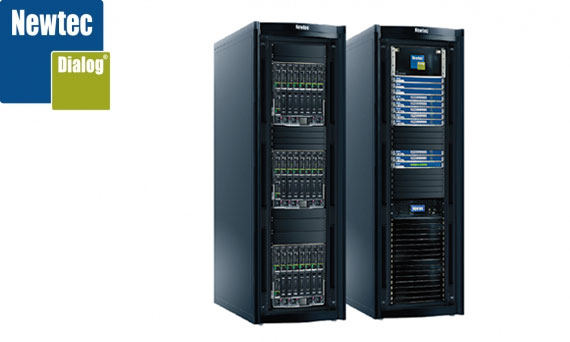

The Newtec XIF Hub is the solution for gateway deployments serving a multitude of beams, transponders or satellites. The use of a baseband matrix brings N:M redundancy for up 32 multicarrier modulators and/or demodulators in one rack. In addition, the matrix fan in/out capabilities allows to simplify interfacing with the gateway RF infrastructure. Capacity can be extended easily and rapidly, simply by adding additional multicarrier modulators, demodulators and blade servers and activation in the Newtec Dialog Network Management System. High capacity multicarrier modulator units support DVB-S2X carriers, whereas the high capacity multicarrier demodulator units can support SCPC, MF-TDMA and Newtec’s patented Mx-DMA return link technology.

High Throughput
The Newtec XIF Hub is designed for operators seeking high throughput through its 10 Gbps Ethernet switching infrastructure. With support for Forward DVB-S2X carriers up to 500Mbaud, they can leverage the high bandwidth transponders provided by HTS satellites.

Key features:
Highly flexible and scalable hub architecture
Optimized baseband density & flexibility with baseband matrix
Up to 500 Mbaud forward carriers
Carrier grade reliability with built-in redundancy
Support for SCPC, MF-TDMA and Mx-DMA® return links
Pay-as-you-grow

Connect » Provide Connectivity » Connectivity & Bandwidth » Satellite connectivity »

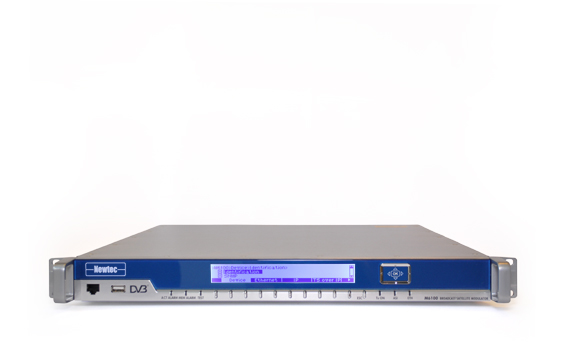

Latest generation DVB-S2X, DVB-S2, DVB-DSNG and DVB-S modulator designed and built from the ground up for multimedia contribution, broadcast direct-to-home and primary distribution to headends and towers.

Key features:
DVB-S2X, DVB-S2 and DVB-DSNG/S compliant
QPSK, 8PSK, 16/32/64/128/256APSK
Baud rate range: 0.05 – 72 Mbaud
Data rates up to 425 Mbit/s (in multistream mode)
Data rates up to 216 Mbit/s (in single stream mode)
Exceptional jitter recovery on TS over IP inputs
Automatic rate synchronization on TS over IP inputs
Null packet stuffing rate detector on incoming TS
Built-in TS Analyser with PCR jitter measurements and monitoring of critical ECM/EMM messages
RFI reduction using optional DVB RF Carrier ID (DVB-CID) and NIT table CID (default)
Optional BISS Content protection
Optional redundant ASI transport stream interfaces
Redundant GbE interfaces with SMPTE 2022-1/2 FEC error correction
Built-in source redundancy, supporting any redundant IP network configuration
External reference input
IF (70/140) and L-Band (950-2150) high power outputs
Optional integrated RF upconverter (Ku-band or C-band)
L-band monitoring output
Market leading RF purity and performance
Clean Channel Technology®
Optional linear and non-linear Equalink® 3 Pre

Main advantages:
Support of the latest and most efficient DVB-S2X standard
Highest system reliability and service uptime through robust design and industry leading redundancy solutions
Low total cost of ownership as a result of very high bandwidth efficiency technology options, and ease of monitoring and control
Clean Channel Technology® provides up to 15% bandwidth efficiency gains on top of the DVB-S2 standard
Equalink® 3 pre-distortion provides up to 10% bandwidth gains, higher QoS or geographic coverage
Built-in support for opportunistic data insertion, interoperable with IRD’s that support Multi Protocol Encapsulation (MPE)
Easy integration with industry leading management systems (EMS/NMS/OSS)
Safe investment as the platform supports advanced capabilities such as proMPEG FEC on inputs and outputs, built-in transport stream analyzer and DVB & NIT Carrier ID
Pay-as-you-grow flexible licensing scheme
Future-proof design combining video and IP multi-service capabilities, supports transport of today´s and tomorrow´s services
Dedicated Graphical User Interfaces for single stream and multistream applications:
- For your single stream applications: M6100 Broadcast Satellite Modulator R2.11
- For your multistream projects: M6100 Broadcast Satellite Modulator R2.1

Connect » Provide Connectivity » Connectivity & Bandwidth » Satellite connectivity »

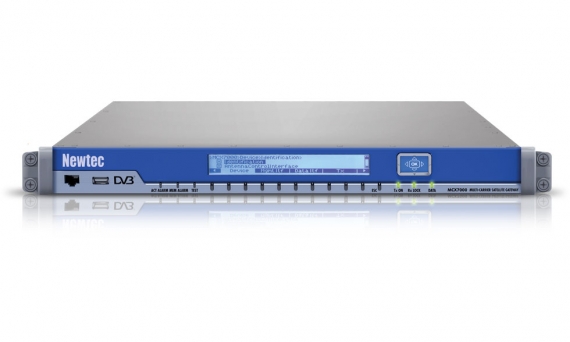

Dense DVB-S2X multi-carrier satellite gateway for efficient distribution to towers and head-ends or for use in back-up or dense DTH HUB stations, resulting in OPEX and CAPEX savings.

Main advantages:
The Newtec MCX7000 is a new dense DVB-S2X multi-carrier satellite gateway for efficient distribution to towers and headends, or for use in back-up or dense DTH HUB stations, resulting in OPEX and CAPEX savings. This 133 Mbaud modem is also fit for broadcast contribution applications on standard and HTS spotbeam transponders.

Compatible with the Newtec Dialog® multiservice broadcast platform, it brings increased bandwidth efficiency of up to 51% and features multistream, as well as Newtec's Clean Channel Technology® and its linear and non-linear pre-distortion technology Equalink® 3.

Building upon the MDM6100 Broadcast Satellite Modem software suite, the enhanced hardware platform of the MCX7000 extends the modem capabilities beyond single carrier support.

In a multi-modulator configuration, four 133 Mbaud carriers acc. DVB standards up to DVB-S2X can be generated. Efficient transmission of UHDTV bouquets over 2 or 3 transponders for DTH only requires the Channel Bonding license.
In a multi-demod modem configuration, two 133 Mbaud carriers can be demodulated, next to modulation of a 133 Mbaud signal with full support of the DVB satellite standards up to DVB-S2X. Each and every Transport Stream embedded in one of the received carriers can be output on one of the six (optional) ASI or dual Ethernet ports. The same data interfaces can be used as input ports for the modulator.
Transmodulation of a received stream is also an option.
Its remote in-band management and software upgradeability makes it the receiver equipment of choice for remote unattended towers and headends. Subsequent releases of this future-proof DVB-S2X platform guarantee, by simple software upgrade, even increased functionality and higher density.

Key features:
Maximum configurations:
- 4 x DVB-S2X carrier modulator
- 3 x DVB-S2X carrier modulator with optional ASI interfaces
- 2 x DVB-S2X carrier modulator and one demodulator with optional ASI interfaces
- 3 x DVB-S2X carrier demodulator (with dual L-band input)
- 2 x DVB-S2X carrier demodulator with one modulator and optional ASI interfaces
Minimum symbol rate: 256 kbaud
Maximum symbol rate: 133 Mbaud
Data rates up to 425 Mbit/s
IF (70/140) and L-Band (950-2150) high power outputs
Very high bandwidth efficiency, ease of monitoring and control leads to Low Total Cost of Ownership
- DVB-S2X, DVB-S2, DVB-DSNG/S compliant
- QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 128APSK and 256 APSK
- Up to 15% bandwidth gain with optional Equalink® 3 pre-distortion
- Up to 15% bandwidth efficiency gains (on top of DVB-S2) with Clean Channel Technology®
- Multistream CCM or VCM mode with ISSY
Highest system reliability and service uptime
- Redundancy with main TS over ASI and back-up TS over IP input
- Optional Seamless Switching acc. SMPTE 2022-7 on TS over IP inputs
- Carrier-based redundancy switching in a multiple modulator 1:1 configuration
- TS null packet stuffing detector
- Built-in TS Analyser with PCR jitter measurements
- RFI reduction using optional DVB RF Carrier ID (DVB-CID) and NIT table CID (default)
- Market leading RF purity and performance
- PRBS generator for link performance tests
Remote in-band management
Remote over-the-air software upgrade
Optional 4 x MPE encapsulators / decapsulators up to 70 Mbps
Optional AES encryption / decryption up to 140 Mbps
Optional BISS scrambler/descrambler up to 130 Mbps
Optional DVB-S2X Channel Bonding modulator up to 425 Mbps

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The FRC0740 has 2 L-band inputs and one L-band monitoring output. The signals on the two L-band inputs can be combined inside the unit before being up-converted. The high output frequency stability is provided by an internal 10 MHz reference clock. For applications requiring a very high frequency stability (such as for very low data rate carriers), an optional very high stability reference clock can be ordered.

The FRC0740 is easy to operate and monitor. All control and monitoring parameters are available locally on the front panel and remotely through a web interface. It is also possible to control or monitor the FRC0740 via RMCP or SNMP.

Key features
Wide choice of RF frequency ranges covering C, Ku and DBS-bands
Very high frequency stability
Very low spurious characteristics
2 L-band inputs and one L-band output
Integrated signal combiner
Very high linearity
Very good gain flatness over the entire bandwidth

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The FRC0750 can also be used as an active switching device for signal routing purposes or redundancy switching operations. In its default configuration, the FRC0750 combines up to 4 different L-band signals into one L-band signal. As an option it is possible to combine up to 8 different L-band signals within the same unit.

A DC power supply and a reference frequency are also available on the L-band output, providing a compact and cost effective solution when the FRC0750 is used in combination with an outdoor RF upconverter and/or amplifier.

The FRC0750 can be delivered with an integrated block upconverter as option. In this configuration, the FRC0750 converts the L-band output signal of the combiner to C, Ku or DBS-band. The FRC0750 is easy to operate and monitor. All control and monitoring parameters are available locally on the front panel and remotely through a web interface. It is also possible to control or monitor the FRC0750 via Newtec’s proprietary RMCP protocol or via SNMP.

Key features
Up to 8 L-band inputs
Each input is switchable and gain adjustable
Optional upconversion to C, Ku or DBS-band
Optional 10 MHz +DC power for BUC
Optional 10 MHz reference input/output
Advanced monitoring and control

Publish » Linear Signal Distribution » Satellite Distribution » Satellite middleware »

Cost Effective Service Offerings:

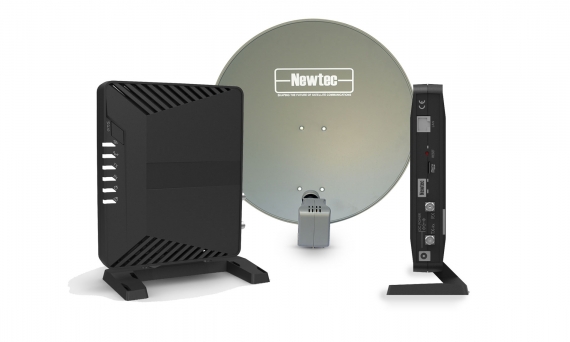

Thanks to a unique design of both the compact modem and the iLNB, the cost of the terminal is kept to a minimum.

The IP Satellite Modem is available with unique Point & Play® easy-install technology, supporting the installation of the complete terminal without specific qualifications or expensive tools. Point&Play provides correct satellite identification and facilitates pointing. This can happen through audio feedback, or through the Terminal Installation App. This smartphone app connects to the modem through Wi-Fi. It supports a number of key functionalities required during an antenna installation: Site acceptance, polarization adjustment, fully aided antenna pointing, storm testing etc. After mounting and positioning, the integrated certification assures correct installation by giving instant link quality approval. It guarantees that each terminal works at maximum efficiency without any interference risk.

Key Features:
Small size, table top or wall mounted
Optional Wi-Fi and advanced routing support
Wideband DVB-S2X ACM Forward
4CPM MF-TDMA Adaptive Return Link
Embedded TCP acceleration and encryption
Multi-level Quality of Service
Layer 2 and Layer 3 support with versatile IP routing and addressing
Low jitter for real time applications
DNS Cache/Relay
Support of IPv4 and IPv6
Multiple virtual networks behind the modem
Over-the-air software upgradeability
Over-the-air monitoring and diagnostics tools
Dual satellite configuration settings
Ka- and Ku-band terminal solutions
Support for single cable iLNBs

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

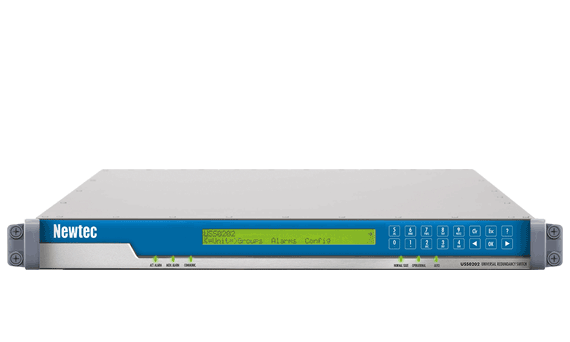

Key features
Dual redundant power supply with monitoring
From 1+1 to 16+1 configuration
Automatic or manual operational mode
GbE Logical Switching
Automatic Switch Back
Copy the full configuration from a device to another
Automatic memorization of configuration
Reference device
GUI with synoptic view
User-configurable switching logic
Operates and controls up to 36 switching modules
Switchable signals: ASI, IP, IF, L-band and RF-band
Stand alone operation or integrated in a network management system
Monitoring & Control via SNMP
Management of Device Configuration

Main Advantages
High reliability through the dual redundant power supply – Main & Extension unit
Increases service availability significantly thanks to the automatic or manual operational mode, the Automatic Switch Back and the automatic memorisation of the configuration
Optimised switching time
Cost-effective solution through GbE logical switching
Future-proof solution thanks to its scalability from a 1+1 to a 16+1 configuration
Easy setup and installation through the ability to copy the full configuration from one device to another
Flexible deployment and device hot replacement
Easy to use, control and operate through its user-configurable switching logic and the Automatic Switch Back
Easy integration into NMS systems through SNMP
Highly compact

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » IP networks and switches and SDVN »

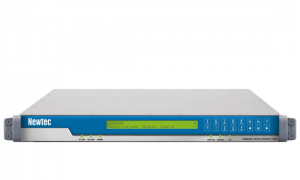

Main Advantages
High reliability through the dual redundant power supply
Increases service availability significantly thanks to the automatic or manual operational mode, the Automatic Switch Back and the automatic memorisation of the configuration
Cost-effective solution through GbE logical switching
Easy setup and installation through the ability to copy the full configuration from one device to another
Easy to use, control and operate through its user-configurable switching logic and the Automatic Switch Back
Easy integration into NMS systems through Monitoring & Control via SNMP
Highly compact

Key features
Dual redundant power supply with monitoring
Automatic or manual operational mode
Logical Ethernet switching
Automatic Switch Back
Copy the full configuration between devices
Automatic memorization of configuration
Reference device
GUI with synoptic view
User-configurable switching logic
Switching of ASI, IP, IF, L-band and RF signals
Stand alone operation or integrated in a network management system
Monitoring & control via SNMP
Management of device configuration

Publish » Linear Signal Distribution » Cable Distribution » Cable middleware »

Our playout facility helps with originating and manipulating content to your specific needs. The Nextologies Transmission, Distribution and Content Delivery Network (CDN) for IPTV and linear television broadcasts, gets your channel or content around the world in the shortest amount of time, at the most competitive rates, while assuring the best quality of service. Using our custom solution for automated playout, we have the ability to provide a full 24/7, 365 channel playout from a file based solution.

Nextologies master control and playout operators have the ability to insert commercial spots and programming into any of our content partners live channels ensuring your schedule stays accurate and profitable.

Using our custom designed time shifting module, we can time shift your signal 24+ hours and into multiple time zones.

Publish » Linear Signal Distribution » Satellite Distribution » Satellite middleware »

Cost Effective Service Offerings:
Thanks to a unique design of both the compact modem and the iLNB, the cost of the terminal is kept to a minimum.

The IP Satellite Modem is available with unique Point & Play® easy-install technology, supporting the installation of the complete terminal without specific qualifications or expensive tools. Point&Play provides correct satellite identification and facilitates pointing. This can happen through audio feedback, or through the Terminal Installation App. This smartphone app connects to the modem through Wi-Fi. It supports a number of key functionalities required during an antenna installation: Site acceptance, polarization adjustment, fully aided antenna pointing, storm testing etc. After mounting and positioning, the integrated certification assures correct installation by giving instant link quality approval. It guarantees that each terminal works at maximum efficiency without any interference risk.

Key Features:
Small size, table top or wall mounted
Optional Wi-Fi and advanced routing support
Wideband DVB-S2X ACM Forward
4CPM MF-TDMA Adaptive Return Link
Embedded TCP acceleration and encryption
Multi-level Quality of Service
Layer 2 and Layer 3 support with versatile IP routing and addressing
Low jitter for real time applications
DNS Cache/Relay
Support of IPv4 and IPv6
Multiple virtual networks behind the modem
Over-the-air software upgradeability
Over-the-air monitoring and diagnostics tools
Dual satellite configuration settings
Ka- and Ku-band terminal solutions
Support for single cable iLNBs

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

The DataMiner® NMS/OSS platform manages absolutely every aspect of your entire operational ecosystem, both on-premises and off-premises. That includes standard & legacy technology, commodity & industry-specific hardware and software, and much more. Our award-winning solution guarantees a true end-to-end integration in every single case, across any vendor and technology boundary, from service origin to destination.

DataMiner is the most advanced end-to-end multi-vendor NMS, OSS and orchestration software solutions for the broadcast, satellite, cable, telco and mobile industry. The platform offers a plethora of functions including unlimited web access, alarm monitoring, email and SMS notification, long-term trending, professional reporting, advanced automation, intelligent correlation and root cause analysis, service management, real-time SLA monitoring, user-definable key performance indicator dashboards, spectrum monitoring, mobile access, powerful CPE management, inventory and asset management, and much more. One interface to manage your entire operational ecosystem, across any vendor and technology boundaries, results in a significant reduction of operational expenses and increased quality of service. This award-winning solution is integrated with more than 5500 devices and systems from more than 600 different key industry suppliers. It enables end-to-end integration of the most complex technical ecosystems and has been deployed by leading operators around the world.

More info: www.skyline.be / www.dataminer.co

Publish » Linear Signal Distribution » Satellite Distribution » Satellite middleware »

The R&S®PKU100 is a solid-state power amplifier for the Ku band with a peak power of 400 W. It features top-notch efficiency in an extremely compact design. The powerful optional adaptive digital linearization improves the RF parameters in a manner never before available. This amplifier thus combines the advantages of solid-state and tube-based amplifiers.
