Deo - IABM Single BaM Product

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Compact enough to fit into the tightest of spaces - yet intelligent enough to adapt to your recording environment - the 8320A is your entry point into the world of Smart Active Monitoring.

Transparent and truthful

The 8320A provides transparent and truthful reproduction, and with its wide uncoloured sweet spot you are always in a position to make accurate, reliable mix decisions. The recycled aluminium design of it rear-ported enclosure not only provides staggering LF extension from such a compact unit, its curved form and integrated waveguide guarantees precise, detailed performance both on and off axis.

Compact but clever

As a Smart Active Monitor, the 8320A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So whether you work in challenging acoustic spaces or need a mobile solution that can quickly adapt to different rooms, the 8320A is your compact but clever monitoring companion.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

With a frequency response down to 15 Hz, and a maximum SPL capability in excess of 130 dB, the 7382A is Genelec's most powerful subwoofer to date.

Power and flexibility

Combining power and clarity with flexible calibration and bass management features, the 7382A is designed for use in recording studios, film mixing facilities, mastering suites, post-production houses, EDM playback and premium home theatres. With high SPL, low frequency cutoff and low distortion performance, the 7382A provides precise bass articulation even at the very lowest frequencies.

Totally optimised listening

As part of the growing Smart Active Monitoring family, the Genelec 7382A tightly integrates with GLM software, via which it can be configured, calibrated and controlled. GLM offers control of bass management, solves issues of subwoofer placement in unpredictable rooms, and even allows the creation of entire arrays of Genelec subwoofers where required. As part of a Genelec Smart Active system, the 7382A produces a totally optimised listening experience, delivering mixes that translate beautifully.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Delivering high SPL and extended LF response, the 7380A offers power, clarity and flexibility in equal measures.

High SPL, low distortion

Providing a level of performance normally associated with much larger enclosures, the 7380A subwoofer offers both high power and high SPL, with an extended low-distortion LF response and flexible bass management options. Comprehensive connectivity ensures that the 7380A is equally at home in stereo or multichannel environments, making it perfect for music, post, film or broadcast applications that demand powerful, dependable LF reproduction in a surprisingly compact form factor.

Configure, calibrate and control

The Genelec 7380A works closely with our GLM software, which allows all monitors and subwoofers in a system to be configured, calibrated and controlled. Offering access to advanced system auto-calibration and management, GLM’s powerful room compensation features enable the 7380A to be optimised for a wide range of acoustic environments, and permits both centralised and distributed bass management modes to be employed.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Created to deliver superb definition, the 7370A subwoofer intelligently adapts to your acoustic space to provide controlled, uncoloured LF reproduction.

Clean and precise

Offering more SPL and low frequency extension than our smaller smart subwoofers, the Laminar Spiral Enclosure design of the 7370A offer clean, precise performance with extremely low distortion – even at high playback levels. Created for discerning music, post and broadcast professionals, the 7370A will provide decades of reliable service in even the most demanding environments.

Low frequency that translates

The Genelec 7370A also offers onboard bass management and multi-channel connectivity, and can be configured and calibrated with our GLM software. GLM will analyse your room acoustics and intelligently adjust frequency, level, delay and crossover phase - so monitors and subwoofer integrate perfectly. This process produces a totally optimised listening experience, delivering mixes that translate beautifully.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Equipped for both stereo and multi-channel audio, the 7360A intelligently adapts to your space to deliver absolute accuracy at low frequencies.

Definition and neutrality

Built upon our Laminar Spiral Enclosure technology, the compact 7360A delivers a staggering SPL of 109 dB with incredibly low distortion – producing LF performance that is clean, precise and articulate right down to 19 Hz. The ideal low frequency monitoring tool for small to mid-sized studios, post and broadcast facilities and OB vehicles, the 7360A subwoofer ensures definition and neutrality you can trust.

Optimised listening

The Genelec 7360A also offers onboard bass management and multi-channel connectivity, and can be configured and calibrated with our GLM software. GLM will analyse your room acoustics and intelligently adjust frequency, level, delay and crossover phase - so monitors and subwoofer integrate perfectly. This process produces a totally optimised listening experience, delivering mixes that translate beautifully.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

For powerful, intelligent low frequency performance in a compact package, the 7350A Smart Active subwoofer simply can’t be beaten.

Clean and precise

Designed to complement our 8320A and 8330A smart monitors, the 7350A delivers clean, precise bass reproduction that provides low frequency extension and increases the headroom of your entire monitoring system through flexible bass management. This results in well-articulated LF performance with very low distortion, while your main monitors are free to concentrate their energy on the rest of the frequency spectrum.

Perfect integration

The Genelec 7350A also works closely with our GLM software, via which it can be configured for stereo or multichannel formats. Once configured, GLM will then analyse your room acoustics and intelligently adjust frequency, level, delay and crossover phase - so monitors and subwoofer integrate perfectly. This process produces a totally optimised listening experience, delivering mixes that translate beautifully.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

An absolute revelation in low frequency performance. With the W371A, you can finally wave goodbye to the detrimental influences of your room on LF reproduction.

Full-range, yet free-standing

The W371A seamlessly complements our 8341, 8351 and 8361 models to creates a series of full-range monitoring solutions with unrivalled neutrality and supreme control of directivity and the effects of room acoustics. Experience all the benefits of a main monitor, but with the freedom to locate this free-standing system in optimal positions within your control room; even providing the option to switch between nearfield and main monitors without image-shifting.

Flat, smooth response

The Genelec W371A tailors system performance carefully to the room, offering flatter, smoother in-room response with more coherent LF imaging. Three different operating modes allow a choice of flat and neutral LF response avoiding ‘acoustic notching’, continued directivity of the main monitor down to the lowest LF frequencies, or reduction of detrimental reflections by the walls, ceiling or floor of your room. The W371A then uses GLM software to select and optimise the signal processing for the best LF radiation mode, taking into account both the monitor location and listening position.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

The new flagship of The Ones range, the 8361A offers the most advanced acoustic performance of any studio monitor on the planet.

An exquisite monitoring experience

The largest of our coaxial point source monitors, the 8361A offers extremely high dynamic range, unrivalled directivity and imaging and a short term SPL of 118 dB, enabling it to deliver an exquisite monitoring experience at any listening distance up to 5 metres – and therefore making it perfect for small to medium sized rooms.

Adapts to your space

The Genelec 8361A promotes faster and more consistent decision making, and also allows you to work reliably on longer sessions - because unnatural imaging, a main contributor to listener fatigue, is minimised. And by using it in conjunction with our powerful GLM calibration software, the 8361A will adapt to your acoustic space - compensating for any detrimental room influences and helping you produce mixes that translate perfectly, from stereo through to highly complex immersive formats.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

A revolution in three-way monitor design, the 8351B boasts a unique look, compact size and a performance that has to be heard to be believed.

Uncoloured precision

The upgraded 8351B now offers increased SPL, additional room compensation EQs, equalised delay and enhanced HF response. Offering the same extraordinary imaging and uncoloured precision of its smaller 8331A and 8341A siblings, the 8351B provides even greater LF extension, while its higher maximum SPL enables longer listening distances.

Work faster, for longer

The Genelec 8351B promotes faster and more consistent decision making, but also allows you to work reliably on longer sessions - because unnatural imaging, a main contributor to listener fatigue, is minimised. And in conjunction with our GLM software, it will adapt to your space and compensate for detrimental room influences. From mono to immersive, you can be confident of producing mixes that will translate beautifully to other rooms and systems.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance.

Work faster, for longer

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging - a main contributor to listener fatigue - is minimised.

Mixes that translate

As bigger brother to the super-compact 8331A, the Genelec 8341A offers increased LF extension and a higher SPL capability, so is ideally suited to slightly longer listening distances. In conjunction with our GLM calibration software, the 8341A will also compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully - every time.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Incredible three-way point source monitor with the footprint of a compact two-way. When space and precision is of the essence, nothing even comes close.

Work faster, for longer

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging - a main contributor to listener fatigue - is minimised.

Mixes that translate

The smallest in The Ones series, the 8331A is perfect for small rooms or ultra-nearfield applications, and offers an outstanding solution where none existed before. And in conjunction with our GLM calibration software, the 8331A will compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully - every time.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

The 1032C is a high-SPL nearfield monitor that fuses the much-loved soffit-mountable styling of the iconic 1000 series with our latest Smart Active Monitoring technology.

Even higher performance

Retaining all the revered audio characteristics of the previous A and B versions, the 1032C now features digital connectivity, a universal power supply and powerful Class D amplification; enabling it to produce higher SPL and greater low frequency extension than its already powerful predecessors.

A smart classic

In addition to its trademark out-of-the-box neutrality, the Genelec 1032C now integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. This makes the 1032C is the perfect choice for professionals in high-end music production, post production and broadcast whose mixes need to translate perfectly to other rooms and systems.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

The 8430A is the world’s first AoIP studio monitor, allowing reference-quality monitor performance to integrate directly into your IP workflow.

Total compatibility

The explosion in the growth of networked audio has been huge, and the 8430A’s connectivity allows direct monitoring of AoIP streams, with all the precision and clarity that audio professionals have come to rely on from Genelec. Based on the Ravenna IP protocol, with full AES67 support for total compatibility, the 8430A is the natural choice for today’s sophisticated production environment.

Optimised listening

As a fully-fledged Smart Active Monitor, the Genelec 8430A integrates tightly with our GLM calibration software to fully optimise your IP-based monitoring set-up for your listening environment. This means you can always be confident of producing mixes that translate beautifully, even if you are working in challenging broadcast environments with only rudimentary acoustic treatment.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

All the intelligence of Smart Active Monitoring in an extremely potent nearfield monitor. Introducing the Genelec 8350A.

Make accurate decisions

Boasting high SPL and extended frequency response, the 8350A is crafted to deliver the absolute transparency and neutrality you expect from a Genelec nearfield monitor, and will fit seamlessly into any studio or broadcast environment. With its wide uncoloured sweet spot, it promotes accurate and reliable mix decisions, and its bulletproof durability is essential for mission-critical applications.

Powerful but clever

As a Smart Active Monitor, the 8350A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the 8350A is your powerful but clever monitoring companion.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Elevate the accuracy of your audio monitoring to a new level with the precision and adaptability of the 8340A Smart Active Monitor.

The unvarnished truth

Top professionals the world over in recording studios, post-production houses, digital edit suites, radio, TV and outside broadcasting have come to rely on the unvarnished truth of the 8340A. Its wide and stable sweet spot promotes accurate, reliable mix decisions, and its bulletproof durability is essential for mission-critical applications.

Truly optimised monitoring

As a Smart Active Monitor, the 8340A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the 8340A is your powerful but clever monitoring companion.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Combining precision, adaptability and a small footprint, the 8330A offers colour-free performance and powerful room compensation features.

The professional’s choice

The choice of demanding professionals for whom power and flexibility go hand-in-hand, the 8330A offers a little more SPL and LF extension than its smaller 8320A sibling. Providing transparent and truthful reproduction, the 8330A’s wide uncoloured sweet spot means you are always in a position to make accurate, reliable mix decisions.

Truly optimised monitoring

As a Smart Active Monitor, the 8330A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the Genelec 8330A is your compact but clever monitoring companion.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Nearfield monitoring with real muscle. The 8050B has power in abundance, making it ideally suited to larger spaces and longer listening distances.

Detail and transparency

The 8050B represents a class-leading balance of extraordinary SPL output, expansive dynamic range and an intensely detailed, transparent performance. With superb directivity and a wide sweet spot, you're free to move position and still trust what you're hearing.

Mixes that translate

With its neutral performance and ability to adapt to your room via simple rear-panel room compensation switches, the Genelec 8050B ensures a flat playback response to help you really analyse the spectral balance of a recording and produce mixes that always translate reliably.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Pristine performance

The choice of recording professionals the world over, the Genelec 8040B’s pristine performance extends to an SPL of 105 dB and reaches right down to 41 Hz. This is a nearfield monitor that can provide truthfulness and energy in equal measures.

Speed and accuracy

The 8040B’s recycled aluminium cabinet design combines transparent, uncoloured audio quality with a unique aesthetic beauty. You’ll work with speed and accuracy, producing mixes that translate beautifully. And when you’ve finished, our Intelligent Signal Sensing (ISS) circuitry will automatically switch the 8040B into a green, power-saving standby mode.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

If you love the compact format of the 8010 and 8020 models but demand higher SPL and more bass extension, meet the 8030C.

Welcome to the sweet spot

A consistent best-seller, the Genelec 8030C sits in the perfect sweet spot of big monitor performance and small footprint. It offers precise imaging and staggering detail, but can go louder and lower than its smaller siblings – making it the perfect choice for slightly larger spaces.

Mixes that translate

The trademark rounded cabinet design of the 8030C delivers uncoloured reference performance both on and off axis, and rear panel room compensation switches let you optimise the 8030C for your individual room acoustics. All this helps you produce mixes that translate beautifully to other rooms and systems.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Classic design

The 8020D is the latest revision of this enduring studio classic, boasting an even higher SPL yet lower energy consumption than previous versions. Designed to adapt to the broadest possible range of listening environments, the 8020D thrives when space is at a premium.

Transparent and truthful

Engineers love the transparent and truthful reproduction of the Genelec 8020D, and with its wide uncoloured sweet spot you are always in a position to make accurate, reliable mix decisions. Additionally, our Intelligent Signal Sensing (ISS™) circuitry detects when your monitor is no longer in use, placing it into an environmentally friendly, power-saving standby mode.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Small size, huge performance

When studio space is limited or you record on the move, the 8010A is your reliable monitoring companion. Don’t be fooled by its affordable price tag and modest dimensions, the 8010A is every bit a Genelec pro monitor: uncoloured, accurate and powerful.

Trust is everything

A combination of enclosure, driver and electronic design gives the Genelec 8010A extremely neutral characteristics and the ability to adapt to your space via simple rear panel room compensation switches. So whether you’re in a bedroom studio, hotel room or OB van, you can always trust what you’re hearing.

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

The MPA product family has been designed for ease of use with Solo and Mix options. Supporting established I/O workflows such as SDI, MADI and analogue, in addition to Dante / AES-67 support for audio over IP.

MPA1 SOLO products provide the simplest of audio monitoring solutions, whilst the MPA1 MIX products allow users to define their own monitor mix by allowing multiple audio sources to be mixed together.

Compact and Lightweight – All MPA 1 products share the same 1RU form factor at only 100mm deep and are ideally suited for those environments where space and weight is a premium, such as OB Trucks, Flyaways, SNG and ENG Trucks.

TSL ‘DNA’ – All MPA1 products benefit from TSL’s significant history and experience in developing professional audio monitoring products for use in the most demanding of broadcast environments.

Ease of Use – Offering both simple and intuitive control, the MPA1 range of products have been designed to enable the smoothest of workflows for operators and engineers working in high pressure environments such as live production.

Web GUI - All MPA1 products can be configured, controlled and monitored via a web interface. Facility wide management of all MPA1 products is now possible from a single desktop PC.

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

Modern Loudspeaker Drive Units:The newly designed drive units fitted in the GS-MON004 were originally manufactured as full range drive units in flat screen televisions. They have ultra modern Neodymium magnets with reasonably low tesla magnetic induction properties.

Class D Amplifiers:Each loudspeaker is driven from a new design of Class D amplifier. These amplifiers provide low distortion & low noise outputs.  Four watts RMS is provided into each loudspeaker and the peak output is electronically limited to 5 watts.

Inbuilt Loudspeaker Protection:A compressor limiter circuit is provided to prevent overload and damage to the loudspeaker drivers by exceptionally high audio levels. One compressor/ limiter is provided for each loudspeaker and they have been carefully designed not to taint the audio during normal operating levels.

Stereo Inputs For Each Channel:A total of 8 audio inputs are provided for the 4 loudspeakers.  Each loudspeaker is driven from 2 audio inputs mixed together, this allows the easy monitoring of stereo signals on the unit. All the audio inputs are electronically balanced on rear panel XLRs.

Channel Mute Switch:Each channel has its own illuminated mute switch. This allows a quick and easy way for an operator to turn the audio off from one (or more ) loudspeakers.

Presence & Peak LEDs:Presence LEDs are provided for each loudspeaker input. These LEDs illuminate when incoming audio is detected and this provides a helpful aid to an operator to know which audio circuit is currently active. Peak LEDs are also provided and these illuminate when the input level reaches a high level.

Headphone Output:A front panel 6.35mm TRS headphone jack is provided. If headphones are plugged in then the audio to the loudspeakers is automatically cut.  The headphone output is stereo and it wired such that inputs 1 and 3 feed its left output and 2 and 4 feed the right output channel.

Mains Power Supply:An internal switch mode mains power supply is fitted that is suitable for use Worldwide. The power input is via na industry standard filtered IEC plug.

High Acoustical Output:The modern loudspeaker drive units are capable of providing a high output SPL of 88dB from 1 loudspeaker (at 0.6 metres) or 98dB if all loudspeakers are driven coherently.

Best in Class Frequency Response:Our design provides what we believe is the best in class frequency response from a 4 way 1RU loudspeaker rack. Our acoustical output is within +/-9dB from 22kHz down to 120Hz. The flat mid range and extended LF provide a noticeable improvement in audio clarity

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

The Bella 32 is a 32 channel audio monitor for Dante / AES67 networks. 32 push buttons directly select the audio to be monitored and selecting multiple inputs mixes them together. There are two presets for setting up separate mix groups.

Each input can be panned between the left and right speakers, and holding any input will solo it. There are signal present LEDs on each input. There are two local analogue inputs that can also be selected for monitoring.

The currently monitored mix is available as left/right stereo or as a separate mix in analogue and AES3.

Two PPM level meters provide output levels, as well as indication of input level and panning position.

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

Bella 22 is a 2 buss summing matrix confidence monitor designed for outside broadcast trucks, studios, theatre and professional audio applications. It is perfect for easy and cost effective monitoring of multiple network audio sources, ideal for busy production environments and perfect for monitoring multiple network intercom & programme feeds.

The 2 front panel loudspeakers are driven from a DSP to compensate for their size.  The result is surprisingly good, with clear crisp vocals and highly intelligible reproduction of wider band audio sources. They are driven from a class D amplifier and have more than sufficient output level for most environments.

Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

The Bella 4 is a 4 loudspeaker confidence monitoring rack. it is a new design for 2019 and features the very latest technology in loudspeaker and amplifier design giving it an extended acoustic frequency range (compared to old legacy equivalent products) and low distortion.

The 4 loudspeakers are each fed from their own* Dante® (AES67 compliant) network audio input. Each Channel has a front panel audio presence indicator and input peak Led and an illuminated Channel mute switch. Front panel volume controls adjust the audio output of the speakers and the headphone circuit.

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

The HRS-1S provides self-powered, full-fidelity audio monitoring of 2 analog channels in the smallest space possible (half-width 1 RU). This unit contains two high performance transducers driven by two power amplifiers: one amplifier/driver combination handles midrange and high frequency information, while the second handles summed low frequency information below the 500 Hz crossover point.

The unique design allows this unit to fit almost anywhere, and provides optimally focused sound for operators in an ultra near field (1 to 3 ft.) working environment. This provides for a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk.

Extended HF response reveals potential problems with audio whine or hiss. Electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds. A headphone jack is provided on the front panel, usage automatically mutes the speakers. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.

FEATURES:

• Premium quality subwoofer and midrange speaker


• High quality AMP Series internal amplifier


• 2 balanced analog Inputs with loop-through (1 stereo)


• 95dB SPL at 2 feet (0.6m)


• Premium quality drivers and power amplifiers


• Headphone jack mutes speakers

BENEFITS:

• Thorough magnetic shielding for placement next to sensitive equipment.


• Extended frequency response and low distortion


• Electronic cancellation of bass frequencies provides audible indication of phase/polarity problems.


• Incredibly compact, fits almost anywhere, 1/2 rack wide (8.5”), 1RU high.


• Quick and simple installation


• Focused sound reduces adjacent bay crosstalk

https://www.wohler.com/wp-content/uploads/2016/11/HRS-1S_d.pdf

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

The AMP1-DA/106 provides self-powered, full-fidelity stereo audio monitoring of 2 channels from analog and AES/EBU Digital sources and ultra-high resolution LEDs with 106 segments in the smallest rack space possible.

This unit contains four high performance transducers driven by three power amplifiers: one amplifier/driver combination handles midrange and high frequency information in stereo, while the second handles summed low frequency information below the 500 Hz crossover point. The unique design provides optimally focused sound for operators in an ultra near field (1 to 3 ft.) working environment and offers performance comparable to that of many separate monitor pairs, yet does so without the installation hassles, awkward speaker placements and “added-on” look. This provides for a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk. The level meters are now available with a choice of BBC, DIN, Nordic and VU scales and PPM Only.

Extended HF response reveals potential problems with audio, whine, or hiss. Electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds. A headphone jack is provided on the front panel, usage automatically mutes the speakers. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities. Our unique tri-color LED design means we can offer an almost unlimited variety of options such as phase correlation, peak hold, and alternate scales.The standard display mode is set as a single segment PPM “dot” above a VU bar; each segment’s color is fixed according to its position on the scale. Level calibration may be set via dip switches to select one of four different calibration levels.

The AMP1-DA/106 is ideally suited for use in VTR bays, mobile production vehicles, teleconferencing installations, multimedia systems, satellite link and cable TV facilities, and on-air radio studios.

FEATURES:

• Full fidelity audio monitor in only 1RU


• Two unbalanced AES/EBU digial inputs (selectable)


• Two balanced analog inputs (1 stereo)


• Balanced analog output of selected source

https://www.wohler.com/wp-content/uploads/2016/11/AMP1-DA_106_d.pdf

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

With Wohler’s renowned high-quality audio, the AMP1-2SDA provides instantaneous selection and monitoring of any available pair of audio from either a 16 channel SDI, 2 channel AES or 2 channel Analog source. It features adjustable volume and balance controls, clear display of levels on two 26 segment LED meters and an average phase indicator. Designed with simplicity in mind, the AMP1-2SDA provides two rotary controls that allow the user to easily select the source type with the first and move through corresponding audio pairs with the second. A large front panel screen clearly displays the selected source and pair and is highly visible to users, even in busy technical environments. Additional features include simple tone controls for adjusting audio output and an audio trim control for altering the analog output levels. Ultra-compact, the AMP1-2SDA fits perfectly in a network facility or OB truck live event and is ideal for a range of applications where basic, but reliable stereo audio monitoring is required.

Features

• Wohler quality sound

• Selectable 2 channel monitoring

• Bright, easily visible front panel display

• Simple uncluttered front panel controls

• Adjustable Volume and Balance

• Stereo phase indicator

• Selectable trim and tone controls

• Monitor through built-in speakers, headphones and analog outputs

• Shallow chassis for easy installation in OB vehicles and consoles

• An additional 8 pairs of AES and Analog inputs available on the AMP1-2SDA+

https://www.wohler.com/wp-content/uploads/2016/11/AMP1-2SDA_d.pdf



Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

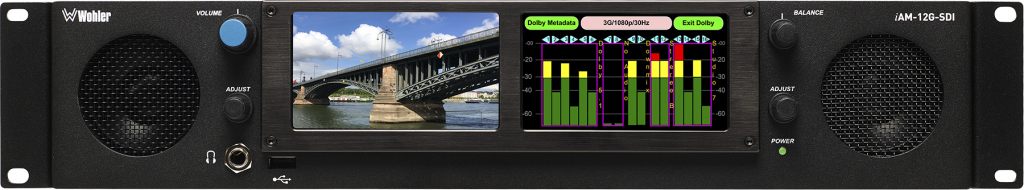

Wohler Technologies is extending its ground breaking iAM Series of products with a new multichannel audio and 12G video monitor that accepts 2 x 12G/3G/HD/SD-SDI signals over BNC. 4 SFP cages allow for a variety of additional monitoring options, including 2110, 2022-6, as well as additional SDI inputs in a variety of combinations listed in the table below. Our Dolby® ATMOS option allows decoding of Dolby Atmos content, along with the familiar Dolby D, D+, E content. Flexible. Adaptable. Future Proof. iAM-12G-SDI is designed to be easy to operate, yet powerful enough to provide high quality, accessible and easy to use monitoring of the newest signals (12G, 2110, 2022-6) within a compact form factor. Incorporating the latest technology, Physical and touch screen front panel controls duplicate previous mature design philosophies of shipping iAM Series units. With both front mounting speakers and sub-woofers, the iAM-12G-SDI provides the powerful sound output and audio reproduction that Wohler is well known for. A front mounting USB port is available for simple software updates. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with authentication that protects critical configurations from unauthorized alteration.

Features/Benefits:

• 2 x 12G (4K) SDI inputs that also monitor 3G/HD/SD-SDI signals as well.

• 4 x SFP cages allowing a range of optional connectors and signal processing options, fully listed in the table below.

• Optional Dolby® Atmos that also decodes Dolby D, D+ and E streams for playback, metering and metadata.

• Touch screen front panel for easy, intuitive control

• Video monitoring and audio monitoring of up to 16 channels of audio from multiple sources

• Built-in speakers, headphone jack, USB and Ethernet ports

• Store and retrieve presets via USB or remote software control

• Software upgradeable via USB or network, upgrade multiple units at once

• APIs for remote control.

https://www.wohler.com/product/audio-monitoring/iam-12g-sdi/

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

The VMQ-4 audio monitor from Wohler Technologies offers voice quality confidence monitoring of up to 4 analog channels simultaneously. The VMQ-4 only requires a compact 1U of rackspace and is available at a very cost effective price.

Because each channel has its own dedicated power amplifier and speaker, the audio sources remain completely separate from input to output. When listening within ultra near field distances of 1 to 3 feet, these discrete speaker outputs provide enhanced source distinction when compared to designs with four inputs mixed into a single output. Each channel has an LED which illuminates when a signal is present at the input allowingthe operator to easily determine at a glance which channels are currently active, very helpful when quick volume adjustments are required. Separate mute buttons are provided for each channel; these together with an LED that indicates channel muting allow an operator to quickly mute one or more channels. A stereo headphone jack has Channels 1 and 2 summed on the left side, and Channels 3 and 4 on the right side.

The VMQ-4 is completely magnetically shielded to allow interference-free operation immediately adjacent to all CRT video monitors. The lighter weight and shallower-depth chassis compared to similar-type units, make it ideal for use in portable and mobile vehicle applications..



Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

Offering a choice of 1RU and 2RU monitoring bridges, the MB-series fits your rack or console with ease. Choose the model with embedded SDI or discrete audio inputs to match your installation.

Front panels include large, bright displays and intuitive tactile controls to easily tailor your audio monitoring experience. Quickly choose what you want to listen to, they way you like it. Full DashBoard control and GPI interfaces round out a complete control solution.

The MB-series feature surround mix-down, channel summing, easy channel selection and loudness measurement – all the tools you need to ensure your audio is in check.
