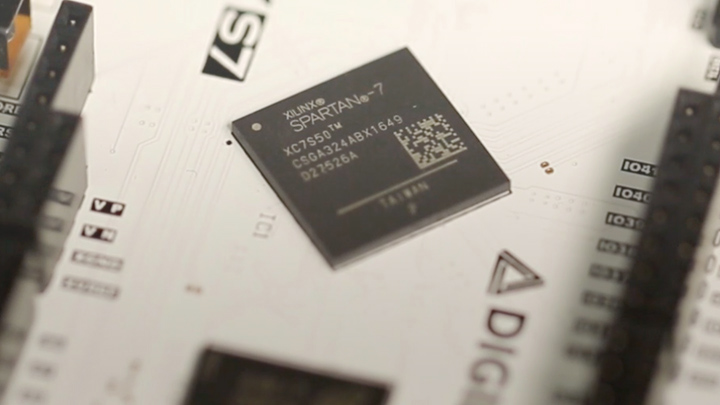

Spartan-7 FPGA Family

Create » Content Acquisition and Capture » Audio Aquisition » Microphones and microphone systems »

Xilinx Spartan®-7 devices, the newest addition to the Cost-Optimized Portfolio, offer the best in class performance per watt, along with small form factor packaging to meet the most stringent requirements of wireless microphone systems.

These devices feature a MicroBlaze soft processor running over 200 DMIPs with 800Mb/s DDR3 support built on 28nm technology. Additionally, Spartan-7 devices offer an integrated ADC, dedicated security features and highly parallel DSP capabilities making them ideal for both audio and wireless transmission processing with low latency.

  • High pin-count to logic ratio for I/O connectivity

  • MicroBlaze™ processor soft IP

  • Integrated security and monitoring

  • Up to 1.25Gb/s LVDS

  • 25.6Gb/s peak DDR3-800 memory bandwidth with flexible, soft memory controller

  • XADC and SYSMON for integrating discrete analog and monitoring circuitry

  • Cost-optimized for system I/O expansion

  • 1.0V core voltage or 0.95V core voltage option

  • 50% lower total power than 45nm generation devices

  • Enabled by Vivado® HLx Design Suite WebPack™
