| Fixed satellite antenna and ground stations |
Teleport Services
Teleport Services
In addition, Es’hailSat Teleport can provide backup facilities, turnaround services, hosting services, and disaster recovery owing to its geographical diverse location, and can contribute as a data center.

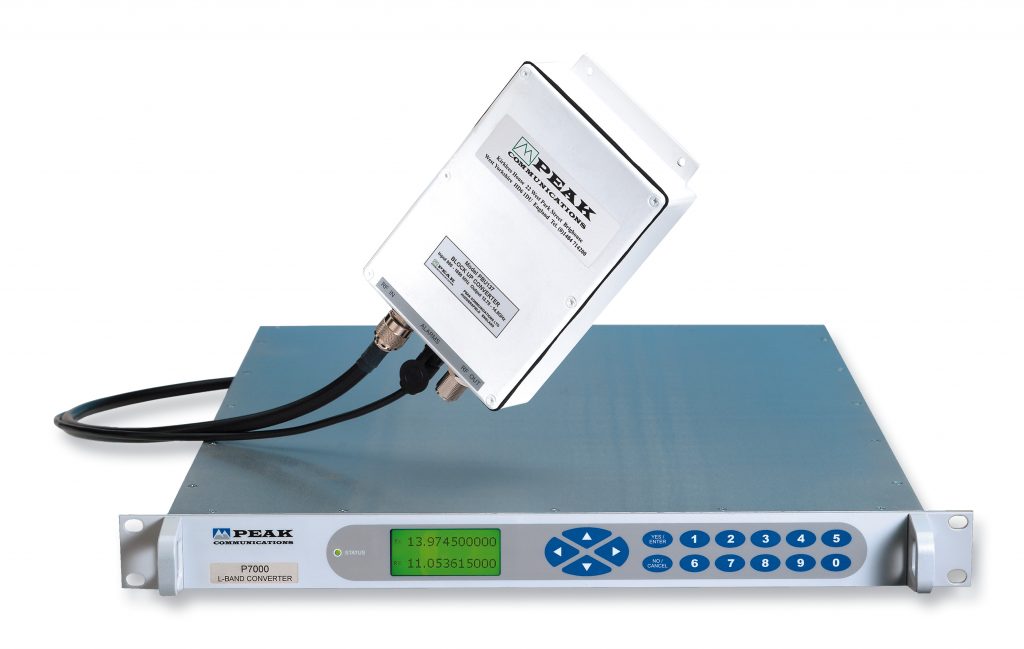

Frequency converters
Frequency converters
AGILE CONVERTERS for baseband ‘IF’ 70/140MHz to/from L-Band or the transmit/receive bands (S, C, X, Ku, DBS & Ka), including an L-Band interface. Typically the signal useable bandwidth is stated as ±18MHz or ±36MHz, to match standard satellite transponder bandwidths. Peak agile converters use a fully synthesised topology allowing the frequency to be set to 1Hz, so are suitable for all general frequency conversion as well as more critical Geolocation applications. All agile converters from Peak include an L-Band interface that provides flexibility in use, especially for sites with mixed IF/L-Band infrastructure.
BLOCK CONVERTERS for L-Band to/from the transmit/ receive bands (C, X, Ku, DBS & Ka). Peak high grade block converters offer a high RF performance for professional applications and are designed to be fully compatible with a wide range of L-Band modems and frequency converters. All utilise externally phase locked dielectric resonator oscillators (XPDROs) and are far superior in stability and phase noise to voltage-controlled oscillators (VCOs), as commonly used in other BUC designs. Units have a highly stable internal reference signal and automatically detect and lock to an external 10MHz reference signal, when applied.
FIXED FREQUENCY CONVERTERS offer a cost effective conversion between baseband ‘IF’ 70/140MHz and a fixed L-Band 1200MHz (other L-Band frequencies can be provided). Typically the signal useable bandwidth is stated as ±18MHz or ±36MHz, to match standard satellite transponder bandwidths.
The units amongst other applications can be used to interface L-Band modems with 70/140MHz transceivers or 70/140MHz modems to L-band transceivers in legacy system upgrades.
Systems Integration of Fixed Satellite Earth Stations
Systems Integration of Fixed Satellite Earth Stations
S3 Satcom is a Satellite Systems Integration Company specialising in Fixed Satellite Earth Stations and VSAT Networks. The S3 Satcom quality approach means you can benefit from S3 Satcom engineering and project management experience and approach to earth stations. Achieve efficient and reliable operation of you earth station with the S3 Satcom Fiesta M&C System. Rely on S3 Satcom to implement your earth station to the highest standards wherever you are in the world.
S3 Satcom provides fixed earth station systems including TV contribution links, direct-to-home TV uplinks and telecom earth stations. VSAT Networks feature SCPC/SCPC, MCPC/SCPC and DVB/SCPC in both star and mesh topologies. Applications include internet backbone connections, corporate networks and broadcast audio contribution and distribution.
S3 Satcom's 'Fiesta' software based Remote Control and Monitoring System is a Windows based product that allows control of Earth Station or VSAT networks from a remote point. Features include macro facility and extensive user configuration options.
Satsio – Motorisation System for Small Satellite Antennas
Satsio – Motorisation System for Small Satellite Antennas
The Satsio Small Antenna Tracking System is a two or three axis motorized mount for 1.2m, 1.8m, 2.4m, 3.0m, 3.7m and 3.8m antennas. Featuring a simple, beaconless, tracking controller, ideal for VSAT or broadcast contribution applications using cheap inclined orbit space segment. The positioner functionality, in conjunction with polarization motorization, allows easy use as a multi-satellite transmit or receive only antenna. All models are now available with 180° azimuth movement and improved wind performance.
Smaller versions use DC powered slew drives in azimuth and DC actuators in elevation. The 3.7m and 3.8m versions use 3-phase mains motors driving a slew drive in azimuth and and a machine jackscrew for elevation.
The slew drive versions can also be used to track MEO satellites. An example of a 3.8m antenna doing this can be found via the video link.
The S3 Satcom range of 3.8m, 2.4m and 1.8m Satsio has been professionally designed by a team of experts, each with over 30 years experience in the Satellite communications solutions business. From the robustness and accuracy of the mechanical mount, to the user-friendly web interface, this system has been designed with the professional operator in mind.
Vislink, Silvus, JPS
Vislink, Silvus, JPS
Mesh Radio Networks
Helicopter Downlinks
Interconnectivity
Broadcast, Law Enforcement & Military
PHASE - Serving the Brazilian Television Market Successfully since 1980
Digital Video Network
Digital Video Network
