Shotoku SX200 and SX260 ENG/EFP systems

The Ronin-S Essentials Kit is a bundle that includes the Ronin-S and key accessories that differ from what comes with the standard Ronin-S. While this bundle does not have a focus wheel and some other accessories that the standard Ronin-S includes, the Essentials Kit does provide a host of key accessories designed to get you shooting right away while offering a substantial savings.The Ronin-S represents a scalable ecosystem for integrating DSLR and mirrorless cameras into professional-grade workflows. The single-handed form factor of the Ronin-S supports up to 8 lb and runs up to 12 hours on a single charge of the included battery grip. Additionally, separate modules are available and sold separately for the handle and accessory docks, allowing you to customize the gimbal based on how you wish to operate it.

Between the front trigger, the rear mode button, and the joystick, precise gimbal control lets you obtain the shots you require. The front trigger can lock the gimbal when held, re-center the gimbal when tapped twice, and engage the Selfie mode by turning 180° when tapped three times. Press the mode button to engage three customizable operation profiles, each with tuneable speed and response for different shooting scenarios. If fast-moving subjects are your forte, the Sport mode delivers extra-quick response times and fast gimbal movements, up to a maximum speed of 45 mph. With this operation flexibility, the Ronin-S will fit into documentary, event, and feature film workflows.The gimbal and all included accessories can be stored inside the included case, which helps protect your equipment during storage and transport.

Buy DJI RONIN-S Essential Kit from UBMS Dubai.

Features

1. 100 mm diameter air cylinder, double color digital barometer

2. Pedestal Payload:50kg, On-shot Stroke: >390mm

3. Damping plate structure and effective counterbalance system

4. Pedestal and fluid head by CNC machine ensure high precision and intensity

5. High performance dolly with brake

6. Suitable for studio high definition video camera, counterbalance grades up to 16 x 2

Technical Specifications

Pedestal Tripod

1. Pedestal Payload:50kg

2. Diameter of Air Cylinder:100mm

3. On-shot Stroke: >390mm

4. Double Color Digital Barometer

Fluid Damping Fluid Head

1. Bowl Size:100mm

2. Payload Range:1kg-20kg

3. Counterbalance:16x2

4. Grades of Drag: horizontal 8/vertical 8

5. Tilt Range: +90°/-80°

System Specifications

1. Working Height:990mm-1750mm

2. Temperature Range: -40°C/+60°C

3. Weight:23.5kg

Standard Configuration

1. S20H, fluid head with full CNC technology

2. PL200, quick release plate

3. Each 2 pieces of 3/8” and 1/4” screw

4. PB100, dual telescopic pan bar

5. PT50 pedestal system with 100 mm adapter base and barometer charger

6. Direction adjustable dolly

Features

1. 90 mm - 110 mm diameter air cylinder, double color digital barometer

2. Pedestal Payload:80kg, On-shot Stroke: >700mm

3. Damping plate structure and effective counterbalance system

4. Pedestal and fluid head by CNC machine ensure high precision and intensity

5. High performance dolly with brake

6. Suitable for studio high definition video camera, counterbalance grades up to 16 x 2

Technical Specifications

Pedestal Tripod

1. 2-stage pedestal

2. Pedestal Payload:80kg

2. Diameter of Air Cylinder:90mm-110mm

3. On-shot Stroke: >700mm

4. Double Color Digital Barometer

Fluid Damping Fluid Head

1. Flat bottom installation

2. Payload Range:6kg-60kg

3. Counterbalance:16x2

4. Grades of Drag:horizontal10/vertical10

5. Tilt Range: +90°/-80°

System Specifications

1. Working Height: Bowl State: 1080mm -1850mm Flat Bottom State: 820mm - 1590mm

2. Temperature Range: -40°C/+60°C

3. Weight: 30kg

Standard Configuration

1. S60H full CNC fluid head, with 30 seconds luminous horizontal bubble

2. V-type quick release plate

3. Each 2 pieces of 3/8” and 1/4” screw

4. PB100, dual telescopic pan bar

5. PT800 two-stage pedestal system with adapter base and barometer charger

6. Direction adjustable dolly

The SEEDER S20PT50VR is designed for virtual studio and event production. This head & pedestal VR tracking system adopts 23 bit absolute value encoder and full CNC processing. The tracking accuracy of pan & tilt/X/Y/Z  up to 8,300,000 /360°, it is RS422 and directional UDP simultaneous output. It has auto-adjustment function of lens delay and tracking delay. One-time calibration makes it easy for camera operators.

Features

1. 100 mm diameter air cylinder, double color digital barometer

2. Pedestal Payload:50kg, On-shot Stroke: >390mm

3. Pan/tilt/X/Y/Z adopt 23 bit absolute encoder with tracking resolution of 8,300,000 / 360 °

4. Collect ZOOM and Focus data from Canon and Fujinon lens directly

5. One-time calibration

6. RS422 and directional UDP dual output

7. Auto-adjustment function of Lens delay and tracking delay, support two-point positioning

8. Full-CNC processing, Fluid Damping plate, 8+8+16x2 adjustable,

9. FREE-D protocol, compatible with Vizrt, Avid(Orad), Brainstorm, UE5, etc

10. Direction adjustable dolly

Specifications of Fluid head

1. Bowl Size:100mm

2. Payload Range:1kg-20kg

3. Counterbalance:16x2level

4. Grades of Drag: horizontal 8/vertical 8

5. Tilt Range: +90°/-80°

6. Working Height:1000mm-1640mm

7. Transport Length:1060mm

8. Temperature Range: -40°C/+60°C

9. Weight: 23.5 kg

Specifications of Data Processor Databox5

1. Support data input via encoders in pan, tilt, zoom, focus, lens and crane.

2. Automatically identify the built-in encoder of Canon or Fujinon lens and collect tracking data.

3. Support 0.1 frame precision tracking data and lens data delay adjustment function.

4. Support FREE-D data, RS422 and directional UDP simultaneous output, can simultaneously output 5-way directional UDP, and the IP address and port number of UDP can be modified.

5. Two-point positioning function.

6. Assembled with touch operation screen, UI interface parameter modification takes effect in time, support USB-C power supply and software upgrade.

Tracking Precision

Pan/ Tilt/X/Y/Z Resolution: 8,300,000/360°

Standard Configuration

1. S20VR, pan & tilt tracking head

2. PL200, quick release plate

3. Each 2 pieces of 3/8”and 1/4” screw

4. PB100, dual telescopic pan bar

5. 20pin output cable for built-in encoders of Canon/Fujinon lens

6. Data processor: Databox5

7. Pan & tilt data cables

8. Power adapter cable (Optional AC 220V input or 3.6-36V DC input)

9. PT50 pedestal system with 100 mm adapter base and barometer charger

10. Direction adjustable dolly

11. Manual pump

Features

1. Pan and tilt adopt 23 bit absolute encoder with tracking resolution of 8,300,000 / 360 °

2. Collect ZOOM and Focus data from Canon and Fujinon lens directly

3. One-time calibration

4. RS422 and directional UDP dual output

5. Auto-adjustment function of Lens delay and tracking delay, support two-point positioning

6. Full-CNC processing, Fluid Damping plate, 10+10+16x2 adjustable,

7. FREE-D protocol, compatible with Vizrt, Avid(Orad), Brainstorm, UE5, etc

Specifications of Fluid head:

1. Bowl Size:150mm

2. Payload Range:5kg-40kg

3. Counterbalance:16x2level

4. Grades of Drag:horizontal10/vertical10

5. Tilt Range: +90°/-80°

6. Working Height:1000mm-1640mm

7. Transport Length:1060mm

8. Temperature Range: -40°C/+60°C

9. Weight: 11 kg

Specifications of Data Processor Databox5

1. Support data input via encoders in pan, tilt, zoom, focus, lens and crane.

2. Automatically identify the built-in encoder of Canon or Fujinon lens and collect tracking data.

3. Support 0.1 frame precision tracking data and lens data delay adjustment function.

4. Support FREE-D data, RS422 and directional UDP simultaneous output, can simultaneously output 5-way directional UDP, and the IP address and port number of UDP can be modified.

5. Two-point positioning function.

6. Assembled with touch operation screen, UI interface parameter modification takes effect in time, support USB-C power supply and software upgrade.

Tracking Precision

Pan Resolution: 8,300,000/360°

Tilt Resolution: 8,300,000/360°

Standard Configuration

1. S40VR, pan & tilt tracking head

2. V-type quick release plate

3. Each 2 pieces of 3/8”and 1/4” screw

4. PB100, dual telescopic pan bar

5. 20pin output cable for built-in encoders of Canon/Fujinon lens

6. Data processor: Databox5

7. Pan & tilt data cables

8. Power adapter cable (Optional AC 220V input or 3.6-36V DC input)

9. AT251, single stage aluminum tripod with metal feet and mid-level spreader (or ground spreader)

10. CO100, padded bag

This Sachtler aktiv™ 75 mm fluid head for payloads of up to 12 kg (26.5 lbs.), with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility. Buy Aktiv8T Fluid head from UBMS Dubai . We can provide best price and fast delivery for Aktiv8T fluid head

• Level and lock your head in an instant without missing a second of actionUnique SpeedLevel technology.


• Visible from any height or angle - day or night.Innovative PrismBubble.


• Capture extreme low angle shots right down to the ground.Innovative streamlined mounting system.


• Switch between tripod and slider in seconds.Revolutionary SpeedSwap system.


• Create moving stories, whatever the weather.Performance tested to the extreme.

Buy SACHTLER AKTIV8T FLUID HEAD from UBMS Dubai

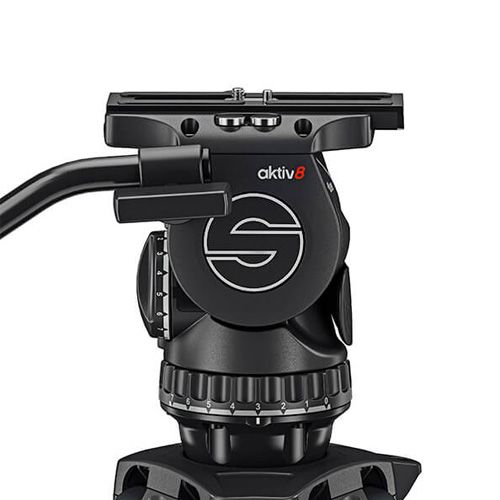

his Sachtler aktiv™ 75 mm fluid head for payloads of up to 12 kg (26.5 lbs.), with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility. Buy Aktiv8 Fluid head from UBMS Dubai . We can provide best price and fast delivery for Aktiv6 fluid head

• Level and lock your head in an instant without missing a second of actionUnique SpeedLevel technology.


• Visible from any height or angle - day or night.Innovative PrismBubble.


• Capture extreme low angle shots right down to the ground.Innovative streamlined mounting system.


• Switch between tripod and slider in seconds.Revolutionary SpeedSwap system.


• Create moving stories, whatever the weather.Performance tested to the extreme.

Buy SACHTLER AKTIV8 FLUID HEAD from UBMS Dubai.

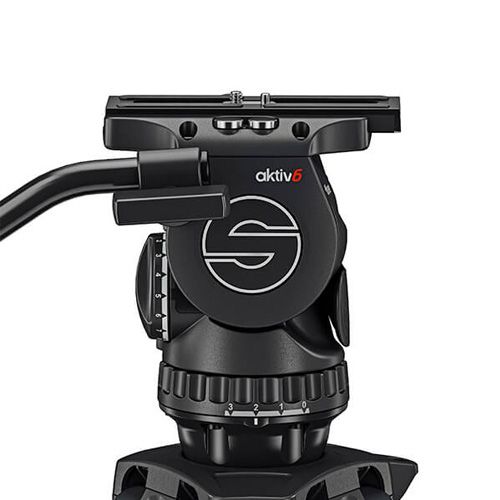

This Sachtler aktiv™ 75 mm fluid head for payloads of up to 8 kg (17.6 lbs.), with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility. Buy Aktiv6 Fluid head from UBMS Dubai . We can provide best price and fast delivery for Aktiv6 fluid head . You will get all sachtler aktiv fluid heads & aktiv flowech system from UBMS .

Mount, level and lock your fluid head in seconds. Capture the perfect shot – with the revolutionary aktiv™ head built for speed. The unique SpeedLevel™ and SpeedSwap™ technology deliver the fastest way to place and position the camera – giving the camera operator ultimate creativity.

• Level and lock your head in an instant without missing a second of actionUnique SpeedLevel technology.


• Visible from any height or angle - day or night.Innovative PrismBubble.


• Capture extreme low angle shots right down to the ground.Innovative streamlined mounting system.


• Switch between tripod and slider in seconds.Revolutionary SpeedSwap system.


• Create moving stories, whatever the weather.Performance tested to the extreme.

ZHIYUN CRANE 3S Handheld Stabilizer is a powerful redesign of previous gimbals with more powerful motors to handle up to 6.5kg payloads allowing to use it with heavier camera setups like Canon EOS 1DX, Blackmagic Pocket Cinema Cameras, Canon Cinema EOS, Sony FS and FX series, and RED Digital Cinema cameras, etc

The CRANE 3S Handheld Stabilizer from Zhiyun-Tech is a powerful redesign of previous Zhiyun gimbals with the addition of detachable handle options, more powerful motors with a large 14.3 lb payload, an updated axis-locking system, external power input, and the ViaTouch 2.0 remote control system. The 55° angled roll axis allows you to fit your camera without blocking the view, and it is also modular so you can add an included extension arm to fit larger cameras. CRANE 3S Price is very good in UBMS Dubai Showroom. Come and experience the CRANE 3S at UBMS showroom and get the best price. We can ship CRANE 3S to all GCC countries (Bahrain, Kuwait, Oman, Qatar, Saudi Arabia ) & African Countries.

From intense chasing shoot to studio filming, different types of shooting environment require both high capacity and flexibility of shooting equipment. Bearing filmmakers in mind, ZHIYUN felt the Crane series can be even better to adapt to strict and unpredictable filming environment. Now introducing the new CRANE 3S, the legendary gimbal built on a heritage of innovation with magnificent motors and brand new modular design, which aims for wider application and intuitive control. It is not simply an upgrade but reconstruction. CRANE 3S is constructed with brand new SUPER motors which allow for Max. 6.5kg payload for a wide range of camera setups.

The CRANE 3S features an angled, ergonomic handle that provides two-handed operation for optimal stability. The handle enables you to seamlessly switch to underslung mode, whether with one or two hands, and achieve creative shots such as 330° roll shots as you move closer toward a subject. It also has numerous advanced features such as remote control of camera record/stop/shutter using the included cables, an improved zoom and focus system from its predecessor the CRANE 3 LAB, and compatibility with the separately available Transmount Image Transmission System for wireless video transmission. It can also accommodate a wide range of camera sizes by utilizing a separately available extension module to extend the horizontal arm.

Wider compatibility is the goal but flexibility is provided. For larger cinema camera combos, users can attach an extension module onto roll axis for more space, while for smaller DSLR combos, the extension module can be detached for greater portability.

The 3S has two options for the detachable, angled handle. Included is the SmartSling that offers an ergonomic handle with an integrated joystick and control buttons, and the optional EasySling provides a simple, comfortable handgrip without controls. All the controls you need are provided at your fingertips at the top of the main handle along with an OLED status screen. The free Zhiyun iOS/Android app provides many of the same control functions, as well as special features such as panorama, focus time-lapse, motion time-lapse, long exposure time-lapse, camera settings, and more.

On CRANE 3S, the handle is detachable with two options provided: TransMount EasySling Handle and TransMount SmartSling Handle. You can either mount EasySling handle to extend the grip for more comfort upright & underslung operation, or choose to mount SmartSling handle featuring an intuitive control panel and OLED screen, for direct camera & gimbal parameter adjustment, or combine them together!

You can power the 3S using the three included batteries for up to 12 hours. However, if you need extra shooting time, a DC port allows you to plug in an optional battery pack such as the Transmount PowerPlus that contains six 18650 batteries, extending your shooting time to up to 18 hours. The CRANE 3S can be controlled using the updated ViaTouch 2.0 iOS or Android smartphone app via Bluetooth 5.0 for remote motion control and to manage the gimbal settings.

Buy Zhiyun-Tech CRANE 3S Handheld Stabilizer From UBMS Dubai.

The DJI Ronin-S is a superior 3-axis stabilization system for DSLR and mirrorless cameras that features a 3.6 kg tested payload capacity, camera control, and automated smart features. The modular design empowers creators with the freedom to shoot stabilized shots on the move. Buy DJI Ronin-S Gimbal Stabilizer for best price. The detachable, modular design of the Ronin-S makes it easy to fit inside a backpack on your travels. Thanks to the industry standard quick-release plate design, you can easily mount the camera onto the gimbal for tracking shots or on a tripod for stills. The Ronin-S is DJI's first handheld gimbal for DSLR cameras. With a max operating speed of 75 kph, tested payload capacity of 3.6 kg, automated smart features, and support for a wide range of cameras and lenses, the Ronin-S gives all filmmakers the freedom to film on the move

Operating the Ronin-S is easy and intuitive to setup with Auto Tune directly on the gimbal for optimal torque control. Powerful, high torque motors actively stabilize your shot when mounted to moving platforms at speeds of up to 75 kph. he Ronin-S supports almost any DSLR or mirrorless camera setup on the market, offering direct camera control.

Focus better on your subject with the easy-to-control Focus Wheel. When a compatible camera system connects to the Ronin-S, you can pull focus via the included cable. An optional external motor can also be added, bringing broader compatibility to all lens types while enhancing precision control . The Ronin-S's innovative framework elevates camera payload above the roll axis, making the camera's built-in display obstruction free and always in your line of sight. In addition to providing an unobstructed view, the angled roll motor allows for more space to balance bulkier setups.

Designed in a single-handed form factor for DSLR and mirrorless cameras, the Ronin-S empowers creators to shoot with the freedom of stabilized shots on the move.

The DJI Ronin-S is more than just a miniaturized version of the larger Ronin gimbal stabilizers; it represents a scalable ecosystem for integrating DSLR and mirrorless cameras into professional-grade workflows. The single-handed form factor of the Ronin-S lends itself to lighter cameras. But don't let its size fool you; the Ronin-S has a lot going on under the hood. Separate modules are available for the handle and accessory docks, allowing you to customize the gimbal based on how you wish to operate it.

Buy DJI Ronin-S Gimbal Stabilizer From UBMS Dubai.

Features

1. 100 mm diameter air cylinder, double color digital barometer

2. Pedestal Payload:50kg, On-shot Stroke: >390mm

3. Damping plate structure and effective counterbalance system

4. Pedestal and fluid head by CNC machine ensure high precision and intensity

5. High performance dolly with brake

6. Suitable for studio high definition video camera, counterbalance grades up to 16 x 2

Specifications

Pedestal Tripod

1. Pedestal Payload:50kg

2. Diameter of Air Cylinder:100mm

3. On-shot Stroke: >390mm

4. Double Color Digital Barometer

Fluid Damping Fluid head

1. Bowl Size:100mm

2. Payload Range:6kg-30kg

3. Counterbalance:16x2

4. Grades of Drag:horizontal10/vertical10

5. Tilt Range: +90°/-80°

System Specifications

1. System Working Height:990mm-1750mm

2. Temperature Range: -40°C/+60°C

3. Weight:23.5kg

Standard Configuration

1. S30H full CNC fluid head, with 30 seconds luminous horizontal bubble

2. V-type quick release plate

3. Each 2 pieces of 3/8”and 1/4” screw

4. PB100, dual telescopic pan bar

5. PT50 pedestal system with 100 mm adapter base and barometer charger

6. Direction adjustable dolly

• The DJI Ronin-SC Gimbal Stabilizer brings many improvements over its predecessor, the Ronin-S, with this smaller and lighter stabilized, three-axis single-handle gimbal, designed for small mirrorless cameras under 4.4 lb. Though the Ronin-SC is smaller, it packs an abundance of features, design enhancements, and technology inside its compact form. The gimbal features stabilization, pan, tilt, and roll control, as well as 360° continuous panning to create steady 3D/360° motion shots.On its own, the gimbal weighs only 2.4 lb, so it is ultra-portable and makes it easier to hold the gimbal with a mounted camera for longer periods of time. It features two locking modes for balancing your camera and for storage. The sliding quick release camera plate makes it easy to rebalance your camera after you've moved to a new location—balance your camera in the balancing lock position, unmount your camera with the plate, put the gimbal in storage mode and travel, take the gimbal out and remount your camera, unlock and turn the gimbal on and voilà, your camera will still be balanced.The Ronin-SC features a record button and a joystick for precise gimbal control, as well as a re-center front trigger button to bring the gimbal back to its default position. There is also an M button that you can press and hold to enter Sport Mode, which provides fast tracking response when recording action sequences. Using the Android or iOS app over Bluetooth 5.0, Active Track 3.0 has been updated to help users track a subject with the gimbal without having to use any controls at all. Another handy function is DJI's Force Mobile, which allows you to control your gimbal's motion when it's mounted on a rig or tripod using the gyroscope of your smartphone, allowing you to perform more precise gimbal movements using your own natural motion. Other built-in features include time-lapse and motion-lapse modes.The Ronin-SC is powered by a 2450mAh rechargeable 18650 LiPo battery built into its handle, which lasts up to 11 hours on a single charge. It is charged via a USB Type-C port and can also provide camera control such as run/stop or focus pulling using one of the included multiport USB cables connected to a compatible camera. There are also 1/4"-20 and 3/8"-16 mounting threads on the handle to add accessories such as the included smartphone holder.Also included with the Ronin-SC are an extended grip/tripod, camera riser, lens support, port cover, Allen wrench, quick release plate with 1/4"-20 camera mounting screw, an M4 screw, a multicamera USB control cable, a multicamera USB Type-C control cable, a USB Type-C charging cable, a USB Type-C to micro-USB adapter, and a storage case.


• Buy DJI RONIN SC Gimbal Stabilizer From UBMS Dubai.

Raising the bar on movement quality and shot framing control, the recently launched Shotoku SX200 and SX260 pan and tilt heads incorporate a brand-new design featuring Shotoku’s “Truebalance” for perfect counterbalance that is also easy to adjust throughout the range and has an intuitive display to indicate the current setting.  The drag system uses Shotoku’s well known Viscam design but adds a new actuation system that combines the convenience and speed of selection of a stepped system, with the fine tuning and on-shot adjustment of a continuously variable design. The SX200 has a max payload of 44Lbs (20Kg) and the SX260 55Lbs (25Kg).  The systems come standard with 2 stage ENG Carbon Fibre legs and is one of the lightest on the market at these payloads.

WHAT’S NEW - With these SX200/SX260 heads crossing over to the EFP application, the new TTH1002C 100mm carbon fibre EFP tripod has been added to provide an extremely rigid solution, useful when using longer lenses for sports and documentary production.

Shotoku’s TI-12 elevator unit accommodates virtually any studio pedestal.  The TI-12 Height Drive is the world’s only truly adaptable height drive able to attach to and elevate columns on a wide range of pedestals, of other manufacturers and of different ages and designs in addition to Shotoku’s own TP-200.  Adding height control to a new or existing pedestal brings added value to customers who demand not only super-smooth robotic operation but need to maintain manual pedestal operation at the touch of a button.

Shotoku’s SmartPed now features Absolute Navigation, perfect for applications where referencing the fully robotic pedestal is inconvenient or the design of the studio leaves no scope for a fixed reference position.  SmartPed now comes with two optional additions depending on the environment:

·       AN-I is an IP interface within SmartPed enabling it to interface to existing external optical tracking systems such as Mosys StarTracker™ or Stype RedSpy™ using the absolute tracking information to reference and adjust the pedestals own internal navigation systems.

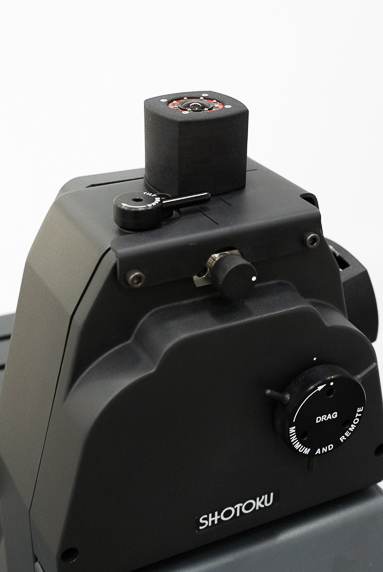

·       AN-S provides a fully integrated solution, including a built-in optical tracking system for situations where customers do not already have installed optical tracking.

Features

1. Pan and tilt adopt 23 bit absolute encoder with tracking resolution of 8,300,000 / 360 °

2. Collect ZOOM and Focus data from Canon and Fujinon lens directly

3. One-time calibration

4. RS422 and directional UDP dual output

5. Auto-adjustment function of Lens delay and tracking delay, support two-point positioning

6. Full-CNC processing, Fluid Damping plate, 10+10+16x2 adjustable,

7. FREE-D protocol, compatible with Vizrt, Avid(Orad), Brainstorm, UE5, etc

Specifications of Fluid head:

1. Bowl Size:150mm

2. Payload Range:5kg-40kg

3. Counterbalance:16x2level

4. Grades of Drag:horizontal10/vertical10

5. Tilt Range: +90°/-80°

6. Working Height:1000mm-1640mm

7. Transport Length:1060mm

8. Temperature Range: -40°C/+60°C

9. Weight: 11 kg

Specifications of Data Processor Databox5

1. Support data input via encoders in pan, tilt, zoom, focus, lens and crane.

2. Automatically identify the built-in encoder of Canon or Fujinon lens and collect tracking data.

3. Support 0.1 frame precision tracking data and lens data delay adjustment function.

4. Support FREE-D data, RS422 and directional UDP simultaneous output, can simultaneously output 5-way directional UDP, and the IP address and port number of UDP can be modified.

5. Two-point positioning function.

6. Assembled with touch operation screen, UI interface parameter modification takes effect in time, support USB-C power supply and software upgrade.

Tracking Precision

Pan Resolution: 8,300,000/360°

Tilt Resolution: 8,300,000/360°

Standard Configuration

1. S40VR pan & tilt tracking head

2. V-type quick release plate

3. Each 2 pieces of 3/8”and 1/4” screw

4. PB100, dual telescopic pan bar

5. 20pin output cable for built-in encoders of Canon/Fujinon lens

6. Data processor: Databox5

7. Pan & tilt data cables

8. Power adapter cable (Optional AC 220V input or 3.6-36V DC input)

9. AT251, single stage aluminum tripod with metal feet and mid-level spreader (or ground spreader)

10. CO100, padded bag

The SEEDER RB30EH3 robotic elevating system is developed for automatic shooting of AR, VR, XR, MR or real scene in various broadcast studios, remote photography, government, education, event live and so on. The robotic elevating system can be remotely controlled by one person. Features such as anti shake technology, noise reduction technology and AI curvilinear motion technology ensure the shooting of complex motion video and meet every need of professional broadcast television studios.

The robotic control panel can control 6 axis motion of robot lifting, robotic pan tilt head, zoom, focus and aperture through the network. It can control up to 8 robotics, preset 32 programs, 16 sequences per program, and 16 scenes per sequence. The system includes two sets of control systems, namely built-in and external, which can be quickly switched for use. It comes with an emergency operation button as standard. The saved movements can be triggered with just one click. or even automatically. New movements can be created within minutes and existing movements can be modified easily.

Application

1. News, weather, thematic studio, government, education, event, etc.

2. Virtual studio and automation studio.

3. OB van, large studio, large scale activity.

4. Remote photography through network transmission.

Features

1. Fast start stop anti shake technology.

2. AI curvilinear motion.

3. The absolute encoders are used to record the motion position, one-time calibration. Tracking accuracy is <0.000043° (8,300,000/360°), and there is no accumulated error in the tracking data even after multiple power on/off cycles.

4. FreeD protocol tracking data with 23 bit (8,300,000 / 360 °) tracking accuracy can be output through RS422 and directional UDP.

5. Standard TCP / IP network protocols, which can be controlled by third-party equipment or system to realize automatic operation.

6. Auto targeting stage scene.

7. Support graphic systems such as Vizrt, Avid (Orad), Brainstorm, UE5, etc.

8. Support studio control systems such as SEEDER AISS、Vizrt MOSART、ROSS Overdrive、GrassValley IGNITE, etc.

Technical Instruction

1. 6 axis motion (up/down of the elevator, pan, tilt, zoom, focus and aperture). The camera won't accumulate errors after repeated movements.

2. Work Height:1191mm-1961mm

3. Payload of the Pan & Tilt Head:30kg

4. Overall Weight: 80kg

5. Power: 110V/220V, 320W

6. Noise Volume: <20dB (at the maximum speed)

7. Preset 32 programs, 16 sequences per program, and 16 scenes per sequence

8. RS422 and directional UDP simultaneous output FREE-D data, VR tracking accuracy: 0.001°

9. AI facial rigging and skeleton-based animation recognition, and low delay tracking motion shooting.

10. The chassis is equipped with an electronic level system, and the chassis contains independent control units that can operate without a control panel.

Movement Specifications

Pan range of the head: ±350°, speed:0-60°/s, precision:0.001°

Tilt Range of the head: ±120°, speed:0-60°/s, precision:0.001°

Lens lifting range:1191mm-1961mm, speed:0-35cm/s, precision:0.001°

Zoom and focus: suitable for mainstream lens. Speed: 0-52mm/s, precision: 0.001mm

Standard Configuration

1. One set of robotic U-type omnidirectional pan and tilt head

2. One set of quiet lifting platform

3. One set of control cable
