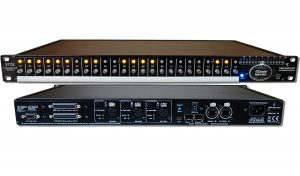

STYX (pronounced sticks) is a hugely versatile configurable 48 x 46 mixer/ utility device with 32 x 32 network audio inputs & outputs with the added benefit of 6 x 6 analogue line level circuits, 2 x 2 AES3 circuits, 3(+3) x microphone/line inputs, 2 line up tone inputs & 3 stereo headphone outputs.
The front panel features 24 x assignable rotary encoders and 24 x assignable illuminated switches, plus a mono assignable PPM and LED graph to indicate positioning of the encoders when they are used.
The real power of STYX is its Windows 10 application which in real time can adjust any of the 2208 mixer cross point levels, provides many setup options, and importantly, allows presets to be stored and recalled.
Reliability is key, STYX has multiple redundant power supply sources and redundant network interfaces.
