| Master control switchers |
Live Video Cloud
Live Video Cloud
While transitioning from a linear to a digital broadcast and media landscape, organizations face major challenges. The digital distribution opportunity is fast becoming a reality, but this is generating large losses as it is Capex heavy. Digital incoming feeds are growing exponentially, and this is becoming chaotic and disorganized.LTN Live Video Cloud is built for acquiring, routing, and distributing high-value live streams in a scalable and flexible manner to enable you to be production-ready within minutes without any necessary capital expenditure or hardware dependency.
It allows the broadcaster to aggregate and handle large numbers of digital input feeds and distribute output feeds without expanding investment in existing legacy switching infrastructure. In turn it increases the value of the content by expanding the digital audience reach and revenue without capital expenditure.With LTN Live Video Cloud, broadcasters can acquire unlimited concurrent live feeds from professional cameras, encoders, mobiles, drones, and online sources. They can curate and route live signals within a continuous playback multi-view to unlimited outputs and allocate content wherever it is needed and distribute live signals simultaneously to unlimited online destinations and traditional broadcast infrastructures.
StreamMaster Media Processing
StreamMaster Media Processing
Two new technology platforms underpin a range of solutions that enable broadcasters to make the move to IP and do so at their own speed and with solutions tailored specifically to their needs in ways that were never possible before.
Flexible, bespoke, modular and with completely new pricing models, these new technology platforms offer broadcasters the opportunity to acquire just the features or functional blocks that they need and only pay for them when they use them. The days of buying a hardware product where you only use 60% of the features 40% of the time are gone.
StreamMaster Media Processing is the underlying technology platform upon which a variety of innovative solutions are based to help broadcasters manage the processing, branding, master control and delivery of content to customers. The solutions described are configured as standard branding and playout solutions based on how broadcasters currently operate. As a softwaredefined technology platform, however, features and functional blocks are constantly being added to offer broadcasters a future-proof platform and even more flexibility as operations change over time
SynMC
software through a dedicated Ethernet port. Combine it with our SynView multiviewer range to drive an integrated and productive broadcast operation.
Completely configurable to your needs, the entry-level system comes complete with one mixer and one keyer – all neatly integrated in a simple, user-friendly interface. Scale up to four keyers and two image storage devices as and when you need to.
Add a second key and fill input or single 2D DVE. Automate and regulate cut, fade and wipe transitions to improve efficiency and save time. Scale-up as you need to.

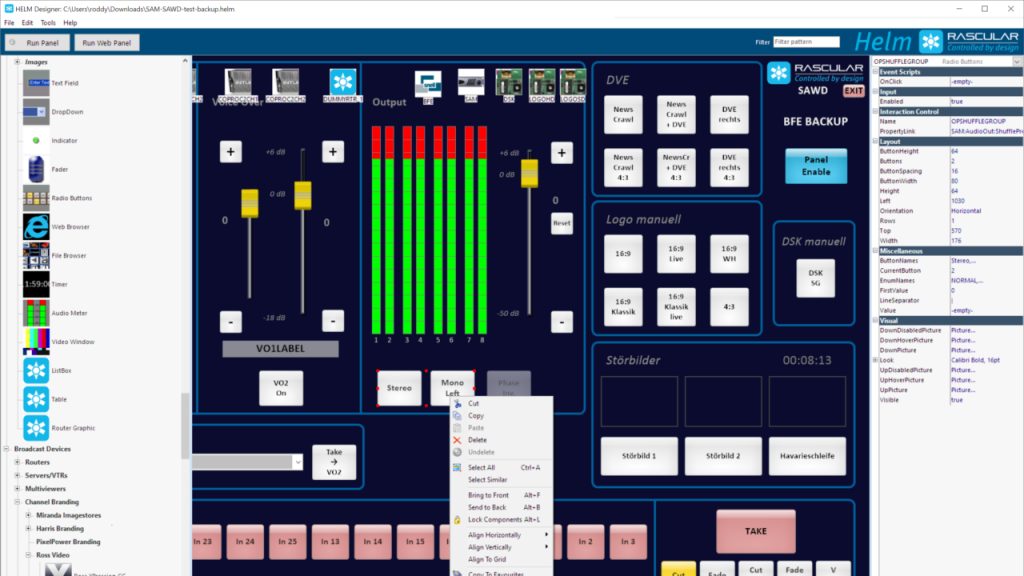

Helm
Helm
Helm allows the design of a control system dedicated to your operators’ requirements; there’s no clutter of unnecessary controls or information and no risk of confusion between channels as you switch from one manufacturer UI to another. There’s no hunting for the right buttons to press. We can help you design and implement Helm control panels, and you’ll have all the tools to modify and extend them as your requirements change.
BENEFITS
- Totally customisable: All the control you need, none that you don’t
- Smaller footprint: Not all environments have room for multiple hardware panels
- Lower cost: Helm panels run on entry-level PCs, or even on mobile devices via WebCentre
- Faster training: Only one system to learn for new operators
- Enhanced productivity: Simpler interfaces mean operators can work faster and more effectively
- Extend and replace: You can add or change equipment in the facility without impacting operators.
RouteMaster
RouteMaster uses Rascular’s proven router control and emulation technology to form a powerful yet flexible router control system. Built on tried and tested software modules, RouteMaster can be used with a wide range of video and audio routers from all major manufacturers.
It’s equally suitable for new router installations or increasing the capabilities – and lifetime – of existing systems. You can add third-party hardware panels to existing systems, add IP connectivity to older serial routers, or simply increase the number of control ports available.
The integrated web server means operators can control routers from any web browser, using custom control panels built with Helm Designer. And because it’s built on HTML5 standards, there’s no need for browser plugins.
Etere Master Control
Etere Master Control
Etere Master Control enhances Etere ETX video and graphics features to achieve new capabilities of a full IT-based playout.
Etere, the pioneer of IT-based playout, is a worldwide provider of comprehensive and integrative software solutions for an easy management of all the functions within a Media company. Etere solutions are designed with more efficient workflows that are also fully scalable to your organisation's needs. Etere has always been an innovator in broadcast and integrating the traditional Master Control functions into Etere ETX ensures that you get the best returns on your investments. Etere system turns a simple computer into a multi-functioning integrated solution. With ETX, you will need only one server to playout, switch, fade dissolve, insert logo and do all the CG functions.
For customers who already use ETX, implementing an IT-based playout enhanced with master control functionalities will consist in a simple software upgrade based on an add-on license, no extra hardware is needed.
Etere Master Control provides all features required from a master control including:
■ Supports touch-screen display for a fully interactive experience
■ Customised transition effects settings
■ Preset and preview bars for fast switching
■ Default configuration (A/B) needs a SD/HD 2IN-2OUT card
■ Up to 8 logo layers with multiple sizes per decoder
■ Unlimited number of input channels plus one Crawl/CG
■ Audio shuffling and control as well as dolby-e pass-through
■ Video switching including transitions effects
■ Multiple PC's installations (e.g. for a 2nd EE monitor)

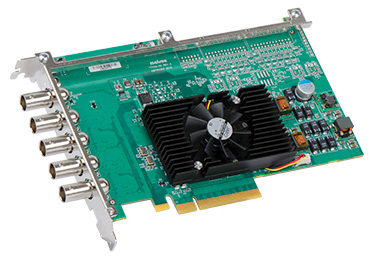

Matrox DSX LE4 BNC
Key features
- Half-length PCI express card
- 4 channel re-configurable SDI IO
- Frame synchronizers
- VANC and HANC support for each input and output
- Analog blackburst reference input (tri-level or bi-level)
- Live zero-frame delay video mixers
- One comprehensive SDK for all our developer cards

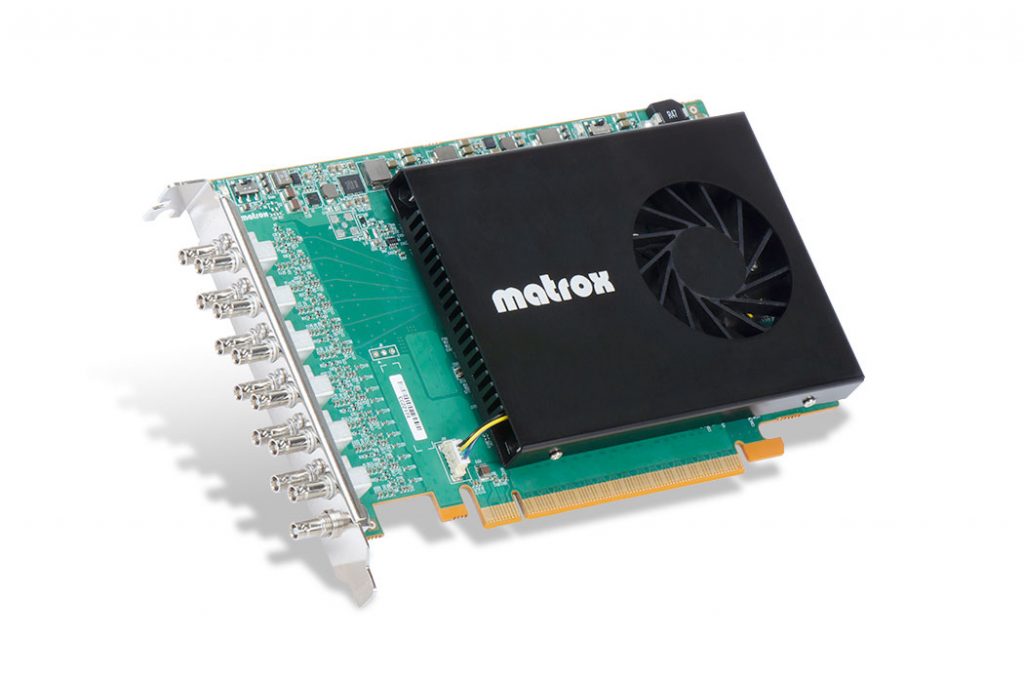

Matrox DSX LE5 12G
Matrox DSX LE5 12G
The Matrox DSX LE5 12G provides multi-channel reconfigurable 12G/3G SDI I/O for HD and 4K workflows. The DSX LE5 12G allows 4x 12G inputs, 4x 12G outputs and 4x 3G reconfigurable I/O to operate simultaneously on a single half length PCI express card. The DSX LE5 12G is supported by the feature-rich, field proven Matrox DSX SDK.
Key features
- Versatile 12G and quad 3G SDI for 4K connectivity
- Up to 4x 12G inputs and 4x 12G outputs with 4x 3G reconfigurable I/O
- Up to 12x completely reconfigurable 3G I/O
- Frame synchronizers
- Decimation for input preview
Mira Replay Server
Mira Replay Server
Share the load by splitting/sharing server resources—so two operators can work independently on two replay events or work in collaboration on the same replay event.
Ensure maximum reliability, with standard dual-redundant, hot-swappable power supplies. For ease of maintenance, all Mira servers feature hot-swappable chassis fans and media disk drives.
Mira adapts to a wide variety of live production workflows, thanks to a symmetrical, multi-channel server architecture.
Integrated clip networking permits operators to quickly and easily share media clips between any number of Mira replay servers interconnected via inexpensive Gigabit Ethernet.
Reduce cost and substantially streamline workflow with integrated media file import and export tools.
MC1
At its core, MC1 is a powerful AV mixer, offering 4 keyers, logo playout, transitions with full preview. You get the tools you need to build your on-air brand.
Shuffle, correct your levels, sum and downmix. Keep your audio in check with fast, intuitive presets and manual overrides.
Manage multiple Master Controls with ease from an intuitive DashBoard touchscreen or tactile hardware control panel.
From single stand-alone branding to large multi-channel Master Control; MC1 can scale to your needs.
It features hardware bypass to keep your channel on air in any situation. MC1 can also be used as great backup to Channel-in-a-box and IP playout systems.
Applications:
- Sports & Live Venue
- News
- Virtual Studio
- Mobile
- Government
- Corporate
- House of Worshio
- Education
USS0202 Universal Redundancy Switch
Dual redundant power supply with monitoring
From 1+1 to 16+1 configuration
Automatic or manual operational mode
GbE Logical Switching
Automatic Switch Back
Copy the full configuration from a device to another
Automatic memorization of configuration
Reference device
GUI with synoptic view
User-configurable switching logic
Operates and controls up to 36 switching modules
Switchable signals: ASI, IP, IF, L-band and RF-band
Stand alone operation or integrated in a network management system
Monitoring & Control via SNMP
Management of Device Configuration
Main Advantages
High reliability through the dual redundant power supply – Main & Extension unit
Increases service availability significantly thanks to the automatic or manual operational mode, the Automatic Switch Back and the automatic memorisation of the configuration
Optimised switching time
Cost-effective solution through GbE logical switching
Future-proof solution thanks to its scalability from a 1+1 to a 16+1 configuration
Easy setup and installation through the ability to copy the full configuration from one device to another
Flexible deployment and device hot replacement
Easy to use, control and operate through its user-configurable switching logic and the Automatic Switch Back
Easy integration into NMS systems through SNMP
Highly compact
