| Audio mixers and consoles – radio |
Analog and digital audio mixers/consoles intended for self-operation in radio studios.

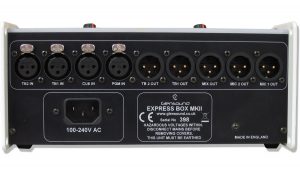

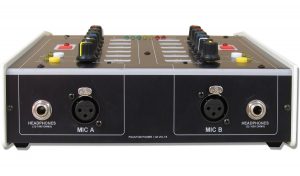

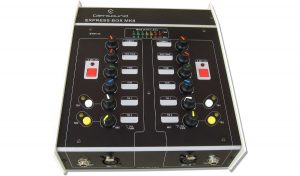

Express Box MKII
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
The Express Box MKII was designed to provide a quick and easy solution when it is necessary to provide interfacing for two commentators, with simple facilities. This high quality commentary unit is ideal for those looking for cost effective solutions without paying for unwanted features; the Express Box MKII is worthy of investigation.
InputsTwo front panel mic inputs with selectable 48v phantom power.
Outputs/TalkbackEach mic input has its own individual output. There is also a mixed output of the two mic inputs. The two talkback circuits have individual outputs and are common for both commentators.
MonitoringThere are four inputs for external sources, one sidetone pot of their own voice and one other commentator pot for listening to the co-commentator. These are available independently to each commentator on individual pots, so each can adjust the inputs for their own preference of mix level. There are two 6.35mm headphone sockets – 1 for each commentator. A 7 segment LED PPM meter displays level.
InputsTwo front panel mic inputs with selectable 48v phantom power.
Outputs/TalkbackEach mic input has its own individual output. There is also a mixed output of the two mic inputs. The two talkback circuits have individual outputs and are common for both commentators.
MonitoringThere are four inputs for external sources, one sidetone pot of their own voice and one other commentator pot for listening to the co-commentator. These are available independently to each commentator on individual pots, so each can adjust the inputs for their own preference of mix level. There are two 6.35mm headphone sockets – 1 for each commentator. A 7 segment LED PPM meter displays level.

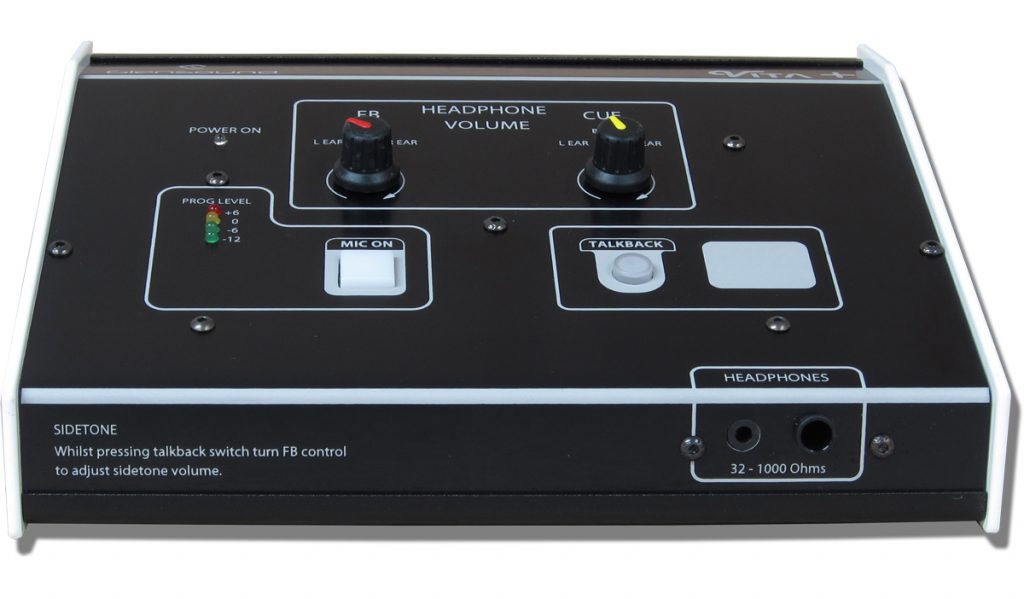

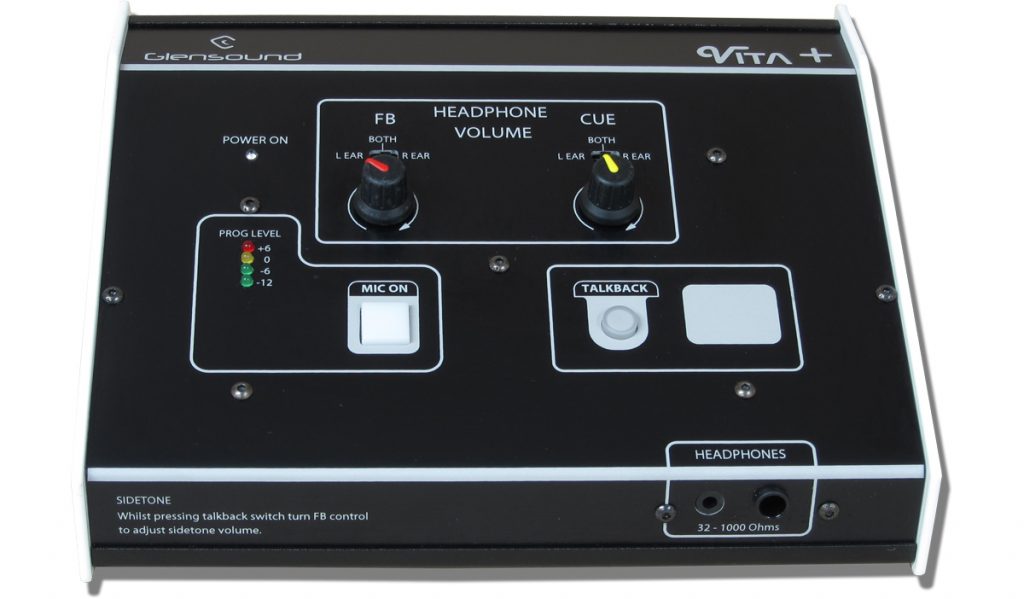

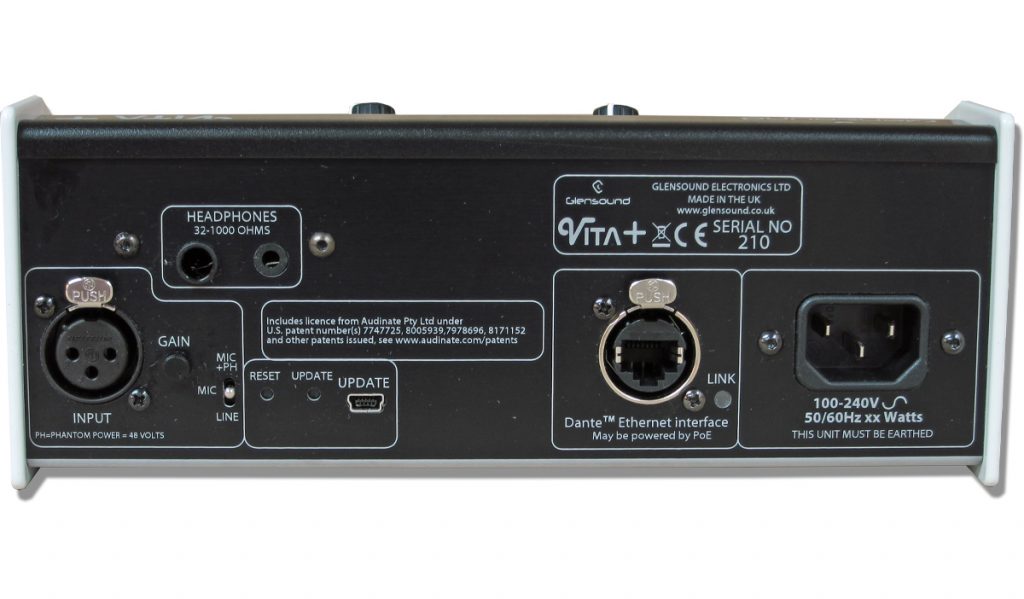

Vita Plus
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
The VITA PLUS is a very powerful Dante network audio interface, in a traditional desktop style. It has a mic/line input and headphone monitoring connection for a single user, and contains two 4 wire circuits. One of these is typically used as an on air channel, and the other as a talkback channel.
The high quality microphone input, with the Glensound Referee compressor, makes the Vita Plus suitable for on air commentary use, perfect for a small OB or in an off-tube booth .
The flexibility of the talk button configurations, means that the Vita Plus can also be used as a talkback unit as part of a Dante network.
The Vita Plus can connect to any Dante network, or to other audio equipment via Glensound’s own Dante interface units.
The high quality microphone input, with the Glensound Referee compressor, makes the Vita Plus suitable for on air commentary use, perfect for a small OB or in an off-tube booth .
The flexibility of the talk button configurations, means that the Vita Plus can also be used as a talkback unit as part of a Dante network.
The Vita Plus can connect to any Dante network, or to other audio equipment via Glensound’s own Dante interface units.

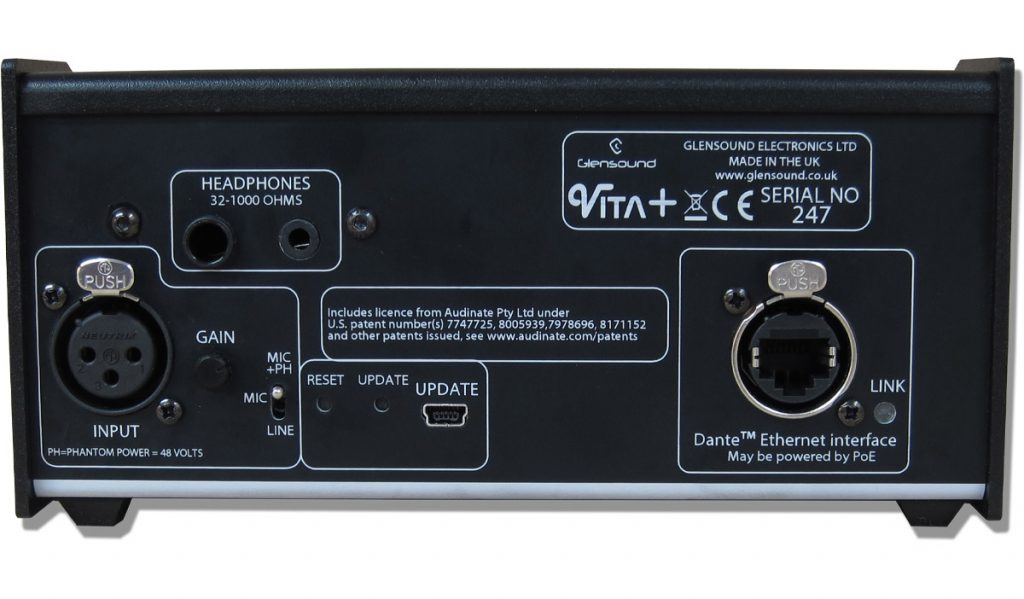

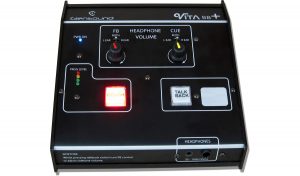

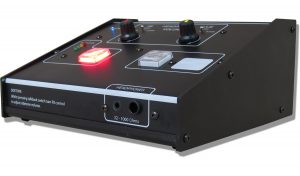

Vita BB Plus
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
The VITA BB PLUS is a very powerful Dante network audio interface, in a traditional desktop style. It has a mic/line input and headphone monitoring connection for a single user, and contains two 4 wire circuits. One of these is typically used as an on air channel, and the other as a talkback channel.
The high quality microphone input, with the Glensound Referee compressor, makes the Vita BB Plus suitable for on air commentary use, perfect for a small OB or in an off-tube booth.
The flexibility of the talk button configurations, means that the Vita BB Plus can also be used as a talkback unit as part of a Dante / AES67 network.
The Vita BB Plus can connect to any Dante or AES67 network, or to other audio equipment via Glensound’s own Dante interface units.
The high quality microphone input, with the Glensound Referee compressor, makes the Vita BB Plus suitable for on air commentary use, perfect for a small OB or in an off-tube booth.
The flexibility of the talk button configurations, means that the Vita BB Plus can also be used as a talkback unit as part of a Dante / AES67 network.
The Vita BB Plus can connect to any Dante or AES67 network, or to other audio equipment via Glensound’s own Dante interface units.
Paradiso Lite
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
Paradiso Lite is a commentators' box for 3 commentators. It can be used by itself to provide the commentary facilities alongside an OB truck for small events or multiple Paradiso Lites can be used at large events that require Worldwide broadcast coverage.
Audio links between the Paradiso and other equipment are by Dante (AES67 compliant) complete with redundant copper links. Analogue I/O and AES3 I/O are also provided directly from the unit for local connections and / or another layer of redundancy.
The Paradiso Lite has been designed to be intuitive & easy to use for Commentators who would rather be talking about the game than working out how the equipment works, and is also built to our exacting rugged & robust standard to make it a reliable piece of broadcast equipment for the busy engineer.
Fully Redundant Copper Network ConnectionsIf an IP link fails you have no broadcast! Our system provides fully redundant glitch free audio & data transport across any of the 2 copper network interfaces.
Automatic Adjustment For High or Low Impedance Headphones Our unique headphone amplifiers automatically provide the correct drive level to high or low impedance headphones.
Instinctive Mic Gain Setting InformationWhen adjusting a mic's input gain, the PPM automatically changes to display just the level of mic input currently being altered.
Multiple Power SourcesFor complete fail-safe redundancy the Paradiso can be powered from any of the following sources: PoE (2 off), Wide Range Mains or external DC.
Local Analogue & AES3 I/OFor 100% reliability local analogue & AES3 I/O is provided as complementary audio connectivity to the network audio.
Referee Compressor/ LimiterGlensound’s World renowned Referee compressor limiter system keeps even the loudest commentators sounding great.
Fully ConfigurableGlenControler remote control/ setup application allows hundreds of different parameters of the Paradiso to configured to meet the users requirements.
Audio links between the Paradiso and other equipment are by Dante (AES67 compliant) complete with redundant copper links. Analogue I/O and AES3 I/O are also provided directly from the unit for local connections and / or another layer of redundancy.
The Paradiso Lite has been designed to be intuitive & easy to use for Commentators who would rather be talking about the game than working out how the equipment works, and is also built to our exacting rugged & robust standard to make it a reliable piece of broadcast equipment for the busy engineer.
Fully Redundant Copper Network ConnectionsIf an IP link fails you have no broadcast! Our system provides fully redundant glitch free audio & data transport across any of the 2 copper network interfaces.
Automatic Adjustment For High or Low Impedance Headphones Our unique headphone amplifiers automatically provide the correct drive level to high or low impedance headphones.
Instinctive Mic Gain Setting InformationWhen adjusting a mic's input gain, the PPM automatically changes to display just the level of mic input currently being altered.
Multiple Power SourcesFor complete fail-safe redundancy the Paradiso can be powered from any of the following sources: PoE (2 off), Wide Range Mains or external DC.
Local Analogue & AES3 I/OFor 100% reliability local analogue & AES3 I/O is provided as complementary audio connectivity to the network audio.
Referee Compressor/ LimiterGlensound’s World renowned Referee compressor limiter system keeps even the loudest commentators sounding great.
Fully ConfigurableGlenControler remote control/ setup application allows hundreds of different parameters of the Paradiso to configured to meet the users requirements.
Paradiso
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
Paradiso is a commentators box for 3 commentators. It can be used by itself to provide the commentary facilities alongside an OB truck for small events or multiple Paradiso's can be used at large events that require Worldwide broadcast coverage.
Audio links between the Paradiso and other equipment are by Dante (AES67 compliant) complete with redundant copper & fibre links. Analogue I/O and AES3 I/O are also provided directly from the unit for local connections and/ or another layer of redundancy.
The Paradiso has been designed to be intuitive & easy to use for Commentators’ who would rather be talking about the game than working out how the equipment works, and is also built to our exacting rugged & robust standard to make it a reliable piece of broadcast equipment for the busy engineer.ePaper DisplaysFor quick easy intuitive visible Indication of individual headphone source names, levels & pan. Viewable in bright sunlight.
Fully Redundant Copper and Fibre Network ConnectionsIf an IP link fails you have no broadcast! Our system provides fully redundant glitch free audio & data transport across any of the 4 network interfaces.
Automatic Adjustment For High or Low Impedance HeadphonesOur unique headphone amplifiers automatically provide the correct drive level to high or low impedance headphones.
Instinctive Mic Gain Setting InformationWhen adjusting a mic’s input gain, the ePaper display changes to display the gain being applied in dB and the PPM automatically changes to display just the level of mic input currently being altered.
Multiple Power SourcesFor complete failsafe redundancy the Paradiso can be powered from any of the following sources: PoE (2 off), Wide Range Mains or external DC.
Local Analogue & AES3 I/OFor 100% reliability local analogue & AES3 I/O is provided as complimentary audio connectivity to the network audio.
Referee Compressor/ LimiterGlensound’s World renowned Referee compressor limiter system keeps even the loudest commentators sounding great.
Fully ConfigurableGlenController remote control/ setup application allows hundreds of different parameters of the Paradiso to configured to meet the users requirements.
Audio links between the Paradiso and other equipment are by Dante (AES67 compliant) complete with redundant copper & fibre links. Analogue I/O and AES3 I/O are also provided directly from the unit for local connections and/ or another layer of redundancy.
The Paradiso has been designed to be intuitive & easy to use for Commentators’ who would rather be talking about the game than working out how the equipment works, and is also built to our exacting rugged & robust standard to make it a reliable piece of broadcast equipment for the busy engineer.ePaper DisplaysFor quick easy intuitive visible Indication of individual headphone source names, levels & pan. Viewable in bright sunlight.
Fully Redundant Copper and Fibre Network ConnectionsIf an IP link fails you have no broadcast! Our system provides fully redundant glitch free audio & data transport across any of the 4 network interfaces.
Automatic Adjustment For High or Low Impedance HeadphonesOur unique headphone amplifiers automatically provide the correct drive level to high or low impedance headphones.
Instinctive Mic Gain Setting InformationWhen adjusting a mic’s input gain, the ePaper display changes to display the gain being applied in dB and the PPM automatically changes to display just the level of mic input currently being altered.
Multiple Power SourcesFor complete failsafe redundancy the Paradiso can be powered from any of the following sources: PoE (2 off), Wide Range Mains or external DC.
Local Analogue & AES3 I/OFor 100% reliability local analogue & AES3 I/O is provided as complimentary audio connectivity to the network audio.
Referee Compressor/ LimiterGlensound’s World renowned Referee compressor limiter system keeps even the loudest commentators sounding great.
Fully ConfigurableGlenController remote control/ setup application allows hundreds of different parameters of the Paradiso to configured to meet the users requirements.

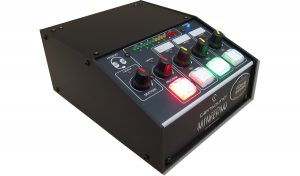

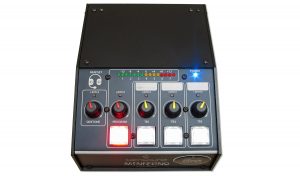

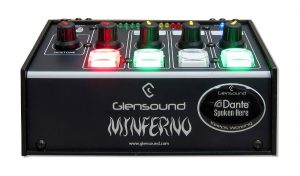

MinFerno
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
MinFerno is a new, smaller, and even easier to use version of our exceptionally popular Inferno network audio commentary box.
MinFerno is designed for a single commentator/ announcer to use, and like its big brother the Inferno, it provides the very best possible commentary microphone amplifier and compressor limiter circuit for amazing on air sound.
The MinFerno is easy to use for commentators who would rather be talking about the game than figuring out how the equipment works. It is built to our exacting, rugged & robust standard to make it a reliable piece of broadcast equipment for the busy engineer.
Redundant Powering OptionsThe MinFerno can be powered from any of 3 different sources:1) PoE on the Primary CAT5 Network link2) PoE on the Secondary CAT5 Network link3) External 12V DCFour of rear panel LEDs show the availability of the 3 power sources.
Primary & Secondary SFP SlotsThe SFP (Small Form-Factor Pluggable) fibre slots are standard networking ports that accept standard SFP modules. This means that you decide what type of fibre and connector style you want to use just by the SFP module that you insert. The primary & secondary network circuits allow for glitch free redundancy across both the Fibre & Copper network interfaces.
Primary & Secondary Copper Network Connections with PoETwo CAT6 connections on Neutrik Ethercons (that accept standard networking cables) are provided to allow copper connections to local network switches to carry the Dante/ AES67 audio. Two connections are fitted to allow redundant circuits to be used if required.Both of these connectors can accept a PoE power source for providing the power to the MinFerno.
Input Mode & GainOne pair of push buttons selects the input type of the front panel XLR to be either microphone, line or microphone with 48V phantom power. 3 LEDs indicate which input mode is selected.Two push buttons are used to alter the gain of the input. LEDs indicate if the gain setting is above or below our pre-configured ‘lineup’ levels. The front panel PPM of course provides an accurate indication of the input level.The gain can also be altered remotely by a web browser pointing at the MinFerno's web page.
Up to 4 of Incoming Audio Volume ControlsOn the top panel are up to 5 rotary headphone volume controls. 4 of these are connected to 4 incoming audio circuits from the Dante/ AES67 network. These are normally used for such sources as mixed programme or cue, talkback to director, talkback to producer, talkback to engineer etc.
Sidetone Volume ControlThe 5th front panel rotary headphone volume control is ‘sidetone’. Sidetone is the commentator's own voice in their own ears.
Headphone RoutingEach of the 5 headphone volume controls has an associated left ear, right ear, both routing switch located next to the volume knob. This single push button switch routes the associated source to just the left, just the right or both channels of the stereo headphone amplifier. To enable the commentator to know how they are routing a circuit the first time a routing switch is pressed, a pair of LEDs on the front panel indicate its current routing arrangement. The next time the routing switch is pressed then the next routing option is selected.
Robust Mic On and Talkback ButtonsThere are up to 4 of large bright illuminated buttons (1 for programme and up to 3 for talkback). These switches route the outgoing microphone circuit onto up to 4 different Dante/ AES67 network audio circuits. The operation of these switches (momentary, latching etc) and the interaction of these switches (i.e. pressing a talkback switch mutes the main mic) can be fully configured via the web page.
15 segment LED PPM MeterAudio input level is indicated on the 15 segment PPM meter.
Low Noise Microphone Amplifier With Remote GainWe spent a long time optimising the performance of the THAT corporation microphone amplifier used in the original Inferno and used again on the MinFerno. It features very low noise & distortion circuit that we remote control the gain of in 1dB steps, which allows us to provide the remote webpage gain control as well as the rear panel gain push buttons. We also optimised the circuits to allow correct source impedance switching depending on whether the input has been set as a mic or line input.
Referee Compressor LimiterAs with all our commentary units, the MinFerno features our very popular Referee compressor limiter circuit. This circuit starts to compress the commentator’s voice gradually and slowly increases the compression ratio as the input level becomes overly high, resulting in a very natural sounding and distortion free audio output capable of taming even the loudest of commentators.
High Quality Analogue To Digital Converter (ADC)Dante/ AES67 network audio is a digital circuit and as such the best analogue microphone amplifier would be wasted if we hadn’t paired it up with the best analogue to digital converter. The ADCs job is fairly simple, and if you look at our tech spec you’ll see that we’ve made ours work incredibly well.
Unique Headphone AmplifiersThe commentator’s headphones are a vitally important tool so we take as much care with our headphone amplifiers as with our on air microphones. Our unique headphone amplifier provides the correct output level regardless of the impedance of the attached headphones, meaning that broadcasters can now pick and choose between low impedance ‘cheap’ headphones and high impedance traditional broadcast ones.
MinFerno is designed for a single commentator/ announcer to use, and like its big brother the Inferno, it provides the very best possible commentary microphone amplifier and compressor limiter circuit for amazing on air sound.
The MinFerno is easy to use for commentators who would rather be talking about the game than figuring out how the equipment works. It is built to our exacting, rugged & robust standard to make it a reliable piece of broadcast equipment for the busy engineer.
Redundant Powering OptionsThe MinFerno can be powered from any of 3 different sources:1) PoE on the Primary CAT5 Network link2) PoE on the Secondary CAT5 Network link3) External 12V DCFour of rear panel LEDs show the availability of the 3 power sources.
Primary & Secondary SFP SlotsThe SFP (Small Form-Factor Pluggable) fibre slots are standard networking ports that accept standard SFP modules. This means that you decide what type of fibre and connector style you want to use just by the SFP module that you insert. The primary & secondary network circuits allow for glitch free redundancy across both the Fibre & Copper network interfaces.
Primary & Secondary Copper Network Connections with PoETwo CAT6 connections on Neutrik Ethercons (that accept standard networking cables) are provided to allow copper connections to local network switches to carry the Dante/ AES67 audio. Two connections are fitted to allow redundant circuits to be used if required.Both of these connectors can accept a PoE power source for providing the power to the MinFerno.
Input Mode & GainOne pair of push buttons selects the input type of the front panel XLR to be either microphone, line or microphone with 48V phantom power. 3 LEDs indicate which input mode is selected.Two push buttons are used to alter the gain of the input. LEDs indicate if the gain setting is above or below our pre-configured ‘lineup’ levels. The front panel PPM of course provides an accurate indication of the input level.The gain can also be altered remotely by a web browser pointing at the MinFerno's web page.
Up to 4 of Incoming Audio Volume ControlsOn the top panel are up to 5 rotary headphone volume controls. 4 of these are connected to 4 incoming audio circuits from the Dante/ AES67 network. These are normally used for such sources as mixed programme or cue, talkback to director, talkback to producer, talkback to engineer etc.
Sidetone Volume ControlThe 5th front panel rotary headphone volume control is ‘sidetone’. Sidetone is the commentator's own voice in their own ears.
Headphone RoutingEach of the 5 headphone volume controls has an associated left ear, right ear, both routing switch located next to the volume knob. This single push button switch routes the associated source to just the left, just the right or both channels of the stereo headphone amplifier. To enable the commentator to know how they are routing a circuit the first time a routing switch is pressed, a pair of LEDs on the front panel indicate its current routing arrangement. The next time the routing switch is pressed then the next routing option is selected.
Robust Mic On and Talkback ButtonsThere are up to 4 of large bright illuminated buttons (1 for programme and up to 3 for talkback). These switches route the outgoing microphone circuit onto up to 4 different Dante/ AES67 network audio circuits. The operation of these switches (momentary, latching etc) and the interaction of these switches (i.e. pressing a talkback switch mutes the main mic) can be fully configured via the web page.
15 segment LED PPM MeterAudio input level is indicated on the 15 segment PPM meter.
Low Noise Microphone Amplifier With Remote GainWe spent a long time optimising the performance of the THAT corporation microphone amplifier used in the original Inferno and used again on the MinFerno. It features very low noise & distortion circuit that we remote control the gain of in 1dB steps, which allows us to provide the remote webpage gain control as well as the rear panel gain push buttons. We also optimised the circuits to allow correct source impedance switching depending on whether the input has been set as a mic or line input.
Referee Compressor LimiterAs with all our commentary units, the MinFerno features our very popular Referee compressor limiter circuit. This circuit starts to compress the commentator’s voice gradually and slowly increases the compression ratio as the input level becomes overly high, resulting in a very natural sounding and distortion free audio output capable of taming even the loudest of commentators.
High Quality Analogue To Digital Converter (ADC)Dante/ AES67 network audio is a digital circuit and as such the best analogue microphone amplifier would be wasted if we hadn’t paired it up with the best analogue to digital converter. The ADCs job is fairly simple, and if you look at our tech spec you’ll see that we’ve made ours work incredibly well.
Unique Headphone AmplifiersThe commentator’s headphones are a vitally important tool so we take as much care with our headphone amplifiers as with our on air microphones. Our unique headphone amplifier provides the correct output level regardless of the impedance of the attached headphones, meaning that broadcasters can now pick and choose between low impedance ‘cheap’ headphones and high impedance traditional broadcast ones.
Inferno
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
Links To Dante Compatible Network Or DARK88 Break Out BoxInferno can be used on its own when connected to a Dante audio network. Many audio routers, consoles and intercom systems are Dante compatible, and will accept the Inferno link, enabling Glensound grade commentary into the audio network.
There are primary and secondary Dante network connections
Inferno can also be used outside of a dedicated Dante network when connected to one of our DARK or AoIP44 break out boxes. This connection can be direct or across a structured network. The DARK or AoIP44 units allow all of the audio inputs and outputs to be located in a place separate from the Inferno.
Programmable On A Dante Audio NetworkWhen connected to a Dante network, sources and destinations can be configured from any part of the network using the free Dante controller software. Details are available at www.audinate.com.
Seven Talkback CircuitsThe seven illuminated talkback buttons route the audio input to 7 different destinations and remove the audio from the main programme output.
Eight Input Headphone MixerSeven external sources plus sidetone are presented on eight level controls allowing the user to create their own required monitoring mix of all sources. Each input can be independently selected to be on the user's left ear, right ear or both ears. The headphone connection is available on a 3.5mm and a 6.35mm jack socket.
Single InputThe single input is switchable on the rear panel to be line/mic/48v and has adjustable input gain. The input also features Glensound’s Referee compressor limiter system. This applies a variable rate compressor to the input peaks so that no clipping occurs, without affecting the rest of the audio signal.
Remote ControlThe Inferno contains a web server, allowing remote functionality to an engineer from any PC connected to the network via any web browser. Enter the IP address of the Inferno in the browser for remote control of the front end mic gain. It also allows configuration of each push button on the unit to be on/off latching, momentary (push to talk), always on, and off when pushed (cough), or in an intelligent mode where a short press latches or a longer press is just momentary.
15 segment LED PPM Meter Audio input level is indicated on the 15 segment PPM meter.
Power On Dante Link Or LocallyInferno can be powered via the network audio connection if it conforms to the PoE standard. There is also an internal 100v-240v mains supply.
Scalable Commentary~Start with one Inferno into a Dante network~Add Multiple Inferno at any time for 2, 3, 4 ,5 or more commentator system~Use DARK units for a simple point to point networked audio break out box
There are primary and secondary Dante network connections
Inferno can also be used outside of a dedicated Dante network when connected to one of our DARK or AoIP44 break out boxes. This connection can be direct or across a structured network. The DARK or AoIP44 units allow all of the audio inputs and outputs to be located in a place separate from the Inferno.
Programmable On A Dante Audio NetworkWhen connected to a Dante network, sources and destinations can be configured from any part of the network using the free Dante controller software. Details are available at www.audinate.com.
Seven Talkback CircuitsThe seven illuminated talkback buttons route the audio input to 7 different destinations and remove the audio from the main programme output.
Eight Input Headphone MixerSeven external sources plus sidetone are presented on eight level controls allowing the user to create their own required monitoring mix of all sources. Each input can be independently selected to be on the user's left ear, right ear or both ears. The headphone connection is available on a 3.5mm and a 6.35mm jack socket.
Single InputThe single input is switchable on the rear panel to be line/mic/48v and has adjustable input gain. The input also features Glensound’s Referee compressor limiter system. This applies a variable rate compressor to the input peaks so that no clipping occurs, without affecting the rest of the audio signal.
Remote ControlThe Inferno contains a web server, allowing remote functionality to an engineer from any PC connected to the network via any web browser. Enter the IP address of the Inferno in the browser for remote control of the front end mic gain. It also allows configuration of each push button on the unit to be on/off latching, momentary (push to talk), always on, and off when pushed (cough), or in an intelligent mode where a short press latches or a longer press is just momentary.
15 segment LED PPM Meter Audio input level is indicated on the 15 segment PPM meter.
Power On Dante Link Or LocallyInferno can be powered via the network audio connection if it conforms to the PoE standard. There is also an internal 100v-240v mains supply.
Scalable Commentary~Start with one Inferno into a Dante network~Add Multiple Inferno at any time for 2, 3, 4 ,5 or more commentator system~Use DARK units for a simple point to point networked audio break out box
Express ip MINI
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
The Express ip Mini is a compact simple to operate, 2 user network audio commentary box, that is ideal for both the occasional & the daily provider of commentary facilities.
Its low cost keeps the accountant happy, its simple facilities makes it very easy to setup for the engineer and the familiar Glensound control surface keeps the commentators satisfied.
Having been involved in designing and manufacturing commentary boxes for over 40 years the Express ip Mini is a culmination of all our years of experience and has been designed to provide just enough of the basic facilities required for everyday commentary in a very robust & easy to use package.
Its low cost keeps the accountant happy, its simple facilities makes it very easy to setup for the engineer and the familiar Glensound control surface keeps the commentators satisfied.
Having been involved in designing and manufacturing commentary boxes for over 40 years the Express ip Mini is a culmination of all our years of experience and has been designed to provide just enough of the basic facilities required for everyday commentary in a very robust & easy to use package.
Express ip MKII
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
The Express ip MKII was designed to provide a quick and easy solution when it is necessary to provide interfacing for two commentators, with simple facilities, into a Dante/ AES67 audio network. This high quality commentary unit is ideal for those looking for cost effective solutions without paying for unwanted features; the Express ip MKII is worthy of investigation.
InputsTwo front panel mic inputs with selectable 48v phantom power.
Outputs/TalkbackEach mic input has its own individual output. The second mic output can be switched on the rear panel to be a mix of both mic inputs. The two talkback circuits have individual outputs and are common for both commentators.
MonitoringThere are four inputs for external sources, and one sidetone pot of their own voice and another pot for monitoring the other commentator. These are available independently to each commentator on individual pots, so each can adjust the inputs for their own preference of mix level. There are two 6.35mm headphone sockets – 1 for each commentator. A 7 segment LED PPM meter displays level.
NetworkThe network connection is AES67/Dante compatible and is available on the rear panel on an RJ45/CAT5 connection. It offers 4 input channels and 4 output channels.
PowerThere is an internal switch mode AC power supply, or the Express ip can be powered by PoE if powered by a switch that provides power over Ethernet.
InputsTwo front panel mic inputs with selectable 48v phantom power.
Outputs/TalkbackEach mic input has its own individual output. The second mic output can be switched on the rear panel to be a mix of both mic inputs. The two talkback circuits have individual outputs and are common for both commentators.
MonitoringThere are four inputs for external sources, and one sidetone pot of their own voice and another pot for monitoring the other commentator. These are available independently to each commentator on individual pots, so each can adjust the inputs for their own preference of mix level. There are two 6.35mm headphone sockets – 1 for each commentator. A 7 segment LED PPM meter displays level.
NetworkThe network connection is AES67/Dante compatible and is available on the rear panel on an RJ45/CAT5 connection. It offers 4 input channels and 4 output channels.
PowerThere is an internal switch mode AC power supply, or the Express ip can be powered by PoE if powered by a switch that provides power over Ethernet.

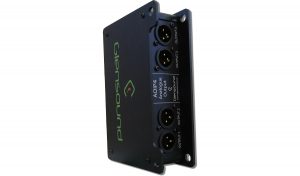

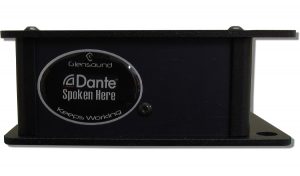

AoIP4O
The AoIP4O is packaged in a small & rugged format and designed for outside broadcast & theatre
AoIP4O
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
The Glensound AoIP4O is packaged in a small & rugged format and designed for outside broadcast, theatre and location applications.
The AoIP4O unit is designed to easily and quickly interface existing analogue equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation.

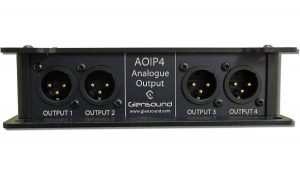

AoIP4O provides 4 balanced analogue audio Outputs from a Dante®/AES67 audio network.
Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.
The AoIP4O unit is designed to easily and quickly interface existing analogue equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation.
AoIP4O provides 4 balanced analogue audio Outputs from a Dante®/AES67 audio network.
Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.
MAGIC THipPro Telephone Hybrid
MAGIC THipPro is AVT’s most flexible and functional Talkshow System with up to 16 caller lines.
MAGIC THipPro Telephone Hybrid
Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »
The MAGIC THipPro is the most flexible and functional talkshow system in our portfolio. The 8 lines system is available for POTS, ISDN or VoIP lines, the 16 lines system is available for ISDN or VoIP lines.
A special feature of the MAGIC THipPro is the so-called Mixed Mode in which the system can be operated with POTS or ISDN lines and simultaneously with VoIP lines. For the Mixed Mode, you simply need to upgrade a POTS or ISDN system with VoIP.
MAGIC THipPro provides two analogue and eight digital Audio inputs and outputs plus two handset/headset interfaces. The Audio interfaces can be assigned freely to the installed workplaces and studios. In total, up to 20 workplaces can access the MAGIC THipPro simultaneously. With the Admin Upgrade, six different studios can be configured.
For MAGIC THipPro, two main software versions are available for configuration and control: MAGIC THipPro LAN and MAGIC THipPro Screener. In the standard delivery no PC licence is included so that the user can decide which one is more suitable for his purposes or chose a mixture of both. Additionally, for smaller studios or recording boothes which do not need the ON AIR functionality, the News Desk Client Software could be a cost-effective solution.
MAGIC THipPro can be connected to an MS SQL database Server. Different studios can use the same or individual databases for call screening. Of course, a blacklist function is also available. All features such as e.g. Auto Answer, call forwarding, Voice Disguise, Night Service and caller preselection are supported. As a special feature the answering machine functionality has been implemented – callers can be accepted automatically in Hold, hear a pre-recorded message and are dropped afterwards.
For an easy communication with DHD mixing consoles, MAGIC THipPro allows the configuration of up to 96 DHD SetLogic commands. Via the Ember+ protocol 96 inputs and 96 outputs can be programmed, an easy communication between MAGIC THipPro and e.g. DHD or Lawo mixing consoles is possible.
A special feature of the MAGIC THipPro is the so-called Mixed Mode in which the system can be operated with POTS or ISDN lines and simultaneously with VoIP lines. For the Mixed Mode, you simply need to upgrade a POTS or ISDN system with VoIP.
MAGIC THipPro provides two analogue and eight digital Audio inputs and outputs plus two handset/headset interfaces. The Audio interfaces can be assigned freely to the installed workplaces and studios. In total, up to 20 workplaces can access the MAGIC THipPro simultaneously. With the Admin Upgrade, six different studios can be configured.
For MAGIC THipPro, two main software versions are available for configuration and control: MAGIC THipPro LAN and MAGIC THipPro Screener. In the standard delivery no PC licence is included so that the user can decide which one is more suitable for his purposes or chose a mixture of both. Additionally, for smaller studios or recording boothes which do not need the ON AIR functionality, the News Desk Client Software could be a cost-effective solution.
MAGIC THipPro can be connected to an MS SQL database Server. Different studios can use the same or individual databases for call screening. Of course, a blacklist function is also available. All features such as e.g. Auto Answer, call forwarding, Voice Disguise, Night Service and caller preselection are supported. As a special feature the answering machine functionality has been implemented – callers can be accepted automatically in Hold, hear a pre-recorded message and are dropped afterwards.
For an easy communication with DHD mixing consoles, MAGIC THipPro allows the configuration of up to 96 DHD SetLogic commands. Via the Ember+ protocol 96 inputs and 96 outputs can be programmed, an easy communication between MAGIC THipPro and e.g. DHD or Lawo mixing consoles is possible.
Logitek mixIT-6 Radio Console
6 fader, touchscreen controlled mixer with AES-67, Ravenna, and Livewire networking. Dante optional.
