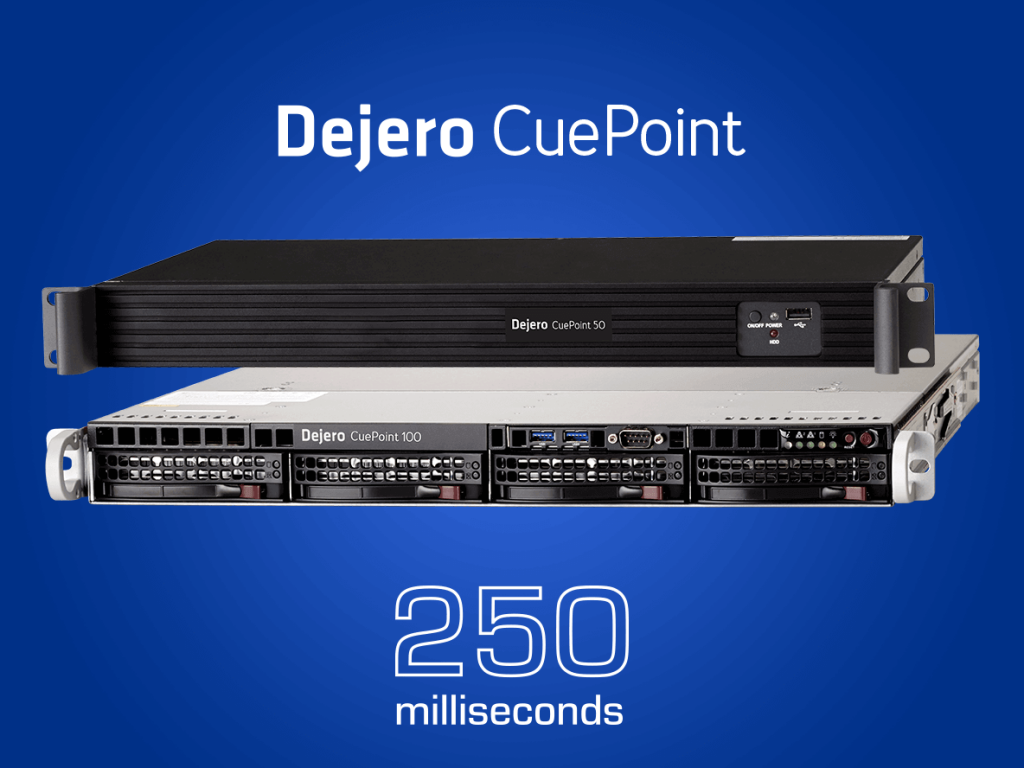

Dejero CuePoint
Dejero CuePoint
CuePoint servers fit in standard 19" rack systems. The short-depth model is a great choice for production vehicles where space is a premium, and are also designed to fit in portable fly away kits to provide return feeds when on location.
Synchronized Production: Near real-time synchronization between on-air talent and broadcast facility helps avoid pauses and delays in live programs.
Equipment Savings: View return video and teleprompter feeds in the field on smartphones, tablets, and regular monitors.
Manage Anywhere: Manage all your return feed servers and feeds remotely from any device with a web browser.
Multiple Feeds: Supports up to 2 simultaneous source feeds from a single server and up to 8 feeds in the field.
Platform Agnostic: Additional Dejero equipment or apps not required.
SFP-H Series
SFP-H Series
SFP-H is the NEW FUTURE PROOF Hybrid Monitor Series, supporting Coax, Fiber & IP connectivity.
The SFP-H monitor series will be available in multiple sizes starting from 17” all the way to 84”.
The SFP-H is integrated with powerful H/W & S/W platforms to support Coaxial 3Gb/s BNC I/O connectivity, Coaxial SFP I/O connectivity, IP SFP+ over Fiber decoding "ST-2110 & ST-2022" with Third-Party H/W decoder and the NEW PIPM "Plura Software Stack IP Platform" decoder.
SFP-H monitor series that can decode ST-2110, ST-2022, PTP and ASPEN IP streams with PIPM "Plura Software Stack IP Platform" based on a powerful computing core and utilizing standard 10G/s SFP+ module.
PBM-4K-H
PBM-4K-H
PBM-4K Series.
PBM-4K Series.
The PBM-4K series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.
PBM-4K monitor series supports ST-2082, ST-2110, ST-2022 and other earlier industry standards, 2 x 12G/3G/HD/SD-SDI or 1 x Quad 3G-SDI (2SI / SQ) inputs with active loop, 2 x SFP+ inputs & HDMI 2.0.
PBM-4K series offers HDR Display capabilities supporting PQ (ST-2084) & HGL standards. The PBM-4K series also adopts the exceptionally slim form factor that Plura customers enjoy, ensuring that even the largest 4K monitors in the portfolio demand a modest slice of real estate.
RM Range
RM Range
The RM Series is a full-featured range of slim, in-rack video monitors ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These tilting monitors come standard with in-monitor level metering, selectable video waveform/vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and assistive video features such as zoom controls and focus assist.
All standard frame rates and resolutions are supported from 3G-SDI, HDMI or Analog input sources and each input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers to the rear of the unit allow the selected screen to be audibly monitored, while a 3.5mm headphone socket provides optional private monitoring.
Each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Parameters are selected and adjusted using an on-screen display menu.
PBM-224-4K-Dual
PBM-224-4K-Dual
PBM-224-4K-Dual customized system was designed specifically to retrofit current HD/SD OB trucks with UHD system. Replacing aging HD/SD monitors with the new PBM-224-4K-Dual which is a great space management solution for the entire video wall. It is also ideal solution for many video & computer workstation applications such as video editing systems or alike.PBM-224-4K, Dual 24″ monitor supports up to 4096 x 2160 resolutions, ST-2082, ST-2110, ST-2022 and other earlier industry standards, 4 x 12G/3G/HD/SD-SDI inputs with active loop, 4 x SFP+ inputs & HDMI 2.0. In addition, HDR Display capabilities supporting PQ (ST-2084) & HGL standards.
The PBM-4K series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.The PBM-4K series also adopts the exceptionally slim form factor that Plura customers enjoy, ensuring that even the largest 4K monitors in the portfolio demand a modest slice of real estate.
UReady 1U Dual Display
UReady 1U Dual Display
RMTF-170-3G
RMTF-170-3G
The RMTF-170-3G – with Table Top (TT) or Rack Mount (RM) options – monitors set a new standard in LCD monitors for broadcast and professional video applications. They provide a 17″, 10 bit, 1920 x 1080 resolution, 16:9 format, anti-glare IPS LCD screen. All video formats are scaled to fit on the screen in the highest quality using 12 bit digital processing, precision scaling, and gamma correction to produce the best images possible. When used outdoors, an optional Sun Shade (part number 829201) is available for the RMTF-170-3G-TT tabletop monitor. A standard XLR-4F connector can plug into the XLR-4M connector to supply 11 to 17 VDC at 3A to the product as an alternative to AC power.
This light and nimble monitor comes with a plethora of in-monitor display features including IMD, Tally, timecode, in-screen audio level metering, format display, and area/title safe markers.
The RMTF also provides a host of audio tools including 16-channel level metering and built-in speaker monitoring of its dual stereo analog inputs or SDI embedded audio. Stand or rack-mount configurations available.
https://www.wohler.com/product/video-monitoring/rmtf-170-3g/
SFP-H-7 Series
SFP-H-7 Series
SFP-317-H-7 series supports 3G SMPTE ST 2110 signals across 10 GigE and it features 2x 10 GbE SFP+ cages complying with SMPTE ST 2022-7
- Supports ST-2022-7
- Ember+ control system compliant
- Decode ST-2110 and ST-2022
- IP – 10G/s SFP+
- Fiber – 3Gb/s SFP
- Coaxial SFP 3Gb/s
- Direct BNC 3Gb/s I/O
SFP-H-7 is the ONLY monitor series in the market that can support 3G SMPTE ST 2110 signals across 10 GigE and it features 2x 10 GbE SFP+ cages complying with SMPTE ST 2022-7, providing redundancy protection for critical distribution and monitoring applications “hitless switching”.
SFP-H-7 monitor series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.
Atomos Ninja V
Atomos Ninja V

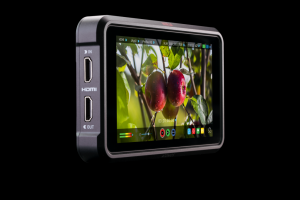

The Atomos Ninja V is a 5" on-camera monitor/recorder that records and plays back DCI 4K, UHD 4K, and HD video from purpose-built mini-SSDs. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remaining unaltered.
TeleSight
TeleSight
TeleSight allows operators to monitor and analyze their video services with confidence. It offers real-time decode, display, and stream analysis, including TR-101-290, video black and freeze, video codec conformance, and audio level tests. Its multiviewer display is highly configurable with on-screen alarms and notifications.
PBM-324-4K
PBM-324-4K
24″ 1000 nit 4K – UHD panel with TRUE HDR (High Dynamic Range) capabilities !.
PBM-324-4K supports up to 4096 x 2160 resolutions, focuses on delivering the highly detailed, accurate color representation and stunning picture consistency that high-end production applications require.
PBM-4K monitor series supports ST-2082, ST-2110, ST-2022 and other earlier industry standards, 2 x 12G/3G/HD/SD-SDI or 1 x Quad 3G-SDI (2SI / SQ) inputs with active loop, 2 x SFP+ inputs & HDMI 2.0.
The PBM-4K series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.
PBM-4K series offers HDR Display capabilities supporting PQ (ST-2084) & HGL standards. The PBM-4K series also adopts the exceptionally slim form factor that Plura customers enjoy, ensuring that even the largest 4K monitors in the portfolio demand a modest slice of real estate.
