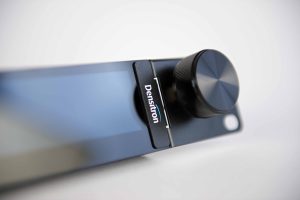

6.6” UReady-16600 display offers an impressive 1440×240 (222 ppi) resolution within a 1U mechanical size. Using IPS technology it provides 85/85/85/85 symmetrical viewing which makes it ideal for rack or desk applications where users are viewing the display from different positions. It is available with a PCT touchscreen which when matched with the display provides the operator with a ‘smartphone’ user experience. An 800cd 50K hour backlight offers 24/7 operation, and the ability to work in -30ºC to +85ºC conditions, make it ideal both for indoor use or where there is high ambient light.
Other products from this company:
10.1 Display
19.1” TFT Monitor

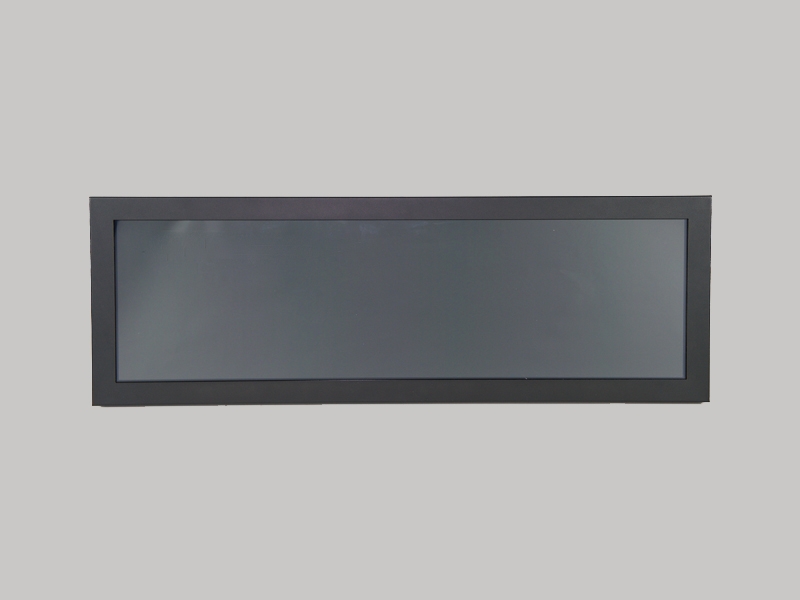

21.5” TFT Monitor
28.5” TFT Monitor
7″ Display
IDS
UReady 1U Dual Display

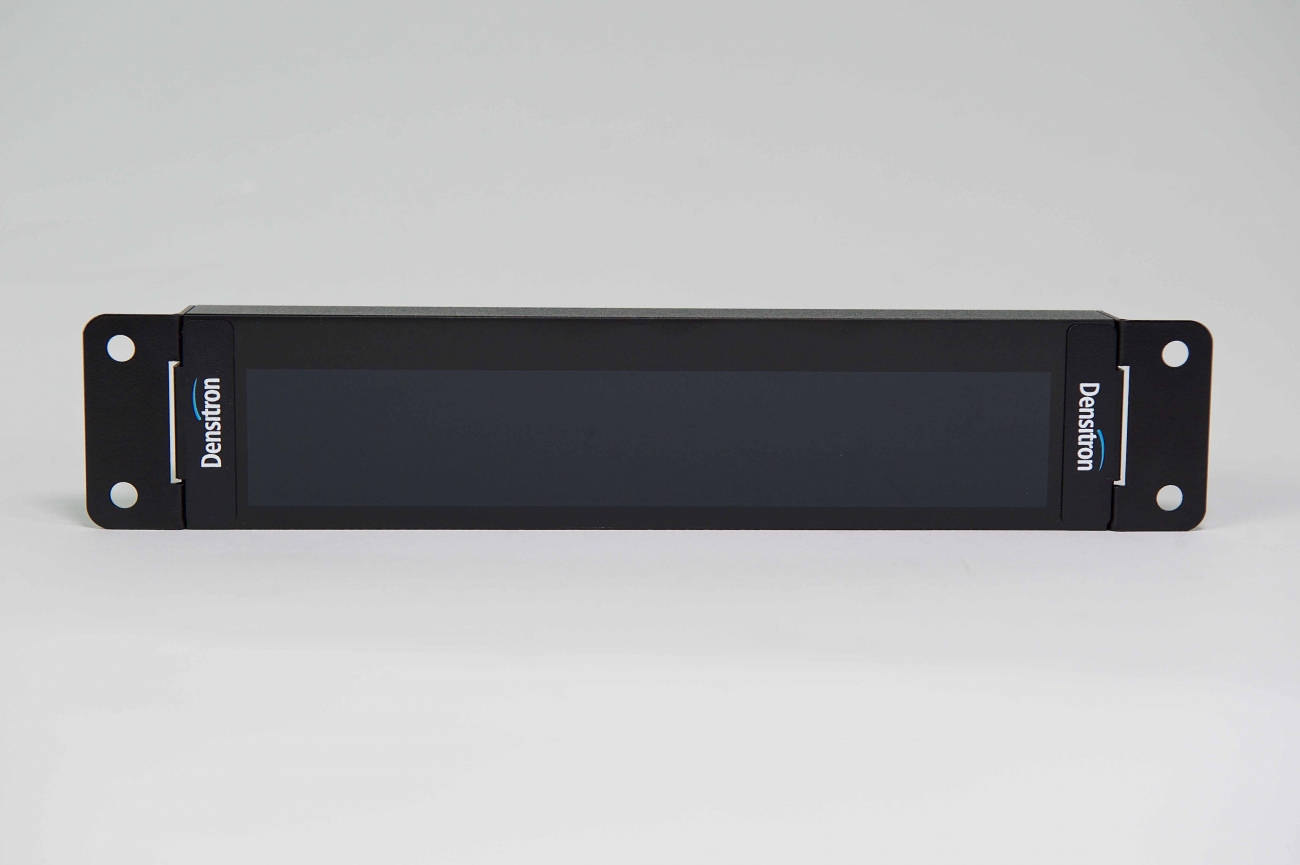

UReady 1U Single Display
UReady 2RU Control Surface Ethernet Connectivity,...
UReady 2RU Control Surface Ethernet Connectivity,...
UReady 2RU Control Surface Ethernet Connectivity,...
10.1 Display
19.1” TFT Monitor
21.5” TFT Monitor
28.5” TFT Monitor
7″ Display
IDS
Developed for the broadcast industry, IDS integrates with all essential broadcast systems, offering future proof adaptability and scalability. Despite the complexity, sophistication and intelligence of the IDS offering, the software and user interface are intuitive and easy to use.
Integrate with any platform
Compatible with all broadcast systems, the integration of IDS Core software is seamless and fast. Designed to work with all major essential broadcast technology eliminating compatibility issues and creating the exact configuration needed.
Critical Time Synchronisation
For the ultimate confidence, IDS delivers 100% accuracy across your network. Referencing your preferred Primary NTP or SPG source, we deliver synchronicity across Audio and Visual inputs down to the nanosecond, with zero latency.
Automate Workflows
Our IDS Core configuration software provides easy access to workflow changes. A network based system, it allows users to create and automate both critical and no essential operations, from dimming studio lights to dynamic noise monitoring.
Easily Manage Content
Using a standard TCP/IP backbone, IDS can be scaled to suit and operate any project. Wherever you are, and on whichever device you prefer, controlling, monitoring and managing content takes only the touch of a finger.
Display Anywhere
Control, monitoring and management through networked displays, touchscreen control devices, web based app, DMX lighting and noise SPL monitoring.
IDSaaS
UReady 1U Dual Display
UReady 1U Single Display
UReady 2RU Control Surface Ethernet Connectivity, ARM Platform
Densitron’s modular design of HMI control surface is suitable for applications in Broadcast, Telecommunications, and other networked control and monitoring systems.
This universal touchscreen control surface is 2RU rack mountable, with an embedded ARM platform and Ethernet connectivity.
The display has 1920 x 285 pixels and an optically bonded capacitive touchscreen providing optimum optical quality. The display features wide-angle symmetric viewing making it easier to be used in many operational applications.
The embedded ARM platform is Densitron’s Aurora SBX™ single board computer based on NXP i.MX6 utilising Quad core ARM® Cortex-A9 2GHz. The APU paired with onboard DDR3 RAM provides the performance to support contemporary multi-media requirements, and rich User Interfaces.
The embedded Aurora Software Ecosystem (ASE) allows for rapid development of user’s HMI applications.
UReady 2RU Control Surface Ethernet Connectivity, ARM Platform – 1 Row Buttons
This universal touchscreen control surface is 2RU rack mountable, with an embedded ARM platform and Ethernet connectivity.
Tactile-touch is a Densitron proprietary technology* that provides the mechanical feeling of a button, combined with optical transparency, and interaction with a touchscreen display. Tactile control surfaces provide sensory feedback for operators, which touchscreens alone cannot easily do. This category of human-machine interaction allows operators to not have to look at the spatial location of their fingers, thus freeing them up to look at the associated control and monitoring tasks.
The visible active area through the transparent button allows text, graphics, images, even video thumbnails to be seen. This version of the tactile control surface has a single-row of 16 buttons on the lower-third. The upper two-thirds is a display and touchscreen area for display and interaction.
The display has 1920 x 285 pixels and an optically bonded capacitive touchscreen providing optimum optical quality. The display features wide-angle symmetric viewing making it easier to be used in many operational applications.
The embedded ARM platform is Densitron’s Aurora SBX™ single board computer based on NXP i.MX6 utilising Quad core ARM® Cortex-A9 2GHz. The APU paired with onboard DDR3 RAM provides the performance to support contemporary multi-media requirements, and rich User Interfaces.
The embedded Aurora Software Ecosystem (ASE) allows for rapid development of user’s HMI applications.
* Patent granted in Taiwan. Patent applied for in USA and EPO
UReady 2RU Control Surface Ethernet Connectivity, ARM Platform -Triple Row Buttons
This universal touchscreen control surface is 2RU rack mountable, with an embedded ARM platform and Ethernet connectivity.
Tactile-touch is a Densitron proprietary technology* that provides the mechanical feeling of a button, combined with optical transparency, and interaction with a touchscreen display. Tactile control surfaces provide sensory feedback for operators, which touchscreens alone cannot easily do. This category of human-machine interaction allows operators to not have to look at the spatial location of their fingers, thus freeing them up to look at the associated control and monitoring tasks.
The visible active area through the transparent button allows text, graphics, images, even video thumbnails to be seen. This version of the tactile control surface has three rows of 16 buttons.
The embedded ARM platform is Densitron’s Aurora SBX™ single board computer based on NXP i.MX6 utilising Quad core ARM® Cortex-A9 2GHz. The APU paired with onboard DDR3 RAM provides the performance to support contemporary multi-media requirements, and rich User Interfaces.
The embedded Aurora Software Ecosystem (ASE) allows for rapid development of user’s HMI applications.
* Patent granted in Taiwan. Patent applied for in USA and EPO
';
