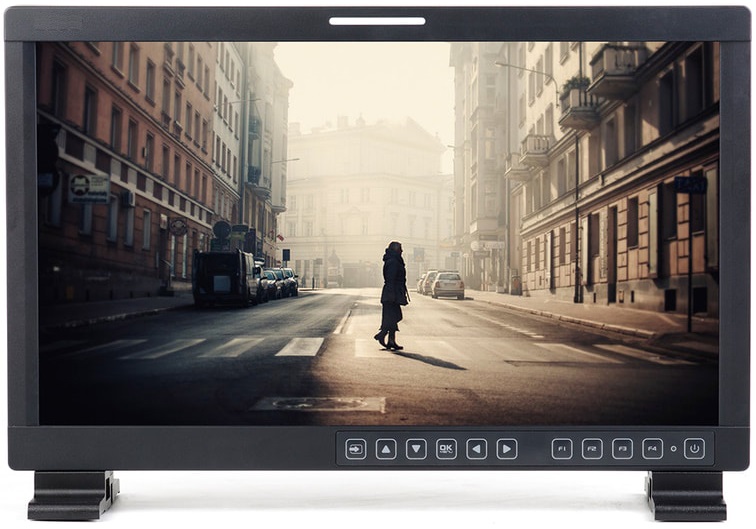

The RMTF-170-3G – with Table Top (TT) or Rack Mount (RM) options – monitors set a new standard in LCD monitors for broadcast and professional video applications. They provide a 17″, 10 bit, 1920 x 1080 resolution, 16:9 format, anti-glare IPS LCD screen. All video formats are scaled to fit on the screen in the highest quality using 12 bit digital processing, precision scaling, and gamma correction to produce the best images possible. When used outdoors, an optional Sun Shade (part number 829201) is available for the RMTF-170-3G-TT tabletop monitor. A standard XLR-4F connector can plug into the XLR-4M connector to supply 11 to 17 VDC at 3A to the product as an alternative to AC power.
This light and nimble monitor comes with a plethora of in-monitor display features including IMD, Tally, timecode, in-screen audio level metering, format display, and area/title safe markers.
The RMTF also provides a host of audio tools including 16-channel level metering and built-in speaker monitoring of its dual stereo analog inputs or SDI embedded audio. Stand or rack-mount configurations available.
https://www.wohler.com/product/video-monitoring/rmtf-170-3g/
