Create » Content Acquisition and Capture » Social/UGC » Content/data acquisition from public sources »

Expand your capacity and creativity with limitless video inputs and outputs, for content curation and publishing at scale.

LTN® Live Video Cloud is an intuitive routing console that streamlines and scales the management of live video, from acquisition to distribution, from any source to every destination — without additional capex.

Break through feed chaos and power innovative video experiences: organize aggregation, monetize publishing, and easily enable remote productions with virtual audience engagement.

With Live Video Cloud, you can acquire unlimited concurrent live feeds from any source, configure productions in minutes, monitor and curate live video within a continuous playback multiview, and distribute live signals simultaneously to unlimited destinations.

Live Video Cloud runs on all major cloud providers worldwide, with intuitive browser-based control accessible from anywhere.

Empower audiences to easily become part of your program, and expand your digital audience reach to earn more top-line ad revenue. Command the future of video with Live Video Cloud.

Publish » Linear Playout » Linear Playout Systems » Channel branding graphics and promotion systems »

Matrox DSX LE4 BNC PCIe card offers cost effective 4-channel 3G/HD/SD SDI I/O hardware for ingest, playout, and live production solutions. All SDI inputs and outputs are fully reconfigurable and provide support for embedded audio and ancillary data. The card features full size BNC connectors to simplify wiring.

Key features



• Half-length PCI express card


• 4 channel re-configurable SDI IO


• Frame synchronizers


• VANC and HANC support for each input and output


• Analog blackburst reference input (tri-level or bi-level)


• Live zero-frame delay video mixers


• One comprehensive SDK for all our developer cards

Publish » Linear Playout » Linear Playout Systems » Channel branding graphics and promotion systems »

The Matrox DSX LE5 12G provides multi-channel reconfigurable 12G/3G SDI I/O for HD and 4K workflows. The DSX LE5 12G allows 4x 12G inputs, 4x 12G outputs and 4x 3G reconfigurable I/O to operate simultaneously on a single half length PCI express card. The DSX LE5 12G is supported by the feature-rich, field proven Matrox DSX SDK.

Key features

• Versatile 12G and quad 3G SDI for 4K connectivity


• Up to 4x 12G inputs and 4x 12G outputs with 4x 3G reconfigurable I/O


• Up to 12x completely reconfigurable 3G I/O


• Frame synchronizers


• Decimation for input preview

Publish » Linear Playout » Linear Playout Systems » Channel branding graphics and promotion systems »

For many years Pixel Power has been at the leading edge of broadcast playout, master control, workflow automation, graphics and branding. With many innovations that are now at the centre of television graphics, workflow and playout Pixel Power is continuing to lead the transition to the new world of software-defined, virtualisable solutions.

Two new technology platforms underpin a range of solutions that enable broadcasters to make the move to IP and do so at their own speed and with solutions tailored specifically to their needs in ways that were never possible before.

Flexible, bespoke, modular and with completely new pricing models, these new technology platforms offer broadcasters the opportunity to acquire just the features or functional blocks that they need and only pay for them when they use them. The days of buying a hardware product where you only use 60% of the features 40% of the time are gone.

StreamMaster Media Processing is the underlying technology platform upon which a variety of innovative solutions are based to help broadcasters manage the processing, branding, master control and delivery of content to customers. The solutions described are configured as standard branding and playout solutions based on how broadcasters currently operate. As a softwaredefined technology platform, however, features and functional blocks are constantly being added to offer broadcasters a future-proof platform and even more flexibility as operations change over time

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

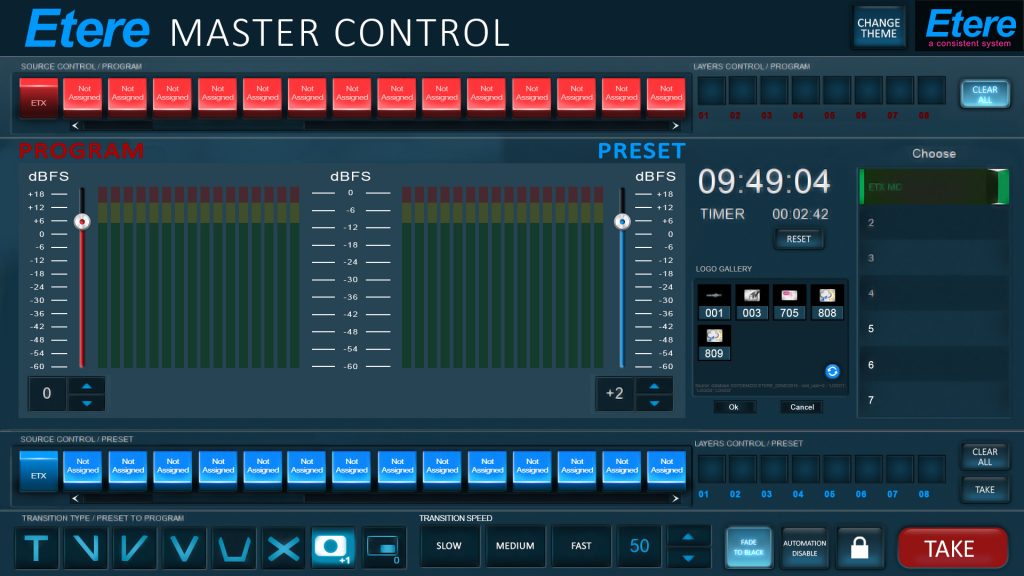

Etere Master Control enhances Etere ETX video and graphics features to achieve new capabilities of a full IT-based playout.

Etere, the pioneer of IT-based playout, is a worldwide provider of comprehensive and integrative software solutions for an easy management of all the functions within a Media company. Etere solutions are designed with more efficient workflows that are also fully scalable to your organisation's needs. Etere has always been an innovator in broadcast and integrating the traditional Master Control functions into Etere ETX ensures that you get the best returns on your investments. Etere system turns a simple computer into a multi-functioning integrated solution. With ETX, you will need only one server to playout, switch, fade dissolve, insert logo and do all the CG functions.

For customers who already use ETX, implementing an IT-based playout enhanced with master control functionalities will consist in a simple software upgrade based on an add-on license, no extra hardware is needed.

Etere Master Control provides all features required from a master control including:

■ Supports touch-screen display for a fully interactive experience

■ Customised transition effects settings

■ Preset and preview bars for fast switching

■ Default configuration (A/B) needs a SD/HD 2IN-2OUT card

■ Up to 8 logo layers with multiple sizes per decoder

■ Unlimited number of input channels plus one Crawl/CG

■ Audio shuffling and control as well as dolby-e pass-through

■ Video switching including transitions effects

■ Multiple PC's installations (e.g. for a 2nd EE monitor)

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

Make it easy with an ergonomically-designed control surface and intuitive “heads-up” user display. Mira delivers remarkably fast learning curves for both novice and veteran replay operators.

Share the load by splitting/sharing server resources—so two operators can work independently on two replay events or work in collaboration on the same replay event.

Ensure maximum reliability, with standard dual-redundant, hot-swappable power supplies. For ease of maintenance, all Mira servers feature hot-swappable chassis fans and media disk drives.

Mira adapts to a wide variety of live production workflows, thanks to a symmetrical, multi-channel server architecture.

Integrated clip networking permits operators to quickly and easily share media clips between any number of Mira replay servers interconnected via inexpensive Gigabit Ethernet.

Reduce cost and substantially streamline workflow with integrated media file import and export tools.

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

The MC1 system scales from stand-alone branding to multi-channel master control installations adapting easily to manual or automated control.

At its core, MC1 is a powerful AV mixer, offering 4 keyers, logo playout, transitions with full preview. You get the tools you need to build your on-air brand.

Shuffle, correct your levels, sum and downmix. Keep your audio in check with fast, intuitive presets and manual overrides.

Manage multiple Master Controls with ease from an intuitive DashBoard touchscreen or tactile hardware control panel.

From single stand-alone branding to large multi-channel Master Control; MC1 can scale to your needs.

It features hardware bypass to keep your channel on air in any situation. MC1 can also be used as great backup to Channel-in-a-box and IP playout systems.

Applications:

- Sports & Live Venue

- News

- Virtual Studio

- Mobile

- Government

- Corporate

- House of Worshio

- Education

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

Designed for use in 4K(UHD) systems, the HVS-6000 brings 12G-SDI compatibility to all inputs and outputs. Users can operate the unit in the same manner as current HD systems. In an era of video over IP, the HVS-6000 anticipates these needs and enables IP interfaces to be mounted on all I/O slots.



Features

Up to 80 in/32 out or 64 in/48 out, all inputs and outputs support 12G-SDI Single Link.

IP input/output support planned for future use.

3 M/Es with split M/E, 4 keyers per M/E.

Frame synchronization and still store available for inputs.

Upconversion*1*2 from HD to 4K on all inputs and downconversion*2 from 4K to HD on all AUX outputs are supported.

Control panels: HVS-2120ROU, HVS-2240OU, HVS-3320OU and HVS-3355OU (custom-ordered).*1 To be supported.　*2 Optional.

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

The HVS-490 switcher offers flexible expansion, opening the door to even more affordable 4K production. Exclusive MELite™ technology extends the switcher’s 2 M/Es to offer 6 M/E performance. Expand your switching capabilities even more by assigning FLEXaKEY™ or feature rich 2.5D DVE, for compositing with up to 12 keyers. Take advantage of this truly broad range of switching in live production. Furthermore, the HVS-490 supports NDI® using the optional HVS-NIF card. The HVS-NIF serves as a video/audio transceiver and creates a system capable of handling IP and baseband signals.

Features

-          Supports High bandwidth NDI®*1 and NDI®|HX input and output.

-          Supports 3G/HD-SDI format, with 4 IP inputs/2 IP outputs per card.

-          Add up to 2 cards to HVS-490*2.

-          Frame sync for all inputs.

-          Proc amp functionality: adjust source video luminance, saturation, or hue.

-          Remote camera operation.

-          Dual Gigabit Ethernet ports.

-          Hardware-based codec processing for peace of mind when building IP systems.





Publish » Linear Playout » Linear Playout Systems » Master control switchers »

All-in-one production centre features

Beyond the essential roles it fulfils in any production environment, this comprehensive unit offers 4 additional features with the addition of an MFR-31VP video processing card. With the card, the MFR-3100EX provides video switcher function, NDI®/NDI®|HX I/O, video streaming, and SSD storage.

Video switcher function (MFR-31VP)

Add an MFR-31VP card to expand the unit with 1 M/E and 20 inputs/13 outputs video switcher function. Take advantage of NDI®/NDI®|HX I/O and 4 keyers for P-in-P or downstream keying. Frame synchronization, 12G-SDI, audio mixing/de-mixing, and other expansion are supported with other options.

Software control panel MFR-CTSP

With the MFR-CTSP software control panel, all video switcher functions can be controlled with touch panel operations.

NDI®and NDI®|HX Supported (MFR-31VP)

Send or receive video and audio, control signals, and tally control over IP. With NewTek NDI® Tools installed, MFR-3100EX supports meeting collaboration software such as Zoom, Microsoft Teams or Google Meet.

Video streaming function (MFR-31VP)

Provides RTMP and SRT support. Upload video directly to YouTube, Facebook, or other streaming services. YouTube streaming can be checked by scanning a QR code with a smartphone.

SSD

SSD storage function (MFR-31VP) can be installed. It enables recording/playing video and audio. Material supplied via SDI or over the network can be encoded and saved as files. Saved files can be decoded for output via SDI or over the network.

Multi viewer function

Multi viewer function is a standard feature of the built-in web server, which provides a web-based control interface. Add MFR-16MV cards for more sophisticated viewer capabilities such as dual output and clock display.

Browser-based multi viewer

Check source material easily through the built-in web server, saving outputs for other sources. For input channels (1–64) and video switcher function output, up to 64 windows can be displayed per screen.

MFR-16MV

Up to 2 outputs/16 split-windows are available with an optional MFR-16MV installed. Unlike conventional systems that require allocation of 1 output per window displayed by an external multi viewer, this functionality reduces multi viewer output allocation to 1 output per monitor.  Because of the MFR-16V’s ability to handle multiple outputs, all signals sent to those destinations can be monitored on the MFR-16MV. Up to 16 split-windows and 2 types of clock display are supported.

Routing switcher function

With its routing switcher function, the MFR-3100EX can be configured for a matrix up to 64x72, with 4 inputs/4 outputs for 8K signals or 16 inputs/18 outputs for 4K UHD. Matrix expansion and redundancy is possible by using multiple units together. With options, conversion between 12G-SDI, Quad Link 3G-SDI, and mapping formats (2SI and SQD) are also available. A variety of cross-point controls are supported in addition to standard cross-point switching.

Multi-format video input and output, and MUX and DEMUX audio are available

Support for 3G/HD/SD-SDI and DVB-ASI input and output. No need to worry about signal formats, thanks to auto signal detection.  Add up to 8 inputs cards and up to 9 outputs card, with 8 channels per card. Can mix and match non-SDI modules as needed. Optimizes the system to install frame synchronizer function for input, and ADVL function for outputs. Audio MUX and DEMUX functions also offer greater video and audio compatibility.

Connectivity with other products

Connectivity with other products including FOR-A video switchers and multi viewers via ethernet or serial ports. MFR routing switcher cross-points can be controlled from HVS video switchers and HVS and MFR exchange tally information with each other. Integrated management of source names by MFR, which automatically send source names to HVS and MV multi viewers. Source names and tally linkage between MFR and MV are controlled by TSL protocol.

Outstanding redundancy

As core system components, FOR-A routing switchers can incorporate redundancy to ensure nonstop operation in case of problems.

- Redundant power supply (optional MFR-31PS)

- Redundant control board (optional MFR-31CPU)

- Redundant ethernet (remote control) (optional MFR-31CPU)

GUI-based configuration

Serving as an SNMP agent, the MFR-3100EX can simultaneously send traps to two SNMP managers for monitoring information about all devices connected to the MFR-LAN.

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

Introducing HVS-190S/190I, a portable 1 M/E video switcher that builds on the features of the capable and popular HVS-490. Take advantage of remote control for off-site event management, and add an HVS-NIF card for NDI® connectivity in a highly reliable mixed SDI/IP system. Includes frame synchronization, resizing, 2.5D wipes and other DVEs, chroma keying, FLEXaKEYTM, and more.

The HVS-190S and HVS-190I also have a built-in Web server that lets you change settings from a PC or a tablet. A clip memory feature has been added to the still store to support playback of video or animations and enhances productions through the use of CG wipes, while the multi-viewer meets a diverse range of monitoring needs. The equipment can be used in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative your ideas.

NDI® is a registered trademark of Vizrt Group.

Product Lineup

2 models are available: 1 with separate main unit and control panel, and 1 with compact, integrated design, both of which can be adapted to a wide variety of applications and operation configurations.

Frame sync and proc amp functionality is provided for all inputs, with safety markers for each output. The HDMI port supports audio output, and, as a 2.0b port, HD or 4K output, with the latter enabling display of HD images in 4 quadrants. Expand input or output for either model with a variety of optional I/O cards.

• HVS-190S

Separated Main Unit/Control Panel Type

8 inputs/5 outputs*1 standard. Expandable up to 20 inputs/11 outputs*1(optional)*2.

The control panel has been laid out specifically with professionals in mind with a design that leverages the knowledge of expert operators. It includes dedicated bus buttons, AUX buttons, a fader controller and direct user buttons for various functions. The main unit offers exceptional expandability to facilitate the addition of a redundant power source unit and various input/output cards.

• HVS-190I

Integrated Main Unit/Control Panel Type

8 inputs/5 outputs*1 standard. Expandable up to 16 inputs/9 outputs*1(optional)*2.

Similar to the HVS-190S in use, this compact video switcher is designed for portability. The inclusion of ample video input and output functionality makes it ideal for use in small broadcast vans and helicopters.

Like HVS-190S, it can be used with an optional redundant PSU and a range of I/O cards.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Hybrid SDI-IP video routers »

AMD Versal™ Prime Series Gen 2 adaptive SoCs combine world-class programmable logic from AMD with a new high-performance processing system of integrated Arm® CPUs—offering up to 10X more scalar compute than existing Versal or Zynq™ adaptive SoCs.  This powerful combination of flexible, real-time sensor processing and the ability to handle complex embedded computing workloads allows designers to maximize system performance while avoiding the overhead of a multi-chip solution.

Designed for a broad range of applications including 8K video processing, the Versal Prime Series Gen 2 devices offer expanded hardened IP to complement the programable logic and processing system. This new IP includes hardened video encode & decode, DDR5/LPDDR5X memory controllers, 100G Ethernet, PCIe® Gen5, and an integrated Arm Mali™-G78AE GPU, enabling next-generation applications within tight area & power constraints.

​From capturing content and enabling virtual production to creating live events, Versal Prime Series Gen 2 enables Broadcast and Pro AV equipment suppliers to deliver ever more compelling experiences thanks to a unique combination of dedicated acceleration, flexible interfaces, and adaptive computing that’s ideal for real-time video & audio processing.

Each video codec unit (VCU) tile offers:

• Hardened bidirectional encoding, decoding and transcoding


• Support for HEVC & AVC up to 4K60, 4:4:4, 12-bit


• Up to two VCU tiles per device; aggregate both tiles for limited 8k30 support

Publish » Linear Playout » Linear Playout Systems » Channel branding graphics and promotion systems »

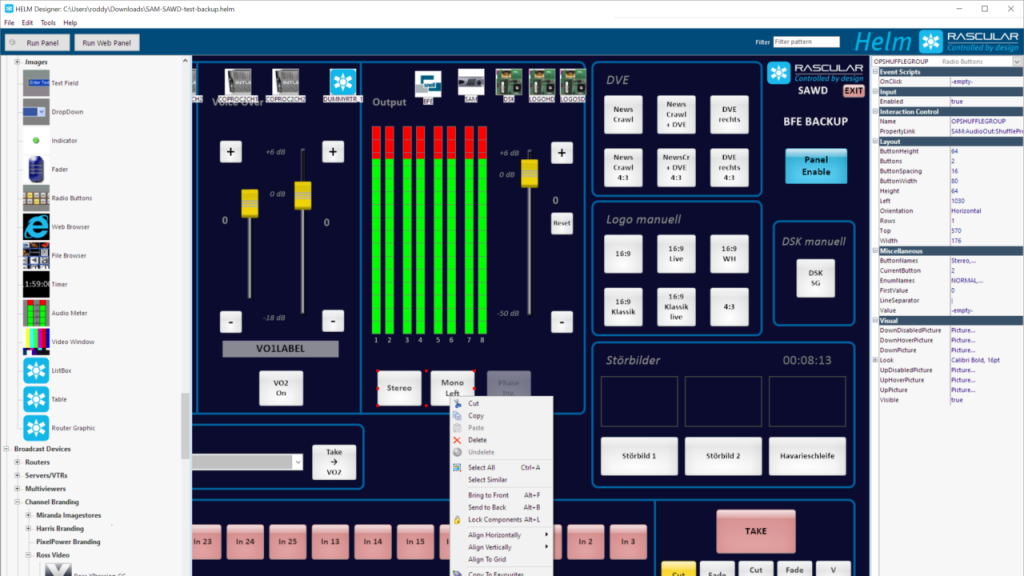

Helm allows the design of a control system dedicated to your operators’ requirements; there’s no clutter of unnecessary controls or information and no risk of confusion between channels as you switch from one manufacturer UI to another. There’s no hunting for the right buttons to press. We can help you design and implement Helm control panels, and you’ll have all the tools to modify and extend them as your requirements change.

BENEFITS

• Totally customisable: All the control you need, none that you don’t


• Smaller footprint: Not all environments have room for multiple hardware panels


• Lower cost: Helm panels run on entry-level PCs, or even on mobile devices via WebCentre


• Faster training: Only one system to learn for new operators


• Enhanced productivity: Simpler interfaces mean operators can work faster and more effectively


• Extend and replace: You can add or change equipment in the facility without impacting operators.

Publish » Linear Playout » Linear Playout Systems » Channel branding graphics and promotion systems »

RouteMaster uses Rascular’s proven router control and emulation technology to form a powerful yet flexible router control system. Built on tried and tested software modules, RouteMaster can be used with a wide range of video and audio routers  from all major manufacturers.

It’s equally suitable for new router installations or increasing the capabilities – and lifetime – of existing systems. You can add third-party hardware panels to existing systems, add IP connectivity to older serial routers, or simply increase the number of control ports available.

The integrated web server means operators can control routers from any web browser, using custom control panels built with Helm Designer. And because it’s built on HTML5 standards, there’s no need for browser plugins.



Publish » Linear Playout » Linear Playout Systems » Channel branding graphics and promotion systems »

Visual Data is a global provider of award-winning digital media supply chain services to the entertainment industry with locations in Burbank, London and Bangalore. What began as a small editing facility in 1995 has since grown into one of the industry’s leading global providers of quality-driven content management, distribution, localization and media services that enable customers to deliver premium content in any format for any screen or platform, anywhere in the world.
