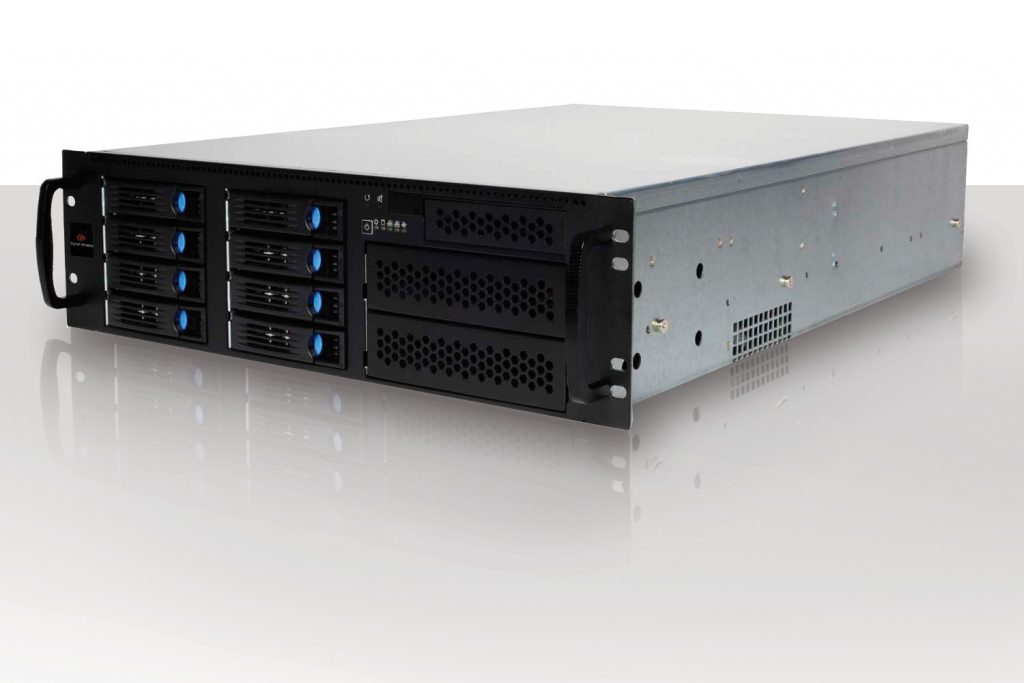

Reliable 24/7 monitoring and aircheck, recording a variety of inputs from baseband (SDI, HDMI, etc.) to Transport Stream (ATSC/ATSC 3.0 via antenna, IP, ASI, and QAM) and IP (2110, 2022-6, RTMP, RTSP, SRT, ZIXI, NDI, HLS, MPEG-DASH, Smooth) to assure compliance and quality of both linear OTA and OTT broadcasts with alerts sent on Audio and Video issues such as missing video, frozen image, low or no audio, pixelization, and more.
The HTML-5 platform includes an advanced player with fast-forward, fast-backward, slow-motion, scrubbing and pause, as well as Search via CC, EPG, AsRun and PlayList to easily find the content you are looking and stop options.
The Actus platform provides proof-of-airing with bookmarks and clip-sharing, evaluation of original transport stream and easy transcoding to any format, exporting to any destination or publishing to Social.
The low-latency browser-based and software multiviewers display any combination of channels with must-have compliance logging for things such as missing closed captions/DVB subtitles and loudness violations. Additional engineering features like SCTE 35/104 and NAVE detection, TS analysis, playlist to as-run log discrepancy reporting, and many QoE/QoS alerts are all standard on the Actus platform.
Other products from this company:
Actus – MVPD Remote Video Monitoring
Actus Advanced OTT Monitoring and Analysis
Actus AdWatch – Auto-Commercial Detection &...
Actus Compliance Logging and Quality Monitoring
Actus Digital – Clip Factory Pro
Actus Mosaic – Broadcast Multiviewer
Actus Rating Graphs and Competitive Analysis...
Actus Technical Monitoring – Alert Center...
Actus – MVPD Remote Video Monitoring
Actus RVM provides MVPDs with an organized dashboard that provides constant compliance-logging and quality monitoring for higher-value channels with the ability to dial in to their entire lineup at hundreds of geographically dispersed locations to see what their viewers see Post-STB and troubleshoot issues in real time.
It is also used to verify local ads are inserted and timed correctly, and ensure services are running properly.
RVM provides Penalty Box and traditional Multiviewer views and sends proactive alerts 24x7 for channels that violate user-set quality thresholds.
BY IDENTIFYING ISSUES BEFORE THEIR CUSTOMERS, REMOTELY TROUBLESHOOTING THEM, AND QUICKLY REMEDYING THEM, OPERATORS REDUCE TRUCK-ROLLS, SAVE MONEY, AND IMPROVE THEIR PERFORMANCE AND SERVICE.
Actus Advanced OTT Monitoring and Analysis
As the global over-the-top (OTT) services market keeps growing, so to does the demand for OTT quality of service and quality of experience monitoring and analysis.The Actus intelligent monitoring platform can combine OTA and OTT analysis on the same platform or can be implemented as an exclusive OTT monitoring solution, supporting any internet-based protocol, such as HLS, RTMP, RTSP, SRT, ZIXI, NDI, MPEG-DASH, Smooth, and others.
Content can be recorded at several points in distribution chain to compare content ant points before and after various CDNs, with alerts sent on any audio and video issues, including low or missing audio, blue screen, black screen, frozen image, pixelization, missing closed caption, and more.
The Actus Alert Center constantly monitors all renditions of OTT streams in real-time, alerting on any technical issue that impacts the viewer’s quality of experience as well as segments where closed captions or SCTE triggers are missing.
Any exception is logged and reported via multiple methods, including e-mail, SNMP, dashboard, multiviewer, log files and popular group-texting applications.
Actus AdWatch – Auto-Commercial Detection & Sales Lead Generation
Actus AdWatch uses advanced audio-fingerprint technology to monitor yours and your competitors' channels to detect commercials and generate reports including the New Commercial Report highlighting new Advertisers in your local market and the Delta Report that lists Advertisements aired more on competitor channels than you own.
The process begins by defining the reference commercials, either by marking them from the recorded feeds or by importing sample files.
The system automatically computes one specific fingerprints for each of the marked commercials.
AdWatch monitors the live feeds of all selected channels, and compares the fingerprint of the live feeds to the fingerprints of all the marked commercials (ads) or any other content stored in the database.
Adwatch can also detect new ads that have not been fingerprinted and alerts the operators with all the new ads for confirmation.
At the end of the process, AdWatch creates a database of all certified detections.
The user may produce a large set of reports from this database, by date, channel, brands, campaign and many other attributes.
For further analysis, there is a possibility to export any report to excel (.csv)
AdWatch is the optimal solution for Sales Lead List generation, Ad verification with video verification, and competitive ad analysis.
Actus Compliance Logging and Quality Monitoring
Reliable 24/7 monitoring and aircheck, recording a variety of inputs from baseband (SDI, HDMI, etc.) to Transport Stream (ATSC/ATSC 3.0 via antenna, IP, ASI, and QAM) and IP (2110, 2022-6, RTMP, RTSP, SRT, ZIXI, NDI, HLS, MPEG-DASH, Smooth) to assure compliance and quality of both linear OTA and OTT broadcasts with alerts sent on Audio and Video issues such as missing video, frozen image, low or no audio, pixelization, and more.
The HTML-5 platform includes an advanced player with fast-forward, fast-backward, slow-motion, scrubbing and pause, as well as Search via CC, EPG, AsRun and PlayList to easily find the content you are looking and stop options.
The Actus platform provides proof-of-airing with bookmarks and clip-sharing, evaluation of original transport stream and easy transcoding to any format, exporting to any destination or publishing to Social.
The low-latency browser-based and software multiviewers display any combination of channels with must-have compliance logging for things such as missing closed captions/DVB subtitles and loudness violations. Additional engineering features like SCTE 35/104 and NAVE detection, TS analysis, playlist to as-run log discrepancy reporting, and many QoE/QoS alerts are all standard on the Actus platform.
Actus Digital – Clip Factory Pro
Increasing the viewers’ engagement is a challenge for any content owner. Clips generation and publishing to the online platforms must be efficient, fast, simple, cost-effective, automated, and accessible to anyone, from anywhere, anytime. No need for professional video editors or dedicated workstations. This is exactly what Clip Factory Pro is for. It can be deployed as an on-premise solution, Virtual Machine, Cloud, or as a Hybrid solution.
A COMPLETE WORKFLOW FOR CONTENT RE-PURPOSING
It's an enhanced HTML5 clips generation workflow for digital media and news teams. It includes the recording, advanced editing and metadata enrichment options, a built-in transcoding engine, and direct publishing to social media, OTT, VOD, Web, Catch up TV, etc.
ADVANCED EDITING
It allows you to mark in/mark out multiple segments manually or automatically by using external data such as As run log files, EPG, closed caption, or AI engines. You can easily include or exclude segments, choose to add specific subtitles and audio language, or add a thumbnail. The metadata can be easily customized, pre-defined, or imported.
EFFECTS AND GRAPHICS
Enrich the clip with logos, graphics, animations, mute or blur specific parts, add pre or post-roll, crop a part of the video, and split the screen as a few examples.
EXPORT IN ANY FORMAT TO ANY DESTINATION
It records from any input, including IP, SDI, QAM, HLS, SMPTE 2022-6, ASI, SRT, RTMP, NDI, and Zixi, from any format and resolution, including SD, HD, 4K, 8K. The frame accurate clips are exported in any format. The clips can be exported to social media, such as Facebook, YouTube, OTT platforms, VoD, and more, and integration with third parties transcoding farms is also supported.
AUTOMATIC CONCATENATION AND CLIP CREATION
Automatic export of specific programs, scheduled clipping, automatic ads removal, clipping based on EPG, As Run logs or other external metadata, and automatic AI-based clipping are some examples.
Actus Mosaic – Broadcast Multiviewer
Monitor any number of live OTA and OTT channels from any combination of inputs on browser-based and/or SW application Multiviewers...then use Actus Synchro to drill down and pinpoint where in the video delivery workflow issues are introduced to quickly and efficiently improve your QoS and viewer QoE.
With unlimited configurable layouts and a variety of widgets, unlimited users easily specify the size and position of each channel, with related clock, label, metadata, captions, VU meter, alerts, TS analysis, penalty box and more.
What's more, every channel is being recorded, so you can use Actus Digital's comprehensive suite of tools to research the history of issues and make changes to preempt future issues.
Actus Rating Graphs and Competitive Analysis Collaboration
Efficient Actus ratings graphing and analysis tools provide a clear graphical view of ratings alongside the video broadcast on each channel that earned those ratings.
This is a great tool for News to work with graphics and talent and improve performance, as well as for sales to prepare Advertiser Sales Pitches perhaps researching demographic performance as it applies to them. The easy to read graphs are based on data received from rating and audience measurement companies such as Nielsen, Comscore, Kantar, IBOPE, TNS, AGB, BARC, GFKGallup and/or any others data source that relate to performance per channel over time.
The result is better program planning, ad placement, program scheduling and performance. This helps improve your ratings which can significantly increase revenues.
Actus Technical Monitoring – Alert Center and TS analysis
Actus Alert Center checks feeds from TV, Radio, and OTT for any audio or video issues, such as no/low audio, frozen image, blue screen, black screen, pixelization, Loudness violations, missing SCTE, missing captions/subtitles, NAVE and more.
When defined thresholds are violated, alerts are seen on-screen, sent via email, and/or SNMP traps are sent.
A history of alerts can be seen on-screen and exported with reports and graphical representations. When used in a system with multiple locations, alerts can be shown locally as well as remotely from a Central Server and centralized multiviewers.The transport stream analyzer (TSA) highlights TR-101-290 priority 1, 2, and 3 errors from any transport stream source and alert on any QoS issues that may affect viewer QoE.
';
Related Products:
Matrox X.mio3 12G
Matrox DSX LE5 12G
Matrox DSX LE5 ST 2110 Network...
Matrox DSX LE4 BNC
Matrox X.mio3 FH
Matrox DSX LE4 LP
Matrox X.mio3 LP
Matrox M264 Family
Matrox X.mio3 IP
MSX
nxtedition
Etere Memory
QuickEdge Automation
Cosmos
AirBox
Actus Compliance Logging and Quality Monitoring
Qligent Vision
Bluefish444 KRONOS K8
Bluefish444 Epoch | 4K Neutron
Bluefish444 Epoch | Supernova CG
Bluefish444 Epoch | 4K Supernova S+
Bluefish444 KRONOS Optikos
Bluefish444 KRONOS Elektron
MonitorIQ
Matrox X.mio3 12G
Matrox X.mio3 12G is ideal for OEMs who need to create advanced channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multi-viewers, switchers and other digital media equipment. This card is supported by the Matrox DSX SDK (Software Development Toolkit). Please refer to the Matrox DSX Developer Products datasheet for information on file I/O, software codecs and CPU effects.
Key features
Half-length PCI Express card
Up to two 12G SDI inputs
Up to two 12G SDI outputs
Two re-configurable SD, HD, 3G SDI I/O
Frame synchronizers on each input
VANC and HANC support for each input and output
Analog blackburst reference input (tri-level or bi-level)
Onboard multi-channel 4K scaler
Onboard multi-layer 4K compositor
Live zero-frame delay video and audio mixer
Up to16 channels of AES/EBU inputs and outputs
Up to eight LTC inputs and outputs
Matrox DSX LE5 12G
The Matrox DSX LE5 12G provides multi-channel reconfigurable 12G/3G SDI I/O for HD and 4K workflows. The DSX LE5 12G allows 4x 12G inputs, 4x 12G outputs and 4x 3G reconfigurable I/O to operate simultaneously on a single half length PCI express card. The DSX LE5 12G is supported by the feature-rich, field proven Matrox DSX SDK.
Key features
- Versatile 12G and quad 3G SDI for 4K connectivity
- Up to 4x 12G inputs and 4x 12G outputs with 4x 3G reconfigurable I/O
- Up to 12x completely reconfigurable 3G I/O
- Frame synchronizers
- Decimation for input preview
Matrox DSX LE5 ST 2110 Network Cards
The Matrox® DSX LE5 Q25 and Matrox DSX LE5 D25 SMPTE ST 2110 network interface controller (NIC) cards provide 25 GbE and 10 GbE interfaces for multi-channel IP video I/O from HD to 4K, with zero CPU usage.
The Matrox DSX LE5 ST 2110 network adapters offer complete ST 2110 offload allowing OEM software solutions to provide reliable and scalable COTS-based 10 GbE and 25 GbE IP solutions. These ST 2110 NIC cards offload all packet processing required for ST 2110-20, ST 2110-30, ST 2110-31, and ST 2110-40, as well as ST 2022-7 redundancy, to free up system resources. With ST 2110-21 packet pacing built into the NIC, software solutions can provide guaranteed narrow senders (Type N) under all conditions independent of CPU load and OS interactions. The DSX LE5 ST 2110 cards also provide line rate capture allowing for wide asynchronous receivers (Type A). Both the permissive wide asynchronous receivers and the, ST 2110-21 packet paced, narrow senders allow software solutions to guarantee universal compatibility and interoperability at scale.
Matrox DSX LE5 ST 2110 NIC cards also offer integrated, hardware-based PTP support allowing for ST 2059-2 accuracy in the nanosecond range eliminating network jitter associated with general-purpose, non-video-aware NIC cards . With built-in support for JT-NM TR-1001-1 -- including NMOS Device Registration and Discovery (IS-04) and NMOS Device Connection Management (IS-05), DSX LE5 cards provide for seamless integration in ST 2110 environments.
With access to standard network functionality, DSX LE5 ST 2110 NIC cards provide a complete comprehensive COTS solution for software applications to seamlessly transition from SDI to ST 2110 with no hassle and guaranteed success.
Key features
- Native SMPTE ST 2110 over 25 GbE support with no CPU usage
- Up to 4 UHDp50/60 inputs and outputs
- Up to 32 HD inputs and outputs
- ST 2110-21 packet pacing in hardware for narrow senders (Type N)
- Wide asynchronous receivers (Type A)
- 32x HD inputs and outputs over 25 GbE
- 256 audio flows from 1 to 64 tracks
- Integrated hardware PTP for ST 2059-2
- Built in NMOS IS-04 and IS-05 support
- 3 year warranty
- One comprehensive SDK for all our developer cards
Matrox DSX LE4 BNC
Key features
- Half-length PCI express card
- 4 channel re-configurable SDI IO
- Frame synchronizers
- VANC and HANC support for each input and output
- Analog blackburst reference input (tri-level or bi-level)
- Live zero-frame delay video mixers
- One comprehensive SDK for all our developer cards
Matrox X.mio3 FH
Matrox X.mio3 FH is ideal for OEMs who need to create advanced channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multiviewers, switchers and other digital media equipment.
Key features Half-length PCI express card Re-configurable IO that can support up to 12 SDI IO Frame synchronizers VANC and HANC support for each input and output Analog blackburst reference input (tri-level or bi-level) On-board multi-channel MADI (Motion Adaptive De-Interlacer) On-board multi-channel Up/Down/Cross scaler On-board multilayer compositor Automatic video relay bypass Live zero-frame delay video and audio mixers Up to 16 channels of AES/EBU inputs and outputs Up to 8 LTC inputs and outputs RS422 control Single slot all inclusive option
Matrox DSX LE4 LP
Matrox DSX LE4 LP is ideal for OEMs who need to create compact channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multiviewers, switchers and other digital media equipment.
Key features
Low profile, half-length PCIe card
Re-configurable I/O that can support up to 8 SDI inputs or outputs
Frame synchronizers
VANC and HANC support for each input and output
Analog blackburst reference input (tri-level or bi-level)
Automatic video relay bypass (optional)
Live zero-frame delay video mixers
Matrox X.mio3 LP
This low-profile, half-length card offers up to eight reconfigurable SDI I/Os from SD to 4K.
Multi-channel hardware processing accelerates compute-intensive operations including motion-adaptive de-interlacing, up/down/cross scaling and mixing/compositing for all resolutions including 4K.
Matrox X.mio3 LP is ideal for OEMs who need to create advanced yet compact channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multiviewers, switchers and other digital media equipment.
Key features
Low profile, half-length PCI-e card
Re-configurable I/O that can support up to 8 SDI inputs or outputs
Frame synchronizers
VANC and HANC support for each input and output
Analog blackburst reference input (tri-level or bi-level)
On-board multi-channel MADI (Motion Adaptive De-Interlacer)
On-board multi-channel Up/Down/Cross scaler
On-board multilayer compositor
Automatic video relay bypass (optional)
Live zero-frame delay video and audio mixer
Matrox M264 Family
The M264 family can encode/decode up to four streams of 4Kp60 at 4:2:2 10-bit, 40 streams of HD long GOP at 4:2:2 10-bit or 64 streams of HD at 4:2:0 8-bit. The faster than real-time encoding/decoding ability of the M264 allows multiple blazing fast transcodes for distribution on differing media platforms. With onboard multi-channel, motion-adaptive deinterlacing, and up/down/cross scaling, the M264 family can repurpose content into any resolution before encoding or after decoding, particularly beneficial for OTT workflows.
Specifically designed for high density encoding/decoding (Baseline Profile to High 10 Intra Profile up to Level 5.2), M264 cards provide the highest possible quality at the lowest power per stream (< 1.5 W per HD stream). The M264 S4, S3 and S2 cards are cloud friendly and their resources can be shared across virtual machines.
Matrox M264 cards are the ideal H.264 accelerators for channel-in-a-box systems, video servers, broadcast graphics systems, multi-viewers, and switchers or to create high-density encoders, transcoders and other broadcast media equipment. The Matrox M264 hardware is supported by the Matrox DSX Software Development Kit. Please refer to the Matrox DSX Developer Products datasheet for information on file I/O, software codecs and CPU effects.
Key features PCI Express Cards M264 - Gen 2, ½ length card M264 S2 - Gen 3, ¾ length card M264 S3 - Gen 3, ¾ length card, M264 S4 - Gen 3, full length card. Multi-channel, high-quality H.264 video encoding, decoding and transcoding Up to 4K resolutions supported 4:2:2 10-bit and 4:2:0 8-bit Hardware based deinterlacing and scaling Real-time and faster than real-time operation Dynamic codec control Sony XAVC compliant encoding including 4K XAVC Long and 4K Intra Class 480 Panasonic AVC-Ultra compliant Native MXF file wrapping Native MXF file reading. This includes Trim in and Trim out settings for building playlists File consolidation Time Delay Instant Replay (TDIR) support MXF file truncation and appending during live recording
Matrox DSX Core
Matrox X.mio5 Q25
The Matrox X.mio5 Q25 network adapter offers complete ST 2110 offload allowing OEM software solutions to provide reliable and scalable COTS based 10Ge and 25Ge IP solutions. This ST 2110 NIC offloads all packet processing required for ST 2110-20, ST 2110-30, ST 2110-31 and ST 2110-40, as well as ST 2022-7 redundancy, to free up system resources. With ST 2110-21 packet pacing built into the NIC, software solutions can provide guaranteed narrow senders (Type N) under all conditions independent of CPU load and OS interactions. The X.mio5 Q25 ST2110 IO cards also provide line rate capture allowing for wide asynchronous receivers (type A). Both the permissive wide asynchronous receivers and the ST 2110-21 packet paced, narrow senders allow software solutions to guarantee universal compatibility and interoperability at scale.
Key features Native SMPTE ST 2110 support with no CPU usage 4x UHDp60/50 inputs and outputs over 25GbE 32x HD inputs and outputs over 25GbE 256 audio flows from 1 to 64 tracks Multi-channel HDR conversion On-board de-interlacing, scaling, and compositing, Built in NMOS IS-04 and IS-05 support, 3 year warranty
Matrox DSX LE4 IP
Key features
Multi-channel IO allowing up to 4 video inputs and 4 video outputs with redundancy in HD
Guaranteed non-bursty packet transmission with zero CPU usage
Support for multiple IP encapsulations
IP and analog blackburst timing reference
IP bypass and fail-safe mechanisms
Feature rich SDK
Matrox DSX LE4 FH
Matrox DSX LE4 FH is ideal for OEMs who need to create channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multiviewers, switchers and other digital media equipment.
Key features Half-length PCI express card Re-configurable IO that can support up to 12 SDI IO Frame synchronizers VANC and HANC support for each input and output Analog blackburst reference input (tri-level or bi-level) Automatic video relay bypass Live zero-frame delay video mixers Up to16 channels of AES/EBU inputs and outputs Up to 8 LTC inputs and outputs RS422 control Single slot all inclusive option
Matrox X.mio3 IP
Key features Multi-channel IO allowing up to 4 video inputs and 4 video outputs with redundancy in HD Guaranteed non-bursty packet transmission with zero CPU usage Support for multiple IP encapsulations IP and analog blackburst timing reference IP bypass and fail-safe mechanisms On-board multi-channel MADI (Motion Adaptive Deinterlacer) Onboard multi-channel Up/Down/Cross scaler Onboard multi-layer compositor Feature rich SDK
MSX
MSX is a technological breakthrough allowing Polistream and conventional subtitle transmission product users to probe deeper into their system than ever before. It is easy to use and will greatly speed up both the identification and correction of issues in the transmission pipeline.
MSX not only detects and signals imperfections in the stream, it will also analyze the subtitles. Broadcasters, channel managers and content providers within the organization can view the subtitles as they are sent to ensure service quality.
MSX can be used to monitor subtitle transmission from end to end. It can monitor and display data in many formats. This allows the user to see subtitles as they would appear to the viewer. The system is ideal for confidence monitoring or fault location.
MSX can display many channels with multiple languages on one computer display and it saves considerably in space and cost over multiple monitors and decoders. Custom views can also be created depending on individual system requirements via the powerful system editor.
A Remote version supports multi-user remote workstations and dedicated ASI & SDI signal inputs.
nxtedition
Etere Memory
Get more out of your compliance logger software with Etere Memory which equips you with the features to comply with regulatory requirements as well as to analyse audience data, insert logos/timecodes, view/edit recordings, log clips for OTT, VOD and social media delivery.
Etere Memory provides broadcasters with a reliable compliance logger that records and stores all transmitted video and audio in a low resolution format (Mpeg4/WMV), enabling operators to fulfill all broadcast recording laws. Not only that, it allow content creators to re-purpose their content in a cost-effective and easy way. Etere Memory provides the tools to record, create, edit clips, add metadata, transcode and distribute content for VOD, OTT and social media. Etere Memory is a simple and cost-effective software that runs on any Windows computer that enables the recording and viewing of clips at the same time with only a few seconds delay. Etere supports commonly used input cards including Blackmagic and IP input including IP with TS, AIMS and ASPEN. Streaming out from Etere Memory is possible with HTTP, UDP, RTSP & RTMP streaming to flash media server and Wowza Media Server. Etere Memory also supports the H264 format (MPEG-4) which was developed for use in high definition systems such as HDTV, Blu-ray and HD DVD to produce better quality at a lower file size. Etere Memory comes with Etere player for Windows and HTML5 player for web to provide an exceptional viewing experience.
Key Features ■ HTML5 player for web/desktop browsing and H264 (MPEG-4) compatibility
■ Compliance logger that complies with all the TV regulatory requirements
■ Streaming out of content for remote control of video
■ Live clipping for OTT and social media
■ Video-On-Demand (VOD) clipping
■ HTTP, UDP, RTSP & RTMP streaming to flash media server and Wowza Media Server
■ Supports analogue and digital video capture boards
■ Data protection and advanced redundancy to record files on remote servers
■ Unlimited and simultaneous clients/recordings, multiple viewings and editing
■ Embedded time code on recorded videos
■ Automatic detection and SNMP notifications for black and freezed video issues
■ Metadata marking to identify and search key video parts
■ Audience data insertion into logged video files and competitors record checks
■ Supports insertion of logos and timecodes, supports annotation on video
■ Includes Etere HSM archiving at no additional costs
■ Integration with loudness check and preview with Etere Audience
QuickEdge Automation
QuickEdge automation solution is proven in over 50 24/7 Broadcast stations and has committed to providing the highest uptime in the industry.
QuickEdge automates MCR Operations, PCR operations, Ingest, device controls for the router, switcher, etc along with industry-standard MOS connectivity
Cosmos
Cosmos provides software based playout engines for Broadcasters, Over The Top service providers and Broadcast Services companies.
The distributive virtualised architecture of the playout engine from Cosmos provides a fast and trusted cloud based playout solution enabling broadcasters and service providers to spin up both OTT and traditional TV channels in a few minutes thus lowering the cost of ownership.
Channels can be hosted from data centres or from your own Master Control Room over a private or public cloud. Cosmos also gives you the ability to playout both file based and live services .
Cosmos is an open system which enables all the features of a playout engine be implemented on a service basis. Cosmos reduces the need to invest in capital infrastructure. It removes the need to find space for technical equipment and the ongoing cost of technical maintenance.
Channel owners in worldwide gain the freedom to outsource practically all the technical equipment traditionally required for broadcasting.
Cosmos virtualises the process of channel management under control from a standard enterprise computer via a firewall-protected secure internet connection. Programme playout can be automated to any required extent while always retaining the freedom to insert live content.
Cosmos offers established broadcasters and content owners the ability to introduce new programme channels at very short notice, whether a permanent additional to an existing bouquet or a supplementary programme stream covering a temporary event. It can be matched to a wide variety of deployment models, enabling consistent operation across baseband, hybrid IP, and virtualised, cloud-based networks.
Cosmos also enables independent content producers to establish television channels without the high start-up cost usually inherent in such ventures.
Cosmos delivers unsurpassed flexibility in format handling and transcoding. It supports practically any technical standard in today's fast-evolving television industry, whether for terrestrial, satellite or online viewing, live, near-live or catch-up.
AirBox
AirBox Multi Parallel Output allows simultaneous running of two or more SDI or IP streaming SD / HD outputs so that broadcasters can easily deliver parallel output in any combination needed to deliver the content.
AirBox supports a wide range of video / audio formats from almost every known platform for production Third-party video server files like Leitch, Seachange, etc. are supported natively.
Any modifications to the playlist can be made during the on-air session. There will be no locked videos in the playlist except the one being played at the moment. They can be changed, edited or substituted.
On-the-fly commands such as skip to next or jump can change the playback order. Such changes in order are carried out seamlessly without stopping the current session. The powerful Live Show Clipboard facilitates live productions, enabling the insertion and/or execution of different events or live streams.
AirBox enables playlist scheduling for weeks ahead for automated playout. The associated gaps and time overlaps are overcome dynamically to ensure smooth service even when timed activities interfere with each other. If content files or even entire schedules are missing and misplaced, special facilities guarantee continuous operation.
MS Windows 10 compatible.
Visual Data
Actus Compliance Logging and Quality Monitoring
Reliable 24/7 monitoring and aircheck, recording a variety of inputs from baseband (SDI, HDMI, etc.) to Transport Stream (ATSC/ATSC 3.0 via antenna, IP, ASI, and QAM) and IP (2110, 2022-6, RTMP, RTSP, SRT, ZIXI, NDI, HLS, MPEG-DASH, Smooth) to assure compliance and quality of both linear OTA and OTT broadcasts with alerts sent on Audio and Video issues such as missing video, frozen image, low or no audio, pixelization, and more.
The HTML-5 platform includes an advanced player with fast-forward, fast-backward, slow-motion, scrubbing and pause, as well as Search via CC, EPG, AsRun and PlayList to easily find the content you are looking and stop options.
The Actus platform provides proof-of-airing with bookmarks and clip-sharing, evaluation of original transport stream and easy transcoding to any format, exporting to any destination or publishing to Social.
The low-latency browser-based and software multiviewers display any combination of channels with must-have compliance logging for things such as missing closed captions/DVB subtitles and loudness violations. Additional engineering features like SCTE 35/104 and NAVE detection, TS analysis, playlist to as-run log discrepancy reporting, and many QoE/QoS alerts are all standard on the Actus platform.
Qligent Vision
Bluefish444 KRONOS K8
KRONOS K8 is Bluefish444’s fully-featured high-bandwidth 4K/UHD, 2K/HD & SD video and audio I/O card for professional video workflows on Windows, macOS and Linux operating systems.
Capable of up to 8 independent and simultaneous channels of 3G/HD/SD-SDI input or output, K8 also features Reference and LTC I/O.
Cross-platform support with Industry leading 3rd-party software
Adobe Creative Cloud | Assimilate SCRATCH | Avid | CasparCG | Dataton | Foundry Nuke | Resolume | Streamstar | Unity | Unreal Engine | vMix
All Bluefish video cards are Thunderbolt compatible, work with the free Bluefish acquisition application IngeSTore, the Bluefish cross-platform SDK, and leading 3rd party content creation tools.
Bluefish products are deployed globally throughout the broadcast graphics, post-production, live event and entertainment, immersive graphics, proAV, corporate, military, government, medical and education markets, including integration into digital intermediate, mobile production, QC and compliance, Video Over IP and video streaming workflows.
FREE multi-channel capture tool, IngeSTore
- Capture up to 4 channels of video
- Wide range of codec options
- Records direct to shared storage, including Avid shared storage
- Growing file support with Edit-While-Record in Adobe Premiere Pro and Avid Media Composer
- REST API to control remotely
- RS-422 Controller
- Encode for live production, post production, archival and streaming workflows
MAJOR FEATURES
Bi-directional I/O’s provide unrivalled flexibility
- 8 bi-directional HD-BNC video connectors supporting 3G/1.5G SDI I/O
- Multi-channel 4K UHD 60p playout or capture video Quad Link 3G-SDI
- Each BNC is completely independent
Maximum connectivity
- Reference I/O BNC
- LTC I/O
- Interlock between multiple K8 and Epoch | Neutron/4K Neutron cards
Optional connectivity
- Optional auxiliary I/O can be added to K8 via the STEM port interface and optional EX-1 and EX-2 products
- K8 with EX-1 adds LTC I/O, RS-422 control and AES audio I/O
- K8 with EX-2 adds LTC I/O, RS-422 control and Analogue audio I/O
The industry's lowest latency I/O, by design
KRONOS K8 has, by design, the world's lowest-latency providing access to captured fields or frames to on-board card memory event before the whole field or frame is complete, thereby reducing the latency to sub on field or frame. During a capture or playout, each process can occur at less than or equal to 1 field for interlaced modes, and less than 1 frame for progressive modes.
Maintaining a 12-bit processing pipeline
- 12-bit image processing is standard on all Bluefish video cards
- Allows 8, 10 & 12-bit SDI video signals to be produced from 8, 10, 12 & 16-bit pixel formats providing the highest image quality available from your source material
- 4096 discrete values of red, green & blue are maintained per pixel
- 4 times the colour precision of a traditional 10-bit processing pipeline!
Maintaining the highest quality RGB <=> YUV
- Fully programmable 4 x 4 x 33-bit colour matrix providing the highest quality colour space conversions
- Reduces colour space conversion errors and ensures the highest quality colour accuracy during capture, monitoring and mastering
Thunderbolt expansion chassis compatibility
- Compatible with Sonnet, One Stop Systems Magma, Netstor, and AKiTio Thunderbolt devices for multichannel mobile production
- Visit Bluefish's website for a full list of qualified 3rd-party chassis options
Low-latency video keyers
- 4 x Low latency hardware video keyer
- Allows video layers to be combined in hardware with microseconds of delay
- Enables animated logos, captions, tickers, and more to be keyed over live video feeds at full 12-bit precision, and with minimum input to output delay
- Can also function as an image pre-multiplier to assist in previewing images with alpha data
LogServer
Bluefish444 Epoch | 4K Neutron
Epoch | 4K Neutron is Bluefish444’s fully-featured 4K/UHD, 2K/HD & SD video and audio I/O card for professional video workflows on Windows, macOS and Linux operating systems.
Capable of up to 3 independent and simultaneous channels of 3G/HD/SD-SDI input or output, 4K Neutron also features 4K/UHD HDMI monitoring, AES Digital Audio IO, Analogue Audio Output, RS-422 Control, and auxiliary Reference Input. 4K Neutron is also available as a low-profile configuration compatible with compact installations or devices.
Cross-platform support with industry-leading 3rd-party software
Adobe Creative Cloud | Assimilate SCRATCH | Avid | Avmeda | Brainstorm | BTi | CasparCG | ChryonHego | ClassX | Dataton | Drastic Technologies 4KScope & VideoQC | DVBControl | Etere | Foundry Nuke | Libero Systems | Marquise Technologies MIST & ICE | Masterplay | Media 5 | Media-Alliance | Medialooks | Metus | MOG | NewTek | Nverzion | Resolume | Ross Video | Streamstar | Telestream Wirecast | Touchdesigner | Unity | Unreal Engine | Unreal Streaming Technologies | Vizrt Viz Engine & Viz Arena | vMix | VRi | Xdream Media | Zinemath zLense
All Bluefish video cards are Thunderbolt compatible, work with the free Bluefish acquisition application IngeSTore, the Bluefish cross-platform SDK, and leading 3rd party content creation tools.
Bluefish products are deployed globally throughout the broadcast graphics, post-production, live event and entertainment, immersive graphics, proAV, corporate, military, government, medical and education markets, including integration into digital intermediate, mobile production, QC and compliance, Video Over IP and video streaming workflows.
FREE multi-channel capture tool, IngeSTore
- Capture up to 3 channels of video
- Wide range of codec options
- Records direct to shared storage, including Avid shared storage
- Growing file support with Edit-While-Record in Adobe Premiere Pro and Avid Media Composer
- REST API to control remotely
- RS-422 Controller
- Encode for live production, post production, archival and streaming workflows
MAJOR FEATURES
Bi-directional I/O’s provide unrivalled flexibility
- 3 bi-directional BNC video connectors supporting 3G/1.5G SDI I/O
- Up to 4K UHD 30p playout or capture via Dual Link 3G-SDI
- Each BNC is completely independent
- Third BNC can be set to Reference input instead of standard video signal
Maximum connectivity
Included breakout cable provides:
- RS-422 machine control for control of VTRs and other serial-controlled devices
- 8 channels of AES EBU audio input and output for 7.1 surround sound monitoring. Capture and playout digital audio signals in crystal-clear quality
- 2 channels of Analogue Audio for quick and simple high quality audio monitoring
- Auxiliary Reference (Input) connector frees the 3rd BNC for 3G/HD/SD video I/O
The industry's lowest latency I/O, by design
4K Neutron has, by design, the world's lowest-latency providing access to captured fields or frames to on-board card memory event before the whole field or frame is complete, thereby reducing the latency to sub on field or frame. During a capture or playout, each process can occur at less than or equal to 1 field for interlaced modes, and less than 1 frame for progressive modes.
4K/UHD HDMI monitoring
- Cost-effective 4K/UHD monitoring via HDMI 1.4
- Simultaneous SDI and HDMI playout
Maintaining a 12-bit processing pipeline
- 12-bit image processing is standard on all Bluefish video cards
- Allows 8, 10 & 12-bit SDI video signals to be produced from 8, 10, 12 & 16-bit pixel formats providing the highest image quality available from your source material
- 4096 discrete values of red, green & blue are maintained per pixel
- 4 times the colour precision of a traditional 10-bit processing pipeline!
Maintaining the highest quality RGB <=> YUV
- Fully programmable 4 x 4 x 33-bit colour matrix providing the highest quality colour space conversions
- Reduces colour space conversion errors and ensures the highest quality colour accuracy during capture, monitoring and mastering
Thunderbolt expansion chassis compatibility
- Compatible with Sonnet, One Stop Systems Magma, Netstor, and AKiTio Thunderbolt devices for multichannel mobile production
- Visit Bluefish's website for a full list of qualified 3rd-party chassis options
Low-latency video keyer
- Low latency hardware video keyer
- Allows video layers to be combined in hardware with microseconds of delay
- Enables animated logos, captions, tickers, and more to be keyed over live video feeds at full 12-bit precision, and with minimum input to output delay
- Can also function as an image pre-multiplier to assist in previewing images with alpha data
Bluefish444 Epoch | Supernova CG
Epoch | Supernova CG is Bluefish444’s 2K/HD & SD video and audio I/O card for professional video workflows on Windows, macOS and Linux operating systems.
Capable of up to 4 independent and simultaneous channels of HD/SD-SDI input or output, Supernova CG features a flexible combination of multi-channel SDI I/O, and a dedicated Reference input BNC.
Cross-platform support with industry-leading 3rd-party software
Adobe Creative Cloud | Assimilate SCRATCH | Avid | Avmeda | Brainstorm | BTi | CasparCG | ChryonHego | ClassX | Dataton | Drastic Technologies 4KScope & VideoQC | DVBControl | Etere | Foundry Nuke | Libero Systems | Marquise Technologies MIST & ICE | Masterplay | Media 5 | Media-Alliance | Medialooks | Metus | MOG | NewTek | Nverzion | Resolume | Ross Video | Streamstar | Telestream Wirecast | Touchdesigner | Unity | Unreal Engine | Unreal Streaming Technologies | Vizrt Viz Engine & Viz Arena | vMix | VRi | Xdream Media | Zinemath zLense
All Bluefish video cards are Thunderbolt compatible, work with the free Bluefish acquisition application IngeSTore, the Bluefish cross-platform SDK, and leading 3rd party content creation tools.
Bluefish products are deployed globally throughout the broadcast graphics, post-production, live event and entertainment, immersive graphics, proAV, corporate, military, government, medical and education markets, including integration into digital intermediate, mobile production, QC and compliance, Video Over IP and video streaming workflows.
FREE multi-channel capture tool, IngeSTore
- Capture up to 4 channels of video
- Wide range of codec options
- Records direct to shared storage, including Avid shared storage
- Growing file support with Edit-While-Record in Adobe Premiere Pro and Avid Media Composer
- REST API to control remotely
- RS-422 Controller
- Encode for live production, post production, archival and streaming workflows
MAJOR FEATURES
Bi-directional I/O’s provide unrivalled flexibility
- 4 bi-directional BNC video connectors supporting 1.5G-SDI I/O
- Up to 2K/HD 60p playout or capture via Dual Link 1.5G-SDI
- Each BNC is completely independent
Maximum connectivity
- Dedicated Reference Input BNC
The industry's lowest latency I/O, by design
Supernova CG has, by design, the world's lowest-latency providing access to captured fields or frames to on-board card memory event before the whole field or frame is complete, thereby reducing the latency to sub on field or frame. During a capture or playout, each process can occur at less than or equal to 1 field for interlaced modes, and less than 1 frame for progressive modes.
Maintaining a 12-bit processing pipeline
- 12-bit image processing is standard on all Bluefish video cards
- Allows 8, 10 & 12-bit SDI video signals to be produced from 8, 10, 12 & 16-bit pixel formats providing the highest image quality available from your source material
- 4096 discrete values of red, green & blue are maintained per pixel
- 4 times the colour precision of a traditional 10-bit processing pipeline!
Maintaining the highest quality RGB <=> YUV
- Fully programmable 4 x 4 x 33-bit colour matrix providing the highest quality colour space conversions
- Reduces colour space conversion errors and ensures the highest quality colour accuracy during capture, monitoring and mastering
Thunderbolt expansion chassis compatibility
- Compatible with Sonnet, One Stop Systems Magma, Netstor, and AKiTio Thunderbolt devices for multichannel mobile production
- Visit Bluefish's website for a full list of qualified 3rd-party chassis options
Low-latency video keyer
- Low latency hardware video keyer
- Allows video layers to be combined in hardware with microseconds of delay
- Enables animated logos, captions, tickers, and more to be keyed over live video feeds at full 12-bit precision, and with minimum input to output delay
- Can also function as an image pre-multiplier to assist in previewing images with alpha data
Bluefish444 Epoch | 4K Supernova S+
Epoch | 4K Supernova S+ is Bluefish444’s fully-featured 4K/UHD, 2K/HD & SD video and audio I/O card for professional video workflows on Windows, macOS and Linux operating systems.
Capable of up to 4 independent and simultaneous channels of 3G/HD/SD-SDI input or output, 4K Supernova S+ also features a fifth BNC for SDI monitor output and a dedicated Reference input BNC.
Cross-platform support with industry-leading 3rd-party software
Adobe Creative Cloud | Assimilate SCRATCH | Avid | Avmeda | Brainstorm | BTi | CasparCG | ChryonHego | ClassX | Dataton | Drastic Technologies 4KScope & VideoQC | DVBControl | Etere | Foundry Nuke | Libero Systems | Marquise Technologies MIST & ICE | Masterplay | Media 5 | Media-Alliance | Medialooks | Metus | MOG | NewTek | Nverzion | Resolume | Ross Video | Streamstar | Telestream Wirecast | Touchdesigner | Unity | Unreal Engine | Unreal Streaming Technologies | Vizrt Viz Engine & Viz Arena | vMix | VRi | Xdream Media | Zinemath zLense
All Bluefish video cards are Thunderbolt compatible, work with the free Bluefish acquisition application IngeSTore, the Bluefish cross-platform SDK, and leading 3rd party content creation tools.
Bluefish products are deployed globally throughout the broadcast graphics, post-production, live event and entertainment, immersive graphics, proAV, corporate, military, government, medical and education markets, including integration into digital intermediate, mobile production, QC and compliance, Video Over IP and video streaming workflows.
FREE multi-channel capture tool, IngeSTore
- Capture up to 4 channels of video
- Wide range of codec options
- Records direct to shared storage, including Avid shared storage
- Growing file support with Edit-While-Record in Adobe Premiere Pro and Avid Media Composer
- REST API to control remotely
- RS-422 Controller
- Encode for live production, post production, archival and streaming workflows
MAJOR FEATURES
Bi-directional I/O’s provide unrivalled flexibility
- 4 bi-directional BNC video connectors supporting 3G/1.5G SDI I/O
- Up to 4K UHD 30p playout or capture via Dual Link 3G-SDI
- Each BNC is completely independent
Maximum connectivity
- Additional BNC for SDI monitoring
- Dedicated Reference input BNC
The industry's lowest latency I/O, by design
4K Supernova S+ has, by design, the world's lowest-latency providing access to captured fields or frames to on-board card memory event before the whole field or frame is complete, thereby reducing the latency to sub on field or frame. During a capture or playout, each process can occur at less than or equal to 1 field for interlaced modes, and less than 1 frame for progressive modes.
Maintaining a 12-bit processing pipeline
- 12-bit image processing is standard on all Bluefish video cards
- Allows 8, 10 & 12-bit SDI video signals to be produced from 8, 10, 12 & 16-bit pixel formats providing the highest image quality available from your source material
- 4096 discrete values of red, green & blue are maintained per pixel
- 4 times the colour precision of a traditional 10-bit processing pipeline!
Maintaining the highest quality RGB <=> YUV
- Fully programmable 4 x 4 x 33-bit colour matrix providing the highest quality colour space conversions
- Reduces colour space conversion errors and ensures the highest quality colour accuracy during capture, monitoring and mastering
Thunderbolt expansion chassis compatibility
- Compatible with Sonnet, One Stop Systems Magma, Netstor, and AKiTio Thunderbolt devices for multichannel mobile production
- Visit Bluefish's website for a full list of qualified 3rd-party chassis options
Low-latency video keyer
- Low latency hardware video keyer
- Allows video layers to be combined in hardware with microseconds of delay
- Enables animated logos, captions, tickers, and more to be keyed over live video feeds at full 12-bit precision, and with minimum input to output delay
- Can also function as an image pre-multiplier to assist in previewing images with alpha data
Bluefish444 KRONOS Optikos
The KRONOS optikós offers future-proofing connectivity with 3 SFP+ cages in addition to 2 HD BNC connectors for 3G/HD/SD-SDI I/O. These SFP+ cages provide limitless connectivity options exposing greater than 3G SDI, IP connectivity across 10Gb Ethernet, and flexibility to choose from numerous physical interfaces.
Bluefish444 KRONOS Elektron
KRONOS will offer the choice of SDI I/O connectivity with the KRONOS ēlektron, featuring 8 high-density BNC connectors capable of 3G/HD/SD-SDI. Each HD BNC connector is fully bi-directional, enabling numerous configuration options, including 8 input, 8 output, or a mixture of SDI input and output connections.
MonitorIQ
Equipped with the technological power of AI, Digital Nirvana’s MonitorIQ 7.0 provides new capabilities for compliance logging and monitoring. Known as the industry’s most reliable, secure, and easy-to-use broadcast monitoring and compliance logging platform that allows operators to record, store, monitor, analyze, and repurpose content quickly and efficiently with a minimum of clicks. MonitorIQ enables broadcasters to collect and use knowledge about their broadcast content to meet a wide range of regulatory and compliance requirements. Version 7 of the Digital Nirvana platform gives broadcasters access to valuable next-generation content processing and analysis tools.
