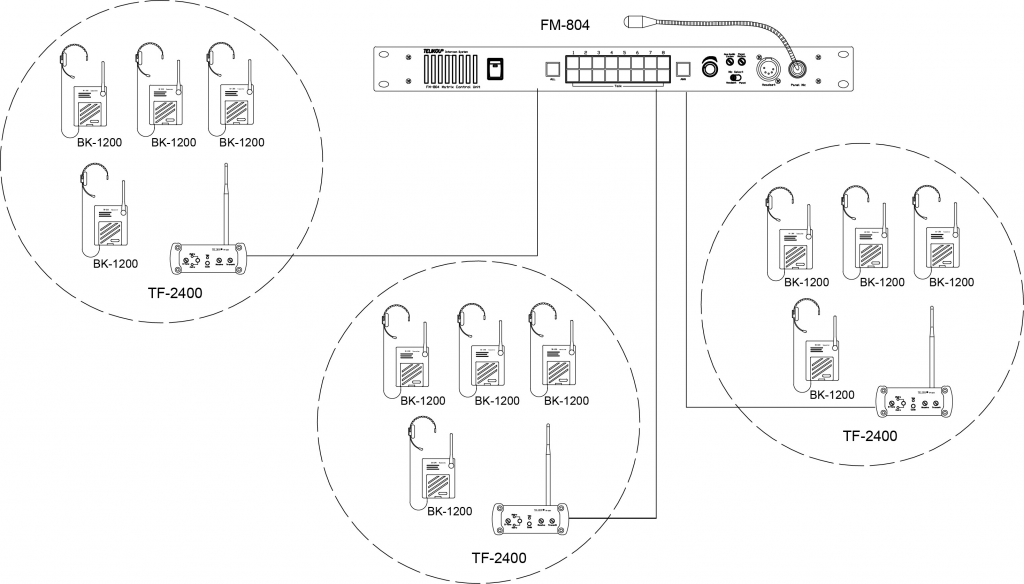

Each TF-2400 can carry four BK-1200 wireless belt packs.
Max 4 sets of TF-2400 (16pcs BK-1200) can work together.
Or max 5 pieces BK-1200 can make a small wireless group as well.
The wireless cover range is 200m. （from the wireless belt pack BK-1200 to wireless interface TF-2400 distance ）
From the master station to wireless interface distance connected by a cable , can through the wall , can be 500 meters long , flexible .
4-wire and 2-wire connector to communicate with other system.
We recommend FM-804/FT-800 as master control. The cable connection between FM-804 and TF-2400 can be up to 500m.
You can easily through the wall.
TECHNICAL SPECIFICATIONS
Operating Frequency:
2.4GHz (433M is optional)
Maximum Transmit Power:
20dBm
Beltpack Battery:
3 x AA size battery
Beltpack Current:
TX: max 130mA RX: max 50mA
Dimensions:
111mm x 46mm x 126mm(W x H x D)
Weight:
TF-2400: 1.2KG BK-1200 Belt Pack 0.22kg
Other products from this company:
broadcast intercom system
broadcast intercom system
Each TF-2400 can carry four BK-1200 wireless belt packs.
Max 4 sets of TF-2400 (16pcs BK-1200) can work together.
Or max 5 pieces BK-1200 can make a small wireless group as well.
The wireless cover range is 200m. （from the wireless belt pack BK-1200 to wireless interface TF-2400 distance ）
From the master station to wireless interface distance connected by a cable , can through the wall , can be 500 meters long , flexible .
4-wire and 2-wire connector to communicate with other system.
We recommend FM-804/FT-800 as master control. The cable connection between FM-804 and TF-2400 can be up to 500m.
You can easily through the wall.
TECHNICAL SPECIFICATIONS
Operating Frequency:
2.4GHz (433M is optional)
Maximum Transmit Power:
20dBm
Beltpack Battery:
3 x AA size battery
Beltpack Current:
TX: max 130mA RX: max 50mA
Dimensions:
111mm x 46mm x 126mm(W x H x D)
Weight:
TF-2400: 1.2KG BK-1200 Belt Pack 0.22kg
';
Related Products:
mc²36 Audio Production Console
Axia® Quasar™ AoIP Mixing Console
Telos Infinity® Virtual Intercom Platform (VIP)
A__UHD CORE
mc²96 Grand Production Console
A__line WAN-Capable Audio-over-IP Nodes
Power Coreᴿᴾ IP Audio I/O &...
System T S300-16
System T S300-48
System T S300-32

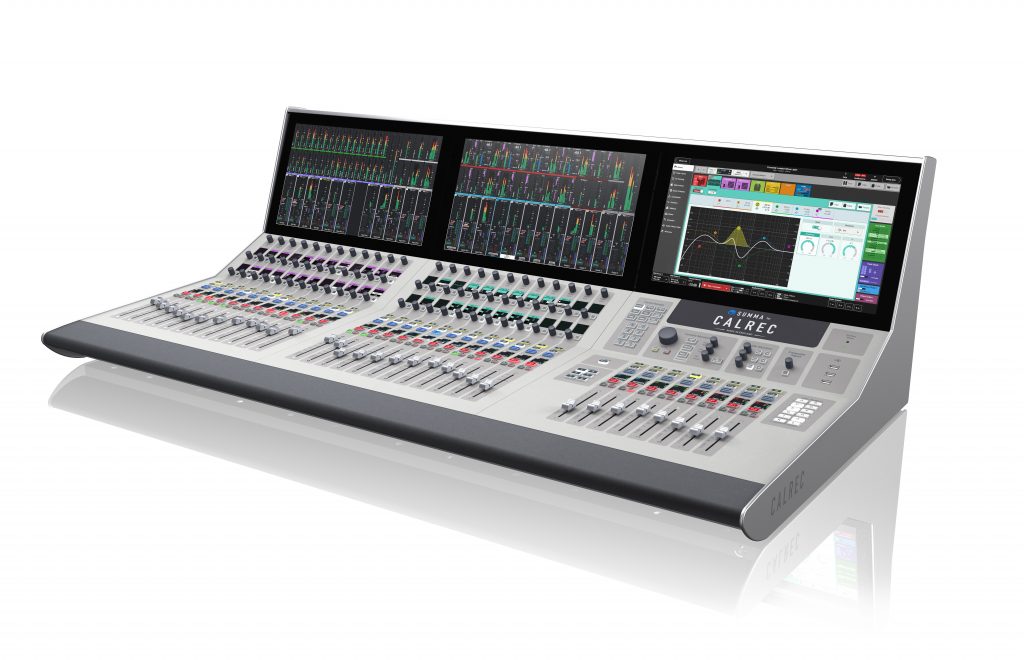

Summa

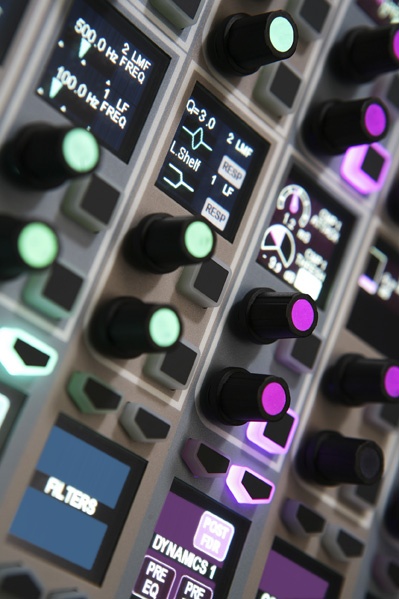

Apollo
CinchStrap-EG
broadcast intercom system
The Switch Remote Production
System T S500
The core control elements always present in an S500 large format console are a Fader Tile, large Multi Touch Screens, a Channel Tile and a Master Tile.
An S500 console can have a range of console frame layouts that present these core elements along with an optional meter bridge and can include an intelligently switched screen bay, dual fader bay, or additional channel control bays. S500 can easily be scaled to suit multi-operator layouts with individual monitoring. More information on control elements can be found in the features tab.
';
mc²36 Audio Production Console
Big performance in a compact size: that’s Lawo’s new second-generation mc²36 audio production console, an incredibly powerful yet compact mixer, now even more capable with a new dual-fader operating bay that allows 48 faders in the same space as a 32-fader board. This makes the new mc²36 even more of an all-rounder for theater, houses of worship, corporate, live and broadcast audio applications – wherever ultra-high audio performance in close quarters is demanded.
With DSP more than doubled from its predecessor, the new mc²36 with built-in A__UHD Core functionality offers 256 processing channels, available at both 48 and 96 kHz, and natively supports ST2110, AES67, RAVENNA, and Ember+. It provides an I/O capacity of 864 channels, with local connections that include 3 redundant IP network interfaces, 16 Lawo-grade mic/line inputs, 16 line outputs, 8 AES3 inputs and outputs, 8 GPIO connections, and an SFP MADI port.
Operating and visualizing features include Button-Glow and touch-sensitive rotary controls, color TFT fader-strip displays, LiveView™ video thumbnails, and super-precise 21.5” full HD touchscreen controls. Its built-in full loudness control is compliant with the ITU 1770 (EBU/R128 or ATSC/A85) standard, featuring peak and loudness metering which can measure individual channels as well as summing busses.
The new mc²36 offers seamless integration of third-party solutions like recording systems, effects engines, and other systems running on external PCs, into its user interface. Applications display right in the console’s screen, while console keyboard, touchpad and touchscreen provide control.
Last but not least: mc²36 offers best-in-class integration of Waves SuperRack SoundGrid, providing operators with access to Waves’ extensive plug-in selection of real-time signal processing alongside the console’s internal processing engine — no additional screens or control devices required.
Moving the mc²36 to the A__UHD Core means that all developments in the future will happen on a single, unified platform, and Lawo continues to provide production file compatibility between all mc² consoles. For instance, a production file from an mc²36 can be used on an mc²96 for post-production — opening the door to a whole new level of performance.
The new mc²36 is based on Lawo’s A__UHD technology and includes Lawo’s innovative new IP Easy functionality that makes IP setup as simple as analog. IP Easy, based on Lawo’s innovative HOME management platform for IP-based media infrastructures, makes connecting IP audio and I/O devices as easy as if they were baseband – the console automatically detects new devices and makes them available at the touch of a button. IP Easy even manages IP addresses, multicast ranges, and VLANs, and includes security features like access control and quarantining of unknown devices to protect your network. HOME is natively built on a cloud-ready microservices architecture, enabling users to connect, manage and secure networked production setups from the ground up. Furthermore, it provides centralized access and control for all Lawo gear within a setup. HOME helps broadcast professionals address some of the most demanding requirements of modern IP infrastructures, including automated discovery and registration of devices, connection management, flow control, software & firmware management, scalability and security.
Normal
0
false
false
false
EN-US
X-NONE
X-NONE
/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Table Normal";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-parent:"";
mso-padding-alt:0in 5.4pt 0in 5.4pt;
mso-para-margin-top:0in;
mso-para-margin-right:0in;
mso-para-margin-bottom:8.0pt;
mso-para-margin-left:0in;
line-height:107%;
mso-pagination:widow-orphan;
font-size:11.0pt;
font-family:"Calibri",sans-serif;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-bidi-font-family:"Times New Roman";
mso-bidi-theme-font:minor-bidi;}
';
Axia® Quasar™ AoIP Mixing Console
AXIA QUASAR AoIP MIXING CONSOLE
With cosmic precision, otherworldly sound, and real star power, Axia’s new Quasar sixth-generation mixing console draws upon the Telos Alliance’s rich history as the inventor of AoIP for broadcast with more than 12,000 consoles and 100,000+ connected devices on-air worldwide. Axia has channeled all that experience into this new flagship console, consolidating its native AoIP architecture and refining it for the ultimate user experience with limitless production possibilities for radio and specialized TV applications.
Sleek, Ergonomic Design
Quasar features a sleek new look and extremely high-quality components, rugged enough for a lifetime of uninterrupted use. Designed based on extensive global customer feedback and ergonomic studies, Quasar has an easy-to-operate touchscreen user interface (no external display required) that operators can also access remotely via any HTML5 device. The absence of an overbridge makes for easy desk installation, and the console is fanless and modular, with redundant load-sharing power supply units.
Customizable and Easy to Use
Quasar makes the operator’s job dramatically easier, including new Source profiles (for source-associated logic automation), automatic mix-minus, and automixing available on all channels. Extensive metering is built into the surface right where it needs to be—on every channel display and next to each fader, as well as on the monitor module. Users can customize their Quasar surface thanks to user-assignable buttons in the Master touchscreen module and in every channel strip.
For TV, production, or high-end radio applications, the powerful new Quasar Engine delivers 64 stereo input channels—all with robust, redesigned, DSP processing—and loudness metering on all outputs. Four programmable Surface Layers allow the user to control all channels, including DSP, even from smaller surfaces.
Mature, Reliable AoIP Technology
Quasar gives operators confidence with world-renowned Axia audio quality and reliability. The Engine’s native AoIP processing, based on a server-class hardware platform, ensures high-performance audio. The console’s sixth-generation technology is mature and sophisticated, offering extreme reliability, with system modularity minimizing single points of failure.
AXIA QUASAR AoIP MIXING CONSOLE FEATURES
- Super-reliable 6th-generation surface from Axia
- Compact and sleek design, based on extensive ergonomic studies
- Designed for any size radio studios and specialized TV installations
- Built-in, modular fanless PSUs with redundant option
- Reduced fader pitch for higher fader density
- No overbridge for easier installation on work surfaces. No OLEDs
- Single or split-frame configurations available, table-top or flush-mount
- Table-top frames are convertible to flush-mount
- Color and finishes fit with lighting used in modern TV-camera-equipped studios
- Modules can be installed as standalone outside of frame for modern, nontraditional creative work spaces
- Easy-to-operate touchscreen-based UI. No external display required
- New, intuitive Web UI with integrated HTML5 remote control
- Ethernet-connected and self-contained surface modules
- All channel strip pushbuttons are user-assignable
- Up to 4 user-programmable Surface Layers
- 8 user-programmable Master buttons with capacitive touch-sense
- All encoders and faders are touch-sensitive
- Extensive metering built right into the surface, including fader bargraphs
- New Quasar Engine with up to 64 stereo input channels
- Fully redesigned DSP processing, available on all channels
- Automixer available on all channels
- Additional V-Mixer with 80 stereo inputs (independent from console)
- Highly flexible and automated audio workflows including auto mixing and auto mix minus
- Source and show profiles for ultimate customization without user intervention
- Customizable color strip on modules for easy identification of source groups
- 100mm high quality spill-proof Motorized faders
';
Telos Infinity® Virtual Intercom Platform (VIP)
Telos Infinity® Virtual Intercom Platform (VIP) is the first fully featured Cloud-based intercom system. It delivers sophisticated comms virtually, making Cloud-based media production workflows available on any device—smartphone, laptop, desktop, or tablet. Users can even use third-party control devices, like Elgato’s Stream Deck®, to control Telos Infinity VIP. Now you can harness Telos Infinity IP Intercom’s award-winning performance, scalability, ease of integration, and operational/cost efficiencies anywhere—At Home, On-Prem, Site-to-Site or in the Cloud.
Telos Infinity VIP
- Cost-Efficient - Less Maintenance, Infrastructure, Space Required
- Scaleable - Pay for Only What you Need
- Ease of Use – Virtual Panels on Familiar Devices (Smartphone, Computer, Tablet)
- Workflow Flexibility - At Home, On-Prem, Site-to-Site, In the Cloud
- Reliable, Proven Cloud Workflows Flexible Deployment Options
- TelosCare™ PLUS Service Option for Premium Service & Support
Deployment Options
Meeting users where they are on the path toward virtualization, Telos Alliance offers several deployment options for VIP, which scales to suit users’ varying requirements, from a few remote smartphone VIP instances to an enterprise solution requiring hundreds of instances.
- On-Prem – Use Telos Infinity VIP hardware appliance or your own server for on-prem installations.
- Integrated – For both On-Prem or Cloud versions, Telos Infinity VIP can be integrated with Telos Infinity hardware comms, or any third-party intercom or audio subsystem using AES67 or SMPTE 2110-30 connectivity.
- Cloud Server – Software for supported Cloud platform installations. A complete communications infrastructure in the Cloud with connectivity options for integration with third-party Cloud-based and On-Prem audio subsystems.
- Software as a Service (SaaS) – Various third-party Telos Alliance partners will offer a Telos Infinity VIP SaaS option, allowing users to lease it in a virtual environment.
';
A__UHD CORE
Plenty of reliability features are built-in. A__UHD Core features four independent IP audio streaming engines, each with a redundant pair of 10*/1 GbE network ports (SFP). The device is fully based on open standards and supports Audio-over-IP I/O via ST2110-30/-31, AES67 and RAVENNA. Each network interface supports up to 512 Rx & Tx streams with stream sizes from 1 to 128 audio channels. Redundant hot-swappable PSUs are standard, as well as network interface redundancy for all streaming and management ports, allowing redundant IP network paths using ST2022-7 Seamless Protection Switching and adheres to the Class C specification for deployment within LAN or WAN environments, allowing redundant A__UHD Core units to be housed just about anywhere on the planet—and still take over instantly if the need arises.
Finally, a flexible licensing model makes A__UHD Core ideal for both mobile applications and facility use. For mobile, the scalable DSP performance with temporary licenses is a great way to turn CAPEX into OPEX, whilst in facility applications, the possibility of resource pooling and flexible allocation of DSP resources to multiple physical and GUI-based mixing surfaces maximizes ROI for your audio infrastructure. This flexible software licensing offers fixed and temporary licenses to provide exactly what you need, when you need it. Licenses are stored on USB dongles and can be conveniently downloaded, allowing for seamless transfers from unit to unit.
Best of all, A__UHD Core’s functionally is defined by its software, making it a future-proof investment with a feature-set that is designed to expand.
';
mc²96 Grand Production Console
- Frames from 24 to 200 faders (with Dual Fader option).
- Remote stand-alone frames of 16 faders.
- 6 banks each with 2 layers.
- TFT metering: mono, stereo or up to 7.1 including bus assignment, gain reduction for dynamics, Audio-follow-Video status, VCA assignment, Mix-Minus, Signal Patching, Meter selection, Automix state.
- GUI page output, e.g. metering, on an external monitor.
- 40-bit floating point signal processing with 1,024 DSP channels (768 inputs and 256 summing buses).
- Up to 768 inputs with A/B input, up to 128 aux buses, up to 96 groups, up to 96 main sums, 32 Automix groups.
- Up to 32 surround channels, 128 VCA groups with metering, 256 GP channels.
- Surround formats: DTS & Dolby ® Digital 5.1, Dolby ® Pro-logic 4.0, DTS ES & Dolby ® EX 6.1, SDDS 7.1, DTS-HD 7.1, diverse panning characteristics, surround aux bus.
- Loudness Metering according to EBU R128, ATSC A/85 and ARIB, momentary or short term in every channel, integrated measurement on summing channels with display of integrated LUFS value in headline.
- Waves SuperRack SoundGrid ® integration.
- Interfaces include Mic / Line, Line Out, AES3, 3G SDI, HD-SDI, MADI, GPIO, Serial, MIDI, ST2110 / AES67 / RAVENNA / DANTE ® Audio-over-IP.
';
A__line WAN-Capable Audio-over-IP Nodes
Lawo A__line nodes are designed to serve as IP audio stageboxes for mc² consoles, audio extensions for the V__matrix ecosystem, or as stand-alone IP audio gateways.
A__line devices provide distributed audio connectivity that makes it easy to scale audio I/O capacity in a networked system — temporarily or permanently. SMPTE ST2110-compliant, A__line offers a granular audio format selection similar to the flexibility found in baseband modular I/O systems, but eliminates system design limitations like maximum channel count per frame, fixed channel capacity per device interconnect, or fixed overall system size. Audio endpoints connected to A__line nodes can be seamlessly shared on LAN or WAN, and thanks to their fully standardized streaming technology, can interconnect to a wide variety of IP-enabled broadcast devices — A__line nodes are brand-agnostic.
A__line devices boast exceptional audio quality. Discrete, Class-A microphone preamplifiers deliver a superb dynamic range of 119dB(A), ultra low noise at all gain levels and a perfectly flat frequency response. Versatile analog I/O accommodates levels as high as +24dBu before clipping. Insertable, precise sample rate conversion is available on each AES3 input. For multichannel baseband interfacing, A__line features bi-directional MADI access via SFP. All devices employ the ST2110-30/31 and AES67 standards to transport uncompressed audio in real-time on Layer-3 IP networks, with ST2022-7 Seamless Protection Switching with dual-redundant network interfaces and ample receive buffer capacity to meet ST2022-7 class C specs for LAN and WAN deployment. Two redundant power inlets complete the package, along with PPM metering for all Analog and AES3 interfaces and PTP/Wordclock sync and conversion.
The A__line family includes:
- A__stage48 – 32x mic/line in, 16x line out, 8x AES3 in, 8x AES3 out, 1x MADI, 8/8 GPI, 3RU
- A__stage64 – 32x mic/line in, 16x line out, 8x AES3 in, 8x AES3 out, 1x MADI, 8/8 GPI, 4RU
- A__stage80 – 32x mic/line in, 32x line out, 8x AES3 in, 8x AES3 out, 1x MADI, 8/8 GPI, 3RU
- A__mic8 – 8x mic/line in, 4x line out, 8/8 GPI, 1RU
- A__digital8 –8x AES3 in, 4x AES3 out, 8/8 GPI, 1RU
- A__digital64 – 32x AES3 in with SRC, 32x AES3 out, 1x MADI, 8/8 GPI, 3RU
- A__madi6 – 6x MADI, 1RU
When controlled with Lawo’s VSM broadcast control system, A__line stageboxes provide an advanced set of networking options; VSM manages A__line’s AoIP connections, I/O settings, its non-blocking internal routing matrix, and GPIO signals for smooth integration into an overarching operational workflow.
';
Power Coreᴿᴾ IP Audio I/O & DSP Node for Remote Production
Lawo’s Power Coreᴿᴾ is a full-featured remote production solution for mc² audio consoles, providing integrated modular I/O, DSP and IP streaming capabilities, all in a compact 1RU device. It accomodates 64 channels of MADI audio via its front-panel port, and I/O count can easily be expanded using the eight rear-panel slots which can be loaded with Mic, Line, AES3 and GPIO cards, in any combination, for a total I/O capacity of up to 128 channels.
Designed for mission-critical applications, Power Coreᴿᴾ includes ST2022-7 compliance for network redundancy and Class C jitter / network latency robustness to eliminate the need for dedicated WAN gateways and minimizing the complexity of remote productions while reducing single points of failure. Its IP interface complies with ST2110-30/-31, AES67 and RAVENNA networking standards to deliver maximum interoperability within your production suite. To accommodate the most sophisticated workflows, Power Coreᴿᴾ features comprehensive audio connectivity via two redundant 1GbE SFP ports for Audio-over-IP, one MADI port (with a 2nd port for interface redundancy), and eight modular I/O slots that can accommodate mix of Mic, Line and AES3 cards. A unique studio card with Mic/Line inputs & outputs plus two headphone amplifiers is available as well.
Power Coreᴿᴾ DSP capabilities include 64 fully-featured processing channels and provide low-latency on-site monitor and IFB mixing. mc2 consoles at home have full control of all relevant channel parameters (gain, fader, mute, EQ, dynamics, Aux Send Level, etc.) of the DSP node at its remote location.
All I/O parameters of the Power Coreᴿᴾ can be remote controlled from an mc² console’s channel strips; in addition, mc² consoles can control the DSP channels inside Power CoreRP to offer control capabilities for up to 64 input channels and 16 stereo Aux busses. Remote channels can be mapped to the host console’s surface just like any other source and offer parameter control for Fader, Mute, EQ+Filters, Dynamics, Delay plus the analog and digital input section. Remote inputs and Auxes of Power Coreᴿᴾ can even be linked to local DSP channels of the host console to ensure continuous linking of parameter values.
In addition to the control integration from an mc² console, Power Coreᴿᴾ features a touch-screen optimized control GUI based on the Lawo VisTool screen design solution. This provides on-site as well as remote access to all parameters of Power Coreᴿᴾ, which is convenient for setting up prior to connecting the host console. Power Coreᴿᴾ ‘s unique remote-control possibilities include continuous and dynamic fader control as well as fader start-type commands, which are essential for latency-critical WAN connections and to avoid speech truncation on air. The GUI’s feature set also includes sophisticated test mode and lineup patterns, as well as controllable DIM levels to the talents’ ear-pieces for talkback from the director. The graphical interface also allows monitoring the control connection to the host console, the on-air status, and Sync. You can also monitor Listen and PFL, as well as the local talkback system.
';
Tempest Control Rack
';
System T S500m
The S500m can be specified as 32 and 48 fader versions with turnkey flight case solutions, or as a larger custom specification surface with up to 96 faders.
The complexities involved in today's major sports and entertainment events mean OB production still requires broadcast consoles with high specification. The S500m provides all the flagship features of the System T S500 console, but is specifically designed to be over 25% lighter to suit OB and flypack applications where weight and portability are key concerns. This allows a complete production system to be easily transported in a purpose built rack case, providing a console stand, meter bridge shipping storage and two 8RU space for Tempest engines and Network I/O.
Robust and optimised for transportation, the S500m's unique modular functionality also lets a console be deployed with or without an extended meter bridge. Meter bridge video can be displayed on console mounted screens or external multi-viewer
';
System T S300-16
S300 is a compact control surface that can be combined with the complete portfolio of SSL’s System T control, processing and I/O options. It can be specified as part of a larger System T installation or in stand-alone configurations for smaller broadcast facilities or OB vehicles.
S300 presents the extraordinary power and versatility of SSL’s System T audio production environment in a streamlined console layout that remains intuitive for operators with a wide range of skill levels. A smaller scale S300 based System T installation offers the simplicity of a console + processor + I/O configuration with the benefit of compatibility with the family of additional fully networked System T control interfaces as required.
Within larger facilities S300 is a superb additional or backup console. Complete showfile compatibility between control interfaces means production can easily move between consoles and control rooms within a facility. Where processing engines are of different sizes SSL’s unique compatibility mode allows the pre selection of channel, busses and effects resources that will be inactive on the smaller processing engine. Settings from the larger device are never lost and resources can be reassigned at any point during the show, even with audio passing.
';
System T S300-48
S300 is a compact control surface that can be combined with the complete portfolio of SSL’s System T control, processing and I/O options. It can be specified as part of a larger System T installation or in stand-alone configurations for smaller broadcast facilities or OB vehicles.
S300 presents the extraordinary power and versatility of SSL’s System T audio production environment in a streamlined console layout that remains intuitive for operators with a wide range of skill levels. A smaller scale S300 based System T installation offers the simplicity of a console + processor + I/O configuration with the benefit of compatibility with the family of additional fully networked System T control interfaces as required.
Within larger facilities S300 is a superb additional or backup console. Complete showfile compatibility between control interfaces means production can easily move between consoles and control rooms within a facility. Where processing engines are of different sizes SSL’s unique compatibility mode allows the pre selection of channel, busses and effects resources that will be inactive on the smaller processing engine. Settings from the larger device are never lost and resources can be reassigned at any point during the show, even with audio passing.
';
System T S300-32
S300 is a compact control surface that can be combined with the complete portfolio of SSL’s System T control, processing and I/O options. It can be specified as part of a larger System T installation or in stand-alone configurations for smaller broadcast facilities or OB vehicles.
S300 presents the extraordinary power and versatility of SSL’s System T audio production environment in a streamlined console layout that remains intuitive for operators with a wide range of skill levels. A smaller scale S300 based System T installation offers the simplicity of a console + processor + I/O configuration with the benefit of compatibility with the family of additional fully networked System T control interfaces as required.
Within larger facilities S300 is a superb additional or backup console. Complete showfile compatibility between control interfaces means production can easily move between consoles and control rooms within a facility. Where processing engines are of different sizes SSL’s unique compatibility mode allows the pre selection of channel, busses and effects resources that will be inactive on the smaller processing engine. Settings from the larger device are never lost and resources can be reassigned at any point during the show, even with audio passing.
';

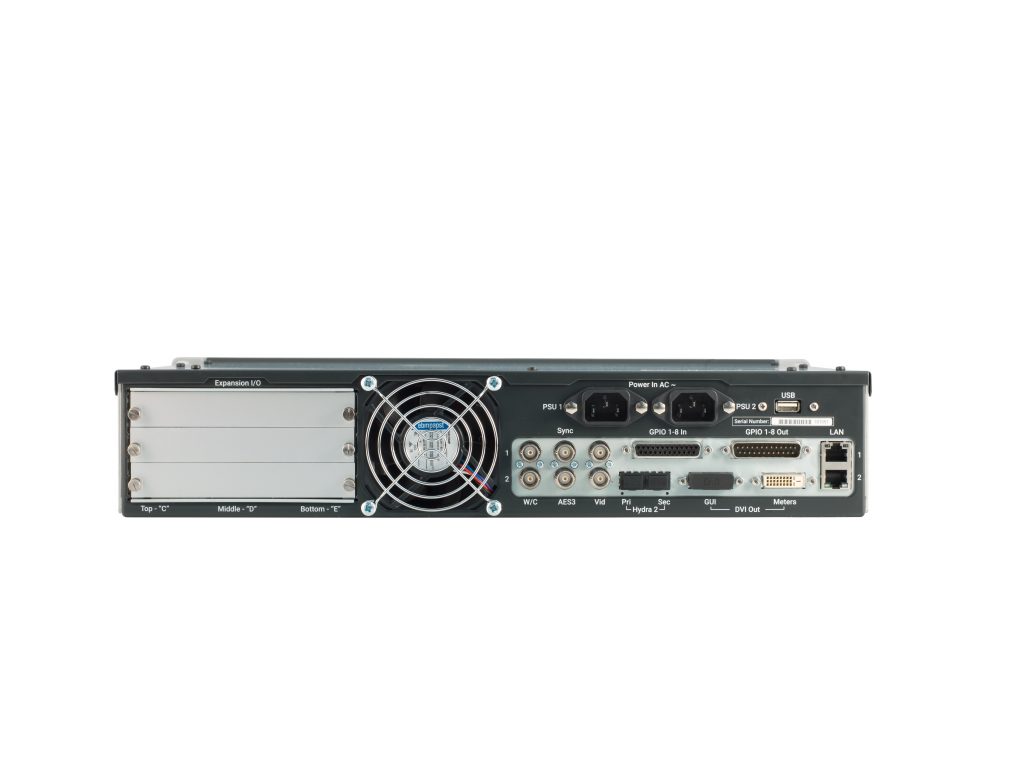

RP1
Many of these events might be of restricted interest, and may be broadcast to a narrow audience demographic. They may be regional news events which require a lot of content generation in a short space of time. They may require temporary infrastructures which need to be highly portable.
Remote production technology provides a realistic alternative for these events – the production of high quality content with fewer resources.
The barriers to effective remote broadcasting are speed (or latency), control and infrastructure.
1. Speed; the single biggest issue. Broadcast audio workflows rely on effective monitor mixes with no latency. This can be difficult to achieve when your studio is hundreds or even thousands of miles away.
2. Control; operators need real-time control over mic gains, fader levels and monitor mix levels.
3. Infrastructure; transport is always an issue. Multiple synced signals need to be moved in real time, and all down the same physical infrastructure. Audio, data and video all need to be considered, as well as multiple control protocols.
Calrec’s RP1 Remote Broadcast unit addresses all these challenges.
RP1 is a broadcast mixing system in a 2U rackmount box, containing Calrec’s award-winning Bluefin2 processing.
Calrec’s RP1 provides local DSP to enable the generation of monitor mixes and IFBs with no latency. It gives an operator in a remote studio direct control over channel functions such as mic gains, aux send/monitor mix levels and fader levels. It also provides a mechanism to embed audio into existing backhaul technologies, such as SDI.
All DSP and bus configuration can be carried out on-site using Assist, Calrec’s web-based configuration tool. Assist makes it simple for on-site engineers to set-up all IFB routing and remote monitor mix levels at the venue.
Versatile
This enables venue infrastructure, routing and monitor feeds to be tested prior to transmission. Local DSP processing also means there is no latency for commentary or talent monitoring.
With all DSP processing for monitor mixes taken care of on-site, the studio transmission console is able to concentrate purely on the main programme mix.
RP1 can embed all the transmission audio into existing video transport mechanisms, and in doing so ensures that there are no synchronisation issues. Its modular I/O backbone accepts any of Calrec’s I/O cards.
This versatility means RP1 can connect via a range of transports. The studio console mixing the transmission is able to assign these signals where required on the desk, so workflows are exactly the same as any other broadcast. Calrec’s unique True Control system makes it simple to control the RP1 from a control room located many miles away, giving the operator control over RP1’s channels and busses from a Calrec control surface.
In other words, the operator sits behind a console that he is already familiar with and assigns remote channel paths from the RP1 to local faders, just like any other channel.
True Control includes channel path fader levels and cuts, as well as aux send levels and ons, and aux master levels and cuts.
Future development includes VCA linking via the studio console, and control over EQ, dynamics and direct outputs via Calrec Assist.
True Control allows an operator to independently mix all the remote site IFBs and aux buses in addition to the local transmission mix on the studio console.
This is unique to RP1.
In fact, Calrec’s True Control provides the ability to link five independent RP1 units to the same studio-based console – all of which can be controlled from a single console surface.
RP1 is simple to set up and easy to use and enables broadcasters to cover a greater number of specialised events, such as regional or college sports and smaller entertainment events, at significantly reduced cost, making it possible to maintain an increasingly wide range of content.
';

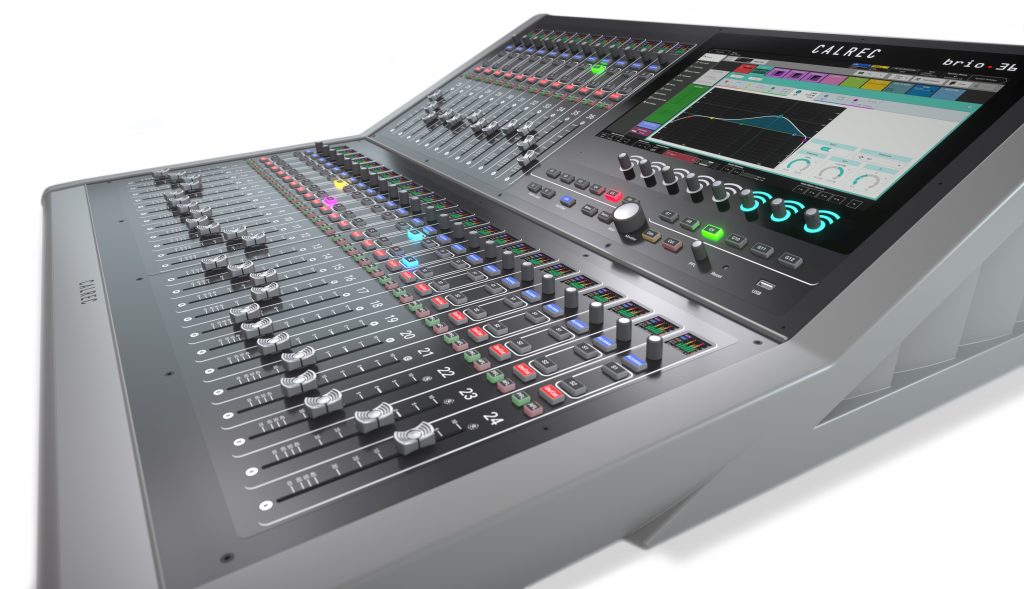

Brio
The smallest in Calrec’s Bluefin2 family, Brio’s control surface is unlike any other console. Available in two sizes; Brio 36 with a 36 fader dual-layer surface at 892mm wide, or Brio 12 with a 12 fader dual-layer surface at only 484mm wide, they provide more faders in a given footprint than any other comparable audio console.
Based on Calrec’s 20 years of digital development, Brio’s uncluttered, compact and configurable surface gives instant access to a large number of audio paths, whilst an intuitive 15.6” HD touchscreen UI provides quick access to more in-depth control. A bank of illuminating hardware rotary controls give fast and precise control over parameters displayed in the touchscreen UI.
Brio is a mixing console completely focused on the needs of broadcasters. This level of scalable and managed I/O, comprehensive monitoring, surround sound and high bus quantities provides a level of dedicated broadcast functionality that has never been available at this level.
As the market calls for more and more audio mixes to support online content, smaller consoles that possess pure live broadcast features are increasingly desirable. Products in this sector have traditionally had basic capabilities and are not ideally suited to broadcast environments. Brio is the first application-specific alternative.
Brio’s compact size means it is extremely portable and quick to install, making it ideal as a general purpose workhorse that can be used as and when needed, and its connectivity with other Hydra2-compatible equipment makes it even more versatile.
Brio is entirely self-contained. Brio 36 even provides analogue and digital I/O, and GPIO, built into the surface. Additional expansion I/O slots are also fitted to allow for further I/O to be connected. A Hydra2 module can also be fitted to connect to and share audio over Calrec’s Hydra2 network. This means Hydra2’s sophisticated management facilities can be utilised
for network-wide control, including interfacing with multiple IP networks. This protects the system against any future formats that may emerge and allows the console to sit on multiple networks simultaneously if desired.
';
Summa
Its design keeps the user interface simple and straightforward. Calrec has focused on ensuring that Summa’s highly intuitive GUI would be suitable for a broad range of operator levels. Users control the console via a 17-inch multitouch screen inspired by familiar tablet technology, with a straightforward interface that uses established finger gestures to navigate the system. The crisp, high-resolution display provides elegant controls and clear presentation of information.
Designed for live broadcast applications and with a focus on intuitive operation, Summa simplifies even complex workflow tasks, such as creating mix-minus feeds, with common procedures that are just one tap away.
Summa’s other large displays are fully configurable to display bus, output,and loudness meters, and feature dedicated
metering, routing, and processing information per fader.
The physical control surface is available in fixed 12+8, 24+8 and 36+8 fader configurations with a new streamlined layout. Each channel strip has only the most essential mechanical controls, featuring a fader, two flexible control cells, and a dedicated gain pot.
Summa uses Calrec’s award-winning Bluefin2 technology at its core, and the same integral Hydra2 router technology as the Apollo and Artemis consoles. Bluefin2 and Hydra2 technologies are in use 24 hours a day.
Bluefin2 provides Summa with a pool of up to 180 channel processing paths, which can be assigned as mono, stereo, or 5.1 channels. As with all Calrec consoles, there is no resource-sharing across the DSP. All facilities are available on all channels at all times. Summa has eight groups, four mains (all of which can be mono, stereo, or 5.1), 16 auxes, and 32 tracks.
The broadcast-focused feature set also includes complete system redundancy, dedicated delay on all paths with additional assignable input and output delay, PFL overpress on all faders, and three 5.1 studio monitor outputs.
Summa’s refined mechanical design and a lean construction that keeps components and materials to a minimum. Disciplined power distribution means the console is one of the most energy efficient consoles available.
';

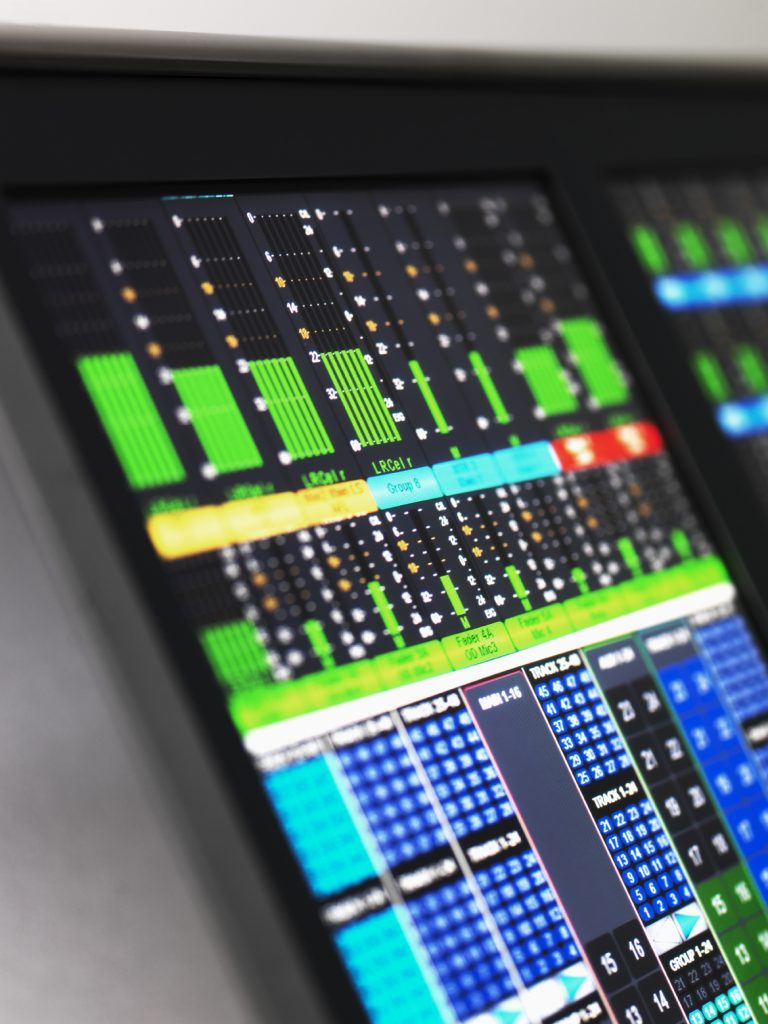

Artemis
The Calrec Artemis provides redundant hardware for ALL critical systems, and takeover is automatic and seamless. Hot spares mirror primary hardware and in the rare event of failure automatically take over with no disruption to the audio. This intelligent system covers DSP modules, control processor modules, router modules and all PSUs. With Calrec, you can be confident that you are always in control.
Intuitive and Ergonomic
Artemis has a flexible and intuitive control surface, incorporating colour, touch and tactile controls. The surface incorporates over 25 years of refinement of Calrec’s assignable console designs while the soft nature of the panels allows the operator to reconfigure them to reflect a variety of operating setups. We’ve worked hard to enhance the Artemis control surface to incorporate operator feedback.
The result is practical and elegant, offering the same sense of assurance associated with one-knob per function control. Form and function, seamlessly matched.
Powerful Processing
Bluefin2 gives the Artemis up to 680 input channel processing paths on a single DSP card, with a secondary card providing full and automatic redundancy. As you would expect from Calrec, all these are fully featured all of the time and are available irrespective of the processing load on other channels. In other words, channel resources are not shared across the console as a whole – they are dedicated resources and available at all times on every single channel.
Powerful Networking
Hydra2 is the Artemis’s backbone, linking the control surface to an 8192² router (4096² on the Artemis Light) and on to more complex networks when required. Hydra2 is adaptive and intelligent, automatically recognising changes to the network and updating all its clients. Hydra2’s plug and play nature allows networks to be designed to meet the specific requirements of the broadcast facility and ensures future flexibility.
Interoperable
Hydra2 is more than just a signal transport system; it is a powerful management tool that provides increased network-wide control of many parameters. Virtual interfaces like H2O and Hydra Patchbays provide additional tools for control room and studio resource management, allowing remote network administrators to put control rooms “on-air” and to manage the sources available to them. Calrec is committed to an agnostic future. AoIP interconnections provide more flexible and elegant replacements than traditional transports. AoIP will save money, increase efficiency, provide additional security and redundancy, and encourage remote working. Most of all it promotes freedom of choice. But while non-proprietary AoIP solutions are commonly not able to offer the low latency, determinism, capacity, and broadcast feature-rich audio networking of Hydra2, they are a perfect companion technology to Hydra2
for wider connectivity to third-party equipment in a broadcast facility.
';
Apollo
The Calrec Apollo provides redundant hardware for ALL critical systems, and takeover is automatic and seamless. Hot spares mirror primary hardware and in the rare event of failure automatically take over with no disruption to the audio. This intelligent system covers DSP modules, control processor modules, router modules and all PSUs.
Intuitive and Ergonomic
Apollo has a flexible and intuitive control surface, incorporating colour, touch and tactile controls. The surface incorporates over 25 years of refinement of Calrec’s assignable console designs while the soft nature of the panels allows the operator to reconfigure them to reflect a variety of operating setups.
We’ve worked hard to enhance the Apollo control surface to incorporate operator feedback. The result is practical and elegant, offering the same sense of assurance associated with one-knob per function control. Form and function, seamlessly matched.
Powerful Networking
Hydra2 is the Apollo’s backbone, linking the control surface to an 8192² router and on to more complex networks when required. Hydra2 is adaptive and intelligent, automatically recognising changes to the network and updating all its clients. Hydra2’s plug and play nature allows networks to be designed to meet the specific requirements of the broadcast facility and ensures future flexibility.
Interoperable
Hydra2 is more than just a signal transport system; it is a powerful management tool that provides increased network-wide control of many parameters. Virtual interfaces like H2O and Hydra Patchbays provide additional tools for control room and studio resource management, allowing remote network administrators to put control rooms “on-air” and to manage the sources available to them. Calrec is committed to an agnostic future. AoIP interconnections provide more flexible and elegant replacements than traditional transports. AoIP will save money, increase efficiency, provide additional security and
redundancy, and encourage remote working. Most of all it promotes freedom of choice. But while non-proprietary AoIP solutions are commonly not able to offer the low latency, determinism, capacity, and broadcast feature-rich audio networking of Hydra2, they are a perfect companion technology to Hydra2
for wider connectivity to third-party equipment in a broadcast facility.
Powerful Processing
Bluefin2 gives the Apollo a staggering 1020 input channel processing paths for the biggest 5.1 projects and is a DSP powerhouse amongst modern broadcast consoles. As you would expect from Calrec, all these are fully featured all of the time and are available irrespective of the processing load on other channels. In other words, channel resources are not shared across the console as a whole – they are dedicated resources and available at all times on every single channel.
';
CinchStrap-EG
';
broadcast intercom system
Each TF-2400 can carry four BK-1200 wireless belt packs.
Max 4 sets of TF-2400 (16pcs BK-1200) can work together.
Or max 5 pieces BK-1200 can make a small wireless group as well.
The wireless cover range is 200m. （from the wireless belt pack BK-1200 to wireless interface TF-2400 distance ）
From the master station to wireless interface distance connected by a cable , can through the wall , can be 500 meters long , flexible .
4-wire and 2-wire connector to communicate with other system.
We recommend FM-804/FT-800 as master control. The cable connection between FM-804 and TF-2400 can be up to 500m.
You can easily through the wall.
TECHNICAL SPECIFICATIONS
Operating Frequency:
2.4GHz (433M is optional)
Maximum Transmit Power:
20dBm
Beltpack Battery:
3 x AA size battery
Beltpack Current:
TX: max 130mA RX: max 50mA
Dimensions:
111mm x 46mm x 126mm(W x H x D)
Weight:
TF-2400: 1.2KG BK-1200 Belt Pack 0.22kg
';
The Switch Remote Production
Live TV events, especially sports, generate unrivalled buzz and excitement among viewers the world over, but live event production is no small undertaking. Remote production offers a smart, flexible model for success in the globalized world of live content, where surging audiences for niche sports, esports and unique entertainment are driving even more demand. The Switch’s remote production services enable broadcasters and other rights holders to continue meeting consumers’ seemingly insatiable thirst for high quality live content while maximizing resources.
The Switch has pioneered remote production for three decades and our Emmy Award-winning team has played a leading role in bringing premier sports to life for major networks and leagues. We know how to put together top-caliber productions and determine what our customers need so they can deliver the best content to viewers around the world.
With The Switch, producing content more efficiently and cost effectively – without compromising quality – is simple. Our end-to-end event production and packaging capabilities scale to meet the needs of a single event or multiple productions. As a home away from home, we support dynamic live sports, news, entertainment and event production in locations across the globe, removing the need for large amounts of equipment and big production crews on site.
With links to every major sports stadium in North America and connections to the leading international sports and entertainment venues around the world, The Switch has you covered from stadium to studio to any screen. Many of the biggest names in sports and entertainment rely on our production services and facilities to create and deliver the world’s major live events.
';

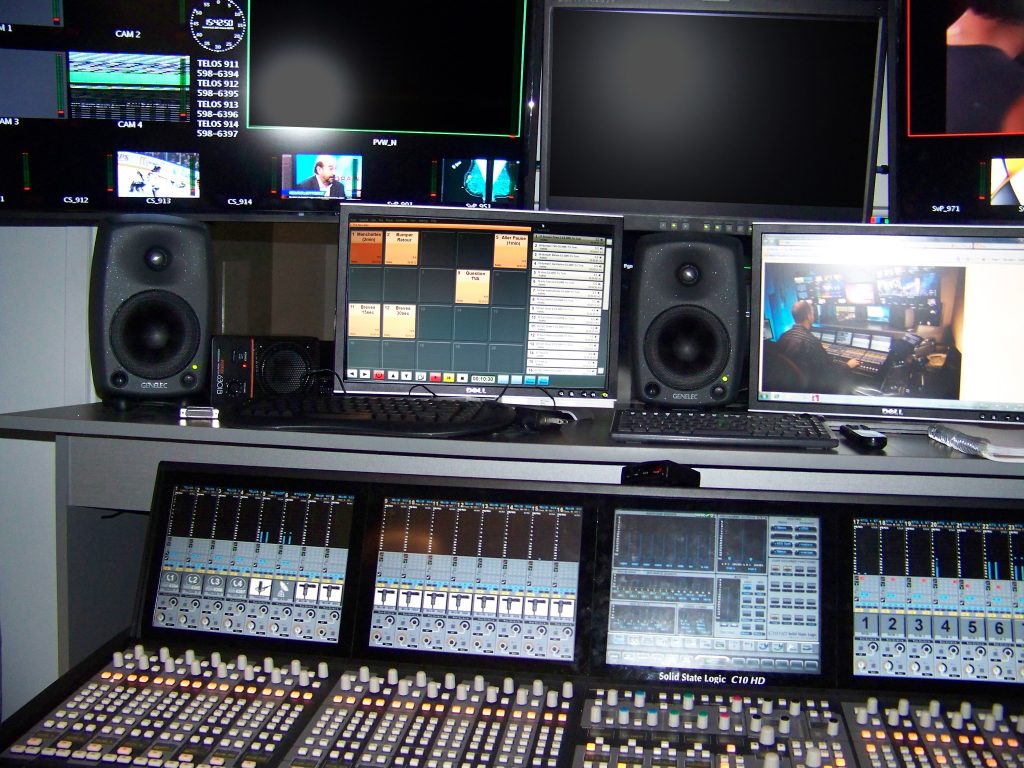

Ovation
Live events or live broadcasts are multimedia and require a new set of tools to successfully deliver the right result. This is often in surround or immersive audio and can be a mixture of prerecorded and live action. Ovation is the answer in providing the complexity needed for the production with the simplicity needed for the live broadcast. No other system offers the flexibility of cue management, cue triggering, output configuration and compatibility with other show control or broadcast devices. Onboard mixing with automation, Pyramix in the background for cue editing and level control, as-played logs, 3D panning; the list of features goes on. The ability to add live announcements to a prerecorded show is a must for any venue.
The latest version supports VST3 plugins, adds full console automation, UDP/IP support, remote controller enhancements and a host of seemingly small but significant improvements. The choice of controller and UI and the many options for outputting commands make Ovation ideal as a show controller or equally happy working with popular video servers or show controllers. Ovation provides the ability to move far beyond the standard workstation limit of playing one sound per output. Able to sum as many layers of sound as needed to any output in the system, users can play back as many multi-track events as needed without any need for them to be linked or chased in any way. Able to sum playback information into surround and stereo buses at the same time while also providing an almost limitless amount of mix-minus buses to manage live broadcast inputs makes the Ovation the perfect audio hub for broadcast productions.
';
Rip-Tie Mini
';
