Resilient

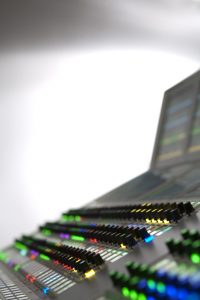

The Calrec Apollo provides redundant hardware for ALL critical systems, and takeover is automatic and seamless. Hot spares mirror primary hardware and in the rare event of failure automatically take over with no disruption to the audio. This intelligent system covers DSP modules, control processor modules, router modules and all PSUs.
Intuitive and Ergonomic
Apollo has a flexible and intuitive control surface, incorporating colour, touch and tactile controls. The surface incorporates over 25 years of refinement of Calrec’s assignable console designs while the soft nature of the panels allows the operator to reconfigure them to reflect a variety of operating setups.
We’ve worked hard to enhance the Apollo control surface to incorporate operator feedback. The result is practical and elegant, offering the same sense of assurance associated with one-knob per function control. Form and function, seamlessly matched.
Powerful Networking
Hydra2 is the Apollo’s backbone, linking the control surface to an 8192² router and on to more complex networks when required. Hydra2 is adaptive and intelligent, automatically recognising changes to the network and updating all its clients. Hydra2’s plug and play nature allows networks to be designed to meet the specific requirements of the broadcast facility and ensures future flexibility.
Interoperable
Hydra2 is more than just a signal transport system; it is a powerful management tool that provides increased network-wide control of many parameters. Virtual interfaces like H2O and Hydra Patchbays provide additional tools for control room and studio resource management, allowing remote network administrators to put control rooms “on-air” and to manage the sources available to them. Calrec is committed to an agnostic future. AoIP interconnections provide more flexible and elegant replacements than traditional transports. AoIP will save money, increase efficiency, provide additional security and
redundancy, and encourage remote working. Most of all it promotes freedom of choice. But while non-proprietary AoIP solutions are commonly not able to offer the low latency, determinism, capacity, and broadcast feature-rich audio networking of Hydra2, they are a perfect companion technology to Hydra2
for wider connectivity to third-party equipment in a broadcast facility.
Powerful Processing
Bluefin2 gives the Apollo a staggering 1020 input channel processing paths for the biggest 5.1 projects and is a DSP powerhouse amongst modern broadcast consoles. As you would expect from Calrec, all these are fully featured all of the time and are available irrespective of the processing load on other channels. In other words, channel resources are not shared across the console as a whole – they are dedicated resources and available at all times on every single channel.
Other products from this company:
Apollo
Summa
Apollo
The Calrec Apollo provides redundant hardware for ALL critical systems, and takeover is automatic and seamless. Hot spares mirror primary hardware and in the rare event of failure automatically take over with no disruption to the audio. This intelligent system covers DSP modules, control processor modules, router modules and all PSUs.
Intuitive and Ergonomic
Apollo has a flexible and intuitive control surface, incorporating colour, touch and tactile controls. The surface incorporates over 25 years of refinement of Calrec’s assignable console designs while the soft nature of the panels allows the operator to reconfigure them to reflect a variety of operating setups.
We’ve worked hard to enhance the Apollo control surface to incorporate operator feedback. The result is practical and elegant, offering the same sense of assurance associated with one-knob per function control. Form and function, seamlessly matched.
Powerful Networking
Hydra2 is the Apollo’s backbone, linking the control surface to an 8192² router and on to more complex networks when required. Hydra2 is adaptive and intelligent, automatically recognising changes to the network and updating all its clients. Hydra2’s plug and play nature allows networks to be designed to meet the specific requirements of the broadcast facility and ensures future flexibility.
Interoperable
Hydra2 is more than just a signal transport system; it is a powerful management tool that provides increased network-wide control of many parameters. Virtual interfaces like H2O and Hydra Patchbays provide additional tools for control room and studio resource management, allowing remote network administrators to put control rooms “on-air” and to manage the sources available to them. Calrec is committed to an agnostic future. AoIP interconnections provide more flexible and elegant replacements than traditional transports. AoIP will save money, increase efficiency, provide additional security and
redundancy, and encourage remote working. Most of all it promotes freedom of choice. But while non-proprietary AoIP solutions are commonly not able to offer the low latency, determinism, capacity, and broadcast feature-rich audio networking of Hydra2, they are a perfect companion technology to Hydra2
for wider connectivity to third-party equipment in a broadcast facility.
Powerful Processing
Bluefin2 gives the Apollo a staggering 1020 input channel processing paths for the biggest 5.1 projects and is a DSP powerhouse amongst modern broadcast consoles. As you would expect from Calrec, all these are fully featured all of the time and are available irrespective of the processing load on other channels. In other words, channel resources are not shared across the console as a whole – they are dedicated resources and available at all times on every single channel.
Artemis
The Calrec Artemis provides redundant hardware for ALL critical systems, and takeover is automatic and seamless. Hot spares mirror primary hardware and in the rare event of failure automatically take over with no disruption to the audio. This intelligent system covers DSP modules, control processor modules, router modules and all PSUs. With Calrec, you can be confident that you are always in control.
Intuitive and Ergonomic
Artemis has a flexible and intuitive control surface, incorporating colour, touch and tactile controls. The surface incorporates over 25 years of refinement of Calrec’s assignable console designs while the soft nature of the panels allows the operator to reconfigure them to reflect a variety of operating setups. We’ve worked hard to enhance the Artemis control surface to incorporate operator feedback.
The result is practical and elegant, offering the same sense of assurance associated with one-knob per function control. Form and function, seamlessly matched.
Powerful Processing
Bluefin2 gives the Artemis up to 680 input channel processing paths on a single DSP card, with a secondary card providing full and automatic redundancy. As you would expect from Calrec, all these are fully featured all of the time and are available irrespective of the processing load on other channels. In other words, channel resources are not shared across the console as a whole – they are dedicated resources and available at all times on every single channel.
Powerful Networking
Hydra2 is the Artemis’s backbone, linking the control surface to an 8192² router (4096² on the Artemis Light) and on to more complex networks when required. Hydra2 is adaptive and intelligent, automatically recognising changes to the network and updating all its clients. Hydra2’s plug and play nature allows networks to be designed to meet the specific requirements of the broadcast facility and ensures future flexibility.
Interoperable
Hydra2 is more than just a signal transport system; it is a powerful management tool that provides increased network-wide control of many parameters. Virtual interfaces like H2O and Hydra Patchbays provide additional tools for control room and studio resource management, allowing remote network administrators to put control rooms “on-air” and to manage the sources available to them. Calrec is committed to an agnostic future. AoIP interconnections provide more flexible and elegant replacements than traditional transports. AoIP will save money, increase efficiency, provide additional security and redundancy, and encourage remote working. Most of all it promotes freedom of choice. But while non-proprietary AoIP solutions are commonly not able to offer the low latency, determinism, capacity, and broadcast feature-rich audio networking of Hydra2, they are a perfect companion technology to Hydra2
for wider connectivity to third-party equipment in a broadcast facility.
Brio
The smallest in Calrec’s Bluefin2 family, Brio’s control surface is unlike any other console. Available in two sizes; Brio 36 with a 36 fader dual-layer surface at 892mm wide, or Brio 12 with a 12 fader dual-layer surface at only 484mm wide, they provide more faders in a given footprint than any other comparable audio console.
Based on Calrec’s 20 years of digital development, Brio’s uncluttered, compact and configurable surface gives instant access to a large number of audio paths, whilst an intuitive 15.6” HD touchscreen UI provides quick access to more in-depth control. A bank of illuminating hardware rotary controls give fast and precise control over parameters displayed in the touchscreen UI.
Brio is a mixing console completely focused on the needs of broadcasters. This level of scalable and managed I/O, comprehensive monitoring, surround sound and high bus quantities provides a level of dedicated broadcast functionality that has never been available at this level.
As the market calls for more and more audio mixes to support online content, smaller consoles that possess pure live broadcast features are increasingly desirable. Products in this sector have traditionally had basic capabilities and are not ideally suited to broadcast environments. Brio is the first application-specific alternative.
Brio’s compact size means it is extremely portable and quick to install, making it ideal as a general purpose workhorse that can be used as and when needed, and its connectivity with other Hydra2-compatible equipment makes it even more versatile.
Brio is entirely self-contained. Brio 36 even provides analogue and digital I/O, and GPIO, built into the surface. Additional expansion I/O slots are also fitted to allow for further I/O to be connected. A Hydra2 module can also be fitted to connect to and share audio over Calrec’s Hydra2 network. This means Hydra2’s sophisticated management facilities can be utilised
for network-wide control, including interfacing with multiple IP networks. This protects the system against any future formats that may emerge and allows the console to sit on multiple networks simultaneously if desired.
Summa
Its design keeps the user interface simple and straightforward. Calrec has focused on ensuring that Summa’s highly intuitive GUI would be suitable for a broad range of operator levels. Users control the console via a 17-inch multitouch screen inspired by familiar tablet technology, with a straightforward interface that uses established finger gestures to navigate the system. The crisp, high-resolution display provides elegant controls and clear presentation of information.
Designed for live broadcast applications and with a focus on intuitive operation, Summa simplifies even complex workflow tasks, such as creating mix-minus feeds, with common procedures that are just one tap away.
Summa’s other large displays are fully configurable to display bus, output,and loudness meters, and feature dedicated
metering, routing, and processing information per fader.
The physical control surface is available in fixed 12+8, 24+8 and 36+8 fader configurations with a new streamlined layout. Each channel strip has only the most essential mechanical controls, featuring a fader, two flexible control cells, and a dedicated gain pot.
Summa uses Calrec’s award-winning Bluefin2 technology at its core, and the same integral Hydra2 router technology as the Apollo and Artemis consoles. Bluefin2 and Hydra2 technologies are in use 24 hours a day.
Bluefin2 provides Summa with a pool of up to 180 channel processing paths, which can be assigned as mono, stereo, or 5.1 channels. As with all Calrec consoles, there is no resource-sharing across the DSP. All facilities are available on all channels at all times. Summa has eight groups, four mains (all of which can be mono, stereo, or 5.1), 16 auxes, and 32 tracks.
The broadcast-focused feature set also includes complete system redundancy, dedicated delay on all paths with additional assignable input and output delay, PFL overpress on all faders, and three 5.1 studio monitor outputs.
Summa’s refined mechanical design and a lean construction that keeps components and materials to a minimum. Disciplined power distribution means the console is one of the most energy efficient consoles available.
Type R
Type R’s physical control system consists of just three slimline panels: a fader panel, a large soft panel and a small soft panel. Each is compatible with COTS hardware and powered over ethernet to keep cabling to a minimum.
Type R has a simple 2U core at its heart with integrated I/O resources to get you up and running immediately. A single core can power up to three independent mixing environments, with no sharing of DSP resources. Whether used as independent studio consoles, microphone processors or utility mixing, the ability to use multiple mixing engines combined with the flexibility of the AES67 compatible network provide all the power you will ever need.
The touch-screen soft panels are designed around simple and colourful control elements and can easily be customised as multi-function panels. Soft Panels can be utilised in either landscape or portrait formats, and used to provide adaptable and specific functionality for talent, while ensuring overall control is maintained by the station technical team.
This functionality can be quickly changed from show-to-show using simple memory loads, and can be tailored to fit the needs of the talent. Fader panels are small, sleek and simple, with six faders and immediate access to essential controls. Fader panels can be added or removed as simply as plugging or unplugging an ethernet cable, creating a radio infrastructure which is easily expandable, and making upgrades a breeze.
Broadcast-specific control is clear and concise across the system. Bussing, including the creation of mix-minus feeds, is quick to assign, while EQ and dynamics control is clear and fast. It is a pure radio platform designed for a fast-paced modern environment. And as you would expect from Calrec, Type R is a resilient console system designed for reliable professional use, with all the requisite power, function and scalability to keep you on air for many years to come.
Type R is a thoroughly modern and customer-focused radio broadcast system which adapts to a station’s needs as its requirements evolve, and provides simple customisation across established networks, open control protocols and surface personalisation.
With a native IP Backbone, Type R provides an infrastructure for future expansion. It guarantees stations are not only able to keep pace with changing demands, but provides the facility to ignite their audiences with new and innovative programming.
