EXECUTOR™ Production AIrBox provides content playout for News, Live shows, Studio screens and video walls, live production broadcasts and other places where video/audio content have to be displayed. It is designed to meet the high reliability requirements of broadcast playout.
For live productions, any changes to the playlist during on-air session are possible! There are no locked clips. Every clip in the playlist can be trimmed or repositioned. Moreover, playout position can be changed on-the-fly with commands like next, jump or shuttle. Such changes are performed seamlessly without stopping current playout session.
One server can be configured with up to four independent players. Each player has separate playlist and playout control. All four SDI interfaces can be assigned as program or preview outputs. Single channel or Multichannel user interfaces are available to streamline the operation.
Related Products:
Matrox DSX LE5 12G
Matrox X.mio3 FH
Matrox X.mio3 12G
Matrox X.mio3 IP
Matrox M264 Family
Matrox X.mio3 LP
Matrox DSX LE4 LP
Matrox DSX LE5 ST 2110 Network...
Matrox DSX LE4 BNC
Ross Kiva Live Presentation Server
QuickEdge Automation
Eurisco
Cosmos
AirBox Mega ICX
Starfish Edge Server
AirBox
Channel in a Box
Wowza ClearCasTer Pro
Limelight Video Platform
AutoPlay 7.10
EXECUTOR™ Production AIrBox
Matrox DSX LE5 12G
The Matrox DSX LE5 12G provides multi-channel reconfigurable 12G/3G SDI I/O for HD and 4K workflows. The DSX LE5 12G allows 4x 12G inputs, 4x 12G outputs and 4x 3G reconfigurable I/O to operate simultaneously on a single half length PCI express card. The DSX LE5 12G is supported by the feature-rich, field proven Matrox DSX SDK.
Key features
- Versatile 12G and quad 3G SDI for 4K connectivity
- Up to 4x 12G inputs and 4x 12G outputs with 4x 3G reconfigurable I/O
- Up to 12x completely reconfigurable 3G I/O
- Frame synchronizers
- Decimation for input preview
Matrox X.mio3 FH
Matrox X.mio3 FH is ideal for OEMs who need to create advanced channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multiviewers, switchers and other digital media equipment.
Key features Half-length PCI express card Re-configurable IO that can support up to 12 SDI IO Frame synchronizers VANC and HANC support for each input and output Analog blackburst reference input (tri-level or bi-level) On-board multi-channel MADI (Motion Adaptive De-Interlacer) On-board multi-channel Up/Down/Cross scaler On-board multilayer compositor Automatic video relay bypass Live zero-frame delay video and audio mixers Up to 16 channels of AES/EBU inputs and outputs Up to 8 LTC inputs and outputs RS422 control Single slot all inclusive option
Matrox X.mio3 12G
Matrox X.mio3 12G is ideal for OEMs who need to create advanced channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multi-viewers, switchers and other digital media equipment. This card is supported by the Matrox DSX SDK (Software Development Toolkit). Please refer to the Matrox DSX Developer Products datasheet for information on file I/O, software codecs and CPU effects.
Key features
Half-length PCI Express card
Up to two 12G SDI inputs
Up to two 12G SDI outputs
Two re-configurable SD, HD, 3G SDI I/O
Frame synchronizers on each input
VANC and HANC support for each input and output
Analog blackburst reference input (tri-level or bi-level)
Onboard multi-channel 4K scaler
Onboard multi-layer 4K compositor
Live zero-frame delay video and audio mixer
Up to16 channels of AES/EBU inputs and outputs
Up to eight LTC inputs and outputs
Matrox X.mio3 IP
Key features Multi-channel IO allowing up to 4 video inputs and 4 video outputs with redundancy in HD Guaranteed non-bursty packet transmission with zero CPU usage Support for multiple IP encapsulations IP and analog blackburst timing reference IP bypass and fail-safe mechanisms On-board multi-channel MADI (Motion Adaptive Deinterlacer) Onboard multi-channel Up/Down/Cross scaler Onboard multi-layer compositor Feature rich SDK
Matrox DSX LE4 FH
Matrox DSX LE4 FH is ideal for OEMs who need to create channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multiviewers, switchers and other digital media equipment.
Key features Half-length PCI express card Re-configurable IO that can support up to 12 SDI IO Frame synchronizers VANC and HANC support for each input and output Analog blackburst reference input (tri-level or bi-level) Automatic video relay bypass Live zero-frame delay video mixers Up to16 channels of AES/EBU inputs and outputs Up to 8 LTC inputs and outputs RS422 control Single slot all inclusive option
Matrox DSX LE4 IP
Key features
Multi-channel IO allowing up to 4 video inputs and 4 video outputs with redundancy in HD
Guaranteed non-bursty packet transmission with zero CPU usage
Support for multiple IP encapsulations
IP and analog blackburst timing reference
IP bypass and fail-safe mechanisms
Feature rich SDK
Matrox X.mio5 Q25
The Matrox X.mio5 Q25 network adapter offers complete ST 2110 offload allowing OEM software solutions to provide reliable and scalable COTS based 10Ge and 25Ge IP solutions. This ST 2110 NIC offloads all packet processing required for ST 2110-20, ST 2110-30, ST 2110-31 and ST 2110-40, as well as ST 2022-7 redundancy, to free up system resources. With ST 2110-21 packet pacing built into the NIC, software solutions can provide guaranteed narrow senders (Type N) under all conditions independent of CPU load and OS interactions. The X.mio5 Q25 ST2110 IO cards also provide line rate capture allowing for wide asynchronous receivers (type A). Both the permissive wide asynchronous receivers and the ST 2110-21 packet paced, narrow senders allow software solutions to guarantee universal compatibility and interoperability at scale.
Key features Native SMPTE ST 2110 support with no CPU usage 4x UHDp60/50 inputs and outputs over 25GbE 32x HD inputs and outputs over 25GbE 256 audio flows from 1 to 64 tracks Multi-channel HDR conversion On-board de-interlacing, scaling, and compositing, Built in NMOS IS-04 and IS-05 support, 3 year warranty
Matrox DSX Core
Matrox M264 Family
The M264 family can encode/decode up to four streams of 4Kp60 at 4:2:2 10-bit, 40 streams of HD long GOP at 4:2:2 10-bit or 64 streams of HD at 4:2:0 8-bit. The faster than real-time encoding/decoding ability of the M264 allows multiple blazing fast transcodes for distribution on differing media platforms. With onboard multi-channel, motion-adaptive deinterlacing, and up/down/cross scaling, the M264 family can repurpose content into any resolution before encoding or after decoding, particularly beneficial for OTT workflows.
Specifically designed for high density encoding/decoding (Baseline Profile to High 10 Intra Profile up to Level 5.2), M264 cards provide the highest possible quality at the lowest power per stream (< 1.5 W per HD stream). The M264 S4, S3 and S2 cards are cloud friendly and their resources can be shared across virtual machines.
Matrox M264 cards are the ideal H.264 accelerators for channel-in-a-box systems, video servers, broadcast graphics systems, multi-viewers, and switchers or to create high-density encoders, transcoders and other broadcast media equipment. The Matrox M264 hardware is supported by the Matrox DSX Software Development Kit. Please refer to the Matrox DSX Developer Products datasheet for information on file I/O, software codecs and CPU effects.
Key features PCI Express Cards M264 - Gen 2, ½ length card M264 S2 - Gen 3, ¾ length card M264 S3 - Gen 3, ¾ length card, M264 S4 - Gen 3, full length card. Multi-channel, high-quality H.264 video encoding, decoding and transcoding Up to 4K resolutions supported 4:2:2 10-bit and 4:2:0 8-bit Hardware based deinterlacing and scaling Real-time and faster than real-time operation Dynamic codec control Sony XAVC compliant encoding including 4K XAVC Long and 4K Intra Class 480 Panasonic AVC-Ultra compliant Native MXF file wrapping Native MXF file reading. This includes Trim in and Trim out settings for building playlists File consolidation Time Delay Instant Replay (TDIR) support MXF file truncation and appending during live recording
Matrox X.mio3 LP
This low-profile, half-length card offers up to eight reconfigurable SDI I/Os from SD to 4K.
Multi-channel hardware processing accelerates compute-intensive operations including motion-adaptive de-interlacing, up/down/cross scaling and mixing/compositing for all resolutions including 4K.
Matrox X.mio3 LP is ideal for OEMs who need to create advanced yet compact channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multiviewers, switchers and other digital media equipment.
Key features
Low profile, half-length PCI-e card
Re-configurable I/O that can support up to 8 SDI inputs or outputs
Frame synchronizers
VANC and HANC support for each input and output
Analog blackburst reference input (tri-level or bi-level)
On-board multi-channel MADI (Motion Adaptive De-Interlacer)
On-board multi-channel Up/Down/Cross scaler
On-board multilayer compositor
Automatic video relay bypass (optional)
Live zero-frame delay video and audio mixer
Matrox DSX LE4 LP
Matrox DSX LE4 LP is ideal for OEMs who need to create compact channel-in-a-box systems, video servers, broadcast graphics systems, encoders, transcoders, multiviewers, switchers and other digital media equipment.
Key features
Low profile, half-length PCIe card
Re-configurable I/O that can support up to 8 SDI inputs or outputs
Frame synchronizers
VANC and HANC support for each input and output
Analog blackburst reference input (tri-level or bi-level)
Automatic video relay bypass (optional)
Live zero-frame delay video mixers
Matrox DSX LE5 ST 2110 Network Cards
The Matrox® DSX LE5 Q25 and Matrox DSX LE5 D25 SMPTE ST 2110 network interface controller (NIC) cards provide 25 GbE and 10 GbE interfaces for multi-channel IP video I/O from HD to 4K, with zero CPU usage.
The Matrox DSX LE5 ST 2110 network adapters offer complete ST 2110 offload allowing OEM software solutions to provide reliable and scalable COTS-based 10 GbE and 25 GbE IP solutions. These ST 2110 NIC cards offload all packet processing required for ST 2110-20, ST 2110-30, ST 2110-31, and ST 2110-40, as well as ST 2022-7 redundancy, to free up system resources. With ST 2110-21 packet pacing built into the NIC, software solutions can provide guaranteed narrow senders (Type N) under all conditions independent of CPU load and OS interactions. The DSX LE5 ST 2110 cards also provide line rate capture allowing for wide asynchronous receivers (Type A). Both the permissive wide asynchronous receivers and the, ST 2110-21 packet paced, narrow senders allow software solutions to guarantee universal compatibility and interoperability at scale.
Matrox DSX LE5 ST 2110 NIC cards also offer integrated, hardware-based PTP support allowing for ST 2059-2 accuracy in the nanosecond range eliminating network jitter associated with general-purpose, non-video-aware NIC cards . With built-in support for JT-NM TR-1001-1 -- including NMOS Device Registration and Discovery (IS-04) and NMOS Device Connection Management (IS-05), DSX LE5 cards provide for seamless integration in ST 2110 environments.
With access to standard network functionality, DSX LE5 ST 2110 NIC cards provide a complete comprehensive COTS solution for software applications to seamlessly transition from SDI to ST 2110 with no hassle and guaranteed success.
Key features
- Native SMPTE ST 2110 over 25 GbE support with no CPU usage
- Up to 4 UHDp50/60 inputs and outputs
- Up to 32 HD inputs and outputs
- ST 2110-21 packet pacing in hardware for narrow senders (Type N)
- Wide asynchronous receivers (Type A)
- 32x HD inputs and outputs over 25 GbE
- 256 audio flows from 1 to 64 tracks
- Integrated hardware PTP for ST 2059-2
- Built in NMOS IS-04 and IS-05 support
- 3 year warranty
- One comprehensive SDK for all our developer cards
Matrox DSX LE4 BNC
Key features
- Half-length PCI express card
- 4 channel re-configurable SDI IO
- Frame synchronizers
- VANC and HANC support for each input and output
- Analog blackburst reference input (tri-level or bi-level)
- Live zero-frame delay video mixers
- One comprehensive SDK for all our developer cards

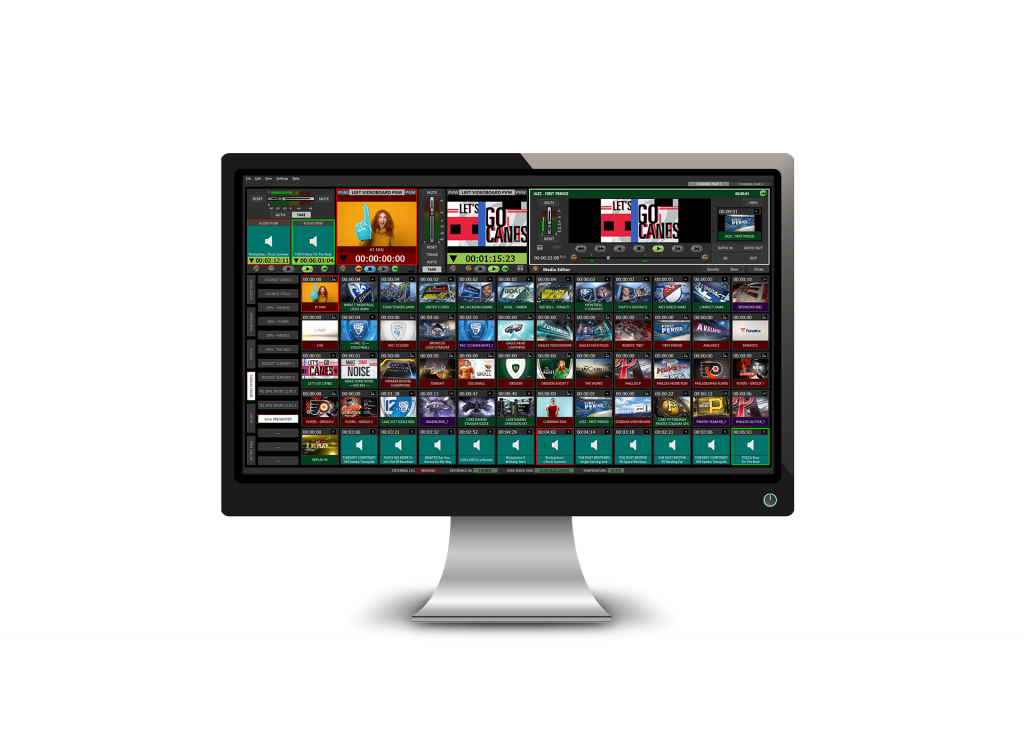

Ross Kiva Live Presentation Server
Kiva Live Presentation Server brings an impressive, professional digital media playout solution to the live sports and entertainment industry that will take your live productions to another level.
With a simple click, the highly intuitive operator-driven Kiva user interface presents a variety of digital media assets into venue videoboards with unparalleled flexibility and ease. These include real-time video clips, ‘fill+matte’ stills and animations, surround-sound audio, and sponsored adverts.
With Kiva, all your live productions are instantly simplified. Incoming media are quickly ingested, efficiently organized, and easily presented during live sports shows, concerts, and events.
QuickEdge Automation
QuickEdge automation solution is proven in over 50 24/7 Broadcast stations and has committed to providing the highest uptime in the industry.
QuickEdge automates MCR Operations, PCR operations, Ingest, device controls for the router, switcher, etc along with industry-standard MOS connectivity
Eurisco
By bringing together 20 years of experience manufacturing integrated playout solutions, PlayBox Technology live streaming solutions offer a powerful addition to our range of broadcast TV and channel branding systems – enabling content streaming and building digital programs within minutes.
We provide a full-service streaming system for direct streaming via Ethernet or mobile data via 4G or 5G to YouTube, Facebook, Instagram, Twitter, LinkedIn, Twitch and many more.
Eurisco is Robust, scalable, real-time, low latency and user-friendly WebRTC server, fully customizable to quickly deploy live streams
Live Streaming Features
– Versatile video streaming
– Multiple graphic layers
– Streaming direct to social media live services (YouTube, Facebook, Instagram, Twitter, LinkedIn, Twitch, Tik Tok)
– Video up and down conversion
– Variable bit rate & format conversion
– Captions and branding
– Multi-user access
– Supports HTTP, RTSP, RTMP, UDP, HLS multicast, unicast, RTMPS, WebRTC, ONVIF, SRT, NDIs.
– Moderated Publish Mode, where items have to be marked as approved before they are published
– Instant Publish Mode, where items are published as soon as they are selected
– Output to CG engine for On Air presentation
– Real-time ultra low latency (0.5 s) WebRTC streaming
– Adaptive Bitrate real time streaming
– Auto scale WebRTC cluster
– Voice & Video Conference abilities
– Live monitoring & security surveillance
– Free WebRTC SDKs
– iOS & Android Apps
Cosmos
Cosmos provides software based playout engines for Broadcasters, Over The Top service providers and Broadcast Services companies.
The distributive virtualised architecture of the playout engine from Cosmos provides a fast and trusted cloud based playout solution enabling broadcasters and service providers to spin up both OTT and traditional TV channels in a few minutes thus lowering the cost of ownership.
Channels can be hosted from data centres or from your own Master Control Room over a private or public cloud. Cosmos also gives you the ability to playout both file based and live services .
Cosmos is an open system which enables all the features of a playout engine be implemented on a service basis. Cosmos reduces the need to invest in capital infrastructure. It removes the need to find space for technical equipment and the ongoing cost of technical maintenance.
Channel owners in worldwide gain the freedom to outsource practically all the technical equipment traditionally required for broadcasting.
Cosmos virtualises the process of channel management under control from a standard enterprise computer via a firewall-protected secure internet connection. Programme playout can be automated to any required extent while always retaining the freedom to insert live content.
Cosmos offers established broadcasters and content owners the ability to introduce new programme channels at very short notice, whether a permanent additional to an existing bouquet or a supplementary programme stream covering a temporary event. It can be matched to a wide variety of deployment models, enabling consistent operation across baseband, hybrid IP, and virtualised, cloud-based networks.
Cosmos also enables independent content producers to establish television channels without the high start-up cost usually inherent in such ventures.
Cosmos delivers unsurpassed flexibility in format handling and transcoding. It supports practically any technical standard in today's fast-evolving television industry, whether for terrestrial, satellite or online viewing, live, near-live or catch-up.

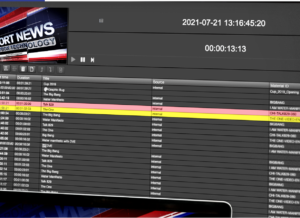

AirBox Mega ICX
Broadcast automation is no longer exclusively focused on channel playout. It also concerns content management and delivery. The broadcasters and media companies of today must be equipped to deliver their content in a simple and effective manner, regardless of the distribution mechanism. PlayBox Technology’s Mega ICX platform is the next-level content playout workflow automation system from the #1 leading Channel in a Box manufacturer.PlayBox Technology’s broadcast automation solutions have been rigorously tried and tested across the world for over 15 years. Since 2004, the company has been designing and delivering innovative products for broadcasters of all shapes and sizes. Mega ICX is a versatile playout platform for content management and distribution, combining the benefits of virtual asset management with the efficiency of automated• SOA scalable distributed architecture• Utilizes cloud-native services (e.g. AWS or similar) to increase resilience and scalability• Control of Mega integrated audio, video, and graphics functionality• Unified, intuitive web-based user interfaces for faster functional flexibility• Hybrid IP/SDI content management and playout solution• Scalable modular solution designed to provide a tailored fit for all installations• Channel overview page provides a high-level overview of all channels• Built-in asset management and workflow tools• Easy-to-navigate clip management and channel workspaces, including advanced secondary event• Vertical timeline• Hybrid IP / SDI content management and playout solution• Geo-dispersed playout operations• Unified centralized channel management• Playout with digital asset management capabilities• Linear channel playback• Monitor by exception• Web-based applications• In-built scheduling• In-build ingest• HTML5 graphics
Starfish Edge Server
AirBox
AirBox Multi Parallel Output allows simultaneous running of two or more SDI or IP streaming SD / HD outputs so that broadcasters can easily deliver parallel output in any combination needed to deliver the content.
AirBox supports a wide range of video / audio formats from almost every known platform for production Third-party video server files like Leitch, Seachange, etc. are supported natively.
Any modifications to the playlist can be made during the on-air session. There will be no locked videos in the playlist except the one being played at the moment. They can be changed, edited or substituted.
On-the-fly commands such as skip to next or jump can change the playback order. Such changes in order are carried out seamlessly without stopping the current session. The powerful Live Show Clipboard facilitates live productions, enabling the insertion and/or execution of different events or live streams.
AirBox enables playlist scheduling for weeks ahead for automated playout. The associated gaps and time overlaps are overcome dynamically to ensure smooth service even when timed activities interfere with each other. If content files or even entire schedules are missing and misplaced, special facilities guarantee continuous operation.
MS Windows 10 compatible.
Channel in a Box
PlayBox Technology has incorporated its most advanced playout engine which is the result of over 15 years of experience in developing playout solutions for the world's
leading broadcasters.
PlayBox Technology Channel-in-a-Box provides an integrated playout solution for Broadcasters and OTT service providers in a 1RU or 3RU server, regardless if you are working with IP or SDI.
The CIAB will enable you to playout an IP stream or an SDI in SD, HD or UHD. PlayBox Technology’s CIAB takes care of all your scheduling needs and uses simple, clean and engaging HTML5 for your transmission graphics needs including crawlers and rollers.
As you would expect from PlayBox Technology, it offers sophisticated and easy to use automation. We have designed a user friendly ingest which also gives you the ability to FTP your media straight to the Channel In A Box, saving you time.
It is available as a complete turnkey solution for single channel or multichannel HD SDI/SD. Available as both full turnkey solutions and software-only for single and multi-channel operations.
Channel in a Box (CIAB) is compatible with a wide range of compression types, including: MPEG-2, DV, DVCPro, DVCPro HD, AVC/H.264, HAVC/H.265, XAVC and more.
Wowza ClearCasTer Pro
Simplify your workflow with remote management, customizable encoding workflows, and user-permission control.
Create and streamline fully automated workflows with a centralized management API.
Increase reliability with adaptive network encoding, which automatically decreases bitrate in adverse conditions.
Identify issues quickly with detailed monitoring metrics, from encoder health through first-mile network conditions.
Limelight Video Platform
AutoPlay 7.10
Features
- Playout Automation
- Workflow Process Orchestration for media content movement to video servers and other file storages
- Rundown Management
- Immediate Content Access whatever it is stored
- Automatic Files Transfers to meet Users requests and Channel Schedules
- Sophisticated Quick Search
- Manual & Automatic Media Content Archiving & Extraction
- Different Access Rights for Multiuser workflow
- Proxy Files Generation
- File Transfer Bandwidth Control
- Distributed Media Storage with quick Content Search and Access
- Advanced Embeded Cut Editor for Multiuser Network Environment
- Export XML editing projects to third party NLE systems
- Production Storage Filename Translation for NLEs
- As-Run & User activity Logs for TV Traffic management system integration
- Report Export
- Facility Monitoring and Control from any workstation on the network
- Multichannel Playout configuration with full redundancy capabilities
- Media Editing and Playout while Ingest
- Clip Quick-Cut in On-Air Rundown
- “Time-Delay” Recording, Editing&Playout
- TimeDelay Server Redundancy
- DTMF/Х31/SCTE/GPI Signal Detection&Insertion
- SCTE-104 Playout Support
- VBI in TimeDelay and Pass-Through
- Advanced Subtitling/Teletext Processing with proprietary or third party devices
- A completely New Subtitle Engine
- Proprietary .asb subtitle file format with full text formatting
- Multilingual Subtitle Support in AutoPlay Playout
- Automatic Subtitle Import and Full Logging of Subtitle Operations
- Multifeed Ingest capabilities
- Media Quality Control Option
- Broadcast Graphics Creation with Azimuth Servers or External Systems
- Integration with Carrot Broadcast CG Solutions
- Customizable Graphics Layouts
- Dynamic data manipulation (temperature sensor option, images, time/date, videos, text data)
- Digital/analog Clock Insertion
- Fill+Key Out or internal graphics DSK overlay support with Azimuth servers
- Proxy Files Preview with graphics and subtitles
- Video Processing: codecs, formats, aspect ratio conversion
- Audio Processing: normalizer (LUFS), track mapping, noise reducer, compressor/limiter
- Parallel Video and Sound Processing when Importing Media Files
- Various Studio Equipment control, inc. VTR
- Modern 64 Bit Software Architecture
- User-Friendly Intuitive Interface
EXECUTOR™ Production AIrBox
For live productions, any changes to the playlist during on-air session are possible! There are no locked clips. Every clip in the playlist can be trimmed or repositioned. Moreover, playout position can be changed on-the-fly with commands like next, jump or shuttle. Such changes are performed seamlessly without stopping current playout session.
One server can be configured with up to four independent players. Each player has separate playlist and playout control. All four SDI interfaces can be assigned as program or preview outputs. Single channel or Multichannel user interfaces are available to streamline the operation.
