Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

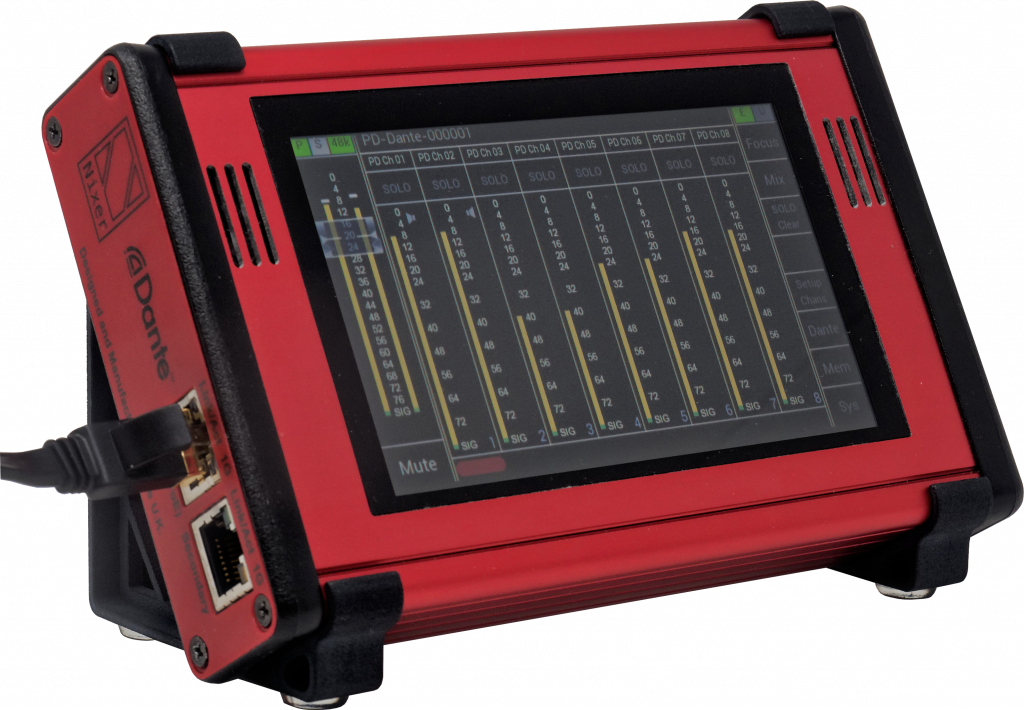

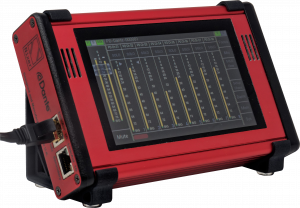

A small portable Dante unit, which allows the monitoring of up to 64 Dante channels at 48kHz (32 channels at 96kHz). The signals are presented to the user via the inbuilt speakers or the headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via the 15way D-type.The speakers and headphones have independent settings for volume, the unit recalling the last used setting for each when changing between speakers and headphones.The balanced line outputs and AES output can be configured to follow the volume settings of the speakers or headphones. Alternatively, they can be set to independent levels with individual trim controls for each.Additional inputs are available as an unbalanced stereo line input on a 3.5mm jack, AES input via the 15way D-type connector and a mic input on the headphone connector (accommodating standard mobile phone headsets)All of these inputs can be routed to any of the Dante output channels.The device is operated and controlled via the large 5.0” diagonal (127mm) 24bit colour LCD and capacitive touch panel.A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the PD Dante very quickly.The high resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.The PD Dante can be via PoE (13W) or alternatively be powered via USB (1.5A) by a computer USB port, USB mains adaptor or USB battery pack.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

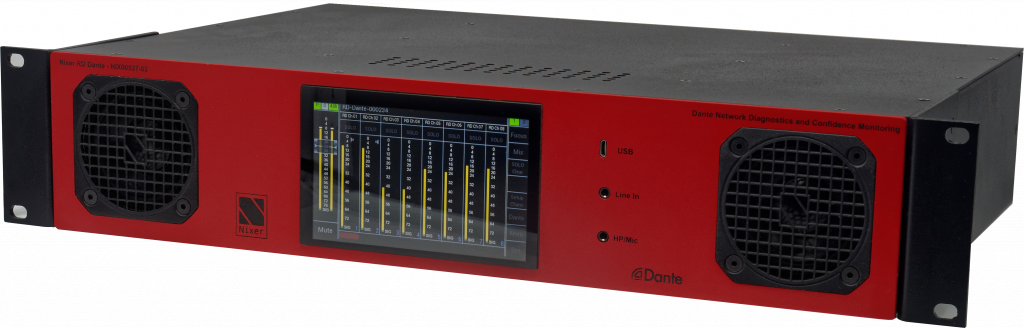

A 2U 19inch rack mounted Dante monitoring and diagnostic unit, which allows the monitoring of up to 64 Dante channels at 48kHz (32 channels at 96kHz). The signals are presented to the user via the inbuilt 75mm full range speakers which are mounted in optimised ported cabinets for a high quality sound or the via the 6.35mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RD Dante.The RD Dante is operated and controlled via the large 5.0” diagonal (127mm) 24bit colour LCD and capacitive touch panel.A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RD Dante very quickly.The high resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.Firmware updates of the RD Dante are achieved via a dedicated USB B connector on the front panel. There is also a dedicated 6.35mm jack socket for the headphone output and a 6.35mm jack socket to input a line level source such as an iPod etc.On the rear of the RD Dante there are 2x balanced line outputs on 3 pin male XLRs and AES output also on 3 pin male XLR.These outputs can be configured to follow the main volume settings of the speakers/headphones or alternatively, they can be set to independent levels with individual trim controls for each. They can also be set independently to follow the main Mute control.Additionally there is an AES input via 3 pin female XLR connector .The RD Dante has 2x IEC mains inputs (90v to 250v at 50Hz to 60Hz) which can be run individually or together for redundancy

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

A 1U 19inch rack mounted AoIP monitoring and mixing unit.4 models are available the RL64, RL128, RL192 and RL256 and each unit can be configured at time of purchase to be Dante or RavennaRL Series units allows two modes of operation a mixing mode which can mix up to 256 channels at 48kHz (128 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 259 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.The outputs of the LR bus are presented to the user via the inbuilt 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RL Series Unit. The mix output is also routed to the AoIP output.The RL Series units are operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RL Series unit very quickly.The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.Firmware updates of the RL Series unit are achieved via a dedicated USB micro AB connector on the front panel. There is also a dedicated 3.5mm jack socket for the headphone outputOn the rear of the RL Series unit there are 4x Primary and Secondary ports for up to 4x AoIP inputs. 2x balanced line outputs on 3 pin male XLRs and AES output also on 3 pin male XLR. These outputs can be configured to follow the main volume settings of the speakers/headphones or they can also be set to follow the main Mute control.Additionally, there is an AES input via 3 pin female XLR connectorThe RL Series unit can be powered via either of the two 2.5mm DC input connectors requiring 24V @ 2A. These inputs also have a screw lock to prevent accidental unplugging. Using both inputs provides redundancy.The optional NIX00629 can be used to power the RL256

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

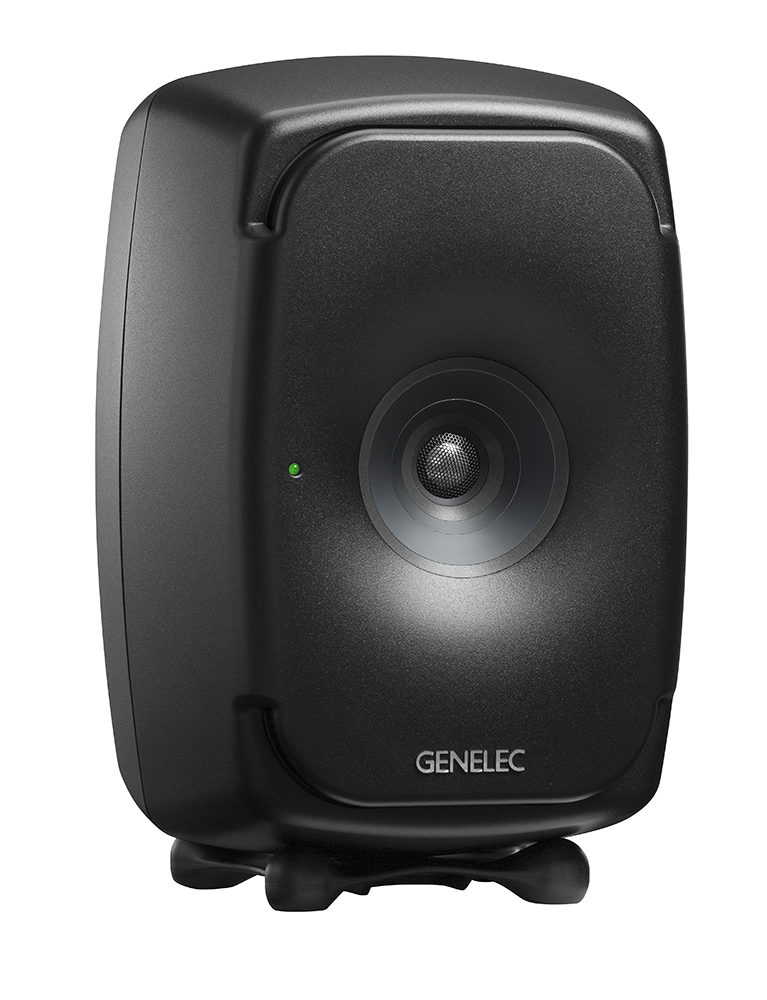

High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance.

Work faster, for longer

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging - a main contributor to listener fatigue - is minimised.

Mixes that translate

As bigger brother to the super-compact 8331A, the Genelec 8341A offers increased LF extension and a higher SPL capability, so is ideally suited to slightly longer listening distances. In conjunction with our GLM calibration software, the 8341A will also compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully - every time.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Poor quality sound is fatiguing and creates the risk of listeners tuning out. Like a dirty windshield, compromised audio quality obscures the sonic landscape. Details get lost, speech can be more difficult to comprehend, and content can suffer as a result. Omnia processing makes audio more listenable, less fatiguing, and more consistent. If you care about your Podcast content getting through to the listener, you need to care about sound quality.

As more audio is produced remotely and consumed on-demand, the challenge of consistent audio levels is becoming even greater. In fact, it is the number one complaint of podcast listeners!

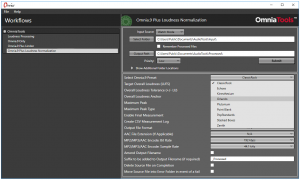

OmniaTools™ allows you to automatically manage loudness levels on all content and create your signature sound on podcasts, helping you stand out and keep your audience engaged.

This easy-to-use, enterprise-class Windows Service makes it simple to create consistent loudness for all your audio files while improving the quality of the audio.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

With a frequency response down to 15 Hz, and a maximum SPL capability in excess of 130 dB, the 7382A is Genelec's most powerful subwoofer to date.

Power and flexibility

Combining power and clarity with flexible calibration and bass management features, the 7382A is designed for use in recording studios, film mixing facilities, mastering suites, post-production houses, EDM playback and premium home theatres. With high SPL, low frequency cutoff and low distortion performance, the 7382A provides precise bass articulation even at the very lowest frequencies.

Totally optimised listening

As part of the growing Smart Active Monitoring family, the Genelec 7382A tightly integrates with GLM software, via which it can be configured, calibrated and controlled. GLM offers control of bass management, solves issues of subwoofer placement in unpredictable rooms, and even allows the creation of entire arrays of Genelec subwoofers where required. As part of a Genelec Smart Active system, the 7382A produces a totally optimised listening experience, delivering mixes that translate beautifully.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

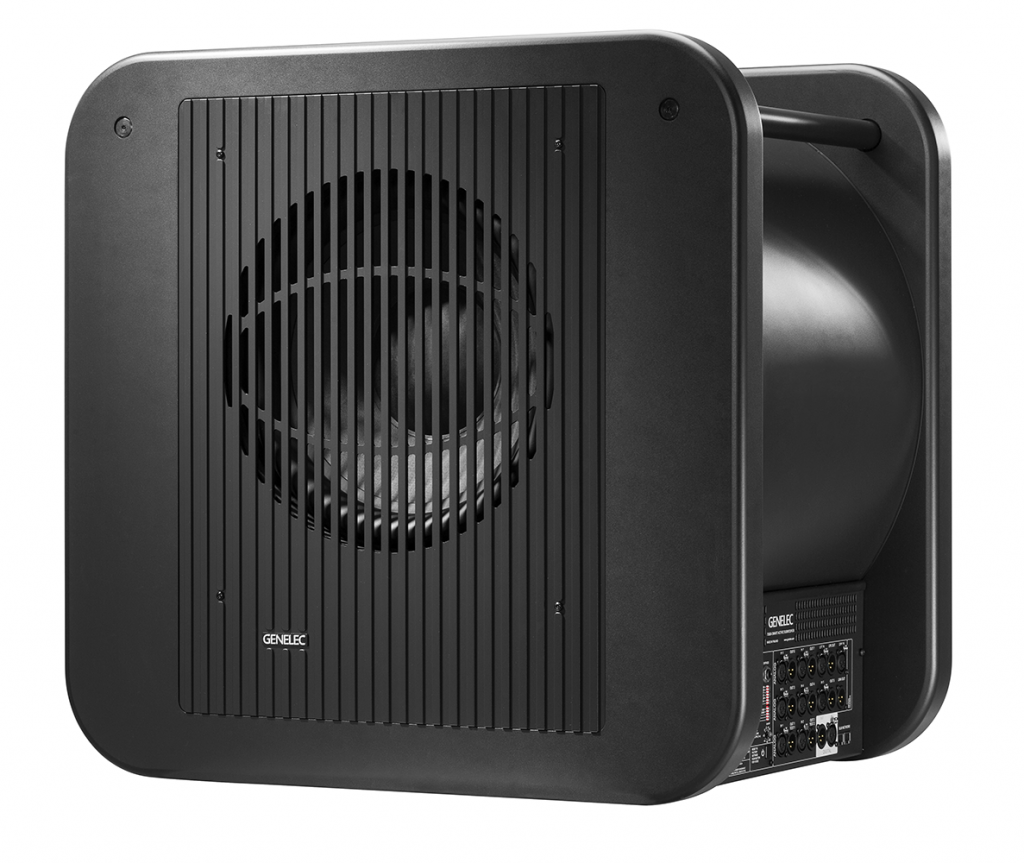

Delivering high SPL and extended LF response, the 7380A offers power, clarity and flexibility in equal measures.

High SPL, low distortion

Providing a level of performance normally associated with much larger enclosures, the 7380A subwoofer offers both high power and high SPL, with an extended low-distortion LF response and flexible bass management options. Comprehensive connectivity ensures that the 7380A is equally at home in stereo or multichannel environments, making it perfect for music, post, film or broadcast applications that demand powerful, dependable LF reproduction in a surprisingly compact form factor.

Configure, calibrate and control

The Genelec 7380A works closely with our GLM software, which allows all monitors and subwoofers in a system to be configured, calibrated and controlled. Offering access to advanced system auto-calibration and management, GLM’s powerful room compensation features enable the 7380A to be optimised for a wide range of acoustic environments, and permits both centralised and distributed bass management modes to be employed.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Created to deliver superb definition, the 7370A subwoofer intelligently adapts to your acoustic space to provide controlled, uncoloured LF reproduction.

Clean and precise

Offering more SPL and low frequency extension than our smaller smart subwoofers, the Laminar Spiral Enclosure design of the 7370A offer clean, precise performance with extremely low distortion – even at high playback levels. Created for discerning music, post and broadcast professionals, the 7370A will provide decades of reliable service in even the most demanding environments.

Low frequency that translates

The Genelec 7370A also offers onboard bass management and multi-channel connectivity, and can be configured and calibrated with our GLM software. GLM will analyse your room acoustics and intelligently adjust frequency, level, delay and crossover phase - so monitors and subwoofer integrate perfectly. This process produces a totally optimised listening experience, delivering mixes that translate beautifully.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

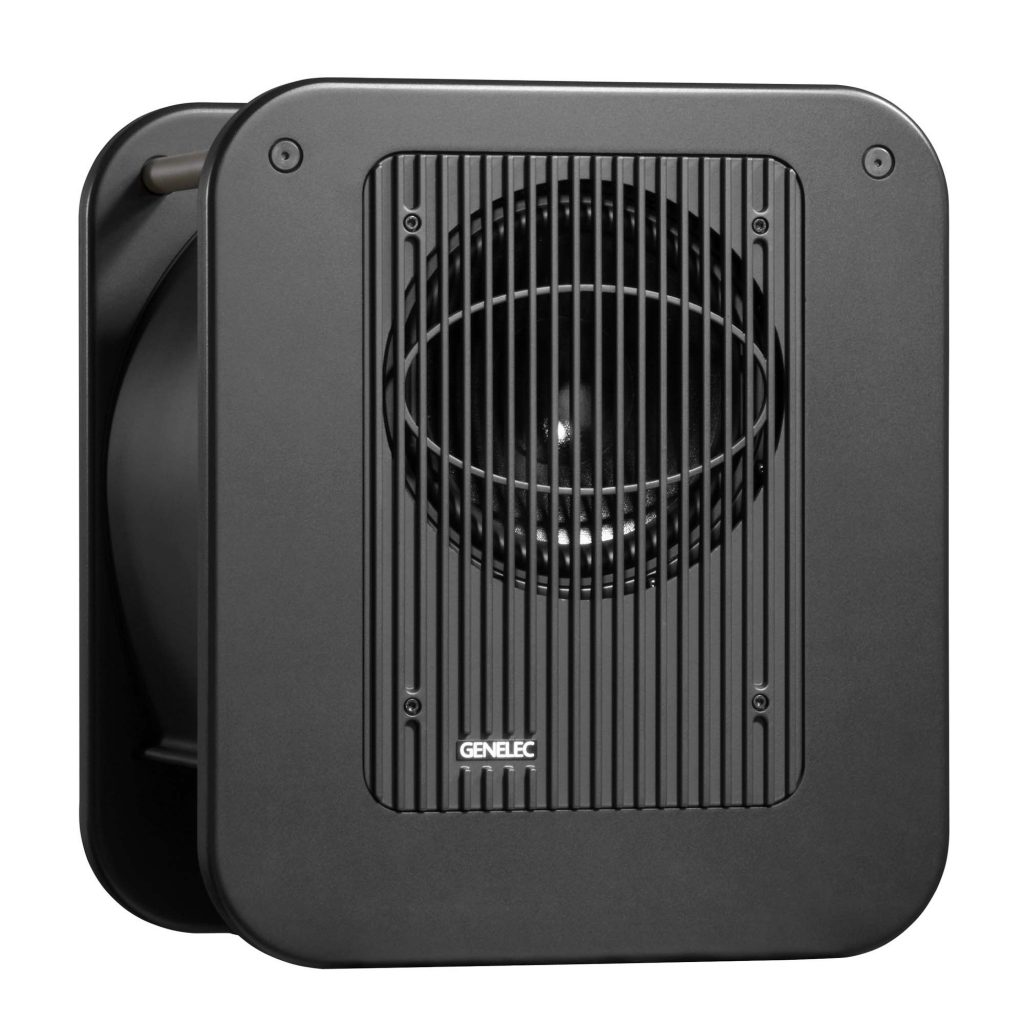

Equipped for both stereo and multi-channel audio, the 7360A intelligently adapts to your space to deliver absolute accuracy at low frequencies.

Definition and neutrality

Built upon our Laminar Spiral Enclosure technology, the compact 7360A delivers a staggering SPL of 109 dB with incredibly low distortion – producing LF performance that is clean, precise and articulate right down to 19 Hz. The ideal low frequency monitoring tool for small to mid-sized studios, post and broadcast facilities and OB vehicles, the 7360A subwoofer ensures definition and neutrality you can trust.

Optimised listening

The Genelec 7360A also offers onboard bass management and multi-channel connectivity, and can be configured and calibrated with our GLM software. GLM will analyse your room acoustics and intelligently adjust frequency, level, delay and crossover phase - so monitors and subwoofer integrate perfectly. This process produces a totally optimised listening experience, delivering mixes that translate beautifully.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

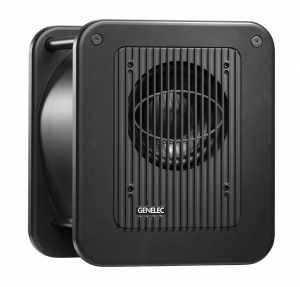

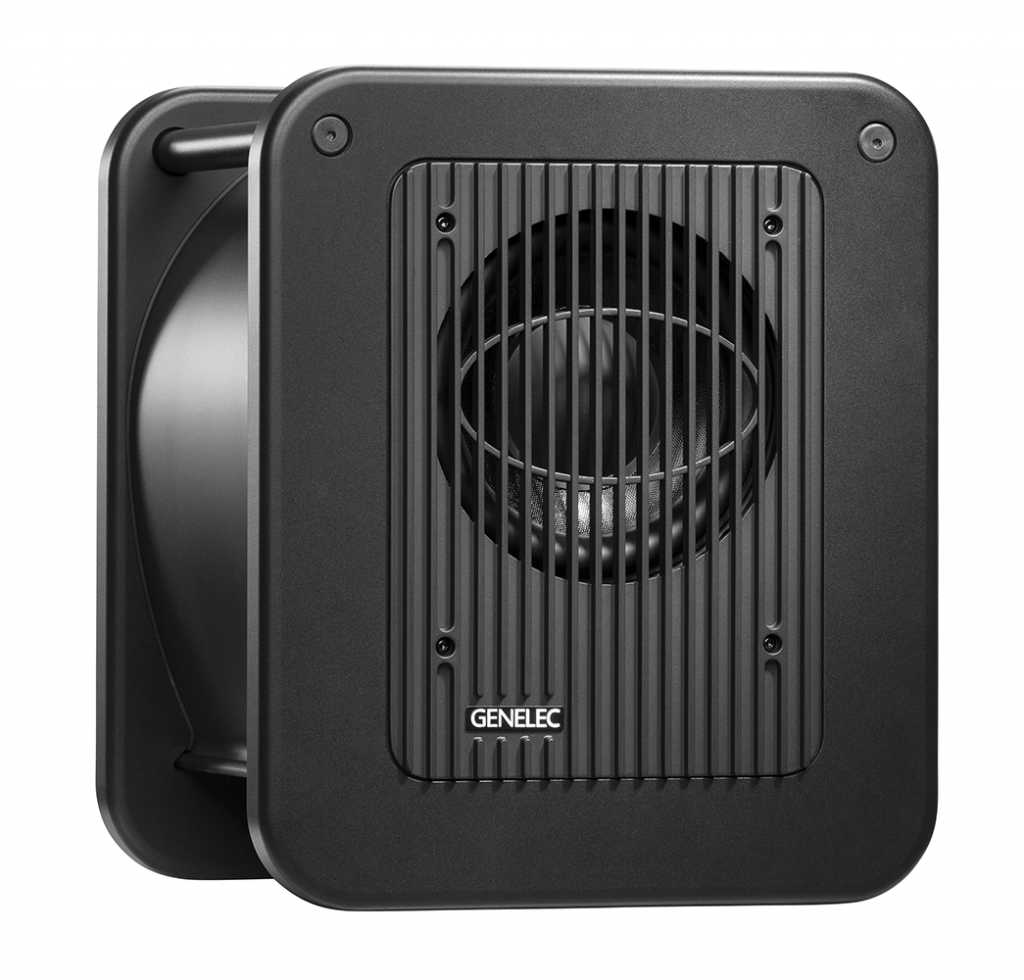

For powerful, intelligent low frequency performance in a compact package, the 7350A Smart Active subwoofer simply can’t be beaten.

Clean and precise

Designed to complement our 8320A and 8330A smart monitors, the 7350A delivers clean, precise bass reproduction that provides low frequency extension and increases the headroom of your entire monitoring system through flexible bass management. This results in well-articulated LF performance with very low distortion, while your main monitors are free to concentrate their energy on the rest of the frequency spectrum.

Perfect integration

The Genelec 7350A also works closely with our GLM software, via which it can be configured for stereo or multichannel formats. Once configured, GLM will then analyse your room acoustics and intelligently adjust frequency, level, delay and crossover phase - so monitors and subwoofer integrate perfectly. This process produces a totally optimised listening experience, delivering mixes that translate beautifully.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

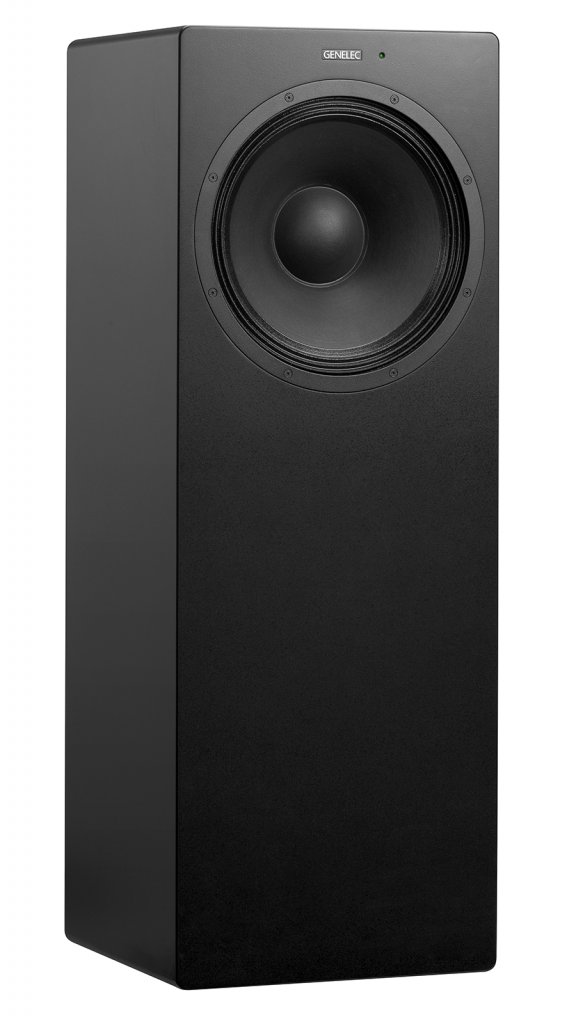

An absolute revelation in low frequency performance. With the W371A, you can finally wave goodbye to the detrimental influences of your room on LF reproduction.

Full-range, yet free-standing

The W371A seamlessly complements our 8341, 8351 and 8361 models to creates a series of full-range monitoring solutions with unrivalled neutrality and supreme control of directivity and the effects of room acoustics. Experience all the benefits of a main monitor, but with the freedom to locate this free-standing system in optimal positions within your control room; even providing the option to switch between nearfield and main monitors without image-shifting.

Flat, smooth response

The Genelec W371A tailors system performance carefully to the room, offering flatter, smoother in-room response with more coherent LF imaging. Three different operating modes allow a choice of flat and neutral LF response avoiding ‘acoustic notching’, continued directivity of the main monitor down to the lowest LF frequencies, or reduction of detrimental reflections by the walls, ceiling or floor of your room. The W371A then uses GLM software to select and optimise the signal processing for the best LF radiation mode, taking into account both the monitor location and listening position.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

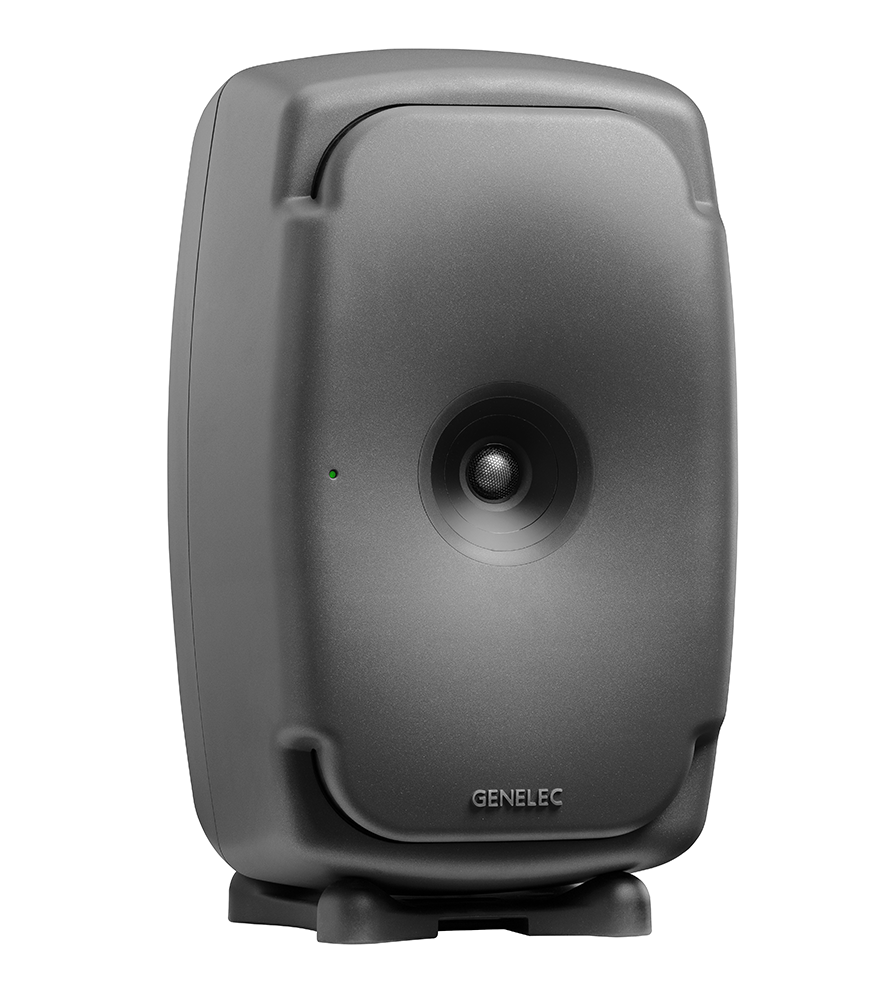

The new flagship of The Ones range, the 8361A offers the most advanced acoustic performance of any studio monitor on the planet.

An exquisite monitoring experience

The largest of our coaxial point source monitors, the 8361A offers extremely high dynamic range, unrivalled directivity and imaging and a short term SPL of 118 dB, enabling it to deliver an exquisite monitoring experience at any listening distance up to 5 metres – and therefore making it perfect for small to medium sized rooms.

Adapts to your space

The Genelec 8361A promotes faster and more consistent decision making, and also allows you to work reliably on longer sessions - because unnatural imaging, a main contributor to listener fatigue, is minimised. And by using it in conjunction with our powerful GLM calibration software, the 8361A will adapt to your acoustic space - compensating for any detrimental room influences and helping you produce mixes that translate perfectly, from stereo through to highly complex immersive formats.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

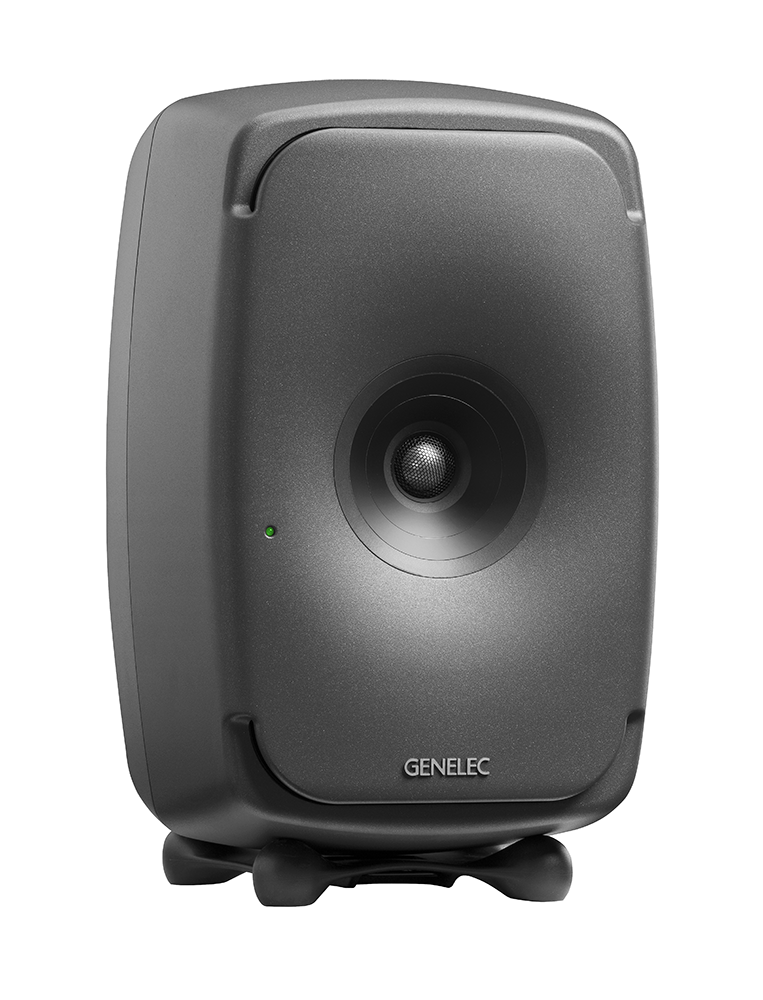

A revolution in three-way monitor design, the 8351B boasts a unique look, compact size and a performance that has to be heard to be believed.

Uncoloured precision

The upgraded 8351B now offers increased SPL, additional room compensation EQs, equalised delay and enhanced HF response. Offering the same extraordinary imaging and uncoloured precision of its smaller 8331A and 8341A siblings, the 8351B provides even greater LF extension, while its higher maximum SPL enables longer listening distances.

Work faster, for longer

The Genelec 8351B promotes faster and more consistent decision making, but also allows you to work reliably on longer sessions - because unnatural imaging, a main contributor to listener fatigue, is minimised. And in conjunction with our GLM software, it will adapt to your space and compensate for detrimental room influences. From mono to immersive, you can be confident of producing mixes that will translate beautifully to other rooms and systems.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

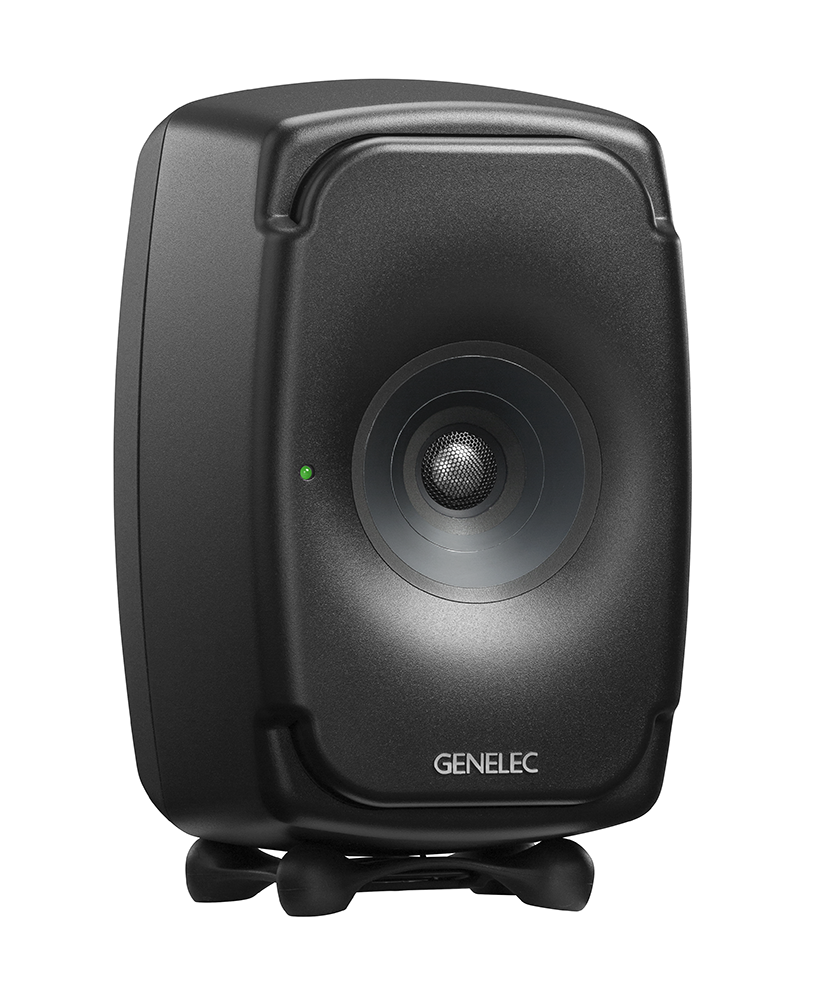

Incredible three-way point source monitor with the footprint of a compact two-way. When space and precision is of the essence, nothing even comes close.

Work faster, for longer

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging - a main contributor to listener fatigue - is minimised.

Mixes that translate

The smallest in The Ones series, the 8331A is perfect for small rooms or ultra-nearfield applications, and offers an outstanding solution where none existed before. And in conjunction with our GLM calibration software, the 8331A will compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully - every time.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

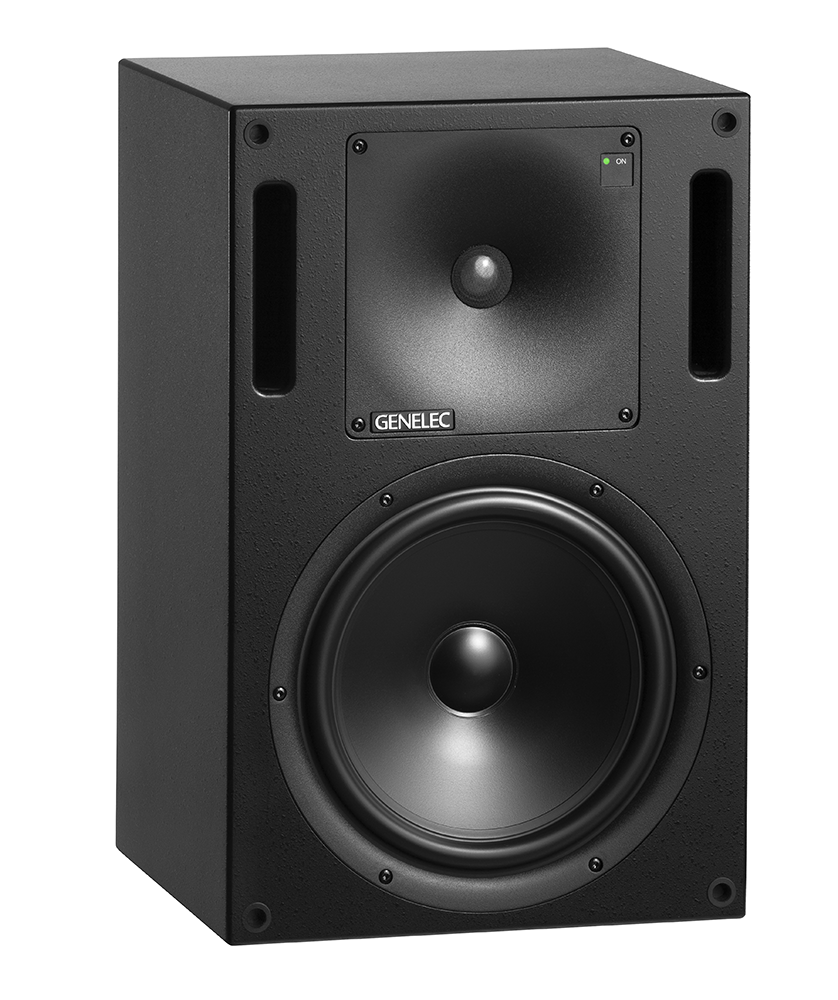

The 1032C is a high-SPL nearfield monitor that fuses the much-loved soffit-mountable styling of the iconic 1000 series with our latest Smart Active Monitoring technology.

Even higher performance

Retaining all the revered audio characteristics of the previous A and B versions, the 1032C now features digital connectivity, a universal power supply and powerful Class D amplification; enabling it to produce higher SPL and greater low frequency extension than its already powerful predecessors.

A smart classic

In addition to its trademark out-of-the-box neutrality, the Genelec 1032C now integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. This makes the 1032C is the perfect choice for professionals in high-end music production, post production and broadcast whose mixes need to translate perfectly to other rooms and systems.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

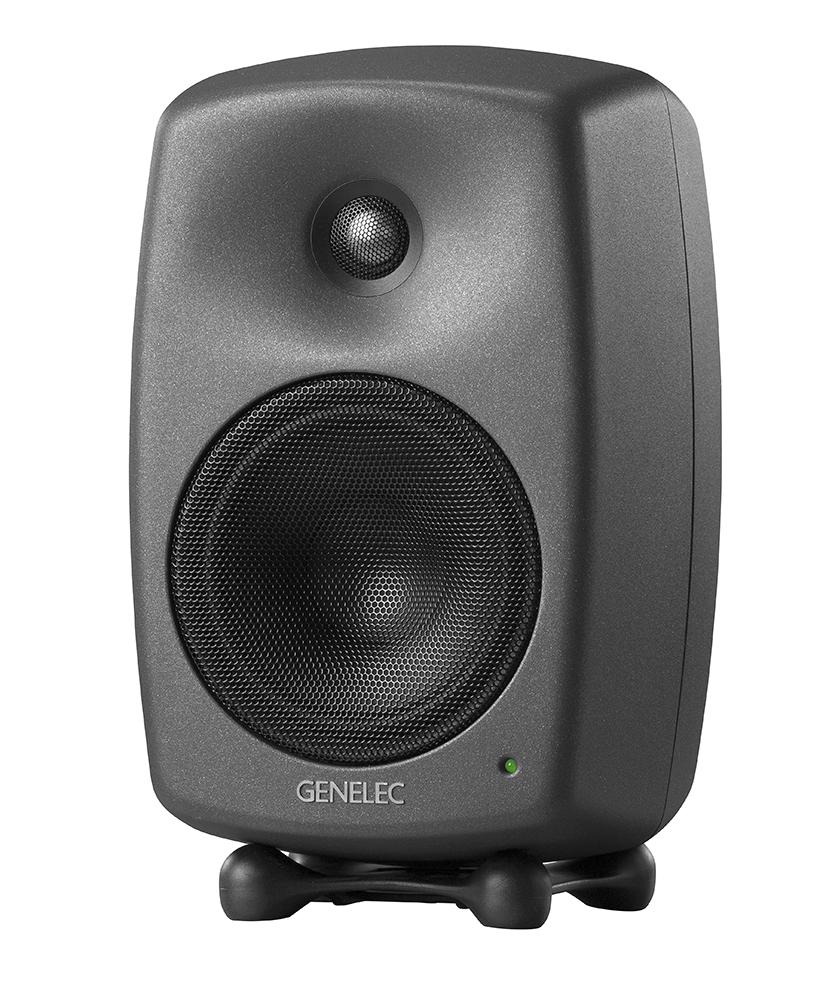

The 8430A is the world’s first AoIP studio monitor, allowing reference-quality monitor performance to integrate directly into your IP workflow.

Total compatibility

The explosion in the growth of networked audio has been huge, and the 8430A’s connectivity allows direct monitoring of AoIP streams, with all the precision and clarity that audio professionals have come to rely on from Genelec. Based on the Ravenna IP protocol, with full AES67 support for total compatibility, the 8430A is the natural choice for today’s sophisticated production environment.

Optimised listening

As a fully-fledged Smart Active Monitor, the Genelec 8430A integrates tightly with our GLM calibration software to fully optimise your IP-based monitoring set-up for your listening environment. This means you can always be confident of producing mixes that translate beautifully, even if you are working in challenging broadcast environments with only rudimentary acoustic treatment.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

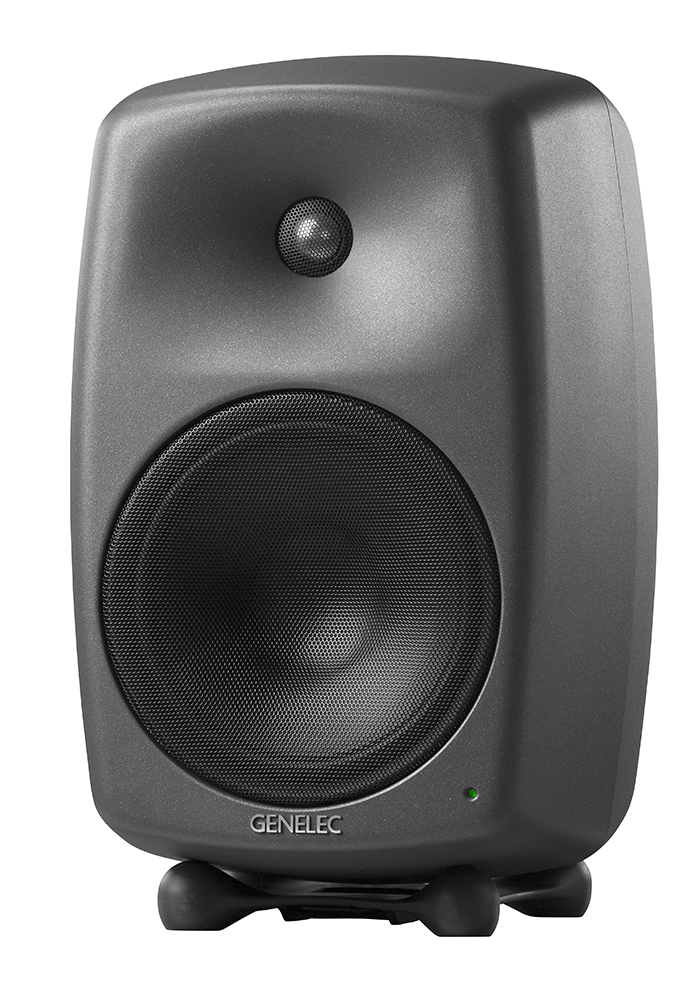

All the intelligence of Smart Active Monitoring in an extremely potent nearfield monitor. Introducing the Genelec 8350A.

Make accurate decisions

Boasting high SPL and extended frequency response, the 8350A is crafted to deliver the absolute transparency and neutrality you expect from a Genelec nearfield monitor, and will fit seamlessly into any studio or broadcast environment. With its wide uncoloured sweet spot, it promotes accurate and reliable mix decisions, and its bulletproof durability is essential for mission-critical applications.

Powerful but clever

As a Smart Active Monitor, the 8350A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the 8350A is your powerful but clever monitoring companion.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

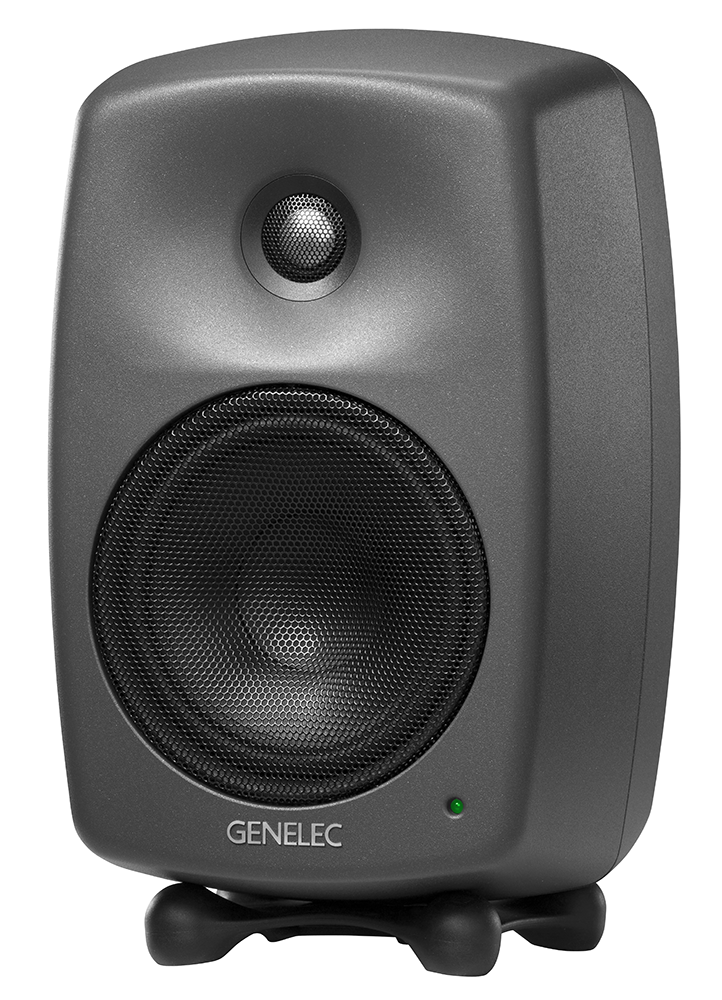

Combining precision, adaptability and a small footprint, the 8330A offers colour-free performance and powerful room compensation features.

The professional’s choice

The choice of demanding professionals for whom power and flexibility go hand-in-hand, the 8330A offers a little more SPL and LF extension than its smaller 8320A sibling. Providing transparent and truthful reproduction, the 8330A’s wide uncoloured sweet spot means you are always in a position to make accurate, reliable mix decisions.

Truly optimised monitoring

As a Smart Active Monitor, the 8330A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the Genelec 8330A is your compact but clever monitoring companion.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

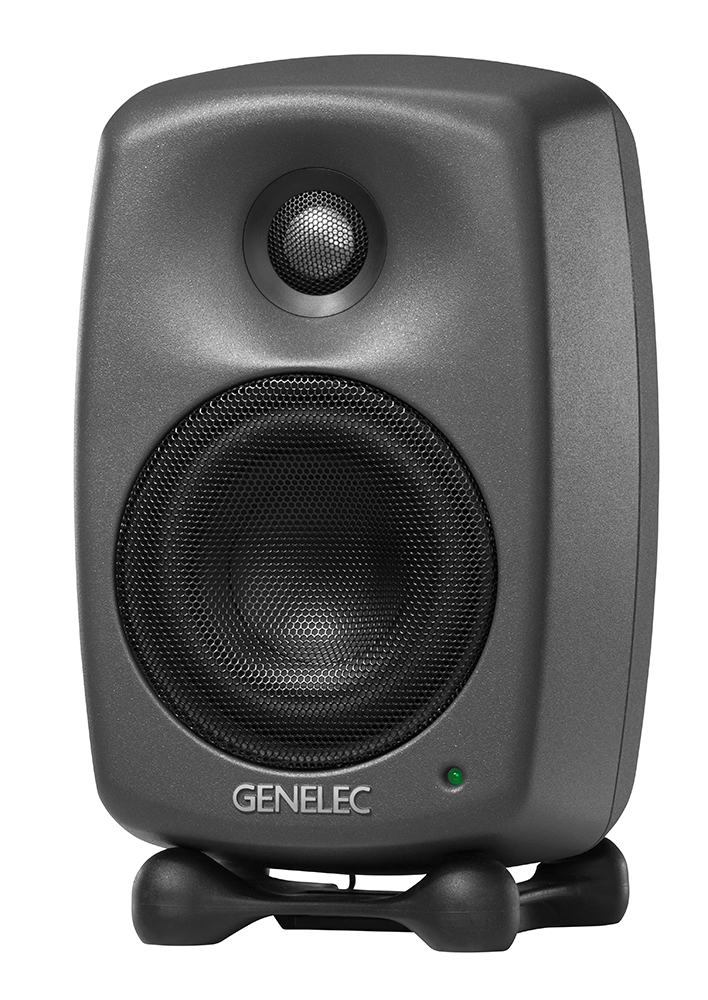

Compact enough to fit into the tightest of spaces - yet intelligent enough to adapt to your recording environment - the 8320A is your entry point into the world of Smart Active Monitoring.

Transparent and truthful

The 8320A provides transparent and truthful reproduction, and with its wide uncoloured sweet spot you are always in a position to make accurate, reliable mix decisions. The recycled aluminium design of it rear-ported enclosure not only provides staggering LF extension from such a compact unit, its curved form and integrated waveguide guarantees precise, detailed performance both on and off axis.

Compact but clever

As a Smart Active Monitor, the 8320A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So whether you work in challenging acoustic spaces or need a mobile solution that can quickly adapt to different rooms, the 8320A is your compact but clever monitoring companion.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

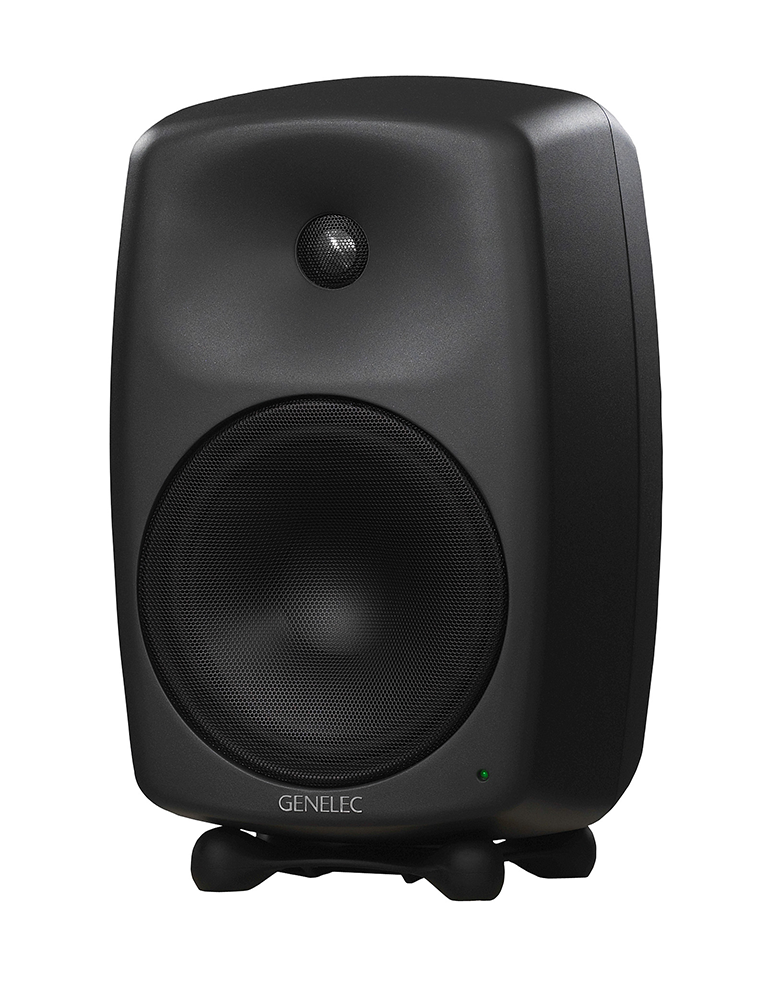

Nearfield monitoring with real muscle. The 8050B has power in abundance, making it ideally suited to larger spaces and longer listening distances.

Detail and transparency

The 8050B represents a class-leading balance of extraordinary SPL output, expansive dynamic range and an intensely detailed, transparent performance. With superb directivity and a wide sweet spot, you're free to move position and still trust what you're hearing.

Mixes that translate

With its neutral performance and ability to adapt to your room via simple rear-panel room compensation switches, the Genelec 8050B ensures a flat playback response to help you really analyse the spectral balance of a recording and produce mixes that always translate reliably.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Pristine performance

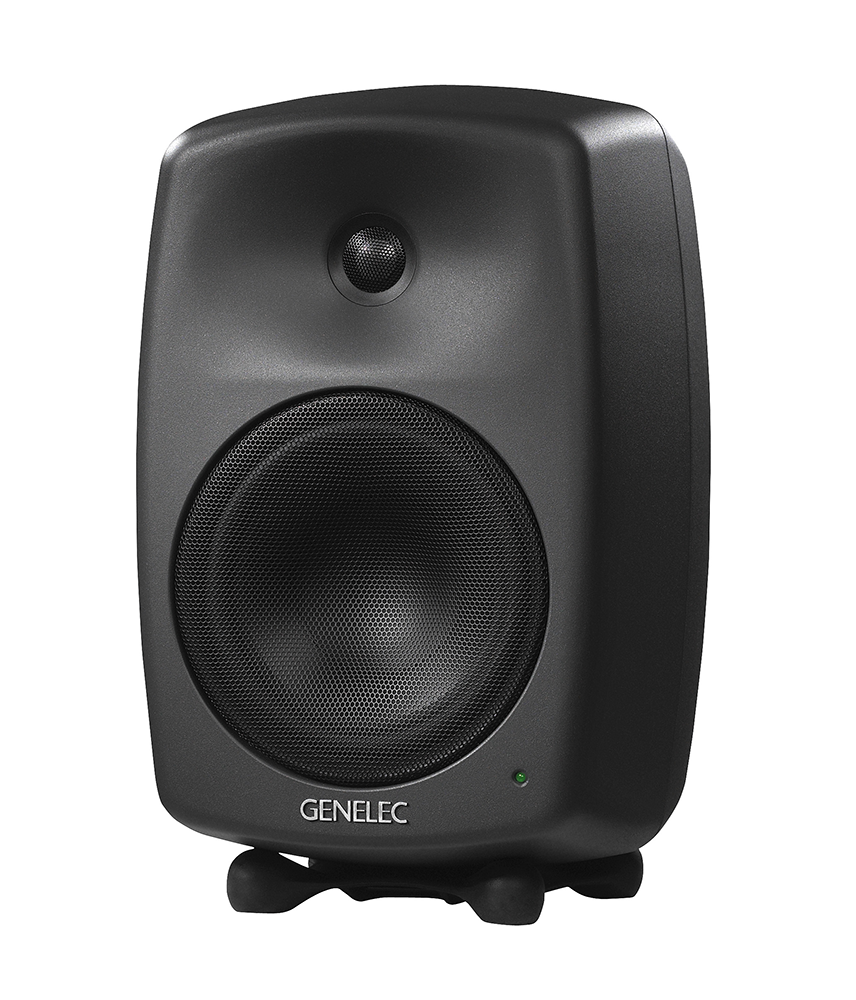

The choice of recording professionals the world over, the Genelec 8040B’s pristine performance extends to an SPL of 105 dB and reaches right down to 41 Hz. This is a nearfield monitor that can provide truthfulness and energy in equal measures.

Speed and accuracy

The 8040B’s recycled aluminium cabinet design combines transparent, uncoloured audio quality with a unique aesthetic beauty. You’ll work with speed and accuracy, producing mixes that translate beautifully. And when you’ve finished, our Intelligent Signal Sensing (ISS) circuitry will automatically switch the 8040B into a green, power-saving standby mode.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

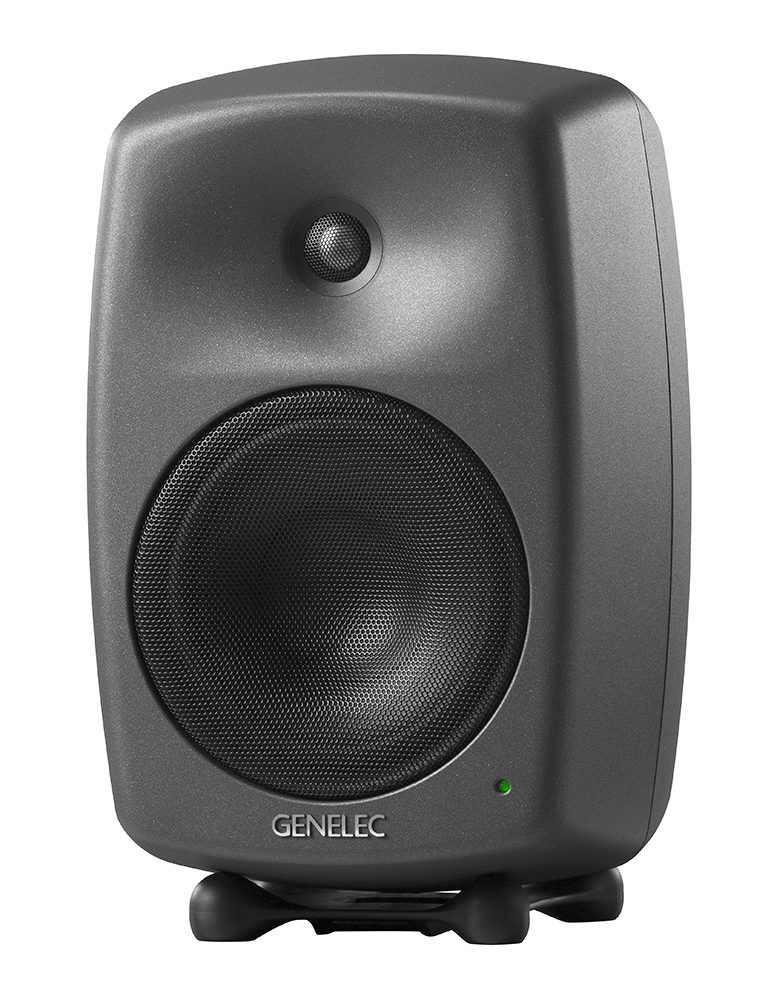

Elevate the accuracy of your audio monitoring to a new level with the precision and adaptability of the 8340A Smart Active Monitor.

The unvarnished truth

Top professionals the world over in recording studios, post-production houses, digital edit suites, radio, TV and outside broadcasting have come to rely on the unvarnished truth of the 8340A. Its wide and stable sweet spot promotes accurate, reliable mix decisions, and its bulletproof durability is essential for mission-critical applications.

Truly optimised monitoring

As a Smart Active Monitor, the 8340A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the 8340A is your powerful but clever monitoring companion.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

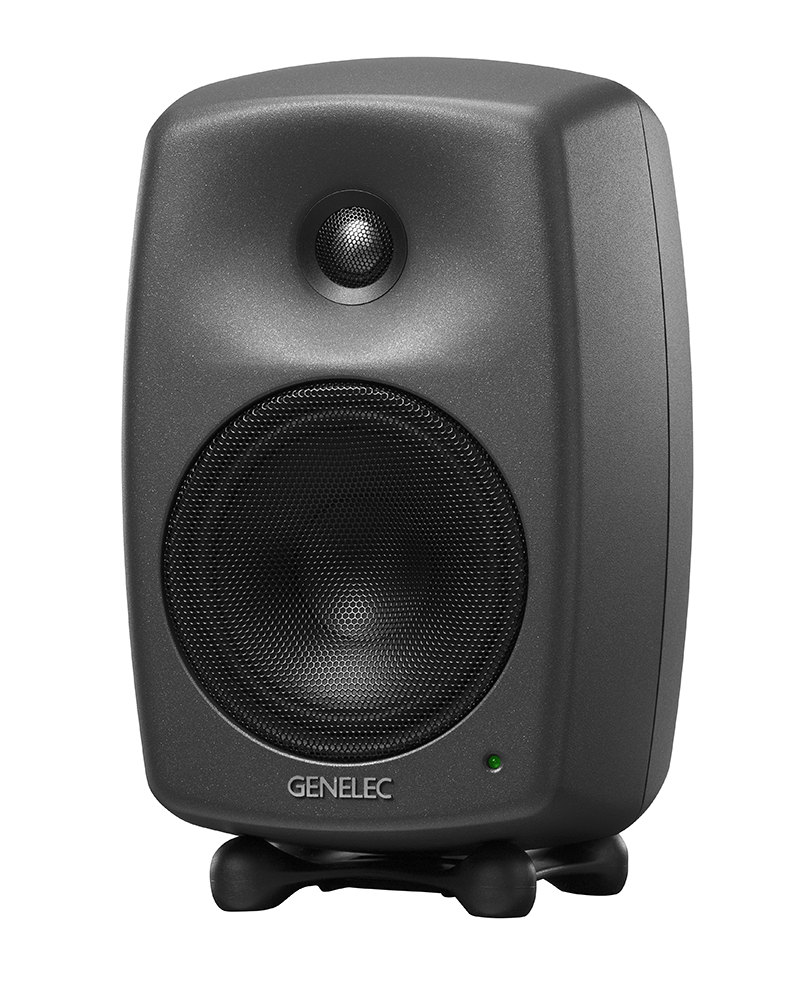

If you love the compact format of the 8010 and 8020 models but demand higher SPL and more bass extension, meet the 8030C.

Welcome to the sweet spot

A consistent best-seller, the Genelec 8030C sits in the perfect sweet spot of big monitor performance and small footprint. It offers precise imaging and staggering detail, but can go louder and lower than its smaller siblings – making it the perfect choice for slightly larger spaces.

Mixes that translate

The trademark rounded cabinet design of the 8030C delivers uncoloured reference performance both on and off axis, and rear panel room compensation switches let you optimise the 8030C for your individual room acoustics. All this helps you produce mixes that translate beautifully to other rooms and systems.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Classic design

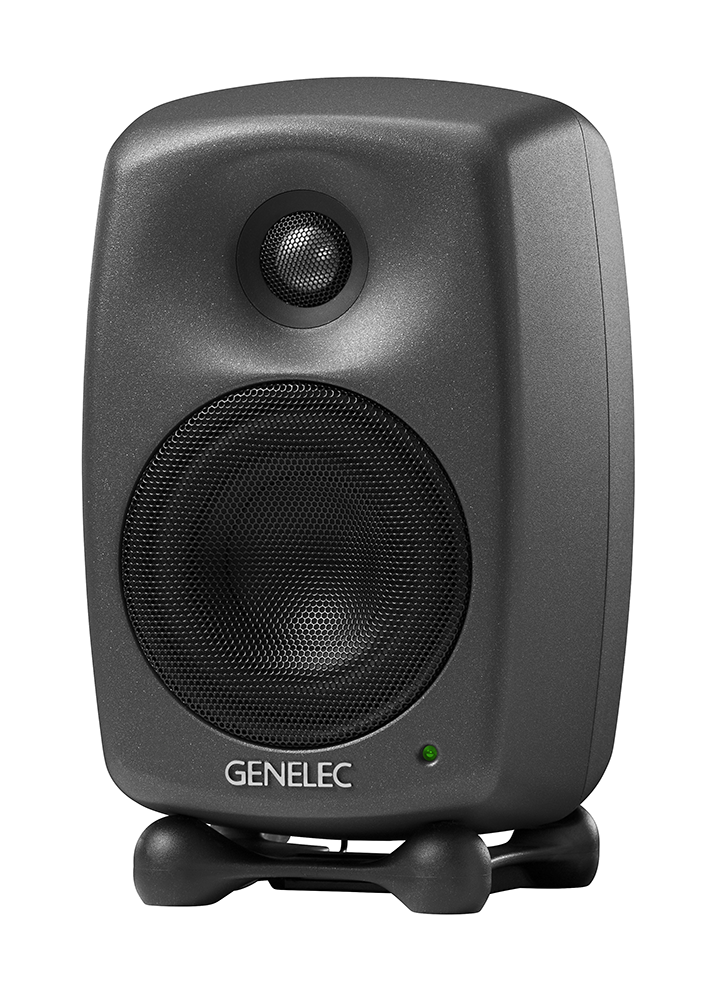

The 8020D is the latest revision of this enduring studio classic, boasting an even higher SPL yet lower energy consumption than previous versions. Designed to adapt to the broadest possible range of listening environments, the 8020D thrives when space is at a premium.

Transparent and truthful

Engineers love the transparent and truthful reproduction of the Genelec 8020D, and with its wide uncoloured sweet spot you are always in a position to make accurate, reliable mix decisions. Additionally, our Intelligent Signal Sensing (ISS™) circuitry detects when your monitor is no longer in use, placing it into an environmentally friendly, power-saving standby mode.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

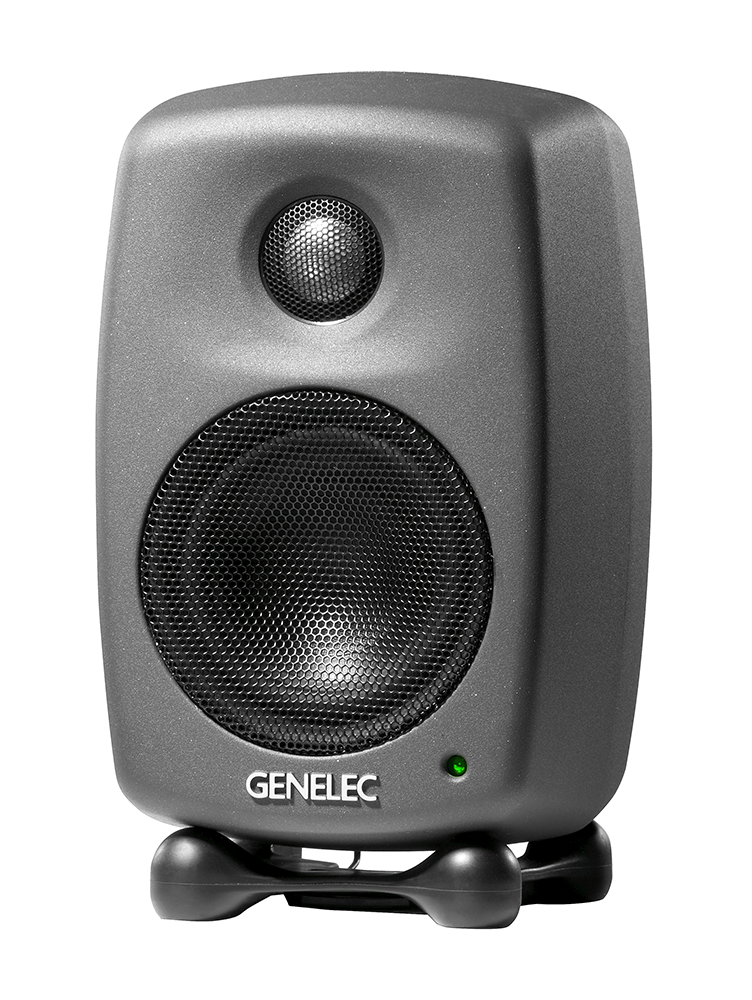

Small size, huge performance

When studio space is limited or you record on the move, the 8010A is your reliable monitoring companion. Don’t be fooled by its affordable price tag and modest dimensions, the 8010A is every bit a Genelec pro monitor: uncoloured, accurate and powerful.

Trust is everything

A combination of enclosure, driver and electronic design gives the Genelec 8010A extremely neutral characteristics and the ability to adapt to your space via simple rear panel room compensation switches. So whether you’re in a bedroom studio, hotel room or OB van, you can always trust what you’re hearing.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Orban's OPTIMOD TV 8685 surround/stereo television loudness controller builds on Orban's 30+ years experience in television audio processing to provide audibly transparent automatic loudness control and dialog intelligibility control for one surround program (up to 7.1) and four stereo programs simultaneously. The stereo processing can operate in dual-mono mode, so it can process four subchannels in stereo or eight subchannels in mono. The OPTIMOD TV 8685 is Orban's second-generation surround/2.0 processor offers standard AES3id and SD, HD-SDI (3G) input/output and audio routing capabilities that include support for optional Dolby-E encoding and decoding. Dual redundant power supplies help ensure maximum uptime where a relay provides hard-wire safety bypass from the SDI input to the SDI output in case of hardware failure. The OPTIMOD TV 8685 is dialnorm-aware. Loudness control is excellent when measured by the ITU BS.1770 standard (as specified in ATSC A/85:2013) or by the OPTIMOD TV 8685's built-in CBS Loudness Meters. When properly installed and set up, the OPTIMOD TV 8685 will automatically make a station compliant with the CALM Act or EBU R128. In stereo mode, the four stereo processors can be made pre-emphasis aware, allowing the OPTIMOD TV 8685 to be purchased for immediate use with analog transmitters with the assurance that it will provide no-compromise processing for digital transmissions when the need arises. A second use for the stereo processors is processing up to four different languages in DTV program streams.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

The new iVAM1-3 is a well featured, easy to use, competitively priced 16 channel video and audio monitor which comes standard with 3G-SDI and Analog inputs and includes Loudness measurement and phase status. License other signal formats and processing options, including AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase. With touch screen operation and three 2.4” screens, the iVAM1-3 is the perfect solution for any application that requires a compact product for simple-to-complex monitoring of an evolving range of professional signals.

Flexible.Adaptable. Future Proof

iVAM1-3 is designed to be easy to operate, providing fast access to video, meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

Features/Benefits:

• Video and audio monitoring (up to 16 channels) from multiple sources • Up to 64 presets

• 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output of selected video source on BNC + 1 pair Analog in/out on XLR

• Optional Output routing enables the flexibility to route input signals to various outputs

• Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP.

• HDMI Output of the monitored video source included

• Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards • Option cards for AoIP or an additional 8 channels of analog inputs and outputs

• Software upgradeable via USB or network

• APIs for remote management

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

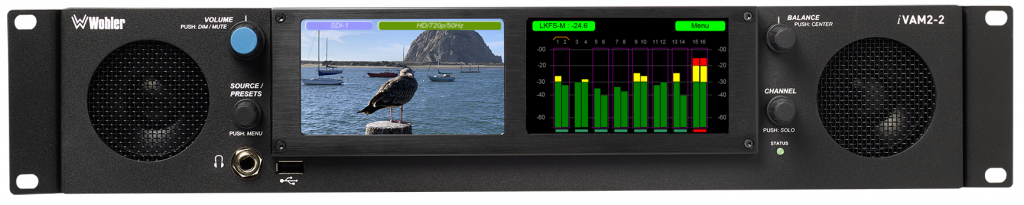

The new iVAM2-2 is a well featured, easy to use, competitively priced 16 channel video and audio monitor which comes standard with 3G-SDI and Analog inputs and includes Loudness measurement and phase status. License other signal formats and processing options, including AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase. With touch screen operation and two 4.3” screens, the iVAM2-2 is the perfect solution for any application that requires a compact product for simple-to-complex monitoring of an evolving range of professional signals. Flexible.

Adaptable. Future Proof

iVAM2-2 is designed to be easy to operate, providing fast access to video, meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7. Features/Benefits:

• Video and audio monitoring (up to 16 channels) from multiple sources • Up to 64 presets

• 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output of selected video source on BNC + 1 pair Analog in/out on XLR

• Optional Output routing enables the flexibility to route input signals to various outputs

• Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP.

• HDMI Output of the monitored video source included

• Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards • Option cards for AoIP or an additional 8 channels of analog inputs and outputs

• Software upgradeable via USB or network

• APIs for remote management

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

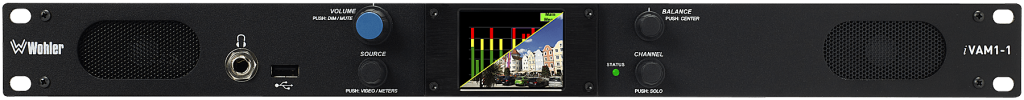

The all new iVAM1-1 represents a simple but well featured competitively priced video and audio monitor for the budget-conscious. With fast easy monitoring of audio and video, this unit comes standard with 3G-SDI and Analog inputs. License other signal formats as and when needed, either initially or after purchase.

Flexible. Adaptable. Future Proof. iVAM1-1 is designed to be easy to operate, providing fast access to either video or meters. The unit comes standard with Analog and 3G-SDI but has options for additional signals, including AES3, MADI64, SMPTE-2110 and SMPTE-2022. Touch screen front panel controls utilize previous mature design philosophies of our iAM Series products, while physical front panel controls provide access to main volume, balance, and auxiliary controls to supplement touch controls. A front mounted USB port is provided for software updates to support new and emerging technologies - the perfect solution for any application that requires a compact budget friendly unit for monitoring an evolving range of professional signals. Features/Benefits:

• Video or audio monitoring (up to 16 channels) from multiple sources

• 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output of selected source on BNC

• Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP.

• HDMI Output of the monitored video source is included as standard

• Touch screen front panel for easy, intuitive control. Toggle between audio and video

• Built-in speakers, headphone jack, USB and Ethernet ports

• SFP cage allows for additional signal formats. Dedicated MADI SFP cage included.

• Software upgradeable via USB or network.

• APIs for remote management.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Built on the SAM-Q platform, the SAM-Q-SDI brings the freedom to monitor SDI, AES and Analogue audio sources with maximum operational efficiency, offering multiple modes and up-gradable licences within one unit, ensuring that you get the most value out of your investment.

• Configured specifically to address the needs of different applications, skillets and workflows.


• Engineers and supervisors can restrict sources, modes and front panel functions to streamline operation and reduce user error.


• A feature set that can change with your requirements, including optional MADI support or Loudness Monitoring.

The latest release includes the brand-new audio phase metering mode included as standard, plus additional functions that can be purchased separately and installed as a licenses.

• Loudness Monitoring Mode - 8 independent loudness probes, providing Short-Term, Momentary and Loudness Monitoring.


• MADI License - customers will be able to Mix, Monitor and Measure up to 128 MADI sources on the SAM-Q-SDI.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

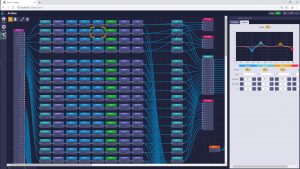

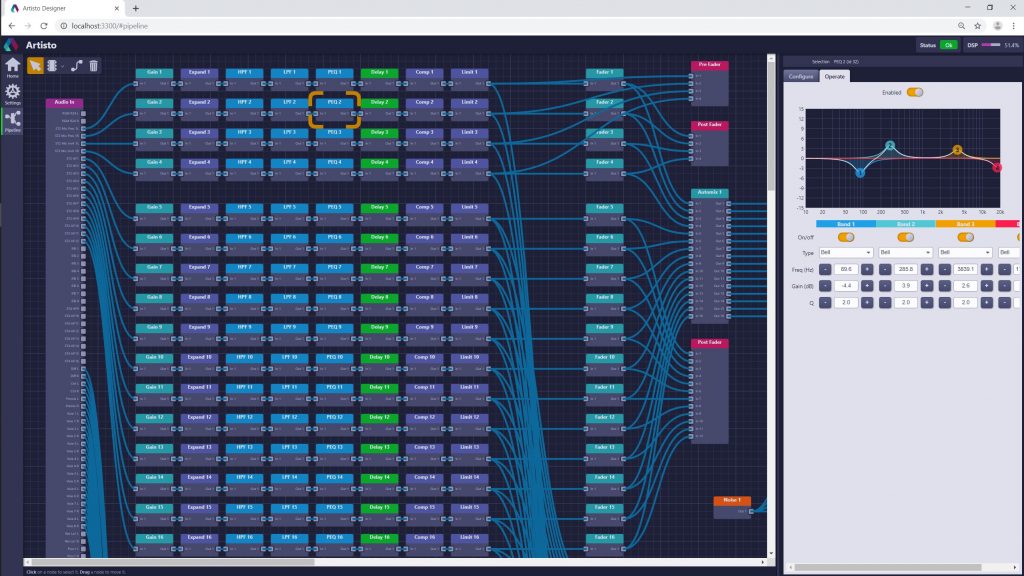

Artisto is a software audio engine, providing a complete solution for automating any workflow involving sound. From simple monitoring and detection of levels to advanced workflows for cross-platform media diffusion or virtualised remote studios, Artisto covers every processing and synchronisation need.

Because Artisto is modular, it can be precisely tailored to the specific requirements of any audio application. Artisto can be flexibly configured with an extensive library of processing blocks such as routing, EQs, dynamics, web streaming, AoIP transmission, VoIP phone, recorder, player, loudness levelling and so on. These can be virtually wired together to build a processing pipeline for the desired workflow.

Running on off-the-shelf IT equipment or in the cloud, it eliminates the frustrations inherent in complex hardware infrastructures, solves interoperability issues and dispenses with the need for outdated, insecure control protocols. Artisto responds to any transport requirements from physical or virtual soundcards (AES67, Dante, MADI,…) to low-latency audio-video streams for the cloud (including SIP).

Artisto is fully configurable and controllable via a simple, open web API. Operations can be manual or automated, centralised or distributed, local or remote.

Artisto’s front-end is based on on the most common web technologies, and On-Hertz provides a library with commonly-used components, guaranteeing that any web developer can easily build custom interfaces that fit end-users’ needs.

By design and philosophy, Artisto is scalable and open. It doesn’t lock the customer into one solution. It allows them to choose what part of Artisto they prefer to use or to connect to third-party services.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

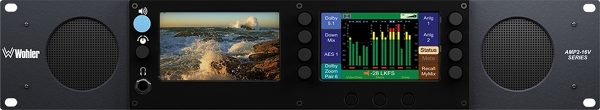

Modular 16-channel audio/ video workstation with a complete suite of tools for analyzing and managing audio quality, level and loudness, metadata, and more. Consistently one of our top sellers over the past 8 years, the AMP2-16-V has recently been upgraded to offer Dante & Ravenna options for those needing to monitor AoIP while at the same time retaining the ability to monitor traditional formats. https://www.wohler.com/product/audio-monitoring/amp2-16v-m/





Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

iAM-AUDIO is designed to be easy to operate, yet powerful enough to provide high quality, intuitive monitoring of multiple signal types within a compact form factor.  Signal options include the latest IP formats: SMPTE 2110, SMPTE 2022, RavennaTM/AES67 and DanteTM.

High-quality touch screen panels allow for elegant and intuitive control, with simple to navigate menus.  Physical front panel controls provide access to main and auxiliary volume controls to supplement touch controls, balance control and a front mounting USB port for software updates. iAM-AUDIO can be software upgraded to support new and emerging technologies and is the perfect solution for any application that requires a compact unit for monitoring an evolving range of professional signals

All iAM Series monitors are built with an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

https://www.wohler.com/product/audio-monitoring/iam-audio-1/

https://www.wohler.com/product/audio-monitoring/iam-audio-2/

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Specifically designed for fast-paced OB, studio and live-to-air production environments, iAM-MIX provides intuitive audio signal monitoring with instant access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing. Signal options include the latest IP formats: SMPTE 2110, SMPTE 2022, RavennaTM/AES67 and DanteTM

Choose from either 8 or 16 level controls, both with an independent master level control and instant mute capability and push-for-solo capability. Individual OLED display indicators show status, presence metering and channel name – which can be manually edited or automatically read from a network connected router.

Multiple units on the same network can be controlled via a browser-based user interface that supports fast configuration with role-based authentication to protect critical setups.  In short, iAM-MIX is the perfect solution for any application that requires a simple, compact solution for monitoring a range of audio signals.

https://www.wohler.com/product/audio-monitoring/iam-mix8/

https://www.wohler.com/product/audio-monitoring/iam-mix16/



Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

iAM-VIDEO is designed to be easy to operate, yet powerful enough to provide high quality, intuitive monitoring of multiple signal types within a compact form factor. It is equipped with high quality video and metering of a variety of input options including 3G/HD/SD-SDI, Analog, AES3 and MADI, with further options for IP formats including MPEG2TS, SMPTE 2022 and SMPTE 2110, RavennaTM / AES67 and DanteTM, and a growing range of additional I/O via an SFP interface.

High quality touch screen panels allow for elegant and intuitive control, with simple to navigate menus and configuration. Physical front panel controls provide access to main and auxiliary volume controls, balance control and a front mounting USB port for simple software updates. With both front mounting speakers and sub-woofers, the iAM-VIDEO provides powerful sound output and audio reproduction that adheres to Wohler’s own strict specifications.

All iAM Series monitors are built with an on-board web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with authentication that protects critical configurations from unauthorized alteration.

https://www.wohler.com/product/audio-monitoring/iam-video-2/

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

Qligent Vision is a software based monitoring solution that brings intelligent architecture, intuitive display and limitless scalability for analyzing all aspects of media service delivery from multiple sites and multiple points throughout the distribution chain for terrestrial, cable, satellite or IPTV networks. Vision aggregates all your quality and operational data into a single custom dashboard for real-time monitoring and analysis.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

The PAM Range is the leading multichannel audio and video monitoring tool. Whether you are working in traditional SDI infrastructure, transitioning to IP or building an all new-IP facility, the PAM Range is designed to maintain flexible and familiar operation and maximise efficiency.

The range includes the PAM2-MK2 and PAM1-MK2, with common features that make these units ideal for 3G/HD/SD-SDI, AES and Analogue Audio infrastructures. Meanwhile, the PAM-IP is built on an ‘IP-Ready’ chassis, and retains traditional I/O for traditional infrastructure to support a paced transition and future-proofing any investment.

The PAM-IP is the only unit in the world capable of monitoring uncompressed Video and Audio Monitoring for SMPTE 2022-6 and SMPTE 2110 networks. Regardless of the input format the PAM-IP lives up to its PAM name and offers functionality such as loudness measurement, accurate fully configurable metering and multi-channel monitoring as standard with Dolby decoding available as an optional extra.

Developed specifically to address the requirements of customers needing to monitor uncompressed SMPTE 2022-6 and SMPTE 2110 sources, the PAM-IP equipped with 2 x 10Gig/E interfaces for direct connection into COTS IP fabrics. Engineers and Operators familiar with traditional Audio Monitoring unit operation can now monitor 2022-6 and 2110 uncompressed IP sources without having to re-train or understand IP networks.

The PAM-IP also now supports Ember+ protocol for edge device control within IP networks.

Manage » Manage & Orchestrate » Data & Metadata Management » (Meta)data aggregation and management »

A comprehensive original and proxy quality 24/7 capture solution with live-multiviewer, QoS monitoring/logging/alerting and Transport Stream analytics, integrated with As-Run logs for internal air-check and ad-verification and a host of features and tools for clipping and repurposing back-to-air or OTT/Social, competition monitoring, ratings graphing, HLS packaging, and competitor-aired ad-identification with lead-list generation for sales.

Manage » Manage & Orchestrate » Data & Metadata Management » (Meta)data aggregation and management »



Equipped with the technological power of AI, Digital Nirvana’s MonitorIQ 7.0 provides new capabilities for compliance logging and monitoring. Known as the industry’s most reliable, secure, and easy-to-use broadcast monitoring and compliance logging platform that allows operators to record, store, monitor, analyze, and repurpose content quickly and efficiently with a minimum of clicks. MonitorIQ enables broadcasters to collect and use knowledge about their broadcast content to meet a wide range of regulatory and compliance requirements. Version 7 of the Digital Nirvana platform gives broadcasters access to valuable next-generation content processing and analysis tools.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

A small portable Dante unit, which allows the monitoring of up to 64 Dante channels at 48kHz (32 channels at 96kHz). The signals are presented to the user via the inbuilt speakers or the headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via the 15way D-type.The speakers and headphones have independent settings for volume, the unit recalling the last used setting for each when changing between speakers and headphones.The balanced line outputs and AES output can be configured to follow the volume settings of the speakers or headphones. Alternatively, they can be set to independent levels with individual trim controls for each.Additional inputs are available as an unbalanced stereo line input on a 3.5mm jack, AES input via the 15way D-type connector and a mic input on the headphone connector (accommodating standard mobile phone headsets)All of these inputs can be routed to any of the Dante output channels.The device is operated and controlled via the large 5.0” diagonal (127mm) 24bit colour LCD and capacitive touch panel.A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the PD Dante very quickly.The high resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.The PD Dante can be via PoE (13W) or alternatively be powered via USB (1.5A) by a computer USB port, USB mains adaptor or USB battery pack.

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

A 2U 19inch rack mounted Dante monitoring and diagnostic unit, which allows the monitoring of up to 64 Dante channels at 48kHz (32 channels at 96kHz). The signals are presented to the user via the inbuilt 75mm full range speakers which are mounted in optimised ported cabinets for a high quality sound or the via the 6.35mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RD Dante.The RD Dante is operated and controlled via the large 5.0” diagonal (127mm) 24bit colour LCD and capacitive touch panel.A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RD Dante very quickly.The high resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.Firmware updates of the RD Dante are achieved via a dedicated USB B connector on the front panel. There is also a dedicated 6.35mm jack socket for the headphone output and a 6.35mm jack socket to input a line level source such as an iPod etc.On the rear of the RD Dante there are 2x balanced line outputs on 3 pin male XLRs and AES output also on 3 pin male XLR.These outputs can be configured to follow the main volume settings of the speakers/headphones or alternatively, they can be set to independent levels with individual trim controls for each. They can also be set independently to follow the main Mute control.Additionally there is an AES input via 3 pin female XLR connector .The RD Dante has 2x IEC mains inputs (90v to 250v at 50Hz to 60Hz) which can be run individually or together for redundancy

Support » Monitoring, Control & Communications » Audio Monitoring » Audio measurement and loudness control »

A 1U 19inch rack mounted AoIP monitoring and mixing unit.4 models are available the RL64, RL128, RL192 and RL256 and each unit can be configured at time of purchase to be Dante or RavennaRL Series units allows two modes of operation a mixing mode which can mix up to 256 channels at 48kHz (128 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 259 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.The outputs of the LR bus are presented to the user via the inbuilt 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RL Series Unit. The mix output is also routed to the AoIP output.The RL Series units are operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RL Series unit very quickly.The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.Firmware updates of the RL Series unit are achieved via a dedicated USB micro AB connector on the front panel. There is also a dedicated 3.5mm jack socket for the headphone outputOn the rear of the RL Series unit there are 4x Primary and Secondary ports for up to 4x AoIP inputs. 2x balanced line outputs on 3 pin male XLRs and AES output also on 3 pin male XLR. These outputs can be configured to follow the main volume settings of the speakers/headphones or they can also be set to follow the main Mute control.Additionally, there is an AES input via 3 pin female XLR connectorThe RL Series unit can be powered via either of the two 2.5mm DC input connectors requiring 24V @ 2A. These inputs also have a screw lock to prevent accidental unplugging. Using both inputs provides redundancy.The optional NIX00629 can be used to power the RL256
