The ViaLiteHD Blue OEM 1U Chassis has been designed for operations which require RF over fiber links in the transmit or receive direction, or both. The chassis accepts up to eight Blue OEM units and is ideal for satellite news gathering (SNG) and outdoor broadcast (OB) truck operations at sporting events etc.
The chassis features a removable tray, which allows hot swappable insertion and removal of the fiber modules. Connections for fiber and coaxial cable are located at the back of the unit, making it easy to add and remove cabling for fixed or temporary installations.
Features
- 1U high chassis taking up less rack space
- Accepts up to 8 Blue OEM modules
- Dual redundant external 12 V PSU’s
- Hot swappable
- Supports 50 and 75 Ω systems
- Low power consumption
- Can be used for fixed or temporary operations
- 5-year warranty
Applications
- Broadcast facilities
- Satellite news gathering (SNG)
- Outdoor broadcast (OB) truck operations
- Television Receive-Only (TVRO)
Other products from this company:
C-Band 3.4-7.1 GHz (500 MHz –...
Connection Kits
DVB-T Fiber Optic Link
DWDM, WDM & CWDM Multiplexing
Green OEM Link
L-Band 10 MHz Diplexer
L-Band RF Splitters
Outdoor Enclosures – ODE-A4 range
Outdoor Enclosures – ODE-MINI
Rack Chassis
SNMP Monitoring & Control
UHF and VHF Fiber Optic Link
6 GHz Link
You get a 5 year warranty ensuring reliability and longevity, all without having to purchase an outdoor enclosure due to its formidable environmental durability.
- Outdoor IP55 rated
- 10 MHz to 6 GHz Link (7 GHz at 4 dB pt)
- Multi-purpose link
- Single Tx or Rx
- High output power version available
- Connectivity for module user-settings (through USB-C)
- Industry-leading SFDR (read more here)
- Supports link distances up to 50 km
- Supports 5 and 12 V LNA feed
- -20 to +60 oC operating temp
- 5-year warranty.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Blue2 Link
Spec:
- Dual Tx, Rx or Transceiver
- External PSU
- 50 or 75 ohm
- Available with 15-Way or 9-Way D Type connector
- FC/APC or SC/APC options
- Optional WDM for single fiber connection
- I²C programmable using the developer kit
- All ViaLiteHD RF bands available
- 5-year warranty
The Blue2’s compact design means it can be used in your existing equipment or easily fitted in smaller spaces. It is well used in broadcast applications.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
C-Band 3.4-7.1 GHz (500 MHz – 7.5 GHz)
The full operational range of 500 MHz – 7.5 GHz includes the ITU-R radio regulations frequency for fixed satellite – earth to space (7.075 GHz). Available as a rack chassis card or new purple OEM module.
Spec:
- C-Band 3.4 – 7.1 GHz
- Full frequency range covered by link is 500 MHz – 7.5 GHz
- No IF down conversion needed
- Up to 50 km range
- Rack chassis card or OEM module
- SNMP monitoring & control available with the rack chassis card
- 5-year warranty
The ViaLiteHD C-Band Link is suitable for Satcom, Broadcast, Weather Radar, Wireless CCTV (5 GHz products), Telemetry and Defence applications.
It is used to transport C-Band signals from dishes to:
- Ground-station control rooms
- Broadcasters in the field
- Broadcast headends
- Outdoor broadcast trucks
- Weather radar
The C-Band Link is available in two formats, each housing either the Tx or Rx module.
- Single rack chassis card
A fully populated 19” 3U ViaLiteHD rack chassis supports up to 26 links and accepts 13 RF cards, plus an SNMP card and dual power supply modules. A 1U chassis accepts three RF cards or two RF cards with an SNMP card.
- Purple OEM Module
A new purple OEM module has been designed and manufactured for C-Band Links to be built into equipment or for stand-alone use. This module is similar in outward design to ViaLite‘s Blue2 module.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Connection Kits
These 4 ViaLite kits are used to easily integrate Blue OEM Links and Blue2 Links into your existing equipment to improve performance without replacing the whole system.
The kits include:
- BNC connectors; widely used in the Broadcast market.
- Fiber adapter(s) that convert SC/PC to ST/PC, as commonly used in the Broadcast market.
- An electrical Y-cable which allows powering of the link, and additional power injection for external equipment, via the RF pin. This cable can also be used to enable the transmission of serial-data over the link
- 5 year warranty
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
DVB-T Fiber Optic Link
Spec:
- Suitable for all modulation types
- Operation independent of data format
- ViaLite's ultra-wide dynamic range means wireless cameras can roam freely without problems caused by signal variance
- Inherently low phase noise
- Suitable for almost any type of analogue or digital signal modulation including FM and QPSK
- Automatic gain control mode maintains constant power output
- 5 year warranty
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
DWDM, WDM & CWDM Multiplexing
Enabling multiple channels, travelling in either direction, to be simultaneously combined over a single fiber. Multiplex signals into existing infrastructure or the number of dark fibers being leased can be reduced; lowering costs.
Wavelength Division Multiplexing (WDM)
- Allows 2 signals to be multiplexed
- Uni- or bi-directional
- Utilizes 1310 and 1550nm lasers
- Ideal for L-Band HTS and Reference or Tx/Rx in a single fiber, in satcom and diverse antennas within broadcast applications
- High isolation between channels (90 dB RF)
Course Wavelength Division Multiplexing (CWDM)
- 2-16 channels
- Uni- or bi-directional
- RF and data on a single strand of fiber
- Reduces the number of leased fibers required – by up to 16 times
- High isolation between channels (100 dB RF)
Dense Wavelength Division Multiplexing (CWDM)
- 2-96 channels
- Uni- or bi-directional
- RF and data on a single strand of fiber
- Reduces the number of leased fibers required – by up to 96 times
- Can be part of ViaLite’s Long Distance Link
- High isolation between channels
Products are available from 1310nm/1550nm WDM, ITU compliant 16 channel CWDM and up to 96 way ITU 50 or 100MHz spacing DWDM compliant Multiplexers and Demultiplexers.
High-isolation variants are available which feature exceptional adjacent optical channel isolation. These are specifically designed to complement the wide-dynamic range of ViaLite‘s fiber optic links.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Green OEM Link
Spec:
- Single Tx or Rx
- 100 to 1000MHz
- Plug-in replacement for ViaLite Classic
- <1W (low power consumption)
- 87 x 46 x 19.6 mm with mounting plate
- For Wireless Cameras or Microphones
- 5 year warranty
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';

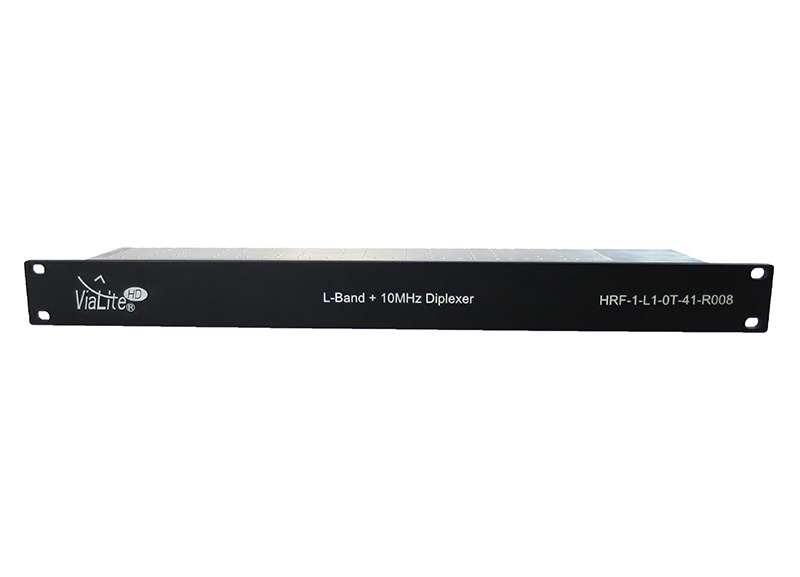

L-Band 10 MHz Diplexer
Spec:
- 50 Ohm SMA
- DC pass through
- 1 W forward power
- 1U 19” Shelf
- 1:8 Split
- Saves chassis card space
- 5-year warranty
Applications: Broadcast Teleport and VSAT broadcast operations.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
L-Band RF Splitters
Enough capacity to locally split the output from a fully populated 19” chassis. means they are ideal for broadcasters where redundancy applications need to be considered. The solution comes in two types: 50 & 75 Ohm, which are fitted with either SMA or BNC connectors accordingly.
Spec:
- 50 or 75 Ohm RF port
- DC pass through
- 700 MHz to 3 GHz range
- 10 W max forward power
- 1U 19” shelf
- 13 inputs 1:2 Split
- SMA or BNC options
Applications: Broadcast Satcom Uplinks, SNG Vehicles, VSAT broadcast operations, Master control center redundancy operations.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Outdoor Enclosures – ODE-A4 range
The enclosures have external connections and come in standard configurations for Satcom and GPS. All versions include:
- IP65 and NEMA 4 rated (weatherproof and suitable for harsh environments)
- 1-4 RF channels (Blue OEMs)
- Space for additional accessories and internal RF over fiber links
- Lightweight, small form factor
- External weatherproof fiber and power connections
- Wall and pole-mount accessories available
- Dual redundant power supplies
- AC & DC versions available
- CE approved and EMC compatible
- PSU alarm feed to indoor unit option
- Heater and solar-shield options for extreme climates
- 5-year warranty
ODEA-A4 GPS
The GPS model can be used to bring GPS/GNSS signals into buildings for time servers, base stations, test equipment or rebroadcasting. It is typically used at data centres, mines and tunnels, secure Government buildings/sensitive compartmented information facilities (SCIFs), locations without clear-sky access to GPS signals.
- Connect 1-4 GPS antennas
- Can supply 5/12 volts for GPS antenna powering
- Weatherproof N-Type RF connectors
- Quad weatherproof fiber connector for plug and play installation
- External weatherproof power connector
- Lightning protection options
View package.
ODEA-A4 VSAT
With L-Band links, the ODE-A4 VSAT is a cost-effective solution for connecting VSAT terminals remotely over fiber. Typically used by Satcom, Telemetry and Government/Defence markets where the VSAT antenna is positioned over 300 ft away from the terminal.
The enclosure is ideal for use with the ViaLite 1U Rack Chassis as a turnkey VSAT RF over fiber system.
- Houses up and down L-Band Links
- LNB and BUC power options
- Available as a Satellite IF 70-140 MHz link setup
- Weatherproof 50 Ohm N-Type RF connectors
- Optional weatherproof 75 Ohm F-Type connectors
- MTP or Quad weatherproof fiber connector for plug and play installation
- External weatherproof power connector
- Lightning protection options
View package.
ODE-A4 Quad LNB
Designed for connecting single-channel and Quad-LNBs for RF over fiber interfacility links. Typical markets include Government for receive-only applications, Satcom, TV Receive Only (TVRO) and Telemetry.
- Houses 1-4 L-Band Blue OEM transmitters
- LNB power options
- Lightweight and compact size allows for the enclosure to be fitted to the rear of the antenna
- Available as a Satellite IF 70-140 MHz link setup
- Weatherproof 50 Ohm N-Type RF connectors
- Optional weatherproof 75 Ohm F-Type connectors
- Quad or MTP weatherproof fiber connector for plug and play installation
- External weatherproof power connector
- Lightning protection options
View package.
ODE-A4 configurable
This enclosure can be configured to house any ViaLiteHD Blue OEM RF over fiber links, including: UHF/VHF 10 MHz-1 GHz, Timing & Reference, Wideband 10 MHz-3 GHz and Ultra Wideband 2 kHz-4.2 GHz depending on requirements.
- Any ViaLite RF over fiber link configuration available
- Weatherproof N-Type RF connectors
- MTP weatherproof fiber connector for plug and play installation
- External weatherproof power connector
- Lightning protection options
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Outdoor Enclosures – ODE-MINI
The new ViaLiteHD ODE-MINI is a compact and versatile outdoor enclosure with a good deal of features for its size. It can house one or two Blue or Yellow OEM Links, which can be any ViaLite RF band to 4.2 GHz, or a C-Band Link up to 7.5 GHz.
Options include: Site Controller with fully integrated SNMP, Mini Ethernet Switch and LNA/B Power. The enclosure is class leading for its size and cost.
- Smallest enclosure
- Optional Site Controller with SNMP management
- Optional 3 port mini Ethernet switch
- Quick connect quad fiber
- Optional dual redundant PSU
- 5-year warranty
The ODE-MINI is cast aluminium and has an ingress protection rating of IP65. It is lightweight and dish-mountable.
The enclosure can house:
- L-Band up and downlink
- C-Band RX or TX module (OEM format only)
- SNMP monitoring & control
- 3 port mini Ethernet switch.
The enclosure is typically installed on a rooftop or at an antenna hub, especially is restricted spaces, where RF and other services are transmitted over optical fiber to a remote equipment room.
Ideal for broadcast applications:
- L-Band version for flyaway antennas etc.
- GPS version for connection to Video Sync Pulse Generators (SPGs) or precision network timers
- Neutrik power and optical connectors for fast Outside Broadcast (OB) deployment
- Dual redundant power supply design for OB communications reliability
- IP65 rated and wide environmental specification for tough production conditions
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Rack Chassis
3U Rack Chassis
Holds up to 13 RF dual cards (up to 26 links) plus an SNMP card and two power supplies, using an integrated backplane for connectivity. All ViaLite modules are hot swappable, avoiding the need to power-down the chassis prior to swapping modules. This can be combined with blind mate connectivity and/or redundancy to ensure almost zero downtime.
3U Chassis Features
- Accepts up to 13 RF or Support cards, plus an SNMP card and dual power supplies
- Up to 26 channels per 3U chassis (using dual RF cards) – reducing the amount of rack space required
- Blind mate option
- All modules hot-swappable
- On-card LNB and BUC power options
- Power fed through rear chassis connector to card Bias Tees
- System can be monitored and controlled remotely via SNMP, using a web browser
3U Popular Configuration Example
HRK3S-DC Unpopulated 3U ViaLiteHD rack chassis with IEC power, rear alarm and concentrator connectors, and DC power source.
1U Rack Chassis
The ViaLiteHD 1U Chassis is available with 3 card slots enabling up to 6 channels in a single rack unit, or 2 card slots and an SNMP card. The chassis is available with 2 redundant power supply units and the ability to have hot-swappable blind mate modules.
1U Chassis Features
- A 1U Chassis accepts up to 3 RF or Support cards or 2 cards and an SNMP card (with dual power supplies)
- Blind mate option
- All modules hot-swappable
- On-card LNB and BUC power options
- Power fed through rear chassis connector to card Bias Tees
- System can be monitored and controlled remotely via SNMP, using a web browser
1U Popular Product Configuration
HRK1S-DC Unpopulated 1U ViaLiteHD rack chassis with rear alarm and concentrator connector, and DC power source.
Both the ViaLite 3U and 1U indoor rack chassis come with a 5-year warranty as standard.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
SNMP Monitoring & Control
Horizons allows for inter-facility control and can be multiplexed using CWDM, or used over extreme distances with DWDM. It can also be used with optical fibre to extend existing Ethernet networks from point-to-point (e.g. from a control room to the antenna in a satellite earth station) and optionally from point-to-multipoint.
ViaLite‘s Horizons SNMP Software can be used with existing ViaLite SNMP cards.
- Not Java dependent
- The HRC-3 is a direct plugin replacement for the HRC-1
- 10/100/1000 Mbps switch, 3 ports including 2 optional optical or Ethernet ports
- Faster I²C polling cycle
- Support for dual optical Ethernet configurations allowing daisy chaining or star network configurations
- Modern, easier to use, intuitive & faster graphical user interface (GUI)
- New maintenance mode allowing modifications to be carried out offline
- Real time monitoring of card performance & redundancy switching
Horizons Features and benefits continued
- New RF cards can be automatically reprogrammed with the previous card parameters
- Alarm monitoring & event logging
- Capable of managing very long distance links using Ethernet over CWDM/DWDM
- Compatible with all ViaLiteHD rack chassis, chassis cards & the Satcom6 enclosure
- Easy integration with network management systems (NMS) using management information base (MIB) tables
- Simpler software update procedure that doesn’t require an FTP server
- Standard micro-USB setup port
- 5-year warranty as standard
ViaLite Horizons GUI
Horizons is standalone software that operates on legacy SNMP product and comes built into the new SNMP Controller card.
The GUI offers a representation of ViaLiteHD modules in a connected rack chassis (3U or 1U) or the Satcom6 enclosure. It displays the operational status of the modules and power supplies, along with the voltage and temperature of the SNMP card. The built-in interface can be accessed from any standard web browser using the IP address of the SNMP network monitoring card.
Simple install
The SNMP Controller allows any user to quickly setup local and remote ViaLiteHD equipment by accessing the front panel LAN port on the card. Under normal operational conditions, the card can be permanently connected to the user’s network and the health of the ViaLiteHD system can be monitored at any time.
Management information base (MIB) tables
The open architecture of the SNMP Controller’s MIB allows management of the alarm information using any SNMP-compatible third party network management system (NMS), when connected via the local area network (LAN). The MIB is common to all ViaLiteHD SNMP products.
Summary Alarm Monitoring cards for in-rack alarms
In addition to the SNMP card which can be used for alarm monitoring via a GUI, ViaLite‘s Summary Alarm Monitoring cards can be used within rack chassis to monitor the rest of the fitted equipment. These cards are able to report alarms by front panel visual indicators, audio alarms and by the status of the card’s on-board relays – which can be used to trigger the customer’s alarm monitoring equipment.
On start-up, the Summary Alarm Monitoring card analyzes the active, populated slots within the chassis to allow for the empty slots to be ignored.
The cards monitor all chassis alarm outputs, or DIP switches are available for manual alarm screening if preferred.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
UHF and VHF Fiber Optic Link
- Negligible degradation of signals due to noise or inter-modulation
- High link reliability
- Comprehensive alarm/status monitoring
- Suitable for almost any analogue or digital signal modulation including FM and QPSK
- Highly flexible product suitable for a large number of different installations
- 5 year warranty
ViaLiteHD fiber optic links are available as rack mounted cards, small form factor modules and OEM modules.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Related Products:
UHF and VHF Fiber Optic Link
IP Virtual Card
greenMachine HDR Evie+
L-Band 10 MHz Diplexer
L-Band RF Splitters
C-Band 3.4-7.1 GHz (500 MHz –...
DVB-T Fiber Optic Link
Green OEM Link
Outdoor Enclosures – ODE-MINI
Outdoor Enclosures – ODE-A4 range
Rack Chassis
SNMP Monitoring & Control
DWDM, WDM & CWDM Multiplexing
Connection Kits
BC365
Global Media Network
Video Connect
UHF and VHF Fiber Optic Link
- Negligible degradation of signals due to noise or inter-modulation
- High link reliability
- Comprehensive alarm/status monitoring
- Suitable for almost any analogue or digital signal modulation including FM and QPSK
- Highly flexible product suitable for a large number of different installations
- 5 year warranty
ViaLiteHD fiber optic links are available as rack mounted cards, small form factor modules and OEM modules.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
6 GHz Link
You get a 5 year warranty ensuring reliability and longevity, all without having to purchase an outdoor enclosure due to its formidable environmental durability.
- Outdoor IP55 rated
- 10 MHz to 6 GHz Link (7 GHz at 4 dB pt)
- Multi-purpose link
- Single Tx or Rx
- High output power version available
- Connectivity for module user-settings (through USB-C)
- Industry-leading SFDR (read more here)
- Supports link distances up to 50 km
- Supports 5 and 12 V LNA feed
- -20 to +60 oC operating temp
- 5-year warranty.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
IP Virtual Card
Besides the well-known VideoMaster SDK dealing with the DELTACAST I/O cards and FLEX products, the DELTACAST portfolio now includes a new SDK (Software Development Kit) component called the IP Virtual Card, offering a new programming interface named VideoMaster IP.
The IP Virtual Card is a new video and multimedia programming interface allowing the use of 3rd-party computer network cards to capture and stream out video just like you are used to do over any DELTACAST card.
Designed from the ground up to allow high-performances multimedia capture and streaming using an off-the-shelf network card, the first version ofthe IP Virtual Card targets ST2110 connectivity.
The IP Virtual Card brings in support for video transport as per ST2110-20, audio transport as per ST2110-30, and ancillary data transport as per ST2110-40. It also includes a PTP synchronization solution compliant to ST2059-1. Thanks to an optimized network stack, the IP Virtual Card insures accurate, PTP locked, media streams compliant to ST2110-21 Type W senders, and it allows implementing ST2110-21 Type A receivers.
The IP Virtual Card implements an optimized network stack based on the operating system sockets, so that it is compatible with any NIC brand and model, and so that it can be used under Windows and Linux, and also targetting virtualization environments and execution in containers. For most demanding applications, the IP Virtual Card also exists in a version based on the DPDK kernel bypass.
Using the IP Virtual Card features requires installing a license. Please contact us for further details about this.
';
greenMachine HDR Evie+
The greenMachine HDR Evie+ (Enhanced Video Image Engine), 1 RU half 19” rackmount, is a real-time segmented frame-by-frame broadcast-quality High Dynamic Range (HDR) to Standard Dynamic Range (SDR) converter, with frame sync supporting formats up to 4K UHD (3840x2160). It is the world’s first system that uses the advanced algorithm for sectional dynamic tone mapping, which automatically analyzes different sections of an image in HDR stream and applies optimal corrections on a frame by frame basis in real-time. This unique capability is unlike any other solution today. It is the perfect real-time production tool for sports or any live broadcast event needing high-quality real-time HDR to SDR conversions. HDR EVIE+ fits best in the single native HDR workflow reducing the cost of equipment and manual operations.
The sectional dynamic tone mapping technique is applied to several spatial areas (sectors) in the image. In this type of tone mapping technique, the algorithm adjusts the signal by using several dynamic curves, one per image segment/sector. The algorithm then combines the result with global dynamic curves based on the entire image. While the dynamic curves of the different sectors are perfectly adapted to the respective image content of their segments, the global curve is perfectly adapted to the content of the entire image. Depending on the image content within these sectors, the algorithm reacts dynamically, which allows lights and shadows to be treated independently. Therefore, dark areas can be brightened, and the bright areas can be darkened without getting a flat gradation of the image. “
HDR EVIE+ provides a 1x 4K/UHD processing channel supporting down-conversion from HDR transfer characteristics to SDR through appropriate sectional dynamic tone mapping. It also supports the Wide Color Gamut (WCG) needs of broadcasters and professional AV live events requirements. HDR Evie+ package also includes HDR Static configuration for Static HDR SDR conversions, which performs static tone mapping to realize UP/Down/Cross conversions between HDR and SDR, suited best for the studios or the environments where the light conditions do not change dynamically.
';
L-Band 10 MHz Diplexer
Spec:
- 50 Ohm SMA
- DC pass through
- 1 W forward power
- 1U 19” Shelf
- 1:8 Split
- Saves chassis card space
- 5-year warranty
Applications: Broadcast Teleport and VSAT broadcast operations.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
L-Band RF Splitters
Enough capacity to locally split the output from a fully populated 19” chassis. means they are ideal for broadcasters where redundancy applications need to be considered. The solution comes in two types: 50 & 75 Ohm, which are fitted with either SMA or BNC connectors accordingly.
Spec:
- 50 or 75 Ohm RF port
- DC pass through
- 700 MHz to 3 GHz range
- 10 W max forward power
- 1U 19” shelf
- 13 inputs 1:2 Split
- SMA or BNC options
Applications: Broadcast Satcom Uplinks, SNG Vehicles, VSAT broadcast operations, Master control center redundancy operations.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
C-Band 3.4-7.1 GHz (500 MHz – 7.5 GHz)
The full operational range of 500 MHz – 7.5 GHz includes the ITU-R radio regulations frequency for fixed satellite – earth to space (7.075 GHz). Available as a rack chassis card or new purple OEM module.
Spec:
- C-Band 3.4 – 7.1 GHz
- Full frequency range covered by link is 500 MHz – 7.5 GHz
- No IF down conversion needed
- Up to 50 km range
- Rack chassis card or OEM module
- SNMP monitoring & control available with the rack chassis card
- 5-year warranty
The ViaLiteHD C-Band Link is suitable for Satcom, Broadcast, Weather Radar, Wireless CCTV (5 GHz products), Telemetry and Defence applications.
It is used to transport C-Band signals from dishes to:
- Ground-station control rooms
- Broadcasters in the field
- Broadcast headends
- Outdoor broadcast trucks
- Weather radar
The C-Band Link is available in two formats, each housing either the Tx or Rx module.
- Single rack chassis card
A fully populated 19” 3U ViaLiteHD rack chassis supports up to 26 links and accepts 13 RF cards, plus an SNMP card and dual power supply modules. A 1U chassis accepts three RF cards or two RF cards with an SNMP card.
- Purple OEM Module
A new purple OEM module has been designed and manufactured for C-Band Links to be built into equipment or for stand-alone use. This module is similar in outward design to ViaLite‘s Blue2 module.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
DVB-T Fiber Optic Link
Spec:
- Suitable for all modulation types
- Operation independent of data format
- ViaLite's ultra-wide dynamic range means wireless cameras can roam freely without problems caused by signal variance
- Inherently low phase noise
- Suitable for almost any type of analogue or digital signal modulation including FM and QPSK
- Automatic gain control mode maintains constant power output
- 5 year warranty
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Green OEM Link
Spec:
- Single Tx or Rx
- 100 to 1000MHz
- Plug-in replacement for ViaLite Classic
- <1W (low power consumption)
- 87 x 46 x 19.6 mm with mounting plate
- For Wireless Cameras or Microphones
- 5 year warranty
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Blue2 Link
Spec:
- Dual Tx, Rx or Transceiver
- External PSU
- 50 or 75 ohm
- Available with 15-Way or 9-Way D Type connector
- FC/APC or SC/APC options
- Optional WDM for single fiber connection
- I²C programmable using the developer kit
- All ViaLiteHD RF bands available
- 5-year warranty
The Blue2’s compact design means it can be used in your existing equipment or easily fitted in smaller spaces. It is well used in broadcast applications.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Outdoor Enclosures – ODE-MINI
The new ViaLiteHD ODE-MINI is a compact and versatile outdoor enclosure with a good deal of features for its size. It can house one or two Blue or Yellow OEM Links, which can be any ViaLite RF band to 4.2 GHz, or a C-Band Link up to 7.5 GHz.
Options include: Site Controller with fully integrated SNMP, Mini Ethernet Switch and LNA/B Power. The enclosure is class leading for its size and cost.
- Smallest enclosure
- Optional Site Controller with SNMP management
- Optional 3 port mini Ethernet switch
- Quick connect quad fiber
- Optional dual redundant PSU
- 5-year warranty
The ODE-MINI is cast aluminium and has an ingress protection rating of IP65. It is lightweight and dish-mountable.
The enclosure can house:
- L-Band up and downlink
- C-Band RX or TX module (OEM format only)
- SNMP monitoring & control
- 3 port mini Ethernet switch.
The enclosure is typically installed on a rooftop or at an antenna hub, especially is restricted spaces, where RF and other services are transmitted over optical fiber to a remote equipment room.
Ideal for broadcast applications:
- L-Band version for flyaway antennas etc.
- GPS version for connection to Video Sync Pulse Generators (SPGs) or precision network timers
- Neutrik power and optical connectors for fast Outside Broadcast (OB) deployment
- Dual redundant power supply design for OB communications reliability
- IP65 rated and wide environmental specification for tough production conditions
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Outdoor Enclosures – ODE-A4 range
The enclosures have external connections and come in standard configurations for Satcom and GPS. All versions include:
- IP65 and NEMA 4 rated (weatherproof and suitable for harsh environments)
- 1-4 RF channels (Blue OEMs)
- Space for additional accessories and internal RF over fiber links
- Lightweight, small form factor
- External weatherproof fiber and power connections
- Wall and pole-mount accessories available
- Dual redundant power supplies
- AC & DC versions available
- CE approved and EMC compatible
- PSU alarm feed to indoor unit option
- Heater and solar-shield options for extreme climates
- 5-year warranty
ODEA-A4 GPS
The GPS model can be used to bring GPS/GNSS signals into buildings for time servers, base stations, test equipment or rebroadcasting. It is typically used at data centres, mines and tunnels, secure Government buildings/sensitive compartmented information facilities (SCIFs), locations without clear-sky access to GPS signals.
- Connect 1-4 GPS antennas
- Can supply 5/12 volts for GPS antenna powering
- Weatherproof N-Type RF connectors
- Quad weatherproof fiber connector for plug and play installation
- External weatherproof power connector
- Lightning protection options
View package.
ODEA-A4 VSAT
With L-Band links, the ODE-A4 VSAT is a cost-effective solution for connecting VSAT terminals remotely over fiber. Typically used by Satcom, Telemetry and Government/Defence markets where the VSAT antenna is positioned over 300 ft away from the terminal.
The enclosure is ideal for use with the ViaLite 1U Rack Chassis as a turnkey VSAT RF over fiber system.
- Houses up and down L-Band Links
- LNB and BUC power options
- Available as a Satellite IF 70-140 MHz link setup
- Weatherproof 50 Ohm N-Type RF connectors
- Optional weatherproof 75 Ohm F-Type connectors
- MTP or Quad weatherproof fiber connector for plug and play installation
- External weatherproof power connector
- Lightning protection options
View package.
ODE-A4 Quad LNB
Designed for connecting single-channel and Quad-LNBs for RF over fiber interfacility links. Typical markets include Government for receive-only applications, Satcom, TV Receive Only (TVRO) and Telemetry.
- Houses 1-4 L-Band Blue OEM transmitters
- LNB power options
- Lightweight and compact size allows for the enclosure to be fitted to the rear of the antenna
- Available as a Satellite IF 70-140 MHz link setup
- Weatherproof 50 Ohm N-Type RF connectors
- Optional weatherproof 75 Ohm F-Type connectors
- Quad or MTP weatherproof fiber connector for plug and play installation
- External weatherproof power connector
- Lightning protection options
View package.
ODE-A4 configurable
This enclosure can be configured to house any ViaLiteHD Blue OEM RF over fiber links, including: UHF/VHF 10 MHz-1 GHz, Timing & Reference, Wideband 10 MHz-3 GHz and Ultra Wideband 2 kHz-4.2 GHz depending on requirements.
- Any ViaLite RF over fiber link configuration available
- Weatherproof N-Type RF connectors
- MTP weatherproof fiber connector for plug and play installation
- External weatherproof power connector
- Lightning protection options
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Rack Chassis
3U Rack Chassis
Holds up to 13 RF dual cards (up to 26 links) plus an SNMP card and two power supplies, using an integrated backplane for connectivity. All ViaLite modules are hot swappable, avoiding the need to power-down the chassis prior to swapping modules. This can be combined with blind mate connectivity and/or redundancy to ensure almost zero downtime.
3U Chassis Features
- Accepts up to 13 RF or Support cards, plus an SNMP card and dual power supplies
- Up to 26 channels per 3U chassis (using dual RF cards) – reducing the amount of rack space required
- Blind mate option
- All modules hot-swappable
- On-card LNB and BUC power options
- Power fed through rear chassis connector to card Bias Tees
- System can be monitored and controlled remotely via SNMP, using a web browser
3U Popular Configuration Example
HRK3S-DC Unpopulated 3U ViaLiteHD rack chassis with IEC power, rear alarm and concentrator connectors, and DC power source.
1U Rack Chassis
The ViaLiteHD 1U Chassis is available with 3 card slots enabling up to 6 channels in a single rack unit, or 2 card slots and an SNMP card. The chassis is available with 2 redundant power supply units and the ability to have hot-swappable blind mate modules.
1U Chassis Features
- A 1U Chassis accepts up to 3 RF or Support cards or 2 cards and an SNMP card (with dual power supplies)
- Blind mate option
- All modules hot-swappable
- On-card LNB and BUC power options
- Power fed through rear chassis connector to card Bias Tees
- System can be monitored and controlled remotely via SNMP, using a web browser
1U Popular Product Configuration
HRK1S-DC Unpopulated 1U ViaLiteHD rack chassis with rear alarm and concentrator connector, and DC power source.
Both the ViaLite 3U and 1U indoor rack chassis come with a 5-year warranty as standard.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
SNMP Monitoring & Control
Horizons allows for inter-facility control and can be multiplexed using CWDM, or used over extreme distances with DWDM. It can also be used with optical fibre to extend existing Ethernet networks from point-to-point (e.g. from a control room to the antenna in a satellite earth station) and optionally from point-to-multipoint.
ViaLite‘s Horizons SNMP Software can be used with existing ViaLite SNMP cards.
- Not Java dependent
- The HRC-3 is a direct plugin replacement for the HRC-1
- 10/100/1000 Mbps switch, 3 ports including 2 optional optical or Ethernet ports
- Faster I²C polling cycle
- Support for dual optical Ethernet configurations allowing daisy chaining or star network configurations
- Modern, easier to use, intuitive & faster graphical user interface (GUI)
- New maintenance mode allowing modifications to be carried out offline
- Real time monitoring of card performance & redundancy switching
Horizons Features and benefits continued
- New RF cards can be automatically reprogrammed with the previous card parameters
- Alarm monitoring & event logging
- Capable of managing very long distance links using Ethernet over CWDM/DWDM
- Compatible with all ViaLiteHD rack chassis, chassis cards & the Satcom6 enclosure
- Easy integration with network management systems (NMS) using management information base (MIB) tables
- Simpler software update procedure that doesn’t require an FTP server
- Standard micro-USB setup port
- 5-year warranty as standard
ViaLite Horizons GUI
Horizons is standalone software that operates on legacy SNMP product and comes built into the new SNMP Controller card.
The GUI offers a representation of ViaLiteHD modules in a connected rack chassis (3U or 1U) or the Satcom6 enclosure. It displays the operational status of the modules and power supplies, along with the voltage and temperature of the SNMP card. The built-in interface can be accessed from any standard web browser using the IP address of the SNMP network monitoring card.
Simple install
The SNMP Controller allows any user to quickly setup local and remote ViaLiteHD equipment by accessing the front panel LAN port on the card. Under normal operational conditions, the card can be permanently connected to the user’s network and the health of the ViaLiteHD system can be monitored at any time.
Management information base (MIB) tables
The open architecture of the SNMP Controller’s MIB allows management of the alarm information using any SNMP-compatible third party network management system (NMS), when connected via the local area network (LAN). The MIB is common to all ViaLiteHD SNMP products.
Summary Alarm Monitoring cards for in-rack alarms
In addition to the SNMP card which can be used for alarm monitoring via a GUI, ViaLite‘s Summary Alarm Monitoring cards can be used within rack chassis to monitor the rest of the fitted equipment. These cards are able to report alarms by front panel visual indicators, audio alarms and by the status of the card’s on-board relays – which can be used to trigger the customer’s alarm monitoring equipment.
On start-up, the Summary Alarm Monitoring card analyzes the active, populated slots within the chassis to allow for the empty slots to be ignored.
The cards monitor all chassis alarm outputs, or DIP switches are available for manual alarm screening if preferred.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
DWDM, WDM & CWDM Multiplexing
Enabling multiple channels, travelling in either direction, to be simultaneously combined over a single fiber. Multiplex signals into existing infrastructure or the number of dark fibers being leased can be reduced; lowering costs.
Wavelength Division Multiplexing (WDM)
- Allows 2 signals to be multiplexed
- Uni- or bi-directional
- Utilizes 1310 and 1550nm lasers
- Ideal for L-Band HTS and Reference or Tx/Rx in a single fiber, in satcom and diverse antennas within broadcast applications
- High isolation between channels (90 dB RF)
Course Wavelength Division Multiplexing (CWDM)
- 2-16 channels
- Uni- or bi-directional
- RF and data on a single strand of fiber
- Reduces the number of leased fibers required – by up to 16 times
- High isolation between channels (100 dB RF)
Dense Wavelength Division Multiplexing (CWDM)
- 2-96 channels
- Uni- or bi-directional
- RF and data on a single strand of fiber
- Reduces the number of leased fibers required – by up to 96 times
- Can be part of ViaLite’s Long Distance Link
- High isolation between channels
Products are available from 1310nm/1550nm WDM, ITU compliant 16 channel CWDM and up to 96 way ITU 50 or 100MHz spacing DWDM compliant Multiplexers and Demultiplexers.
High-isolation variants are available which feature exceptional adjacent optical channel isolation. These are specifically designed to complement the wide-dynamic range of ViaLite‘s fiber optic links.
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Connection Kits
These 4 ViaLite kits are used to easily integrate Blue OEM Links and Blue2 Links into your existing equipment to improve performance without replacing the whole system.
The kits include:
- BNC connectors; widely used in the Broadcast market.
- Fiber adapter(s) that convert SC/PC to ST/PC, as commonly used in the Broadcast market.
- An electrical Y-cable which allows powering of the link, and additional power injection for external equipment, via the RF pin. This cable can also be used to enable the transmission of serial-data over the link
- 5 year warranty
Visit the product page, using the below link, to view the datasheet and send an inquiry:
';
Evertz
Fiber Optics, CC, Multiviewers
RF Routing
Modular Products
PHASE - Serving the Brazilian Television Market since 1980
';
BC365
Dual Channel Electrical to Optical Transmitter 12G-SDI, 6G-SDI, 3G-SDI The BC365T is a transmitter card for the conversion of two independent 12G-SDI signals into fibre optical cable. Each incoming signal is auto-sensed and then equalised prior to conversion and transmission down a separate single optical fibre. All Bluebell cards are designed to retain maximum integrity of the signal path offering excellent jitter free optical transport. Each channel can operate in non-reclocking mode and handles data rates from 50 Mb/s to 12 Gb/s. The BC363 occupies a single slot in the BC100i 3RU 19″ rack-mounting frame which can hold up to 15 single slot cards. The compact BC160i 1RU is available for up to six cards. Signal and card monitoring is achieved through SNMP monitoring in the BM102i network card, or through the BM102i network monitoring webpages. For stand alone applications the BC365T can be housed in an individual rugged enclosure.
';
Global Media Network
';
Video Connect
Our video network platform is designed specifically for the optimal transport of video content and can receive and deliver signals of any format. Our expansive global reach, coupled with the ability to transport secure, broadcast-quality video over public IP, means we can reliably distribute content anywhere in the world.
CONNECT TO LEADING BROADCASTERS
GTT is located in the world’s most prominent studios, distribution head-ends, transmission facilities, teleports, public switches and data centers. We can provide direct, private and secure connectivity, ensuring the highest possible performance for your mission-critical content and services.
LOWEST LATENCY FOR LIVE VIDEO
For live interviews, remote production, or delivery to online gaming platforms, you need a high-speed, dedicated network path that you can rely on for seamless video transport. GTT owns and operates many low-latency routes, including the fastest fiber optic path between North America and Europe.
';
