Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

MediaKind's Cygnus Contribution solution enables live events to be captured reliably, cost effectively, with the highest quality and lowest latency. It supports UHD HDR, the latest IP standards, and delivers remote/ at-home production applications.

This media processing and delivery solution addresses a number of different live content contribution use cases and applications such as remote / at-home production with distinct values enabling content providers/owners, Broadcasters and TV Operators to maximize their investment whilst maintaining the quality and low latencies required for professional media delivery.



Connect »

The Intraplex® IP Link family of IP audio codecs provides high-end features at an affordable price. Offering an array of audio coding options along with IPConnect technology for data tunneling, the IP Link codecs are suitable for use in Studio-to-Transmitter Links (STLs) as well as audio contribution and distribution networks. Support for IP multicast and multiple unicast streams enables one encoder to feed multiple decoders.

By incorporating three IP Interfaces that can be used for streaming and management, the IP Link systems can provide a level of reliability not seen in comparably-priced codecs.

As the latest additions to the Intraplex line of data transport products, the IP Link family of audio codecs bring legendary Intraplex reliability to the IP codec market.

IP Link 100/100p: Single bidirectional stereo audio channel IP Link 200: Two bidirectional stereo audio channels IP Link 200A: Two bidirectional stereo audio channels with one channel being AES67 Standard: Linear, AAC-LC, Opus and G.722 audio coding Optional: AAC-HE, AAC-HEv2, AACELD, MPEG2, MPEG3 and Enhanced aptX audio coding Optional: Automatic audio loudness leveling and metering compliant with EBU R-128 and ITU-R Optional: IPConnect capability to reliably transport external IP packets Other transport modes: Transparent AES up to 192 kbps to support composite FM multiplex signal over AES Protocol Encapsulation: RTP, SHOUTcast/Icecast, MPEG-TS Three independent IP interfaces for redundant network operation Optional redundant power supply: 12VDC or 48VDC Built-in silence sensor with optional stream switch over Automatic backup to audio playout from USB drive or external audio source Multicoding can encode the same audio source in multiple formats for STL, backup, and web streaming Optional Dynamic Stream Splicing providing “hitless” operation and T1/ E1 circuit like performance on less predictable IP networks Prioritized stream sources at the output with automatic switch over and switch back between primary and secondary streams and backup sources (streams, USB, external audio source) Programmable RTP level Forward Error Correction (FEC) scheme Programmable time diversity and interleaving of streams to combat burst packet losses Integrated with Intraplex IP Link Scheduler for automated scheduled program switching Integrated with Intraplex LiveLook (network analytics and monitoring software) N+1 redundancy with integrated control of external switching equipment IP Link 200/200A/100p: SynchroCast™ option provides dynamically managed precision delay for Single Frequency Network (SFN) broadcasting and simulcasting Support for IP multicast and multi-unicast Web browser user interface and SNMP network management Eight multipurpose contact closure inputs and outputs provide: Transport of logic signals with time-alignment to audio Stream control Alarm notification

Connect » Provide Connectivity » Access Connectivity »

The next generation of digital STL
Our challenge: to design a studio-to-transmitter link (STL) for your most demanding 950 MHz applications — one as reliable and robust as Intraplex® T1 and IP audio links. Digital STL manages much more than audio, so installation and configuration need to be straightforward, not a science project. Data should not be optional, requiring additional boxes and complexity. Your STL should be ready, out of the box, for AM, FM and HD Radio™, as well as future multimedia applications.

Earlier digital STLs were not designed for IP data transport. Adding IP data to them required optional modules and external add-ons, and many engineers working on HD Radio installations reported spending much time and money trying to eliminate glitches.

Our solution: HD Link™ is designed to manage all HD Radio™ transport scenarios, regardless of where you place your importer and exporter. Its two prioritized Ethernet paths give preference to HD Radio™ data over control and other LAN/WAN data. It supports both UDP and TCP, and even handles the switching of TCP return packets over asymmetric IP paths with plug-and-play simplicity.

HD Link offers RF power to spare, an integrated IP gateway with sophisticated data handling capabilities, and multiple channels of audio. The intuitive front panel and remote interfaces tap into the most complete feature set of any microwave STL, yet take less time to configure. It can even operate on both RF and IP simultaneously, and allows automatic backup of all services from one to the other.

Intraplex is broadcasting’s first choice for rock-solid, full-time operation of T1 STLs. With HD Link, you can now count on the same dependable performance, superior support and long-term value for your microwave links.

Publish » Content Protection » Content Protection & Encryption » CAS, encryption, DRM »

The X Platform is a high-capacity, versatile, ultra-low latency platform for high-speed video networking, enhanced IP security and advanced compression for the remote production, contribution and distribution markets.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

AMD Zynq™ UltraScale+™ MPSoC devices provide 64-bit processor scalability while combining real-time control with soft and hard engines for graphics, video, waveform, and packet processing. Built on a common real-time processor and programmable logic equipped platform, three distinct variants include dual application processor (CG) devices, quad application processor and GPU (EG) devices, and video codec (EV) devices.

The Zynq UltraScale+ MPSoC EV devices are particularly suited to a wide range of broadcast and media applications, from camera encoding to mobile wireless video systems, and contribution IRDs to live streaming encoders:

• Configurable and dynamically adjustable codec


• Integrate with a wide portfolio of AMD and partner IP cores such as 12G-SDI, ST 2110, IPMX, NDI, Dante AV Ultra, HDMI, DisplayPort etc.


• Up to 4K60 4:2:2 10-bit H.264/H.265 simultaneous encode + decode


• Multichannel support up to 4K60 (e.g. 2x 1080p60 or 4x 1080p30...)


• Ultra-low-latency mode of <35ms glass-to-glass


• Total device power for a single pipeline as low as 8.5W





Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

In video production and contribution, V-Nova’s VC-6 (SMPTE ST 2117) encoding processing efficiency enables up to 70% cost savings per channel, while at the same time unlocking the promises of low-latency UHD sports contribution, HDR, remote production, IP production and software-defined workflows, including virtualisation and cloud.

Manage » Prepare » Content Services » Content management and preparation services »



Accelerate the development of your streaming application with the world's most extensible, configurable streaming engine and video media server.



Designed for Builders:

• Outbound video: Develop a customized, configurable live streaming and VOD experience, scalable to large audiences


• Inbound video: Ingest thousands of streams from cameras and route streams to multiple destinations


• Comprehensive APIs and SDKs to quickly build your video solution


• Developer resources and tools accelerate time to value


• Pre-built or custom modules extend software capabilities

Flexible Deployment:

• Run software on-prem, in a private cloud, or extend with Wowza's hybrid-cloud services for CDN, video player, and advanced analytics


• Browser-based real-time communication via WebRTC


• Choose from a variety of features, including VR, captioning, ad insertion, and more


• Select DRM and other security features that fit your specific use case requirements

For Scalable, Reliable and High-Quality Video Streams:

• Manage video at scale and evolve as your audience scales up by adding stand-alone instances, clusters, and edge servers


• High-quality, low-latency video with secure reliable transport (SRT)


• Low-latency HLS and DASH for speedy streaming at scale

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

Ultra-low latency, HD bi-directional live encoder/decoder. Transmit & receive live audio/video or audio only in real-time, with full duplex audio.

Receive from any Quicklink studio contributor – ST500, ST150, ST100, iOS App or chrome browser for broadcast output via HD-SDI, HDMI and IP (NDI™, MPEG-TS). The ST100, ST102, ST208 & ST200 are an essential element in any point-to-point broadcast solution where ultra-low latency and high quality links are required. Ideal for networking studios and bureaus together.

• 265/HEVC equivalent utilising VP9


• Simultaneous encode and decode in point-to-point or relay mode


• 200ms glass-to-glass delay


• Rate adaptive up to 1080p60 30Mbps


• Supports HD-SDI, HDMI, IP inputs and outputs


• Full duplex audio, no audio ducking


• 2 Channels of audio with one channel available as talkback from the ST100/ST200 to the contributor


• Audio I/O: XLR analogue, AES digital and AES67 IP


• Deployable on both private and public networks


• No public IP required with inbuilt NAT traversing


• Automatic failover between network connections for maximum up-time


• Create permanent video circuits – Automatic link recovery in case of power outage


• Simple central management from a web browser


• OEM options for customisation

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

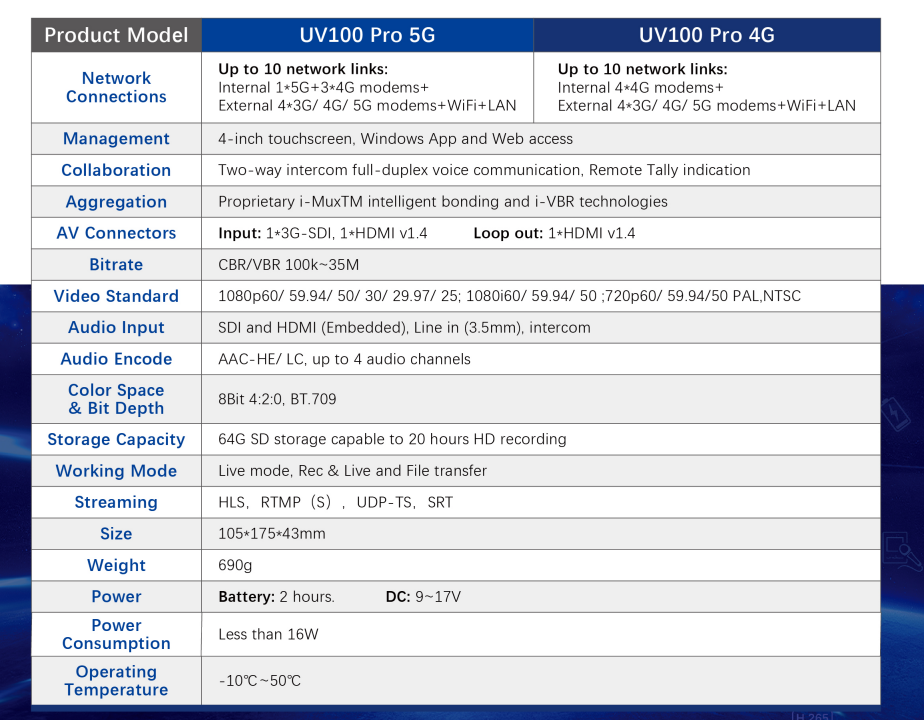

UV100 Pro portable HD bonding encoder is a compact HD audio and video live broadcasting terminal of UNIVISO live broadcasting product family with low power consumption and low time delay. It integrates broadcast grade HEVC/AVC video compression algorithm and intelligent multi-link aggregation technology up to ten aggregations. It can be integrated with the cold shoe camera mount or beltpack carry-on.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

TITAN Edge Encoder is a multi-channels mo- dular encoder, baseband as SDIoIP input, to any outputs, providing pristine video quality at low-latency profile.

TITAN Edge Encoder is the high-density contribution solution for 4K and HD in HEVC 4:2:2 12 bits as in H264 4:2:2 10 bits.

Based on TITAN’s software modular suite and leveraging full COTS approach, TITAN Edge is a versatile solution for operations running on-premises, off-premises or a com- bination of the two: 4K, multi HD encode, Low Laten-cy, IP/ASI/Modulator output.

Implementing state-of-the-art SMPTE 2022/2110 standards, TITAN Edge Encoder is the first professional cloud native low laten- cy solution enabling full IP video operations in the cloud.

In addition, TITAN Edge Encoder features interfaces to standard PCIe boards to sup- port any type of use-case and build the most adapted and efficient solution for on-pre- mises contribution.

Key Features

• SD/HD/UHD HEVC, H264, MPEG2


• Scalability to UHD 12-bit 4:2:2 codec solution


• BISS-CA encryption system support


• Low latency mode


• Confidence Audio / Video input monitoring


• Encoded, transcoded & remuxed output


• SMPTE 2110 & JPEG-XS Input


• On-premises/off-premises solution


• Contribution over Internet support



Download the datasheet: https://www.ateme.com/product-titan-software/#resources

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

TITAN Edge Decoder is a multi-channels/multi-CODEC IRD, with easy setup, fast signal lock and industry-grade input support.

Based on TITAN’s software modular suite and leveraging full COTS approach, TITAN Edge is a versatile solution for operations running on-premises, off-premises or a combination of the two: High HD density, 4K, Satellite/ Terrestrial/IP reception, Over-the-Air or scrambled sources, Gateway, IP Turnaround.

Implementing state-of-the-art SMPTE 2022/2110 standards, TITAN Edge Decoder is the first professional cloud native low laten-cy solution enabling full IP video operations in the cloud.

In addition, TITAN Edge Decoder features interfaces to standard PCIe boards to sup-port any type of use-case and build the most adapted and efficient solution for on-pre-mises reception.

The TITAN Edge Decoder features advanced ARQ solutions with failover of any input type to be descrambled, decoded or forwarded to any output type making it a comprehensive solution to contribute from/to the cloud.

Key Features

• SD/HD/UHD HEVC, H264, MPEG2, J2K


• Decoding up to UHD 4:2:2 12-bit


• BISS-CA decryption system support


• Low latency mode


• Confidence Audio / Video input monitoring


• DVB-Common Interface option


• Decoder output up to 12G-SDI


• SMPTE 2110 & JPEG-XS Output


• HDR/LUT conversions


• Contribution over Internet support


• On-premises/off-premises solution



Download the datasheet: https://www.ateme.com/product-titan-software/#resources

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

The KYRION CM5000e encoder is designed for contribution over satellite, IP, and ASI networks. Besides ensuring ultra-fast boot, it also enables high-quality OTT delivery, with ABR output and integrated Automatic Repeat reQuest (ARQ).

A future-proof solution, KYRION CM5000e enables you to start small and add extra features as your requirements grow: SD to HD to UHD, MPEG-2 to H.264 to HEVC.

Whether you need a single- or a dual-channel encoder, KYRION CM5000e meets your needs. You can add extensions such as the DVB-S/S2x modulator or SFP interfaces for SDI over IP with 2110 support. Audio boards for analog or digital inputs can be inserted on two extension slots.

KYRION CM5000e is based on the sixth generation of the Ateme compression engine, delivering the highest video quality at minimum bitrates with ultra-low latency.

The front panel and web-based user interface of KYRION CM5000e provide quick access to configuration menus and immediate settings, ensuring a super-fast boot.

Key Features

• SD/HD/UHD HEVC, H.264, MPEG-2 up to 2160p60, 12-bit 4:2:2


• Ultra-low latency mode


• Confidence audio/video input monitoring


• Daisy-chain services re-multiplexing


• Contribution over Internet streaming


• FEC Pro MPEG and BISS — 0/1/E (with EBU-R139)


• BISS-CA encryption system support



Download the datasheet: https://www.ateme.com/product-titan-software/#resources

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

Designed for the network edge as a reconfigurable, versatile IP media migration gateway, Xscend transports up to 128 high-quality media and data services across both managed and unmanaged (open internet) networks.

Its adaptable, media-tuned architecture supports software-defined upgrades, accommodating evolving network protocols, user workflows, physical interfaces, codec algorithms, and video formats.

Xscend’s uniqueness lies in its density and flexibility to accommodate ever-changing industry advances. Through its hardware modularity, software upgradeability, and license configurability, flexible workflows can be adapted to support a wide variety of use cases, in particular the proliferation of content requirements in sports production.

KEY FEATURES

• Flexible: Various interfaces and video code


• Versatile: Supports multiple IP standards (ST2022 and ST2110), network protocols and various signal workflows


• High capacity and high density: Up to 400 Gbps of network bandwidth and 128 media services in a single 2RU chassis


• High availability: Redundant and hot-swappable hardware, remote update support


• Scalable: Plug-in units, software-defined common hardware, license upgrades

APPLICATIONS:

• Robust, reliable transport over Ground to Cloud


• Large channel count, pristine UHD/HD video transport


• Tiered high-speed IP transport networking w/ full protection and hitless switching


• Remote/At-Home/Distributed production


• In-studio as a high-capacity IP gateway

MORE INFORMATION:

• https://medialinks.com/medialinks-xscend/


• https://medialinks.com/products/media-over-ip-transport/xscend/


• DOWNLOAD DATASHEET - https://www.medialinks.com/ml-media/datasheets/Xscend_Datasheet.pdf


• WATCH 100G Eco-System Video


• DOWNLOAD Multi-unit Power Supply Datasheet


• DOWNLOAD Media Links Solutions Brochure


• DOWNLOAD Metropolitan Distribution Network Application Note


• DOWNLOAD North America Case Study (Telecom)

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

1 RU, Windows Broadcast Encoder for Receiving Live SDI inputs and encoding to MPEG2, H264, or H265 IP output. Supports closed captions, multiple audio tracks, and converting tones or scte104 to scte35 markers. Ideal Encoder for Broadcast or Distribution over a local Network.

KEY FEATURES: - 8 channels Audio - Pass 608/708 Closed Captions - Encode to MPEG2/H264/H265 Video - Encode AAC/MPEG/AC3 Audio - Confidence Monitoring

APPLICATIONS:- Broadcast Encoder - SDI to IP Encoder - IP Streaming Encoder - Live Streaming Event

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Contribution encoders »

The ViBE CP9000 contribution encoder from Harmonic addresses the call for preserving video quality at the front of the broadcast chain with the ability to process uncompressed UHD signals at eight times the bitrate of current HD sources, up to 160 Mbps. The platform encodes content in a single slice in real time via HEVC & AVC (H.264), today’s most advanced compression standard. Up to two UHD or eight HD video channels, and 16 audio channels, can be encoded on the 1-RU chassis.

The compact and rugged ViBE CP9000 encoder is a perfect fit for DSNG vehicles, teleports and flyaway packages. An ultra-low latency encoding mode, less than 100 ms, offers broadcasters the chance to get a true jump on the competition, and also enables home/remote production application.

ViBE CP9000 features include:

Comprehensive UHD Workflow
The ViBE CP9000 encoder is part of a comprehensive Harmonic UHD workflow that includes all phases of the broadcast chain, including contribution, file ingest, collaborative post production, encoding, high-speed transcoding and delivery. This end-to-end approach makes it possible to quickly and cost-effectively deploy a live UHD channel over existing DTT, DTH, cable, telco and OTT networks.

Flexible Deployment
Simple and cost-effective to deploy, the ViBE CP9000 encoder is interoperable with most professional decoders, including the Harmonic ProView™ 7100 IRD. It integrates seamlessly with the Harmonic Amethyst™ III smart redundancy switch as well, enabling a compact 1+1 UHD redundant solution in just 3 RU. DVB/SMPTE standards are supported.

HDR Support
Compatible with the Hybrid Log-Gamma (HLG) and SMPTE ST 2084 (PQ) HDR formats, the ViBE CP9000 encoder is ready for the next phases of UHD content delivery. As a result, image detail, sharpness and color gradients are preserved throughout the distribution process — right up to the consumer’s UHD display.

Pay-As-You-Grow Scalability
License-based pricing assures that customers pay only for the features they need. Video and audio codecs and formats are easily added to the ViBE CP9000 encoder via firmware upgrade, enabling a scalable migration path that provides operational flexibility and business continuity, and extends the system’s value.

Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »

Lumo aims at bringing radio closer to its audience.

It is an all-in-one virtual radio studio including Playout (playlist & jingles players), a Mixing Console with DSP & automixer, a VoIP SIP phone, and an AoIP transmission codec.

Lumo runs on a simple laptop. It is web-native and touch-friendly, you can control your studio with a fingertip from any device (including iPad and Android tablets).

Lumo makes remote operations much easier by reducing to a minimum the amount of gear to deploy and offering intuitive yet powerful user interfaces for technical and non-technical operators.

Licenses can be purchased for temporary use as for yearly contracts, making sure you don't pay for resources that you don't use.
