Boasting an IP65 weather-resistant light body, the AT200Bi is your ally in rain or shine. Envelop your creativity in its brilliance, even amid challenging outdoor environments.

The foldable design and lightweight construction enhance mobility, seamlessly adapting to various environments and scenes, and unlocking limitless creative possibilities.

The AT200Bi comes with a selection of accessories, including skirts and grids, enabling various lighting results. Take control of light and shadow, elevating your shooting work on set to new heights.

Offering 11 built-in FX lighting effects with customizable parameters, these options expand creative possibilities and bring your ideas into vibrant reality.

Kiloview N30 12G-SDI/Full NDI converter is a bi-directional converter that supports 12G-SDI video input (encoder) to Full NDI with 12G-SDI loop through for view on monitor, or 12G-SDI video output (decoder) from Full NDI.

Real Professional Broadcast-Grade NDI Converter

The N30 supports up to 12G-SDI 4K video input to Full NDI and loop through for monitoring, at the same time it supports full NDI to 12G-SDI output. It’s a real broadcast-grade NDI converter. It's an NDI encoder, it's also an NDI decoder.

Both NDI encoding and decoding can work on this device, you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.

*N30’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time.

Seamless Switching without Lagging

When decoding NDI sources, with Kiloview unique technology, there will be no lag when switching the output NDI videos.

Control with a USB keypad

In decoder mode, you can preset the NDI sources from number 0~9. Connect the decoder with a USB keypad, you can easily choose the output source by a single press.

Or you can even use the USB Keypad to control a PTZ camera- the cheapest PTZ Keyboard you can get.

PTZ Control and Big-sized Tally

Kiloview N30 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required.

N30 has a big-sized while bright and distinct Tally for PVW/PGM indication–all is to make perfect cooperation for your team.

Kiloview P series video encoder is a professional high-end encoding device specially designed for mobile applications. It adopts KiloLink–Kiloview’s patented algorithm to solve the problem of poor connectivity. It perfectly suits outdoor live streaming and transmission in such scenarios as live events, concerts, sports, field broadcasts, emergency spots,s and more, anytime, anywhere.

Kiloview P series features ultra-low end-to-end latency (<1s), meanwhile, it supports voice intercom with Kiloview KIS, it’s also perfect for remote program production or group interaction.

P1 supports SDI input, while P2 supports HDMI input.

Up to 5 Connections Bonding, Stream Like a Pro

2x Internal 4G Cellular + 2x USB 4G Cellular (LAN)+ 1x Wi-Fi (+1*RJ45) supported and it’s free configurable of any desired network.

With the patented bonding algorithm with KiloLink, P series encoders can automatically balance the data of all connections and adjust the bitrate accordingly to make sure reliable streaming.

Besides, P series can support Wi-Fi hotspot for data and file transmission.

Self-Deploy Bonding Cloud with Device Management

Kiloview provides the bonding software for free, it’s available for deployment on your own server or cloud-based server.

With KiloLink Server, you can manage all your registered devices on the server end, such as monitoring device status, previewing a stream, parameter settings, firmware updating, port forward, and so on. Real-time connection status and data statistics are also available the on the server end.

What’s more, it’s easy to manage with a single QR code. All can be managed on your palm.

Ultra-Low Latency for End-to-End Video Transmission

With optimized technology, Kiloview P series offers an ultra-low latency video streaming experience, which is suitable for remote production, IRL streaming, or audience interaction with high quality. End-to-end latency with 4G-bonding server is less than one-second under normal working conditions.

Multiple Platform Streaming

Kiloview P series encoder supports streaming to 16 platforms simultaneously by configuring the main and sub stream in the web console, which means you can stream to all the popular platforms with the same content. (Main stream resolution up to 1080P60, sub stream resolution up to 720P60)

Video Rotate/Crop, and Image Overlay

With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly. You can also mirror the stream, or adjust the color. Moreover, you can set your overlay image at any position such as adding a logo, text etc.

Kiloview Roadmap is a diagram that demonstrates all current Kiloview products, forthcoming products, AV-over-IP solutions, and the comprehensive logic behind sewing everything together to form a Kiloview ecosystem. The Roadmap shows Kiloview’s ambition and confidence to expand the market with its considerable amount of new products on demand.

Kiloview Roadmap was divided into several parts, Kiloview encoders, NDI sources, NDI CORE, KiloLink Server, NDI STUDIO, Kiloview decoders, Kiloview Intercom Server (KIS) , and the Kiloview control panels.

Through a single map, KILOVIEW distributors, resellers and end-users are all able to see what’s coming up in 2022 and Kiloview’s ambition and determination in delivering useful products and solutions to better serve the clients. This is also the first time that the audience can crystally recognize that there’s an all-inclusive comprehensive portfolio backing those popular encoder/decoder boxes. “Kiloview is committed to creating not only great devices, but that has a vision for an entire ecosystem totally built around Kiloview’s Technology,” said Stefano Sarzi Madidini, Technical Manager of ADCOM.

For users who are new to Kiloview, Roadmap will be a good tool to understand what values users can leverage from Kiloview to kick off and win their own business.

To help content distributors reach their audiences more accurately, Oxagile offers their expertise in OTT advertising platform development and cross-domain knowledge, including computer vision and big data processing.

Key competences:

• OTT and CTV advertisingsolutions for retargeting TV-viewing households across online streaming platforms


• Addressable and targeted TV advertisingsoftware for reaching audiences based on respective household data


• BI-based audience analysis for delivering personalized ads across freead-supported TV


• Enhancement of DSP, SSP, and DMP solutions with advanced features


• Optimization of AVOD monetization strategies through server-side ad insertions


• OTT header bidding development for better audience segmentation and ad campaign performance optimization

RGBlink mini-EFP 专为强大的现场制作而生，具有定制的输入和输出

容量，并扩展到宽范围的信号合规性，以满足现场信号桥接

挑战。

mini-FFP 配置灵活，从 HDMI、UVC、SDI、以太网到光纤、信号传输

距离从几米到1000多米，取内容制作从

紧凑的 Studio 到 Arena 只是在一个案例中。随时准备交付现场活动，只需打开电源

并完成工作。

mini-FFP能够广泛用于各种现场制作活动，包括录音室、音乐

节日、婚礼、体育、会议、博览会等。通过与 TAO 的云连接，

mini-EFP 不仅制作内容可在云端共享，还可以进行协作。

远程拥有专业团队，现场操作人员可以专注于真正的操作

但不是技术细节配置。mini-EFP 带来出色的性价比，并确保

高效、专业的生产融入现实

Weighing approximately 500g (light body only), equivalent to a bottle of water, the ML60II Bi boasts a compact square shape, offering one-hand grip, easy installation, and high portability.

Want to streamline your video creation? ML60II Bi is designed for effortless one-hand operation and seamless installation, optimizing work efficiency.

Featuring a smaller, easily portable storage bag that enhances convenience and saves valuable space, ML60II Bi is perfect for on-the-go journey—wherever you explore, just take it with you.

Unleash limitless creative potential with the ML60II Bi's wide array of Godox-Mount accessories. Paired with the MLP projection, its class-leading lens system and meticulously designed structure deliver perfect lighting effects.By using a Bowens mount adapter, you can open up more opportunities for lighting setups.

Enabling efficient lighting adjustments, the ML60II Bi, with its adaptable accessory system, empowers you to creatively capture various settings, whether indoors or outdoors.

Elevate your video quality with upgraded lamp beads,enhancing each frame with renewed brilliance and clarity.

Enjoy a wide color temperature range from 2800K to 6500K, allowing easy matching with ambient lighting conditions. With high CRI(96+) and TLCI(97+), the ML60II Bi offers vibrant natural light and accurate colors.

Dive into creativity with 11 dynamic FX effects, seamlessly transforming ambiance and enabling captivating visual storytelling.

Operate via AC adapter, optional NP-F970 battery, or V-mount battery, ensuring continuous filming irrespective of your location or setup.

With its flexible yoke design enhancing space efficiency and facilitating easy transportation in the included Flight Case, the BeamLight Max90 ensures seamless mobility between locations. Moreover, the yoke enables extensive flexibility for adjusting angles with ease, allowing for versatile lighting setups.

With a mere 3% power loss, LiteFlow boasts exceptional reflectance to produce high-quality light. Its cutting-edge craftsmanship offers four distinct diffusion types, allowing for various beam spread effects. When paired with parallel light sources, it's the ideal solution for diverse lighting requirements in various settings. Users can swiftly choose their desired type by identifying the different label colors on the back, significantly enhancing on-set efficiency.

Important Note:

Please wear specialized gloves when handling the reflectors to prevent scratches. After use, make sure to clean the reflector immediately to keep the surface pristine and free of stains.

Each diffusion type comes with five size options, enabling precise control over your illuminated area. Say goodbye to the hassles of traditional flag setups and elevate your lighting experience with our efficient solution.

LiteFlow incorporates a sleek rail structure with a guide slot design, ensuring a seamless installation experience. Reflectors with extended rails can also be efficiently connected together using flexible arms (optional).

LiteFlow leverages the square inverse law to extend the transmission distance of light, effectively slowing down light decay across the illuminated area, and producing more natural lighting effects.

Thanks to its lightweight design, LiteFlow makes it a breeze to use with high-output fixtures in low positions, significantly reducing workload and improving safety. Additionally, it offer effortless angle adjustments for convenient control.

In outdoor environments, LiteFlow can directly utilize natural sunlight, enabling you to efficiently balance lighting contrast even without artificial sources.

This system enables you to redirect a single light source multiple times, creating multiple light points and reducing the need for additional fixtures and light-shaping tools. Effortlessly achieve cinematic lighting even in tight spaces.

LiteFlow is able to mimic the natural light decay, guaranteeing even lighting across the illuminated area, allowing for seamless scene management. The D1/D2 reflector can create a broad, hard light to accentuate the texture of subjects, enhancing the richness of skin or objects.

LiteFlow offers various distinct light characteristics based on different models, while varying sizes grant you precise control over the illuminated area. You can also utilize available ambient light for supplementary lighting, capturing every intricate detail in your play of light and shadow.

LiteFlow comes with a comprehensive range of accessories, combining durability and flexibility to meet all your requirements for securing and adjusting reflectors in various settings.

The mapping capability of the light simplifies the process of simulating real-life scenarios. By using mapping software to project video onto a pixel light array, you can acheive light effects that no regular lights are able to. Mapping ensures that changes in light and shadows on illuminated objects appear natural and seamless.

With CQS≥95, CRI≥96, and TLCI≥96, the P300R/P600R ensures precise color reproduction.

With an IP65 water-resistant rating, the KNOWLED Flexible LED Mat is capable of withstanding water spray from any angle, and performs well in outdoor shooting environments, even in rainy weather, making it superior to ordinary LED mats in terms of water resistance.

(*The control box is not waterproof.)

KILOVIEW N60 is a brand-new full-function NDI converter.

Adopting the leading FPGA technologies, advanced-level AVC/HEVC algorithm, and NDI algorithm, KILOVIEW N60 supports 4Kp60 format encoding/decoding with both NDI High-bandwidth and NDI|HX, meeting all your demands and applications of IP-based video transmission.

Encoding & Decoding Converter

KILOVIEW N60 supports encoding/decoding of NDI as well as NDI|HX by H.264/H.265.

In the encoding mode, KILOVIEW N60 can encode a 4K HDMI signal into an NDI or NDI|HX video steam.

In the decoding mode, KILOVIEW N60 will automatically adapt the NDI and NDI|HX format as your end needs.

KILOVIEW N60 will take care of your 4Kp60 video transmission.

Better color performance: Up to YCbCr 4:2:2 and 10bits color depth

The N60 supports a professional YCbCr 4:2:2 color space and a 10-bit color depth (the common 8-bit color depth is also available). N60 promises higher color and image quality, particularly to fulfill the needs in the broadcasting and medical imaging industries that bear no color fringing.

USB Extension

N60 has both USB 3.0 Type-A and USB 3.0 Type-C interfaces for you to :-Control PTZ Camera via USB expansion.

High-quality ultra-low latency of end-to-end transmission

With ultra-low end-to-end latency, KILOVIEW N60 is a powerful bi-directional converter that supports every second of your 4K video transmission over IP.

• Encoding 4K HDMI video signal into NDI or NDI|HX stream.


• Decoding NDI or NDI|HX streams into HDMI.


• Loop-out for view on a monitor or projector.

Large-sized Color LCD Screen and Scroll Wheel

A big color LCD screen and a scroll wheel enable you to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease.

At the back of the N60, there is a built-in small tally to show the status.

Overview

YUK2300-4K integrated receiver and decoder supports H.265 H.264 MPEG-2 AVS+ AVS2 video decoding. It supports RF ASI IP input, 1xHDMI/1x12G-SDI/4x3G-SDI/1xanalog stereo/1xAES/EBU output, it supports 2160P/1080P/ 1080I/720P/576I/480I multiple resolutions and supports DRA/AC3/EAC3/AAC/MPEG-1 and other audios.

It supports two CAM cards to descramble different signals and support BISS-1 and BISS-E decryption.

Product Features

l Support multiple input RF IP ASI

l RF input: DVB-S/S2, DVB-S2X(optional)

l Multiple output: 1xHDMI/1x12G-SDI/4x3G-SDI/1xanalog stereo/1xAES/EBU/ASI/IP

l Support H.265 H.264 MPEG-2 AVS+ AVS2 decoding

l Support DRA AAC MPEG EAC3 AC3 passthrough

l Demodulator + descrambler +re-mux+ decoder in one device

l IP (4×MPTS & 64×SPTS) output over UDP and RTP, support unicast multicast

l Support SRT RTMP RTSP HTTP HLS(M3U8) IP protocol input

l 2 ASI input, 2 ASI independent output

l Two independent CAM cards, descrambling two different signals with multi programs

l CI descrambling supports NDS, Irdeto and other conditional access systems. Adopt unique digital decoding technology and dual PCMCIA interface, receive various encrypted satellite cable terrestrial digital TV signals by replacing different PCMCIA modules.

l Support BISS-1, BISS-E decryption, support T2-MI de-encapsulation

l Compatible with HD SD signals

l Support SDR/HDR10/HLG

l Sampling rate support 4:2:2 and 4:2:0

 Specification

RF Input(DVB-S/S2)

Input

1×RF input, 1×RF loop, 75Ω

Input Frequency

950~2150MHz

Standard

DVB-S compliant

DVB-S2 compliant

VCM and ACM supported

Half SyQuest Baseband filler(Roll off factor)

0.35 for DVB-S

0.15 to 0.35 for DVB-S2

LNB Power Supply

13V/18V/turn off, 22KHz

Supported Code Rate

DVB-S:

QPSK: 1/2, 2/3, 3/4, 4/5, 5/6, 7/8

DVB-S2:

QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2X:

64APSK: 11/15, 7/9, 4/5, 5/6

Maximum Symbol Rate(DVB-S)

Symbol rates: 1-54MSps

Maximum Symbol Rate (DVB-S2)

Normal(64800 bits) FECFRAME Symbol Rates:

QPSK      1-60MSps

8PSK       1-60MSps

16APSK   1-58MSps

32APSK   1-55MSps

ASI Input/Output

ASI input connector: 2×BNC, 75Ω

ASI output connector: 2×BNC , 75Ω

Executive standard: DVB-ASI, EN50083-9

Output bitrate ≤100Mb/s

TS Over IP

Connector: 1×RJ45, 10/100/1000 Base-T

Effective bitrate: 600Mb/s

Frame length: (1-7)×188 adjustable bytes

Transfer protocol: UDP RTP, support unicast multicast SRT RTMP RTSP HTTP HLS(M3U8)

Video Decoding

Video decoding format: H.265 HEVC/MPEG4 AVC/ H.264/MPEG-2/AVS+/ AVS2

Bitrate control: VBR CBR optional

Audio Decoding

Audio decoding format: MPEG-1 layer I/II,  MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC  2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3

Bitrate: 64/128/256/384Kbps

Sampling Frequency: 48/44.1/32KHz

Support volume adjustment

Support SDI embedded audio

12G/3G/HD/SD-SDI Output

Connector:

12G-SDI: 1xBNC

3G-SDI: 4xBNC

HD-SDI output: SMPTE 292M, 1.485 Gbit/s (20bit)

Output level: 800mV+-20 p-p

Resolution:2160p25/p30/p50/p60/1080p25/p30/p50/p59.94/i50/i59.94/720p50/p59.94/576I/480I

HDMI Output

Connector:1xHDMI 1.4/2.0 HDMI type A

Audio: 1-ch analog stereo L & R audio (2x small XLR), 1-ch AES/EBU(1x small XLR)

Resolution:2160p25/p30/p50/p60/1080p25/p30/p50/p59.94/i50/i59.94/720p50/p59.94/576I/480I

Audio Output

Connector: 1-ch analog stereo audio and 1-ch AES/EBU

Audio output mode: Left, Right, Dual Mono, Stereo

Local and Remote Management

Connector: 1×RJ45, 1000 Base-T

Remote control: HTTP Web

Local control: HTTP Web

Equipment upgrade: IP

Physical Specifications

Dimension(L×W×H): 610mmx530mmx150mm, 19’’ 1U rack

Net weight 8.0KG

Power: AC 90V～250V, 50/60Hz

Power consumption: 24W (excluding LNB power supply)

Temperature range: 0 ~ 45°C(operation), -10 ~ 60°C(storage)

Humidity: 10 ~ 90% (non-condensing)

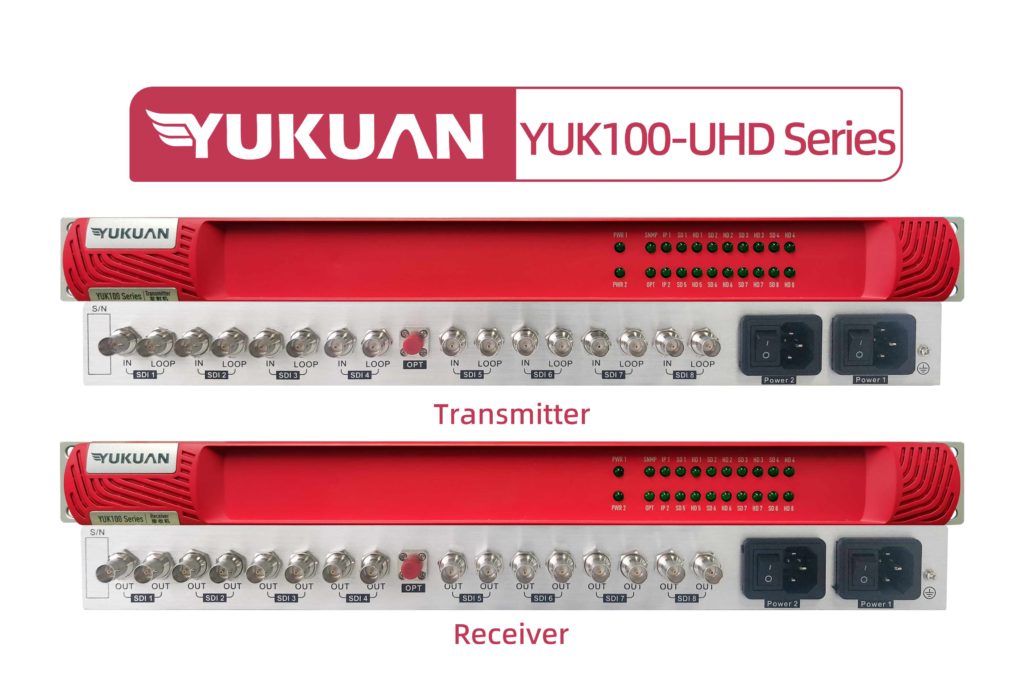

Overview

YUK100-UHD series 4K fiber optic extender can transmit 1 to 8 channel unidirectional or 1 to 4 channel bidirectional 12G-SDI signal over 1-core single model or multi-mode fiber, downward compatible with 6G/3G/HD/SD-SDI and DVB-ASI. Transmitter with loop out and receiver with dual output.It provides reliable high quality transmission up to 40KM (single mode fiber). Digital transmission meet the requirement of high quality image transmission and can achieve the broadcast transmission level, full real-time transmission and non time delay.

Product Features

l Compatible with 12G/6G/3G/HD/SD-SDI, DVB-ASI.

l Bitrate 11.88Gbps, downward compatible 5.94Gbps, 2.97Gbps, 1.485Gbps, 270Mbps

l True uncompressed, low latency and transparent transmission

l Comply with standard SMPTE2082-1, SMPTE2081-1, compatible with SMPTE424M,  SMPTE292M, SMPTE344M, SMPTE259M, SMPTE297M, SMPTE310, SMPTE305(SDTI)

l SDI input has cable equalization and can compensate the loss of cable transmission

l Support pathological signal

Specification

Video Input

Input: 1 to 8 channel unidirectional or 1 to 4 channel bidirectional 12G-SDI(each channel with loop out)

Input resolution: 2160P(3840x2160)@25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz

         1080P(1920x1080)@25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz

         1080I(1920x1080)@25Hz, 29.97Hz

         720P(1280x720)@50Hz , 59.94Hz

         576I(720x576)@25Hz

         480I(720x480)@29.97Hz

Input automatic cable equalization:  >30m@11.88Gbps(BELDEN8281 cable)    >50m@5.94Gbps(BELDEN8281 cable)

>100m@2.97Gbps(BELDEN8281 cable)   >200m@1.485Gbps(BELDEN8281 cable)

>300m@270Mbps(BELDEN8281 cable)

Input reflection loss: >10dB@11.88Gbps, >10dB@5.94Gbps, >10dB@2.97Gbps, >15dB@1.485Gbps, >15dB@270MHz

Input level: 800mVP-P ±10%

Impedance: 75Ω

Connector: BNC

Video Output

Output: 1 to 8 channel unidirectional or 1 to 4 channel bidirectional 12G-SDI(each channel with dual output)

Output level: 800mVP-P±10%

Rise/fall time: <45ps@11.88Gbps, <80ps@5.94Gbps, <135ps@2.97Gbps, <270ps@1.485Gbps, <0.65ns@270Mbps

Jitter correction: <0.3UI@11.88Gbps, <0.3UI@5.94Gbps, <0.3UI@2.97Gbps, <0.2UI@1.485Gbps, <0.1UI@270Mbps

Optic and Physical Specification

Wavelength: from 1310nm to 1550nm(depends on SDI channel quantity)

TX power/RX sensitivity: -5dBm~0dBm,  -15dBm~-10dBm（Subject to actual measurement）

Transmission distance: 0~40km(Actual distance is determined by customer’s requirement)

Optical connector: FC LC ST SC available

Temperature range: -30°C~+70°C(operation), -20°C~+80°C(storage)

Power supply: AC 100-240V, 50/60HZ,  <20W

Dimension: 19 inch 1U rack, 485×320×44mm

Cheqroom is a leading-edge, purpose-built brand and enterprise asset management platform that offers intuitive and scalable solutions for organizations to track, manage, and optimize their assets. We empower thousands of organizations—from universities and government agencies to Fortune 100 companies—to keep work in motion through the streamlined management of over $5 billion in high-value, mission-critical assets.

Driven by a commitment to innovation and customer satisfaction, Cheqroom is designed to seamlessly support each team’s unique workflow, ensuring they have the right assets at the right time and place. Our platform enables teams to transform from reactive asset management to strategic asset utilization.

Kiloview NDI Recorder is an independent recording system to ensure ALL your NDI sources are recorded separately in synchronization status.

• Up to 20 NDI sources recording.


• Recording file in the format of .mov, with fixed-size or fixed length, locally by SSD or Thunderbolt or NAS.

• System Safety: The Kiloview NDI Recording system is an independent recording system that does NOT rely on any other software. We guarantee your videos are recorded continuously, correctly, completely, and independently.


• Operation safety: In order to avoid misoperation and missing valuable recording sources, the system can be LOCKED during recording. Once locked, the system needs DOUBLE confirmation to unlock and pause.

Unlimited NDI Sources

Add up to 20 streams on each screen, and unlimited screens for each Multiview player according to your needs and server performance – Either NDI or NDI |HX, Either main or Sub streams.

Self-defined Layout

Setting PIP (Picture in Picture), PBP (Picture by Picture) or grids, you could customize the layout with a simple dragging of the video image with its name and screen size including width, heights, horizontal and vertical line adjustable.

NDI Output

When using the Kiloview Multiview Player to compress multi-picture video into an NDI stream for output, the parameters of the output stream can be adjusted and the output NDI stream can be discovered on the network.

- Tally control (PVW/PGM)

- Professional Auxiliary functions

- Multi Windows, Multi Screens

- Compatible with various NDI sources

- Save your settings

- Control on any Web page or mobile devices

Perfectly suits multi-camera production and security surveillance.

The “CORE” stands for:

Control, Organize, Route and Everything

- Control any NDI signals to any destinations with no hinder.

- Organize all your NDI sources switching from various signals.

- Route limitless input and limitless output

- Everything  you need is an NDI CORE.

Seamless switching experience

Based on the server, the connection to the NDI sources is assured. You may achieve a seamless switching effect without frame synchronization device, making sure that the switch is free of the black screen, splash screen, and lagging.

None-Multicast Distribution.

More Advantages：

• Permission management and log management


• Multi-service group management


• Compatible with various NDI signals


• Tally/PTZ/Metadata reverse transmission


• Reinforced structure, stable and anti-vibration


• Dual power supply redundancy backup to ensure power supply safety


• High efficiency is guaranteed with physical heat dissipation


• Hardware customization available

Suitable for：

- Multi-party Conference

- Digital Signage

- Advertising Rotation

- Program Production

KILOVIEW Intercom Server (KIS) is a multi-channel communication software supported by WebRTC technology. After logging in to the website, communication between users, devices, or users and devices can be realized, which allows efficient communication during program production.

Multi-Channel Communication Supported

KIS supports up to 32 terminals including all KILOVIEW products and mobile devices (e.g. iPad or phone) through browsers to join in the communications.

Born for All KILOVIEW Products

KIS is compatible with all KILOVIEW products, which means you can definitely turn to KIS for multi-party communication if you have encoders, decoders, or converters at your on-site or hybrid IP-based infrastructure.

Flexible Access & Centralized Management

Compared to other similar software, KIS allows easier access through browsers (Chrome, Microsoft Edge, Safari etc.). Additionally, it grants the administrator centralized control over everything such as who can speak, who needs to be mute, or which channel volume should be increased/decreased.

More Advantages

- SRTP encrypted audio codec ensures secure conversation

- Excellent echo cancellation and noise suppression capabilities guarantee clear, smooth conversation

- The adoption of patented mixer saves hardware sources a lot

- A click to turn on / off the mic; easily adjust its volume

Application

● TV program broadcasting

● Emergency rescue

● Large events

● Remote interaction

● Video conferences

KiloLink Server is a centralized Kiloview product management platform based on KiloLink. With KiloLink technology, the KiloLink Server optimizes the process of IP-base video transmission to remotely bulk upgrade, restore, reset, or restart any paired Kiloview products with a  few clicks.

With detailed management modules, you can manage a catalog or a specific device as you need.  Also, you can control the system permission of each user group and a specific user with a super admin account.

Centrally Manage All Your Kiloview Product

Users can manage all Kiloview devices via KiloLink Server, including Kiloview encoders, decoders, NDI converters, Cradle series, etc.

For remote management of multiple devices, KiloLink Server Free provides an efficient workflow, a safer data transmission, and a better user experience.

RUDP Based, Make Transmission Safer

KiloLink Server adopts KiloLink technology, which achieves multi-link aggregated transmission based on the BBR algorithm and RUDP (Reliable-UDP), and ensures that the entire data transmission process is secure & reliable with TLS1.3 technology and multiple encryption methods such as AES-256/AES-128/CHACHA20 available.

Easy to Deploy and Easy to Start

KiloLink Server supports Docker containerized deployment, with only one command, it can be freely deployed on Linux, Windows and other operating platforms, and users can deploy the system in the cloud or for private deployment.

Web Page Login, User Friendly

Simply with Chrome, Edge, Safari, and other web browsers, you can log into KiloLink Server.

More Advantages:

- Directly monitor the status of your devices

- Simply On-click to access the detailed parameters

- Batch manage and upgrades your firmware

- Stable operation with ultra-low resource consumption

Applications:

Suitable for large sports events, multi-location remote interaction and other multi-device application scenarios

Kiloview N40 4K HDMI/NDI converter is a bi-directional converter that supports 4K HDMI video input (encoder) to full NDI with 4K HDMI loop-through for view on the monitor, or 4K HDMI video output (decoder) from full NDI.

Real 4K, Really Professional

With HDMI2.0 interface, It supports real 4Kp60 video input and converts it to full NDI and loop through for monitoring, at the same time it supports Full NDI to 4K HDMI output. It’s a real 4K NDI converter for high image quality.

Both NDI encoder and NDI decoder

This tiny device (100*80*28mm) can do both NDI encoding and decoding, so you get two for the price of one. Changing the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.

*N40’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time.

Seamless Switching without Lagging

In decoding mode, with Kiloview’s unique technology, there will be no lag when switching the output NDI videos.

Control with USB Keypad

In decoder mode, you can preset the NDI sources from number 0-9. When your keypad is ready, you can easily choose the output source with a single press.

Or you can even use the USB Keypad to control a PTZ camera–the cheapest PTZ Keyboard you can get.

PTZ Control and Big-sized Tally

Kiloview N40 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required.

N40 has a big-sized while bright and distinct Tally for PVW/PGM indication–all is to make perfect cooperation for your team.

Kiloview MG300 media gateway is a high-performance embedded multi-functional device. It integrates functions such as protocol conversion, streaming distribution, multi-channel video decoding, customizable output display, and video preview.

Protocol Converter

MG300 is compatible with NDI®|HX (2.0) , SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc. It supports the decoding with all those different protocols, at the same time supports up to 9 protocols cross conversion. Each input stream is converted into 4 same or different protocols output.

Media Server

It supports up to 50 concurrent access for streams distribution/live streaming;

(Note: The actual concurrent access capability depends on the specific network bandwidth, video format, and other factors. The device transmission limit is 600Mbps).

Multi-Channel Video Decoder

It supports decoding up to 4K H.264/ H.265 IP streams and decodes the streams to output 3G-SDI and 4k HDMI. It supports decoding up to 9 channels of videos simultaneously.

(Note: 9 channels with 1080P30, or 8 channels of 1080P60, or 4 channels of 4KP30.)

Transcoder

Kiloview MG300 highlights video transcoding between H.264 and H.265. It can also combine multiple video streams into a merged video and push it to the live broadcast platforms.

Other Functions：

- Support SDI/HDMI embedded audio or 3.5mm analog audio output

- Support audio mixing

- Dual network ports for multi-purpose management

- RTMP Server Supported

- Customizable Output Display

- Video Previewing Function

Applications:

- Multi-platform Live Streaming

- SRT Multi-point Transmission

- Security Monitoring

- Slow Live Streaming

U40 - 4K P60 HDMI to NDI Encoder

U40 easily converts 4K P60 HDMI to NDI® high bandwidth.

Kiloview U40 is the smallest while most powerful NDI encoder. With only one cable, video sources from HDMI cameras can easily go into the NDI® world and enjoy the advantages of IP-based transmission.

Both NDI and NDI|HX

With two Ethernet ports, it also converts IP streams such as RTSP, RTMP, SRT, TS-UDP, HLS to NDI|HX, which makes your camera more powerful and versatile.

Audio and Intercom

Kiloview U40 supports 3.5mm analog audio line-in or embedded audio into NDI® It also supports voice intercom based on Kiloview Intercom software.

Mounting in Your Style

When mounting the U40 on a camera, you can either install it upright or horizontally (optional) with a cold shoe accessory.

Tiny, Quiet, and Cool

● 90mm*30mm, round shape, tiny and unique.

● Aluminium shell, built-in high-air-volume fan

● 7x24h working stably

More Features:

● Super PoE with DC Out

● PTZ control over USB

● Camera Link

● Built-in Tally

● USB Expansion

• STRINGER ENGAGEMENT


• WEATHER CAST


• CROWD REPORTING


• FAN ENGAGEMENT


• TRAFFIC UPDATES

• Custom branding

• Full video quality

• Full video copyrights

• PWA mobile app

• Fair pricing

• Contributors targeting

1.   Quasar® is the first native Cloud file QC service that helps users perform file-based QC on cloud assets with ease. Encompassing all the features of Pulsar and built natively for the cloud, Quasar® promises the fastest rate of QC in the cloud. It offers dynamic scaling with ability to process hundreds of assets at the same time. It provides stringent content security measures such as IAM roles support, Pre-authenticated URL and Whitelisting. Quasar® is offered as a SaaS service wherein Venera runs & manages the Quasar infrastructure. Users can integrate Quasar using REST API or can use the system manually via web browser. Tiered usage-based subscription plans are available for different content volume needs. Quasar® supports all major broadcast formats, IMF/DCP packages as well as VOD formats such as adaptive bitrate formats. Quasar also allows users to perform advanced QC checks for HDR along with Photosensitive Epilepsy validation using the industry defacto standard Harding PSE.

Postudio is a pro-level cloud post-production platform. A creator’s everyday OS where they can:

•


  Edit video and audio, design, animate, color grade, etc. online





•


  Create and manage projects





•


  Work with collaborators





•


  Assign and manage tasks





•


  Collaborate real-time





•


  Give reviews





•


  Keep the feedback loop alive and smooth





•


  Upload and store assets





•


  Manage collaborator permissions





•


  Precludes the need for downloading assets ensuring top-notch security





•


  and more...




It's a platform that simplifies and streamlines the entire post-production workflow in the cloud, making the whole process remote-friendly, optimal, flexible, cost-saving, and accessible.

Our vision is to take the existing antiquated post-production industry, declutter it, remove bottlenecks, and shape it into something more convenient and user-friendly. A platform where technical challenges don't bog down creators, where they aren't frustrated by the rigid setups and pipelines.

Features include:

•


  Cloud Edit Systems: where you can choose systems based on your current project requirements (by selecting the software tool, hardware specs, and duration)





•


  Software Tools: all the industry-favorite tools are hosted on Postudio, including Premiere Pro, After Effects, Avid Media Composer, Cinema4d, DaVinci Resolve, Unreal Engine, Pro Tools, etc.





•


  Live Collaboration: where two people irrespective of their geographical location can connect, discuss, and edit on the same timeline in real-time





•


  Central Storage Space: where all assets (of any type - .mp4, .ae, .psd, etc.) can be uploaded, viewed, and accessed by everyone on the team (based on their assigned permissions)





•


  Review & Approval: through frame-accurate comments and annotations





•


  Project & Task Workflow: where one can create projects, add collaborators, assign tasks, and manage project permissions





•


  Rendering: quick rendering through powerful hardware configs that you can choose





•


  Analytics: where you can keep track of your team's cloud usage and monitor team activity





•


  Security: highest grade security, Disney-approved. ISO27001 and TPN + Blue Shield





•


  Only two requirements: an internet connection and a browser




At MediaXbook, we bring together virtual and physical resources, crews, talent, and influencers all in one marketplace. Our patented platform provides the pieces you need, seamlessly matching global buyers and sellers. Whether you’re a broadcaster, video creator, or freelancer, you can participate as a partner on either side of the exchange.

With a secured portfolio of patents covering artificial intelligence, REMI workflows, utilization of unused capacity, blockchain and optimized pricing, MediaXbook re-imagines how media gets made.

Skylark is the video platform solution that empowers businesses to build and scale world class streaming platforms, with ultimate flexibility.

Publishing tools were built for written content, video is different. Skylark was developed by a team that's been creating innovative video streaming products for over 15 years. It’s video first and has the tools that you'll need now and as you grow.

According to PWC only 12% of consumers say they are able to find content on streaming platforms easily. With Skylark you can schedule streaming content to appear to the right audience at the right time, maintaining relevance for existing users and making new ones feel right at home.

When it comes to standing out, differentiating yourself in a saturated market can be challenging. With Skylark you have creative control, you own your UI. So, you can build your front end in house or with an agency.

Skylark also enables you to expand without boundaries. You can meet the needs of your growing audience at a pace that suits your business. Deliver authentic experiences to your users no matter where they are or how they're watching.

Talk to us about your video platform challenges and see what Skylark can do for you.

Share-IT simplifies the creation and publishing of static and motion Adobe graphics to Avid MediaCentral and Avid based systems.

Pulse-IT enables you to translate, optimize, execute and monitor your business and broadcast processes and workflows. Pulse-IT includes simple tools for complex situations built with bundled task templates or extended with minimal code that can be performed immediately or as scheduled jobs. All execution is managed via a comprehensive, real-time, secure dashboard accessible from anywhere in the world.

Solid State Disks Ltd  - The Industrial Division of the Reactive Group.We deliver innovative system solutions to defense, commercial and industrial customers worldwide. SSDL specialises in the design, development and integration of advanced storage systems.

We design and manufacture the CF2SCSI SCSIFlash and FLOPPYFlash CF based solid-state drives integrating proprietary FPGA based technology which provides further storage future-proofing for critical legacy computer applications.
