Enigma Matrix

Connect » Provide Connectivity » Connectivity & Bandwidth » Satellite connectivity »

The new generation Enigma Broadband matrix is used to provide flexibility in the routing of antennas to receivers or modems; to allow remote routing of satellite signals to receivers or modems; and to help optimise the use of receiving capacity.

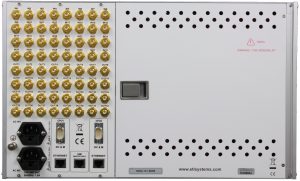

The Enigma is a distributive (full fan-out) Matrix. The Enigma Matrix is housed in a 6U 19" rack enclosure and has a module capacity of 32 inputs x 32 outputs and can be part populated to any size. It's new capacitive touchscreen provides ease of use and additional durability. Now in its 4th generation, the Enigma broadband Matrix (50-2450 MHz) has proved to have genuinely high performance with excellent flatness or frequency response, excellent isolation, and linearity - a truly leading edge L-band Router. The Enigma L-band Switch matrix can also be incorporated into an overall automatic redundancy Network Management System to enhance the resilience of the overall earth station equipment.
