ControlCenter-IP – matrix system for KVM-over-IP
ControlCenter-IP – matrix system for KVM-over-IP

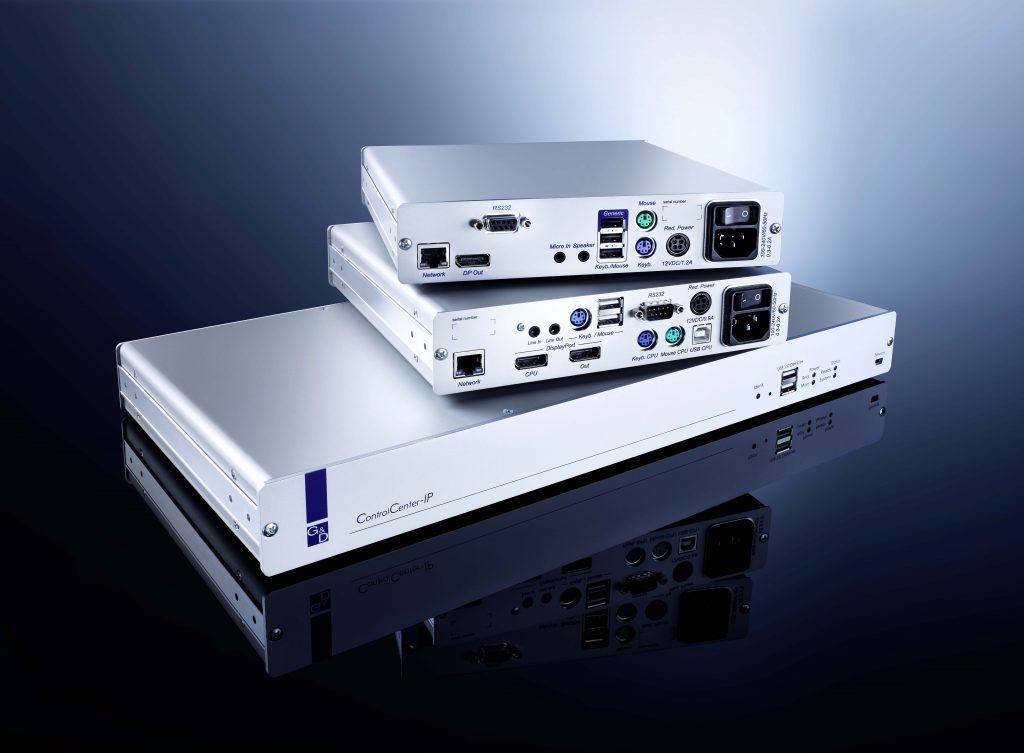

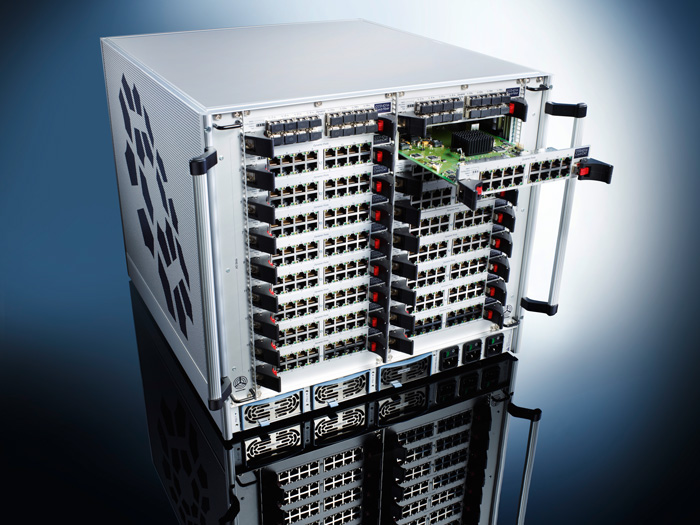

The ControlCenter-IP matrix system enables the distributed switching of all connected computer and console modules over IP-based networks and thus provides even more flexibility and scalability for KVM installations. While the network infrastructure takes over the transport of KVM-over-IP™, the ControlCenter-IP contributes the logic. Transmission takes place compressed via CAT cabling or optical fibre. Thanks to the network connection and the option of using standard network components, the application gains even more flexibility. This ensures that the systems are easily expandable and scalable at all times.Offering twice the flexibility of usual systems, the new matrix does not only extend computer signals over IP, but also switches them as an n:m connection. In combination with G&D’s IP extenders, the ControlCenter-IP forms a powerful matrix system.The ControlCenter-IP supports numerous signals thus providing solutions for DVI single- and dual-link, DP1.1 and DP1.2, including real 4K@60 Hz over IP. Even at high resolutions, the system delivers optimal, pixel-perfect and latency-free image quality for the best possible hand-eye coordination. The new matrix for KVM-over-IP™ also impresses with the usual wide range of functions offered by G&D matrix systems. Functionalities such as monitoring and SNMP, the scripting function and scenario switching, the push-get function for optimal collaboration and the control of video walls as well as CrossDisplay-Switching for absolutely intuitive operation at multi-monitor workstations have been integrated into the KVM-over-IP™ matrix.
Additional information
Related Products:
GLIM
Emerald® PE Extender
Freedom II Glide and Switch KM
Central Power Hub
Zynq™ UltraScale+™ MPSoC EV
KVM over IP Extenders & Matrices
Kiloview LinkDeck

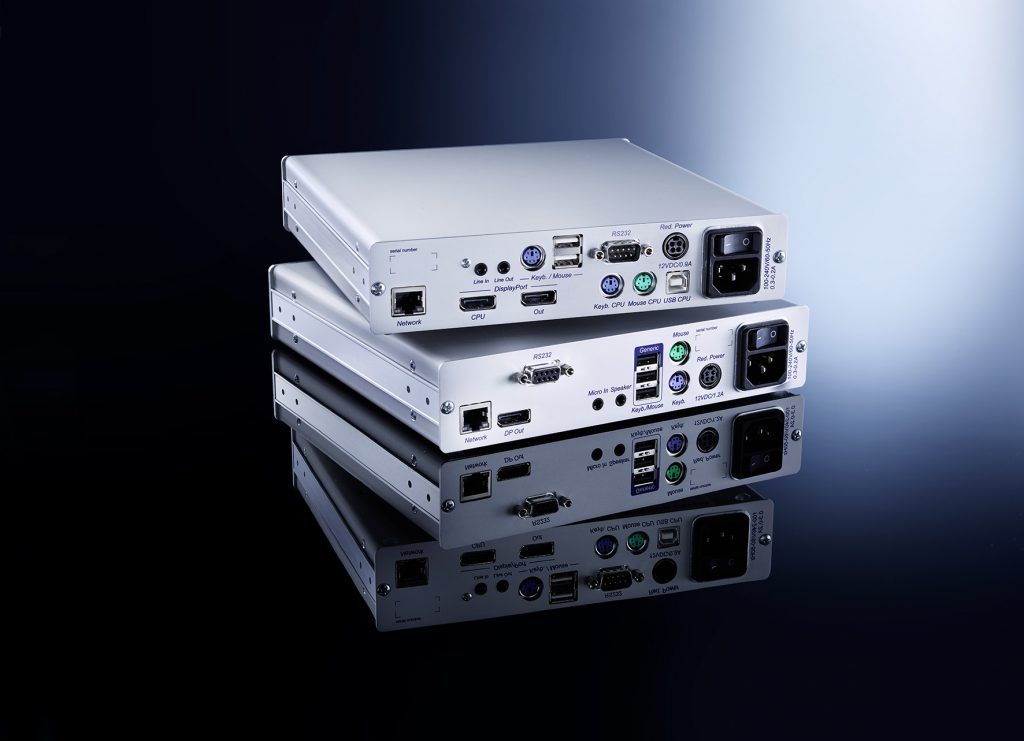

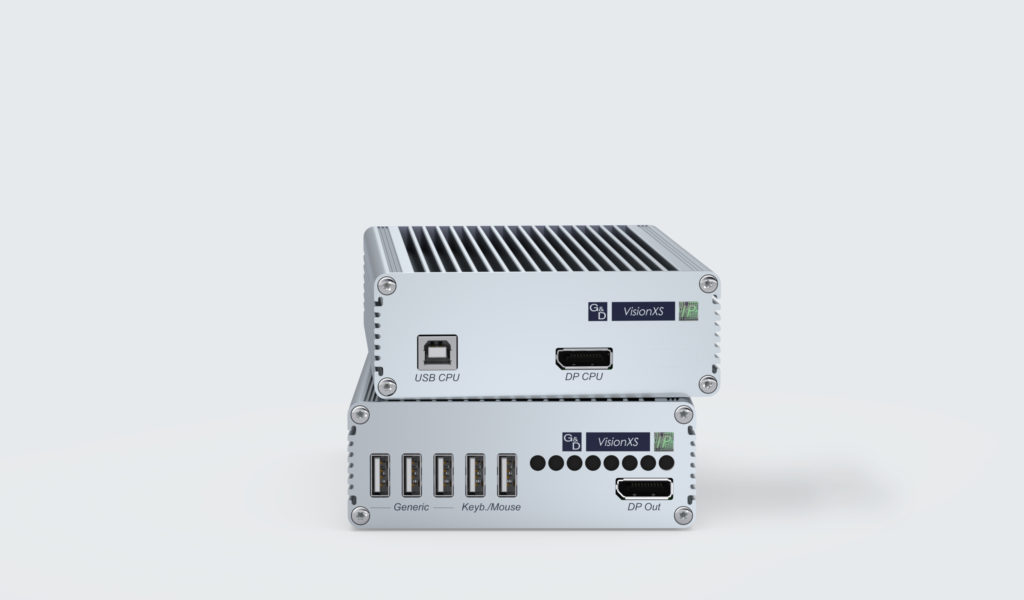

VisionXS-IP-DP-UHR

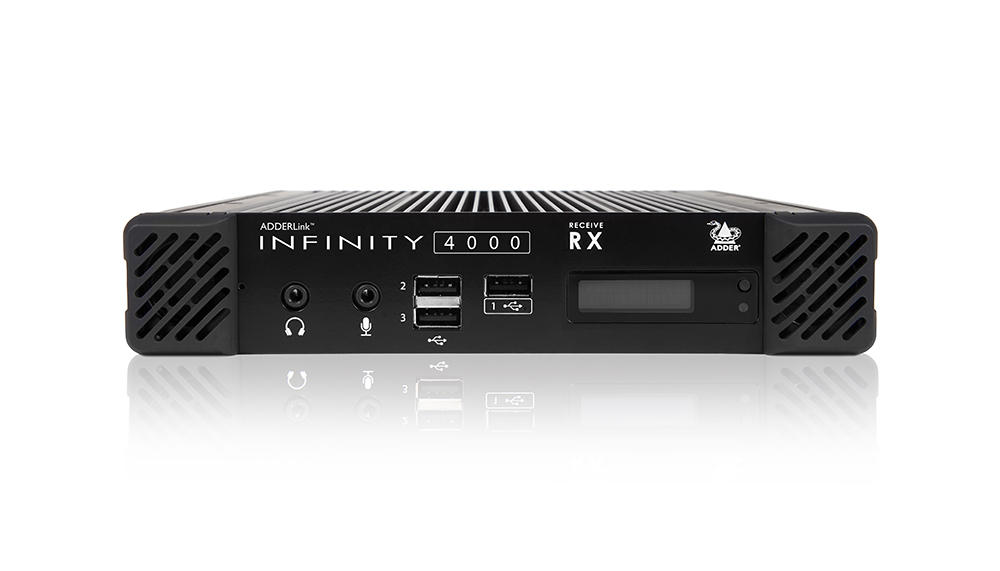

ADDERLink™ INFINITY 4000 Series
ControlCenter-Xperience – Experience KVM like never...
RemoteAccess-CPU
ControlCenter-IP – matrix system for KVM-over-IP
ControlCenter-Compact – compact KVM matrix system
ControlCenter-Digital – modular KVM matrix system
High-end KVM switches
KVM-over-IP extenders
Classical KVM extenders
Emerald® KVM over IP Solution
Boxilla® KVM Manager
R&S®PRISMON.cloud
Matrox Extio 3 IP KVM
';

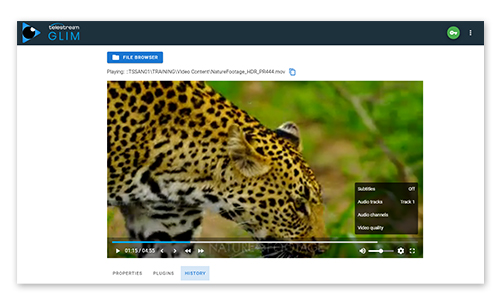

GLIM
Supporting television production and media distribution while teams work remotely brings with it many challenges. A primary challenge with remote work is the ability to see, hear, and understand the technical properties of your media library from afar. At Telestream, we call this media file opaqueness. GLIM was built to solve well known remote work challenges: be a vastly superior experience to the ‘remote desktop/virtual desktop’ playback experience, and to prevent remote employees wasting hours every day downloading mezzanine grade media files. Solving these two challenges significantly reduces the aforementioned media file opaqueness, and ultimately increases productivity. GLIM is a groundbreaking technology that allows users to remotely play mezzanine/professional-grade media files in a web browser. The GLIM engine is built upon our Switch playback and inspection technology and will allow for remote playback of any container/ codec/resolution/fps/audio channel/color space combination in a web browser (Windows or Mac OS and Google Chrome v80+).
';
Emerald® SE Extender
High-Performance KVM Emerald SE provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.
Emerald SE supports DVI or DisplayPort video with resolutions up to 1920 x 1200, transparent USB 2.0, and analog audio. Link them in a point-to-point KVM extension over CATx up to 328 ft./100 m or even farther using an IP or WAN connection. Or connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.
Virtualization Support Emerald SE simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines, supporting VMware®, Microsoft®; HyperV®, and Citrix®, using RDP 8.1/RemoteFX.
Limitless Scaling Your Emerald KVM network may start small, but is scalable to meet your future needs just by adding endpoints. Connect up to 32 endpoints; no additional KVM management appliance, cards, or chassis is required. For larger deployments, use our Boxilla KVM management solution.
A welcome addition to the Emerald product family, Emerald SE works seamlessly with the rest of the Emerald product family and these popular Black Box KVM product families:
· DKM proprietary, direct-connect KVM system
· Freedom II Multi-Monitor Switch with Glide-and-Switch technology
· ControlBridge®, our system for one-touch, multisystem control
· Boxilla KVM manager
Emerald SE Extenders Features
· Next-generation KVM extension and matrix switching simplifies access to both physical and virtual servers
· Visually lossless video
· Low IP bandwidth requirements of 120-Mb or less required for 1080p video
· Supports USB HID, transparent USB 2.0, and audio
Manage bandwidth and user access, deploy new endpoints, update firmware, and more from the receiver’s OSD
';
Emerald® PE Extender
Emerald® PE provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be stored in a corporate data center or in the cloud. This robust solution is easy to deploy on standard corporate networks and even across WANs. PE enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.
Emerald PE supports multiple setups: It allows you to link transmitters and receivers in a point-to-point KVM extension over CATx up to 100 meters or even farther using an IP or WAN connection. Or connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.
Your Emerald KVM network may start small with a point-to-point extension, but it's infinitely scalable to meet your future needs just by adding endpoints, with no extra chassis or cards required. PE supports up to 32 endpoints with no additional KVM management appliance. For larger deployments, use Boxilla® to manage your enterprise KVM network centrally.
Headache-Free Migration and Scaling Emerald makes your migration painless, enabling you to scale access infinitely and gradually across buildings, campuses, and more using your existing network infrastructure.
Outstanding Video Quality Emerald PE supports pixel-perfect HD DVI or DisplayPort video with resolutions up to 1920 x 1080. This makes it an ideal solution for applications that require the highest video quality, like medical imaging and control rooms.
Virtualization Support Emerald PE simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines, supporting VMware® and Microsoft® HyperV®, using RDP 8.1 and RemoteFX.
Simple System Management Manage bandwidth and user access, deploy new endpoints, update firmware, and more. Emerald PE can be managed via the receiver's OSD or the central KVM management platform Boxilla. Boxilla is a hardware-based management appliance that features a user-friendly, browser-based GUI.
Fail-Safe Operation Your 24/7 operation requires network resilience. Use the redundant network ports on the Emerald PE units to provide continuous, uninterrupted operation if one network experiences loss of service. Connect the endpoints through either two alternative direct links, a direct link and a network connection, or two independent networks.
Works Perfectly with Other KVM Systems Emerald works seamlessly with the rest of the Emerald product family and these popular Black Box KVM product families:
· DKM proprietary, direct-connect KVM system
· Freedom II Multi-Monitor Switch with Glide and Switch technology
· ControlBridge®, our system for one-touch, multisystem control
· Boxilla KVM Manager
Emerald PE Extenders Features
· Next-generation KVM extension and matrix switching simplifies access to both physical and virtual servers
· Pixel-perfect video
· Supports USB HID, transparent USB 2.0, and audio
· Manage bandwidth and user access, deploy new endpoints, update firmware, and more from the receiver’s OSD or Boxilla
· Compatible with existing KVM systems like DKM and Boxilla
';
KVX Series KVM Extenders
The KVX KVM Extenders let you control a server, or computer over copper cable, or singlemode or multimode fiber optic cable.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
KVX Series Extenders also include local video allowing access to an additional monitor at the Transmitter side. This makes it perfect for any situation that requires monitoring of connected PCs.
KVX Series Extenders are TAA compliant and backed by free lifetime technical support.
KVX Series Extenders are an ideal fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.
KVX KVM Extenders Features
· HDMI video resolution up to UHD 4K
· Remote access up to 30 kilometers
· HDMI video resolution up to 3840x2160 at 30Hz over fiber optic
· Transparent USB 2.0 extension supports HID devices, mass storage devices
· Supports RS-232 peripheral (serial) devices
· Bi-directional audio via speaker/mic connection
· Local video port loopback for monitoring on transmitter (TX) unit
· Supports EDID pass-through
';
Emerald® DESKVUE
DESKVUE is a completely new concept in KVM over IP that allows users to create a personalized workspace in which they can simultaneously monitor and interact with up to 16 systems — physical, virtual, and cloud-based — of their choice.
Make the most of your operators’ workspaces. DESKVUE increases broadcast operators’ situational awareness: users can access up to 16 systems with 4 monitors from their workspace in a remote location, for example, an OB van, or in a control room.
Ideal for control room environments, the Black Box receiver ensures instant, error-free switching between systems with a simple mouse click and enables free positioning of system windows across four 4K screens, including ultrawide curved monitors, while providing unique source information for each connected system.
Because the Emerald DESKVUE receiver does away with constant switching between systems, users no longer need to spend 40% to 50% of their time switching between systems and monitoring when tasks are complete or when a system requires interaction. With flexible, concurrent access to more than a dozen systems, all within view and easy reach, users maintain complete situational awareness that allows them to improve efficiency and productivity on a day-to-day basis and to take action instantly whenever needed.
Unlike solutions created out of complex and costly equipment integrations, DESKVUE is one small box that does it all, simply and securely over IP. Users tailor their workspace by connecting a single keyboard, mouse, USB 3/2 devices, audio, and up to four 4K monitors (one of the four monitors can be 5K). DESKVUE connects to physical systems via Emerald transmitters; virtual machines using RDP, PCoIP, PCoIP ultra, H.264/265 sources; and VNC.
· Handles resolutions up to 5120 x 1440 and supports curved monitors
· Users can customize the placement and size of individual screens to maximize work efficiency
· Integrates with Emerald Unified KVM and the Boxilla KVM manager for device configuration, monitoring, and authentication
· Connects to physical systems and virtual machines
· Eliminates the need for multiple systems or an expensive equipment integration
· Saves time, streamlines processes, and improves productivity
';
Freedom II Glide and Switch KM
Freedom II simplifies USB and mouse access to multiple computers and allows you to switch between connected systems by simply moving the mouse cursor from screen to screen. With Freedom, you will have a streamlined workspace, improving desktop ergonomics and operator response time.
';
Central Power Hub
The power output ports are lockable, preventing accidental disconnects. Each output is limited to 30 Watts at 12V.
Hot-swappable power modules convert the AC supply to DC voltage. Where redundancy is required, the Power Hub will equally balance a normal load between them. If one module stops operating, the Hub automatically transfers the full load to the remaining module.
Power integrity, safety, and management are at the heart of the Central Power Hub system. At startup, the CPH automatically checks the validity of the power modules. It then enables each power output in sequence so they are do not overload the modules by starting simultaneously. As the system provides steady power to your installation, protections are in place to ensure against excess demand by anyone connected device.
Control and monitor the Central Power Hub by an intuitive web interface. View temperature, fan speeds, and current measurements. Control each output individually.
NOTE: Compatible spare power supply - ACR1000-CPH-PS-R2.
';
Zynq™ UltraScale+™ MPSoC EV
The Zynq UltraScale+ MPSoC EV devices are particularly suited to a wide range of broadcast and media applications, from camera encoding to mobile wireless video systems, and contribution IRDs to live streaming encoders:
- Configurable and dynamically adjustable codec
- Integrate with a wide portfolio of AMD and partner IP cores such as 12G-SDI, ST 2110, IPMX, NDI, Dante AV Ultra, HDMI, DisplayPort etc.
- Up to 4K60 4:2:2 10-bit H.264/H.265 simultaneous encode + decode
- Multichannel support up to 4K60 (e.g. 2x 1080p60 or 4x 1080p30...)
- Ultra-low-latency mode of <35ms glass-to-glass
- Total device power for a single pipeline as low as 8.5W
';
KVM over IP Extenders & Matrices
KVM has been the backbone of control rooms and command control centers for many years whereby KVM solutions have allowed users to control multiple computers from multiple locations. The KVM product family from Apantac consists of KVM over IP extension & matrix solutions as well as multiviewers with built-in KVM functionality. When both sets of products are used in combination, they create a seamless workflow for a modern-day enterprise level command and control center.
KVM over IP Extenders & Matrices:
- KVM over IP (DVI/VGA) Extender / Receiver set supporting resolutions up to 1920x1200 @60 Hz (models: KVM-IP-Tx / Rx)
- Dual-Head KVM over IP (DVI/VGA) Extender / Receiver set supporting resolutions up to 1920x1200 @60 Hz (models: KVM-IP-Tx2 / Rx2)
- KVM over IP (HDMI) Extender / Receiver set with HDMI input loop for Tx, POE and supporting resolutions up to 3840 x 2160 @ 30 Hz (models: KVM-IP-Tx-PL / Rx-P)
- KVM over IP (DVI/VGA) Extender / Receiver set with Ethernet LAN over fiber - up to 10Km for singlemode ad 550 m for multimode fiber (models: KVM-IP-Tx-F / Rx-F)
- KVM over IP Transmitter for openGear Platform (model: OG-KVM-IP-Tx)
KVM over IP Extenders can be configured as a KVM over IP Matrix
- Several Tx and Rx modules are connected to a GigE Switch
- A source (Tx) can be controlled by one or more consoles (Rx) and configured for multicast

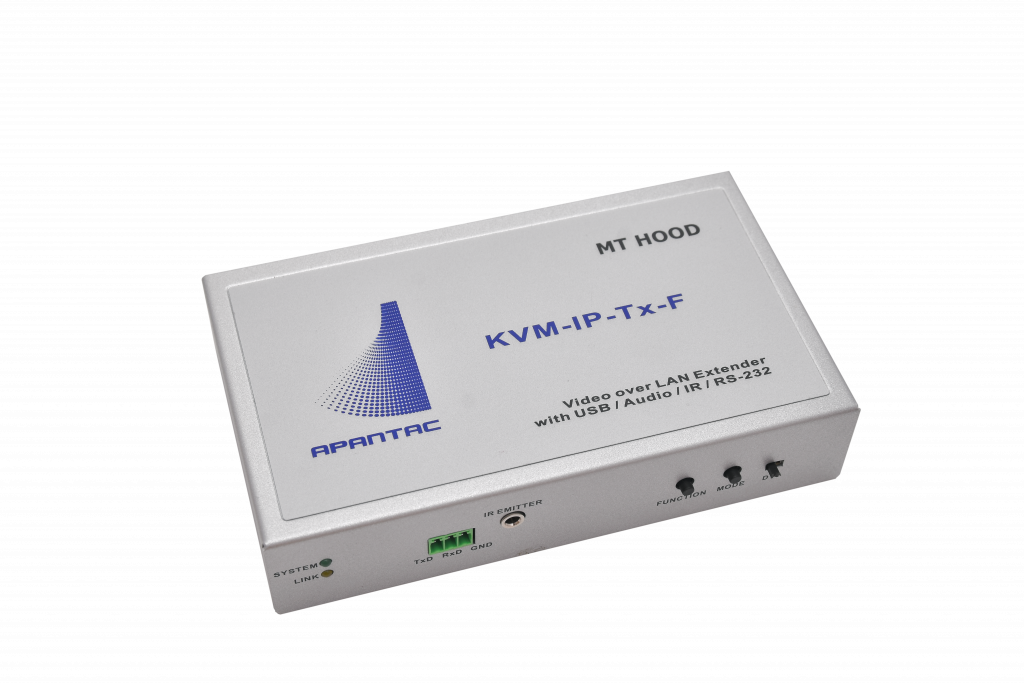

The Apantac KVM over IP Ecosystem
- All the various Tx and Rx modules can be configured and mixed for a single configuration
- Point-to-point KVM over IP extension for unicast
- KVM over IP matrix for multicast
- Extend/switch video, keyboard, mouse, USB 2.0, audio (analog/embedded), RS-232 and IR
- Pristine picture quality and minimal latency
–
T
';
Kiloview LinkDeck
By developing a 3rd-party plug-in based on Python, Linkdeck even allows interaction with systems like TriCaster and vMix."
';
VisionXS-IP-DP-UHR
';
ADDERLink™ INFINITY 4000 Series
Designed to support media and entertainment professionals when creating and managing high resolution workflows, the ALIF4000 supports HDR10 video standards as well as HD, 4K and 5K resolutions. HDR10 support delivers bolder colors, brighter lights and deeper shadows - ensuring that content can be viewed in the correct color space throughout the entire creative process.
Full compatibility with the ADDERLink INFINITY range means the ALIF4000 can be phased into an existing network without disruption, downtime, or the costly need to rip and replace. If you are starting your 5K IP KVM journey, you can configure the ALIF4000 as a small, unmanaged, matrix of up to 16 endpoints. Then as your system evolves and greater control is required, a management system and additional endpoints can be seamlessly integrated at a time that is right for you.
- Dual-head 5K video, digital audio and Hi-Speed USB2.0 over a single link
- Supports up to 10-bit color SDR and HDR10
- Pixel-perfect image quality
- Multi-channel digital audio via DisplayPort™
- Touch screen control
- Adder’s USB True Emulation for fast switching
- Backwards compatible with existing ADDERLink INFINITY range
- Flexible and scalable
';
RemoteAccess-GATE
';
ControlCenter-Xperience – Experience KVM like never before
';
RemoteAccess-CPU

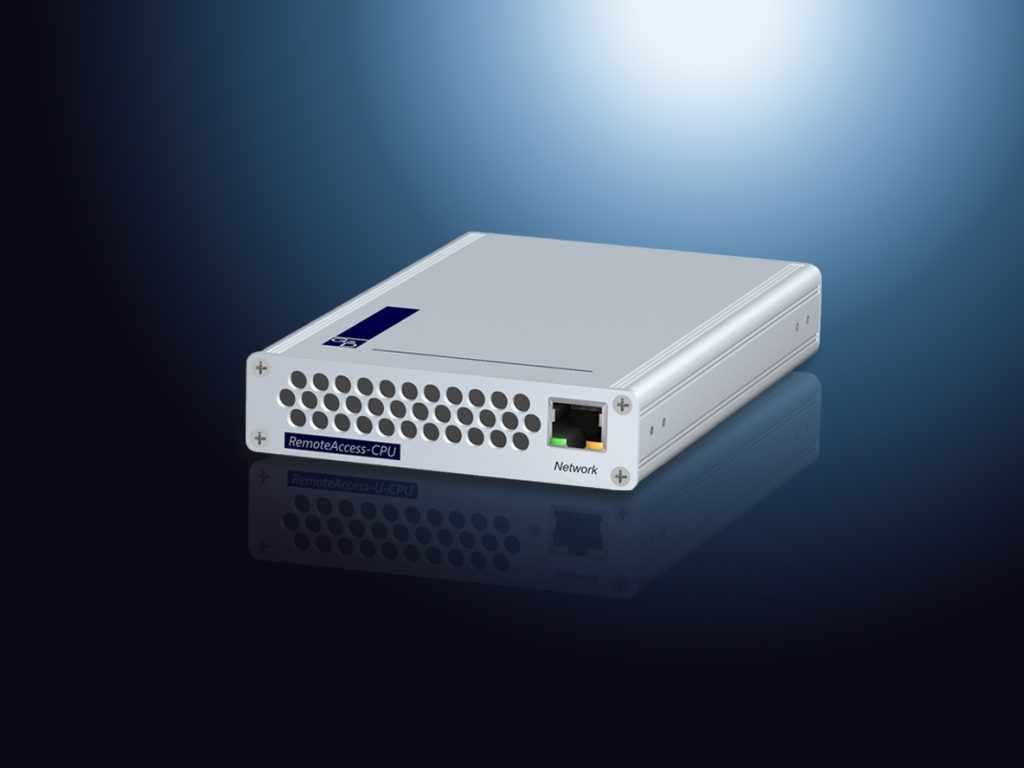

Guntermann & Drunck GmbH (G&D), leading manufacturer of KVM systems for broadcast applications, presents its newest KVM product – the RemoteAccess-CPU. The device lets operators seamlessly integrate virtual machines into KVM installations to create hybrid infrastructures. Cloud computing and virtualisation are becoming increasingly important in broadcasting. The physical hardware available on site can be optimally supplemented by virtual machines and computers, which can be remotely accessed via network protocols.
Creating hybrid infrastructures using G&D’s RemoteAccess-CPUThe new modules establish a connection between matrix systems and computers or virtual machines, which can be remotely accessed via network protocols (RDP, VNC, and SSH). This way, hybrid systems with real and virtual computer infrastructure can be optimally implemented. The RemoteAccess-CPU supports video resolutions up to 2560 × 1600 @ 60 Hz (or 3840 × 2160 @ 30 Hz) as well as USB HID and embedded audio. After appropriate configuration, users can access any number of virtual sources and computers accessible via network protocols directly via KVM matrix system – uniformly and exactly as producers would access computers under their desk. Via G&D's KVM system, multiple operators can use the same RemoteAccess-CPU to simultaneously connect to and operate the same virtual machine.
The bridge between cloud computing and KVM With the RemoteAccess-CPU, users get a maximum comfortable solution with a high level of user friendliness. Producers can simply select the desired source from a standardised select menu (target list) on the on-screen display – regardless of whether the computer is available in the server room, via network protocol or in the cloud. G&D’s KVM matrix controls the logic and takes over user administration. All connection data is forwarded encrypted.
Thanks to its integrated thin client functionality, the RemoteAccess-CPU offers a platform with integrated thin client functionality, the solution is highly integrative when it comes to establishing connections. Currently, the network protocols RDP, VNC and SSH are supported. Support of further protocols will follow soon.
More information on this topic is available on https://www.gdsys.de/en/ra-cpu/
';
ControlCenter-IP – matrix system for KVM-over-IP
';
ControlCenter-Compact – compact KVM matrix system
';
ControlCenter-Digital – modular KVM matrix system
';
High-end KVM switches
';
KVM-over-IP extenders
';
Classical KVM extenders
KVM extenders allow users to operate their computers over distances up to 10,000 m whilst maintaining real-time performance. The systems consist of a transmitter and a receiver module.
Depending on the application, systems with uncompressed or compressed data transmission are available. The transmission takes place via CAT cables or optical fibres. Resolutions up to 4K @ 60 Hz and 8K @ 60 Hz for best video quality and perfect hand-eye coordination are supported. Depending on the product variant and the expansion stage the following video signals are supported: DP1.2, DP1.1, DVI single-link, DVI dual-link, HDMI and VGA.
The immediate working environment remains free from heat and noise emissions since all computers are placed in a central, air-conditioned equipment room. Here, technicians are able to administrate and maintain the equipment without interrupting the work of the users. A local console at the transmitter module placed in the server room makes it easy for the IT staff to maintain the system.
';
Emerald® KVM over IP Solution
Futureproof, scalable Emerald solutions help you build resilient networks with remote access to physical and virtual machines. Using extremely low bandwidth, Emerald delivers secure, pixel-perfect HD and 4K video. True USB emulation means its compatible with your USB devices, and a software-only KVM receiver enables access from your laptop. A Boxilla dashboard provides comprehensive management.
';
Boxilla® KVM Manager
Boxilla® is a KVM system management platform that can manage small, medium, and large installations that have thousands of endpoints. It provides a centralized, easy-to-use command center for full monitoring and control of your entire system, across the enterprise. Without leaving your seat, you can control user access, monitor device status, and address potential problems before they happen. Ensure security with authentication and access control. Manage your Emerald system via a security interface dashboard for reporting and real-time alerts.
Advantages for Your Network
· Offers easy-to-use centralized admin and control with simple configuration for large-scale deployments
· Provides enterprise management with enhanced authentication, access control, and accounting for secure communication
· Supports virtual desktops and physical PCs/servers, plus integration with virtualization management tools
· Includes advanced mode controls: private, shared, pre-emption, and auto-login
· Zones enable the administrator to set up unique zones (or groups) of connections and users so that a large system can be more easily managed
· Allows up to 100 management groups
· Supports time zone configurations
· Enables interoperability among all Emerald devices
· Supports Activate Directory integration
';
R&S®PRISMON.cloud
Rohde & Schwarz launches its new Monitoring-as-a-Service (MaaS) solution R&S PRISMON.cloud in Europe
At IBC 2019, Rohde & Schwarz rolls out its cloud-based OTT monitoring solution PRISMON.cloud in Europe, making it now available in the US, Germany, the Netherlands, Switzerland, France, the UK and Italy. New features first presented at this year’s show in Amsterdam corroborate Rohde & Schwarz´s aspiration in offering the ideal monitoring tool for broadcasters, content and streaming platform providers. R&S PRISMON.cloud can be deployed quickly and without dedicated hardware. A flexible and scalable pricing model allows users to reduce investment costs (CAPEX), therefore, provides a tailored monitoring solution also for event driven usage peaks.
R&S PRISMON.cloud was designed to enable OTT providers to permanently understand the current Quality-of-Service (QoS) but also to quickly and easily adapt their monitoring infrastructure, for example when peak loads during the transmission of large events require extended service.
A live multiview function, automated analysis of A/V data and error assignment in real time placed in an intuitive analysis dashboard make it possible to permanently measure QoS parameters, store it in a cloud environment and visualize it in a timeline format.
Thanks to the easy-to-use setup wizard, it only takes minutes to add new virtual IoT sensors around the globe and connect them to the dashboard. The cloud solution has been extended with an API interface to integrate current data into network management systems and now provides configurable incident notifications.
In combination with the widely used on-premise monitoring solution R&S PRISMON, OTT data from both physical and virtual sensors can be displayed in a single dashboard. As a new feature, SMPTE 2110 data from R&S PRISMONs can now also be viewed in the PRISMON.cloud dashboard.
The resulting end-to-end transparency quickly and easily reveals errors such as deterioration of video or audio quality or poor CDN performance as a cause of churn. PRISMON.cloud sensors are available in two service packages: silver and gold. These packages can be ordered in the Rohde & Schwarz App Store as three-month and twelve-month subscriptions. There is also a free trial that enables customers to try out R&S PRISMON.cloud with no obligation. For more information about the service packages, visit www.prismon.cloud.
';
