Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The DA-HDTV-USB video capture device is a portable and compact module that captures video from just about any source (e.g. cameras and computers). It can capture the video as an HDMI 2.0 input up to UHD and an SDI input up to 3G (1080p). It supports resolutions up to 3840x2160p, 4:4:4, with an HDMI loop-out and USB 3.0 output streams at 1080p maximum resolution. Once video is captured, it can be recorded to another device or streamed for production or online applications. In application, a facility may need to capture video from cameras, record the video to a computer and ultimately stream the video out for live conferencing.

• This compact box - with a magnetic bottom for an easy installation on a metal surface or using the supplied mounting plate, accepts HDMI or SDI input signals and streams them to its USB 3.1 output.


• It accepts HDMI 2.0 signals video resolutions up to 4K/UHD 60 Hz (4:4:4) and SDI signals up to 3G-SDI (1080p60) and has loop out outputs for both. The USB 3.1 streaming output maximum resolution is 1080p60 (meaning that 4K/UHD signals are down converted to 1080p).


• It works with software media players such as VLC and other conferencing applications. It is very easy to set up: Just connect it, launch the media player or conferencing application and select the device as audio and video source. You can then record or stream the DA-HDTV-USB video and audio signals. It is compatible with Windows,  MAC and Linux computers.


• It has a mic input allowing to mix voice with the input audio and a speaker output allowing to check the audio output.


• All the necessary cables and accessories are supplied as standard.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

CLICK HERE for our KVM over IP PRESENTATION

KVM has been the backbone of control rooms and command control centers for many years whereby KVM solutions have allowed users to control multiple computers from multiple locations. The KVM product family from Apantac consists of KVM over IP extension & matrix solutions as well as multiviewers with built-in KVM functionality. When both sets of products are used in combination, they create a seamless workflow for a modern-day enterprise level command and control center.

KVM over IP Extenders & Matrices:

• KVM over IP (DVI/VGA) Extender / Receiver set supporting resolutions up to 1920x1200 @60 Hz (models: KVM-IP-Tx / Rx)


• Dual-Head KVM over IP (DVI/VGA) Extender / Receiver set supporting resolutions up to 1920x1200 @60 Hz (models: KVM-IP-Tx2 / Rx2)


• KVM over IP (HDMI) Extender / Receiver set with HDMI input loop for Tx, POE and supporting resolutions up to 3840 x 2160 @ 30 Hz (models: KVM-IP-Tx-PL / Rx-P)


• KVM over IP (DVI/VGA) Extender / Receiver set with Ethernet LAN over fiber - up to 10Km for singlemode ad 550 m for multimode fiber (models: KVM-IP-Tx-F / Rx-F)


• KVM over IP Transmitter for openGear Platform (model: OG-KVM-IP-Tx)

KVM over IP Extenders can be configured as a KVM over IP Matrix

• Several Tx and Rx modules are connected to a GigE Switch


• A source (Tx) can be controlled by one or more consoles (Rx) and configured for multicast

The Apantac KVM over IP Ecosystem

• All the various Tx and Rx modules can be configured and mixed for a single configuration


• Point-to-point KVM over IP extension for unicast


• KVM over IP matrix for multicast


• Extend/switch video, keyboard, mouse, USB 2.0, audio (analog/embedded), RS-232 and IR


• Pristine picture quality and minimal latency

–

T

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

MI-16 SERIES OF MULTIVIEWERS PRESENTATION

The addition of UHD outputs to Apantac’s Multiviewers means that facilities now have a cost-effective UHD visual monitoring solution that is much sharper, clearer and more detailed than before.

In comparison to an HD Multiviewer & Display, Apantac’s Multiviewers with UHD outputs mean that the source window PIPs (picture in picture) can be displayed with twice the horizontal number of pixels and twice the number of lines on a UHD panel.

Since UHD monitors are rapidly becoming less expensive, media facilities can use off-the-shelf UHD displays coupled with Apantac’s cost-effective Multiviewers for an inexpensive multi-image display processing solution for many content applications.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The MiniDE-4-UHD-II can display up to 4 video inputs on the same screen and supports 4 x HDMI 2.0 inputs / outputs up to 4K@60Hz at 4:4:4.

Supports Deep color and HDCP 1.4 and 2.2 and Dolby Digtal 5.1, DTS 5.1 and uncompressed 7.1.



Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

PRODUCT PRESENTATION

An affordable and high performance entry into 4K/UHD multi-image display for a variety of broadcast and ProAV visual environments including control rooms, digital signage and the like.

Includes a KVM feature whereby KVM and a Multiviewer are working together on a UHD screen.

This MiniDE-4-UHD-K is ideal for displaying up to 4 sources on a single UHD monitor or projector. The added benefit is that users can mix input resolutions and sources all the way up to 4K on a single display.

The MiniDE-4-UHD-K displays up to 4 HDMI computer inputs with keyboard and mouse functions on the same screen. It accepts SD, HD and true UHD/4K @ 60Hz input resolutions. The output resolution can be set for 1280x720p @ 60Hz, 1920x1080p @ 60Hz or 3840x2160p @ 30Hz or 60Hz. All with 4:4:4 color sampling. There are 6 predefined and 8 customized possible screen layouts. PIP and POP modes are also supported. Control and configuration is handled through a web interface, Ethernet, and RS232. As with all Apantac multiviewers, display layout creation is simple and extremely intuitive.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Modular interfacing and signal processing »

The OG-DA-8-UHD and OG-DA-4-UHD now include 12G support for UHD applications. The models include 1x4 and 1x8 distribution amplifiers for auto-detected 12G/6G/3G/HD/SD-SDI signals and are designed specifically for the OGX/3.0 card-based openGear platform.

These are cost effective designs to split one 12G signal into four or eight and are useful in almost any broadcast or professional AV environment where clean signal splitting is required over long cable runs. Cable reach is up to 70 meters for 12G, up to 100 meters for 6G and up to 140 meters for 3G signals.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

CLICK HERE  -  T# PRODUCT PRESENTATION

Modular multiviewers with mix and match I/O up to 12G support.

The T# Multiviewers provide a uniquely modular and flexible approach that will ensure a future-proof solution for a visual monitoring infrastructure. What makes the T# Multiviewer platform particularly versatile is the fact that it is truly modular supporting a full range of input boards and output boards monitoring signals from Composite to 12G-SDI, UHD, HDMI 2.0, HDMI/DVI, SDI over fiber and IP.

The T# Multiviewer comes in 3 different frame sizes; 1 RU, 2 RU and 4 RU. Since the frames are completely modular, different I/O modules can be inserted to form different sizes and configurations of multiviewers.

All input cards are hot swappable and include:

- 12G SDI broadcast input boards- Standard broadcast input boards- CVBS to UHD input cards- HDMI input cards- IP (H.264/Mpeg4, Mpeg2) input cards- SFP input cards can accept SDI fiber or SMPTE 2022 SFPs

All output cards are hot swappable and include:

- Up to 4 outputs per output board (maximum 2 output boards / 8 outputs)- Standard output cards- Expansion output cards- CATx extender output cards- HDMI and SFP output cards- HDMI 2.0 UHD output cards

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The UE Series includes Multiviewers that support either 4 or 8 4K/UHD HDMI 2.0 inputs as well as HDMI 2.0 and 12G outputs. Models are available with or without KVM Functions. As with all TAHOMA Multiviewers, the UE Series if fully featured,Apantac now announces its second generation of UE multiviewers, which include a cascading feature, are more compact (almost half the depth) and consume less power. The UE series now also includes the UE-4-DP, which offers Display Port inputs instead of HDMI 2.0.The UE-4-II and UE-4-K-II models can be cascaded together as well as cascaded with the Apantac Mi-8 12G-UHD, an 8x1 UHD multiviewer with inputs up to 12G SDI. The cascade feature ensures users can combine more source inputs as well as mix input formats on the same display - all without extra latency. For example, user can cascade one UE-4K-II with one UE-4-II and one Mi-8 12G-UHD, thereby displaying up to 8x HDMI plus 8x 12G SDI signals on the monitor and control up to four HDMI computers from a single keyboard and mouse. The maximum number of units in a cascade is four, with a maximum of four UE-4-II, two UE-4-K-II and one SDI multiviewer.The KVM function allows multiple computers connected to the Multiviewer to be controlled via a single mouse and keyboard. Users simply move the mouse from window to window (on their display) to switch the control from one computer to another one. A single operator can visually monitor and control up to eight computers on a single console with a UHD or HD monitor. Via the single console, the user can easily switch between Multiviewer layouts using predefined keyboard shortcuts.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

Supporting television production and media distribution while teams work remotely brings with it many challenges. A primary challenge with remote work is the ability to see, hear, and understand the technical properties of your media library from afar. At Telestream, we call this media file opaqueness. GLIM was built to solve well known remote work challenges: be a vastly superior experience to the ‘remote desktop/virtual desktop’ playback experience, and to prevent remote employees wasting hours every day downloading mezzanine grade media files. Solving these two challenges significantly reduces the aforementioned media file opaqueness, and ultimately increases productivity. GLIM is a groundbreaking technology that allows users to remotely play mezzanine/professional-grade media files in a web browser. The GLIM engine is built upon our Switch playback and inspection technology and will allow for remote playback of any container/ codec/resolution/fps/audio channel/color space combination in a web browser (Windows or Mac OS and Google Chrome v80+).

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »



Rohde & Schwarz launches its new Monitoring-as-a-Service (MaaS) solution R&S PRISMON.cloud in Europe





At IBC 2019, Rohde & Schwarz rolls out its cloud-based OTT monitoring solution PRISMON.cloud in Europe, making it now available in the US, Germany, the Netherlands, Switzerland, France, the UK and Italy. New features first presented at this year’s show in Amsterdam corroborate Rohde & Schwarz´s aspiration in offering the ideal monitoring tool for broadcasters, content and streaming platform providers. R&S PRISMON.cloud can be deployed quickly and without dedicated hardware. A flexible and scalable pricing model allows users to reduce investment costs (CAPEX), therefore, provides a tailored monitoring solution also for event driven usage peaks.



R&S PRISMON.cloud was designed to enable OTT providers to permanently understand the current Quality-of-Service (QoS) but also to quickly and easily adapt their monitoring infrastructure, for example when peak loads during the transmission of large events require extended service.



A live multiview function, automated analysis of A/V data and error assignment in real time placed in an intuitive analysis dashboard make it possible to permanently measure QoS parameters, store it in a cloud environment and visualize it in a timeline format.



Thanks to the easy-to-use setup wizard, it only takes minutes to add new virtual IoT sensors around the globe and connect them to the dashboard. The cloud solution has been extended with an API interface to integrate current data into network management systems and now provides configurable incident notifications.



In combination with the widely used on-premise monitoring solution R&S PRISMON, OTT data from both physical and virtual sensors can be displayed in a single dashboard. As a new feature, SMPTE 2110 data from R&S PRISMONs can now also be viewed in the PRISMON.cloud dashboard.



The resulting end-to-end transparency quickly and easily reveals errors such as deterioration of video or audio quality or poor CDN performance as a cause of churn. PRISMON.cloud sensors are available in two service packages: silver and gold. These packages can be ordered in the Rohde & Schwarz App Store as three-month and twelve-month subscriptions. There is also a free trial that enables customers to try out R&S PRISMON.cloud with no obligation. For more information about the service packages, visit www.prismon.cloud.



Connect » Provide Connectivity » Connectivity & Bandwidth » Fiber and private IP connectivity »

Matrox® Extio 3 is the world's first IP KVM extender capable of supporting 4Kp60 or quad 1080p60 4:4:4 video, keyboard, mouse, USB 2.0, and audio at unprecedented low-bitrates over a standard Gigabit Ethernet network. With exceptional remote performance, smooth video playback, and pristine image quality. Designed to ease integration and provide operational flexibility for information sharing, fast decision making, and intuitive collaboration, Matrox Extio 3 IP KVM is ideal for a wide range of secure extension and switching applications in environments such as process control rooms and dispatch, as well as network operation centers in healthcare, military, transportation, government, broadcasting, and industrial automation and control.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

The VisionXS-IP-DP-UHR is a matrix-compatible extender and much smaller than previous IP extender variants. The housing is used to dissipate the heat (passive cooling). The space available (especially in the rack) can be optimally used thanks to the considerably lower space requirement.The VisionXS-IP-DP-UHR uses standard networks with up to 10Gbit/s. The new devices are of course also compatible with the predecessor variants with 1GBit technology.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

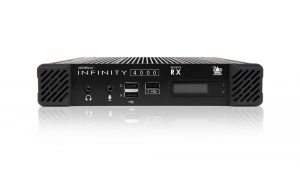

The ADDERLink™ INFINITY 4000 Series (ALIF4000) is an award-winning, high performance IP KVM (keyboard, video, mouse) matrix solution that gives real-time access to dual-head 5K video, digital audio, and USB2.0, over a single fiber.

Designed to support media and entertainment professionals when creating and managing high resolution workflows, the ALIF4000 supports HDR10 video standards as well as HD, 4K and 5K resolutions. HDR10 support delivers bolder colors, brighter lights and deeper shadows - ensuring that content can be viewed in the correct color space throughout the entire creative process.

Full compatibility with the ADDERLink INFINITY range means the ALIF4000 can be phased into an existing network without disruption, downtime, or the costly need to rip and replace. If you are starting your 5K IP KVM journey, you can configure the ALIF4000 as a small, unmanaged, matrix of up to 16 endpoints. Then as your system evolves and greater control is required, a management system and additional endpoints can be seamlessly integrated at a time that is right for you.

• Dual-head 5K video, digital audio and Hi-Speed USB2.0 over a single link


• Supports up to 10-bit color SDR and HDR10


• Pixel-perfect image quality


• Multi-channel digital audio via DisplayPort™


• Touch screen control


• Adder’s USB True Emulation for fast switching


• Backwards compatible with existing ADDERLink INFINITY range


• Flexible and scalable

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

The ability to link company sites around the world and access computer systems at different locations from anywhere is becoming more important than ever.With their new product RemoteAccess-GATE, KVM manufacturers Guntermann & Drunck (G&D) enable their customers to remotely operate KVM systems via LAN, WAN and the Internet. A stand-alone device that links the two worlds of KVM systems and the networks, the RemoteAccess-GATE provides unblocked, BIOS-level access to connected computers worldwide. Thus, the RemoteAccess-GATE opens up completely new ways for remote operation from remote locations and also improves the ways of providing IT support and collaboration between employees.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

The ControlCenter-Xperience is a permanently installed control room. Here, we show how different systems and technologies interact, thus giving them the possibility to respond very individually to customer demands during consulting. Unlike conventional showrooms, the CCX is not limited to illuminated glass cabinets showcase in which KVM systems can only be viewed. Instead, you can experience technology live and in action. Now, G&D are able to offer a platform for personal live consulting on a real control room application, independent of time and place. Thanks to the approach of demonstrating KVM also via live stream, it is easier to provide individual advice to customers from other European countries and from overseas.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

CLICK HERE for our KVM over IP PRESENTATION

KVM has been the backbone of control rooms and command control centers for many years whereby KVM solutions have allowed users to control multiple computers from multiple locations. The KVM product family from Apantac consists of KVM over IP extension & matrix solutions as well as multiviewers with built-in KVM functionality. When both sets of products are used in combination, they create a seamless workflow for a modern-day enterprise level command and control center.

KVM over IP Extenders & Matrices:

• KVM over IP (DVI/VGA) Extender / Receiver set supporting resolutions up to 1920x1200 @60 Hz (models: KVM-IP-Tx / Rx)


• Dual-Head KVM over IP (DVI/VGA) Extender / Receiver set supporting resolutions up to 1920x1200 @60 Hz (models: KVM-IP-Tx2 / Rx2)


• KVM over IP (HDMI) Extender / Receiver set with HDMI input loop for Tx, POE and supporting resolutions up to 3840 x 2160 @ 30 Hz (models: KVM-IP-Tx-PL / Rx-P)


• KVM over IP (DVI/VGA) Extender / Receiver set with Ethernet LAN over fiber - up to 10Km for singlemode ad 550 m for multimode fiber (models: KVM-IP-Tx-F / Rx-F)


• KVM over IP Transmitter for openGear Platform (model: OG-KVM-IP-Tx)

KVM over IP Extenders can be configured as a KVM over IP Matrix

• Several Tx and Rx modules are connected to a GigE Switch


• A source (Tx) can be controlled by one or more consoles (Rx) and configured for multicast

The Apantac KVM over IP Ecosystem

• All the various Tx and Rx modules can be configured and mixed for a single configuration


• Point-to-point KVM over IP extension for unicast


• KVM over IP matrix for multicast


• Extend/switch video, keyboard, mouse, USB 2.0, audio (analog/embedded), RS-232 and IR


• Pristine picture quality and minimal latency

–

T

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »



Guntermann & Drunck GmbH (G&D), leading manufacturer of KVM systems for broadcast applications, presents its newest KVM product – the RemoteAccess-CPU. The device lets operators seamlessly integrate virtual machines into KVM installations to create hybrid infrastructures. Cloud computing and virtualisation are becoming increasingly important in broadcasting. The physical hardware available on site can be optimally supplemented by virtual machines and computers, which can be remotely accessed via network protocols.



Creating hybrid infrastructures using G&D’s RemoteAccess-CPUThe new modules establish a connection between matrix systems and computers or virtual machines, which can be remotely accessed via network protocols (RDP, VNC, and SSH). This way, hybrid systems with real and virtual computer infrastructure can be optimally implemented. The RemoteAccess-CPU supports video resolutions up to 2560 × 1600 @ 60 Hz (or 3840 × 2160 @ 30 Hz) as well as USB HID and embedded audio. After appropriate configuration, users can access any number of virtual sources and computers accessible via network protocols directly via KVM matrix system – uniformly and exactly as producers would access computers under their desk. Via G&D's KVM system, multiple operators can use the same RemoteAccess-CPU to simultaneously connect to and operate the same virtual machine.

The bridge between cloud computing and KVM With the RemoteAccess-CPU, users get a maximum comfortable solution with a high level of user friendliness. Producers can simply select the desired source from a standardised select menu (target list) on the on-screen display – regardless of whether the computer is available in the server room, via network protocol or in the cloud. G&D’s KVM matrix controls the logic and takes over user administration. All connection data is forwarded encrypted.

Thanks to its integrated thin client functionality, the RemoteAccess-CPU offers a platform with integrated thin client functionality, the solution is highly integrative when it comes to establishing connections. Currently, the network protocols RDP, VNC and SSH are supported. Support of further protocols will follow soon.

More information on this topic is available on https://www.gdsys.de/en/ra-cpu/

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

The ControlCenter-IP matrix system enables the distributed switching of all connected computer and console modules over IP-based networks and thus provides even more flexibility and scalability for KVM installations. While the network infrastructure takes over the transport of KVM-over-IP™, the ControlCenter-IP contributes the logic. Transmission takes place compressed via CAT cabling or optical fibre. Thanks to the network connection and the option of using standard network components, the application gains even more flexibility. This ensures that the systems are easily expandable and scalable at all times.Offering twice the flexibility of usual systems, the new matrix does not only extend computer signals over IP, but also switches them as an n:m connection. In combination with G&D's IP extenders, the ControlCenter-IP forms a powerful matrix system.The ControlCenter-IP supports numerous signals thus providing solutions for DVI single- and dual-link, DP1.1 and DP1.2, including real 4K@60 Hz over IP. Even at high resolutions, the system delivers optimal, pixel-perfect and latency-free image quality for the best possible hand-eye coordination. The new matrix for KVM-over-IP™ also impresses with the usual wide range of functions offered by G&D matrix systems. Functionalities such as monitoring and SNMP, the scripting function and scenario switching, the push-get function for optimal collaboration and the control of video walls as well as CrossDisplay-Switching for absolutely intuitive operation at multi-monitor workstations have been integrated into the KVM-over-IP™ matrix.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

A KVM matrix system of the ControlCenter-Compact series consists of at least one central module, one console module and one computer module. The central module of the ControlCenter-Compact series is the central component of the KVM matrix system. Both console and computer modules are connected to the matrix.  With the ControlCenter-Compact users are able to access multiple computers over multiple user consoles simultaneously.  The KVM matrix system enables a console module to be connected to a computer module. The video image of the computer connected to the computer module is displayed on the console monitor. Use the keyboard and mouse of the console to operate the connected computers. The ControlCenter-Compact is available in CAT, fiber and mixed versions. This ensures that you can always use the right KVM matrix system for your application. The ControlCenter-Compact is available in eight expansion stages between 8 and 176 dynamic ports and is fully compatible with the end components for computer and console connections. These also include the DP1.2 vision systems which enable the latency-free signal transmission of 4K video at a full 60 Hz refresh rate through the matrix.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

The ControlCenter-Digital is a KVM matrix switch, which helps users operate multiple computers via multiple consoles. With its modular setup, the  ControlCenter-Digital is highly flexible and ready to adapt to any surrounding conditions. The matrix switch enables the remote access of large, distributed IT installations in control rooms and is ready for any future IT requirements.Depending on the chosen variant, the available 288, 160 or 80 dynamic ports can be connected either as computer or as user port. Which type of module is connected is automatically detected by the ControlCenter-Digital. The modular design consists of Controller- and Switchcard, I/O CAT- & I/O Fibre cards, I/O-Card-Multi, I/OCard-Trunk, fan boards and the power supplies. All they are modular and can be replaced. The system can be adapted or extended even during operation. -    The input/output cards (I/O cards) establish a connection between the ControlCenter-Digital and its computer modules and user modules. Each card provides 16 ports, which automatically detect the type of module connected to the matrix switch. The cards run independently from each other – even in mixed mode.-    The ControlCenter-Digital is supplied with power from three redundant power packs. Each of the three power packs is hot-swappable and can be replaced during operation.-    The CCD switch card provides the matrix’s central switching logic. Like all other modular parts of the matrix, the switch card is hot-swappable and can be easily replaced.-    The controller card contains the central processor unit to administrate, monitor and control the system.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

Digital and analogue switches are designed to operate 2 to 64 computers via one console consisting of keyboard, monitor and mouse. They allow a peripheral-saving solution for a user-friendly and ergonomic environment. Furthermore, they are the basis to set up redundant computer systems in different control room applications.Redundancy systems running parallel to the primary system can be established. In the event of a system failure, users can simply press a button to switch to a redundant system within a fraction of a second.G&D’s offers solutions for DP1.2, DP1.1, DVI single- and dual-link and VGA video signals. The DVI switches also transmit VGA video signals and so enable users to work in mixed mode.Depending on the product variant G&D offers solutions for video resolutions up to 4K @ 60 Hz (4096 × 2160 @ 60 Hz).

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

Unlimited access with KVM-over-IP Extender systems from G&D The KVM-over-IP extenders consists of a computer module (transmitter) and a user module (receiver). Transmission takes place compressed via CAT cabling or optical fibres via standard IP-based networks on layer 3, with a data transmission rate of 1 Gbit/s per line.The new extender systems for KVM-over-IP™ support numerous signals thus providing solutions for DVI single- and dual-link, DP 1.1 and DP 1.2 at all common resolutions. With the powerful DP1.2-Vision-IP, G&D has set a new milestone that can extend real 4K@60 Hz over IP and supports resolutions up to 4096 × 2160 @ 60 Hz. G&D’s IP extenders offer pixel-perfect video transmission for best possible performance and ideal hand-eye coordination. Transmission takes place compressed, thus videos are transmitted completely lossless and latency-free. The systems essentially use dedicated cabling. This offers the full and exclusive bandwidth and thus absolutely reliable transmission, especially for high-performance applications. The systems are compatible and work according to G&D’s mix & match concept, meaning that the technical possibilities are almost unlimited. The extender modules can also be easily combined with the ControlCenter-IP to create a powerful matrix for typical control room applications.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

KVM extenders allow users to operate their computers over distances up to 10,000 m whilst maintaining real-time performance. The systems consist of a transmitter and a receiver module.

Depending on the application, systems with uncompressed or compressed data transmission are available. The transmission takes place via CAT cables or optical fibres. Resolutions up to 4K @ 60 Hz and 8K @ 60 Hz for best video quality and perfect hand-eye coordination are supported. Depending on the product variant and the expansion stage the following video signals are supported: DP1.2, DP1.1, DVI single-link, DVI dual-link, HDMI and VGA.

The immediate working environment remains free from heat and noise emissions since all computers are placed in a central, air-conditioned equipment room. Here, technicians are able to administrate and maintain the equipment without interrupting the work of the users.  A local console at the transmitter module placed in the server room makes it easy for the IT staff to maintain the system.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

This chassis-based, modular cross point KVM matrix platform enables switching and extension of HD/4K video, USB 1/2/3, digital and analog bi-directional audio, and serial data over extremely long distances. Users can switch seamlessly and almost instantaneously (milliseconds) from one source to another. Use it in any application where many users have to interface with CPUs and other high-end AV equipment supporting high-quality video. Plus, it works as video scaler, converter and switcher.

Using a non-blocking switch technology, the DKM FX processes and routes DisplayPort 1.1 resolutions up to 4K at 60 fps, HDMI/Single Link DVI up to 1080p and Dual Link DVI up to 2560x1600 with little or no delay of video—even at screens far away from the switching chassis itself.

The platform not only supports digital video , but also SDI, VGA and many other analogue video formats and connections to a wide array of peripherals, including USB HID, USB 2.0 (up to 480 Mbps), RS-232, RS-422, audio and even legacy PS/2 keyboards and mice. For multi-head or demanding graphic applications, there are connections with multiple video ports and high-bandwidth throughput available.

DKM has been specifically designed for enterprise networks, mission-critical control rooms, as well as video production or broadcasting applications where fast, high-resolution video processing is crucial.

• A scalable, highly reliable KVM matrix switching and HD video routing system.


• Supports high-quality, full-frame digital video.


• Very flexible. Any port can be an input or an output.


• Holds up to 36 modular cards for up to 576 I/O ports (cascaded up to 4.096)


• Terabit-speed switching backplane.


• Nearly instantaneous video switching. Virtually no delay or blanking.


• Boasts digital resolutions up to 4K with 60fps (DP), 2560 x 1600 (DVI), 1080p (HDMI).


• Various interface cards available (digital/analogue video, USB, Audio, serial).


• Modular, no fixed ports. Moves, adds, and changes are quick and easy.


• Use it with DKM Extenders to connect users and computers over the distance.


• Choose from CATx and fibre SFP modular card interfaces.


• Enables mixing of media on inputs/outputs—CATx in and fibre out, or vice versa.


• Supports rich, digital audio for a full multimedia experience.


• Includes a control card, manage via KVM, network, or serial console.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

Boxilla® is an award-winning deployment, monitoring, and management platform that facilitates management of multiple small to large-scale enterprise KVM systems. The appliance based system helps to connect users with computers, speeds up firmware-updates, automates intrusion detection and more from a user-friendly, web-based GUI.

• Control deployments, monitoring, upgrades, troubleshooting, security, status—everything!


• Have an instant snapshot of the KVM/AV-network through the command center dashboard.


• Fast device discovery and configuration; user authentication.


• Manage and access applications across multiple servers from physical to virtual machines.


• Host/VM management.


• Target pooling: Automatically assigned to next available system.


• Centralized upgrade of end-point devices.


• Compatible Black Box Emerald™ Unified KVM, DKM KVM Matrix Switches, InvisaPC KVM-over-IP solutions and more.


• Multiple licenses available from 25 to unlimited endpoints.

Support » Monitoring, Control & Communications » Video Monitoring » KVM and PCoIP systems »

Emerald® Unified KVM (keyboard, video, mouse) is an award-winning high-performance, 24/7 extension and matrix switching solution that simplifies remote user access to video and peripheral signals from both physical and virtual servers.

It extends and switches 4K/60Hz DisplayPort 1.2 (Emerald 4K) or HD pixel-perfect DVI video (Emerald PE), transparent USB 2.0, and audio signals via SFP copper or fibre connections across a dedicated IP KVM network, an existing LAN or even the Internet. Multiple redundancy options (network paths, power supply, pooling feature etc.) ensure smooth and safe operation for your critical production and playout infrastructure.

Supported by the award-winning Boxilla® Enterprise KVM Management Platform, you can easily deploy endpoints, monitor bandwidth consumption, configure user acces rights, and set up automated network security alerts. All of this from an intuitive web-based GUI.

Emerald comprises of a choice of HD or 4K transmitters connecting computers or virtual machines to the system and receivers adding the user consoles. High performance Emerald network switches (1/10/100 Gbit/s) with 12/28/32/48 ports ensure trouble-free KVM over IP extension and switching. A range of SFP/SFP+ transceivers proofs best performing video quality and KVM extensions over the required distances.

• Next generation KVM extension and matrix switching solution simplifies access to both physical and virtual servers.


• Mix and match remote servers/PCs and users through IP connections to your needs.


• 4K/60Hz DisplayPort 1.2, HD DVI video, transparent USB 2.0, serial and bi-directional analog audio.


• USB-powered, small form factor "ZeroU" transmitters available that help saving valuable rack space.


• Connect users and virtual machines (VMware®, Microsoft® and Citrix®) over RDP, RemoteFX or PCoIP.


• Also available with dual-head DVI video support (Emerald SE, Emerald PE).


• Emerald Remote App software receiver: access your Emerald transmitters from any Windows® 10 device without the need for additional hardware receivers
