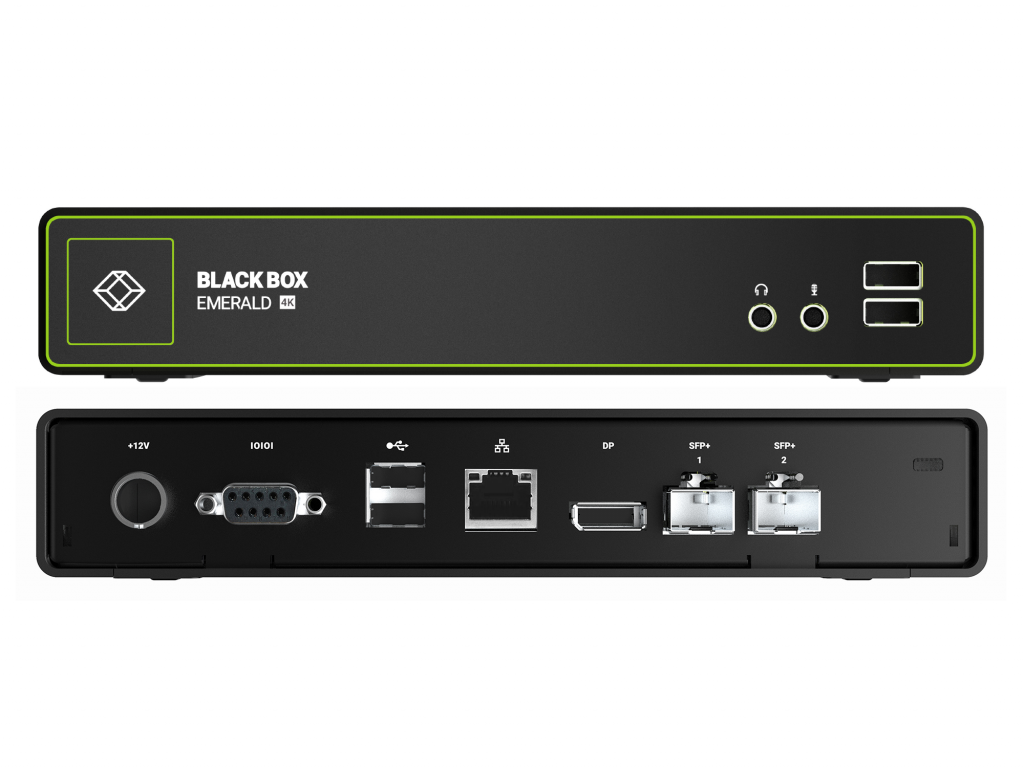

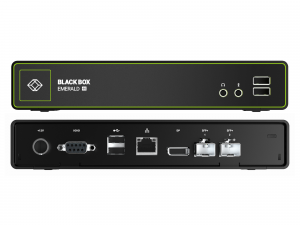

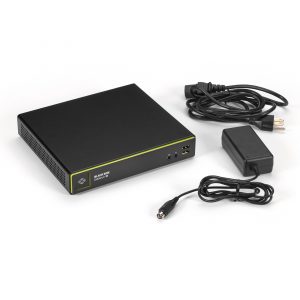

The award-winning Black Box Emerald® KVM-over-IP platform serves as an infinitely scalable universal access system, giving users the flexibility to connect to both physical and virtual machines, along with anywhere, anytime IP access over an existing IP-network, WAN, or even the Internet. Advanced security and a market-leading tiny bandwidth consumption allow new ways to configure user access to local and distributed remote systems. Interoperability between 4K and HD video, and one-touch control room setups, combined with a high degree of automation through Emerald’s APIs, gives users valuable flexibility and ease of use. Emerald manages signals and format types to deliver content with an innovative look and feel, preserving the existing IT equipment while controlling and monitoring through Boxilla’s intuitive and appealing KVM management dashboard.
Futureproof, scalable Emerald solutions help you build resilient networks with remote access to physical and virtual machines. Using extremely low bandwidth, Emerald delivers secure, pixel-perfect HD and 4K video. True USB emulation means its compatible with your USB devices, and a software-only KVM receiver enables access from your laptop. A Boxilla dashboard provides comprehensive management.
Other products from this company:
Boxilla® KVM Manager
ControlBridge® Multisystem and Room Control
Emerald® KVM over IP Solution
MCX AV over IP Distribution and...
Radian Flex Software-Defined Video Walls
Boxilla® KVM Manager
Boxilla® is a KVM system management platform that can manage small, medium, and large installations that have thousands of endpoints. It provides a centralized, easy-to-use command center for full monitoring and control of your entire system, across the enterprise. Without leaving your seat, you can control user access, monitor device status, and address potential problems before they happen. Ensure security with authentication and access control. Manage your Emerald system via a security interface dashboard for reporting and real-time alerts.
Advantages for Your Network
· Offers easy-to-use centralized admin and control with simple configuration for large-scale deployments
· Provides enterprise management with enhanced authentication, access control, and accounting for secure communication
· Supports virtual desktops and physical PCs/servers, plus integration with virtualization management tools
· Includes advanced mode controls: private, shared, pre-emption, and auto-login
· Zones enable the administrator to set up unique zones (or groups) of connections and users so that a large system can be more easily managed
· Allows up to 100 management groups
· Supports time zone configurations
· Enables interoperability among all Emerald devices
· Supports Activate Directory integration
ControlBridge® Multisystem and Room Control
ControlBridge® is a multisystem control platform that allows you to control any KVM, AV or room control system via IP, serial, I/O or relais. The 7/12" tabletop panels provide an elegant one-touch solution for controlling Ethernet-enabled systems in master control rooms or post-production suites. Use the touch panel alone or with a ControlBridge hardware Processor to control devices with I/O interfaces. You can program the panel with the included ControlBridge Builder software or rely on Black Box's programming services.
· Control your AV, KVM, and room automation systems with 7”/12″ touch panels, desktop and wall panels, or your smart phone or other mobile device (iOS, Android, Windows).
· Provides bidirectional control of any IP enabled device.
· Active matrix touch-screen display offers resolutions of 1280 x 800 and 32-bit (True Color) images.
· Includes built-in microphone, speakers, and light and motion sensors.
· Set up through a standard web browser.
· A real-time clock enables scheduling applications.
· Access and control equipment a number of ways: via an Ethernet connection, an IR remote, a bidirectional RS-232 serial channels, digital I/O, and a relay connection.
Emerald® KVM over IP Solution
Futureproof, scalable Emerald solutions help you build resilient networks with remote access to physical and virtual machines. Using extremely low bandwidth, Emerald delivers secure, pixel-perfect HD and 4K video. True USB emulation means its compatible with your USB devices, and a software-only KVM receiver enables access from your laptop. A Boxilla dashboard provides comprehensive management.
MCX AV over IP Distribution and Control
MCX is a next-generation 4K60 AV-over-IP distribution solution that enables latency-free extension and matrix switching of video, audio, RS-232, and USB 2.0 signals. MCX features built-in video wall management and is TAA-compliant.
MCX allows AV and data payloads to exist on the same IT network and reduces network management time and costs.
The encoders/decoders are ideal for point-to-point secure video conferencing, multi-monitor broadcasts, distributed video matrix or video wall systems, and remote KVM system control.
Easy Setup – Easy Management
Connect each encoder to an AV source (e.g. computer, content player) and connect it to a managed 10-GbE network switch. Connect a decoder to each screen you want to display the content on and connect it to the same switch. Manage your MCX system through the user-friendly MCX Gen2 Network Manager that helps you to configure your system and even build and manage a video wall.
Uncompressed 4K 60 Hz 4:4:4 Video
MCX delivers the video quality high-end AV applications require to display eye-catching content: It extends uncompressed 4K 60 Hz 4:4:4 video to an unlimited number of displays without sacrificing latency, video quality or bandwidth. Even better, it supports up to 10-bit HDR using Software-Defined Video over Ethernet (SDVoE) – the latest software-based AV-over-IP platform for extension and control of AV systems on Ethernet or fiber networks.
Create Ergonomic Workflows for Operators
This video extension system is easy to install and use on a modern network. The units’ front-panel configuration buttons and On-Screen Display (OSD) streamline daily workflows.
Choose Copper or Fiber Versions to Suit Your Application
The encoders/decoders are designed for high-quality, IP routable, AV extension with minimum latency. Fiber and copper versions are available to accommodate for your preferred network infrastructure.
Zero Latency
This robust video distribution system's data transfer delay is virtually undistinguishable; the glass-to-glass encoding and decoding happens in real-time (0.03 milliseconds). This means you never deal with annoying lag or video delay.
HDMI 2.0 and DisplayPort Encoding and Decoding
You can connect every essential device to your MCX Gen2 through its variety of ports. Multiple control and data signals may also be transmitted along with the audio and video, including IR and RS-232.
3-Port USB with USB-C Connectivity
The integrated USB hub of each decoder (receiver) can be configured to be in ‘USB Host’ or ‘Device Mode’ and can function as a simple point to point AV/KVM extension, freely routed between any two endpoints, or it can be configured into a special “Simultaneous” mode, allowing up to 7 ‘Host Mode’ units to extend their USB ports to a single ‘Device Mode’ unit. This type of USB AV/KVM routing flexibility enables a wide range of multi-user, control room, or on-demand installation scenarios.
Additional Video Out
The system can show the input source on a separate monitor. For example, in a live event, the user can view the source and sample that video on a loop, then pass it down to the network to compare latency.
Works with MCX Gen2 Controller
Combined with the optional MCX Gen2 Controller or control software, the functionality of the encoders/decoders expands exponentially. Multiple encoders/decoders may be combined with one or more 10-Gigabit fiber Ethernet switches and the units can be used together to form a distributed video matrix, a multi-viewer system, or a video wall system adding to their flexibility in large event installations.
Radian Flex Software-Defined Video Walls
Share content quickly among multiple locations or divisions of large organizations for critical decision making and enable users to share live feeds, information and other content among video wall systems located around the world.
Manage and distribute video content quickly and easily without rendering. Resize to any scale, zoom, magnify, and rotate content to any orientation you wish. Control content and the look and feel of your video wall with remote access from one or multiple workstations located anywhere in the world.
Achieve greater impact with advanced image processing technologies, such as high definition video signal collecting, real-time high resolution, digital image processing, and advanced three-dimensional digital filtering.
