An affordable and high performance entry into 4K/UHD multi-image display for a variety of broadcast and ProAV visual environments including control rooms, digital signage and the like.
Includes a KVM feature whereby KVM and a Multiviewer are working together on a UHD screen.
This MiniDE-4-UHD-K is ideal for displaying up to 4 sources on a single UHD monitor or projector. The added benefit is that users can mix input resolutions and sources all the way up to 4K on a single display.

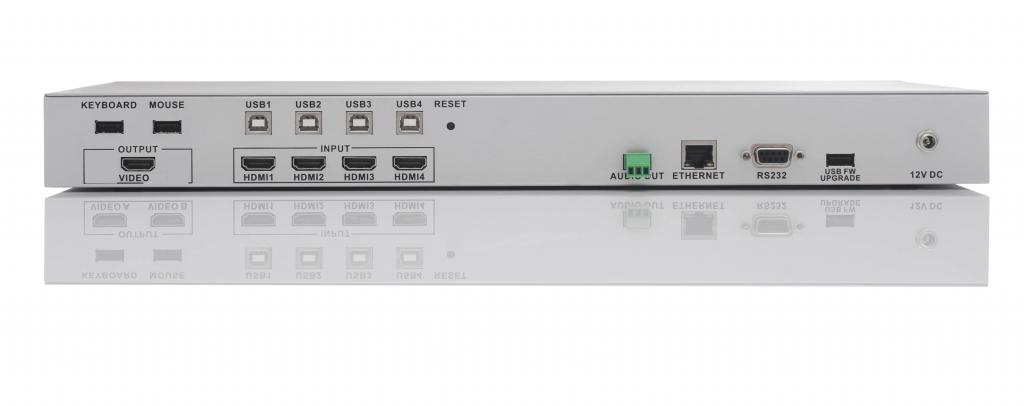

The MiniDE-4-UHD-K displays up to 4 HDMI computer inputs with keyboard and mouse functions on the same screen. It accepts SD, HD and true UHD/4K @ 60Hz input resolutions. The output resolution can be set for 1280x720p @ 60Hz, 1920x1080p @ 60Hz or 3840x2160p @ 30Hz or 60Hz. All with 4:4:4 color sampling. There are 6 predefined and 8 customized possible screen layouts. PIP and POP modes are also supported. Control and configuration is handled through a web interface, Ethernet, and RS232. As with all Apantac multiviewers, display layout creation is simple and extremely intuitive.
Other products from this company:
DA-HDTV-USB Frame Grabber
KVM over IP Extenders & Matrices
MiniDE-4-UHD-II
MiniDE-4-UHD-K
OG-DA-4-UHD / OG-DA-8-UHD
T# (Sharp)
DA-HDTV-USB Frame Grabber
- This compact box - with a magnetic bottom for an easy installation on a metal surface or using the supplied mounting plate, accepts HDMI or SDI input signals and streams them to its USB 3.1 output.
- It accepts HDMI 2.0 signals video resolutions up to 4K/UHD 60 Hz (4:4:4) and SDI signals up to 3G-SDI (1080p60) and has loop out outputs for both. The USB 3.1 streaming output maximum resolution is 1080p60 (meaning that 4K/UHD signals are down converted to 1080p).
- It works with software media players such as VLC and other conferencing applications. It is very easy to set up: Just connect it, launch the media player or conferencing application and select the device as audio and video source. You can then record or stream the DA-HDTV-USB video and audio signals. It is compatible with Windows, MAC and Linux computers.
- It has a mic input allowing to mix voice with the input audio and a speaker output allowing to check the audio output.
- All the necessary cables and accessories are supplied as standard.
KVM over IP Extenders & Matrices
KVM has been the backbone of control rooms and command control centers for many years whereby KVM solutions have allowed users to control multiple computers from multiple locations. The KVM product family from Apantac consists of KVM over IP extension & matrix solutions as well as multiviewers with built-in KVM functionality. When both sets of products are used in combination, they create a seamless workflow for a modern-day enterprise level command and control center.
KVM over IP Extenders & Matrices:
- KVM over IP (DVI/VGA) Extender / Receiver set supporting resolutions up to 1920x1200 @60 Hz (models: KVM-IP-Tx / Rx)
- Dual-Head KVM over IP (DVI/VGA) Extender / Receiver set supporting resolutions up to 1920x1200 @60 Hz (models: KVM-IP-Tx2 / Rx2)
- KVM over IP (HDMI) Extender / Receiver set with HDMI input loop for Tx, POE and supporting resolutions up to 3840 x 2160 @ 30 Hz (models: KVM-IP-Tx-PL / Rx-P)
- KVM over IP (DVI/VGA) Extender / Receiver set with Ethernet LAN over fiber - up to 10Km for singlemode ad 550 m for multimode fiber (models: KVM-IP-Tx-F / Rx-F)
- KVM over IP Transmitter for openGear Platform (model: OG-KVM-IP-Tx)
KVM over IP Extenders can be configured as a KVM over IP Matrix
- Several Tx and Rx modules are connected to a GigE Switch
- A source (Tx) can be controlled by one or more consoles (Rx) and configured for multicast
The Apantac KVM over IP Ecosystem
- All the various Tx and Rx modules can be configured and mixed for a single configuration
- Point-to-point KVM over IP extension for unicast
- KVM over IP matrix for multicast
- Extend/switch video, keyboard, mouse, USB 2.0, audio (analog/embedded), RS-232 and IR
- Pristine picture quality and minimal latency
–
T
';
Mi-16-UHD

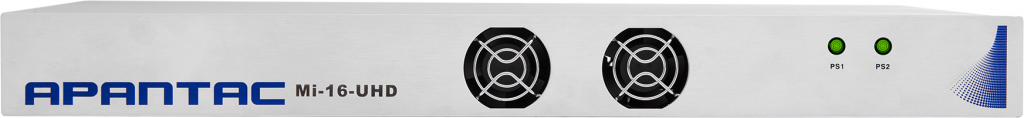

The addition of UHD outputs to Apantac’s Multiviewers means that facilities now have a cost-effective UHD visual monitoring solution that is much sharper, clearer and more detailed than before.
In comparison to an HD Multiviewer & Display, Apantac’s Multiviewers with UHD outputs mean that the source window PIPs (picture in picture) can be displayed with twice the horizontal number of pixels and twice the number of lines on a UHD panel.
Since UHD monitors are rapidly becoming less expensive, media facilities can use off-the-shelf UHD displays coupled with Apantac’s cost-effective Multiviewers for an inexpensive multi-image display processing solution for many content applications.
';

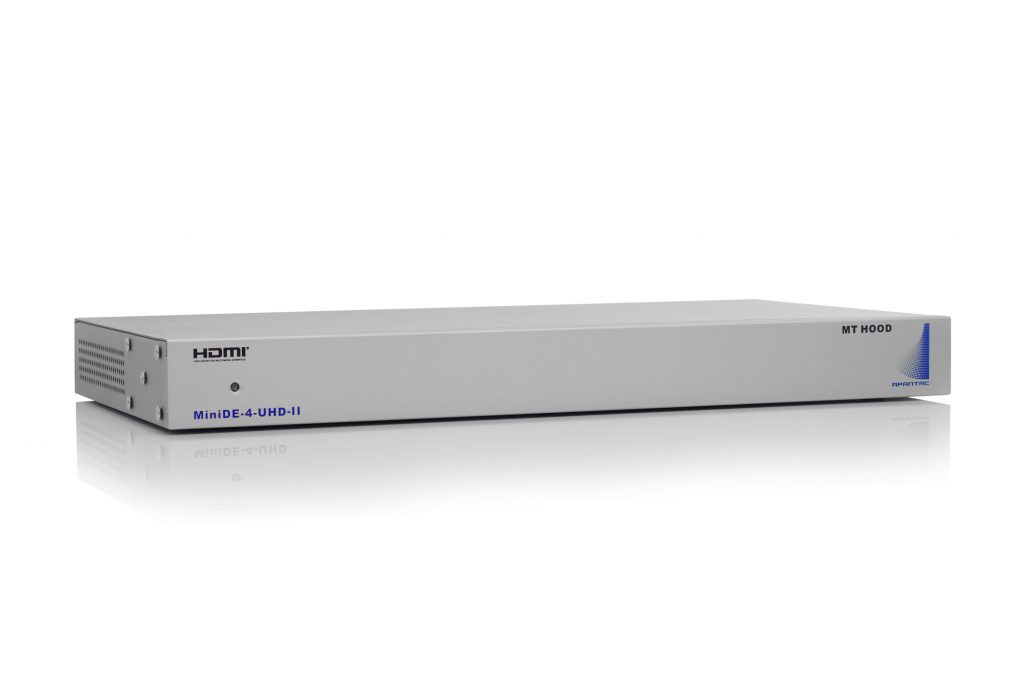

MiniDE-4-UHD-II
Supports Deep color and HDCP 1.4 and 2.2 and Dolby Digtal 5.1, DTS 5.1 and uncompressed 7.1.
';
MiniDE-4-UHD-K
An affordable and high performance entry into 4K/UHD multi-image display for a variety of broadcast and ProAV visual environments including control rooms, digital signage and the like.
Includes a KVM feature whereby KVM and a Multiviewer are working together on a UHD screen.
This MiniDE-4-UHD-K is ideal for displaying up to 4 sources on a single UHD monitor or projector. The added benefit is that users can mix input resolutions and sources all the way up to 4K on a single display.
The MiniDE-4-UHD-K displays up to 4 HDMI computer inputs with keyboard and mouse functions on the same screen. It accepts SD, HD and true UHD/4K @ 60Hz input resolutions. The output resolution can be set for 1280x720p @ 60Hz, 1920x1080p @ 60Hz or 3840x2160p @ 30Hz or 60Hz. All with 4:4:4 color sampling. There are 6 predefined and 8 customized possible screen layouts. PIP and POP modes are also supported. Control and configuration is handled through a web interface, Ethernet, and RS232. As with all Apantac multiviewers, display layout creation is simple and extremely intuitive.
';
OG-DA-4-UHD / OG-DA-8-UHD
These are cost effective designs to split one 12G signal into four or eight and are useful in almost any broadcast or professional AV environment where clean signal splitting is required over long cable runs. Cable reach is up to 70 meters for 12G, up to 100 meters for 6G and up to 140 meters for 3G signals.
';
T# (Sharp)
Modular multiviewers with mix and match I/O up to 12G support.
The T# Multiviewers provide a uniquely modular and flexible approach that will ensure a future-proof solution for a visual monitoring infrastructure. What makes the T# Multiviewer platform particularly versatile is the fact that it is truly modular supporting a full range of input boards and output boards monitoring signals from Composite to 12G-SDI, UHD, HDMI 2.0, HDMI/DVI, SDI over fiber and IP.
The T# Multiviewer comes in 3 different frame sizes; 1 RU, 2 RU and 4 RU. Since the frames are completely modular, different I/O modules can be inserted to form different sizes and configurations of multiviewers.
All input cards are hot swappable and include:
- 12G SDI broadcast input boards- Standard broadcast input boards- CVBS to UHD input cards- HDMI input cards- IP (H.264/Mpeg4, Mpeg2) input cards- SFP input cards can accept SDI fiber or SMPTE 2022 SFPs
All output cards are hot swappable and include:
- Up to 4 outputs per output board (maximum 2 output boards / 8 outputs)- Standard output cards- Expansion output cards- CATx extender output cards- HDMI and SFP output cards- HDMI 2.0 UHD output cards
';

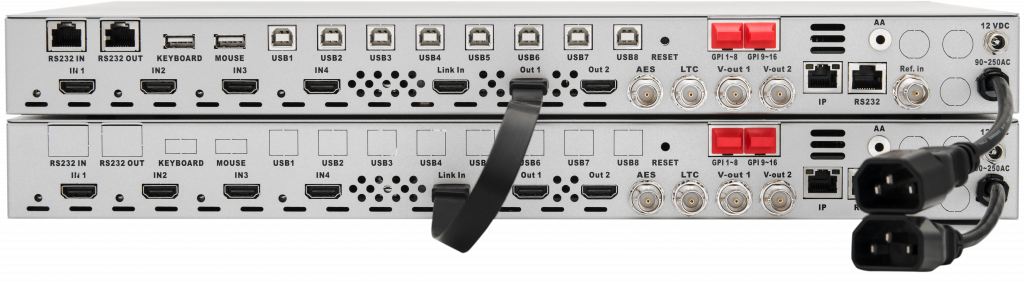

UE-4/8-II
';
