Kaleido-IP X is Grass Valley’s IP-native, AMPP OS-based multiviewer family, giving you instant visual confidence across every feed in your operation. Choose Essential for streamlined, reliable monitoring that’s quick to deploy and simple to use, or Professional for everything in Essential plus advanced customization, probing, and control for high-stakes environments.

With both versions available in multiple PiP configurations, you can match your needs precisely. Kaleido-IP X integrates seamlessly into GV’s Media Universe, so you can route, customize, and monitor with agility, keeping your content flawless from production to playout.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

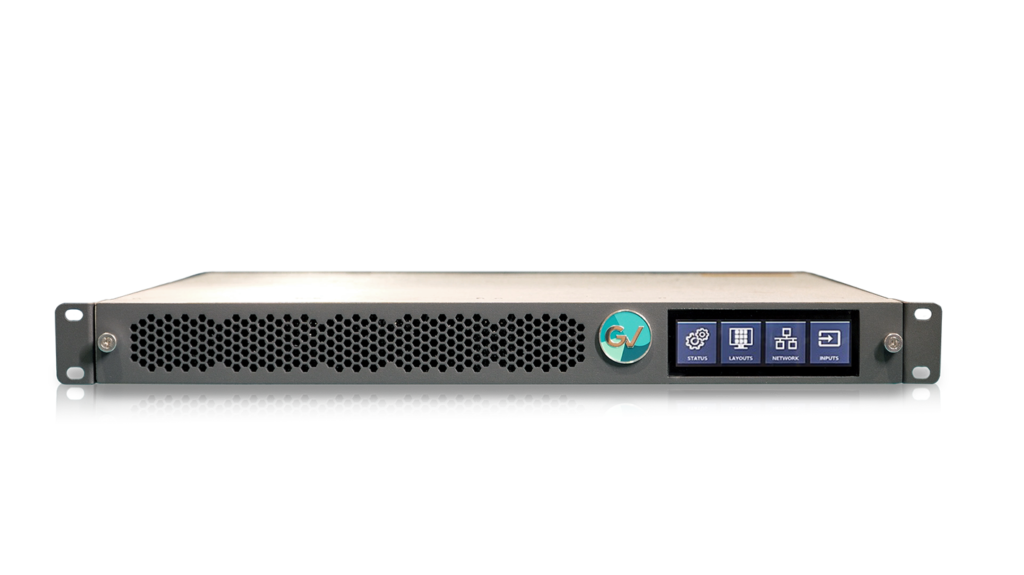

Grass Valley’s MV-1200 Series delivers flexible multiviewer technology designed to meet broadcasters’ current needs while preparing for future demands. Cost-effective standalone models like the MV-1216, MV-1232, and MV-1248 offer multiple configurable outputs within a single frame, ensuring efficient and scalable monitoring solutions for any production environment.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

R&S®PRISMON is an innovative and versatile software-based solution for monitoring and multiviewing of audio/video content. It supports the present and future plethora of standards for content transport and media formats, both in legacy and modern IP-based environments. In addition, it offers a comprehensive set of protocols for OTT/streaming scenarios.

Create » Content Acquisition and Capture » Social/UGC » Content/data acquisition from public sources »

Expand your capacity and creativity with limitless video inputs and outputs, for content curation and publishing at scale.

LTN® Live Video Cloud is an intuitive routing console that streamlines and scales the management of live video, from acquisition to distribution, from any source to every destination — without additional capex.

Break through feed chaos and power innovative video experiences: organize aggregation, monetize publishing, and easily enable remote productions with virtual audience engagement.

With Live Video Cloud, you can acquire unlimited concurrent live feeds from any source, configure productions in minutes, monitor and curate live video within a continuous playback multiview, and distribute live signals simultaneously to unlimited destinations.

Live Video Cloud runs on all major cloud providers worldwide, with intuitive browser-based control accessible from anywhere.

Empower audiences to easily become part of your program, and expand your digital audience reach to earn more top-line ad revenue. Command the future of video with Live Video Cloud.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

MediaCento IPX is the perfect HDMI-over-IP distribution solution that enables you to transmit video over 1-Gbps Ethernet to a virtually unlimited number of screens as far as your local network reaches.

The MediaCento IPX IP-based audio/video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to unicast HDMI HD/4K UHD video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load. Transmitters and receivers install directly into your existing LAN infrastructure. There’s no need to configure any IP settings or run expensive dedicated links from a back room. Better yet, PoE power eliminates the need for external power supplies.

Use the standalone MediaCento IPX Controller with any network switch for full flexibility including dual network, matrix switching, and video wall support, up to 8 x 8 (64 screens).

Produce » Real-Time Production » Audio Production » Audio mixers and consoles – music »

AMD Spartan™ 7 devices, part of our Cost-Optimized Portfolio, offer exceptional performance per watt, along with small form factor packaging to meet the most stringent requirements and are ideally suited for wireless microphones, audio mixers/consoles, multiviewers, loudspeakers and intercom systems.

The devices feature a MicroBlaze™ soft processor running over 200 DMIPs with 800 Mb/s DDR3 support built on 28 nm technology. Additionally, Spartan 7 devices offer an integrated ADC, dedicated security features, and Q-grade (-40°C to +125°C) on all commercial devices.





Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The UE Series includes Multiviewers that support either 4 or 8 4K/UHD HDMI 2.0 inputs as well as HDMI 2.0 and 12G outputs. Models are available with or without KVM Functions. As with all TAHOMA Multiviewers, the UE Series if fully featured,Apantac now announces its second generation of UE multiviewers, which include a cascading feature, are more compact (almost half the depth) and consume less power. The UE series now also includes the UE-4-DP, which offers Display Port inputs instead of HDMI 2.0.The UE-4-II and UE-4-K-II models can be cascaded together as well as cascaded with the Apantac Mi-8 12G-UHD, an 8x1 UHD multiviewer with inputs up to 12G SDI. The cascade feature ensures users can combine more source inputs as well as mix input formats on the same display - all without extra latency. For example, user can cascade one UE-4K-II with one UE-4-II and one Mi-8 12G-UHD, thereby displaying up to 8x HDMI plus 8x 12G SDI signals on the monitor and control up to four HDMI computers from a single keyboard and mouse. The maximum number of units in a cascade is four, with a maximum of four UE-4-II, two UE-4-K-II and one SDI multiviewer.The KVM function allows multiple computers connected to the Multiviewer to be controlled via a single mouse and keyboard. Users simply move the mouse from window to window (on their display) to switch the control from one computer to another one. A single operator can visually monitor and control up to eight computers on a single console with a UHD or HD monitor. Via the single console, the user can easily switch between Multiviewer layouts using predefined keyboard shortcuts.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The MiniDE-4-UHD-II can display up to 4 video inputs on the same screen and supports 4 x HDMI 2.0 inputs / outputs up to 4K@60Hz at 4:4:4.

Supports Deep color and HDCP 1.4 and 2.2 and Dolby Digtal 5.1, DTS 5.1 and uncompressed 7.1.



Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

PRODUCT PRESENTATION

An affordable and high performance entry into 4K/UHD multi-image display for a variety of broadcast and ProAV visual environments including control rooms, digital signage and the like.

Includes a KVM feature whereby KVM and a Multiviewer are working together on a UHD screen.

This MiniDE-4-UHD-K is ideal for displaying up to 4 sources on a single UHD monitor or projector. The added benefit is that users can mix input resolutions and sources all the way up to 4K on a single display.

The MiniDE-4-UHD-K displays up to 4 HDMI computer inputs with keyboard and mouse functions on the same screen. It accepts SD, HD and true UHD/4K @ 60Hz input resolutions. The output resolution can be set for 1280x720p @ 60Hz, 1920x1080p @ 60Hz or 3840x2160p @ 30Hz or 60Hz. All with 4:4:4 color sampling. There are 6 predefined and 8 customized possible screen layouts. PIP and POP modes are also supported. Control and configuration is handled through a web interface, Ethernet, and RS232. As with all Apantac multiviewers, display layout creation is simple and extremely intuitive.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

MI-16 SERIES OF MULTIVIEWERS PRESENTATION

The addition of UHD outputs to Apantac’s Multiviewers means that facilities now have a cost-effective UHD visual monitoring solution that is much sharper, clearer and more detailed than before.

In comparison to an HD Multiviewer & Display, Apantac’s Multiviewers with UHD outputs mean that the source window PIPs (picture in picture) can be displayed with twice the horizontal number of pixels and twice the number of lines on a UHD panel.

Since UHD monitors are rapidly becoming less expensive, media facilities can use off-the-shelf UHD displays coupled with Apantac’s cost-effective Multiviewers for an inexpensive multi-image display processing solution for many content applications.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

CLICK HERE  -  T# PRODUCT PRESENTATION

Modular multiviewers with mix and match I/O up to 12G support.

The T# Multiviewers provide a uniquely modular and flexible approach that will ensure a future-proof solution for a visual monitoring infrastructure. What makes the T# Multiviewer platform particularly versatile is the fact that it is truly modular supporting a full range of input boards and output boards monitoring signals from Composite to 12G-SDI, UHD, HDMI 2.0, HDMI/DVI, SDI over fiber and IP.

The T# Multiviewer comes in 3 different frame sizes; 1 RU, 2 RU and 4 RU. Since the frames are completely modular, different I/O modules can be inserted to form different sizes and configurations of multiviewers.

All input cards are hot swappable and include:

- 12G SDI broadcast input boards- Standard broadcast input boards- CVBS to UHD input cards- HDMI input cards- IP (H.264/Mpeg4, Mpeg2) input cards- SFP input cards can accept SDI fiber or SMPTE 2022 SFPs

All output cards are hot swappable and include:

- Up to 4 outputs per output board (maximum 2 output boards / 8 outputs)- Standard output cards- Expansion output cards- CATx extender output cards- HDMI and SFP output cards- HDMI 2.0 UHD output cards

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

Ultriscape is the ultimate multiviewer  platform for Studios, OB Vans, and Flypacks. As the world’s first software defined multiviewer, customers realize significant cost, space, and power efficiencies with unparalleled flexibility and agility.

Key Features:

Software Defined - Easily add new multiviewer outputs through additional software licenses.  No additional hardware required.

Integrated Design - Ultriscape can be added to extensive routing, audio processing, and synchronization capabilities to create a completely integrated solution.

Flexible - Each multiviewer head is completely independent, offering tremendous flexibility for layouts and control.

12G Ready - Ultriscape supports inputs from 270Mb/s up to 12G.  This means it’s ready for UHD production when you are, without replacing any hardware or losing capacity.

Pay As You Go - The software defined architecture means you simply buy what you need, when you need it



Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

TAG’s platform is a unique all IP software-based solution which is optimized for production applications and environments. It decodes, analyzes and displays with ultra-low latency uncompressed SMPTE ST 2022-6/7, ST 2110, JPEG-XS, and CDI over IP signals and features UHD mosaic output for multiviewer displays.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The TAG platform supports all formats of OTT including HLS and MPEG-DASH, providing a complete monitoring and multiviewing solution. It combines the traditional MPEG-TS support with the unique monitoring requirements of OTT (including the ability to decrypt and decode the content in the secure zone), and the full feature set of the platform to provide a comprehensive OTT monitoring and multiviewing solution. Unique features like TAG’s adaptive monitoring enable true monitoring at scale across the entire OTT platform.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The platform incorporates support for multiple encoding formats such as SD, HD, UHD, MPEG-2, MPEG-4, HEVC, J2K, JPEG-XS, etc. to provide a comprehensive monitoring solution for compressed content, as well as ST 2022-6/2110 uncompressed sources, all in one device. The large scope of TAG’s capabilities has made it the default solution for playout monitoring in the cloud.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The TAG platform with its comprehensive support and deep probing capabilities of DVB, ATSC, Satellite and IP network transport streams provide a complete monitoring and multiviewing solution for Transport and Delivery applications. It combines a full feature set of MPEG-TS analysis – including the DVB tables, ETR-101-290 specifications, metadata, subtitles & closed captions, content decryption, and video/audio baseband monitoring, all with probing, alarming and multiviewing.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Hybrid SDI-IP video routers »

AMD Versal™ Prime Series Gen 2 adaptive SoCs combine world-class programmable logic from AMD with a new high-performance processing system of integrated Arm® CPUs—offering up to 10X more scalar compute than existing Versal or Zynq™ adaptive SoCs.  This powerful combination of flexible, real-time sensor processing and the ability to handle complex embedded computing workloads allows designers to maximize system performance while avoiding the overhead of a multi-chip solution.

Designed for a broad range of applications including 8K video processing, the Versal Prime Series Gen 2 devices offer expanded hardened IP to complement the programable logic and processing system. This new IP includes hardened video encode & decode, DDR5/LPDDR5X memory controllers, 100G Ethernet, PCIe® Gen5, and an integrated Arm Mali™-G78AE GPU, enabling next-generation applications within tight area & power constraints.

​From capturing content and enabling virtual production to creating live events, Versal Prime Series Gen 2 enables Broadcast and Pro AV equipment suppliers to deliver ever more compelling experiences thanks to a unique combination of dedicated acceleration, flexible interfaces, and adaptive computing that’s ideal for real-time video & audio processing.

Each video codec unit (VCU) tile offers:

• Hardened bidirectional encoding, decoding and transcoding


• Support for HEVC & AVC up to 4K60, 4:4:4, 12-bit


• Up to two VCU tiles per device; aggregate both tiles for limited 8k30 support

Create » Content Acquisition and Capture » Cameras » Broadcast System cameras »

The Versal HBM series features heterogeneous integration of fast memory, secure connectivity, and adaptive compute to eliminate processing and memory bottlenecks for memory-bound, compute-intensive workloads. It is built from the ground up to adapt to continually evolving algorithms, protocols, and data rates. Thanks to its memory bandwidth capabilities to support huge amounts of real-time pixel and packet processing, Versal HBM devices can be found at the heart of 8K LED wall processors, multichannel 4K networked video processors, cinema cameras, projectors, production switchers and more.

With the integration of HBM2e DRAM, the Versal HBM series delivers up to 6X more bandwidth at 65% lower power per bit vs. the Versal Premium series. Built on a production-proven Versal Premium adaptive SoC foundation, the Versal HBM series integrates an extensive set of networked, multi-terabit, power-optimized connectivity cores, and 112 Gb/s PAM4 transceivers to adapt to emerging network protocols and modules. While doubling the transceiver speed, the Versal HBM series secures every layer of the network infrastructure with built-in encryption engines. With the programmable network on chip (NoC), up to 2.2 Tb/s of on-chip connectivity alleviates routing congestion among architectural components. In addition, the Versal HBM series offers twice the logic density of the previous generation HBM solution to maximize performance for constantly evolving algorithms and protocols.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

Multiformat Multiviewers

ST 2110, 2022, SDI

Encoded Linear & OTT

COTS based

PHASE - Serving the Brazilian Television Marker Successfully since 1980

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

Full Line of Multiformat Multiviewers

ST 2110 & 2022

SDI

Encoded Linear & OTT

PHASE - Serving the Brazilia Television Market since 1980

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

Helm, allows the design of a control system dedicated to your operators’ requirements; there’s no clutter of unnecessary controls or information and no risk of confusion between channels as you switch from one manufacturer UI to another. There’s no hunting for the right buttons to press. We can help you design and implement Helm control panels, and you’ll have all the tools to modify and extend them as your requirements change.

BENEFITS

• Totally customisable: All the control you need, none that you don’t


• Smaller footprint: Not all environments have room for multiple hardware panels


• Lower cost: Helm panels run on entry-level PCs, or even on mobile devices via WebCentre


• Faster training: Only one system to learn for new operators


• Enhanced productivity: Simpler interfaces mean operators can work faster and more effectively


• Extend and replace: You can add or change equipment in the facility without impacting operators.

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

Features and performance

• Display of various signal inputs such as ASI, IP, SD / HD / 3G-SDI on one screen


• Supports HLS, RF (DVB, ISDBT, QAM) input with additional options


• Convert different input resolution and frame rate, display in a unified output format


• Maximum 45 CH input support for 1 enclosure


• By using multiple chassis, more than 45 CH / 1 screen display is possible


• Input signal loss, black screen, etc detected as an error, notification to the screen


• By voice signal bar, voice input of each input CH can be confirmed


• The size of each signal screen can be freely changed by setting

Application areas

• Monitoring multiple TS, SDI, OTT signals at low-cost monitor monitoring


• Construction of mobile multiviewer using notebook PC

Advanced options

• 4K resolution output


• Cascade processing, input signals of 45 channels or more, 1 screen output supported


• Video output to multiple screens


• Output video signal to other multi viewers TS TS streaming delivery


• Penalty box


• Error notification by SNMP output


• Multilingual voice input support


• Dolby voice codec input support


• Supports HEVC (H.265) input


• 4: 2: 2 Video input support


• Dynamic layout change by the user interface


• Input bit rate display function

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

Capture proxy content 24x7 with live-multiviewer, QoS monitoring/logging/alerting and Transport Stream analytics, integrated with As-Run logs for internal air-check and ad-verification. Based on an affordable workstation that delivers powerful tools for less.

Manage » Manage & Orchestrate » Data & Metadata Management » (Meta)data aggregation and management »

A comprehensive original and proxy quality 24/7 capture solution with live-multiviewer, QoS monitoring/logging/alerting and Transport Stream analytics, integrated with As-Run logs for internal air-check and ad-verification and a host of features and tools for clipping and repurposing back-to-air or OTT/Social, competition monitoring, ratings graphing, HLS packaging, and competitor-aired ad-identification with lead-list generation for sales.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

BOSS STREAM Viewer is a software-based multiviewer monitoring system for DVB/Digital Video Broadcasting/Asynchronous Serial Interface (DVB/ASI) and IP. It supports Modulator Interface (T2-MI) for Second Generation Digital Terrestrial TV (DVB-T2) for both ASI and IP. The Dimetis BOSS STREAM Viewer can monitor and analyze SDI streams in cable, satellite-terrestrial, compression centers, play-out and transmission centers, DVB, OTT, Web and IPTV headends, network operations centers and IPTV distribution networks.

OTT Streaming - The Dimetis BOSS STREAM Viewer will be able to inspect HTTP Live Streaming (HLS), HTTP Dynamic Streaming (HDS) and Real-Time Messaging Protocol (RTMP).

In the digital video broadcasting and internet worlds, there is a diversity of existing infrastructures for the distribution of DVB, Internet and IPTV. Today’s multiviewer systems must be flexible in the handling of various source formats. The Dimetis BOSS STREAM Viewer can handle DVB conform transport streams over IP and ASI, and SDI uncompressed video in mixed operation in SD and HD.

This scalable system can provide real-time analysis of DVB, content and quality level (blocking and blurring), while decoding and displaying video, audio, teletext and subtitle services. The entire alarming thresholds are configurable and the system is capable of notifying any 3rd party monitoring or management system, such as the Dimetis BOSS BROADCAST ManagerTM, with alerts, problem or quality conditions. Application areas include DVB analysis, content and quality analysis, management of multiple sources, video and audio decoding, teletext decoding and DBV/TXT subtitles. The Dimetis BOSS STREAM Viewer comes “out of the box” and can easily be integrated in broadcaster’s environment as it operates on standard server hardware. With the combination of SDI and DVB signals, BOSS STREAM Viewer is perfect for comparing incoming and outgoing signals on one single screen.

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

A multiviewer/quality monitoring solution with penalty screen, screen of states, carousel feature and “blind” monitoring for SD/HD-SDI and IP signals

Stream MultiScreen is a software quality monitoring solution. The software can generate a mosaic screen, a screen of states, a penalty screen and non-visual (“blind”) instrumental monitoring capability for analog, SD/HD-SDI and IP sources in any combination. The solution is intended for visual and/or automated quality control and monitoring in Network Operation Centers (NOC), broadcast facilities, Head-ends, content aggregators, TV broadcasters etc... Stream MultiScreen is fully compliant with DVB/MPEG TS ISO 13818-1 streams.

The solution is equipped with a carousel (also called a rotator) feature for monitoring a large set of channels by groups in a round robin manner that can decrease the number of required physical output monitors.

The number of inputs varies and is effectively unlimited. Stream MultiScreen supports feeds from BDA/DirectShow receivers to monitor satellite, cable and terrestrial TV signals. Stream Labs ingest cards may be used to monitor baseband signals coming via SD/HD-SDI, T2-MI and analog interfaces. IP sources are supported including HLS, RTSP, RTMP, MPEG-DASH.

The output mosaic screen can be streamed to a remote PC via HLS. Output is available as HDMI, DVI or DisplayPort. Up to 6 outputs are supported per a server.

The solution supports monitoring and alarming of ETSI TR 101 290 (ETR 290) critical states and QoE degradation such as black screen, still picture, no sound, R.128 parameters etc... Stream MultiScreen can detect user-defined patterns in incoming signals, i.e. “No signal” messages from an IRD/STB.

The solution utilizes Nvidia GPU's and Intel decoding/filtering capabilities, but built-in software decoding is also possible for small and more cost effective installations reducing hardware requirements.

The layout and design of the mosaic screen, penalty screen and screen of states is customizable through the included MultiScreen Designer/Monitor software package.

Stream Labs offers download demo versions, presentations and training videos through their website.
