Produce » Real-Time Production » Audio Production » Audio mixers and consoles – music »

Lawo A__line nodes are designed to serve as IP audio stageboxes for mc² consoles, audio extensions for the V__matrix ecosystem, or as stand-alone IP audio gateways.

A__line devices provide distributed audio connectivity that makes it easy to scale audio I/O capacity in a networked system — temporarily or permanently. SMPTE ST2110-compliant, A__line offers a granular audio format selection similar to the flexibility found in baseband modular I/O systems, but eliminates system design limitations like maximum channel count per frame, fixed channel capacity per device interconnect, or fixed overall system size. Audio endpoints connected to A__line nodes can be seamlessly shared on LAN or WAN, and thanks to their fully standardized streaming technology, can interconnect to a wide variety of IP-enabled broadcast devices — A__line nodes are brand-agnostic.

A__line devices boast exceptional audio quality. Discrete, Class-A microphone preamplifiers deliver a superb dynamic range of 119dB(A), ultra low noise at all gain levels and a perfectly flat frequency response. Versatile analog I/O accommodates levels as high as +24dBu before clipping. Insertable, precise sample rate conversion is available on each AES3 input. For multichannel baseband interfacing, A__line features bi-directional MADI access via SFP. All devices employ the ST2110-30/31 and AES67 standards to transport uncompressed audio in real-time on Layer-3 IP networks, with ST2022-7 Seamless Protection Switching with dual-redundant network interfaces and ample receive buffer capacity to meet ST2022-7 class C specs for LAN and WAN deployment. Two redundant power inlets complete the package, along with PPM metering for all Analog and AES3 interfaces and PTP/Wordclock sync and conversion.

The A__line family includes:

• A__stage48 – 32x mic/line in, 16x line out, 8x AES3 in, 8x AES3 out, 1x MADI, 8/8 GPI, 3RU


• A__stage64 – 32x mic/line in, 16x line out, 8x AES3 in, 8x AES3 out, 1x MADI, 8/8 GPI, 4RU


• A__stage80 – 32x mic/line in, 32x line out, 8x AES3 in, 8x AES3 out, 1x MADI, 8/8 GPI, 3RU


• A__mic8 – 8x mic/line in, 4x line out, 8/8 GPI, 1RU


• A__digital8 –8x AES3 in, 4x AES3 out, 8/8 GPI, 1RU


• A__digital64 – 32x AES3 in with SRC, 32x AES3 out, 1x MADI, 8/8 GPI, 3RU


• A__madi6 – 6x MADI, 1RU

When controlled with Lawo’s VSM broadcast control system, A__line stageboxes provide an advanced set of networking options; VSM manages A__line’s AoIP connections, I/O settings, its non-blocking internal routing matrix, and GPIO signals for smooth integration into an overarching operational workflow.

Produce » Real-Time Production » Audio Production » Audio mixers and consoles – music »

A__UHD Core is the revolutionary new audio engine for Lawo’s mc² audio production consoles. Designed as a network-based, software-defined IP DSP engine with unparalleled processing density: 1,024 mc²-grade DSP channels, which can either be utilized by a single mc² console, or be shared amongst multiple consoles for effective and space-efficient resource pooling: A__UHD Core’s Pooling license allows users to split the massive DSP power across multiple consoles, powering up to four independent audio consoles with 256 fully-featured mc² DSP channels each. As a result, only one A__UHD Core now does what previously required four individual console cores.

Plenty of reliability features are built-in. A__UHD Core features four independent IP audio streaming engines, each with a redundant pair of 10*/1 GbE network ports (SFP). The device is fully based on open standards and supports Audio-over-IP I/O via ST2110-30/-31, AES67 and RAVENNA. Each network interface supports up to 512 Rx & Tx streams with stream sizes from 1 to 128 audio channels. Redundant hot-swappable PSUs are standard, as well as network interface redundancy for all streaming and management ports, allowing redundant IP network paths using ST2022-7 Seamless Protection Switching and adheres to the Class C specification for deployment within LAN or WAN environments, allowing redundant A__UHD Core units to be housed just about anywhere on the planet—and still take over instantly if the need arises.

Finally, a flexible licensing model makes A__UHD Core ideal for both mobile applications and facility use. For mobile, the scalable DSP performance with temporary licenses is a great way to turn CAPEX into OPEX, whilst in facility applications, the possibility of resource pooling and flexible allocation of DSP resources to multiple physical and GUI-based mixing surfaces maximizes ROI for your audio infrastructure. This flexible software licensing offers fixed and temporary licenses to provide exactly what you need, when you need it. Licenses are stored on USB dongles and can be conveniently downloaded, allowing for seamless transfers from unit to unit.

Best of all, A__UHD Core’s functionally is defined by its software, making it a future-proof investment with a feature-set that is designed to expand.

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »



HOME is a management platform for IP-based media infrastructures. It is designed to connect, manage and secure all aspects and instances of live production environments. HOME provides the tools and centralized services for swift and effective interaction of engineers with their tools.

HOME is cloud-native by design and ready to run anywhere, irrespective of the system’s size. With HOME, the cloud starts on your campus, private and locally. It turns an array of devices, setups, sites, hubs and data centers into a powerful, agile network — quickly and in a perfectly secure way.

Inside HOME, discovery of devices is automatic, while registering and admitting them to the network is only a button press away.

With the adoption of IP well underway, the focus of operators has shifted from whether to adopt IP to how to use its potential with minimal effort and maximum effect. This is where HOME shines: it addresses all pressing issues real-world operators face today and tomorrow. In one place and via a single, platform-agnostic, intuitive user interface.

Lawo’s HOME platform is based on open standards such as ST2110, NMOS, IEEE802.1x and RADIUS and has been designed and built from the ground up using LUX—the Lawo Unified Experience, a framework for conceiving, designing, and building solutions that put you first and defines the standard for user experience and design across the Lawo portfolio.

Discovery and Registration: HOME solves IP complexity with automatic plug & play discovery of IP audio and video devices, which are registered with their name, location, status and type. This applies not only to Lawo products but to third-party solutions as well via NMOS. Discovered devices are managed in a central inventory list, ready for access and configuration.

Device Management: In today’s hectic live broadcast environments, operators rely on speedy, unified device configuration routines, especially when setting generic device parameters or configuring senders and receivers. The ability to save and recall configurations is key to speed up tasks. HOME provides a centralized “mission control” for these processes, providing fast and unified access to device parameters for easy tweaking, irrespective of the end point being controlled.

Operability: With its simple, user-friendly UI, HOME allows users to organize and access processing services. With all required facilities accessible in one place, operators can set up and change stream configurations, and route them across an infrastructure without the need for a separate controller. For large infrastructures HOME works seamlessly with a broadcast controller in the same set-up and helps to speed up configuration and operation. HOME is based on LUX, a UI language common to all Lawo devices and many of their functionalities. Through HOME’s user interface, operators can access and edit device parameters quickly utilizing integral mechanisms that help get the job done efficiently. With HOME, operators quickly get right to what they’re looking for, without distractions and complications, to focus 100% on the task at hand.

Security: The content created by a production crew and transported over a network is any operation’s most valuable asset and deserves strong protection. While a robust security system needs to cover all aspects of media infrastructure and content creation, the key lies in its simplicity. HOME provides a variety of security strategies, first of which is quarantining unknown devices when they come online. Only after being deliberately approved, via an intuitive IEEE802.1X-based routine, can they begin exchanging signals with the HOME network. Secondly, HOME uses an authentication strategy based on a centralized user management system, with dedicated user roles and groups. The LDAP based service allows users to authenticate either locally – within HOME – or via their own corporate IT infrastructure, e.g. Microsoft® Active Directory. Finally comes the arbitration of devices and individual streams based on pinpointed rights management. HOME’s architecture is prepared to manage services such as transport layer security, network segmentation and other IT security mechanisms such as RADIUS.

Scalable Architecture: Home is cloud-native by design, which means that its architecture is built to run detached from hardware constraints. This does not automatically mean that services must be outsourced to an external service provider whose meter is running 24/7; with HOME, the cloud starts on your campus, private and locally, on COTS hardware. The HOME platform is designed as functional blocks that provide microservices, which are self-contained and supply functionality to operators or other services.

HOME can be expanded with additional services at any time to increase its functionality — the platform scales on demand. Should there be a need for a larger RDS, because the installation grows, additional instances of the required resources can be added anytime. One of the core principles of HOME is its focus on the utilization of open standards wherever possible, for broadest compatibility and future-proof integration. With HOME, flexibility and resource utilization in IP media infrastructure maximizes.

Normal
0





false
false
false

EN-US
X-NONE
X-NONE





















































































































































































































































































































































































































/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Table Normal";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-parent:"";
mso-padding-alt:0in 5.4pt 0in 5.4pt;
mso-para-margin-top:0in;
mso-para-margin-right:0in;
mso-para-margin-bottom:8.0pt;
mso-para-margin-left:0in;
line-height:107%;
mso-pagination:widow-orphan;
font-size:11.0pt;
font-family:"Calibri",sans-serif;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-bidi-font-family:"Times New Roman";
mso-bidi-theme-font:minor-bidi;}

Produce » Real-Time Production » Audio Production » Audio mixers and consoles – music »



Big performance in a compact size: that’s Lawo’s new second-generation mc²36 audio production console, an incredibly powerful yet compact mixer, now even more capable with a new dual-fader operating bay that allows 48 faders in the same space as a 32-fader board. This makes the new mc²36 even more of an all-rounder for theater, houses of worship, corporate, live and broadcast audio applications – wherever ultra-high audio performance in close quarters is demanded.

With DSP more than doubled from its predecessor, the new mc²36 with built-in A__UHD Core functionality offers 256 processing channels, available at both 48 and 96 kHz, and natively supports ST2110, AES67, RAVENNA, and Ember+. It provides an I/O capacity of 864 channels, with local connections that include 3 redundant IP network interfaces, 16 Lawo-grade mic/line inputs, 16 line outputs, 8 AES3 inputs and outputs, 8 GPIO connections, and an SFP MADI port.

Operating and visualizing features include Button-Glow and touch-sensitive rotary controls, color TFT fader-strip displays, LiveView™ video thumbnails, and super-precise 21.5” full HD touchscreen controls. Its built-in full loudness control is compliant with the ITU 1770 (EBU/R128 or ATSC/A85) standard, featuring peak and loudness metering which can measure individual channels as well as summing busses.

The new mc²36 offers seamless integration of third-party solutions like recording systems, effects engines, and other systems running on external PCs, into its user interface. Applications display right in the console’s screen, while console keyboard, touchpad and touchscreen provide control.

Last but not least: mc²36 offers best-in-class integration of Waves SuperRack SoundGrid, providing operators with access to Waves’ extensive plug-in selection of real-time signal processing alongside the console’s internal processing engine — no additional screens or control devices required.

Moving the mc²36 to the A__UHD Core means that all developments in the future will happen on a single, unified platform, and Lawo continues to provide production file compatibility between all mc² consoles. For instance, a production file from an mc²36 can be used on an mc²96 for post-production — opening the door to a whole new level of performance.

The new mc²36 is based on Lawo’s A__UHD technology and includes Lawo’s innovative new IP Easy functionality that makes IP setup as simple as analog. IP Easy, based on Lawo’s innovative HOME management platform for IP-based media infrastructures, makes connecting IP audio and I/O devices as easy as if they were baseband – the console automatically detects new devices and makes them available at the touch of a button. IP Easy even manages IP addresses, multicast ranges, and VLANs, and includes security features like access control and quarantining of unknown devices to protect your network. HOME is natively built on a cloud-ready microservices architecture, enabling users to connect, manage and secure networked production setups from the ground up. Furthermore, it provides centralized access and control for all Lawo gear within a setup. HOME helps broadcast professionals address some of the most demanding requirements of modern IP infrastructures, including automated discovery and registration of devices, connection management, flow control, software & firmware management, scalability and security.

Normal
0





false
false
false

EN-US
X-NONE
X-NONE





















































































































































































































































































































































































































/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Table Normal";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-parent:"";
mso-padding-alt:0in 5.4pt 0in 5.4pt;
mso-para-margin-top:0in;
mso-para-margin-right:0in;
mso-para-margin-bottom:8.0pt;
mso-para-margin-left:0in;
line-height:107%;
mso-pagination:widow-orphan;
font-size:11.0pt;
font-family:"Calibri",sans-serif;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-bidi-font-family:"Times New Roman";
mso-bidi-theme-font:minor-bidi;}

Produce » Real-Time Production » Audio Production » Audio mixers and consoles – music »

With experience gathered over more than 50 years, German audio innovator Lawo is distinguished by its engineering and manufacturing of the most reliable and most advanced audio mixing consoles available. Originally developed for mobile and studio broadcast environments with zero tolerance for failure, Lawo consoles are also widely chosen for their audio quality in theater, studio and live performance applications.With the mc²96, the mc² platform is pushed beyond limitations, culminating in a pure, unparalleled audio production tool dedicated to those who can tell the difference. Whether it’s intended to be used in broadcast, theater or recording – in each of these applications it stands out with a unique set of features. The mc²96 provides optimized performance within IP video production environments with native ST2110 support. In addition, the revolutionary LiveView™ feature enables thumbnail previews of video streams directly in the fader labeling displays.The mc²96’s unique design combines large screens with a low overbridge height to provide a more ergonomic profile without compromising an engineer’s view. The console’s 21.5” full HD touch-screens work hand-in-hand with the touch-sensitive color-illuminated rotary encoders. An equalizer window will automatically pop-up when touching the equalizer encoders. In multi-user mode, 96 rotary encoders in each 16-fader bay give direct access to all parameters to create an additional central control panel. Color coding of encoders coupled with the high-res color TFTs guarantees a perfect overview. Users can create, save and recall multiple personalized free control layouts directly in their own bay.The mc²96’s extended free control section gives direct access to six parameters in addition to gain control. The result: A perfect balance between decentralized and centralized control workflows. The console allows application of both global and individual parameter assignments for the free controls of each channel strip, and each of the touch-sensitive free controls is color-coded for a comprehensive overview. Additionally, the integrated Remote Desktop function allows seamless integration into the console’s user interface of multiple external PCs running third-party solutions. With the switch of a button, the external PC and its software applications are displayed in the console’s screen while the console’s keyboard, touchpad and touchscreen provide control. The seamless integration of external recording systems, effect engines, or other user interfaces, means less equipment – and the engineer has control over the complete set-up, conveniently from a single, central position.The mc² 96’s comprehensive local I/O features 16 Lawo-grade Mic/Line inputs, 16 Line outputs, 8 AES3 inputs and outputs, 8 GPIOs plus a local MADI port (SFP). The built-in switch provides 4 Ethernet ports, and network connectivity is furnished via two redundant ST2110 / AES67 / RAVENNA ports with ST2022-7 Class C seamless protection switching (SPS). An optimized thermal concept results in an absolutely quiet console, fulfilling a key requirement for concert halls and studio environments. Being an IP-native device based on A__line UHD Core, the mc² 96 includes Lawo’s IP Easy functionality which makes configuring IP setups as simple as analog. The system automatically detects devices and makes them available to the console at the push of a button. Furthermore, the console’s device management includes all needed security features such as access control and quarantining of unknown devices.Selected Features:

• Frames from 24 to 200 faders (with Dual Fader option).


• Remote stand-alone frames of 16 faders.


• 6 banks each with 2 layers.


• TFT metering: mono, stereo or up to 7.1 including bus assignment, gain reduction for dynamics, Audio-follow-Video status, VCA assignment, Mix-Minus, Signal Patching, Meter selection, Automix state.


• GUI page output, e.g. metering, on an external monitor.


• 40-bit floating point signal processing with 1,024 DSP channels (768 inputs and 256 summing buses).


• Up to 768 inputs with A/B input, up to 128 aux buses, up to 96 groups, up to 96 main sums, 32 Automix groups.


• Up to 32 surround channels, 128 VCA groups with metering, 256 GP channels.


• Surround formats: DTS & Dolby ® Digital 5.1, Dolby ® Pro-logic 4.0, DTS ES &  Dolby ® EX 6.1, SDDS 7.1, DTS-HD 7.1, diverse panning characteristics, surround aux bus.


• Loudness Metering according to EBU R128, ATSC A/85 and ARIB, momentary or short term in every channel, integrated measurement on summing channels with display of integrated LUFS value in headline.


• Waves SuperRack SoundGrid ® integration.


• Interfaces include Mic / Line, Line Out, AES3, 3G SDI, HD-SDI, MADI, GPIO, Serial, MIDI, ST2110 / AES67 / RAVENNA / DANTE ® Audio-over-IP.

Produce » Real-Time Production » Audio Production » Audio mixers and consoles – music »

Lawo’s Power Coreᴿᴾ is a full-featured remote production solution for mc² audio consoles, providing integrated modular I/O, DSP and IP streaming capabilities, all in a compact 1RU device. It accomodates 64 channels of MADI audio via its front-panel port, and I/O count can easily be expanded using the eight rear-panel slots which can be loaded with Mic, Line, AES3 and GPIO cards, in any combination, for a total I/O capacity of up to 128 channels.

Designed for mission-critical applications, Power Coreᴿᴾ includes ST2022-7 compliance for network redundancy and Class C jitter / network latency robustness to eliminate the need for dedicated WAN gateways and minimizing the complexity of remote productions while reducing single points of failure. Its IP interface complies with ST2110-30/-31, AES67 and RAVENNA networking standards to deliver maximum interoperability within your production suite. To accommodate the most sophisticated workflows, Power Coreᴿᴾ features comprehensive audio connectivity via two redundant 1GbE SFP ports for Audio-over-IP, one MADI port (with a 2nd port for interface redundancy), and eight modular I/O slots that can accommodate mix of Mic, Line and AES3 cards. A unique studio card with Mic/Line inputs & outputs plus two headphone amplifiers is available as well.

Power Coreᴿᴾ DSP capabilities include 64 fully-featured processing channels and provide low-latency on-site monitor and IFB mixing. mc2 consoles at home have full control of all relevant channel parameters (gain, fader, mute, EQ, dynamics, Aux Send Level, etc.) of the DSP node at its remote location.

All I/O parameters of the Power Coreᴿᴾ can be remote controlled from an mc² console’s channel strips; in addition, mc² consoles can control the DSP channels inside Power CoreRP to offer control capabilities for up to 64 input channels and 16 stereo Aux busses. Remote channels can be mapped to the host console’s surface just like any other source and offer parameter control for Fader, Mute, EQ+Filters, Dynamics, Delay plus the analog and digital input section. Remote inputs and Auxes of Power Coreᴿᴾ can even be linked to local DSP channels of the host console to ensure continuous linking of parameter values.

In addition to the control integration from an mc² console, Power Coreᴿᴾ features a touch-screen optimized control GUI based on the Lawo VisTool screen design solution. This provides on-site as well as remote access to all parameters of Power Coreᴿᴾ, which is convenient for setting up prior to connecting the host console. Power Coreᴿᴾ ‘s unique remote-control possibilities include continuous and dynamic fader control as well as fader start-type commands, which are essential for latency-critical WAN connections and to avoid speech truncation on air. The GUI’s feature set also includes sophisticated test mode and lineup patterns, as well as controllable DIM levels to the talents’ ear-pieces for talkback from the director. The graphical interface also allows monitoring the control connection to the host console, the on-air status, and Sync. You can also monitor Listen and PFL, as well as the local talkback system.

Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »

RƎLAY virtual radio software from Lawo brings professional radio production to your PC. Mixing, streaming, dynamics processing, routing and even AoIP signal monitoring, using standard RAVENNA / AES67 networking via Lawo’s virtual sound-card software for Windows. Mix and route any audio produced by PC applications, streams from your AES67 network, or any audio signal your PC can ingest. All this power at your fingertips, using touch-screen GUIs so intuitive that talent can learn them in minutes. No exotic hardware needed: just install RƎLAY software on your PC or laptop, and go to work. Perfect for production, live studios, newsrooms — even remotes and OB work.

There are four RƎLAY Virtual Radio apps:

• VRX Virtual Radio Mixer, a powerful mixing console that runs in a virtualized environment. No racks of gear to devour space and money – RƎLAY VRX runs on standard PCs and laptops, with an intuitive, multitouch-enabled interface that’s easy to learn and use. Available in 8-fader and 4-fader versions.


• VPB Virtual Patch Bay, a cross-point patch bay on your PC. RƎLAY VPB gives you unrestricted control over the routing and mixing of audio signals on your computer. Patch inputs to outputs, combine multiple channels, even apply processing using the included Lawo Processing Suite, or your favorite VST plug-ins.


• RƎLAY Virtual Sound Card, an 8×8 AoIP driver (with up to 64 bi-directional channels of stereo I/O) for Windows. RƎLAY VSC turns PC audio into clean, pristine AES67 streams to interface with your studio’s RAVENNA / AES67 network — without the expense of traditional sound cards.


• AoIP Stream Monitor keeps you informed of the state of your critical program streams with real-time confidence metering, LUFS meters, silence sense, audio level alerts, etc., displaying realtime informatics for up to 16 AES67-compatible audio streams. Average and peak bargraph meters for each channel are onscreen constantly, accompanied by a level readout in Loudness Units, and visual alarms for under-level, over-level and error states, plus multiple info tabs with stream health, performance history, and detailed SDP information. Perfect for Master Control displays, stream diagnostics, audio level checks, and much more.

Produce » Real-Time Production » Audio Production » Audio mixers and consoles – radio »

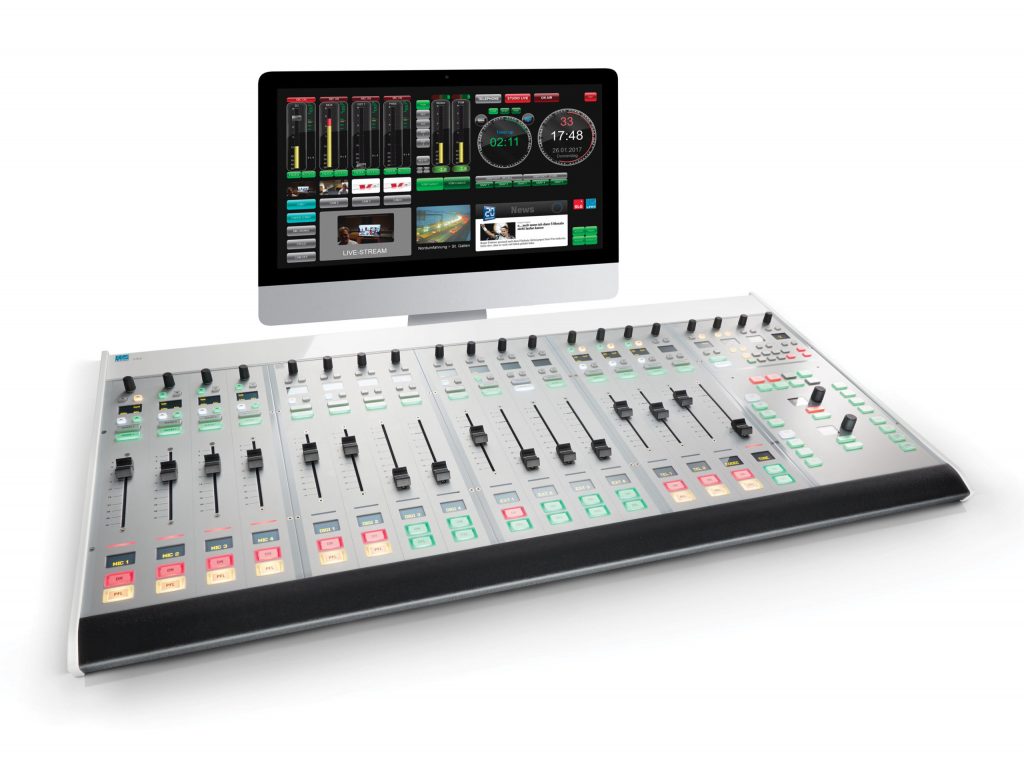

ruby, from Lawo, is the mixing console that truly meets the demands of modern radio by blending the hands-on immediacy of physical faders with the context-sensitive efficiency of multi-touch controls. ruby frees your talent to create easily, naturally, effortlessly — in the way that suits them best. ruby is intuitive, uncluttered, powerful; but beneath its svelte surface lie color-programmable visual cues, context-sensitive displays and custom workflow options to help ensure that your hands always find the control you need, first time — every time. The mixing surface has a sleek, modern look that’s both functional and beautiful, designed for fast, accurate operation. From the high-resolution OLEDs that display sources and settings to the programmable function buttons and big, tactile ON/OFF and PFL keys with LED backlighting, ruby looks and feels great. Built in Germany to exacting Lawo standards, ruby features all-metal construction, premium 100 mm faders with built-in dust shield, ergonomic wrist-rest and ultra-reliable switches and rotary controls. There are smart tools like AutoMix, an intelligent algorithm that automatically maintains the balance of multi-mic productions so that creative staff and focus on what they do best — create. Desktop or flush-mount versions in 4, 8, 12 and 16 fader frame sizes, plus standalone 4 and 8 fader and Master Control extenders, allow combining multiple frames to build systems as large as 60 faders.

Today’s board operators interact as much (or more) with screens and displays as they do with the mixing console, so we’ve integrated mixing tools and other console controls into ruby’s multi-touch enabled display (powered by Lawo’s VisTool GUI-building software). No hunting for buried options: multi-touch on-screen controls instantly give what’s needed to control studio devices, apply dynamics, adjust virtual faders, and display true loudness metering. The optional VisTool Unlimited software upgrade even enables you to design context-sensitive screens customized to your station’s unique operating style, using your own custom-built graphics and control layouts.

ruby controls Lawo’s Power Core, perhaps the most powerful mixing engine ever built for radio, with redundant IP networking and redundant power capabilities. At just 1RU, Power Core‘s compact form belies the immense capabilities inside. On the front panel, a high-resolution color OLED gives status and setup information. I/O includes dual AES67 Ethernet ports with SFP, capable of 128 bi-directional AoIP streams, and 4 ports for high-density MADI signals (128 total channels of audio) — perfect for native MADI-to-AES67 AoIP conversion. It complies with the ST2110-30 standard too, ensuring seamless operation in combined radio / TV broadcast plants. ST2022-7 Seamless Protection Switching enables simultaneous dual-redundant network links, if you choose. Clock sync connections and 8 GPI / GPO contact closures complete the scene. Auto-switching dual-redundant power is standard, with Power Core’s internal auto-ranging AC power supply complemented by an inlet which accommodates an external 12VDC backup power supply.

There are also 8 rear-panel expansion slots, which accept a variety of optional IO expansion cards, including MADI, mic/line inputs, line inputs and outputs, AES3 inputs and outputs, and even a Dante interface. And Power Core’s raw audio processing horsepower puts other mix engines to shame, with the ability to handle thousands of simultaneous signals, a routing matrix of up to 1,920 x 1,920 crosspoints, and up to 96 channels of DSP input processing usable for EQ, de-essing, dynamics, etc. tucked into just 1RU. Multiple tiered license options make it easy to choose the combination of price and power that’s just right for you.

Support » Monitoring, Control & Communications » System Monitoring & Control » Data-driven analysis and self-healing »

Lawo’s System Monitoring And Realtime Telemetry Dashboard (aka smartDASH) is a vendor-agnostic enterprise software suite designed to provide full network and media visibility across an all-IP, all-SDI or hybrid WAN/LAN broadcast infrastructure. Based on a LINUX OS, this software-defined networking solution incorporates a powerful and robust database to document and rapidly search any aspect of the operation—from a simple cable ID number to seeking the journey of a multicast across a transnational multi-hop WAN.

By leveraging a vast library of software communication protocols, the smartDASH automatically interrogates live and dormant path connections to create the most intuitive and data rich presentation layers of a COTS-hybrid infrastructure, deriving media network data and documenting the network and supporting infrastructure. With its award-winning network micro-services, smartDASH supports a wide range of network protocols to build up rich graphic representations of the network infrastructure. These automated processes dynamically document the interconnected network design in real-time. SmartDASH users have a zero-footprint installation: SMART can be deployed on-prem, in a private or public cloud, and is accessible from a browser and/or mobile device.

smartDASH supports monitoring and decoding for media formats from low-bit-rate OTT/ABR streams to uncompressed ST2110 studio production flows, in addition to characterizing packet pacing off the delivery network. Unifying network telemetry and mixed media flow brings deep operational visibility into a single glass view. smartDASH even tracks device inventory spares and accounts for CAPEX and OPEX KPIs to manage cost of ownership.

Produce » Real-Time Production » Video Production » Production switchers »

Lawo’s new V__matrix IP broadcast video core infrastructure product will change your idea of what a broadcast facility looks like from legacy to future, quickly transforming any broadcast installation into a flexible, future-proof production facility, addressing a wide range of workflows and supporting your transition to a totally IP-based environment.

V__matrix is the first of its kind. Free from the restrictions of legacy hardware platforms, it offers a completely virtualized real-time routing and processing infrastructure. Instead of connecting single purpose modular products in elaborate production chains, V__matrix employs data center principles of flexibility, fabric computing and COTS economics and makes these available to any live production broadcast environment. Whether an OB truck, a TV studio or a broadcast operation center, V__matrix creates a fully virtualized facility infrastructure. The V__matrix ecosystem is based on generic high capacity FPGA-based processing blades upon which Virtual Modules (VM) are loaded to create the functionality required. Multiple cores are connected through redundant 40GE (or 4x 10GE) Ethernet interfaces to an IP network to form a distributed IP routing and processing matrix that provides frame-accurate, clean switching just like a legacy baseband matrix.

The V__matrix ecosystem scales linearly from tens to thousands of I/O and processing functions which make it ideal for any size live broadcast facility, small or large. Capabilities easily scale as well. An entire production workflow can be remapped in minutes when requirements change from production to production. The functionality of any processing blade can be exchanged, enabling system capabilities to easily be modified or upgraded to address your constantly changing business requirements. The V__matrix pool of generic processing blades provides ultimate flexibility; with software-defined functionality they can be configured and called upon to handle the peaks and troughs of seasonal production demands and with Lawo’s innovative licensing model, Virtual Modules can be assigned to a particular processing blade or be stored in an on-site license server allowing for unprecedented flexibility.

The V__matrix ecosystem can be divided into two parts: physical and virtual. The physical consists of the C100 processing blade and associated hardware which provides the compute and processing capacity of the platform; the more compute power you have the more functions you can run. Since V__matrix is a fully IP-based platform, the C100 processing blade can be placed anywhere there is an IP network. It can be decentralized and spread over one or more facilities or centralized in a core facility or OB truck. A hybrid approach is also possible where some core equipment is kept on-site while a pool of processing power is kept in a remote data center. This decentralized approach allows the technical operation center to be situated in a purpose-built data center outside of town where space, power and cooling is inexpensive, while talent and studios can be in another area.

The virtual world is centered around the software which defines the functionality of the platform. The software packages are called Virtual Modules (VM) and in the V__matrix they allow the function-agnostic core processing hardware to build complex workflows by simply running the appropriate VM. Combining VMs allows the creation of complete production chains fulfilling all broadcast requirements in a fully virtualized environment. As all functions of the V__matrix ecosystem are software-defined it is the ultimate future-proof platform. Changing the functionality of your broadcast plant is as easy as changing the software modules loaded onto the processing blades. By cascading multiple VMs together, the V__matrix scales linearly up to thousands of SDI I/O and audio/video processing functions for unparalleled scalability, flexibility, versatility and cost-efficiency. The current line-up of V__matrix Virtual Modules include:

• vm_streaming – SDI-to-IP Gateway


• vm_udx 4K/HDR Format Converter – IP Up/Down/Cross and Color Space Converter


• vm_mv16-4, vm_mv18-4 & vm_mv24-4 — 4K Multiviewers


• vm_dmv – World’s first expandable distributed 4K IP Multiviewer

V__matrix multiviewer VMs are controlled by Lawo’s groundbreaking touch operated configuration system “theWALL”. This unique HTML5 based GUI makes mosaic configuration with borders, colors, UMDs, tally etc. a simple case of drag and drop.

Connect » Real-Time Signal Transfer » Audio Interfacing & Conversion » Audio signal processing, routing and infrastructure »

The vm_avp “virtual module” app is a versatile audio and video processing software application that provides routing, processing and glue functionality for the V__matrix eco-system — a complete IP infrastructure solution that also provides a multitude of audio and video processing functions.

In base form, vm_avp provides encapsulation and de-encapsulation of 3G, HD and SD-SDI (ST2022-6/7 only) to IP ST2022-6 and ST2110-20/21/30/31/40, making vm_avp is the logical choice for both gateway and purely IP-based A/V processing, providing up to 160 SDIIP conversions in 3RU. ST2022-7 seamless protection switching is standard, with IP stream format conversion and frame accurate video switching using destination-timed clean and quiet switching (MBB & BBM) with audio V-fade during switching.

To further expand the usefulness of vm_avp, several optional add-on licenses are available:

• +audio – adds embedding/de-embedding and shuffling of audio from both IP and baseband I/O with sample rate conversion. 40 TX and RX instances of RAVENNA/AES67/ST2110-30/-31 streaming and an audio crossbar of 512 x 512.


• +audio_matrix – an additional upgrade to the +audio option, the +audio_matrix option provides a total of 88RX and 128TX instances of RAVENNA/AES67/ST2110-30/-31 streaming and an increased audio crossbar of up to 5,312 x 5,312.


• +madi – enables use of V__matrix BNC inputs and outputs to interface with MADI signals (AES10, 48kHz, 64 channels).


• +fs – adds framesync, frame phaser, sample rate conversion and audio/video delay functionality for both IP and baseband video inputs; also provides Dolby-E® auto-alignment functionality.


• +vc2 – adds visually lossless VC2/DiracPro ultra-low latency encoding and decoding; ST2042 low-delay profile.


• +proc_cc – adds YUV & RGB color correction, test pattern generator/inserter, and test tone generator.


• +12g – Adds support for 12 Gbps video standards and provides cross conversion capabilities between UHDTV1 Single-Link and Quad-Link.

Connect » Real-Time Signal Transfer » Audio Interfacing & Conversion » Audio signal processing, routing and infrastructure »

The vm_udx “virtual module” is a software app that provides format conversions between SD, HD, 3G and UHD formats in the Lawo V__matrix ecosystem. In addition to up, down and cross conversion the vm_udx also provides audio embedding/de-embedding, proc amp and RGB/YUV color correction and color space conversion (SDR to/from HDR) functionality. Designed from the start for IP networking, the vm_udx app natively supports ST2022-6 and ST2110-20 IP video plus ST2110-30/-31/AES67 and Ravenna IP audio streams. Conversion between IP video and IP audio standards – ST2022 to ST2110, for example – is also possible. To ensure high availability, ST2022-7 hitless protection switching is natively supported.

The vm_udx app provides a format conversion engine capable of processing four SD, HD, 3G or one UHD path for IP and/or SDI signals. Each path provides audio embedding/de-embedding/shuffling functionality. Audio gain, delay and sample rate conversion can be accessed through independent processing blocks, which can be inserted at any point of the processing chain. Eight instances of broadcast quality RGB and YUV color correction and video proc are also available as processing blocks for use by any video source, whether SDI or IP, and available both pre- and post-format conversion.

For even more functionality, add the +HDR option to enable four instances of SDRHDR color space conversion using 3D lookup tables. A large selection of LUTs especially developed for live production are included, and custom LUTs can also be uploaded too. The included LUTs allow for conversion between SDR and HDR in HLG and PQ.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Remote production tools »

Lawo's V__remote 4 is designed to provide a one-box solution for all the requirements of video and audio signal transport and processing in WAN-based remote productions. It includes everything from Video-over-IP coding to various monitoring and processing tools. All designed for one purpose: to provide a tool that increases the flexibility of any broadcast application, while saving valuable rack-space, set-up time and production costs. With its virtual cabling capability, V__remote 4 leverages IP infrastructure advantages and cost savings to provide an unparalleled degree of flexibility and scalability.

In remote live production, IP is becoming a fundamental requirement, and getting reliable, low latency and high-quality video from venues back to studios at reasonable cost is an absolute necessity. The Lawo V__remote 4 achieves this by combining a bi-directional, four-channel Video-over-IP interface, four local SDI inputs and outputs, and all the processing tools usually needed when contributing video and audio via WAN or LAN to a broadcast production, into a compact 1RU devices.

V__remote 4 provides four 3G / HD/ SD SDI inputs and four 3G / HD / SD SDI outputs for interfacing to external video equipment, and converts these signals into IP streams (and vice-versa). These streams can be transported via standard Layer 3 IP LANs or WANs. V__remote 4 provides parallel encoding in multiple streaming formats, making the same signal available to different applications – e.g. RAW for local production, JPEG2000 for remote sites, MJPEG and H.264 for monitoring applications, and H.264 for internet distribution. The IP-based approach allows easy signal routing via Lawo’s VSM control and monitoring system or other external master control systems. No rewiring is needed as long as all devices are connected to the network. Since the device is based on real network technology with multicast capability, it allows easy transmission of signals to multiple outputs within the network.

The V__remote4’s coding engines are designed to meet the highest demands for video quality and signal transport reliability. The extremely robust J2K codec (with a special protection algorithm for signal transport even on unreliable WAN connections) and ST2022-7 port redundancy ensure signal availability and quality. Lawo’s EPS technology for enhanced protection switching goes even further, enabling system designs with true hardware and network redundancy. Format and quality of the IP video streams can be configured individually to provide the optimum balance of picture quality, latency and bandwidth. Its 6 Ethernet ports are connected to an internal switch allowing “tunneling” of IP traffic such as camera control, RAVENNA streams or even office and Internet IP, through the 10GBit interface.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »



vm_dmv is a true revolution in multiviewer technology. Leveraging the power of IP using Lawo’s advanced V__matrix IP video routing & processing platform, vm_dmv lets you build a true 4k UHD multiviewer that can easily grow and adapt to suit your unique requirements. Build a system as small as 24 inputs and 4 control heads, or as large as 768 inputs with 128 heads – and beyond.

The secret lies in the pairing of Lawo’s unique LiveView™ technology and V__matrix architecture. vm_dmv “virtual module” apps run on C100 blades inside a Lawo V__matrix rack unit, which accepts SDI and 40GbE connections. Combining LiveView™ with the ability to “cluster” C100 processing blades keeps bandwidth requirements low, while enabling incredible scalability. Need more inputs or more control heads? Simply load another vm_dmv module to increase system capacity.

vm_dmv takes full advantage of modern network design. It utilizes a distributed architecture, with multiple software modules running on C100 blades within V__matrix frames connected via IP. Individual modules can be hosted in the same frame, or located in different frames within your facility — even in an entirely different location altogether. Which means you can also have multiviewer heads wherever you need them: Master Control, remote production facilities, even OB vans. No other multiviewer system can give you this kind of flexibility.

Traditional multiviewers require massive amounts of bandwidth because they generate control head PiPs using incoming video signals at full-scale. vm_dmv solves the bandwidth problem with cutting-edge LiveView™ MIP-mapping technology. Each incoming signal is optimized and downscaled, then served as four simultaneous streams of differing sizes. These streams become the PiPs used in each multiviewer head; once a source is present, it can be displayed by any (or every) head in the system. LiveView™, coupled with V__matrix’s 40GbE IP backbone, provides true bandwidth efficiency, ultra-low latency, and one-to-many source distribution.

vm_dmv is space-efficient, too. Each V__matrix rack frame accommodates two C100 blades, making it possible to deploy a 48-8 vm_dmv multiviewer system using only 1RU of space. And because the system is built on a true-IP backbone utilizing the ST2110 and ST2022 standards, you can build a distributed architecture, with V__matrix frames placed adjacent to source inputs and connected via Ethernet —instead of running cable bundles to the central rack room.

A groundbreaking multiviewer deserves an equally groundbreaking control and configuration system. vm_DMV is controlled with Lawo’s “theWALL”, a unique HTML5-based GUI that makes mosaic configuration with borders, colors, UMDs, tallies and more a simple case of drag-and-drop. Configure any monitor wall, route signals, change mosaic layouts, save and load user presets. theWALL does all this and more, with a smart, intuitive touch interface that’s a snap to use. Ideal for EICs, line producers and operators, theWALL gives every member of your production team the power to change their monitor wall layouts on-the-fly in seconds flat.

Normal 0

false false false

EN-US X-NONE X-NONE





/* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal"; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-priority:99; mso-style-parent:""; mso-padding-alt:0in 5.4pt 0in 5.4pt; mso-para-margin-top:0in; mso-para-margin-right:0in; mso-para-margin-bottom:8.0pt; mso-para-margin-left:0in; line-height:107%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi;}

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

A VSM IP control system brings together all the requirements for a safe and flexible broadcast operation. The “everything under one roof” philosophy unites technical devices and operators in a most adaptable way. User panels and interfaces can be configured without limitation to meet the requirements of different workflows and applications, while the whole system is under redundant control.

With hundreds of different protocols implemented and growing by the day, VSM seamlessly integrates with the majority of the most popular broadcast equipment on the market. This includes video routers, video switchers, audio routers, audio consoles, multi-viewers, intercoms, modular equipment and many special third-party devices. By talking native protocols where possible, equipment from different manufacturers can be seamlessly “glued” together, giving unmatched recall and logic control possibilities system-wide. With a modern TCP/IP backbone, VSM utilizes standard IT hardware but enhances reliability and redundancy with sophisticated software redundancy concepts. VSM also provides interfaces to connect serially controlled devices, again freeing you to decide on the best hardware technology, no matter the format of the physical control interface. Real time feedback from every single crosspoint and parameter is available, as well as special applications such as audio metering via the protocol. All VSM user interfaces display the confirmed action from an attached device, guaranteeing maximum transparency for every operator and every control unit. Additionally, a global naming facility for mixers, UMDs, user panels and many other devices provides status information at a glance.

VSM servers are the heart of the control system. Running vsmStudio software, all administration and configuration is both programmed and saved runtime in intuitive and easy to use software. Control interfaces in the form of a wide range of hardware LCD button panels and software panel clients allow simplified operation from highly flexible and custom designed configurable GUIs. Additional VSM hardware includes GPIO interfaces, UMDs for dynamic labelling, and SmartHubs, which convert control signals to and from serial to TCP/IP. SNMP Monitoring capabilities are realized via the vSNMP editor software tool which runs on a separate server.

VSM is the ultimate control system integration solution. Applications include mobile production, in-studio production, multi-studio operation with “boxing” of complete studios for fast switching on the fly, TV and Radio master control rooms, and more. VSM solutions include vsmSOUL Seamless Orchestration & Unification Layer, vsmTally Multi-Studio Tally Management System, vsmSNMP Alarm Management System, and vsmGear control panels and interfaces.

Create » Content Acquisition and Capture » Social/UGC » Content/data acquisition from public sources »

Expand your capacity and creativity with limitless video inputs and outputs, for content curation and publishing at scale.

LTN® Live Video Cloud is an intuitive routing console that streamlines and scales the management of live video, from acquisition to distribution, from any source to every destination — without additional capex.

Break through feed chaos and power innovative video experiences: organize aggregation, monetize publishing, and easily enable remote productions with virtual audience engagement.

With Live Video Cloud, you can acquire unlimited concurrent live feeds from any source, configure productions in minutes, monitor and curate live video within a continuous playback multiview, and distribute live signals simultaneously to unlimited destinations.

Live Video Cloud runs on all major cloud providers worldwide, with intuitive browser-based control accessible from anywhere.

Empower audiences to easily become part of your program, and expand your digital audience reach to earn more top-line ad revenue. Command the future of video with Live Video Cloud.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The Aperi IP Multiviewer App (“Multiviewer”) is an FPGA-based application designed to run on an Aperi microserver and is available from the Aperi App Store.

Multiviewer receives IP video input from three sources: on the leftmost “SFP 1” 10 GbE front panel port, and on the two 10 GbE back plane Ethernet ports. The two 10 GbE backplane Ethernet ports support up to six SMPTE 2022-6 (uncompressed) feeds per port (12 total). The front input supports up to six SMPTE 2022-6 (uncompressed) feeds via the Aperi Uncompressed over IP App.

Multiviewer output is split into a 16 tile HD-SDI for display, forming a 4x4 mosaic which is outputted via HD-SDI on the rightmost front panel “SFP 4” port. Each tile can be labeled to show its multicast address, as well as incorporating dynamically definable and static text.

Each input includes an analyzer, which detects for frozen picture, blank screen, or audio loss from any particular source. If an error is detected, the UI will indicate an issue with that particular tile via the alarm system. This alarm system is available via a common interface, and is exposed in the Multiviewer API.

Technical Information

• Supports up to six SMPTE 2022-6 IP video inputs from the 10 GbE SFP 1 port on an Aperi Microserver.


• Supports up to six SMPTE 2022-6 IP video inputs from each of the 10 GbE backplane Ethernet ports (6 + 6) on the Aperi A1105 Chassis.


• 16-tile 4x4 mosaic display of all video sources, outputted via HD-SDI on SFP 4.


• Support for quick-switching any stream from the 16x16 mosaic into full screen display.


• Full labeling support for each tile, displaying multicast address or user-definable text.


• Detection of frozen picture, blank screen, and audio loss via a common alarm interface.


• Graphical user interface available via HTTPS, accessible via any modern web browser.


• Built upon a RESTful API according to industry best practices, along with full API documentation accessible directly via the Multiviewer UI.


• Included Multiviewer User Guide PDF document packaged with the app, and available directly from the UI.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

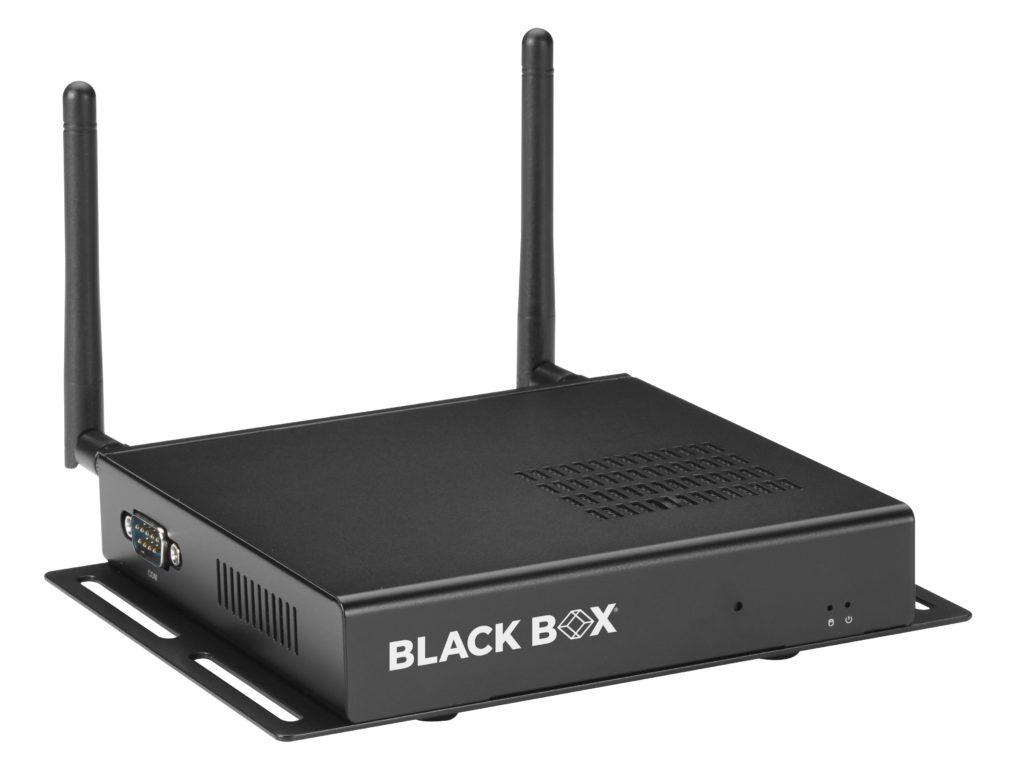

Your digital signage solution is only as useful as it is usable for your team.  Work with our digital signage experts to design and configure the system that meets your communication, business, and team needs. Whether you’re looking to entertain with streaming live video, engage with touchscreens, alert with emergency notifications or inform with wayfinding, you can find the exact players, content management system, and accessories from the comprehensive iCompel® Digital Signage product portfolio.

 iCompel® is the ideal digital signage solution for:

 • Classrooms & hallways

• Quick-service restaurants

• Retail

• Doctors offices and hospitals

• Corporate office centers

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

MediaCento IPX is the perfect HDMI-over-IP distribution solution that enables you to transmit video over 1-Gbps Ethernet to a virtually unlimited number of screens as far as your local network reaches.

The MediaCento IPX IP-based audio/video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to unicast HDMI HD/4K UHD video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load. Transmitters and receivers install directly into your existing LAN infrastructure. There’s no need to configure any IP settings or run expensive dedicated links from a back room. Better yet, PoE power eliminates the need for external power supplies.

Use the standalone MediaCento IPX Controller with any network switch for full flexibility including dual network, matrix switching, and video wall support, up to 8 x 8 (64 screens).

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »



vm_dmv is a true revolution in multiviewer technology. Leveraging the power of IP using Lawo’s advanced V__matrix IP video routing & processing platform, vm_dmv lets you build a true 4k UHD multiviewer that can easily grow and adapt to suit your unique requirements. Build a system as small as 24 inputs and 4 control heads, or as large as 768 inputs with 128 heads – and beyond.

The secret lies in the pairing of Lawo’s unique LiveView™ technology and V__matrix architecture. vm_dmv “virtual module” apps run on C100 blades inside a Lawo V__matrix rack unit, which accepts SDI and 40GbE connections. Combining LiveView™ with the ability to “cluster” C100 processing blades keeps bandwidth requirements low, while enabling incredible scalability. Need more inputs or more control heads? Simply load another vm_dmv module to increase system capacity.

vm_dmv takes full advantage of modern network design. It utilizes a distributed architecture, with multiple software modules running on C100 blades within V__matrix frames connected via IP. Individual modules can be hosted in the same frame, or located in different frames within your facility — even in an entirely different location altogether. Which means you can also have multiviewer heads wherever you need them: Master Control, remote production facilities, even OB vans. No other multiviewer system can give you this kind of flexibility.

Traditional multiviewers require massive amounts of bandwidth because they generate control head PiPs using incoming video signals at full-scale. vm_dmv solves the bandwidth problem with cutting-edge LiveView™ MIP-mapping technology. Each incoming signal is optimized and downscaled, then served as four simultaneous streams of differing sizes. These streams become the PiPs used in each multiviewer head; once a source is present, it can be displayed by any (or every) head in the system. LiveView™, coupled with V__matrix’s 40GbE IP backbone, provides true bandwidth efficiency, ultra-low latency, and one-to-many source distribution.

vm_dmv is space-efficient, too. Each V__matrix rack frame accommodates two C100 blades, making it possible to deploy a 48-8 vm_dmv multiviewer system using only 1RU of space. And because the system is built on a true-IP backbone utilizing the ST2110 and ST2022 standards, you can build a distributed architecture, with V__matrix frames placed adjacent to source inputs and connected via Ethernet —instead of running cable bundles to the central rack room.

A groundbreaking multiviewer deserves an equally groundbreaking control and configuration system. vm_DMV is controlled with Lawo’s “theWALL”, a unique HTML5-based GUI that makes mosaic configuration with borders, colors, UMDs, tallies and more a simple case of drag-and-drop. Configure any monitor wall, route signals, change mosaic layouts, save and load user presets. theWALL does all this and more, with a smart, intuitive touch interface that’s a snap to use. Ideal for EICs, line producers and operators, theWALL gives every member of your production team the power to change their monitor wall layouts on-the-fly in seconds flat.

Normal 0

false false false

EN-US X-NONE X-NONE





/* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal"; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-priority:99; mso-style-parent:""; mso-padding-alt:0in 5.4pt 0in 5.4pt; mso-para-margin-top:0in; mso-para-margin-right:0in; mso-para-margin-bottom:8.0pt; mso-para-margin-left:0in; line-height:107%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi;}

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The UE Series includes Multiviewers that support either 4 or 8 4K/UHD HDMI 2.0 inputs as well as HDMI 2.0 and 12G outputs. Models are available with or without KVM Functions. As with all TAHOMA Multiviewers, the UE Series if fully featured,Apantac now announces its second generation of UE multiviewers, which include a cascading feature, are more compact (almost half the depth) and consume less power. The UE series now also includes the UE-4-DP, which offers Display Port inputs instead of HDMI 2.0.The UE-4-II and UE-4-K-II models can be cascaded together as well as cascaded with the Apantac Mi-8 12G-UHD, an 8x1 UHD multiviewer with inputs up to 12G SDI. The cascade feature ensures users can combine more source inputs as well as mix input formats on the same display - all without extra latency. For example, user can cascade one UE-4K-II with one UE-4-II and one Mi-8 12G-UHD, thereby displaying up to 8x HDMI plus 8x 12G SDI signals on the monitor and control up to four HDMI computers from a single keyboard and mouse. The maximum number of units in a cascade is four, with a maximum of four UE-4-II, two UE-4-K-II and one SDI multiviewer.The KVM function allows multiple computers connected to the Multiviewer to be controlled via a single mouse and keyboard. Users simply move the mouse from window to window (on their display) to switch the control from one computer to another one. A single operator can visually monitor and control up to eight computers on a single console with a UHD or HD monitor. Via the single console, the user can easily switch between Multiviewer layouts using predefined keyboard shortcuts.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

MI-16 SERIES OF MULTIVIEWERS PRESENTATION

The addition of UHD outputs to Apantac’s Multiviewers means that facilities now have a cost-effective UHD visual monitoring solution that is much sharper, clearer and more detailed than before.

In comparison to an HD Multiviewer & Display, Apantac’s Multiviewers with UHD outputs mean that the source window PIPs (picture in picture) can be displayed with twice the horizontal number of pixels and twice the number of lines on a UHD panel.

Since UHD monitors are rapidly becoming less expensive, media facilities can use off-the-shelf UHD displays coupled with Apantac’s cost-effective Multiviewers for an inexpensive multi-image display processing solution for many content applications.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

CLICK HERE  -  T# PRODUCT PRESENTATION

Modular multiviewers with mix and match I/O up to 12G support.

The T# Multiviewers provide a uniquely modular and flexible approach that will ensure a future-proof solution for a visual monitoring infrastructure. What makes the T# Multiviewer platform particularly versatile is the fact that it is truly modular supporting a full range of input boards and output boards monitoring signals from Composite to 12G-SDI, UHD, HDMI 2.0, HDMI/DVI, SDI over fiber and IP.

The T# Multiviewer comes in 3 different frame sizes; 1 RU, 2 RU and 4 RU. Since the frames are completely modular, different I/O modules can be inserted to form different sizes and configurations of multiviewers.

All input cards are hot swappable and include:

- 12G SDI broadcast input boards- Standard broadcast input boards- CVBS to UHD input cards- HDMI input cards- IP (H.264/Mpeg4, Mpeg2) input cards- SFP input cards can accept SDI fiber or SMPTE 2022 SFPs

All output cards are hot swappable and include:

- Up to 4 outputs per output board (maximum 2 output boards / 8 outputs)- Standard output cards- Expansion output cards- CATx extender output cards- HDMI and SFP output cards- HDMI 2.0 UHD output cards

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

PRODUCT PRESENTATION

An affordable and high performance entry into 4K/UHD multi-image display for a variety of broadcast and ProAV visual environments including control rooms, digital signage and the like.

Includes a KVM feature whereby KVM and a Multiviewer are working together on a UHD screen.

This MiniDE-4-UHD-K is ideal for displaying up to 4 sources on a single UHD monitor or projector. The added benefit is that users can mix input resolutions and sources all the way up to 4K on a single display.

The MiniDE-4-UHD-K displays up to 4 HDMI computer inputs with keyboard and mouse functions on the same screen. It accepts SD, HD and true UHD/4K @ 60Hz input resolutions. The output resolution can be set for 1280x720p @ 60Hz, 1920x1080p @ 60Hz or 3840x2160p @ 30Hz or 60Hz. All with 4:4:4 color sampling. There are 6 predefined and 8 customized possible screen layouts. PIP and POP modes are also supported. Control and configuration is handled through a web interface, Ethernet, and RS232. As with all Apantac multiviewers, display layout creation is simple and extremely intuitive.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The MiniDE-4-UHD-II can display up to 4 video inputs on the same screen and supports 4 x HDMI 2.0 inputs / outputs up to 4K@60Hz at 4:4:4.

Supports Deep color and HDCP 1.4 and 2.2 and Dolby Digtal 5.1, DTS 5.1 and uncompressed 7.1.



Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

Features and performance

• Display of various signal inputs such as ASI, IP, SD / HD / 3G-SDI on one screen


• Supports HLS, RF (DVB, ISDBT, QAM) input with additional options


• Convert different input resolution and frame rate, display in a unified output format


• Maximum 45 CH input support for 1 enclosure


• By using multiple chassis, more than 45 CH / 1 screen display is possible


• Input signal loss, black screen, etc detected as an error, notification to the screen


• By voice signal bar, voice input of each input CH can be confirmed


• The size of each signal screen can be freely changed by setting

Application areas

• Monitoring multiple TS, SDI, OTT signals at low-cost monitor monitoring


• Construction of mobile multiviewer using notebook PC

Advanced options

• 4K resolution output


• Cascade processing, input signals of 45 channels or more, 1 screen output supported


• Video output to multiple screens


• Output video signal to other multi viewers TS TS streaming delivery


• Penalty box


• Error notification by SNMP output


• Multilingual voice input support


• Dolby voice codec input support


• Supports HEVC (H.265) input


• 4: 2: 2 Video input support


• Dynamic layout change by the user interface


• Input bit rate display function

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

TAG’s platform is a unique all IP software-based solution which is optimized for production applications and environments. It decodes, analyzes and displays with ultra-low latency uncompressed SMPTE ST 2022-6/7, ST 2110, JPEG-XS, and CDI over IP signals and features UHD mosaic output for multiviewer displays.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The TAG platform supports all formats of OTT including HLS and MPEG-DASH, providing a complete monitoring and multiviewing solution. It combines the traditional MPEG-TS support with the unique monitoring requirements of OTT (including the ability to decrypt and decode the content in the secure zone), and the full feature set of the platform to provide a comprehensive OTT monitoring and multiviewing solution. Unique features like TAG’s adaptive monitoring enable true monitoring at scale across the entire OTT platform.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The platform incorporates support for multiple encoding formats such as SD, HD, UHD, MPEG-2, MPEG-4, HEVC, J2K, JPEG-XS, etc. to provide a comprehensive monitoring solution for compressed content, as well as ST 2022-6/2110 uncompressed sources, all in one device. The large scope of TAG’s capabilities has made it the default solution for playout monitoring in the cloud.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

Ultriscape is the ultimate multiviewer  platform for Studios, OB Vans, and Flypacks. As the world’s first software defined multiviewer, customers realize significant cost, space, and power efficiencies with unparalleled flexibility and agility.

Key Features:

Software Defined - Easily add new multiviewer outputs through additional software licenses.  No additional hardware required.

Integrated Design - Ultriscape can be added to extensive routing, audio processing, and synchronization capabilities to create a completely integrated solution.

Flexible - Each multiviewer head is completely independent, offering tremendous flexibility for layouts and control.

12G Ready - Ultriscape supports inputs from 270Mb/s up to 12G.  This means it’s ready for UHD production when you are, without replacing any hardware or losing capacity.

Pay As You Go - The software defined architecture means you simply buy what you need, when you need it



Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

The TAG platform with its comprehensive support and deep probing capabilities of DVB, ATSC, Satellite and IP network transport streams provide a complete monitoring and multiviewing solution for Transport and Delivery applications. It combines a full feature set of MPEG-TS analysis – including the DVB tables, ETR-101-290 specifications, metadata, subtitles & closed captions, content decryption, and video/audio baseband monitoring, all with probing, alarming and multiviewing.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

Multiformat Multiviewers

ST 2110, 2022, SDI

Encoded Linear & OTT

COTS based

PHASE - Serving the Brazilian Television Marker Successfully since 1980

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

Full Line of Multiformat Multiviewers

ST 2110 & 2022

SDI

Encoded Linear & OTT

PHASE - Serving the Brazilia Television Market since 1980

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

Helm, allows the design of a control system dedicated to your operators’ requirements; there’s no clutter of unnecessary controls or information and no risk of confusion between channels as you switch from one manufacturer UI to another. There’s no hunting for the right buttons to press. We can help you design and implement Helm control panels, and you’ll have all the tools to modify and extend them as your requirements change.

BENEFITS

• Totally customisable: All the control you need, none that you don’t


• Smaller footprint: Not all environments have room for multiple hardware panels


• Lower cost: Helm panels run on entry-level PCs, or even on mobile devices via WebCentre


• Faster training: Only one system to learn for new operators


• Enhanced productivity: Simpler interfaces mean operators can work faster and more effectively


• Extend and replace: You can add or change equipment in the facility without impacting operators.

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

Capture proxy content 24x7 with live-multiviewer, QoS monitoring/logging/alerting and Transport Stream analytics, integrated with As-Run logs for internal air-check and ad-verification. Based on an affordable workstation that delivers powerful tools for less.

Manage » Manage & Orchestrate » Data & Metadata Management » (Meta)data aggregation and management »

A comprehensive original and proxy quality 24/7 capture solution with live-multiviewer, QoS monitoring/logging/alerting and Transport Stream analytics, integrated with As-Run logs for internal air-check and ad-verification and a host of features and tools for clipping and repurposing back-to-air or OTT/Social, competition monitoring, ratings graphing, HLS packaging, and competitor-aired ad-identification with lead-list generation for sales.

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

A multiviewer/quality monitoring solution with penalty screen, screen of states, carousel feature and “blind” monitoring for SD/HD-SDI and IP signals

Stream MultiScreen is a software quality monitoring solution. The software can generate a mosaic screen, a screen of states, a penalty screen and non-visual (“blind”) instrumental monitoring capability for analog, SD/HD-SDI and IP sources in any combination. The solution is intended for visual and/or automated quality control and monitoring in Network Operation Centers (NOC), broadcast facilities, Head-ends, content aggregators, TV broadcasters etc... Stream MultiScreen is fully compliant with DVB/MPEG TS ISO 13818-1 streams.

The solution is equipped with a carousel (also called a rotator) feature for monitoring a large set of channels by groups in a round robin manner that can decrease the number of required physical output monitors.

The number of inputs varies and is effectively unlimited. Stream MultiScreen supports feeds from BDA/DirectShow receivers to monitor satellite, cable and terrestrial TV signals. Stream Labs ingest cards may be used to monitor baseband signals coming via SD/HD-SDI, T2-MI and analog interfaces. IP sources are supported including HLS, RTSP, RTMP, MPEG-DASH.

The output mosaic screen can be streamed to a remote PC via HLS. Output is available as HDMI, DVI or DisplayPort. Up to 6 outputs are supported per a server.

The solution supports monitoring and alarming of ETSI TR 101 290 (ETR 290) critical states and QoE degradation such as black screen, still picture, no sound, R.128 parameters etc... Stream MultiScreen can detect user-defined patterns in incoming signals, i.e. “No signal” messages from an IRD/STB.

The solution utilizes Nvidia GPU's and Intel decoding/filtering capabilities, but built-in software decoding is also possible for small and more cost effective installations reducing hardware requirements.

The layout and design of the mosaic screen, penalty screen and screen of states is customizable through the included MultiScreen Designer/Monitor software package.

Stream Labs offers download demo versions, presentations and training videos through their website.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

BOSS STREAM Viewer is a software-based multiviewer monitoring system for DVB/Digital Video Broadcasting/Asynchronous Serial Interface (DVB/ASI) and IP. It supports Modulator Interface (T2-MI) for Second Generation Digital Terrestrial TV (DVB-T2) for both ASI and IP. The Dimetis BOSS STREAM Viewer can monitor and analyze SDI streams in cable, satellite-terrestrial, compression centers, play-out and transmission centers, DVB, OTT, Web and IPTV headends, network operations centers and IPTV distribution networks.

OTT Streaming - The Dimetis BOSS STREAM Viewer will be able to inspect HTTP Live Streaming (HLS), HTTP Dynamic Streaming (HDS) and Real-Time Messaging Protocol (RTMP).

In the digital video broadcasting and internet worlds, there is a diversity of existing infrastructures for the distribution of DVB, Internet and IPTV. Today’s multiviewer systems must be flexible in the handling of various source formats. The Dimetis BOSS STREAM Viewer can handle DVB conform transport streams over IP and ASI, and SDI uncompressed video in mixed operation in SD and HD.

This scalable system can provide real-time analysis of DVB, content and quality level (blocking and blurring), while decoding and displaying video, audio, teletext and subtitle services. The entire alarming thresholds are configurable and the system is capable of notifying any 3rd party monitoring or management system, such as the Dimetis BOSS BROADCAST ManagerTM, with alerts, problem or quality conditions. Application areas include DVB analysis, content and quality analysis, management of multiple sources, video and audio decoding, teletext decoding and DBV/TXT subtitles. The Dimetis BOSS STREAM Viewer comes “out of the box” and can easily be integrated in broadcaster’s environment as it operates on standard server hardware. With the combination of SDI and DVB signals, BOSS STREAM Viewer is perfect for comparing incoming and outgoing signals on one single screen.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

MCX is a next-generation 4K60 AV-over-IP distribution solution that enables latency-free extension and matrix switching of video, audio, RS-232, and USB 2.0 signals. MCX features built-in video wall management and is TAA-compliant.

MCX allows AV and data payloads to exist on the same IT network and reduces network management time and costs.

The encoders/decoders are ideal for point-to-point secure video conferencing, multi-monitor broadcasts, distributed video matrix or video wall systems, and remote KVM system control.

Easy Setup – Easy Management

Connect each encoder to an AV source (e.g. computer, content player) and connect it to a managed 10-GbE network switch. Connect a decoder to each screen you want to display the content on and connect it to the same switch. Manage your MCX system through the user-friendly MCX Gen2 Network Manager that helps you to configure your system and even build and manage a video wall.



Uncompressed 4K 60 Hz 4:4:4 Video

MCX delivers the video quality high-end AV applications require to display eye-catching content: It extends uncompressed 4K 60 Hz 4:4:4 video to an unlimited number of displays without sacrificing latency, video quality or bandwidth. Even better, it supports up to 10-bit HDR using Software-Defined Video over Ethernet (SDVoE) – the latest software-based AV-over-IP platform for extension and control of AV systems on Ethernet or fiber networks.



Create Ergonomic Workflows for Operators

This video extension system is easy to install and use on a modern network. The units’ front-panel configuration buttons and On-Screen Display (OSD) streamline daily workflows.



Choose Copper or Fiber Versions to Suit Your Application

The encoders/decoders are designed for high-quality, IP routable, AV extension with minimum latency. Fiber and copper versions are available to accommodate for your preferred network infrastructure.

Zero Latency

This robust video distribution system's data transfer delay is virtually undistinguishable; the glass-to-glass encoding and decoding happens in real-time (0.03 milliseconds). This means you never deal with annoying lag or video delay.

HDMI 2.0 and DisplayPort Encoding and Decoding

You can connect every essential device to your MCX Gen2 through its variety of ports. Multiple control and data signals may also be transmitted along with the audio and video, including IR and RS-232.



3-Port USB with USB-C Connectivity

The integrated USB hub of each decoder (receiver) can be configured to be in ‘USB Host’ or ‘Device Mode’ and can function as a simple point to point AV/KVM extension, freely routed between any two endpoints, or it can be configured into a special “Simultaneous” mode, allowing up to 7 ‘Host Mode’ units to extend their USB ports to a single ‘Device Mode’ unit. This type of USB AV/KVM routing flexibility enables a wide range of multi-user, control room, or on-demand installation scenarios.



Additional Video Out

The system can show the input source on a separate monitor. For example, in a live event, the user can view the source and sample that video on a loop, then pass it down to the network to compare latency.



Works with MCX Gen2 Controller

Combined with the optional MCX Gen2 Controller or control software, the functionality of the encoders/decoders expands exponentially. Multiple encoders/decoders may be combined with one or more 10-Gigabit fiber Ethernet switches and the units can be used together to form a distributed video matrix, a multi-viewer system, or a video wall system adding to their flexibility in large event installations.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

Setting up professional video walls has never been easier: Radian Flex Video Wall Software gives you the ability to display high-quality content from any source, across multi-screen display walls, in any creative configuration imaginable. As you add, move, resize and change content on the user interface, the same things happen on your video wall, distributed visualization system, or other display devices in real-time. And since no proprietary hardware is needed, you save both time and money.

Share content quickly among multiple locations or divisions of large organizations for critical decision making and enable users to share live feeds, information and other content among video wall systems located around the world.

Manage and distribute video content quickly and easily without rendering. Resize to any scale, zoom, magnify, and rotate content to any orientation you wish. Control content and the look and feel of your video wall with remote access from one or multiple workstations located anywhere in the world.

Achieve greater impact with advanced image processing technologies, such as high definition video signal collecting, real-time high resolution, digital image processing, and advanced three-dimensional digital filtering.

Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

R&S®PRISMON is an innovative and versatile software-based solution for monitoring and multiviewing of audio/video content. It supports the present and future plethora of standards for content transport and media formats, both in legacy and modern IP-based environments. In addition, it offers a comprehensive set of protocols for OTT/streaming scenarios.
