Ross Ultrix Carbonite Hyper-Converged Production Platform

Produce » Real-Time Production » Video Production » Production switchers »

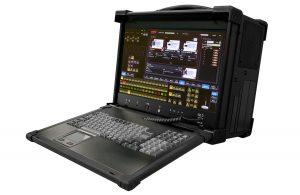

Graphite PPC offers customers a remarkable amount of production horsepower – up to two MEs (and four MiniMEs), four DVEs, six frame syncs, four media stores and two MultiViewers. Capable of handling up to thirteen inputs and up to eight outputs, Graphite PPC also includes the same RAVE audio engine (with sample rate converters) that comes with the larger Graphite solution, as well as the same XPression graphics and clips package also found in its elder sibling. Graphite PPC is incredibly light – it weighs only 42 lbs / 19kg including its dedicated soft-shell carrying case equipped with a pull-out handle and wheels. It’s also extremely quiet – ultra-quiet fan cooling means the system can easily be used in the same space as the talent with microphones. Graphite PPC is simple to set-up and requires just a single operator, so you can now deliver a high impact, high efficiency production even more easily.

Publish » Linear Playout » Linear Playout Systems » Channel branding graphics and promotion systems »

Kiva Live Presentation Server brings an impressive, professional digital media playout solution to the live sports and entertainment industry that will take your live productions to another level.

With a simple click, the highly intuitive operator-driven Kiva user interface presents a variety of digital media assets into venue videoboards with unparalleled flexibility and ease. These include real-time video clips, ‘fill+matte’ stills and animations, surround-sound audio, and sponsored adverts.

With Kiva, all your live productions are instantly simplified. Incoming media are quickly ingested, efficiently organized, and easily presented during live sports shows, concerts, and events.

Produce » Real-Time Production » Real-Time Production Graphics » Production graphics and CG »

Lucid Studio is a highly flexible and customizable control platform with an easy-to-use intuitive graphical user interface. Lucid provides seamless integration with tracking systems and real-time 3D rendering engines such as XPression and Voyager. It is a complete redesign of the legacy UX platform, with significant changes to the underlying code, and the graphics interface. Lucid Studio offers unparalleled customizability, flexibility and accessibility to all types of operation and operators. Lucid Studio is used for virtual set camera calibration, scene manipulation, media replacement, event triggering, MOS newsroom integration, animation control, robotic camera movement control and much more.

Produce » Real-Time Production » Video Production » Production switchers »

The power of Ross Video’s flagship production switcher and the game-changing feature set of its flexible hybrid routing platform have been merged to create a complete, future-proof solution that is truly greater than the sum of its parts.

Produce » Real-Time Production » Video Production » Production switchers »

Ross Video revolutionized live production with the debut of Ultrix Acuity – the single-chassis production switcher and routing platform that provides superior capability and outstanding value. Now, Ross takes that idea another step further with the launch of Ultrix Carbonite, a powerful new integrated solution based on the “Software-Defined Production Engine” initially used for Ultrix Acuity. Ultrix Carbonite combines the routing and processing capabilities of Ultrix with the sophisticated creative capabilities of Carbonite, the world’s most popular mid-size production switcher. Ultrix Carbonite creates a new standard in performance, flexibility and value, unmatched by any standalone system available today.

Connect » Real-Time Signal Transfer » Audio Interfacing & Conversion » Audio signal processing, routing and infrastructure »

This system is the leading digital video and audio delay solution for easily eliminating all unwanted content from your live broadcasts or webcasts.

Key Features Include:

• Eliminate nudity, offensive language, and obscene gestures from live broadcasts while maintaining program continuity.


• Straight-forward to control with two large panic buttons; one for audio (red); and one for video (yellow). Simply press & hold to clean-up your broadcast.


• Allows for dual-user operations, with unique settings to accommodate each operator’s preferences.


• The viewer experience is minimally interrupted with subtle video and audio masking techniques.


• Compensates for the reaction time of human operators to an observed visual or aural event, ensuring every obscenity is concealed in its entirety.


• Solid-state technology equipped with bypass relay circuity to further ensure the integrity of your live television broadcasts.

Create » Content Acquisition and Capture » Cameras » Broadcast System cameras »

Create beautiful, clean, true high-resolution keys using the patented 0:4:4 UltrachromeHR output, a signal that contains full bandwidth color information for complete 4:4:4 data into the UltrachromeHR Chroma Keying System.

Produce » Real-Time Production » Video Production » Production switchers »

Acuity is the top-of-the-line large production switcher designed to handle world’s most challenging live events. This switcher has been built to easily adapt to evolving technology in the video production industry and is built with the biggest creative feature set – for the biggest productions.

Features include:

- Powerful Production Engines

- Output Transitions

- Facility-Grade MultiViewers

- MultiFeed Split MEs

- MultiFeed Configurable Outputs

- Tremendous DVE Resources

Support » Monitoring, Control & Communications » Audio Monitoring » Loudspeakers »

Offering a choice of 1RU and 2RU monitoring bridges, the MB-series fits your rack or console with ease. Choose the model with embedded SDI or discrete audio inputs to match your installation.

Front panels include large, bright displays and intuitive tactile controls to easily tailor your audio monitoring experience. Quickly choose what you want to listen to, they way you like it. Full DashBoard control and GPI interfaces round out a complete control solution.

The MB-series feature surround mix-down, channel summing, easy channel selection and loudness measurement – all the tools you need to ensure your audio is in check.

Produce » Real-Time Production » Video Production » Production switchers »

No ordinary compact production switcher, Carbonite Black Solo packs an astounding feature set including 2 MiniMEs and 9 keyers.

Carbonite Black Solo provides the compact form and affordability of a small switcher, while offering the big switcher feature-set of the Carbonite Black series.

If your productions are on the go, at different facilities and events, you want to make it easy to plug-in and get the show rolling. Carbonite Black Solo is built with internal video processing and MultiViewer resources, so no external gear is required.

XPression LiveCG complements your show with high quality still graphics. Graphics are fed directly into the switcher media channels over Ethernet for a truly simple workflow.

Smaller switchers generally feature base-level custom controls and memories, but not Carbonite Black Solo. This switcher features fully-customizable macros and a memory system with unique smart recall and effect recall functionality.

Produce » Real-Time Production » Video Production » Production switchers »

Carbonite Mosaic is built to get high-quality video onto your large-screen display, quickly and easily.

Large-screen displays have grown to massive scale in both size and resolution. Carbonite Mosaic gets the highest quality images on displays of over 20 million pixels.

A complete set of video processing resources guarantees a uniform look across your display. For ultra-high-quality imagery, Carbonite Mosaic supports 10bit HDR formats.

Powered by 10 independently-controlled tile outputs, it’s easy to weave a massive single display or feed multiple displays throughout your venue – the choice is yours.

Carbonite Mosaic and XPression Tessera team up for high-quality upscaled video and beautiful pixel-accurate graphics on your display. Live has never looked this good.

Like all Ross products, Carbonite Mosaic is part of the DashBoard Control Ecosystem. DashBoard makes it easy to control your display layouts or even your entire venue, from a single interface.



Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

Dashboard enables users to quickly build unique, tailored CustomPanels that make complex operations simple. DashBoard provides control and monitoring to hundreds of products from more than 80 partners within the openGear and DashBoard Connect ecosystem, and of course most Ross Video products. Its ability to craft application specific solutions across this breadth of products is what makes DashBoard so special.

Produce » Real-Time Production » Real-Time Production Graphics » Virtual sets and chromakey »

Frontier works in a virtual studio environment for virtual sets and augmented reality. Frontier enables the creation of even the most complex graphical elements quickly, easily, and with unprecedented realism with greater accuracy than ever before.

Frontier uses the UX control platform as an operator-friendly front end, so operators are not required to know UE4 to use the system. Frontier supports customization, flexibility, and scalability in terms of number of cameras and graphics engines through the integration of UX and UX VCC applications.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Modular interfacing and signal processing »

Easily expand Gator’s capabilities by simply activating the appropriate software license.

Key Features:

Ultra-high Def - Gator features a native UHD processing core, featuring 12G-SDI interfaces.

Agile - A platform that becomes what you need it, when you need it. That’s what software-defined processing is all about.

Rock Solid - It has been carefully designed to meet the performance and reliability requirements of today’s demanding broadcast plant. Gator fits into the rock-solid openGear chassis featuring redundant power and cooling to maximize your all-important uptime.

Control - Gator is part of the industry-standard openGear ecosystem. Full control is available via DashBoard, allowing simple configuration, setup and alarm monitoring.



Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

A throwdown mini converter needs to be built tough. GearLite modules are all constructed from heavy steel and include features like locking connectors to ensure reliable operation, wherever you throw them.

Gearlite point-of-use modules let you put them right where you need them. Every GearLite module ships standard with flexible mounting accessories and a universal power supply. They feature a compact design, so they fit almost anywhere, be it in a rack, on stage, behind a monitor or in a fly pack.

Small and compact doesn’t mean you need to settle for lower-grade processing. Our GearLite mini converter and distribution modules are built using the same high quality components and processing as our modular solutions, giving you broadcast-grade signal handling for SDI, 3G-SDI, 12G-SDI, fiber, audio and HDMI.

Produce » Real-Time Production » Video Production » Production switchers »

Graphite provides a full production solution within a single 4RU frame. This simplifies connectivity, saves space, and makes it easy to take top-quality productions on the road. Built to withstand the rigors of a mobile production with carefully engineered physical construction. Graphite systems are extensively shake and bake tested before shipping. Rely on a system with consistent performance and immunity to traditional all-in-one software issues, thanks to unique dedicated hardware. Every aspect of the Graphite system is built with the quality of separate system components. The value of a single all-in-one system with no need for external supplement cannot be overstated. Crew your show as you see fit. A single operator can run an entire show through all-encompassing control, or roles can be separated for multiple operators during high-intensity events. Switcher resources and graphics power can be upgraded via software licences – and additional equipment is available through a single vendor for effortless integration and guaranteed support.

Produce » Manage Production » Production Software » Newsroom computer systems (NRCS) »

News happens quickly and users are turning to web and social media to get the news. Inception is a newsroom system that allow you to discover and get stories as they happen. A power news gathering tool and social media manager, all in one place.

From the smallest newsrooms to the world’s largest broadcasters, Inception can scale to meet any size operation or workflow with both subscription and purchase models available.

Inception’s robust MOS interface makes it easy to integrate with other broadcast devices like graphics, video servers, media asset management, teleprompters and automation.

Key Features:

- Story-Centric Workflows

- Enterprise Features

- Social media and Web

- Assignment Manager

- Horizon + Inception

- Messaging

Produce » Real-Time Production » Video Production » Newsroom production management and automation systems »

Inception Social enables you to bring text and image content from social media into graphics playout, manage moderating and approving content from social media channels, and prompt user engagement via social media polling.

Key Features:

Multi-platform publishing - Save time and increase productivity by using a unified platform to search and publish to social media and web platforms.

Feed social content to on-air graphics - Search, curate and display social media content by integrating Inception Social with broadcast graphic systems like Ross Video’s XPression.

Social Polls - Use social media polls to create content through real-time audience participation.

Geolocated Results - Use a location to produce focused results for breaking news, severe weather or live events.

User Permissions & Approval Workflows - Open up social media participation to your team while overseeing the final product before it is published.

Support » Monitoring, Control & Communications » System Monitoring & Control » Broadcast system control SW and HW »

Lightning provides fully integrated switcher, graphics and camera control with an intuitive interface ideal for single operator use. Perfect for legislative assembly, house of worship, education and corporate broadcasts.



Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Ross offers Master Reference generators for any application. From a small openGear cards, ideal for fly packs and remote locations, up to flexible fully-redundant platforms for large multi-format facilities.

The SRG-series Master Sync Generators support a wide range of output signals and formats from composite to UHD. These reference generators can even provide multiple video standards simultaneously. Integrated video pattern generators with idents and motion are great for remote feeds.

Built to last and redundancy in mind, Ross Sync Generators will keep the heartbeat of your facility alive. All units feature redundant power and easy servicing. Automatic changeover units are available to ensure you never skip a beat.

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

The MC1 system scales from stand-alone branding to multi-channel master control installations adapting easily to manual or automated control.

At its core, MC1 is a powerful AV mixer, offering 4 keyers, logo playout, transitions with full preview. You get the tools you need to build your on-air brand.

Shuffle, correct your levels, sum and downmix. Keep your audio in check with fast, intuitive presets and manual overrides.

Manage multiple Master Controls with ease from an intuitive DashBoard touchscreen or tactile hardware control panel.

From single stand-alone branding to large multi-channel Master Control; MC1 can scale to your needs.

It features hardware bypass to keep your channel on air in any situation. MC1 can also be used as great backup to Channel-in-a-box and IP playout systems.

Applications:

- Sports & Live Venue

- News

- Virtual Studio

- Mobile

- Government

- Corporate

- House of Worshio

- Education

Produce » Real-Time Production » Video Production » Real-time production replay and slow-motion servers »

Live instant replay system with compelling features, a unique ergonomically-designed control surface and purpose-built user application.

Features include:

- Easy-to-Use

- Single or Dual-User Workflow

- Reliable Protected Media

- Flexible Configuration

- Content Sharing

- File-Based Operations



Publish » Linear Playout » Linear Playout Systems » Master control switchers »

Make it easy with an ergonomically-designed control surface and intuitive “heads-up” user display. Mira delivers remarkably fast learning curves for both novice and veteran replay operators.

Share the load by splitting/sharing server resources—so two operators can work independently on two replay events or work in collaboration on the same replay event.

Ensure maximum reliability, with standard dual-redundant, hot-swappable power supplies. For ease of maintenance, all Mira servers feature hot-swappable chassis fans and media disk drives.

Mira adapts to a wide variety of live production workflows, thanks to a symmetrical, multi-channel server architecture.

Integrated clip networking permits operators to quickly and easily share media clips between any number of Mira replay servers interconnected via inexpensive Gigabit Ethernet.

Reduce cost and substantially streamline workflow with integrated media file import and export tools.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Hybrid SDI-IP video routers »

This is the first product species that brings to life compact, quiet and robust UHD-over-IP SDI/HDMI signal conversion. Newt is fluent in many open control protocols such as NMOS, EmBER+, and DashBoard (to name but a few), thus giving you the freedom to throw this little guy down into the IP environment of your choice.

Compact & Robust- Compact & robust signal conversion and processing of many formats from HD to UHD.

Open Control - Open control gives you the freedom to run Newt from our DashBoard™ control system, and/or seamlessly from many 3rd-party control systems.

Software Defined - What you need, when you need it: software defined processing enables multiple uses and functions.

Quiet - Newt is the strong silent type, with studio applications in mind. Unlike other IP conversion products with fans that scream loudly, you’ll barely hear a purr from Newt.

Goes Anywhere - Flexible mounting options enable Newt to scale any wall, zip-tie to a post, hide under a desk, behind a display, or for three of them to sit comfortably on an optional rack shelf.

Monetize » Acquire Content » Rights Management » Royalties and participations management »

Ross Video provides two solutions for encoding Nielsen watermarks:

NWE-3GA - Nielsen Watermarks Encoder

High quality insertion of Nielsen Watermarks into embedded and / or AES3 digital audio.

NWE-TS  - Nielsen Watermarks Encoder for ATSC Transport Streams

High quality insertion of Nielsen Watermarks into AC3 audio.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Modular interfacing and signal processing »

As the world’s first modular infrastructure platform open to other manufacturers, the Emmy®-award winning openGear provides solutions derived from hundreds of individual cards from dozens of companies. This cooperative effort gives users best of breed product and budget options, all while ensuring common control and monitoring within the DashBoard ecosystem.

Reliable

oGx is the 4th generation openGear modular infrastructure platform built for 24/7 operation. Featuring redundant power and cooling, service is a snap with zero downtime. Front-loading modules and passive backplane ensure ease of maintenance and maximum reliability.

Diverse

Ross offers a wide range of modular infrastructure solutions, including distribution, conversion, branding, fiber, timing and more. The openGear platform is flexible to support a multitude of signal types and formats from analog to UHD to IP.

SDI, IP or Hybrid

The oGx platform has been designed to meet the demands of today’s complex IP and hybrid infrastructures.

Produce » Real-Time Production » Video Production » Newsroom production management and automation systems »

Automated Production Control (APC) is now common place, delivering operational efficiencies, while taking complexity out of the production process. OverDrive is the most advanced APC system on the planet, enabling the most sophisticated productions to be executed cleanly and consistently, while delivering substantial savings in operational costs. With nearly 400 systems on-air, OverDrive is the world leader in APC. OverDrive offers unparalleled choice with integration to more than 220 different production devices. Both manual and automated control is provided to both Ross and third party devices including production switchers, routing systems, video servers, audio mixers, robotic cameras, and graphics systems.

Create » Content Acquisition and Capture » Cameras » Broadcast System cameras »

High performance image capture with quiet and accurate PTZ functionality, at a fantastic price-point.
PIVOTCam is the perfect companion for assembly, education, corporate and house of worship applications, along with events and broadcast POV productions.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Hybrid SDI-IP video routers »

Raptor lifts openGear to new purposes, adapting software defined modular processing to native IP or hybrid IP/SDI infrastructures. Raptor is fluent in many open control protocols such as NMOS, EmBER+, and DashBoard (to name but a few), thus giving you the freedom to soar through the IP environment of your choice.

This openGear appliance’s high-performance I/O and benchmark IP interoperability ensure a lasting investment designed to adapt to evolving IP standards and control requirements.

Manage » Manage & Orchestrate » Content & Workflow Management » Media asset management (MAM) »

Streamline Graphics is designed to work alongside your XPression motion graphics workflow to organize asset requests, search existing assets and easily add them to on-air graphics with ease.

Key Features:

• Make the most of your existing image and video assets by creating searchable metadata. End users can quickly find the right asset to tell any story.


• Utilize the built-in work order management system and user messaging capabilities to increase communication between newsroom staff and your graphics team.


• Requires no software installs on client machines. This increases the flexibility of devices that can be used to create content and decreases the amount of time it takes to perform upgrades. Streamline Graphics runs in a variety of supported web browsers on Windows and MacOS. It is also accessible directly inside the XPression MOS plugin.


• The system can scale to support larger scale operations with Streamline Enterprise.


•  Both purchase and subscription models available.

Manage » Manage & Orchestrate » Content & Workflow Management » Media asset management (MAM) »

Streamline Production is designed to bridge the gap between the newsroom computer system (NRCS) and playout server. Create placeholders, search customizable metadata and select the clip needed to tell the story. Use rules-based workflows to move content between locations and servers.

Key Features:

• Browsing Assets & Creating Placeholders - Users can browse assets or create placeholders inside the newsroom computer system (NRCS) using the HTML5 MOS plugin.


• Organize & Move Files - Index files in multiple locations to make them searchable within Streamline Production.


• Approvals & User Permissions - User permissions and approvals can be configured to help control the quality of your on-air content.


• Control Playout of Clips - Clips added to a rundown will be sent to the appropriate playout device and a playlist will be created and updated as changes are made.


• Streamline Enterprise - Robust features and scalability make Streamline Enterprise the ideal solution for large scale broadcasters.


• Streamline.cloud - Let Ross take care of the maintenance responsibilities and choose from a variety of subscription options to add Streamline Graphics to your workflow.

Create » Content Acquisition and Capture » Cameras » Specialist, POV, PTZ, action Cameras »

Ross Video has the most complete studio robotics offering available, whether you are looking for the unparalleled smoothness of a track-based system, the unbeatable flexibility of a free-roaming pedestal, or the simple efficiency of a standalone pan & tilt head.

All Ross robotic systems are designed, developed and manufactured in-house, using state-of-the-art technologies that provide industry-leading accuracy, precision, and payload capacity.

Key Features:

• Superior Performance - Ross robotic systems are engineered to outperform competitive offerings, providing more flexibility, better workflows, and highly consistent productions.


• Modern Control Architecture -All Ross studio robotic solutions communicate natively over internet protocol (IP), using a flexible and open control protocol. This makes our robots easy to implement and manage, simplifying installation into new and existing studios.


• Global Deployments & Support - With thousands of robotic systems deployed around world, few suppliers have more experience with installing, commissioning and maintaining robotic systems than Ross Video. As with all Ross products, you will enjoy the industry’s best support, legendary for its customer-oriented approach.

Produce » Real-Time Production » Real-Time Production Graphics » Virtual sets and chromakey »

Trackless virtual systems are all-in-one engines that require no external action on the part of the camera in order to create movement. They use a stationary physical camera, with all the camera movement being done within the graphics engine. This eliminates the need for physical tracking equipment.

Trackless Studio is an all-in-one virtual production tool that fits almost any budget. Built on the XPression Real-Time Motion Graphics System with an intuitive purpose-built interface, Trackless Studio leverages Ross Video’s years of experience with virtual sets and augmented reality to bring quality virtual sets to even the most basic productions.

Produce » Manage Production » Production Software » Newsroom computer systems (NRCS) »

From four independent PGM playout channels, this news playout server provides predictable and precise clip playout during live news shows. This server is built upon the robust and proven Abekas Tria server platform, which provides true hardware reliability and an intuitive software interface.

Tria News is tightly integrated with Ross Video’s Inception newsroom computer system, Streamline media asset management and OverDrive automated production control platform. With this seamless and comprehensive newsroom ecosystem, it's easy to organize newsroom media assets, create and manage run-down playlists, and present news story play out from Tria News. This system also uses well-established and proven MOS newsroom processes, providing reliable and worry-free live operations.

Produce » Real-Time Production » Real-Time Production Graphics » Virtual sets and chromakey »

Master the black art of chroma keying with UltrachromeHR, a high performance multi-channel chroma keying system that uses cutting-edge technology to create full resolution chroma outputs.

Choose the chroma key mode that gets the best results from your unique setup and fine-tune your key with built-in post key processing resources.

Produces excellent results from standard 4:2:2 camera inputs.

Measures your background video source and automatically adjusts your key edge and re-spill color accordingly.

Beautiful chroma keys with photo-realistic graphics and tracked + trackless virtual set technology – Ross can realize all your virtual set needs.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Router control »

Ultrix is the ultimate routing, multiviewer, and signal processing platform for Studios, OB Vans, and Flypacks. As the only software defined platform, customers realize significant cost, space, and power efficiencies with unparalleled flexibility and agility, especially relative to competitive hybrid routers.

Native routing control support for Probel SW-P-08, GVG Native, NV9000, and TSL 3.1, 4.0, and 5.0 for Multiviewer tally makes Ultricore powered systems easy to work with 3rd party control and automation.

System discovery, Database creation, HW/SW panel configuration all done from one UI.

Router, Multiviewer, and Processing configuration and control from one system.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » SDI video routers »

The Ultrix 12G Router provides a compact and powerful combination of routing, multi-viewers, audio processing, and control, without requiring special hardware as advanced features can be added at any time via simple software licensing.

As the only software defined platform, customers realize significant cost, space, and power efficiencies with unparalleled flexibility and agility, especially relative to competitive hybrid routers.

You can easily add new features through additional software licenses. No additional hardware required.

Ultrix natively supports 12G throughout the entire chassis. This means it’s ready for UHD production when you are, without replacing any hardware or losing capacity. New version of the latest Ultrix-FR5 routing/AV processing platform that adds IP I/O to the already impressive feature set of this disruptive, ‘Swiss Army knife’ infrastructure solution.

The Ultrix 12G Router is infrastructure in a box. Video/audio routing, multiviewers, audio processing, frame synchronizers, clean/quiet switching, UHD gearboxing and more all unified in one single chassis.

Because of its size, base feature set, and software capabilities, owners save significant money on upfront capital costs. Additionally, the advanced architecture provides significant ROI in terms of power, cooling, shipping, and space costs.



Support » Monitoring, Control & Communications » Video Monitoring » Multiviewer display processors »

Ultriscape is the ultimate multiviewer  platform for Studios, OB Vans, and Flypacks. As the world’s first software defined multiviewer, customers realize significant cost, space, and power efficiencies with unparalleled flexibility and agility.

Key Features:

Software Defined - Easily add new multiviewer outputs through additional software licenses.  No additional hardware required.

Integrated Design - Ultriscape can be added to extensive routing, audio processing, and synchronization capabilities to create a completely integrated solution.

Flexible - Each multiviewer head is completely independent, offering tremendous flexibility for layouts and control.

12G Ready - Ultriscape supports inputs from 270Mb/s up to 12G.  This means it’s ready for UHD production when you are, without replacing any hardware or losing capacity.

Pay As You Go - The software defined architecture means you simply buy what you need, when you need it



Produce » Real-Time Production » Real-Time Production Graphics » Virtual sets and chromakey »

The application provides seamless integration with tracking systems and real-time 3D rendering engines such as XPression and Frontier. It comes installed on a touchscreen PC for virtual set camera calibration, scene manipulation, media replacement, event triggering, animation control, robotic camera movement control and more.

Produce » Real-Time Production » Real-Time Production Graphics » Production graphics and CG »

XPression uses intelligent caching to provide real-time access to content so there is no lag between keyboard entry and system operation.XPression employs clean user interfaces, logical menus, and controls based on other widely deployed creation tools, shortening any learning curve. XPression handles it all: SD, HD, in SDI or IP, UHD/4K in Quad-Link or 12G Single-Link SDI. XPression software is resolution independent and output card agnostic. XPression Studio and BlueBox supports SMPTE ST 2022-6, SMPTE ST 2022-7 and SMPTE ST 2110. XPression Studio with SMPTE ST 2022-6 is deployed at Atlanta’s Mercedes-Benz Stadium, the world’s first all-IP stadium! XPression has always been available as a software only solution all the way up to a turnkey hardware product. From a portable configuration all the way to purpose-built hardware, there is an XPression platform that suits all configurations. XPression is in use around the world, in multiple languages. Designers have embraced XPression as a design tool, making it their entry point into creative design and animation development, rather than starting in a desktop suite.

Produce » Real-Time Production » Video Production » Production switchers »

With a worldwide heritage in live production switchers — from designing the first true multiformat switcher to the creative power and flexibility of switchers that offer all formats from SD to 4K UHD, and connectivity allowing you to mix traditional SDI and IP — Grass Valley brings you the Kahuna family of production switchers.

The Kahuna 4800, Kahuna 6400 and Kahuna 9600 offer more firepower and flexibility in the Kahuna family than ever before, including 4K UHD and HDR capabilities across all Kahuna switchers.

Together with Kahuna Maverik — Grass Valley’s Kahuna family switcher control surface — the Kahuna family provides a large feature set, including more power for M/E functionality and enhanced DVE resize engines.

The three switchers in the Kahuna family provide more power and flexibility than ever before.

Kahuna 9600
Up to 24 M/Es
48 keyers
The most powerful switcher in the Kahuna family, the Kahuna 9600 is an enterprise-class switcher offering an unmatched feature set to meet the needs of the highest caliber of productions.

Kahuna 6400
Up to 12 M/Es
24 keyers
The Kahuna 6400 delivers huge power and flexibility to the widest range of applications including regional news, sports production, houses of worship and magazine programs.

Kahuna 4800
Up to 4 M/Es
16 keyers
Offering superb value for money, the Kahuna 4800 is an immensely capable and well-engineered mid-level production switcher.

Produce » Real-Time Production » Video Production » Production switchers »

New V-series mid-range vision mixer options adapt to changing production environments with support for SMPTE ST 2110 IP, HDR, HD and 4K-UHD format conversion. The options also include “gearbox” for converting between 12G-SDI single link and quad-link sources. Frame sync inputs may be provisioned on every port.

Produce » Real-Time Production » Video Production » Production switchers »

"Datavideo’s all-new KMU-100 is a unique 4K multi-camera production solution that delivers multiple virtual full HD (up to 1080p) scaled camera angles with minimal installation cost and simple operation. The basic concept is straightforward: The output of a single 4K/UHD camera is connected to KMU-100, which then displays up to four 16x9 user-defined cropped windows that are sent out as four separate HD signals through HD-SDI. These user-defined windows can be scaled to zoom in on a particular subject that you would like to highlight on the 4K signal.



As an option, the Datavideo RMC-185 controller can be added to easily pan, tilt, and zoom to create the user-defined windows on the 4K signal. You can set up these shots in advance and save them as presets, or you can do it in real-time."

Produce » Real-Time Production » Video Production » Production switchers »

"The HS-2850 is a cost-effective, 12-channel, 10-bit 1920 x 1080i broadcast-quality mobile hand carry switcher. Featuring 12 digital inputs, it is designed for live events and TV programs that need to blend a variety of video and audio sources. HS-2850 is light-weight, portable, and powerful, with features perfect for mobile switching.



As a complete AV package, the HS-2850 HD mobile studio enables users to switch seamlessly between video and audio sources and blend high-quality digital content on the fly. Advanced features include a 17.3-inch video monitor which displays multiple sources, as well as preview and program. The system is equipped with an eight-way intercom system and is supplied with four belt packs for effective communication between the whole production crew.



The HS-2850 is ideal for TV and video professionals working in outside broadcast or temporary video studios, such as theatres or conference centers. The HS-2850 is also a great value solution for the worship, education, and AV markets."

Produce » Real-Time Production » Video Production » Production switchers »

"HS-2200 combines SE-2200 with a 17.3” HD LCD monitor and an 8 channel talkback/tally system. Packed into a durable case, HS-2200 is a convenient and powerful portable video studio. HS-2200 includes a built-in monitor for displaying all incoming input video sources as well as program and preview with tally indicator, on a single multi-view screen.



The HS-2200 also feature an 8-channel intercom system complete with tally lights, belt packs and headset (supplied with four cameraman belt packs & four 20m cables included)."

Produce » Real-Time Production » Video Production » Production switchers »

"SE-2850 is a multi-definition switcher designed for productions requiring 12 channels of HD or SD inputs. Being one of Datavideo’s most flexible switcher solutions, the SE-2850 is able to accept inputs in varying combinations of HD/SD SDI and HDMI. It is ready for every live production, giving producers the opportunity to output graphics with rich, visually appealing programming.



The SE-2850’s audio functionality allows it to connect an external mixer for a complete sound control. The SE-2850 also features all channel audio de-embedding and audio delay, and 4 dedicated XLR inputs. As an integrated Multimedia mixer, the SE-2850 can switch between up to 12 audio sources.



In addition to producing superb 4:2:2 10-bit broadcast quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy-to-use effects, such as dual picture in picture (PIP), downstream keyer (DSK), logo insertion and built-in title overlay system for the entry level Datavideo CG systems."

Produce » Real-Time Production » Video Production » Production switchers »

"The SE-2200 6 input multi-definition switcher is perfect for live production, religious worship, meetings or conference purposes. It is a technically smart and cost effective portable broadcast-quality switcher.SE-2200 is a solution that comes with a great features such as 6x6 SDI genlocked Matrix, Dual PIP and built-in title overlay system that works with entry level Datavideo CG systems, or other graphics programmes.

SE-2200 consists of 6 HD-SDI video inputs or with a combination of 4 HD-SDI and 2 HDMI inputs; all of the inputs are reassignable, thus it is able to adapt to your needs. One of the HDMI inputs can be used to accept video from a PC/Laptop computer to work with built-in title overlay system such as Datavideo's CG solutions, including CG-200."

Produce » Real-Time Production » Video Production » Production switchers »

"SE-1200MU is a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC with the included SE-1200 software control panel, or the RMC-260 control panel.SE-1200MU includes four HD-SDI and two HDMI inputs and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations.

Two assignable HD-SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface."

Produce » Real-Time Production » Video Production » Production switchers »

"The Datavideo SE-650 is a small, costeffective, professional HD digital video switcher.



It offers two HD-SDI and two HDMI inputs that support video formats up-to 1080i. It features two HDMI outputs and a user assignable HD-SDI output.



The SE-650 is the perfect device for small scale video production using professional cameras and HDMI equipment. The SE-650 also features an audio mixer with microphone and unbalanced RCA audio inputs. Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally."

Produce » Real-Time Production » Video Production » Production switchers »

"The SE-500HD a multi-format live event AV switcher with scaling on every input, built-in audio mixer, and exceptional 4:4:4 10-bit 1080p video quality. Its portable & compact design with easy-to-use professional features makes it ideal for breakout rooms, corporate events, and any live event production. Four scaled HDMI inputs and two HDMI outputs allow users to mix and match video resolutions and connect a variety of video sources that include laptops, tablets, and cameras without the need for video converters.



Don’t let the SE-500HD fool you with its compact size and affordable price. It is loaded with features such as Lumakey for graphic overlays, split screen for side by side views of the presenters, and PIP (picture-in-picture) for PowerPoint presentations. Plug in microphones and other audio sources directly into the SE-500HD and use the built-in audio mixer to simplify your workflow and get professional sound. Dedicated buttons make it user friendly and easy for anyone to operate it like a pro.  Professional features, compact all-in-one design and affordable price point makes the SE-500HD ideal for any live presentation."

Produce » Real-Time Production » Video Production » Production switchers »

"The Datavideo SE-500MU is one of the most affordable 1080p switchers currently available. It is controlled by the free tablet app, which is available on the Apple App Store and Google Play Store. The program can also be found as a free download for Windows and Mac computers.

The SE-500MU is not merely a video switcher, it is also a PTZ camera controller.  There are two available Control Applications- SE-500MU Control (for video switcher) and SE-500MU PTC Control (control up to 4 PTZ cameras).  SE-500MU offers 4 HDMI inputs, a program output, and a quad preview. It supports video resolutions up to Full HD 1080p, and it can perform cut, mix, and wipe transitions, fade to black, PIP, Split Screen, and Luma Key."

Produce » Real-Time Production » Video Production » Newsroom production management and automation systems »

Produce traditional landscape (16:9) & vertical (9:16) video from a single 4K camera with built-in streaming. The KMU-200 allows users to output multiple landscapes or portrait pictures simultaneously just by creating cutouts of a 4K input using the 14” touch screen. The HD output signal can be streamed to many mainstream live-streaming platforms and output video can be recorded on an SD card. The KMU-200 features virtual camera control, switching, audio mixing, streaming and backup recording within one compact unit, which is an ideal product for content creators who want to live stream their content to social media platforms. Video productions that are traditionally done by multiple crew members now can be done by one person using the KMU-200.

The KMU-200 is a single unit that allows users to convert a 4K input signal to a 1080 HD output signal. An auxiliary HDMI input is also available for Skype or other sources. Hardware control is available on the unit to control the created cutouts, giving control over zoom, tilt, and pan of the virtual camera with a convenient joystick. Professional illuminated buttons control the switching of a maximum of 6 shots: 4 cutouts, the full image, and the auxiliary input.

Furthermore, its 14" capacitive touch screen allows users to easily control of picture selection and camera operations. Users can control the picture selection of the KMU-200 by not only the joystick but also by gesturing and pinching directly on the touch screen. This intuitive control method is suited for inexperienced users who are used to tablets and other touch screen interfaces.

Produce » Real-Time Production » Video Production » Production switchers »

It has all the same great features of the HS-1200, with the addition of a built-in H.264 encoder for streaming. Therefore, the workflow is simplified because it is no longer necessary to add an external encoder to do streaming. Simply connect the HS-1300 to a network and begin streaming your program to your preferred CDN. In addition to the streaming capability, the HS-1300 can also record the program output to an SD drive.

Because of its lightweight portable design, the HS-1300 is ideal for various applications such as live concert events, seminars, sporting events, and live TV programs that need to mix a variety of video and audio sources. Other features include a 17.3-inch LCD monitor, which displays the multi-view, dual chromakey, DSK, still store, user memories, and PIP. Why lug around multiple pieces of equipment for your productions when you can have an all in one product like the HS-1300? Switch, monitor, stream, and record simultaneously with the HS-1300.

Produce » Real-Time Production » Video Production » Production switchers »

X-One brings EVS’ market-proven technology into a compact and easy-to-deploy system that delivers a full live production at significantly lower costs.  Ideal for smaller-scale productions, X-One allows a single operator to do live switching, create replays and highlights, control audio, create and insert graphics and play back content - all from a set of intuitive interfaces and with guaranteed broadcast-quality output.

Produce » Real-Time Production » Video Production » Newsroom production management and automation systems »

The TriCaster 2 Elite is the most complete video production platform available today, and sets a new platinum standard for how much you can achieve with a single system.

Produce » Real-Time Production » Video Production » Production switchers »

Live Compositor is a an intuitive software solution for live multi-camera production. Video switching and audio mixing, a powerful video effects engine, multi-channel graphics – including LyricX, multiple clip players, and robotic camera control are built-in and packaged in an easy to use all-in one solution.

Live Compositor is the ideal tool for news and current affairs producers, and also a perfect fit for small and medium sized remote OB sports productions.

Produce » Real-Time Production » Video Production » Production switchers »

The power of Ross Video’s flagship production switcher and the game-changing feature set of its flexible hybrid routing platform have been merged to create a complete, future-proof solution that is truly greater than the sum of its parts.

Produce » Real-Time Production » Video Production » Production switchers »

Ross Video revolutionized live production with the debut of Ultrix Acuity – the single-chassis production switcher and routing platform that provides superior capability and outstanding value. Now, Ross takes that idea another step further with the launch of Ultrix Carbonite, a powerful new integrated solution based on the “Software-Defined Production Engine” initially used for Ultrix Acuity. Ultrix Carbonite combines the routing and processing capabilities of Ultrix with the sophisticated creative capabilities of Carbonite, the world’s most popular mid-size production switcher. Ultrix Carbonite creates a new standard in performance, flexibility and value, unmatched by any standalone system available today.

Produce » Real-Time Production » Video Production » Production switchers »

Graphite PPC offers customers a remarkable amount of production horsepower – up to two MEs (and four MiniMEs), four DVEs, six frame syncs, four media stores and two MultiViewers. Capable of handling up to thirteen inputs and up to eight outputs, Graphite PPC also includes the same RAVE audio engine (with sample rate converters) that comes with the larger Graphite solution, as well as the same XPression graphics and clips package also found in its elder sibling. Graphite PPC is incredibly light – it weighs only 42 lbs / 19kg including its dedicated soft-shell carrying case equipped with a pull-out handle and wheels. It’s also extremely quiet – ultra-quiet fan cooling means the system can easily be used in the same space as the talent with microphones. Graphite PPC is simple to set-up and requires just a single operator, so you can now deliver a high impact, high efficiency production even more easily.

Produce » Real-Time Production » Video Production » Production switchers »

"The MS-3200 is an all-in-one video production studio in a rugged flight case. It is perfect for outdoor events, esports, conferences, education, worship and many other applications.



The MS-3200 HD 12-channel Mobile Video Studio is the ideal solution for large-scale live events because they require up to 12 camera inputs. The system also includes intercom, recorder, waveform vector monitor, and power supply; ultimately allowing the MS-3200 to deliver a complete and easy production process on location. "

Produce » Real-Time Production » Video Production » Production switchers »

"Datavideo OBV-2850 is a PPU (Portable Production Unit), designed to fit into the the back of a small van to provide complete mobile production facilities. It's a transportable solution for broadcasters and professionals for both in studio and on-location productions.

Built around the latest HD/SD switcher, it supports up-to 12 channels of HD/SD-SDI, HDMI or composite video signals. The system is integrated, compact, and sturdy with a metal framework for great stability and protection yet provides room for future expansion.

With power-efficient modules, OBV-2850 can be powered by a DC 12V supply. Datavideo OBV-2850 is easy to install and a cost-effective solution for live video production. "

Produce » Real-Time Production » Video Production » Production switchers »

"Datavideo OBV-3200 is designed to fit into the back of a small van to provide complete mobile production facilities. It’s a transportable solution for broadcasters and video professionals for both in-studio and on-location productions.



Built around the latest Full HD switcher, it supports up to 12 channels of 1080p Full HD-SDI and HDMI video signals. The system is integrated in a sturdy rack with a new design Console Desk for great stability and protection.



The system is fully equipped with functions such as intercom, video transmission, camera control, video recording, video streaming, audio delay and Scope View monitor etc."

Produce » Real-Time Production » Video Production » Production switchers »

The HS-1600T is a 6-in-1 product that will simplify your workflow. It is a portable HDBaseT hand carried studio that has a switcher, monitor, camera controller, audio mixer, streaming encoder, and recorder built in. What more do you need to execute your production other than PTC-150TL HDBaseT PTZ cameras?

The built-in HDBaseT technology allows receiving of 1080p signals from three PTC-150TL or PTC-140T HDBaseT PTZ cameras via CAT6 cable. It features PoE to provide power to three PTC-150TL or PTC-140T cameras, making installation fast and easy. Keeping things user friendly, you only need to push one button to stream to your preferred CDN and record to a SD card simultaneously.

Another great feature of the HS-1600T is the integrated joystick for controlling the pan, tilt, and zoom of the PTC-150TL cameras. You can also adjust focus and iris, as well as access the camera's menu. There are four preset buttons for each camera, making it easy for an operator to recall preset shots with a press of a button.

The all inclusive features of the HS-1600T make it ideal for various applications such as live events, worship, seminars, and corporate presentations.

Produce » Real-Time Production » Video Production » Production switchers »

The SE-3200 is a professional 12-channel, 1080p video switcher that provides powerful and easy-to-use video effects such as four upstream keyers for Chromakey and Luma Key, dual DSK, PIP, and WIPE transitions. There are also other features like frame store, animated transition effects, multi-channel inputs, and abundant visual effects. The built-in subtitle generation system can be paired with Datavideo’s CG software to instantly create broadcast quality subtitles.

The SE-3200’s modular design allows you to install the 2U main unit on a standard 19-inch rack and place the control panel on a flat work bench, or it can be installed in an outdoor broadcast van. The SE-3200 facilitates video switching, whether indoor or outdoor.

Key Features

Supports full 1080P (3G) 4 Upstream Keys for chromakey, linear and luma keys as well as picture-in-picture 2 Downstream Keys for generating different effects 4 Broadcast Quality keyers with 50 built-in virtual sets 9 built-in Stinger transition effects

Produce » Real-Time Production » Video Production » Production switchers »

Lawo’s new V__matrix IP broadcast video core infrastructure product will change your idea of what a broadcast facility looks like from legacy to future, quickly transforming any broadcast installation into a flexible, future-proof production facility, addressing a wide range of workflows and supporting your transition to a totally IP-based environment.

V__matrix is the first of its kind. Free from the restrictions of legacy hardware platforms, it offers a completely virtualized real-time routing and processing infrastructure. Instead of connecting single purpose modular products in elaborate production chains, V__matrix employs data center principles of flexibility, fabric computing and COTS economics and makes these available to any live production broadcast environment. Whether an OB truck, a TV studio or a broadcast operation center, V__matrix creates a fully virtualized facility infrastructure. The V__matrix ecosystem is based on generic high capacity FPGA-based processing blades upon which Virtual Modules (VM) are loaded to create the functionality required. Multiple cores are connected through redundant 40GE (or 4x 10GE) Ethernet interfaces to an IP network to form a distributed IP routing and processing matrix that provides frame-accurate, clean switching just like a legacy baseband matrix.

The V__matrix ecosystem scales linearly from tens to thousands of I/O and processing functions which make it ideal for any size live broadcast facility, small or large. Capabilities easily scale as well. An entire production workflow can be remapped in minutes when requirements change from production to production. The functionality of any processing blade can be exchanged, enabling system capabilities to easily be modified or upgraded to address your constantly changing business requirements. The V__matrix pool of generic processing blades provides ultimate flexibility; with software-defined functionality they can be configured and called upon to handle the peaks and troughs of seasonal production demands and with Lawo’s innovative licensing model, Virtual Modules can be assigned to a particular processing blade or be stored in an on-site license server allowing for unprecedented flexibility.

The V__matrix ecosystem can be divided into two parts: physical and virtual. The physical consists of the C100 processing blade and associated hardware which provides the compute and processing capacity of the platform; the more compute power you have the more functions you can run. Since V__matrix is a fully IP-based platform, the C100 processing blade can be placed anywhere there is an IP network. It can be decentralized and spread over one or more facilities or centralized in a core facility or OB truck. A hybrid approach is also possible where some core equipment is kept on-site while a pool of processing power is kept in a remote data center. This decentralized approach allows the technical operation center to be situated in a purpose-built data center outside of town where space, power and cooling is inexpensive, while talent and studios can be in another area.

The virtual world is centered around the software which defines the functionality of the platform. The software packages are called Virtual Modules (VM) and in the V__matrix they allow the function-agnostic core processing hardware to build complex workflows by simply running the appropriate VM. Combining VMs allows the creation of complete production chains fulfilling all broadcast requirements in a fully virtualized environment. As all functions of the V__matrix ecosystem are software-defined it is the ultimate future-proof platform. Changing the functionality of your broadcast plant is as easy as changing the software modules loaded onto the processing blades. By cascading multiple VMs together, the V__matrix scales linearly up to thousands of SDI I/O and audio/video processing functions for unparalleled scalability, flexibility, versatility and cost-efficiency. The current line-up of V__matrix Virtual Modules include:

• vm_streaming – SDI-to-IP Gateway


• vm_udx 4K/HDR Format Converter – IP Up/Down/Cross and Color Space Converter


• vm_mv16-4, vm_mv18-4 & vm_mv24-4 — 4K Multiviewers


• vm_dmv – World’s first expandable distributed 4K IP Multiviewer

V__matrix multiviewer VMs are controlled by Lawo’s groundbreaking touch operated configuration system “theWALL”. This unique HTML5 based GUI makes mosaic configuration with borders, colors, UMDs, tally etc. a simple case of drag and drop.

Produce » Real-Time Production » Video Production » Production switchers »

"Datavideo MS-2850 HD/SD mobile video studio series is a ready to go solution. It is designed around the SE-2850 HD/SD 8-channel (upgradeable to 12 channels) broadcast- quality video switcher. It is perfect for outdoor events, conferences, education, places of worship and many more applications. Producing superb quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy to use effects, such as dual picture in picture, downstream keyer (DSK) and logo insertion.

The switcher is integrated with the essential elements required for live production including a recorder, a multi-view monitor and an intercom system."

Produce » Real-Time Production » Video Production » Production switchers »

The Dyvi switcher offers a brand-new approach to live production, taking you far beyond the limits of conventional hardware switcher design. Its GPU processing and software-defined architecture offer outstanding flexibility, scalability and creativity to suit all your production workflows. With its fully configurable panel and intuitive user interface, Dyvi allows the fast operation of complex, multi-layered video designs, to engage and entertain your audiences like never before.

Produce » Real-Time Production » Video Production » Production switchers »

Thanks to Iphrame’s TimeLock functionality, operators can perform frame-accurate switching from anywhere, whether it’s a production centre, on location, or even from home. Iphrame Flyaway can operate over IP links as low as 20Mb/s, and typically needs only one engineer on-site so it doesn’t just lower the bar to entry, it eliminates it.

In the age of video on demand, content providers need to be aware of viewers’ tastes and the huge variety they crave, and live event coverage is a great way of attracting audiences.

Traditionally, live coverage has been limited to higher profile events due to the many staff and equipment required to be onsite. One option to reduce costs is to pass back all feeds and perform mixing in-house but the connectivity required typically pushes the costs back up and isn’t achievable at all locations.

Iphrame Flyaway changes the cost model by reducing connectivity bandwidth and staff required. The added functionality of talkback means a new generation of operators can be efficiently utilised by working at a fixed location, allowing for reduced expenditure and increased productivity, while features such as slow-mo playback help you provide a richer viewing experience.

So, to offer subscribers great live content without stretching budgets, do it from anywhere with Iphrame Flyaway.

Produce » Real-Time Production » Video Production » Production automation systems »

The most advanced IT-based solution, cost-efficient video management system on the market that is a complete channel in a box with full IP/NDI/SDI in and out capabilities.

Etere ETX is the most advanced, tightly integrated and cost-efficient video management system on the market, completely based on IT technology. It is 4K ready and a complete channel in a box with full IP/NDI/SDI (in and out) for multiple frames rates. It is able to drive the most popular HD/SD digital video/audio/graphics platforms without using middle-ware/proprietary hardware. ETX is a fully digital ingest/playout engine that gives you professional video technology with support for all major essences and wrappers in the broadcast industry. It is capable of SDI output, multiple layers of graphics. Additionally, HEVC/ H.265 encoding is also available on Etere ETX. With ETX inserter, operators are able to create closed captions including CEA 608 and CEA 708. In addition, ETX is capable of live subtitling with the ETX inserter and time delay. ETX is also integrated with a countdown timer that displays the time remaining until the next program. As part of the Etere Ecosystem framework, Etere ETX has a distributed architecture that enables it to take advantage of ultimate storage and video hardware to create a high-performance digital media solution that can be used to capture/playout servers, NLE systems, graphics/production servers, automation and master control units. To receive an NDI source stream, use live source object and initialize the "NDI Receiver" device just like any other capture card. The distribution of contents from the different ETX engines is controlled by Etere Data Mover, the application that delivers the correct video to the correct place at the correct time. In addition, Etere ETX video file transfer capability is one of the fastest in the market.

Key features

■ Multiple graphics and webGL graphics overlays

■ Capture web pages as live multimedia sources

■ 4K, HD, and SD with Up and Down conversion

■ RTMP input and integrated time delay

■ Serves as a RTMP sender or RTSP receiver

■ Full IP support for both HD and SD videos, supports NewTek NDI

■ Supports multiple layers of graphics

■ Fully compliant DVB (Digital Video Broadcasting) stream

■ Supports Microsoft ReFS File System, cloud-ready

■ Included graphics engine allows overlay of static/animated logos and crawlers on 8 layers

■ Able to perform IP in and IP out, with multiple frame rates and independent IP out services

■ Integrated IT-based master control with multichannel ingest/playout

■ Easy insertion of closed captions including CEA 608 and CEA 708 with ETX inserter

■ Create live subtitling seamlessly with ETX inserter and time delay

■ SDI output with support for selected cards (SDI or IP) including Blackmagic, Matrox

■ File formats includes LXF, MOV, MXF, GXF, ASF, MPG-TS, MPG-PS, AVI, DV and MKV

■ Video codecs includes DVCPRO, MPG1, MPG2, MPG4, H.264, HEVC/ H.265, DNxHD, ProRes

■ Audio codecs includes AAC, MP2, MP3, Flac

■ Graphics files includes TGA, AVI, MOV, SWF, PNG, JPEG, GIF

■ Plays files from 5 secs

Produce » Real-Time Production » Video Production » Production switchers »

This model adds recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD. Able to reverse the USB-C and HDMI out functions.

ATEM Mini Pro ISO Features

• Features miniaturized control panel based design.


• Built in support for recording each input as a separate ISO file.


• Saves DaVinci Resolve project file for 1 click editing of live production.


• Supports connecting up to 4 cameras or computers.


• Live streaming via Ethernet supported on ATEM Mini Pro.


• USB output operates as a webcam and supports all video software.


• Automatically standards converts and re-syncs all HDMI inputs.


• Includes free ATEM Software Control for Mac and Windows.


• Internal media for 20 RGBA graphics for titles, opening plates and logos.


• Includes ATEM Advanced Chroma Key for green/blue screen work.


• Multiview allows monitoring of all cameras on ATEM Mini Pro.


• Audio mixer supports limiter, compressor, 6 band EQ and more!

The new model of ATEM Mini ( ATEM Mini Pro ISO ) is a true innovation in workflow. For the first time, live production has been fully integrated into a post production editing workflow. Not only that, but with Blackmagic RAW integration, we can use the ISO files recorded in the switcher, or the files recorded in the camera." said Grant Petty, Blackmagic Design CEO. "That's a RAW film workflow, a post production workflow and a live production workflow all fully integrated for the first time! Imagine doing an Ultra HD fully color graded master all from a tiny low cost HD switcher. It's really exciting and it's going to generate a whole new workflow for the television industry!

The ATEM Mini Pro ISO HDMI Live Stream Switcher from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.

The ATEM Mini Pro ISO retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

General

• Connecting a USB drive to the ATEM Mini Pro ISO's USB port enables capturing the switched program stream, as well as up to four isolated (ISO) recordings of input video, as well as embedded audio, analog input audio, graphics, and a DaVinci Resolve project file of your switched program


• The device has the same footprint, layout, and connections of the ATEM Mini Pro


• Stream video up to 1080p HD


• Quick stream, on-air, and record buttons


• Hardware encoder so there's no need for additional streaming software


• Control and configure timecode, stream status


• Full support and control features for BMPCC 6K/4K cameras


• Simultaneous USB recording


• Integration with MultiDock for live hard drive switching


• Customize advanced settings with XML files


• Software multiview with program previews, graphics, record status, on-air status, and audio meters


• Program preview input and output buttons


• Tally light control for BMPCC 6K/4K cameras


• Automatic timecode sync for all cameras

Transitions

Available transitions include:

• Cut: When you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source.


• Mix: The mix, or dissolve, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.


• Dip: Just like mix transitions, a dip transition is a gradual blend that includes either a solid color, graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.


• Wipe: Built-in wipe patterns include circles, diamonds, squares, and more. Shapes and patterns can be inverted or softened and can even have customized colored borders.


• DVE: With the powerful built-in digital video effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options.

Upstream Keyer

Layer live video over other video sources or graphics with the upstream keyer. You can use the luma key, linear key, pattern key, or shoot against a green screen and use chroma key to instantly composite the video over virtual sets.

• Luma key: Luma keys work best with high-contrast images, like white elements on a black background, so you can use the contrast to cut the black background and replace it with live video or graphics.


• Linear key: Get clean, high-quality results with linear keying by using two separate sources for the fill and the key to create one video image. The fill signal contains the video to be stacked over the background, while the key signal contains a gray scale mask to cut out, or mask, the area to be filled.


• Chroma key: Used every day for TV weather forecasts, chroma keys are a powerful way of combining live images in real time. The presenter typically stands in front of a green or blue background and the chroma keyer will remove only that color and combine it with another image, such as a video or graphic.


• Pattern key: Combine live images with any of the built-in wipe patterns to combine live images or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to create unique picture-in-picture effects that can be transitioned to as easily as any live source.

Downstream Keyers

The ATEM Mini switcher includes one downstream keyer, so you can add high-quality graphics like logos, bugs, and titles from the built-in media player over the live stream program output. Downstream keyers are the last layers of keying, so they overlay all video switched to the main program output.

Audio Mixer

The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels. The mixer features selectable on/off and audio-follow-video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.

Monitor Output

The HDMI monitor output allows you to see your sources, graphics, preview, and program output on a single screen.

Media Player

Eliminate external character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool. The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video, or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.

Produce » Real-Time Production » Video Production » Production switchers »

MVS Series SD / HD switcher with 32 inputs and 16 outputs Compact and well-designed, the MVS-3000 production switcher is ideally suited for production studios, stadiums, houses of worship, and OB vehicles requiring multiple inputs in a limited space. The switcher comes with sophisticated capabilities such as 2x mix effects (M/E), 4x keyers per M/E, each with the MVS high-performance chroma key, 2.5D resizers, colour correction, and more. With the standard multi-viewer output, you save space on additional monitoring, enabling a reduction in your total system cost. Advanced control panelThe control panel incorporates an attractive black design with OLED mnemonic displays for optimal visibility. Its operation is as user-friendly and intuitive as you expect of the MVS family. The self-contained 4RU processor offers simple configuration, and is a logical choice for small production facilities that have limited installation space but refuse to compromise on quality. FEATURES New control panel for convenient operability The MVS-3000 switcher features an ICP-3000 control panel. The matt-black panel is designed for easy operation in a fixed configuration. The design is based on the proven CCP style, and experienced operators will feel instantly at home. Additionally, OLED source name displays and RGB colour source buttons are included for optimal visibility and great operability. Creative M/E functionality The MVS-3000 is a two mix effect (M/E) switcher with four keyers on each bus. A variety of background transitions are available to suit any programme requirements and these include ; Mix, Wipe, Non-additive mix, super mix and FM clip. Separate from the main fader, each keyer includes its own auto-transition controls, which allow users to insert or remove keys individually with independent wipes and dissolves. For further flexibility, each keyer also offers chromakeying and colour vector keying, eliminating restrictions of selectable key types. By providing a key priority selection it is possible to give any keyer a higher or lower priority giving operators complete freedom in key selection and which key sits in front of the other in the image plane. Multi-program modeEach M/E bus in the MVS system can be configured to operate in multi program mode. This facility provides four independent program outputs on each M/E. Each separate program O/P can then be configured with any combination of M/E keyers. In addition to the expanded program O/Ps, clean and key as well as M/E PVW signals are still produced. 2 resizers per M/E bank and 2.5D DMEA powerful resizer function is provided that gives simple 2.5D DMEeffects for four keyers in the MVS-3000. With adjustable parameters such as size, position, and aspect, as well as mosaic and defocus effects, this functionality is very useful for optimizing the on-screen composition. All these effects can be created without the use of an optional DME, bringing great advantages for both simple operation and minimized system cost.Colour correction for each input and AUX outputIn order to correct for any colour errors in the incoming signals each input has a primary RGB colour corrector. In addition each aux bus output also has an identical colour corrector circuit. This is useful for correcting the colour balance on in-vision monitors. Enhanced frame memory systemThe MVS-3000 provides an internal high-capacity frame store with the ability to handle both individual images (stills) and animation sequences (clips) with embedded audio support . The frame memory system supports eight-channel playback from on-board RAM storage, and images can be imported via USB connection or a real time back up using an external video store. Individual frame memory images or animation sequences can be instantly viewed and recalled via the touch-screen menu operation.Two channel multi-viewer systemThe MVS-3000 provides multi-viewer outputs directly from the main processor chassis. This cuts down on the need for expensive external multi-viewers. Each multi-viewer output can be set in either 10- or 4-way split operation, and signals are delegated to each separate pane accordingly. The multi-viewer also supports switcher name and border tally indicators. 32 inputs and 16 outputs configuration The MVS-3000 features 32 BNC primary inputs and 16 BNC assignable outputs. Easy-to-program macrosUsing the Flexi-Pad module, you can record operation sequences, then store and assign them to any desired button. Macros are useful in live environments where time is critical and operation errors are not tolerated. In addition to using macros to record complex panel operations, macros can also be used to record menu operations. Macros can be edited either directly from the control panel or with the touch-screen menu display. Once programmed, macros can be executed in several ways: by attaching to the majority of buttons on the control panel surface, recall/run from the Flexi-Pad module, or by trigger on a timeline to execute automatically in a sequence.Networking functionsThe MVS-3000 switcher can be operated with a single Ethernet-based network. This integrated LAN enables easier connection to devices.Powerful device controlThe MVS-3000 switcher has integrated device control and thus does not require the use of an additional unit, simplifying system installation. Devices can be controlled on the same timeline as switcher events or as part of macro events. When integrating a Sony disk protocol or VDCP-controlled disk recorder, clip management is also provided, allowing different server clips to be recalled and played back as part of a switcher timeline or macro.Intelligent tally functionsAll MVS switchers provide an intelligent and multi-functional tally system, which seamlessly integrates the switcher and router tally functions. Multiple on-air and recording tallies can easily be programmed on the switcher system, so that even complex tally requirements are accommodated.Clip Transition EffectsAll MVS family switchers provide clip transition effects that enable transition, together with audio, using a frame memory sequence. During a clip transition, a computer-generated image, such as a logo, moves across the picture from one side to the other, while the transition is performed behind the image. This effect is useful for sports broadcasting. Although highly sophisticated, the effect can be performed with simple settings. Various types of transition such as Mix, Wipe, DME Wipe, and PresetColor Mix can be applied in a background transition according to the motion of the clip. A transition can be operated both backwards and forwards with the fader lever.Built-in format converterOne convenient feature of MVS switchers is that a format conversion capability can be incorporated by adding an extra format converter board (MKS-6550). This option provides up-conversion and down-conversion between HD (1080i and 720p) and SD (480i and 576i), and cross-conversion between 1080i and 720p at both inputs and outputs. With these capabilities, there is no need for external format conversion. A variety of signal formats can be handled within the switcher system, which minimizes overall system cost. The format convertor can also work in frame delay mode which provides synchronisation and up to 8 frames delay for up to eight input signals. This is useful for remote non-locked sources or for applications involving virtual studios where a compensatory delay is required.

Produce » Real-Time Production » Video Production » Production switchers »

The Sony MCS-8M is a multi-format switcher with a built-in audio mixer and frame synchronizer. Inside a compact body, the MCS-8M packs excellent cost efficiency and affordability along with a great range of features. This user-friendly, multi-format switcher has many preset DME wipe patterns, a built-in Multi-viewer, one-channel frame memory output, an Input Freeze function for each source, the ability to import still images via USB port, a 3D Mode function, a six-channel audio mixer, and more. In addition, the MCS-8M Multi-format Compact Switcher is designed to be intuitive and simple to operate – an ideal content creation tool for live event programming. Affordable and powerful, it can handle wedding functions, product promotions, event and live staging, music clip creation, and all types of business activity including conferences and seminars. • 8 Inputs: Multi-format Capability - HD Mode: (4 x HD-SDI, 3 x HDMI, 1x DVI-I) with Frame Synchronizer function - SD Mode: (4 x SD-SDI, 3 x Analog Composite, 1 x DVI-I) with Frame Synchronizer function • 4 Inputs: Multi-format Capability - HD Mode: PGM (HD-SDI), AUX1 (HD-SDI), AUX2 (HD-SDI and DVI-D), Multi-viewer (DVI-D and HD-SDI) - SD Mode: PGM (SD-SDI), AUX1 (SD-SDI), AUX2 (SD-SDI and Analog Composite), Multi-viewer (DVI-D and SD-SDI) • Multi-viewing function This function splits the screen into ten or four windows to show multiple images on a single monitor. • 1 Keyer Self, Split, Auto Select, Linear, Pattern, Auto Chromakey, Border (Flat Colour) • Keyer Transition Cut, Mix, Standard Wipe patterns, Transition rate settings • 3D Mode (L/R Link Cut, Mix, Side-By-Side Output) • Background Transition Cut, Mix, Standard Wipe patterns, DME Wipe patterns, Transition rate settings • Additional Features - 1M/E + 1 Key + Aux Mix - 1-ch Frame Memory Output - Input Freeze function for each source - Import Still Image function via USB port - 6-ch Audio Mixer function with audio delay

Produce » Real-Time Production » Video Production » Production switchers »

Graphite provides a full production solution within a single 4RU frame. This simplifies connectivity, saves space, and makes it easy to take top-quality productions on the road. Built to withstand the rigors of a mobile production with carefully engineered physical construction. Graphite systems are extensively shake and bake tested before shipping. Rely on a system with consistent performance and immunity to traditional all-in-one software issues, thanks to unique dedicated hardware. Every aspect of the Graphite system is built with the quality of separate system components. The value of a single all-in-one system with no need for external supplement cannot be overstated. Crew your show as you see fit. A single operator can run an entire show through all-encompassing control, or roles can be separated for multiple operators during high-intensity events. Switcher resources and graphics power can be upgraded via software licences – and additional equipment is available through a single vendor for effortless integration and guaranteed support.

Produce » Real-Time Production » Video Production » Production switchers »

Carbonite Mosaic is built to get high-quality video onto your large-screen display, quickly and easily.

Large-screen displays have grown to massive scale in both size and resolution. Carbonite Mosaic gets the highest quality images on displays of over 20 million pixels.

A complete set of video processing resources guarantees a uniform look across your display. For ultra-high-quality imagery, Carbonite Mosaic supports 10bit HDR formats.

Powered by 10 independently-controlled tile outputs, it’s easy to weave a massive single display or feed multiple displays throughout your venue – the choice is yours.

Carbonite Mosaic and XPression Tessera team up for high-quality upscaled video and beautiful pixel-accurate graphics on your display. Live has never looked this good.

Like all Ross products, Carbonite Mosaic is part of the DashBoard Control Ecosystem. DashBoard makes it easy to control your display layouts or even your entire venue, from a single interface.
