Produce » Real-Time Production » Video Production » Production switchers »

New V-series mid-range vision mixer options adapt to changing production environments with support for SMPTE ST 2110 IP, HDR, HD and 4K-UHD format conversion. The options also include “gearbox” for converting between 12G-SDI single link and quad-link sources. Frame sync inputs may be provisioned on every port.

Produce » Real-Time Production » Video Production » Production switchers »

Introducing the new XVS-G1 with HD, 4K (UHD) and HDR formats support. Featuring new web based menu and control panels allowing remote operations. Enhance creativity with GPU option for additional processing power.

Produce » Real-Time Production » Video Production » Newsroom production management and automation systems »

Produce traditional landscape (16:9) & vertical (9:16) video from a single 4K camera with built-in streaming. The KMU-200 allows users to output multiple landscapes or portrait pictures simultaneously just by creating cutouts of a 4K input using the 14” touch screen. The HD output signal can be streamed to many mainstream live-streaming platforms and output video can be recorded on an SD card. The KMU-200 features virtual camera control, switching, audio mixing, streaming and backup recording within one compact unit, which is an ideal product for content creators who want to live stream their content to social media platforms. Video productions that are traditionally done by multiple crew members now can be done by one person using the KMU-200.

The KMU-200 is a single unit that allows users to convert a 4K input signal to a 1080 HD output signal. An auxiliary HDMI input is also available for Skype or other sources. Hardware control is available on the unit to control the created cutouts, giving control over zoom, tilt, and pan of the virtual camera with a convenient joystick. Professional illuminated buttons control the switching of a maximum of 6 shots: 4 cutouts, the full image, and the auxiliary input.

Furthermore, its 14" capacitive touch screen allows users to easily control of picture selection and camera operations. Users can control the picture selection of the KMU-200 by not only the joystick but also by gesturing and pinching directly on the touch screen. This intuitive control method is suited for inexperienced users who are used to tablets and other touch screen interfaces.

Produce » Real-Time Production » Video Production » Production switchers »

"The HS-2850 is a cost-effective, 12-channel, 10-bit 1920 x 1080i broadcast-quality mobile hand carry switcher. Featuring 12 digital inputs, it is designed for live events and TV programs that need to blend a variety of video and audio sources. HS-2850 is light-weight, portable, and powerful, with features perfect for mobile switching.



As a complete AV package, the HS-2850 HD mobile studio enables users to switch seamlessly between video and audio sources and blend high-quality digital content on the fly. Advanced features include a 17.3-inch video monitor which displays multiple sources, as well as preview and program. The system is equipped with an eight-way intercom system and is supplied with four belt packs for effective communication between the whole production crew.



The HS-2850 is ideal for TV and video professionals working in outside broadcast or temporary video studios, such as theatres or conference centers. The HS-2850 is also a great value solution for the worship, education, and AV markets."

Produce » Real-Time Production » Video Production » Production switchers »

"HS-2200 combines SE-2200 with a 17.3” HD LCD monitor and an 8 channel talkback/tally system. Packed into a durable case, HS-2200 is a convenient and powerful portable video studio. HS-2200 includes a built-in monitor for displaying all incoming input video sources as well as program and preview with tally indicator, on a single multi-view screen.



The HS-2200 also feature an 8-channel intercom system complete with tally lights, belt packs and headset (supplied with four cameraman belt packs & four 20m cables included)."

Produce » Real-Time Production » Video Production » Production switchers »

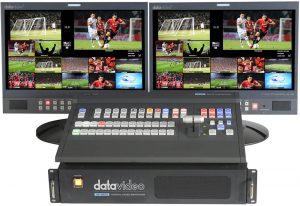

"SE-2850 is a multi-definition switcher designed for productions requiring 12 channels of HD or SD inputs. Being one of Datavideo’s most flexible switcher solutions, the SE-2850 is able to accept inputs in varying combinations of HD/SD SDI and HDMI. It is ready for every live production, giving producers the opportunity to output graphics with rich, visually appealing programming.



The SE-2850’s audio functionality allows it to connect an external mixer for a complete sound control. The SE-2850 also features all channel audio de-embedding and audio delay, and 4 dedicated XLR inputs. As an integrated Multimedia mixer, the SE-2850 can switch between up to 12 audio sources.



In addition to producing superb 4:2:2 10-bit broadcast quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy-to-use effects, such as dual picture in picture (PIP), downstream keyer (DSK), logo insertion and built-in title overlay system for the entry level Datavideo CG systems."

Produce » Real-Time Production » Video Production » Production switchers »

"The SE-2200 6 input multi-definition switcher is perfect for live production, religious worship, meetings or conference purposes. It is a technically smart and cost effective portable broadcast-quality switcher.SE-2200 is a solution that comes with a great features such as 6x6 SDI genlocked Matrix, Dual PIP and built-in title overlay system that works with entry level Datavideo CG systems, or other graphics programmes.

SE-2200 consists of 6 HD-SDI video inputs or with a combination of 4 HD-SDI and 2 HDMI inputs; all of the inputs are reassignable, thus it is able to adapt to your needs. One of the HDMI inputs can be used to accept video from a PC/Laptop computer to work with built-in title overlay system such as Datavideo's CG solutions, including CG-200."

Produce » Real-Time Production » Video Production » Production switchers »

"SE-1200MU is a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC with the included SE-1200 software control panel, or the RMC-260 control panel.SE-1200MU includes four HD-SDI and two HDMI inputs and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations.

Two assignable HD-SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface."

Produce » Real-Time Production » Video Production » Production switchers »

"The Datavideo SE-650 is a small, costeffective, professional HD digital video switcher.



It offers two HD-SDI and two HDMI inputs that support video formats up-to 1080i. It features two HDMI outputs and a user assignable HD-SDI output.



The SE-650 is the perfect device for small scale video production using professional cameras and HDMI equipment. The SE-650 also features an audio mixer with microphone and unbalanced RCA audio inputs. Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally."

Produce » Real-Time Production » Video Production » Production switchers »

"The SE-500HD a multi-format live event AV switcher with scaling on every input, built-in audio mixer, and exceptional 4:4:4 10-bit 1080p video quality. Its portable & compact design with easy-to-use professional features makes it ideal for breakout rooms, corporate events, and any live event production. Four scaled HDMI inputs and two HDMI outputs allow users to mix and match video resolutions and connect a variety of video sources that include laptops, tablets, and cameras without the need for video converters.



Don’t let the SE-500HD fool you with its compact size and affordable price. It is loaded with features such as Lumakey for graphic overlays, split screen for side by side views of the presenters, and PIP (picture-in-picture) for PowerPoint presentations. Plug in microphones and other audio sources directly into the SE-500HD and use the built-in audio mixer to simplify your workflow and get professional sound. Dedicated buttons make it user friendly and easy for anyone to operate it like a pro.  Professional features, compact all-in-one design and affordable price point makes the SE-500HD ideal for any live presentation."

Produce » Real-Time Production » Video Production » Production switchers »

"The Datavideo SE-500MU is one of the most affordable 1080p switchers currently available. It is controlled by the free tablet app, which is available on the Apple App Store and Google Play Store. The program can also be found as a free download for Windows and Mac computers.

The SE-500MU is not merely a video switcher, it is also a PTZ camera controller.  There are two available Control Applications- SE-500MU Control (for video switcher) and SE-500MU PTC Control (control up to 4 PTZ cameras).  SE-500MU offers 4 HDMI inputs, a program output, and a quad preview. It supports video resolutions up to Full HD 1080p, and it can perform cut, mix, and wipe transitions, fade to black, PIP, Split Screen, and Luma Key."

Produce » Real-Time Production » Video Production » Production switchers »

It has all the same great features of the HS-1200, with the addition of a built-in H.264 encoder for streaming. Therefore, the workflow is simplified because it is no longer necessary to add an external encoder to do streaming. Simply connect the HS-1300 to a network and begin streaming your program to your preferred CDN. In addition to the streaming capability, the HS-1300 can also record the program output to an SD drive.

Because of its lightweight portable design, the HS-1300 is ideal for various applications such as live concert events, seminars, sporting events, and live TV programs that need to mix a variety of video and audio sources. Other features include a 17.3-inch LCD monitor, which displays the multi-view, dual chromakey, DSK, still store, user memories, and PIP. Why lug around multiple pieces of equipment for your productions when you can have an all in one product like the HS-1300? Switch, monitor, stream, and record simultaneously with the HS-1300.

Produce » Real-Time Production » Video Production » Production switchers »

"Datavideo’s all-new KMU-100 is a unique 4K multi-camera production solution that delivers multiple virtual full HD (up to 1080p) scaled camera angles with minimal installation cost and simple operation. The basic concept is straightforward: The output of a single 4K/UHD camera is connected to KMU-100, which then displays up to four 16x9 user-defined cropped windows that are sent out as four separate HD signals through HD-SDI. These user-defined windows can be scaled to zoom in on a particular subject that you would like to highlight on the 4K signal.



As an option, the Datavideo RMC-185 controller can be added to easily pan, tilt, and zoom to create the user-defined windows on the 4K signal. You can set up these shots in advance and save them as presets, or you can do it in real-time."

Produce » Real-Time Production » Video Production » Production switchers »

X-One brings EVS’ market-proven technology into a compact and easy-to-deploy system that delivers a full live production at significantly lower costs.  Ideal for smaller-scale productions, X-One allows a single operator to do live switching, create replays and highlights, control audio, create and insert graphics and play back content - all from a set of intuitive interfaces and with guaranteed broadcast-quality output.

Produce » Real-Time Production » Video Production » Newsroom production management and automation systems »

The TriCaster 2 Elite is the most complete video production platform available today, and sets a new platinum standard for how much you can achieve with a single system.

Produce » Real-Time Production » Video Production » Production switchers »

The power of Ross Video’s flagship production switcher and the game-changing feature set of its flexible hybrid routing platform have been merged to create a complete, future-proof solution that is truly greater than the sum of its parts.

Produce » Real-Time Production » Video Production » Production switchers »

Ross Video revolutionized live production with the debut of Ultrix Acuity – the single-chassis production switcher and routing platform that provides superior capability and outstanding value. Now, Ross takes that idea another step further with the launch of Ultrix Carbonite, a powerful new integrated solution based on the “Software-Defined Production Engine” initially used for Ultrix Acuity. Ultrix Carbonite combines the routing and processing capabilities of Ultrix with the sophisticated creative capabilities of Carbonite, the world’s most popular mid-size production switcher. Ultrix Carbonite creates a new standard in performance, flexibility and value, unmatched by any standalone system available today.

Produce » Real-Time Production » Video Production » Production switchers »

Graphite PPC offers customers a remarkable amount of production horsepower – up to two MEs (and four MiniMEs), four DVEs, six frame syncs, four media stores and two MultiViewers. Capable of handling up to thirteen inputs and up to eight outputs, Graphite PPC also includes the same RAVE audio engine (with sample rate converters) that comes with the larger Graphite solution, as well as the same XPression graphics and clips package also found in its elder sibling. Graphite PPC is incredibly light – it weighs only 42 lbs / 19kg including its dedicated soft-shell carrying case equipped with a pull-out handle and wheels. It’s also extremely quiet – ultra-quiet fan cooling means the system can easily be used in the same space as the talent with microphones. Graphite PPC is simple to set-up and requires just a single operator, so you can now deliver a high impact, high efficiency production even more easily.

Produce » Real-Time Production » Video Production » Production switchers »

"The MS-3200 is an all-in-one video production studio in a rugged flight case. It is perfect for outdoor events, esports, conferences, education, worship and many other applications.



The MS-3200 HD 12-channel Mobile Video Studio is the ideal solution for large-scale live events because they require up to 12 camera inputs. The system also includes intercom, recorder, waveform vector monitor, and power supply; ultimately allowing the MS-3200 to deliver a complete and easy production process on location. "

Produce » Real-Time Production » Video Production » Production switchers »

"Datavideo OBV-2850 is a PPU (Portable Production Unit), designed to fit into the the back of a small van to provide complete mobile production facilities. It's a transportable solution for broadcasters and professionals for both in studio and on-location productions.

Built around the latest HD/SD switcher, it supports up-to 12 channels of HD/SD-SDI, HDMI or composite video signals. The system is integrated, compact, and sturdy with a metal framework for great stability and protection yet provides room for future expansion.

With power-efficient modules, OBV-2850 can be powered by a DC 12V supply. Datavideo OBV-2850 is easy to install and a cost-effective solution for live video production. "

Produce » Real-Time Production » Video Production » Production switchers »

"Datavideo OBV-3200 is designed to fit into the back of a small van to provide complete mobile production facilities. It’s a transportable solution for broadcasters and video professionals for both in-studio and on-location productions.



Built around the latest Full HD switcher, it supports up to 12 channels of 1080p Full HD-SDI and HDMI video signals. The system is integrated in a sturdy rack with a new design Console Desk for great stability and protection.



The system is fully equipped with functions such as intercom, video transmission, camera control, video recording, video streaming, audio delay and Scope View monitor etc."

Produce » Real-Time Production » Video Production » Production switchers »

The SE-3200 is a professional 12-channel, 1080p video switcher that provides powerful and easy-to-use video effects such as four upstream keyers for Chromakey and Luma Key, dual DSK, PIP, and WIPE transitions. There are also other features like frame store, animated transition effects, multi-channel inputs, and abundant visual effects. The built-in subtitle generation system can be paired with Datavideo’s CG software to instantly create broadcast quality subtitles.

The SE-3200’s modular design allows you to install the 2U main unit on a standard 19-inch rack and place the control panel on a flat work bench, or it can be installed in an outdoor broadcast van. The SE-3200 facilitates video switching, whether indoor or outdoor.

Key Features

Supports full 1080P (3G) 4 Upstream Keys for chromakey, linear and luma keys as well as picture-in-picture 2 Downstream Keys for generating different effects 4 Broadcast Quality keyers with 50 built-in virtual sets 9 built-in Stinger transition effects

Produce » Real-Time Production » Video Production » Production switchers »

The HS-1600T is a 6-in-1 product that will simplify your workflow. It is a portable HDBaseT hand carried studio that has a switcher, monitor, camera controller, audio mixer, streaming encoder, and recorder built in. What more do you need to execute your production other than PTC-150TL HDBaseT PTZ cameras?

The built-in HDBaseT technology allows receiving of 1080p signals from three PTC-150TL or PTC-140T HDBaseT PTZ cameras via CAT6 cable. It features PoE to provide power to three PTC-150TL or PTC-140T cameras, making installation fast and easy. Keeping things user friendly, you only need to push one button to stream to your preferred CDN and record to a SD card simultaneously.

Another great feature of the HS-1600T is the integrated joystick for controlling the pan, tilt, and zoom of the PTC-150TL cameras. You can also adjust focus and iris, as well as access the camera's menu. There are four preset buttons for each camera, making it easy for an operator to recall preset shots with a press of a button.

The all inclusive features of the HS-1600T make it ideal for various applications such as live events, worship, seminars, and corporate presentations.

Produce » Real-Time Production » Video Production » Production switchers »

"Datavideo MS-2850 HD/SD mobile video studio series is a ready to go solution. It is designed around the SE-2850 HD/SD 8-channel (upgradeable to 12 channels) broadcast- quality video switcher. It is perfect for outdoor events, conferences, education, places of worship and many more applications. Producing superb quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy to use effects, such as dual picture in picture, downstream keyer (DSK) and logo insertion.

The switcher is integrated with the essential elements required for live production including a recorder, a multi-view monitor and an intercom system."

Produce » Real-Time Production » Video Production » Production switchers »

The Dyvi switcher offers a brand-new approach to live production, taking you far beyond the limits of conventional hardware switcher design. Its GPU processing and software-defined architecture offer outstanding flexibility, scalability and creativity to suit all your production workflows. With its fully configurable panel and intuitive user interface, Dyvi allows the fast operation of complex, multi-layered video designs, to engage and entertain your audiences like never before.

Produce » Real-Time Production » Video Production » Production automation systems »

The most advanced IT-based solution, cost-efficient video management system on the market that is a complete channel in a box with full IP/NDI/SDI in and out capabilities.

Etere ETX is the most advanced, tightly integrated and cost-efficient video management system on the market, completely based on IT technology. It is 4K ready and a complete channel in a box with full IP/NDI/SDI (in and out) for multiple frames rates. It is able to drive the most popular HD/SD digital video/audio/graphics platforms without using middle-ware/proprietary hardware. ETX is a fully digital ingest/playout engine that gives you professional video technology with support for all major essences and wrappers in the broadcast industry. It is capable of SDI output, multiple layers of graphics. Additionally, HEVC/ H.265 encoding is also available on Etere ETX. With ETX inserter, operators are able to create closed captions including CEA 608 and CEA 708. In addition, ETX is capable of live subtitling with the ETX inserter and time delay. ETX is also integrated with a countdown timer that displays the time remaining until the next program. As part of the Etere Ecosystem framework, Etere ETX has a distributed architecture that enables it to take advantage of ultimate storage and video hardware to create a high-performance digital media solution that can be used to capture/playout servers, NLE systems, graphics/production servers, automation and master control units. To receive an NDI source stream, use live source object and initialize the "NDI Receiver" device just like any other capture card. The distribution of contents from the different ETX engines is controlled by Etere Data Mover, the application that delivers the correct video to the correct place at the correct time. In addition, Etere ETX video file transfer capability is one of the fastest in the market.

Key features

■ Multiple graphics and webGL graphics overlays

■ Capture web pages as live multimedia sources

■ 4K, HD, and SD with Up and Down conversion

■ RTMP input and integrated time delay

■ Serves as a RTMP sender or RTSP receiver

■ Full IP support for both HD and SD videos, supports NewTek NDI

■ Supports multiple layers of graphics

■ Fully compliant DVB (Digital Video Broadcasting) stream

■ Supports Microsoft ReFS File System, cloud-ready

■ Included graphics engine allows overlay of static/animated logos and crawlers on 8 layers

■ Able to perform IP in and IP out, with multiple frame rates and independent IP out services

■ Integrated IT-based master control with multichannel ingest/playout

■ Easy insertion of closed captions including CEA 608 and CEA 708 with ETX inserter

■ Create live subtitling seamlessly with ETX inserter and time delay

■ SDI output with support for selected cards (SDI or IP) including Blackmagic, Matrox

■ File formats includes LXF, MOV, MXF, GXF, ASF, MPG-TS, MPG-PS, AVI, DV and MKV

■ Video codecs includes DVCPRO, MPG1, MPG2, MPG4, H.264, HEVC/ H.265, DNxHD, ProRes

■ Audio codecs includes AAC, MP2, MP3, Flac

■ Graphics files includes TGA, AVI, MOV, SWF, PNG, JPEG, GIF

■ Plays files from 5 secs

Produce » Real-Time Production » Video Production » Production switchers »

Thanks to Iphrame’s TimeLock functionality, operators can perform frame-accurate switching from anywhere, whether it’s a production centre, on location, or even from home. Iphrame Flyaway can operate over IP links as low as 20Mb/s, and typically needs only one engineer on-site so it doesn’t just lower the bar to entry, it eliminates it.

In the age of video on demand, content providers need to be aware of viewers’ tastes and the huge variety they crave, and live event coverage is a great way of attracting audiences.

Traditionally, live coverage has been limited to higher profile events due to the many staff and equipment required to be onsite. One option to reduce costs is to pass back all feeds and perform mixing in-house but the connectivity required typically pushes the costs back up and isn’t achievable at all locations.

Iphrame Flyaway changes the cost model by reducing connectivity bandwidth and staff required. The added functionality of talkback means a new generation of operators can be efficiently utilised by working at a fixed location, allowing for reduced expenditure and increased productivity, while features such as slow-mo playback help you provide a richer viewing experience.

So, to offer subscribers great live content without stretching budgets, do it from anywhere with Iphrame Flyaway.

Produce » Real-Time Production » Video Production » Production switchers »

This model adds recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD. Able to reverse the USB-C and HDMI out functions.

ATEM Mini Pro ISO Features

• Features miniaturized control panel based design.


• Built in support for recording each input as a separate ISO file.


• Saves DaVinci Resolve project file for 1 click editing of live production.


• Supports connecting up to 4 cameras or computers.


• Live streaming via Ethernet supported on ATEM Mini Pro.


• USB output operates as a webcam and supports all video software.


• Automatically standards converts and re-syncs all HDMI inputs.


• Includes free ATEM Software Control for Mac and Windows.


• Internal media for 20 RGBA graphics for titles, opening plates and logos.


• Includes ATEM Advanced Chroma Key for green/blue screen work.


• Multiview allows monitoring of all cameras on ATEM Mini Pro.


• Audio mixer supports limiter, compressor, 6 band EQ and more!

The new model of ATEM Mini ( ATEM Mini Pro ISO ) is a true innovation in workflow. For the first time, live production has been fully integrated into a post production editing workflow. Not only that, but with Blackmagic RAW integration, we can use the ISO files recorded in the switcher, or the files recorded in the camera." said Grant Petty, Blackmagic Design CEO. "That's a RAW film workflow, a post production workflow and a live production workflow all fully integrated for the first time! Imagine doing an Ultra HD fully color graded master all from a tiny low cost HD switcher. It's really exciting and it's going to generate a whole new workflow for the television industry!

The ATEM Mini Pro ISO HDMI Live Stream Switcher from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.

The ATEM Mini Pro ISO retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

General

• Connecting a USB drive to the ATEM Mini Pro ISO's USB port enables capturing the switched program stream, as well as up to four isolated (ISO) recordings of input video, as well as embedded audio, analog input audio, graphics, and a DaVinci Resolve project file of your switched program


• The device has the same footprint, layout, and connections of the ATEM Mini Pro


• Stream video up to 1080p HD


• Quick stream, on-air, and record buttons


• Hardware encoder so there's no need for additional streaming software


• Control and configure timecode, stream status


• Full support and control features for BMPCC 6K/4K cameras


• Simultaneous USB recording


• Integration with MultiDock for live hard drive switching


• Customize advanced settings with XML files


• Software multiview with program previews, graphics, record status, on-air status, and audio meters


• Program preview input and output buttons


• Tally light control for BMPCC 6K/4K cameras


• Automatic timecode sync for all cameras

Transitions

Available transitions include:

• Cut: When you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source.


• Mix: The mix, or dissolve, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.


• Dip: Just like mix transitions, a dip transition is a gradual blend that includes either a solid color, graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.


• Wipe: Built-in wipe patterns include circles, diamonds, squares, and more. Shapes and patterns can be inverted or softened and can even have customized colored borders.


• DVE: With the powerful built-in digital video effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options.

Upstream Keyer

Layer live video over other video sources or graphics with the upstream keyer. You can use the luma key, linear key, pattern key, or shoot against a green screen and use chroma key to instantly composite the video over virtual sets.

• Luma key: Luma keys work best with high-contrast images, like white elements on a black background, so you can use the contrast to cut the black background and replace it with live video or graphics.


• Linear key: Get clean, high-quality results with linear keying by using two separate sources for the fill and the key to create one video image. The fill signal contains the video to be stacked over the background, while the key signal contains a gray scale mask to cut out, or mask, the area to be filled.


• Chroma key: Used every day for TV weather forecasts, chroma keys are a powerful way of combining live images in real time. The presenter typically stands in front of a green or blue background and the chroma keyer will remove only that color and combine it with another image, such as a video or graphic.


• Pattern key: Combine live images with any of the built-in wipe patterns to combine live images or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to create unique picture-in-picture effects that can be transitioned to as easily as any live source.

Downstream Keyers

The ATEM Mini switcher includes one downstream keyer, so you can add high-quality graphics like logos, bugs, and titles from the built-in media player over the live stream program output. Downstream keyers are the last layers of keying, so they overlay all video switched to the main program output.

Audio Mixer

The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels. The mixer features selectable on/off and audio-follow-video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.

Monitor Output

The HDMI monitor output allows you to see your sources, graphics, preview, and program output on a single screen.

Media Player

Eliminate external character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool. The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video, or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.

Produce » Real-Time Production » Video Production » Production switchers »

The Sony MCS-8M is a multi-format switcher with a built-in audio mixer and frame synchronizer. Inside a compact body, the MCS-8M packs excellent cost efficiency and affordability along with a great range of features. This user-friendly, multi-format switcher has many preset DME wipe patterns, a built-in Multi-viewer, one-channel frame memory output, an Input Freeze function for each source, the ability to import still images via USB port, a 3D Mode function, a six-channel audio mixer, and more. In addition, the MCS-8M Multi-format Compact Switcher is designed to be intuitive and simple to operate – an ideal content creation tool for live event programming. Affordable and powerful, it can handle wedding functions, product promotions, event and live staging, music clip creation, and all types of business activity including conferences and seminars. • 8 Inputs: Multi-format Capability - HD Mode: (4 x HD-SDI, 3 x HDMI, 1x DVI-I) with Frame Synchronizer function - SD Mode: (4 x SD-SDI, 3 x Analog Composite, 1 x DVI-I) with Frame Synchronizer function • 4 Inputs: Multi-format Capability - HD Mode: PGM (HD-SDI), AUX1 (HD-SDI), AUX2 (HD-SDI and DVI-D), Multi-viewer (DVI-D and HD-SDI) - SD Mode: PGM (SD-SDI), AUX1 (SD-SDI), AUX2 (SD-SDI and Analog Composite), Multi-viewer (DVI-D and SD-SDI) • Multi-viewing function This function splits the screen into ten or four windows to show multiple images on a single monitor. • 1 Keyer Self, Split, Auto Select, Linear, Pattern, Auto Chromakey, Border (Flat Colour) • Keyer Transition Cut, Mix, Standard Wipe patterns, Transition rate settings • 3D Mode (L/R Link Cut, Mix, Side-By-Side Output) • Background Transition Cut, Mix, Standard Wipe patterns, DME Wipe patterns, Transition rate settings • Additional Features - 1M/E + 1 Key + Aux Mix - 1-ch Frame Memory Output - Input Freeze function for each source - Import Still Image function via USB port - 6-ch Audio Mixer function with audio delay

Produce » Real-Time Production » Video Production » Production switchers »

MVS Series SD / HD switcher with 32 inputs and 16 outputs Compact and well-designed, the MVS-3000 production switcher is ideally suited for production studios, stadiums, houses of worship, and OB vehicles requiring multiple inputs in a limited space. The switcher comes with sophisticated capabilities such as 2x mix effects (M/E), 4x keyers per M/E, each with the MVS high-performance chroma key, 2.5D resizers, colour correction, and more. With the standard multi-viewer output, you save space on additional monitoring, enabling a reduction in your total system cost. Advanced control panelThe control panel incorporates an attractive black design with OLED mnemonic displays for optimal visibility. Its operation is as user-friendly and intuitive as you expect of the MVS family. The self-contained 4RU processor offers simple configuration, and is a logical choice for small production facilities that have limited installation space but refuse to compromise on quality. FEATURES New control panel for convenient operability The MVS-3000 switcher features an ICP-3000 control panel. The matt-black panel is designed for easy operation in a fixed configuration. The design is based on the proven CCP style, and experienced operators will feel instantly at home. Additionally, OLED source name displays and RGB colour source buttons are included for optimal visibility and great operability. Creative M/E functionality The MVS-3000 is a two mix effect (M/E) switcher with four keyers on each bus. A variety of background transitions are available to suit any programme requirements and these include ; Mix, Wipe, Non-additive mix, super mix and FM clip. Separate from the main fader, each keyer includes its own auto-transition controls, which allow users to insert or remove keys individually with independent wipes and dissolves. For further flexibility, each keyer also offers chromakeying and colour vector keying, eliminating restrictions of selectable key types. By providing a key priority selection it is possible to give any keyer a higher or lower priority giving operators complete freedom in key selection and which key sits in front of the other in the image plane. Multi-program modeEach M/E bus in the MVS system can be configured to operate in multi program mode. This facility provides four independent program outputs on each M/E. Each separate program O/P can then be configured with any combination of M/E keyers. In addition to the expanded program O/Ps, clean and key as well as M/E PVW signals are still produced. 2 resizers per M/E bank and 2.5D DMEA powerful resizer function is provided that gives simple 2.5D DMEeffects for four keyers in the MVS-3000. With adjustable parameters such as size, position, and aspect, as well as mosaic and defocus effects, this functionality is very useful for optimizing the on-screen composition. All these effects can be created without the use of an optional DME, bringing great advantages for both simple operation and minimized system cost.Colour correction for each input and AUX outputIn order to correct for any colour errors in the incoming signals each input has a primary RGB colour corrector. In addition each aux bus output also has an identical colour corrector circuit. This is useful for correcting the colour balance on in-vision monitors. Enhanced frame memory systemThe MVS-3000 provides an internal high-capacity frame store with the ability to handle both individual images (stills) and animation sequences (clips) with embedded audio support . The frame memory system supports eight-channel playback from on-board RAM storage, and images can be imported via USB connection or a real time back up using an external video store. Individual frame memory images or animation sequences can be instantly viewed and recalled via the touch-screen menu operation.Two channel multi-viewer systemThe MVS-3000 provides multi-viewer outputs directly from the main processor chassis. This cuts down on the need for expensive external multi-viewers. Each multi-viewer output can be set in either 10- or 4-way split operation, and signals are delegated to each separate pane accordingly. The multi-viewer also supports switcher name and border tally indicators. 32 inputs and 16 outputs configuration The MVS-3000 features 32 BNC primary inputs and 16 BNC assignable outputs. Easy-to-program macrosUsing the Flexi-Pad module, you can record operation sequences, then store and assign them to any desired button. Macros are useful in live environments where time is critical and operation errors are not tolerated. In addition to using macros to record complex panel operations, macros can also be used to record menu operations. Macros can be edited either directly from the control panel or with the touch-screen menu display. Once programmed, macros can be executed in several ways: by attaching to the majority of buttons on the control panel surface, recall/run from the Flexi-Pad module, or by trigger on a timeline to execute automatically in a sequence.Networking functionsThe MVS-3000 switcher can be operated with a single Ethernet-based network. This integrated LAN enables easier connection to devices.Powerful device controlThe MVS-3000 switcher has integrated device control and thus does not require the use of an additional unit, simplifying system installation. Devices can be controlled on the same timeline as switcher events or as part of macro events. When integrating a Sony disk protocol or VDCP-controlled disk recorder, clip management is also provided, allowing different server clips to be recalled and played back as part of a switcher timeline or macro.Intelligent tally functionsAll MVS switchers provide an intelligent and multi-functional tally system, which seamlessly integrates the switcher and router tally functions. Multiple on-air and recording tallies can easily be programmed on the switcher system, so that even complex tally requirements are accommodated.Clip Transition EffectsAll MVS family switchers provide clip transition effects that enable transition, together with audio, using a frame memory sequence. During a clip transition, a computer-generated image, such as a logo, moves across the picture from one side to the other, while the transition is performed behind the image. This effect is useful for sports broadcasting. Although highly sophisticated, the effect can be performed with simple settings. Various types of transition such as Mix, Wipe, DME Wipe, and PresetColor Mix can be applied in a background transition according to the motion of the clip. A transition can be operated both backwards and forwards with the fader lever.Built-in format converterOne convenient feature of MVS switchers is that a format conversion capability can be incorporated by adding an extra format converter board (MKS-6550). This option provides up-conversion and down-conversion between HD (1080i and 720p) and SD (480i and 576i), and cross-conversion between 1080i and 720p at both inputs and outputs. With these capabilities, there is no need for external format conversion. A variety of signal formats can be handled within the switcher system, which minimizes overall system cost. The format convertor can also work in frame delay mode which provides synchronisation and up to 8 frames delay for up to eight input signals. This is useful for remote non-locked sources or for applications involving virtual studios where a compensatory delay is required.

Produce » Real-Time Production » Audio Production » Audio mixers and consoles – television production »

Ateliere Live seamlessly blends contribution and distribution with powerful proxy editing to deliver high-quality content fast to the right screen, in the right format, at the right time. It is the ultimate user-centric experience that redefines the future of live broadcast and cloud TV.  Collapse your live production footprint down to a fraction of that needed with traditional broadcast production solutions - mix 70+ cameras on one GPU enabled server.

Ateliere Live is a software live production system that has been developed with the internet and cloud in mind, yet is just as comfortable driving on premise production workflows. Innovative timing and camera syncing technology lets low bandwidth vision mixing / editing happen anywhere you need it to, with program out occurring at full bandwidth and resolution - near the cameras or on the other side of the world.

The system is built with 'API first' as a driving principle, which lets the core engine be incorporated rapidly into your production ecosystem or with third party control surfaces. Or, use Ateliere's existing range of open source user interface options and third party integrations out of the box.



Publish » Linear Playout » Linear Playout Systems » Master control switchers »

Designed for use in 4K(UHD) systems, the HVS-6000 brings 12G-SDI compatibility to all inputs and outputs. Users can operate the unit in the same manner as current HD systems. In an era of video over IP, the HVS-6000 anticipates these needs and enables IP interfaces to be mounted on all I/O slots.



Features

Up to 80 in/32 out or 64 in/48 out, all inputs and outputs support 12G-SDI Single Link.

IP input/output support planned for future use.

3 M/Es with split M/E, 4 keyers per M/E.

Frame synchronization and still store available for inputs.

Upconversion*1*2 from HD to 4K on all inputs and downconversion*2 from 4K to HD on all AUX outputs are supported.

Control panels: HVS-2120ROU, HVS-2240OU, HVS-3320OU and HVS-3355OU (custom-ordered).*1 To be supported.　*2 Optional.

Produce » Real-Time Production » Video Production » Production switchers »

Graphite provides a full production solution within a single 4RU frame. This simplifies connectivity, saves space, and makes it easy to take top-quality productions on the road. Built to withstand the rigors of a mobile production with carefully engineered physical construction. Graphite systems are extensively shake and bake tested before shipping. Rely on a system with consistent performance and immunity to traditional all-in-one software issues, thanks to unique dedicated hardware. Every aspect of the Graphite system is built with the quality of separate system components. The value of a single all-in-one system with no need for external supplement cannot be overstated. Crew your show as you see fit. A single operator can run an entire show through all-encompassing control, or roles can be separated for multiple operators during high-intensity events. Switcher resources and graphics power can be upgraded via software licences – and additional equipment is available through a single vendor for effortless integration and guaranteed support.

Produce » Real-Time Production » Video Production » Newsroom production management and automation systems »

THERE IS A TRICASTER FOR EVERY PRODUCTION

Powerful and affordable tools. Help tell your story…beautifully. NewTek TriCaster systems put an entire suite of media production capabilities at your fingertips. You can make anything from keynote presentations and webcasts to online training and sporting events look amazing with quality, consistency and efficiency.

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

The HVS-490 switcher offers flexible expansion, opening the door to even more affordable 4K production. Exclusive MELite™ technology extends the switcher’s 2 M/Es to offer 6 M/E performance. Expand your switching capabilities even more by assigning FLEXaKEY™ or feature rich 2.5D DVE, for compositing with up to 12 keyers. Take advantage of this truly broad range of switching in live production. Furthermore, the HVS-490 supports NDI® using the optional HVS-NIF card. The HVS-NIF serves as a video/audio transceiver and creates a system capable of handling IP and baseband signals.

Features

-          Supports High bandwidth NDI®*1 and NDI®|HX input and output.

-          Supports 3G/HD-SDI format, with 4 IP inputs/2 IP outputs per card.

-          Add up to 2 cards to HVS-490*2.

-          Frame sync for all inputs.

-          Proc amp functionality: adjust source video luminance, saturation, or hue.

-          Remote camera operation.

-          Dual Gigabit Ethernet ports.

-          Hardware-based codec processing for peace of mind when building IP systems.





Publish » Linear Playout » Linear Playout Systems » Master control switchers »

All-in-one production centre features

Beyond the essential roles it fulfils in any production environment, this comprehensive unit offers 4 additional features with the addition of an MFR-31VP video processing card. With the card, the MFR-3100EX provides video switcher function, NDI®/NDI®|HX I/O, video streaming, and SSD storage.

Video switcher function (MFR-31VP)

Add an MFR-31VP card to expand the unit with 1 M/E and 20 inputs/13 outputs video switcher function. Take advantage of NDI®/NDI®|HX I/O and 4 keyers for P-in-P or downstream keying. Frame synchronization, 12G-SDI, audio mixing/de-mixing, and other expansion are supported with other options.

Software control panel MFR-CTSP

With the MFR-CTSP software control panel, all video switcher functions can be controlled with touch panel operations.

NDI®and NDI®|HX Supported (MFR-31VP)

Send or receive video and audio, control signals, and tally control over IP. With NewTek NDI® Tools installed, MFR-3100EX supports meeting collaboration software such as Zoom, Microsoft Teams or Google Meet.

Video streaming function (MFR-31VP)

Provides RTMP and SRT support. Upload video directly to YouTube, Facebook, or other streaming services. YouTube streaming can be checked by scanning a QR code with a smartphone.

SSD

SSD storage function (MFR-31VP) can be installed. It enables recording/playing video and audio. Material supplied via SDI or over the network can be encoded and saved as files. Saved files can be decoded for output via SDI or over the network.

Multi viewer function

Multi viewer function is a standard feature of the built-in web server, which provides a web-based control interface. Add MFR-16MV cards for more sophisticated viewer capabilities such as dual output and clock display.

Browser-based multi viewer

Check source material easily through the built-in web server, saving outputs for other sources. For input channels (1–64) and video switcher function output, up to 64 windows can be displayed per screen.

MFR-16MV

Up to 2 outputs/16 split-windows are available with an optional MFR-16MV installed. Unlike conventional systems that require allocation of 1 output per window displayed by an external multi viewer, this functionality reduces multi viewer output allocation to 1 output per monitor.  Because of the MFR-16V’s ability to handle multiple outputs, all signals sent to those destinations can be monitored on the MFR-16MV. Up to 16 split-windows and 2 types of clock display are supported.

Routing switcher function

With its routing switcher function, the MFR-3100EX can be configured for a matrix up to 64x72, with 4 inputs/4 outputs for 8K signals or 16 inputs/18 outputs for 4K UHD. Matrix expansion and redundancy is possible by using multiple units together. With options, conversion between 12G-SDI, Quad Link 3G-SDI, and mapping formats (2SI and SQD) are also available. A variety of cross-point controls are supported in addition to standard cross-point switching.

Multi-format video input and output, and MUX and DEMUX audio are available

Support for 3G/HD/SD-SDI and DVB-ASI input and output. No need to worry about signal formats, thanks to auto signal detection.  Add up to 8 inputs cards and up to 9 outputs card, with 8 channels per card. Can mix and match non-SDI modules as needed. Optimizes the system to install frame synchronizer function for input, and ADVL function for outputs. Audio MUX and DEMUX functions also offer greater video and audio compatibility.

Connectivity with other products

Connectivity with other products including FOR-A video switchers and multi viewers via ethernet or serial ports. MFR routing switcher cross-points can be controlled from HVS video switchers and HVS and MFR exchange tally information with each other. Integrated management of source names by MFR, which automatically send source names to HVS and MV multi viewers. Source names and tally linkage between MFR and MV are controlled by TSL protocol.

Outstanding redundancy

As core system components, FOR-A routing switchers can incorporate redundancy to ensure nonstop operation in case of problems.

- Redundant power supply (optional MFR-31PS)

- Redundant control board (optional MFR-31CPU)

- Redundant ethernet (remote control) (optional MFR-31CPU)

GUI-based configuration

Serving as an SNMP agent, the MFR-3100EX can simultaneously send traps to two SNMP managers for monitoring information about all devices connected to the MFR-LAN.

Produce » Real-Time Production » Video Production » Production switchers »

Acuity is the top-of-the-line large production switcher designed to handle world’s most challenging live events. This switcher has been built to easily adapt to evolving technology in the video production industry and is built with the biggest creative feature set – for the biggest productions.

Features include:

- Powerful Production Engines

- Output Transitions

- Facility-Grade MultiViewers

- MultiFeed Split MEs

- MultiFeed Configurable Outputs

- Tremendous DVE Resources

Produce » Real-Time Production » Video Production » Production switchers »

No ordinary compact production switcher, Carbonite Black Solo packs an astounding feature set including 2 MiniMEs and 9 keyers.

Carbonite Black Solo provides the compact form and affordability of a small switcher, while offering the big switcher feature-set of the Carbonite Black series.

If your productions are on the go, at different facilities and events, you want to make it easy to plug-in and get the show rolling. Carbonite Black Solo is built with internal video processing and MultiViewer resources, so no external gear is required.

XPression LiveCG complements your show with high quality still graphics. Graphics are fed directly into the switcher media channels over Ethernet for a truly simple workflow.

Smaller switchers generally feature base-level custom controls and memories, but not Carbonite Black Solo. This switcher features fully-customizable macros and a memory system with unique smart recall and effect recall functionality.

Produce » Real-Time Production » Video Production » Production switchers »

HS-3200 features easy-to-use video streaming and recording appliance for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.

With 12 digital inputs including 8 SDI and 4 HDMI inputs with embedded audio, 5 SDI and 4 HDMI outputs for connecting HD recorder, monitor, etc.

HS-3200 is a lightweight, portable and powerful featured mobile studio solution which is designed for live events and TV programs that need to mix a variety of video and audio sources. HS-3200 is also a great value solution for the worship, education and AV market.

The HS-3200 also has powerful, easy to use effects, including Chroma / Luma Key, DSK, PIP, DVE, Wipe Generator, Still stores, logo insertion.

Advanced features include a 17.3-inch Full HD 1080p video monitor, which displays the multi-view, the Multi-view includes all the input sources, as well as preview and program.

Produce » Real-Time Production » Video Production » Production switchers »

Carbonite Mosaic is built to get high-quality video onto your large-screen display, quickly and easily.

Large-screen displays have grown to massive scale in both size and resolution. Carbonite Mosaic gets the highest quality images on displays of over 20 million pixels.

A complete set of video processing resources guarantees a uniform look across your display. For ultra-high-quality imagery, Carbonite Mosaic supports 10bit HDR formats.

Powered by 10 independently-controlled tile outputs, it’s easy to weave a massive single display or feed multiple displays throughout your venue – the choice is yours.

Carbonite Mosaic and XPression Tessera team up for high-quality upscaled video and beautiful pixel-accurate graphics on your display. Live has never looked this good.

Like all Ross products, Carbonite Mosaic is part of the DashBoard Control Ecosystem. DashBoard makes it easy to control your display layouts or even your entire venue, from a single interface.



Produce » Real-Time Production » Video Production » Production switchers »

ViBox All-In-OneComplete, Flexible ProductionThe ViBox All-In-One application layer is the world’s most flexible total production tool for multi-camera programs of all sizes.  What do we mean by flexible? On Friday, you can produce a game with just one user running all the main requirements of live production – live switching, graphics, slow motion replays, highlights and audio mixing – with the incredibly intuitive A-I-O interface.On Sunday, you can use the same ViBox All-In-One to produce larger games that need a multi-user workflow. The first operator can be switching the show on one touch-screen, another operator is running a ViBox SloMo application, and a 3rd UI also has SloMo running for a 2nd replay operator. No other single system provides you with that much flexibility.​In developing the All-In One user interface, we studied 100s of live production workflows and run-downs to design a system that anyone can use. We made sure that all the tools you need to tell a great story are right where you need them to be. ​Flexible. Intuitive. All-In-One.

Publish » Linear Playout » Linear Playout Systems » Master control switchers »

Introducing HVS-190S/190I, a portable 1 M/E video switcher that builds on the features of the capable and popular HVS-490. Take advantage of remote control for off-site event management, and add an HVS-NIF card for NDI® connectivity in a highly reliable mixed SDI/IP system. Includes frame synchronization, resizing, 2.5D wipes and other DVEs, chroma keying, FLEXaKEYTM, and more.

The HVS-190S and HVS-190I also have a built-in Web server that lets you change settings from a PC or a tablet. A clip memory feature has been added to the still store to support playback of video or animations and enhances productions through the use of CG wipes, while the multi-viewer meets a diverse range of monitoring needs. The equipment can be used in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative your ideas.

NDI® is a registered trademark of Vizrt Group.

Product Lineup

2 models are available: 1 with separate main unit and control panel, and 1 with compact, integrated design, both of which can be adapted to a wide variety of applications and operation configurations.

Frame sync and proc amp functionality is provided for all inputs, with safety markers for each output. The HDMI port supports audio output, and, as a 2.0b port, HD or 4K output, with the latter enabling display of HD images in 4 quadrants. Expand input or output for either model with a variety of optional I/O cards.

• HVS-190S

Separated Main Unit/Control Panel Type

8 inputs/5 outputs*1 standard. Expandable up to 20 inputs/11 outputs*1(optional)*2.

The control panel has been laid out specifically with professionals in mind with a design that leverages the knowledge of expert operators. It includes dedicated bus buttons, AUX buttons, a fader controller and direct user buttons for various functions. The main unit offers exceptional expandability to facilitate the addition of a redundant power source unit and various input/output cards.

• HVS-190I

Integrated Main Unit/Control Panel Type

8 inputs/5 outputs*1 standard. Expandable up to 16 inputs/9 outputs*1(optional)*2.

Similar to the HVS-190S in use, this compact video switcher is designed for portability. The inclusion of ample video input and output functionality makes it ideal for use in small broadcast vans and helicopters.

Like HVS-190S, it can be used with an optional redundant PSU and a range of I/O cards.

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Hybrid SDI-IP video routers »

AMD Versal™ Prime Series Gen 2 adaptive SoCs combine world-class programmable logic from AMD with a new high-performance processing system of integrated Arm® CPUs—offering up to 10X more scalar compute than existing Versal or Zynq™ adaptive SoCs.  This powerful combination of flexible, real-time sensor processing and the ability to handle complex embedded computing workloads allows designers to maximize system performance while avoiding the overhead of a multi-chip solution.

Designed for a broad range of applications including 8K video processing, the Versal Prime Series Gen 2 devices offer expanded hardened IP to complement the programable logic and processing system. This new IP includes hardened video encode & decode, DDR5/LPDDR5X memory controllers, 100G Ethernet, PCIe® Gen5, and an integrated Arm Mali™-G78AE GPU, enabling next-generation applications within tight area & power constraints.

​From capturing content and enabling virtual production to creating live events, Versal Prime Series Gen 2 enables Broadcast and Pro AV equipment suppliers to deliver ever more compelling experiences thanks to a unique combination of dedicated acceleration, flexible interfaces, and adaptive computing that’s ideal for real-time video & audio processing.

Each video codec unit (VCU) tile offers:

• Hardened bidirectional encoding, decoding and transcoding


• Support for HEVC & AVC up to 4K60, 4:4:4, 12-bit


• Up to two VCU tiles per device; aggregate both tiles for limited 8k30 support

Create » Content Acquisition and Capture » Cameras » Broadcast System cameras »

The Versal HBM series features heterogeneous integration of fast memory, secure connectivity, and adaptive compute to eliminate processing and memory bottlenecks for memory-bound, compute-intensive workloads. It is built from the ground up to adapt to continually evolving algorithms, protocols, and data rates. Thanks to its memory bandwidth capabilities to support huge amounts of real-time pixel and packet processing, Versal HBM devices can be found at the heart of 8K LED wall processors, multichannel 4K networked video processors, cinema cameras, projectors, production switchers and more.

With the integration of HBM2e DRAM, the Versal HBM series delivers up to 6X more bandwidth at 65% lower power per bit vs. the Versal Premium series. Built on a production-proven Versal Premium adaptive SoC foundation, the Versal HBM series integrates an extensive set of networked, multi-terabit, power-optimized connectivity cores, and 112 Gb/s PAM4 transceivers to adapt to emerging network protocols and modules. While doubling the transceiver speed, the Versal HBM series secures every layer of the network infrastructure with built-in encryption engines. With the programmable network on chip (NoC), up to 2.2 Tb/s of on-chip connectivity alleviates routing congestion among architectural components. In addition, the Versal HBM series offers twice the logic density of the previous generation HBM solution to maximize performance for constantly evolving algorithms and protocols.

Produce » Real-Time Production » Video Production » Production switchers »

TriCaster 2 Elite is a comprehensive digital media production system with IP connectivity through NDI®. TriCaster 2 Elite moves beyond being only a live video production system to an all-encompassing digital media environment to create content for Internet, mobile, and television distribution. The agile software driven operation, IP native technology, and production functionality of TriCaster 2 Elite provides extensive capabilities, connectivity, and control.

With flexible implementation, integration of standard network infrastructures, a more complete set of capabilities, and a unique capacity for distributed production, TriCaster 2 Elite removes the traditional boundaries of media formats, I/O, channels, and delivery.

Produce » Real-Time Production » Video Production » Production automation systems »

KAIROS achieves high performance by fully utilizing the power and flexibility of its CPU and GPU and frees from the constraints of a traditional hardware-based system. KAIROS offers unrestricted flexibility of input, output and operation for efficient production of live video that captivates audiences.

Create » Content Acquisition and Capture » Cameras » Broadcast System cameras »

RouteMaster Lite brings familiar video routing capabilities to Newtek’s NDI® video. Based on our proven RouteMaster system, it gives operators a range of familiar control interfaces for controlling video switching.

Switching is suitable for all live, on-air applications, making RouteMaster Lite ideal for fast manual intervention.

No video streams are passed through the router system, instead traffic is redirected at the network level.  This means only minimal bandwidth and processor requirements are needed, regardless of the number of video streams and resolution. There’s also no additional video delay through the system. Additionally, RouteMaster Lite does not become a central point of failure: If the router system fails for any reason, video continues to flow from sources to destinations uninterrupted.

RouteMaster Lite is ideal for OB and production environments, supporting up to 20 sources and 20 destinations. For larger systems with more complex requirements, the same NDI switching technology is available in the full-featured RouteMaster system.

The built-in GUI is ideal for preset and take switching, showing resizeable video previews and audio metering  of the current video and the chosen source.

External Control

While control from the built-in GUI is fast and easy, it’s not ideal for all situations. Therefore RouteMaster lite supports external control from:

• Web Panels served by the integrated web server


• Familiar hardware panels like Blackmagic Design Smart Control


• Or, third-party software which uses the Blackmagic VideoHub protocol

You can use all these control methods simultaneously, with router status immediately visible to all users.

Video Player00:0000:15



Produce » Real-Time Production » Video Production » Production switchers »

From our compact, powerful UHD/HD live switchers or high-end live switchers, the range of mixers and controllers are designed with system compatibility and expandability in mind.

Produce » Real-Time Production » Video Production » Production switchers »

ChurchPix is the all-in-one video production solution that enables any church to easily stream its worship services online. Designed with volunteer operators in mind, the ChurchPix system is easy to set-up and simple to use. It provides an affordable turnkey solution for churches and comes complete with dedicated content and easy-to-use controls.

Ready to go, right out of the box, the ChurchPix systems come complete with:

• Two RoboPix PTZ IP cameras with 20x optical zoom, integrated remote control and mounting brackets


• PC hardware and IP switch


• Royalty free library of suitable clips, stills and graphic templates


• Instant streaming and recording


• Audio inputs that support any Windows Audio Device including NDI™, Dante and external USB convertors from the house sound system


• Easy to use software control interface that automates many common production tasks

Discover how you can easily produce and share your worship message online with a Broadcast Pix ChurchPix system. To learn more, or to request a free online demo, click here.

Produce » Real-Time Production » Video Production » Production switchers »

Live Compositor is a an intuitive software solution for live multi-camera production. Video switching and audio mixing, a powerful video effects engine, multi-channel graphics – including LyricX, multiple clip players, and robotic camera control are built-in and packaged in an easy to use all-in one solution.

Live Compositor is the ideal tool for news and current affairs producers, and also a perfect fit for small and medium sized remote OB sports productions.

Produce » Real-Time Production » Video Production » Production automation systems »

The Ideal Solution for Today’s Live Streaming World StreamingPix is a complete yet easy to use live production and streaming solution that provides a powerful tool set enabling users to create engaging video content with a polished, professional look.

Ideal for companies from Aquariums to Zoo’s; Churches, Corporations, Events, Schools, Universities, and all users who want to take streaming to the next level, StreamingPix is an affordable turnkey solution that is easy to set up and ready to go right out of the box. It comes with a remotely controlled RoboPix PTZ camera, a Lenovo Tiny server, a high-quality LAV microphone, SDI, HDMI, IP and NDI™ inputs and an IP switch.

StreamingPix also makes it easy to start creating compelling content, with a ready-to-use video clip library, extensive graphic templates, pre-built automated macros to simplify common tasks and a plug and play approach to integrating PowerPoint, videoconferencing systems and social media feeds through integration with the CASTUS Stream platform, which avoids complex Firewall Configurations or Port Forwarding.

With simultaneous streaming and recording capabilities, StreamingPix can stream to popular streaming and video conferencing services, such as Facebook Live, YouTube Live, IBM Cloud, Livestream, Zoom, Skype, GoToMeeting and more. Utilizing native integration to Switchboards’ Cloud platform, live video content can be streamed to up to five destinations at once after a quick and easy one-time set up.

StreamingPix provides a simple, extremely accessible and easily automated solution to event, meeting, lecture, and worship streaming - enabling non-technologists to create professional looking content quickly and easily. Start producing and streaming more compelling live content with StreamingPix - THE turnkey streaming solution for today's live streaming world.

Produce » Real-Time Production » Video Production » Production switchers »

RouteMaster uses Rascular’s proven router control and emulation technology to form a powerful yet flexible router control system. Built on tried and tested software modules, RouteMaster can be used with a wide range of video and audio routers  from all major manufacturers.

It’s equally suitable for new router installations or increasing the capabilities – and lifetime – of existing systems. You can add third-party hardware panels to existing systems, add IP connectivity to older serial routers, or simply increase the number of control ports available.

The integrated web server means operators can control routers from any web browser, using custom control panels built with Helm Designer. And because it’s built on HTML5 standards, there’s no need for browser plugins.

Produce » Real-Time Production » Video Production » Production switchers »

Pearl Mini is small in size and big on pro features, capable of recording, streaming, and switching up to three HD inputs at once at 30 fps. This hardware encoder features a unique, built-in touch screen for live confidence monitoring, switching, and control. With the intuitive touch-screen interface, it’s easy for anyone to quickly understand how to use Pearl to produce professional-quality recordings and livestreams.

Pearl systems directly integrate with Panopto and Kaltura video platforms, offering a robust solution for recording and streaming with multiple video and professional audio sources. Plus, the Pearl Crestron Control Module simplifies the process of adding Pearl into Crestron AV systems as a secure and feature-rich video capture device.

Versatile and reliable, you can count on Pearl Mini for any video capture, streaming, or recording application – from multi-camera live events and webinars to lectures and training sessions.

Produce » Real-Time Production » Video Production » Production switchers »

Epiphan Video’s Pearl-2 all-in-one video production system can simultaneously switch, stream, and record six HD programs (from any combination of up to six sources) at 30 fps or one 4K program at 30 fps. This hardware encoder features a unique, built-in touch screen for live confidence monitoring, switching, and control. With the intuitive touch-screen interface, it’s easy for anyone to quickly understand how to use Pearl to produce professional-quality recordings and livestreams.

Pearl systems directly integrate with Panopto and Kaltura video platforms, offering a robust solution for recording and streaming with multiple video and professional audio sources. Plus, the Pearl Crestron Control Module simplifies the process of adding Pearl into Crestron AV systems as a secure and feature-rich video capture device.

Versatile and reliable, you can count on Pearl-2 for any video capture, streaming, or recording application – from multi-camera live events and webinars to lectures and training sessions.
