Huge experience in development of slow motion instant replay and recording servers has given us an understanding that users need compact, reliable servers suitable for hand luggage.

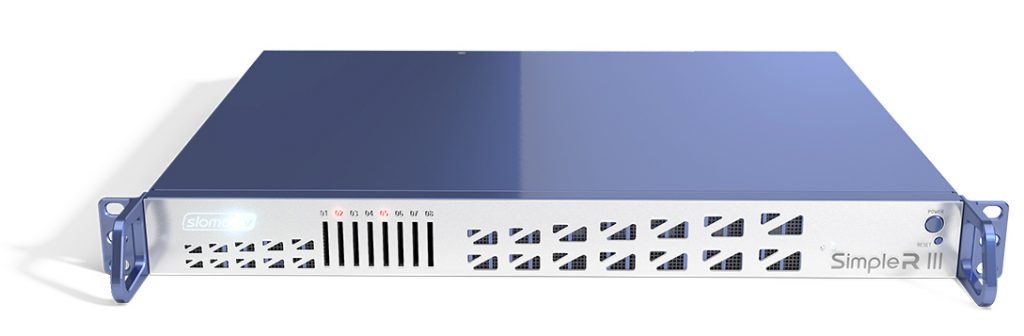

A distinctive feature of the “Simple R” servers is their small size (1U) and weight. These are broadcast grade systems with all necessary functions for Production and Replays. The basic configuration allows export of recorded video for the subsequent nonlinear editing.
Simple R III is equipped with 16 bi-directional SDI I/O.
In its basic configuration, the Simple R III supports 662 mode for HD/SD resolutions: 6 recording + 6 search + 2 playback channels + FX.
The top configuration provides:
- For HD/SD SDI: Up to 7 recording channels + 7 search channels + 2 playback channels + FX
- For 3G SDI: 4 recording channels + 4 search channels + 2 playback channels + FX
Simple R III is the only server that can accommodate a second workplace. Two operators can simultaneously and independently work with 442 configurations (4 recording channels + 4 search channels + 2 playback channels + FX).
For exchange of clips and playlists between slomo.tv servers Simple R III is equipped with 1GbE network interface.
The Simple R III comes with Control Zx which can be replaced with Control ZR.
It is also possible to add an 8-channel, super high-speed USB 3.0 SD card reader (SDX option). SD cards are used for exporting and importing video materials, as well as for recording to H.264 Proxy or ProRes standards.
