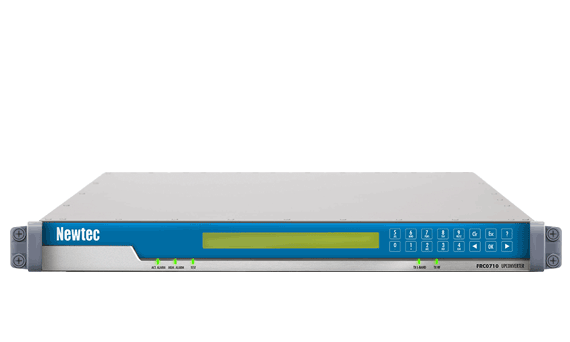

The FRC0710 offers advanced and unique features such as a calibrated high linearity over the entire bandwidth combined with a very high frequency stability. These features make the FRC0710 the perfect solution for a wide range of transmissions ranging from very small carriers to full transponder applications.
The FRC0710 is easy to operate and monitor. All control and monitoring parameters are available locally on the front panel and remotely through a web interface. It is also possible to control or monitor the FRC0710 via RMCP or SNMP.
Key features
Agile IF to L-band Upconverter
Optional up-conversion to C, Ku or DBS-band
Ultra fine L-band frequency resolution (48Hz)
IF input frequency switchable between 70 MHZ & 140 MHz
Switchable spectrum inversion
Very high frequency stability
Very low spurious characteristics
Phase noise compliant with Intelsat IBS/ Eutelsat SMS
High linearity over the entire bandwidth
Optional 10 MHz + DC power for BUC
