Audio control is not always a separate concern to the video producer. SKAARHOJ controllers generally give you access to audio adjustments and monitoring through encoders and four-way buttons and by means of multi level LED bars. IF that doesn’t cut it, Wave Board comes to the rescue with eight motorized faders, full color LED bars, a four button control section per channel and global function keys to multiply it all at your will. Exceptional.

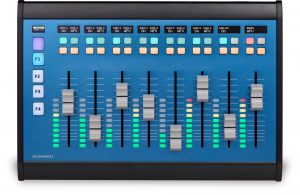

Features a world of options
- 8 channels of motorized faders for parameter and volume control
- Monitor audio levels with the RGB LED bars
- 2×2 auxiliary button matrix with crisp OLED legends for muting, solo, up/down action
- Expand beyond 8 channels with so sticated meta control section
- Ethernet with PoE (IEEE802.3af)
- UniSketch OS
Other products from this company:
Air Fly Pro w/Blue Pill Inside
Air Fly Pro w/Blue Pill Inside
Color Fly w/Blue Pill Inside
Master Key One w/Blue Pill Inside
PTZ Extreme w/Blue Pill Inside
PTZ Fly w/Blue Pill Inside
PTZ Pro w/Blue Pill Inside
PTZ Pro w/Blue Pill Inside
RCP Pro w/Blue Pill Inside –...
Air Fly Pro w/Blue Pill Inside
Air Fly Pro w/Blue Pill Inside is the ultimate controller for the one man band setup; it combines PTZ and Live Switching in a beautiful way. The Hall Effect T-bar and the classic ME section will easily make you feel at home, and you can add even more luxuries with NKK buttons.
This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.
Features
- Custom SKAARHOJ Hall Effect T-bar and OLED Progress Bar
- Blue Pill Inside
- Universal control of multiple 3rd party devices
- Flexible user configuration
- IP-based remote control, can be powered with PoE
- Auxiliary four-way buttons
- Backlit encoders with crisp graphical OLED displays
- Pressure sensitive elastomer zoom rocker and joystick pad
- Keyer section with incredible reconfiguration flexibility
- ME section with multi level shift and user keys
- RGB multi level metering LEDs for VU, state indication and tally
- 12-key bus rows with four-way buttons and OLED legends
- Ethernet with PoE (IEEE802.3af/t)
- Designed and built in Denmark
Air Fly Pro w/Blue Pill Inside
Air Fly Pro w/Blue Pill Inside is the ultimate controller for the one man band setup; it combines PTZ and Live Switching in a beautiful way. The Hall Effect T-bar and the classic ME section will easily make you feel at home, and you can add even more luxuries with NKK buttons.
This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.
Features
- Custom SKAARHOJ Hall Effect T-bar and OLED Progress Bar
- Blue Pill Inside
- Universal control of multiple 3rd party devices
- Flexible user configuration
- IP-based remote control, can be powered with PoE
- Auxiliary four-way buttons
- Backlit encoders with crisp graphical OLED displays
- Pressure sensitive elastomer zoom rocker and joystick pad
- Keyer section with incredible reconfiguration flexibility
- ME section with multi level shift and user keys
- RGB multi level metering LEDs for VU, state indication and tally
- 12-key bus rows with four-way buttons and OLED legends
- Ethernet with PoE (IEEE802.3af/t)
- Designed and built in Denmark
Color Fly w/Blue Pill Inside
Color Fly w/Blue Pill Inside is your uncompromising multi camera RCP bringing you innovative iris control with motorized faders. You get the tactile position feedback of the classic iris joystick but can easily manage 4-8 or more cameras from the same compact panel.
With Blue Pill Inside you can easily add and mix cameras onto the controller in a few clicks with network device discovery!
Features
- Blue Pill Inside
- Universal control of multiple 3rd party devices
- Flexible user configuration
- IP-based remote control, can be powered with PoE
- Programmable four-way buttons with OLED legends
- RGB backlit encoders with crisp widescreen OLED legends
- Camera selection and multi-level shift key - control 4,8 or more cameras
- Graphical widgets for level monitoring and assignable buttons
- Optional SDI for BlackMagic Design Camera Control
- 4 motorized faders for multi camera iris control
- Easily manage 4, 8 or even more cameras from the same compact panel
- Ethernet with PoE (IEEE802.3af/t)
- Designed and built in Denmark
ETH-GPI Link
Setting up an I/O device have never been this flexible. Connect and control anything from your tally lamps, trigger ATEM switcher routines, control a HyperDeck, change Scopes on a SmartScope Duo and route inputs/outputs on a VideoHub. Defining parameters – single or multiple - for inputs/outputs is extremely fast, thanks to the drop-down menu structure in UniSketch OS. Connect and control up to 8 devices at the same time!
The general-purpose I/O controllers offer 8/16 inputs and 8/16 outputs, all electrically separated with quality relays and optocouplers. GPO is implemented with relays shorting to GND. GPI implemented with optical isolators shorted to GND.
Please notice: SKAARHOJ Controllers with GPI inputs accept open collector and relay outputs (pulled to GND). The default HD15 tally connector on the TriCaster TC1 does not provide a direct working signal to the ETH-GPI Link. Converting the 5V potential to GND is needed.
Features
- 1 x DB25 Connector Configuration
- 8 GPO
- 8 GPI
- Ethernet with PoE (IEEE802.3af)
- Made in Denmark
ETH-LANC Link
Control your Sony cameras such as FS5, FS7 and other LANC compatible cameras (any camera the Sony RM-BP30 supports). Or use the ETH-LANC Link to control Canon cameras that speaks the RC-V100 Protocol such as the C Series, XF Series and ME Series.
Features
- 2.5 mm connector
- LANC Protocol or Canon RC-V100 Protocol
- Camera Selector
- Ethernet with PoE (IEEE802.3af)
- Made in Denmark
ETH-SDI Link
Receives “UDP Camera Control” information over Ethernet and forwards it on the SDI out connector.
Used to merge network data from multiple RCPs onto a single SDI wire.
Features
- BlackMagic 3G-SDI for ETH-SDI Link
- Alternative Firmwares for ETH-SDI Link
- Single Controller multiple returns
- Multiple Controller single return
- Made in Denmark
Master Key One w/Blue Pill Inside
Master Key One w/Blue Pill Inside is our top of the line stand-alone switcher panel.
It’s an exceptionally powerful panel containing Blue Pill Inside and therefore it also has the native ability to connect an MK48 panel to go modular and expand!
Together MK48 and Master Key One feature a powerful blend of industry standard NKK buttons and SKAARHOJs innovative custom molded elastomer four-way buttons along with an uncompromising use of OLED displays to create a 100% flexible, and universal and modular switcher surface for high-end studios and OB trucks.
This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.
Features
- Blue Pill Inside
- Universal control of multiple 3rd party devices
- Flexible user configuration
- IP-based remote control, can be powered with PoE
- RGB multi level metering LEDs for VU, state indication and tally
- Large, crisp graphical OLED windows for labels and section titles
- Sculptured cap RGB broadcast buttons. NKK Japanese quality, best of the best
- Custom made SKAARHOJ signature Hall-Effect T-bar with LED ring and OLED Progress Bar
- Four-way buttons and encoders with RGB back- light and OLED displays
- Ethernet with PoE (IEEE802.3af/t)
- Designed and built in Denmark
PTZ Extreme w/Blue Pill Inside
PTZ Extreme w/Blue Pill Inside is the ultimate controller for multi axis robotic systems. It is our flagship PTZ controller that was created with absolute freedom in mind: OLED labeled knobs and buttons, Fine-tuned ergonomics, Hall Effect joystick, custom zoom rocker and focus wheel.
This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.
Features
- Blue Pill Inside
- Universal control of multiple 3rd party devices
- Flexible user configuration
- IP-based remote control, can be powered with PoE
- Auxiliary keys for iris/focus options
- Four-way buttons with legends for menu
- Freely assignable encoders with OLED
- 3-axis Hall Effect Joystick
- Custom designed aluminum zoom rocker
- Labeled presets Camera selector
- Stepless, friction balanced focus wheel
- Large assignable iris knob
- Ethernet with PoE (IEEE802.3af/t)
- Designed and built in Denmark
PTZ Fly w/Blue Pill Inside
PTZ Fly w/Blue Pill Inside has a very compact form factor while featuring. Pan, tilt and rotate the handle to control your cameras. The PTZ Fly is in use in productions around the world and is a popular choice for many small setups, like churches and universities.
Pan, tilt and rotate the handle to control your cameras.
The superb OLED displays clearly show what camera settings you control and which preset you recall.
This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.
Features
• Blue Pill Inside
• Universal control of multiple 3rd party devices
• Flexible user configuration
• IP-based remote control, can be powered with PoE
• Modular multi-surface system
• High-quality backlit encoders with widescreen OLED displays
• Programmable four-way buttons with bright OLED displays
• Slim, ergonomic console form factor
• Multi-function keys for presets and camera selection
• Ethernet with PoE (IEEE802.3at)
• Designed and built in Denmark
PTZ Pro w/Blue Pill Inside
PTZ Pro w/Blue Pill Inside is a full featured PTZ controller for robotic cameras. Together with PTZ Fly this is our most popular controller. With dedicated buttons and knobs for all settings and actions, it’s easy and quick to use. You will enjoy all the same benefits as found on PTZ Fly while having a larger hand rest and faster, direct access.
This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.
Features
- Blue Pill Inside
- Universal control of multiple 3rd party devices
- Flexible user configuration
- IP-based remote control, can be powered with PoE
- Encoders for settings in large menu display
- Dedicated Numbered keys for camera 3-axis joystick
- Focus knob or preset selection
- Menu selector keys with user banks
- Camera selection or labeled preset with RGB backlit keys
- Navigation keys for paging
- Ethernet with PoE (IEEE802.3af/t)
- Designed and built in Denmark
PTZ Pro w/Blue Pill Inside
PTZ Pro w/Blue Pill Inside is a full featured PTZ controller for robotic cameras. Together with PTZ Fly this is our most popular controller. With dedicated buttons and knobs for all settings and actions, it’s easy and quick to use. You will enjoy all the same benefits as found on PTZ Fly while having a larger hand rest and faster, direct access.
This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.
Features
- Blue Pill Inside
- Universal control of multiple 3rd party devices
- Flexible user configuration
- IP-based remote control, can be powered with PoE
- Encoders for settings in large menu display
- Dedicated Numbered keys for camera 3-axis joystick
- Focus knob or preset selection
- Menu selector keys with user banks
- Camera selection or labeled preset with RGB backlit keys
- Navigation keys for paging
- Ethernet with PoE (IEEE802.3af/t)
- Designed and built in Denmark
RCP Pro w/Blue Pill Inside – Black
The RCP Pro is SKAARHOJ’s most advanced camera shading controller. It features a brand-new joystick with a built-in Tally Light and OLED Screen, to display Iris values on the fly. It also includes a large, tilted screen for a perfect viewing angle.
The RCP Pro works well for remote production. Just plug the controller into your existing IP network, via the built-in IP connection. The RCP Pro is also PoE as well.
The RCP Pro is a perfect solution to shade cameras from major manufacturers, such as RED, Canon, ARRI and Lumix, among several others.
The RCP Pro comes with Blue Pill Inside. Blue Pill is SKAARHOJs new platform that further expands the controlling capabilities of SKAARHOJ products. For more information on the capabilities of Blue Pill, please view SKAARHOJ’s YouTube Video here.
Features
- Blue Pill inside
- Fits in existing OB Van racks with a Sony RCP Form factor (4”/102mm Wide), or sits perfectly on a Table.
- Brings in Color Setting Controls of multiple main broadcast and cinema cameras on the market today.
- Thanks to Blue Pill Inside, the RCP Pro can shade the RED KOMODO/V-RAPTOR, CANON C300MKIII/C500MKII, and Lumix BGH1/BSH1, to name a few.
- Includes a built-in Tally Light, to display values set for the joystick.
- Perfect Angle to view the Complete Overview of the Controller
- Pressure Sensitive PTZ Control Pad
- Eight high-quality backlit encoders
- User-Programmable Four-way buttons
- Camera ID clearly displayed with OLED Technology and RGB Tally Bar.
- Power Over Ethernet (IEEE802.3at)
- Manufactured and assembled in Denmark
TCP Link for ATEM
BlackMagic Design ATEM switcher has no TCP interface for easy integration with AV-systems, so SKAARHOJ has created this tool, the TCP Link for ATEM, which provides just that: A simple TCP interface to almost any feature in the switcher. It will report state changes of the switcher and accept and forward commands to the switcher. Exactly what you need for AV projects with various AV systems like Crestron, Extron, and so forth. Connect to the device via TCP, then change the desired command on the ATEM switcher and the TCP Link for ATEM will output in the terminal how the command looks that you can use to send the same command to the switcher.
Features
- Small rugged form factor
- Report state changes
- Send commands to ATEM Switcher
- Connect via TCP
- Made in Denmark
