Cloud-based
The LinkMatrix uses cloud-based transcoding to ensure compliance between any source and any streaming destination. The LinkMatrix is multi-destination and makes it possible to publish the same feed on many platforms including private CDN’s.
Key Elements
- Remote control of all Mobile Viewpoint systems in the field
- Enables a low cost complete remote production or multicamera event

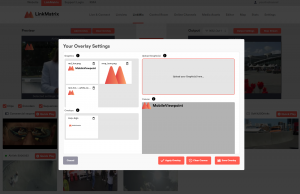

- Create a complete web channel with playlist, graphics, leaders and advertisements
Management of Video feeds

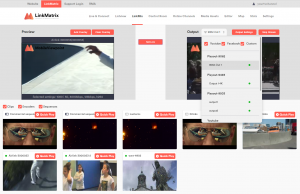

The main function of LinkMatrix is to connect video sources with TS decoders such as IRD or social media platforms such as Facebook.
Remote control
With the LinkMatrix all systems in the field can be easily controlled and monitored. They can be remotely accessed and all settings on the units can be changed. The user-friendly architecture assures that the remote-control GUI is the same as seen in the field, facilitating true remote support.
Remote production management
In combination with our Multicam units, it is possible to do a true remote production of a multi camera event. In combination with our VPilot platform, it is possible to do the complete production with just a single operator on site. LinkMatrix also supports RS-422 output, enabling remote production with cameras from Sony, Panasonic and others.
LinkMix
The LinkMatrix serves as the heart of all our services and products, and can also function as a video router when combined with the MVP LinkSwitch server. The LinkMatrix production tab offers features such as the creation of playlists, overlays, live switches and tickers to enable the production of complete IPTV channels. Playlists can be generated with exports from original WMT streams, as well as from other clips using the upload function, and can be either wall-clock based or interruptible. Interruptible playlists introduce leaders and pre- and post-roles for live productions targeted to platforms such as Facebook. they can also be used to insert advertisements before and during the broadcast of sports events.
Multicamera
For our multicamera units, LinkMatrix supports web-based PTZ control as well as shading and color correction.
Other products from this company:
IQ Sports Producer/IQSP
LinkMatrix
vPilot
WMT AirLink
Clipper
With Mobile Viewpoint's webbased live TV clipping application, Clipper, content teams can now use this powerful tool to select key moments as they occur from a live stream, edit and post them within 30 seconds on Social Media platforms or a private CDN.
With Clipper there no need any more complicated editing systems. Just access the Clipper application through the LinkMatrix portal, select your live stream, select highlights, edit them frame accurately and post them instantly.
Real-time, fast and in the highest quality. And no extra hardware needed!
Advantages
- Real-time
- Web-based
- Integrated part of the Mobile Viewpoint LinkMatrix portal
- Easy to use user interface based on scene recognition and frame accurately editing
Benefits
- Be the first to share content on social media channels
- Engage bigger and new audiences with your short format content
- Re-use key moments after the actual event
IQ Sports Producer/IQSP
The IQ Sports Producer is an all-in-one multi camera production suite operated by just one person. Its simple and intuitive interface allows anyone to produce and stream a game anywhere.
The IQ Sports Producer makes live and on-demand web broadcasting available without the hassle of hiring an entire camera crew. The system provides an automated video broadcast production with up to 3 180-degree cameras, which makes it possible to upgrade from a single camera to a multi camera production. The superb de-warping and stitching technology provides a natural-looking corrected image with straight line-markings.
With this technology, cost-effective cameras can be used for complete coverage of the playing field. A pan and zoomed image is automatically created by special developed game tracking technology. With extra features such as live streaming, game replay generator, commentary, scoreboard options and automatic summaries and highlights, the IQ Sports Producer enables clubs to capture, stream and re-publish their field games easily and cost-effectively.
LinkMatrix
The LinkMatrix uses cloud-based transcoding to ensure compliance between any source and any streaming destination. The LinkMatrix is multi-destination and makes it possible to publish the same feed on many platforms including private CDN’s.
Key Elements
- Remote control of all Mobile Viewpoint systems in the field
- Enables a low cost complete remote production or multicamera event
- Create a complete web channel with playlist, graphics, leaders and advertisements
Management of Video feeds
The main function of LinkMatrix is to connect video sources with TS decoders such as IRD or social media platforms such as Facebook.
Remote control
With the LinkMatrix all systems in the field can be easily controlled and monitored. They can be remotely accessed and all settings on the units can be changed. The user-friendly architecture assures that the remote-control GUI is the same as seen in the field, facilitating true remote support.
Remote production management
In combination with our Multicam units, it is possible to do a true remote production of a multi camera event. In combination with our VPilot platform, it is possible to do the complete production with just a single operator on site. LinkMatrix also supports RS-422 output, enabling remote production with cameras from Sony, Panasonic and others.
LinkMix
The LinkMatrix serves as the heart of all our services and products, and can also function as a video router when combined with the MVP LinkSwitch server. The LinkMatrix production tab offers features such as the creation of playlists, overlays, live switches and tickers to enable the production of complete IPTV channels. Playlists can be generated with exports from original WMT streams, as well as from other clips using the upload function, and can be either wall-clock based or interruptible. Interruptible playlists introduce leaders and pre- and post-roles for live productions targeted to platforms such as Facebook. they can also be used to insert advertisements before and during the broadcast of sports events.
Multicamera
For our multicamera units, LinkMatrix supports web-based PTZ control as well as shading and color correction.
vPilot
WMT AirLink

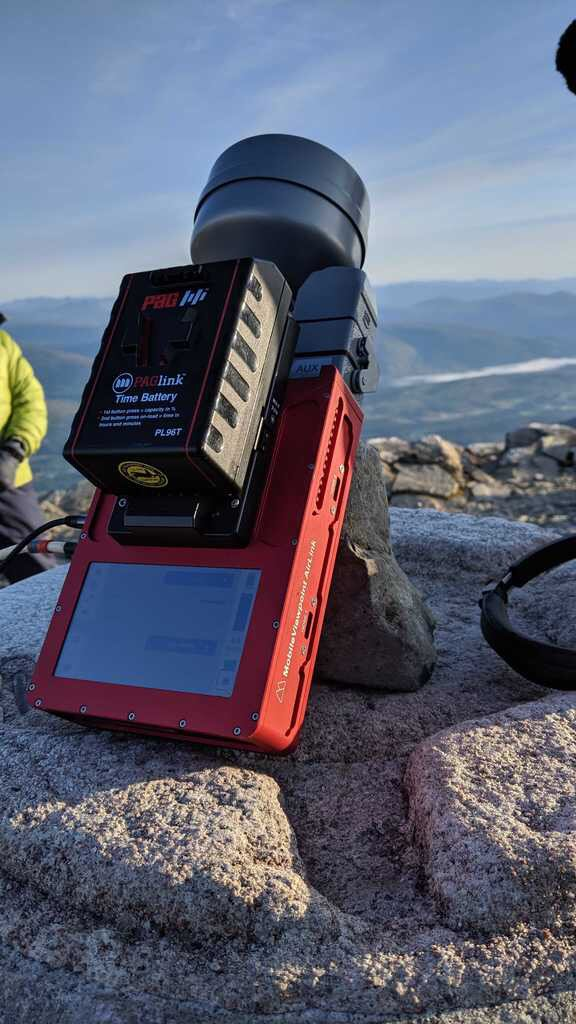

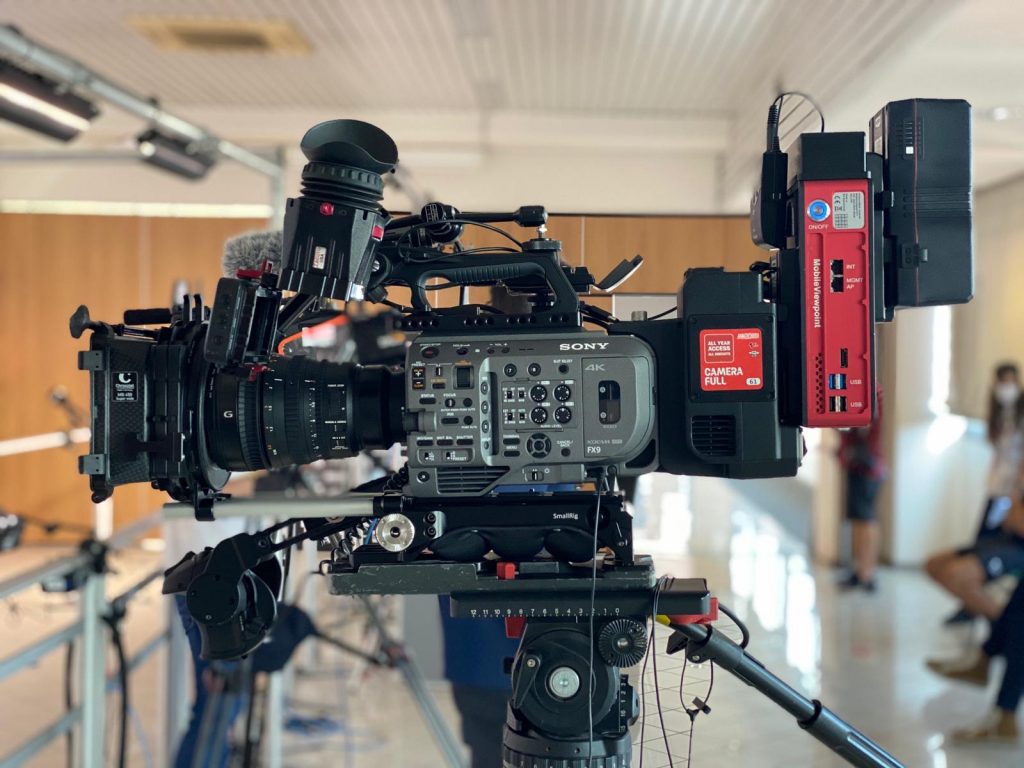

The Airlink family of mobile encoders is Mobile Viewpoint’s flagship product. With the a range of unique features and developments, the Airlink products are the most technological advanced mobile encoders available today.
In use by many global broadcasters to create high quality and low latency video feeds for outside broadcast and live remote production, the Airlink can support up to 4 cameras simultaneously, can transmit 4K, and can include internal 5G modems.
The unit is capable of supporting up to 40MB/sec over bonded networks and can transmit back to a studio or to the cloud using up to and including 8 internal 3G/4G/5G modems, Wi-Fi, LAN and/or satellite and can bond all these connections to make a single high bandwidth connection. By using adaptive bitrate, the Airlinks optimize the video feed based on the available bandwidth ensuring high quality video even in the most demanding of situations.

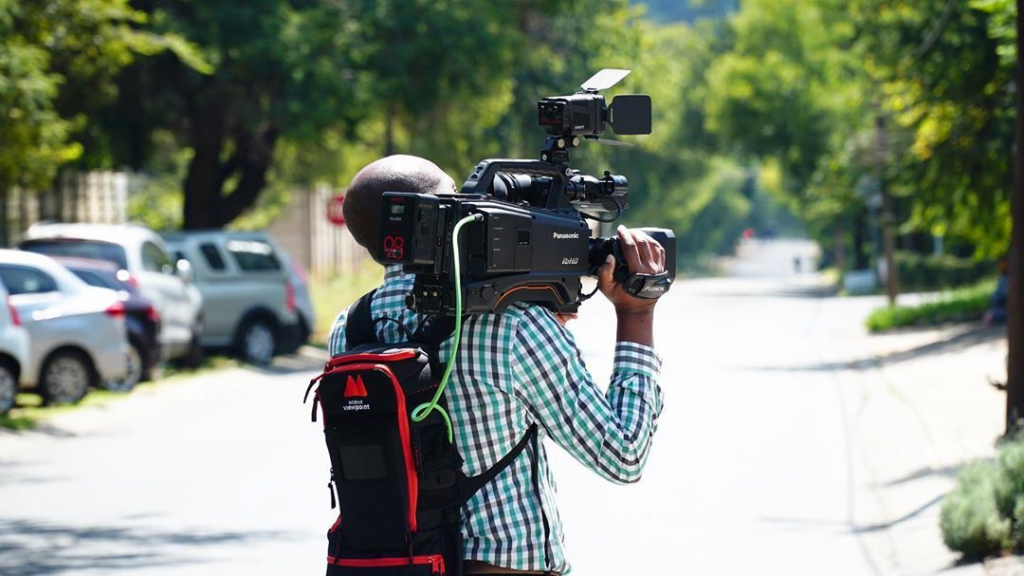

The lightweight and modest size encoder can fit into a backpack and is battery powered. It supports many of the features expected of a mobile encoder including both H.265 and H.264 encoding, Store & Forward for internal storage, 2-way audio IFB intercom and return video.
The Airlinks also boast a range of additional features including remote RCP control, Tally Control, IP streaming at the same time as video streaming, and the system can be used as a secure Wi-Fi hot spot even while live. It also includes a unique feature called 2Waylink allowing encoder-to-encoder streaming. All encoders in the field can be remotely managed and controlled via Linkmatrix, a free-to-use management platform that operates from a browser on any device. This means non-technical journalists and production people in the field do not need to manage the units directly. Linkmatrix can manage individual encoders, destinations, show proxies,record & go, video return, networks and other set ups and configurations.
http://www.mobileviewpoint.com/products/mobile-encoders/agile-airlink
