Air Fly Pro w/Blue Pill Inside is the ultimate controller for the one man band setup; it combines PTZ and Live Switching in a beautiful way. The Hall Effect T-bar and the classic ME section will easily make you feel at home, and you can add even more luxuries with NKK buttons.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.

Features

• Custom SKAARHOJ Hall Effect T-bar and OLED Progress Bar


• Blue Pill Inside


• Universal control of multiple 3rd party devices


• Flexible user configuration


• IP-based remote control, can be powered with PoE


• Auxiliary four-way buttons


• Backlit encoders with crisp graphical OLED displays


• Pressure sensitive elastomer zoom rocker and joystick pad


• Keyer section with incredible reconfiguration flexibility


• ME section with multi level shift and user keys


• RGB multi level metering LEDs for VU, state indication and tally


• 12-key bus rows with four-way buttons and OLED legends


• Ethernet with PoE (IEEE802.3af/t)


• Designed and built in Denmark

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Remote production tools »

Air Fly Pro w/Blue Pill Inside is the ultimate controller for the one man band setup; it combines PTZ and Live Switching in a beautiful way. The Hall Effect T-bar and the classic ME section will easily make you feel at home, and you can add even more luxuries with NKK buttons.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.

Features

• Custom SKAARHOJ Hall Effect T-bar and OLED Progress Bar


• Blue Pill Inside


• Universal control of multiple 3rd party devices


• Flexible user configuration


• IP-based remote control, can be powered with PoE


• Auxiliary four-way buttons


• Backlit encoders with crisp graphical OLED displays


• Pressure sensitive elastomer zoom rocker and joystick pad


• Keyer section with incredible reconfiguration flexibility


• ME section with multi level shift and user keys


• RGB multi level metering LEDs for VU, state indication and tally


• 12-key bus rows with four-way buttons and OLED legends


• Ethernet with PoE (IEEE802.3af/t)


• Designed and built in Denmark

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Remote production tools »

Color Fly w/Blue Pill Inside is your uncompromising multi camera RCP bringing you innovative iris control with motorized faders. You get the tactile position feedback of the classic iris joystick but can easily manage 4-8 or more cameras from the same compact panel.

With Blue Pill Inside you can easily add and mix cameras onto the controller in a few clicks with network device discovery!

Features

• Blue Pill Inside


• Universal control of multiple 3rd party devices


• Flexible user configuration


• IP-based remote control, can be powered with PoE


• Programmable four-way buttons with OLED legends


• RGB backlit encoders with crisp widescreen OLED legends


• Camera selection and multi-level shift key - control 4,8 or more cameras


• Graphical widgets for level monitoring and assignable buttons


• Optional SDI for BlackMagic Design Camera Control


• 4 motorized faders for multi camera iris control


• Easily manage 4, 8 or even more cameras from the same compact panel


• Ethernet with PoE (IEEE802.3af/t)


• Designed and built in Denmark

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Setting up an I/O device have never been this flexible. Connect and control anything from your tally lamps, trigger ATEM switcher routines, control a HyperDeck, change Scopes on a SmartScope Duo and route inputs/outputs on a VideoHub. Defining parameters – single or multiple - for inputs/outputs is extremely fast, thanks to the drop-down menu structure in UniSketch OS. Connect and control up to 8 devices at the same time!

The general-purpose I/O controllers offer 8/16 inputs and 8/16 outputs, all electrically separated with quality relays and optocouplers. GPO is implemented with relays shorting to GND. GPI implemented with optical isolators shorted to GND.

Please notice: SKAARHOJ Controllers with GPI inputs accept open collector and relay outputs (pulled to GND). The default HD15 tally connector on the TriCaster TC1 does not provide a direct working signal to the ETH-GPI Link. Converting the 5V potential to GND is needed.



Features

• 1 x DB25 Connector Configuration


• 8 GPO


• 8 GPI


• Ethernet with PoE (IEEE802.3af)


• Made in Denmark

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Control your Sony cameras such as FS5, FS7 and other LANC compatible cameras (any camera the Sony RM-BP30 supports). Or use the ETH-LANC Link to control Canon cameras that speaks the RC-V100 Protocol such as the C Series, XF Series and ME Series.

Features

• 2.5 mm connector


• LANC Protocol or Canon RC-V100 Protocol


• Camera Selector


• Ethernet with PoE (IEEE802.3af)


• Made in Denmark

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Receives “UDP Camera Control” information over Ethernet and forwards it on the SDI out connector.

Used to merge network data from multiple RCPs onto a single SDI wire.



Features

• BlackMagic 3G-SDI for ETH-SDI Link


• Alternative Firmwares for ETH-SDI Link


• Single Controller multiple returns


• Multiple Controller single return


• Made in Denmark

Produce » Real-Time Production » Video Production » Real-time production replay and slow-motion servers »

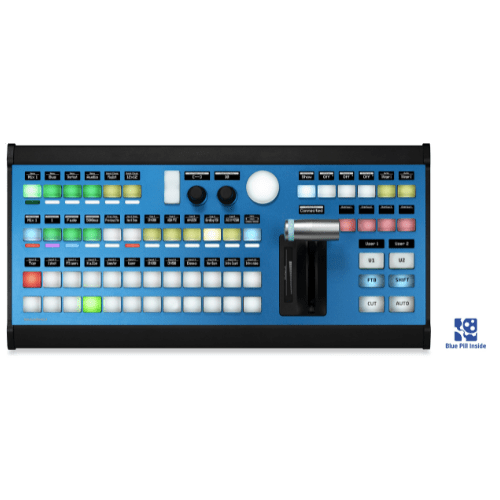

Master Key One w/Blue Pill Inside is our top of the line stand-alone switcher panel.

It’s an exceptionally powerful panel containing Blue Pill Inside and therefore it also has the native ability to connect an MK48 panel to go modular and expand!

Together MK48 and Master Key One feature a powerful blend of industry standard NKK buttons and SKAARHOJs innovative custom molded elastomer four-way buttons along with an uncompromising use of OLED displays to create a 100% flexible, and universal and modular switcher surface for high-end studios and OB trucks.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.

Features

• Blue Pill Inside


• Universal control of multiple 3rd party devices


• Flexible user configuration


• IP-based remote control, can be powered with PoE


• RGB multi level metering LEDs for VU, state indication and tally


• Large, crisp graphical OLED windows for labels and section titles


• Sculptured cap RGB broadcast buttons. NKK Japanese quality, best of the best


• Custom made SKAARHOJ signature Hall-Effect T-bar with LED ring and OLED Progress Bar


• Four-way buttons and encoders with RGB back- light and OLED displays


• Ethernet with PoE (IEEE802.3af/t)


• Designed and built in Denmark

Create » Content Acquisition and Capture » Cameras » Specialist, POV, PTZ, action Cameras »

PTZ Extreme w/Blue Pill Inside is the ultimate controller for multi axis robotic systems. It is our flagship PTZ controller that was created with absolute freedom in mind: OLED labeled knobs and buttons, Fine-tuned ergonomics, Hall Effect joystick, custom zoom rocker and focus wheel.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.

Features

• Blue Pill Inside


• Universal control of multiple 3rd party devices


• Flexible user configuration


• IP-based remote control, can be powered with PoE


• Auxiliary keys for iris/focus options


• Four-way buttons with legends for menu


• Freely assignable encoders with OLED


• 3-axis Hall Effect Joystick


• Custom designed aluminum zoom rocker


• Labeled presets Camera selector


• Stepless, friction balanced focus wheel


• Large assignable iris knob


• Ethernet with PoE (IEEE802.3af/t)


• Designed and built in Denmark

Create » Content Acquisition and Capture » Cameras » Specialist, POV, PTZ, action Cameras »

PTZ Fly w/Blue Pill Inside has a very compact form factor while featuring. Pan, tilt and rotate the handle to control your cameras. The PTZ Fly is in use in productions around the world and is a popular choice for many small setups, like churches and universities.

Pan, tilt and rotate the handle to control your cameras.

The superb OLED displays clearly show what camera settings you control and which preset you recall.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.

Features

• Blue Pill Inside

• Universal control of multiple 3rd party devices

• Flexible user configuration

• IP-based remote control, can be powered with PoE

• Modular multi-surface system

• High-quality backlit encoders with widescreen OLED displays

• Programmable four-way buttons with bright OLED displays

• Slim, ergonomic console form factor

• Multi-function keys for presets and camera selection

• Ethernet with PoE (IEEE802.3at)

• Designed and built in Denmark

Create » Content Acquisition and Capture » Cameras » Specialist, POV, PTZ, action Cameras »

PTZ Pro w/Blue Pill Inside is a full featured PTZ controller for robotic cameras. Together with PTZ Fly this is our most popular controller. With dedicated buttons and knobs for all settings and actions, it’s easy and quick to use. You will enjoy all the same benefits as found on PTZ Fly while having a larger hand rest and faster, direct access.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.

Features

• Blue Pill Inside


• Universal control of multiple 3rd party devices


• Flexible user configuration


• IP-based remote control, can be powered with PoE


• Encoders for settings in large menu display


• Dedicated Numbered keys for camera 3-axis joystick


• Focus knob or preset selection


• Menu selector keys with user banks


• Camera selection or labeled preset with RGB backlit keys


• Navigation keys for paging


• Ethernet with PoE (IEEE802.3af/t)


• Designed and built in Denmark

Create » Content Acquisition and Capture » Cameras » Specialist, POV, PTZ, action Cameras »

PTZ Pro w/Blue Pill Inside is a full featured PTZ controller for robotic cameras. Together with PTZ Fly this is our most popular controller. With dedicated buttons and knobs for all settings and actions, it’s easy and quick to use. You will enjoy all the same benefits as found on PTZ Fly while having a larger hand rest and faster, direct access.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.

Features

• Blue Pill Inside


• Universal control of multiple 3rd party devices


• Flexible user configuration


• IP-based remote control, can be powered with PoE


• Encoders for settings in large menu display


• Dedicated Numbered keys for camera 3-axis joystick


• Focus knob or preset selection


• Menu selector keys with user banks


• Camera selection or labeled preset with RGB backlit keys


• Navigation keys for paging


• Ethernet with PoE (IEEE802.3af/t)


• Designed and built in Denmark

Connect » Real-Time Signal Transfer » Intra-Facility Connectivity » Remote production tools »

The RCP Pro is SKAARHOJ’s most advanced camera shading controller. It features a brand-new joystick with a built-in Tally Light and OLED Screen, to display Iris values on the fly. It also includes a large, tilted screen for a perfect viewing angle.

The RCP Pro works well for remote production. Just plug the controller into your existing IP network, via the built-in IP connection. The RCP Pro is also PoE as well.

The RCP Pro is a perfect solution to shade cameras from major manufacturers, such as RED, Canon, ARRI and Lumix, among several others.

The RCP Pro comes with Blue Pill Inside. Blue Pill is SKAARHOJs new platform that further expands the controlling capabilities of SKAARHOJ products. For more information on the capabilities of Blue Pill, please view SKAARHOJ’s YouTube Video here.

Features

• Blue Pill inside


• Fits in existing OB Van racks with a Sony RCP Form factor (4”/102mm Wide), or sits perfectly on a Table.


• Brings in Color Setting Controls of multiple main broadcast and cinema cameras on the market today.


• Thanks to Blue Pill Inside, the RCP Pro can shade the RED KOMODO/V-RAPTOR, CANON C300MKIII/C500MKII, and Lumix BGH1/BSH1, to name a few.


• Includes a built-in Tally Light, to display values set for the joystick.


• Perfect Angle to view the Complete Overview of the Controller


• Pressure Sensitive PTZ Control Pad


• Eight high-quality backlit encoders


• User-Programmable Four-way buttons


• Camera ID clearly displayed with OLED Technology and RGB Tally Bar.


• Power Over Ethernet (IEEE802.3at)


• Manufactured and assembled in Denmark

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

BlackMagic Design ATEM switcher has no TCP interface for easy integration with AV-systems, so SKAARHOJ has created this tool, the TCP Link for ATEM, which provides just that: A simple TCP interface to almost any feature in the switcher. It will report state changes of the switcher and accept and forward commands to the switcher. Exactly what you need for AV projects with various AV systems like Crestron, Extron, and so forth. Connect to the device via TCP, then change the desired command on the ATEM switcher and the TCP Link for ATEM will output in the terminal how the command looks that you can use to send the same command to the switcher.



Features

• Small rugged form factor


• Report state changes


• Send commands to ATEM Switcher


• Connect via TCP


• Made in Denmark

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Alchemist Live is a unique stream-based solution enabling the next generation of unrivaled framerate conversion for live IP and SDI media streams.
Alchemist Live from Grass Valley, a Belden Brand, offers the very best motion compensated framerate conversion, providing transparent, artifact-free conversion for seamless global distribution of live media.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Built to fit in any existing and future IP broadcast infrastructure, the Neuron platform offers the most powerful processing capabilities in the industry. With its ethernet-based architecture, Neuron can accommodate a wide range of audio-video processing needs in IP environments: frame synchronization, up/down conversion, color correction, HDR conversion, audio (de)embedding and audio shuffling. It also bridges the gap between baseband SDI and any type of IP media streams, protecting your investments today for future demands.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Control your Sony cameras such as FS5, FS7 and other LANC compatible cameras (any camera the Sony RM-BP30 supports). Or use the ETH-LANC Link to control Canon cameras that speaks the RC-V100 Protocol such as the C Series, XF Series and ME Series.

Features

• 2.5 mm connector


• LANC Protocol or Canon RC-V100 Protocol


• Camera Selector


• Ethernet with PoE (IEEE802.3af)


• Made in Denmark

Connect » Provide Connectivity » Connectivity & Bandwidth » Fiber and private IP connectivity »

JPEG XS compression ​for HD, 4K & 8K ​At the speed of light!

Available for CPU or GPU, implementing the newJPEG-XS standardand many more features, the intoPIX FastTICO-XS SDKs provide the highest quality, lowest latency, visually lossless codec for the optimization of your application. FastTICO-XS SDKs are perfect for all professionals looking to deploy ultra-low latency, lossless encoding over their whole infrastructure and workflows.

Feature overview

Quality & latency

• Best-in-class visually lossless video codec , compliant with JPEG XS


• Adjustable compression ratio (on frame by frame) with constant bitrate throughput (CBR)


• From Lossless down to near-lossless / visually lossless


• Ultra-low latency capability (down to only few lines in CPU) with an optimal API


• Optimized for real-time operations

Processors (CPU / GPU)

• Highly parallelized processing in encode/decode


• x86-64 Intel / AMD CPU   (SSE 4.1, AVX2 or newer) in CPU


• Nvidia GPU (CUDA)

Image formats & frame rates

• Supports monochrome (4:0:0, Alpha) up to 16bit,


• Support 4:2:2  and 4:4:4 8/10/12 bit


• Validated up 8K UHDTV-1 (8192)


• Frame rate depends on CPU/GPU performance & SDK packages

Compression

• Compliant with JPEG XS standard & profiles


• Additional advanced features by intoPIX improving performances & quality.

Rate control

• Adjustable compression rate


• Constant (predictable) bitrate (CBR)

Operating systems

• Windows & Linux (32-bit/64-bit) + macOS (64 bit)

Add-ons

• Embedded Downscaler Add-On: Proxy x1 & x2 decoding (ie. decode directly HD resolution or 4K resolution from  8K XS-compressed video stream)  and reduce your CPU or GPU load.


• FFmpeg Add-On : connect directly the intoPIX SDK to FFmpeg


• Insertion/Extraction of Color Specification box / Video Support box from JPEG-XS part 3


• SDI Mapping Add-On: enables users to map 4K/8K effciently over existing 3G/HD-SDI cables. This unique feature reformats the XS codestream to fully map the SDI active area avoiding the forbidden EAV/SAV codes, offering a 20% gain of compression/quality performances.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The DA-HDTV-USB video capture device is a portable and compact module that captures video from just about any source (e.g. cameras and computers). It can capture the video as an HDMI 2.0 input up to UHD and an SDI input up to 3G (1080p). It supports resolutions up to 3840x2160p, 4:4:4, with an HDMI loop-out and USB 3.0 output streams at 1080p maximum resolution. Once video is captured, it can be recorded to another device or streamed for production or online applications. In application, a facility may need to capture video from cameras, record the video to a computer and ultimately stream the video out for live conferencing.

• This compact box - with a magnetic bottom for an easy installation on a metal surface or using the supplied mounting plate, accepts HDMI or SDI input signals and streams them to its USB 3.1 output.


• It accepts HDMI 2.0 signals video resolutions up to 4K/UHD 60 Hz (4:4:4) and SDI signals up to 3G-SDI (1080p60) and has loop out outputs for both. The USB 3.1 streaming output maximum resolution is 1080p60 (meaning that 4K/UHD signals are down converted to 1080p).


• It works with software media players such as VLC and other conferencing applications. It is very easy to set up: Just connect it, launch the media player or conferencing application and select the device as audio and video source. You can then record or stream the DA-HDTV-USB video and audio signals. It is compatible with Windows,  MAC and Linux computers.


• It has a mic input allowing to mix voice with the input audio and a speaker output allowing to check the audio output.


• All the necessary cables and accessories are supplied as standard.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The IF8K-UCN is a frame synchronizer that supports upconversion of HD/4K UHD to 8K DG (Dual Green). It inputs HD-SDI or quad-link 3G-SDI (3G-SDI x 4) and outputs octa-link 3G-SDI (3G-SDI x 8) signals. Two-way distribution of 8K DG is standard and BB or Tri-level sync reference input is also supported. It is designed and manufactured by InSync Technology for exclusive distribution by FOR-A.

The IF8K-UCN is an ideal solution for integration of HD or 4K UHD material into 8K UHD productions using the dual-green format.

Key features:

• Frame synchronisation to an external reference with tracking PCM audio delay


• Minimum delay mode (no reference) – lock to input


• Very high quality upconversion with filter control.


• Conversion between 59.94 and 60Hz conversion (Drops or repeats 1 frame in 1000 frames)


• Optional remote control via IF8K-REMOTE

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The IF8K-FSCC synchronizes full 8K video with both 12G-SDI and 3G-SDI signals. Asynchronous input of quad-link 12G-SDI (12G-SDI x 4) or 16 link 3G-SDI (3G-SDI x 16) for 8K can be synchronized by the external reference input and output with quad-link 12G-SDI. It is designed and manufactured by InSync Technology for exclusive distribution by FOR-A.

The IF8K-FSCC is an ideal solution for 8K synchronisation and colour correction.  It’s especially valuable where perfect synchronisation without audio disturbance is needed in live 8K productions.

Key features:

• Video signal processing of the luminance level, chroma level, chroma phase, and black level


• Colour corrector to set white balance, black balance, and color gamut


• Horizontal/vertical phase adjustment by the external reference input


• Additional audio delay for upstream or downstream equipment for each audio channel


• MADI audio input/output interface


• Optional remote control via IF8K-REMOTE

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The MCC-4K-A provides exceptional quality frame rate and format conversion for UHD/3G/HD signals. MCC-4K-A offers support for quad link 3G-SDI of two-Sample Interleaved (2SI) or Square Division (SQD) format as well as single link 12G/6G-SDI and SFP connectivity.

The MCC-4K-A is an ideal solution for live frame rate conversion applications, where UHD content sourced at a chosen production rate needs to be converted to other frame rates for international contribution and distribution. International sports, concerts, breaking news and current affairs can all be simply and impeccably converted to the desired output format and frame rate.

Key features:

• Motion compensated conversion from any UHD frame rate to any other UHD frame rate


• Simultaneous UHD single link 12G/6G and UHD quad link 3G-SDI output


• Automatic detection of SMPTE ST425-5 (sample interleave input) and ITU-R BT.2020 colorimetry


• Motion compensated conversion from any 3G/HD-SDI frame rate to any other 3G/HD-SDI frame rate


• Up-conversion from 3G/HD to UHD


• Down-conversion UHD to 3G/HD


• HDR/SDR conversions



Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Fiber interfaces »

The broadcast industry lives a major transition, with the move away from baseband video to adopt IP-based video contribution workflows. This move is linked to a transition to IT-centric infrastructures, with the goal of optimizing broadcast infrastructures and production costs. It implies using traditional IT equipment and computer-based solutions where dedicated electronics was needed before.

Besides the well-known VideoMaster SDK dealing with the DELTACAST I/O cards and FLEX products, the DELTACAST portfolio now includes a new SDK (Software Development Kit) component called the IP Virtual Card, offering a new programming interface named VideoMaster IP.

The IP Virtual Card is a new video and multimedia programming interface allowing the use of 3rd-party computer network cards to capture and stream out video just like you are used to do over any DELTACAST card.

Designed from the ground up to allow high-performances multimedia capture and streaming using an off-the-shelf network card, the first version ofthe IP Virtual Card targets ST2110 connectivity.

The IP Virtual Card brings in support for video transport as per ST2110-20, audio transport as per ST2110-30, and ancillary data transport as per ST2110-40. It also includes a PTP synchronization solution compliant to ST2059-1. Thanks to an optimized network stack, the IP Virtual Card insures accurate, PTP locked, media streams compliant to ST2110-21 Type W senders, and it allows implementing ST2110-21 Type A receivers.

The IP Virtual Card implements an optimized network stack based on the operating system sockets, so that it is compatible with any NIC brand and model, and so that it can be used under Windows and Linux, and also targetting virtualization environments and execution in containers. For most demanding applications, the IP Virtual Card also exists in a version based on the DPDK kernel bypass.

Using the IP Virtual Card features requires installing a license. Please contact us for further details about this.

Connect » Real-Time Signal Transfer » Audio Interfacing & Conversion » Audio signal processing, routing and infrastructure »

The greenMachine HDR Evie+ (Enhanced Video Image Engine), 1 RU half 19” rackmount, is a real-time segmented frame-by-frame broadcast-quality High Dynamic Range (HDR) to Standard Dynamic Range (SDR) converter, with frame sync supporting formats up to 4K UHD (3840x2160). It is the world’s first system that uses the advanced algorithm for sectional dynamic tone mapping, which automatically analyzes different sections of an image in HDR stream and applies optimal corrections on a frame by frame basis in real-time. This unique capability is unlike any other solution today. It is the perfect real-time production tool for sports or any live broadcast event needing high-quality real-time HDR to SDR conversions. HDR EVIE+ fits best in the single native HDR workflow reducing the cost of equipment and manual operations.

The sectional dynamic tone mapping technique is applied to several spatial areas (sectors) in the image. In this type of tone mapping technique, the algorithm adjusts the signal by using several dynamic curves, one per image segment/sector. The algorithm then combines the result with global dynamic curves based on the entire image. While the dynamic curves of the different sectors are perfectly adapted to the respective image content of their segments, the global curve is perfectly adapted to the content of the entire image. Depending on the image content within these sectors, the algorithm reacts dynamically, which allows lights and shadows to be treated independently. Therefore, dark areas can be brightened, and the bright areas can be darkened without getting a flat gradation of the image. “

HDR EVIE+ provides a 1x 4K/UHD processing channel supporting down-conversion from HDR transfer characteristics to SDR through appropriate sectional dynamic tone mapping. It also supports the Wide Color Gamut (WCG) needs of broadcasters and professional AV live events requirements. HDR Evie+ package also includes HDR Static configuration for Static HDR SDR conversions, which performs static tone mapping to realize UP/Down/Cross conversions between HDR and SDR, suited best for the studios or the environments where the light conditions do not change dynamically.



Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Exceptional performance, exceptional speed

The LU600 is LiveU’s flagship portable transmission unit for global newsgathering, live sports and events coverage. Combined with the 4K HEVC Pro Card, the LU600 delivers unparalleled video performance with extreme bandwidth efficiency – in one of the smallest portable cellular bonding units in the market.

ULTIMATE VIDEO QUALITY

The LU600 HEVC delivers the highest video quality and bitrate in the market (up to 20Mbps), fastest file transfer (60Mbps) and lowest delay.

Using the LU600 HEVC, broadcasters can provide the same video quality as H.264 while using about half the bandwidth, or offering greatly improved video quality wherever original H.264 bitrate is maintained.



BUILT FOR YOUR NEEDS

Tailored to the needs of mobile journalists, the LU600 HEVC product suite offers three configurations, including: HD, 4K-HDMI and 4K-SDI.

The unit comes in a specially designed smart backpack, with improved usability, remote control functionality and easy access to display, controls and interfaces.





ADVANTAGES

• Superior 1080/4K video quality based on broadcast-grade hardware encoding – supporting VR and 360 degree applications


• Very low power consumption, with 4 hours of battery time


• Dynamic bitrate and resolution changes on the fly


• HEVC and H.264 file encoding capability for production workflows


• ‘Live & Store‘, allowing broadcasters to go live under any network conditions while simultaneously saving a high-quality copy of the live video for future purposes.


• High speed bonded internet capabilities


• 5” LCD with ultra-responsive capacitive touchscreen

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

H.265 IP Video Transmission

The Zao-S is a portable video H.265 HEVC encoder that compresses video in real-time, enabling full HD live video streaming to anywhere from anywhere, all while on the move. The equipped H.265 video compression is the most efficient standard for encoding and compression on the market today. As a result, the Zao-S enables constant HD video quality, low latency, and the freedom to transmit live video from across the globe. The Zao-S is made in Japan and features the high quality craftsmanship that Japanese products are known for. The Zao-S is constantly being improved as our engineers develop new features and increase its capabilities.

Sophisticated Multi-Network Bonding Technology - RASCOW

The Zao-S allows up to 3 external USB modems to be bonded together to form a single connection via 4G, 5G, Wi-Fi, and/or satellite. When transmitting video live over the mobile network, many factors such as the carriers being used, cell tower locations, and varying bandwidth levels affect video quality. Our proprietary protocol, RASCOW, monitors these factors along with the changing mobile signal strength in real-time and adapts the most optimum bonded combination of the network connections. The Zao-S, with the RASCOW protocol, continues to reliably send high quality video even when signal strengths become low or fluctuate rapidly.

Sleek. Compact. Mobile.

The Zao-S maximizes mobility without sacrificing quality. Due to its lightness (about 350g) and portability, the Zao-S can be carried with a body strap or be mounted on a camera. The compact design, and one hour internal battery, make the Zao-S an excellent choice for drone applications as well.

Publish » Linear Playout » Linear Playout Systems » Channel branding graphics and promotion systems »

Cosmos provides software based playout engines for Broadcasters, Over The Top service providers and Broadcast Services companies.

The distributive virtualised architecture of the playout engine from Cosmos provides a fast and trusted cloud based playout solution enabling broadcasters and service providers to spin up both OTT and traditional TV channels in a few minutes thus lowering the cost of ownership.

Channels can be hosted from data  centres or from your own Master Control Room over a private or public cloud. Cosmos also gives you the ability to playout both file based and live services .

Cosmos is an open system which enables all the features of a playout engine be implemented on a service basis. Cosmos reduces the need to invest in capital infrastructure. It removes the need to find space for technical equipment and the ongoing cost of technical maintenance.

Channel owners in worldwide gain the freedom to outsource practically all the technical equipment traditionally required for broadcasting.

Cosmos virtualises the process of channel management under control from a standard enterprise computer via a firewall-protected secure internet connection. Programme playout can be automated to any required extent while always retaining the freedom to insert live content.

Cosmos offers established broadcasters and content owners the ability to introduce new programme channels at very short notice, whether a permanent additional to an existing bouquet or a supplementary programme stream covering a temporary event. It can be matched to a wide variety of deployment models, enabling consistent operation across baseband, hybrid IP, and virtualised, cloud-based networks.

Cosmos also enables independent content producers to establish television channels without the high start-up cost usually inherent in such ventures.

Cosmos delivers unsurpassed flexibility in format handling and transcoding. It supports practically any technical standard in today's fast-evolving television industry, whether for terrestrial, satellite or online viewing, live, near-live or catch-up.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

VICO-4L is powering 4:1 (and 8:1 optional) visually loss-less and ultra-low delay TICO compression, achieving 4K 50/60p quality transport over single 3G-SDI, HD-SDI, SFP+, ST-2110 and ST-2022-6.

Key features:

• Low latency 32 video lines fixed delay, or according to Genlock/FrameSync


• Compression ratio 4:1(4K3G-SDI), 8:1(4KHD-SDI)

• High image quality high peak signal to noise ratio (PSNR)


• Standardized SMPTE RDD 35 (TICO Alliance)

• 1 RU rack mount size (max dual channel)



Application areas



• Contribution


• Storage cost reduction to storage 1/4. 1/8


• OEM board can be provided



Technical specifications



SDI input BNC 75Ω 3G-SDI Level A 2SI, 12G-SDI Chroma 4:2:2 Bit Depth 10Bits Frame rate 50P(4:1 only), 59.94P, 60P Encoder input 4K (4 x 3G-SDI), 4K(1x12G-SDI) Decoder output 4K (4 x 3G-SDI)、4K(1x12G-SDI) Signal split mode INTER(2SI: 2 sample interleave division) Dimensions (ｍｍ) 435W x 260D x 44.5H Power supply AC 100～240V Power consumption 30VA Weight About 3.0Kg Operation temperature ０～35℃ Operation humidity 20 to 80% RH * No condensation

Connect » Provide Connectivity » Connectivity & Bandwidth » Fiber and private IP connectivity »

TICO-XS is a disruptive, innovative, visually lossless, light-weight and line-based compression technology, specifically designed to be used instead of uncompressed video in many applications. It is currently under standardization as JPEG XS.

TICO-XS is a smart upgrade path to manage higher resolutions (4K, 8K, …) and frame rates while assuring visual quality, keeping power and bandwidth at a reasonable budget and significantly reducing the complexity and cost of a system, a chip or an infrastructure.



Applications:

From 3G-SDI to IP in 4K

The mapping of the TICO-XS mezzanine compression to carry UHDTV 4K 60P over a single 3G-SDI cable has been specified in the SMPTE RDD35. intoPIX provides the needed building blocks to create a 4K over 3G-SDI solutions. Have a look at the intoPIX TICO-XS IP-cores and peripheral IP to map the compression over SDI.



4K with TICO compression over SMPTE2022-6

As SMPTE ST2022-6, defines the transport of HD-SDI or 3G-SDI over IP, using TICO-XS, it is easy to leverage an existing SMPTE 2022-6 system to carry up to three UHDTV 4K 60P streams over a single 10 GbE port using the SMPTE 2022-6 standard.



SMPTE 2110 and TICO compression

SMPTE ST2110-22 specifies the transport of compressed video over IP (including JPEG-XS), enabling you to transport any video formats over IP with full flexibility and all the benefits of TICO-XS compression.



8K over a single 10GbE

It has already been proven. TICO-XS can enable you to carry with lossless quality a 8K 60fps video stream over a single 10GbE link using TICO RTP payload and a SMPTE 2110-22 transport.



8K over a single 12G-SDI

It has already been proven. TICO-XS can enable you to carry a 8K 60fps video stream over a single 12G-SDI link with lossless quality.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

BlackMagic Design ATEM switcher has no TCP interface for easy integration with AV-systems, so SKAARHOJ has created this tool, the TCP Link for ATEM, which provides just that: A simple TCP interface to almost any feature in the switcher. It will report state changes of the switcher and accept and forward commands to the switcher. Exactly what you need for AV projects with various AV systems like Crestron, Extron, and so forth. Connect to the device via TCP, then change the desired command on the ATEM switcher and the TCP Link for ATEM will output in the terminal how the command looks that you can use to send the same command to the switcher.



Features

• Small rugged form factor


• Report state changes


• Send commands to ATEM Switcher


• Connect via TCP


• Made in Denmark

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Receives “UDP Camera Control” information over Ethernet and forwards it on the SDI out connector.

Used to merge network data from multiple RCPs onto a single SDI wire.



Features

• BlackMagic 3G-SDI for ETH-SDI Link


• Alternative Firmwares for ETH-SDI Link


• Single Controller multiple returns


• Multiple Controller single return


• Made in Denmark

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Setting up an I/O device have never been this flexible. Connect and control anything from your tally lamps, trigger ATEM switcher routines, control a HyperDeck, change Scopes on a SmartScope Duo and route inputs/outputs on a VideoHub. Defining parameters – single or multiple - for inputs/outputs is extremely fast, thanks to the drop-down menu structure in UniSketch OS. Connect and control up to 8 devices at the same time!

The general-purpose I/O controllers offer 8/16 inputs and 8/16 outputs, all electrically separated with quality relays and optocouplers. GPO is implemented with relays shorting to GND. GPI implemented with optical isolators shorted to GND.

Please notice: SKAARHOJ Controllers with GPI inputs accept open collector and relay outputs (pulled to GND). The default HD15 tally connector on the TriCaster TC1 does not provide a direct working signal to the ETH-GPI Link. Converting the 5V potential to GND is needed.



Features

• 1 x DB25 Connector Configuration


• 8 GPO


• 8 GPI


• Ethernet with PoE (IEEE802.3af)


• Made in Denmark

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The AtomX Ethernet/NDI Expansion Module for Ninja V from Atomos provides a GigE connector supporting NDI input and output with encode, decode, control, and sync capability, allowing you to transmit, distribute, or receive and monitor NDI from any NDI source. The module connects to the Ninja V\'s AtomX expansion port. After it\'s attached, it also becomes the Ninja\'s battery plate. It accepts the Ninja\'s battery, which then powers both devices at the same time.

The AtomX SYNC Expansion Module for Ninja V from Atomos adds wireless timecode, sync, and Bluetooth control to the Ninja V monitor. You can sync and/or control 1000+ Ninja V units equipped with these modules on the same network at ranges up to 984\' in efficient multicam shoots.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The Atomos Connect Convert line comes colour coded and forms a comprehensive and versatile lineup of 15 different conversion, signal processing and system integration boxes that connect, convert, scale, sync, split and repeat your video signals. The new lineup of Connect converters is not to be confused with the already existing Connect H2S HDMI to SDI and visa versa. The new lineup of Connect Convert devices feature a robust construction with locking DC and HDMI connectors, USB power and detachable mounting ears. Status is clearly displayed on bright LEDs and they can be quickly and easily configured using the free ConnectOS software.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The HDMI120 Synapse Mini Converter is Bluefish444’s SDI to HDMI video and audio signal processor for professional video workflows. The Synapse HDMI120 allows conversions from SDI signals to HDMI, and AES/ANA/SDI embedded audio input to HDMI embedded audio output.

Featuring the same high-quality standards as our video cards, the Synapse Mini Converter range offers a range of conversions, video scaling and PsF mode via configurable DIP switches, and an HDMI copy input & SDI copy output for redundancy.

Easy-to-use

• DIP switches allow for configuration of converter

Maximum Connectivity

• HDMi input with 8 channels of embedded audio


• Second HDMI input for redundancy


• 2 x 3G/HD/SD-SDI Outputs


• AES digital stereo audio input


• Analogue stereo audio input

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The ANA140 Synapse Mini Converter is Bluefish444’s analogue to SDI video and audio signal processor for professional video workflows. The Synapse ANA140 allows conversions from Composite, Component SD/HD, and S-video signals to 3G-SDI, and AES/ANA audio input to SDI-embedded audio output.

Featuring the same high-quality standards as our video cards, the Synapse Mini Converter range offers a range of conversions, video scaling and PsF mode via configurable DIP switches, and an SDI copy output for redundancy.

Easy-to-use

• DIP switches allow for configuration of converter

Maximum Connectivity

• Composite Video input


• Component Video input


• S-video input


• 2 x 3G/HD/SD-SDI Outputs


• AES digital stereo audio input


• Analogue stereo audio input

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The SDI110 Synapse Mini Converter is Bluefish444’s SDI to HDMI video and audio signal processor for professional video workflows. The Synapse SDI110 allows conversions from HDMI video signals to 3G/HD/SD SDI, and SDi-embedded audio input to HDMI embedded audio, AES digital stereo or Analogue stereo audio output.

Featuring the same high-quality standards as our video cards, the Synapse Mini Converter range offers a range of conversions, video scaling and PsF mode via configurable DIP switches, and an SDI copy input and output for redundancy.

Easy-to-use

• DIP switches allow for configuration of converter

Maximum Connectivity

• 3G/HD/SD-SDI input with embedded audio


• Second 3G/HD/SD-SDI input for redundancy


• SDI loop output


• HDMI output


• AES digital stereo audio output


• Analogue stereo audio output

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Ross offers Master Reference generators for any application. From a small openGear cards, ideal for fly packs and remote locations, up to flexible fully-redundant platforms for large multi-format facilities.

The SRG-series Master Sync Generators support a wide range of output signals and formats from composite to UHD. These reference generators can even provide multiple video standards simultaneously. Integrated video pattern generators with idents and motion are great for remote feeds.

Built to last and redundancy in mind, Ross Sync Generators will keep the heartbeat of your facility alive. All units feature redundant power and easy servicing. Automatic changeover units are available to ensure you never skip a beat.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

A throwdown mini converter needs to be built tough. GearLite modules are all constructed from heavy steel and include features like locking connectors to ensure reliable operation, wherever you throw them.

Gearlite point-of-use modules let you put them right where you need them. Every GearLite module ships standard with flexible mounting accessories and a universal power supply. They feature a compact design, so they fit almost anywhere, be it in a rack, on stage, behind a monitor or in a fly pack.

Small and compact doesn’t mean you need to settle for lower-grade processing. Our GearLite mini converter and distribution modules are built using the same high quality components and processing as our modular solutions, giving you broadcast-grade signal handling for SDI, 3G-SDI, 12G-SDI, fiber, audio and HDMI.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

ULTRA series is the extremely powerful 4K/8K video processor, codec & converter, with supports TICO, LLVC NMI & H.265 format encoder, decoder, transcoder, IP Switcher & Gateway devices to convert 4K UHD/HD SDI to or from IP in a variety of formats, very reliable and efficient bridge solutions between IP & UHD/HD-SDI formats.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Fiber interfaces »

ANY SIGNAL, ANY FORMAT, ANYWHERE

Our video network platform is designed specifically for the optimal transport of video content and can receive and deliver signals of any format. Our expansive global reach, coupled with the ability to transport secure, broadcast-quality video over public IP, means we can reliably distribute content anywhere in the world.

CONNECT TO LEADING BROADCASTERS

GTT is located in the world’s most prominent studios, distribution head-ends, transmission facilities, teleports, public switches and data centers. We can provide direct, private and secure connectivity, ensuring the highest possible performance for your mission-critical content and services.



LOWEST LATENCY FOR LIVE VIDEO

For live interviews, remote production, or delivery to online gaming platforms, you need a high-speed, dedicated network path that you can rely on for seamless video transport. GTT owns and operates many low-latency routes, including the fastest fiber optic path between North America and Europe.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

Main advantages
Highest signal quality
Extensive coverage of all transponder frequencies
High flexibility
The FRC0730 offers some advanced and unique features such as a calibrated high linearity over the entire bandwidth combined with a very high frequency stability. These features make the FRC0730 the perfect solution for a wide range of transmissions ranging from very small carriers to full transponder applications.

The FRC0730 is easy to operate and monitor. All control and monitoring parameters are available locally on the front panel and remotely through a web interface. It is also possible to control or monitor the FRC0730 via RMCP or SNMP.

Key features
Agile IF to L-band Up & Down Converter
Optional up-conversion to C, Ku or DBS-band
Ultra fine frequency resolution
IF frequency switchable between 70 MHZ & 140 MHz
Very high frequency stability
Very low spurious characteristics
Phase noise compliant to Intelsat IBS/ Eutelsat SMS
High linearity over the entire bandwidth
Optional10 MHz + DC power for BUC
Optional LNB power supply + 10 MHz

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

CX-4 Transport stream converter.

The CX-4 is a flexible 1U unit containing four independent transport stream converters, each of which can be user configured to convert between Transport Streams over IP to Asynchronous Serial Interface (TSoIP to ASI) or Asynchronous Serial Interface to Transport Streams over IP (ASI to IP). This flexibility ensures your capital costs to a minimum as you can be sure you always have the correct converter to hand.

Complying with both the DVB and SMPTE2022 standards the TSoIP interface supports Transport stream encapsulation, forward error correction and UDP/RTP de-encapsulation as defined by the SMPTE 2022 specification. Hence allowing you to match the resilience of your stream to the performance of your network.

This professional product is designed for easy and reliable operation. It is controlled via a GUI using the onboard web server which is on a separate IP interface to the TSoIP signals.  The chassis is fitted with dual power supplies and adequate ventilation to ensure for reliable service in the broadcast environment.

For added flexibility the unit can be configure at manufacture with any combination of one to four converters.

 Applications: For use in Terrestrial, Cable and Satellite broadcast systems.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The FRC0740 has 2 L-band inputs and one L-band monitoring output. The signals on the two L-band inputs can be combined inside the unit before being up-converted. The high output frequency stability is provided by an internal 10 MHz reference clock. For applications requiring a very high frequency stability (such as for very low data rate carriers), an optional very high stability reference clock can be ordered.

The FRC0740 is easy to operate and monitor. All control and monitoring parameters are available locally on the front panel and remotely through a web interface. It is also possible to control or monitor the FRC0740 via RMCP or SNMP.

Key features
Wide choice of RF frequency ranges covering C, Ku and DBS-bands
Very high frequency stability
Very low spurious characteristics
2 L-band inputs and one L-band output
Integrated signal combiner
Very high linearity
Very good gain flatness over the entire bandwidth

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

The FRC0750 can also be used as an active switching device for signal routing purposes or redundancy switching operations. In its default configuration, the FRC0750 combines up to 4 different L-band signals into one L-band signal. As an option it is possible to combine up to 8 different L-band signals within the same unit.

A DC power supply and a reference frequency are also available on the L-band output, providing a compact and cost effective solution when the FRC0750 is used in combination with an outdoor RF upconverter and/or amplifier.

The FRC0750 can be delivered with an integrated block upconverter as option. In this configuration, the FRC0750 converts the L-band output signal of the combiner to C, Ku or DBS-band. The FRC0750 is easy to operate and monitor. All control and monitoring parameters are available locally on the front panel and remotely through a web interface. It is also possible to control or monitor the FRC0750 via Newtec’s proprietary RMCP protocol or via SNMP.

Key features
Up to 8 L-band inputs
Each input is switchable and gain adjustable
Optional upconversion to C, Ku or DBS-band
Optional 10 MHz +DC power for BUC
Optional 10 MHz reference input/output
Advanced monitoring and control

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Fiber interfaces »

Full Range of SDI & IP SDVN Infrastrucure

Fiber Optics, CC, Multiviewers

RF Routing

Modular Products

PHASE - Serving the Brazilian Television Market since 1980

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

THEFINE's UHD Scaling Cross Converter

[Features of TFC-21Q3 & TFC-21CC]

Quad 3G SDI (TFC-21Q3 model only) and 12G SDI input and output : support HD, 3G Level A/B, 6G, 12G

HDMI 2.0 a/b input and output : support up to 3840 x 2160@60p

Dual Scaler included : support SDI and HDMI output with independent resolutions and convert resolutions and frame rates

Signal conversion : Cross convert SDI to HDMI and HDMI to SDI

LCD Preview and Touch Control : Monitor inputs and outputs and support Graphic User interface and touch control

Built-in Web Server : Monitor and control inputs and outputs settings and support firmware update.

Support various operation modes and HDR Metadata insertion features.

Connect » Real-Time Signal Transfer » Video Interfacing & Conversion » Standalone interfacing, signal processing and conversion »

TRUE 4K/8K HDR UHD Digital Video Audio Solid State Delay Lines without any data compression. Really the world's longest delay time, up to 300 seconds 4K UHD signals in increments of 1 frame steps. Compatible with 4K HDR UHD SDI uncompressed signal, & TICO/NMI IP variety of signal standards & formats.
