State-of-the-Art Frontend
60 mm LED Image Circle
The LED light source evenly illuminates a large 60 mm image circle for simulating large camera sensors beyond full frame, like ARRI Alexa LF, ARRI Alexa 65, RED Monstro, SONY Venice and further developments.
LED Light Engine with CPC technology
Eliminating the light fall-off on the edge of traditional lenses the P-TP7 uses a Compound Parabolic Concentrator (CPC) instead of standard lens units. This sophisticated light engine guarantees illumination uniformity.
Glass and Filter Inserts
The 3×3” glass insert between lens mount and reticle accounts for the effects of optical low pass filters or sensor cover glasses (up to 7mm thickness) in cameras. The 3×3” filter insert between light engine and reticle simulates specific color spectrums and temperatures with standard 3×3” filters.
Enhanced Workflow
Lens Data Read-out
Two multiport connectors on both sides of the projector give full access to the lens, sockets, accessories, and projector.
Electronic Mounts and Sockets
The electronic lens mounts and the lens data socket provide electrical power to the lens and enable read-out, controlling and programming of lens encoder positions (like /i-Data and LDS meta data). The lens port socket powers ENG / broadcast lenses and examines VTR, Return, and Follow Voltages.
Modularly Built System
The P-TP7 offers the traditional way of manual back focus via a knob with friction clutch protection. Calibration and read-out of back-focus is done via an analog or digital gauge.
The back-focus is adjusted by a cable bound control or the dedicated Chrosziel MagNum wireless Focus, Iris, Zoom (FIZ) Lens Control System (LCS).
Other products from this company:
Chrosziel Universal CamCollimator C-LCC
Large Format LED Lens Test Projector...
Lens Test Projector TPCXPL
Zoom Servo Drive Chrosziel CDM-LWZ3-Z
Zoom Servo Drive Chrosziel CDM-MK-Z
Zoom Servo Drive Chrosziel CDM-XK-Z
Chrosziel Universal CamCollimator C-LCC
The compact Chrosziel Universal CamCollimator (C-LCC) comes with one platform which holds a lens or a camera. The autocollimator holder can slide, swivel and is mounted on a spindle drive for height adjustment to measure the back focal length on cameras and lenses. The set up (1000 mm only) is much more compact in structure then the previous optical bench, offers a significant reduction in weight, space needs and results in an optimal price/performance ratio. A LED illumination, colour selector for green and white, camera, LCD monitor and plane glass are included. Optionally it can be upgraded by a second sliding platform for checking cameras without conversions.
Large Format LED Lens Test Projector TP7
Normal
0
21
false
false
false
DE
X-NONE
X-NONE
/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Normale Tabelle";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-parent:"";
mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
mso-para-margin-top:0cm;
mso-para-margin-right:0cm;
mso-para-margin-bottom:8.0pt;
mso-para-margin-left:0cm;
line-height:107%;
mso-pagination:widow-orphan;
font-size:11.0pt;
font-family:"Calibri",sans-serif;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-bidi-font-family:"Times New Roman";
mso-bidi-theme-font:minor-bidi;
mso-fareast-language:EN-US;}
State-of-the-Art Frontend
60 mm LED Image Circle
The LED light source evenly illuminates a large 60 mm image circle for simulating large camera sensors beyond full frame, like ARRI Alexa LF, ARRI Alexa 65, RED Monstro, SONY Venice and further developments.
LED Light Engine with CPC technology
Eliminating the light fall-off on the edge of traditional lenses the P-TP7 uses a Compound Parabolic Concentrator (CPC) instead of standard lens units. This sophisticated light engine guarantees illumination uniformity.
Glass and Filter Inserts
The 3x3” glass insert between lens mount and reticle accounts for the effects of optical low pass filters or sensor cover glasses (up to 7mm thickness) in cameras. The 3x3” filter insert between light engine and reticle simulates specific color spectrums and temperatures with standard 3x3” filters.
Enhanced Workflow
Lens Data Read-out
Two multiport connectors on both sides of the projector give full access to the lens, sockets, accessories, and projector.
Electronic Mounts and Sockets
The electronic lens mounts and the lens data socket provide electrical power to the lens and enable read-out, controlling and programming of lens encoder positions (like /i-Data and LDS meta data). The lens port socket powers ENG / broadcast lenses and examines VTR, Return, and Follow Voltages.
Modularly Built System
The P-TP7 offers the traditional way of manual back focus via a knob with friction clutch protection. Calibration and read-out of back-focus is done via an analog or digital gauge.
The back-focus is adjusted by a cable bound control or the dedicated Chrosziel MagNum wireless Focus, Iris, Zoom (FIZ) Lens Control System (LCS).
Lens Test Projector TPCXPL
Normal
0
21
false
false
false
DE
X-NONE
X-NONE
/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Normale Tabelle";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-parent:"";
mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
mso-para-margin-top:0cm;
mso-para-margin-right:0cm;
mso-para-margin-bottom:8.0pt;
mso-para-margin-left:0cm;
line-height:107%;
mso-pagination:widow-orphan;
font-size:11.0pt;
font-family:"Calibri",sans-serif;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-bidi-font-family:"Times New Roman";
mso-bidi-theme-font:minor-bidi;
mso-fareast-language:EN-US;}
Dedicated for ARRI™ lens mount plates is the Lens Test Projector TPCXPL with a 60mm diameter LED light source. Its two 3x3 filter holders allow the use of color filters and to simulate a glass way insert. Two multiport connectors offer electronical data read out for e.g. /i-Data and LDS meta data analysis.
The highlights at a glance:
• Glass & Filter insert
• 60mm LED Image Circle
• Multiport for Lens Data & Control
• Laser Rangefinder
• Manual & Remote Back Focus
• Interchangeable large universal universal mount
MagNum
The LCS consists of two parts:
Ergonomical designed hand unit
The hand units MN-150T and MN-200T each offer a handwheel with two variable mechanical stops (VariLock II), infinitely adjustable fluid damping (VariFluid), mechanical locking device and the optional inclusion of scale discs or rings. The standard delivery scope contains a large scale ring. The MN-200T hand unit additionally offers a contact-less, dust-proof slider bar with variable mechanical stops.
The optional belt Holster (MN-HOL) attaches the Hand unit securely to you belt. This means the Focus assistant can safely perform without getting stuck or swinging off of the hand unit and the hand unit itself is close at hand.
Upgradable receiver
The MagNum Extension Module Motor and Lens Port (MN-EXT-MOT-LP) offers up to 3-motor channels and a camera lens port interface for universal use in Cine and Broadcast applications. The Extension Module Motor (AL2-EXT-MOT) upgrades the MN-200R on up to 4 motor channels, for 3D or special application users.
Mounting of the extension module onto the extension Interface of the MN-200R
- Extension module MN-EXT-MOT-LP with 1x motor channel and 1x camera 12-pin Hirose interface for full broadcast capabilities (video return and talkback switching, Iris RCP control, focus, iris and zoom follow voltage)
Extension module AL2-EXT-MOT with two additional sockets for digital encoder motors (2x 7-pin Lemo)
MagNum Mini
The small motor controller MagNum Mini is perfectly suited for Gimbal, Handheld, Drone and Steadicams.
The MagNum Mini receiver is very small (91 x 53 x 19 mm) and weighs only 120 Gramm. It is compatible to all major lens motors and includes a power booster for max. torque, speed and responsiveness. The GHz wireless transmission with spectrum analyzer is the result of over 25 years’ experience that makes its reliability unprecedented.
The Hand Unit features extraordinary smooth and ergonomic user experience. Customizable user keys (U1 to U4) allow a very intuitive operation. The MN-200T Hand Unit with the VariFluid focus wheel offers smooth adjustable torque and includes two freely settable mechanical end stops (Varilock II). Via the DMX port it is possible to take over control via control panels or motion control software.
Normal
0
21
false
false
false
DE
X-NONE
X-NONE
/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Normale Tabelle";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-parent:"";
mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
mso-para-margin-top:0cm;
mso-para-margin-right:0cm;
mso-para-margin-bottom:8.0pt;
mso-para-margin-left:0cm;
line-height:107%;
mso-pagination:widow-orphan;
font-size:11.0pt;
font-family:"Calibri",sans-serif;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-bidi-font-family:"Times New Roman";
mso-bidi-theme-font:minor-bidi;
mso-fareast-language:EN-US;}
Zoom Servo Drive Chrosziel CDM-LWZ3-Z
The CDM-LWZ3-Z is designed for the Zeiss Lightweight Zoom LWZ 21-100 mm/T2.9-3.9 T zoom lens (ZEISS LWZ.3). With the Zoom Servo Drive Chrosziel addresses camera operators working in the broadcast, documentary, and related sectors offering a reasonably priced device enabling creative processes that may be impossible while pulling zoom manually.
It adds only indispensable weight to the setup. It contains one digital servo motor, the gear and a PCB with CPU in one single housing. The mounting of the Zoom Servo Drive makes the operator’s workflow comfortable. Just three captive screws are needed to mount it onto the Zeiss Lightweight Zoom (LWZ.3).
Until today, zoom servo drives were operated either by the inbuilt zoom rocker or external zoom devices. A second handgrip controls the camera settings or user commands. Both units are separated from each other and cannot be operated by one single hand. With the CDM-LWZ3-Z Chrosziel was able to unify both functionalities into one single unit. Supported are the smart grips of the Sony PXW-FS5 and Sony PXW-FS7 or any LANC compatible zoom rocker.
For operation the power cable is connected and the two Jack cables with the handgrip and the camera. Once powered the zoom servo drive calibrates automatically the end stops of the lens. To further support the operator’s piece of mind Chrosziel implemented the so called “Soft Ramping”. Instead of having the zooming suddenly and unexpectedly stop, the zoom gently slows down the movement of the lens at the end stops.
By using a LANC device the operator may build his or her setup, like shoulder, Steadicam or Gimbal applications. Thus, the CDM-LWZ3-Z makes an all-day companion for the Zeiss Lightweight Zoom LWZ.3 21-100 mm/T2.9-3.9 T zoom lens (ZEISS LWZ.3) and gives the camera operator the freedom of creativity needed. Control commands (e.g. menu / user buttons / focus magnification / camera run & stop) are immediately looped through to the camera via the LANC protocol.
For freedom of creativity the operator may choose from four different zoom modes: EB / Documentary Mode, Live / Hardcut Mode, Silent, and Direct Mode.
Zoom Servo Drive Chrosziel CDM-MK-Z
The Sony FS5, FS7, F5 or F55 operator may choose from four different zoom modes: EB / Documentary Mode, Live / Hardcut Mode, Direct Mode and Silent Mode. The fine tuning of the zoom curves took place during a workshop with Uli Mors in Dortmund, Germany. Here, Chrosziel cooperated with experienced camera operators to achieve best results for image control.
The main goal was to find ways using the full capacity of the LANC protocol and the Sony handgrip to cover a huge range of applications. Additional control commands are immediately looped through to the camera (e.g. menu / user buttons). Thus, makes the CDM-MK-Z the perfect accessory for Sony cameras and Fujinon MK lenses.
The mounting of the Lens Motorization MK-Zoom is very comfortable. Just screw the two captive screws into the threads of the Fujinon MK Zoom lens, connect the D-Tap power cable with the appropriate camera port and the two Jack cables with the handgrip and the camera.
The slightly rounded CDM-MK-Z housing fits perfectly with the lens. The gear meshes exactly with the zoom gear ring of the lens. The integrated PCB with CPU of the zoom motor sets instantaneously control commands that come from a SONY or any other LANC-compatible handle.

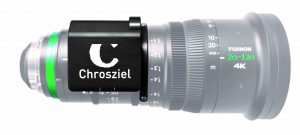

Zoom Servo Drive Chrosziel CDM-XK-Z
