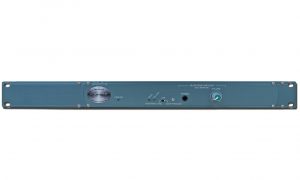

The DDA 1:6 is a cost effective distribution amplifier for digital AES signals. Via rear panel XLRs there is a single input and 6 outputs.
The output signals can pass straight through without any normalising. This is useful if you need syncronisation to be maintained. There is also an option to re-normalise all of the output signals to ensure that all outputs are at the full digital level again. It is important to realise that re-normalising a digital signal while often desirable, does cost one sample.
A headphone monitoring position is also provided on the front panel via a 6.35mm stereo jack socket. This allows monitoring of the incoming audio signal via a variable level pot.
LEDs indicate AES lock or if there is an AES error.
Signature Series Standard Features
19″ Rack Mount EarsA Signature unit can rack mount in a 1U 19” rack, regardless of the size of the unit. Rack ears are included as standard with every unit.
Front Or Rear MountingA Signature unit can be rack mounted via the front panel or if it is more convenient, via the rear panel by simply swapping the rack ears over.
Side Wings For Flat Surface MountingA Signature unit has side wings with mounting holes at the top and bottom, allowing flush fixing from above OR underneath.
Internal Switch Mode AC Power SupplyA Signature unit has an internal switch mode AC power supply, allowing worldwide power connections from 100-240v via an IEC socket.
12V DC Power ConnectionAll Signature units (except PS1) have a 4 pin XLR ±12V DC socket for connection to the PS1 Power Station. This can act as the primary or backup power source.
