PHABRIX Rx Series
PHABRIX Rx Series
Based on the award-winning Sx portable test & measurement range, the rack-mounted Rx series of rasterizers delivers advanced 2K/3G/HD/SD signal generation, analysis and monitoring for faster compliance testing and fault diagnosis of both video and audio signals.

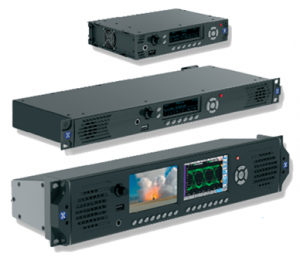

The Rx is available in three form factors:
Rx 2000 – 4 channel analyzer/generator with monitoring via dual built-in screens & speakers
The top of the range Rx 2000 offers up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and can also provide signal generation. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing via an external display. Monitoring of the instruments and video can also be performed using dual built-in screens and audio speakers.
The Rx 2000 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis. Up to 3 more channels of video analysis/generation, or up to 12x AES audio analysis/generation, can be added with expansion modules
Rx 1000 – Compact, 4 channel analyzer/generator & monitoring solution
The advanced Rx 1000 is a compact, 1RU version of the Rx 2000 without the dual built-in monitoring displays or speakers. It provides up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and also provides signal generation. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing via an external monitor.
The Rx 1000 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis. Up to 3 more channels of video analysis/generation, or up to 12x AES audio analysis/generation, can be added with expansion modules.
Rx 500 – 2 channel analyzer/generator & monitoring solution
Rx 500 – Ideal for Quality Control applications, the Rx 500 is a single/dual channel 2K/3G/HD/SD-SDI video/audio analyzer and monitoring solution in a very compact 1/2 RU frame (dual inputs per analyser). It supports dual inputs per analyzer and can also provide signal generation for video and audio. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing.
The Rx 500 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis.
The series’ key features include:
Up to 16 Simultaneous Instruments
Monitoring workflows are optimized with ultra-flexible, user-defined instrument display layouts. Up to 16 instruments can be presented simultaneously, at sizes ranging from full screen down to 1/16 screen. In multi-channel environments, channel identification is simplified with a dedicated window color per channel. Monitoring configurations can be built to suit individual operators and key applications, with rapid recall of layout pre-sets for fast turnarounds. Up to 99 presets are available to suit even the largest facility.
Video Capture & Remote Access
To speed intermittent fault finding, the Rx Series offers video and audio capture to help diagnose problems. The capture can be triggered automatically when faults are identified by the analyzer, according to user-defined criteria. Fault diagnosis is also quickened by the remote access capability, which allows engineers to monitor and analyze video via a web browser from any location.
Four Channel Eye & Jitter Analysis
Advanced diagnostic tools include up to four simultaneous Real-Time Eye™ and Jitter physical layer analysis instruments plus closed caption, loudness and Dolby® monitoring. This makes the Rx Series ideal for OB trucks, broadcast facilities and video technology manufacturers.
